Kronen KG-453 Quick start guide

Vegetable Slicer
Type: KG-453
Translation of the
Original Instruction Manual
English

Instruction Manual KG-453
2
Instruction Manual KG-453
Version: 2.2
Date of release: 10.08.2018

Instruction Manual KG-453
3
Contents
1. General Information...................................................................................4
2. Safety......................................................................................................... 8
3. Technical Characteristics......................................................................... 10
4. Installation and Function.......................................................................... 11
5. Transportation and Packaging................................................................. 17
6. Installation and Initial Operation............................................................... 18
7. Use and Operating................................................................................... 20
8. Malfunctions............................................................................................. 31
9. Maintenance ............................................................................................ 33
10. Appendix.................................................................................................. 36
11. Index........................................................................................................ 38

Instruction Manual KG-453
4
1. General Information
Always keep the instruction manual and all the other documents near the vege-
table slicer. Before using the machine the first time, make sure that you read the
instruction manual first.
Explanation of the symbols used in the documents
Limitation of liability
If you do not follow the instruction manual, the manufacturer is not liable.
Manufacturer
Kronen Küchengeräte GmbH
Gewerbestr. 3
D-77731 Willstätt
Phone: [phone]
Fax: [phone]
[email protected]
Caution, risk of injury! Follow the instruction to avoid in-
juries.
Attention, you have to follow the instructions to avoid
harm for you and the machine.

Instruction Manual KG-453
5
Defects and Claims
1. Claims based on material defects shall be subject to a limitation period of 2
years after surrender of the merchandise. The Seller does not assume any liability
for material defects in pre-owned merchandise.
2. We will, at our discretion, make new delivery for or subsequently improve any
and all rendered services which are verifiably determined to be defective as a
consequence of circumstances existing before the transfer of risk.
3. We reserve title to any and all parts which have been replaced.
4. In particular, no warranty will be assumed for damage or loss resulting from
the following causes, but for which we are not accountable:
Natural wear and tear, intervention or repair work improperly performed by
the Buyer or third parties, unsuitable or incorrect use, incorrect operation, in-
stallation, commissioning, incorrect or negligent handling, improper mainte-
nance, use of unsuitable operating materials and cleaning agents, chemical,
electrochemical or electrical factors, any modifications of the merchandise
performed without our consent.
5. The Buyer shall allow the Seller the necessary time and opportunity to perform
any subsequent improvement or substitute delivery which we regard, in our rea-
sonable judgment, to be necessary.
6. In the event of legitimate complaints, the Seller shall bear the immediate costs
of the subsequent improvement or substitute delivery. The total costs which we
must bear shall be limited to the value of the order in the event that the places of
delivery are outside the territory of Germany.
7. In cases in which the Buyer shares accountability for causing the defect, in
particular in the event of breach of the obligation to prevent and reduce loss or
damage, the Seller reserves the right to assert a corresponding damage com-
pensation claim.
8. The Buyer shall, at his discretion, have the right to cancel the contract if and
when –taking into account the statutory exceptions –a period which has been
set for us for subsequent improvement or substitute delivery due to material de-
fects has lapsed in vain.
9. The Buyer’s rights arising from the liability for material defects may not be as-
signed without the Seller’s consent.

Instruction Manual KG-453
6
Terms and Conditions of Warranty
1. The Seller hereby grants to the end customer a warranty for newly manufac-
tured Kronen Küchengeräte GmbH appliances, provided that they remain in Ger-
many. The warranty period shall be 12 months as of the delivery of the appliance
to the end customer, but shall not exceed 18 months from the dispatch of the
appliance from the works.
2. Kronen Küchengeräte GmbH will perform subsequent improvement or substi-
tute delivery of the defective parts within the scope of the warranty, provided that
the functional capability of the Kronen Küchengeräte GmbH appliance has been
significantly impaired. Further claims within the scope of the warranty are ex-
cluded.
Following notification in due time of a warranty case, the Kronen Küchengeräte
GmbH service department will decide how the defect is to be remedied and will
discuss the subsequent actions with the customer, engaging an Kronen
Küchengeräte GmbH authorised customer service centre if necessary. If and
when the appliance must be shipped to aservice centre for repair within the scope
of the warranty, shipment shall be made at the customer’s expense and risk.
3. Warranty claims are excluded in the following cases:
- Normal wear and tear
- Incorrect installation of the appliance
- Willful damage or incorrect operation
- Damage caused by calcium deposits
- Damage caused by inspection or repair by persons who are not authorised
by Kronen Küchengeräte GmbH
4. Kronen Küchengeräte GmbH restricts the terms and conditions of warranty for
appliances which are intended for sale abroad. In such cases, Kronen Küch-
gengeräte GmbH grants a warranty covering the original Küchengeräte GmbH
spare parts. This warranty covers the functional capability of the spare parts, pro-
vided that they are installed correctly. Kronen Küchengeräte GmbH shall provide
a replacement part in the event of a functional defect. No installation or personnel
expenses which may be incurred will be assumed.
The warranty in this case is limited to 12 months as of the transfer of risk.
5. The warranty services described above are subject to the condition that all
required maintenance and care work is carried out by a customer service author-
ised by Kronen Küchengeräte GmbH and that any and all care and operational
instructions from Kronen Küchengeräte GmbH have been followed.
The warranty may not be transferred without the written consent of Kronen
Küchengeräte GmbH.
6. Kronen Küchengeräte GmbH grants a function warranty of 6 months for each
and every original Kronen Küchengeräte spare part, provided that it has been
installed correctly. Kronen Küchengeräte GmbH shall provide an original part in

Instruction Manual KG-453
7
the event of failure. No further claims, including claims for the cost of the replace-
ment, can be acknowledged. Parts which are subject to above-average wear and
tear by the operator are excluded from the above warranty cover.
Copyright Protection
It is forbidden to copy all the documents delivered with the vegetable slicer partly
or completely without the permission of the manufacturer.
Disposal of the Machine
The slicer, respectively all the parts have to be disposed recycled according to
the local rules and laws. It is forbidden to dispose the slicer with the household
garbage.

Instruction Manual KG-453
8
2. Safety
General Sources of Danger
That is why, we advise you to respect and follow the safety instructions.
-Make sure that unauthorized persons or untrained persons do not start
and work with the slicer. Only persons under 14 years of age are per-
mitted. For persons with limited physical or mental abilities, this is per-
mitted under supervision.
-It is strictly prohibited to change or remove all the safety appliances on
the vegetable slicer because this could result in serious danger for the
user.
-While you are using the machine stay concentrated and never get dis-
tracted.
-Just slice goods which are listed in the instruction manual.
-Always keep your working environment clean and dry to make sure you
don’t slip and fall.
-Don’t put objects on the slicer which don’t belong there and don’t use
the machine as a storage place
-Before you clean the slicer make sure that the machine is disconnected
from the power outlet.
-Turn off the slicer as soon as you hear unfamiliar noises or you have the
feeling you might get injured.
Wrongful use or limited knowledge of the safety instruc-
tions could result in accidents and injuries on hands and
fingers.

Instruction Manual KG-453
9
Intended Use
The Vegetable Slicer is a technical tool which exclusively should be used for its’
intended purpose.
Its only purpose is to slice vegetables in disks, stripes and cubes. You are also
able to grate the vegetables. To achieve the results you want you have to use the
intended slicing disks in the intended chutes.
Approved foods are fruits, vegetables, mushrooms, nuts, cheese and bread. You
can process the food raw or cooked. Under no circumstances can the food be
frozen.
Any different use of the machine is strictly forbidden.
A misuse of the machine could occur if one uses no or a wrong slicing disk. A
overfilling of the slicer could also result in a misuse of the machine. It can also
lead to a failure to operate the machine when the ejector is not installed. This can
lead to a blockage of the vegetable cutter.
The vegetable slicer is intended for industrial use and only should be used by
trained workers of the company.
Personal protective equipment is not needed for the use of the slicer. Stricter
company rules still apply.
It is strictly prohibited to make any reconstructions on the vegetable slicer.
The full responsibility for the intended use and the compliance with safety instruc-
tions takes the operating company.
In case of an emergency turn off the machine by pushing
the RED-button, this turns off the engine immediately.

Instruction Manual KG-453
10
3. Technical Characteristics
Weight: 60 kg
Dimensions (WxDxH): 750 x 675 x 1485 mm
Connected load:
Line voltage 380-440 V
Mains frequency 50/60 Hz (±5%)
Electricity 3.5 A
Operating conditions:
Temperature 0°C till +40°C
Humidity max. 90% no conden-
sation water)
Noise emission: Emission sound level LpA* -- dB (A) ± -- dB
Vibrations: vibrations are possible
but insignificant
Requirements for
intended place: - horizontal and flat
- Not slippery
Performance data
and - limits: Net power 1500 W
Speed 250/350/450 r.p.m.
Recommended mains fuse 16 A
Non-ionizing radiation:
Non-ionizing radiation is not produced specific, but only technically limited by the
electrical equipment (e.g. electric motors, power lines, or magnetic coils) deliv-
ered. In addition, the machine has no strong permanent magnets. In compliance
with a safety distance (distance to source field implant) of 30 cm, the influence of
active implants (e.g. pacemakers, defibrillators) can be excluded with high prob-
ability.
* EN ISO 11201: 2009 (class of accuracy 2)

Instruction Manual KG-453
11
4. Installation and Function
Depending on what slicing disk, the vegetable slicer processes food into disks,
stripes or similar. The slicing disks are to be installed in the small and the big
chute. The processed food falls out the vertical chute.
The vegetable slicer is powered by a worm gear.
Included in delivery
Delivery includes the fully assembled vegetable slicer consisting of base, body,
lid, ejector and the handle for pushing the vegetable or fruit into the slicing de-
partment. Also in the box are all the documents including the instruction manual,
circuit plan and the optional slicing disks.
Type Plate
The label is at the back of the vegetable slicer.
It includes following information:
−Manufacturer and Address
−Type
−Serial number
−Year of construction
−Nominal voltage
−Line voltage
−Mains frequency

Instruction Manual KG-453
12

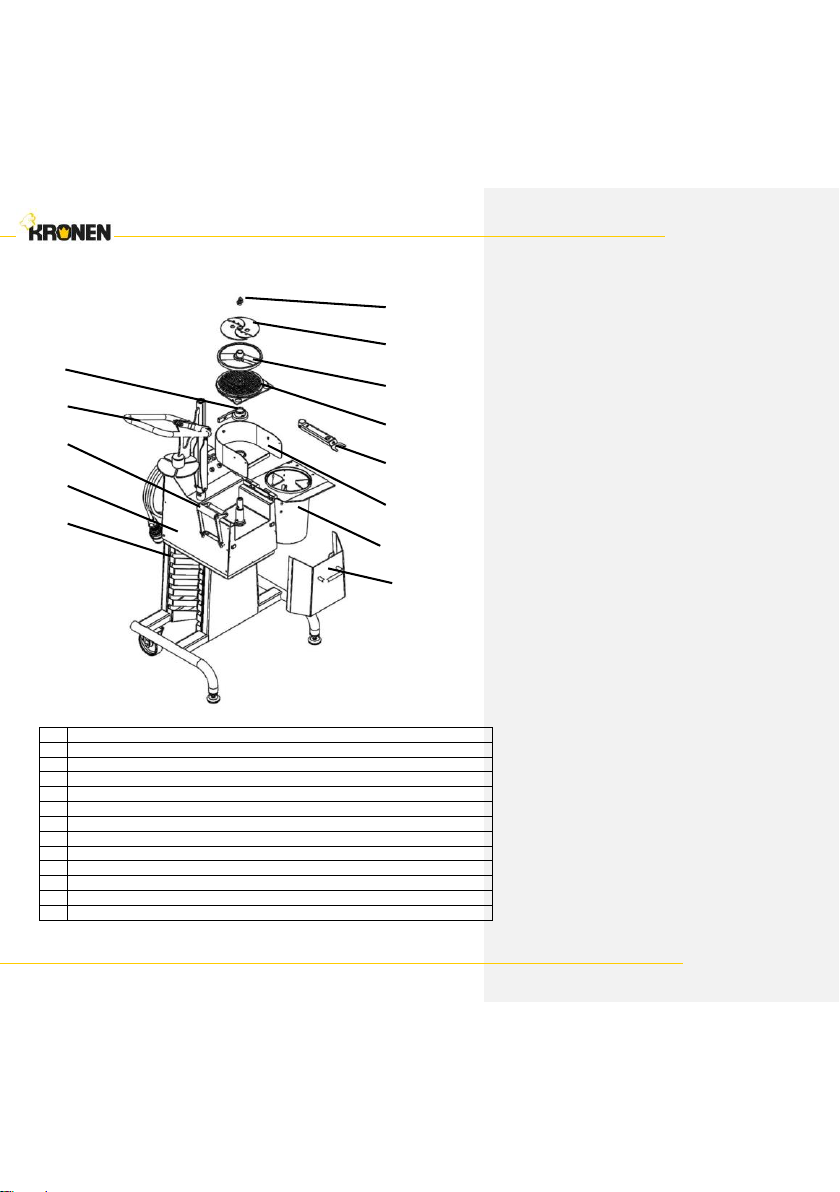

Parts and Description
−Base (1): On this mobile base, the vegetable slicer is mounted, the more
it is used to store the slicing disks.
−Body (2): built out of stainless steel; fundamental base for the vegetable
slicer.
−Lid (3): the removable lid makes sure that there is no unintended con-
tact with the slicing chute.
−Pushing handle (5): with the pushing handle it is possible to push the
food with a constant force into the big slicing chute.
−Cover (6): It serves as a protection against reaching into the slicing
chamber and is removable for cleaning.
−Collecting container (7): the sliced products fall into the collecting con-
tainer. To make the cleaning easy the collecting container is removable.
You can also use the collecting container for optional cube gates.
−Ejector (8): the ejector is responsible for the transport of the processed
food to the ejection chute.
−Slicing disks (9): the slicing disks are responsible for the right of the
food. They come in different versions which are to be installed depend-
ing on what the result should look like.
−Remover (15): the remover is responsible for slicing a hole in big ma-
terial, so that the slicing process doesn’t get interrupted.
−Tool (16): The tool is intended for loosening the Remover.

Instruction Manual KG-453
13
Assembled Parts
1
Base with slice tray
2
Body
3
Lid with big chute
4
Lid clip
5
Pushing handle
6
Cover
7
Collecting container
8
Ejector
9
Slicing disk
15
Remover
16
Tool for loosen the remover
17
Cube grate
18
Slicing disk for cube grate
8
5
4
2
1
15
9
18
17
16
7
3
6

Instruction Manual KG-453
14

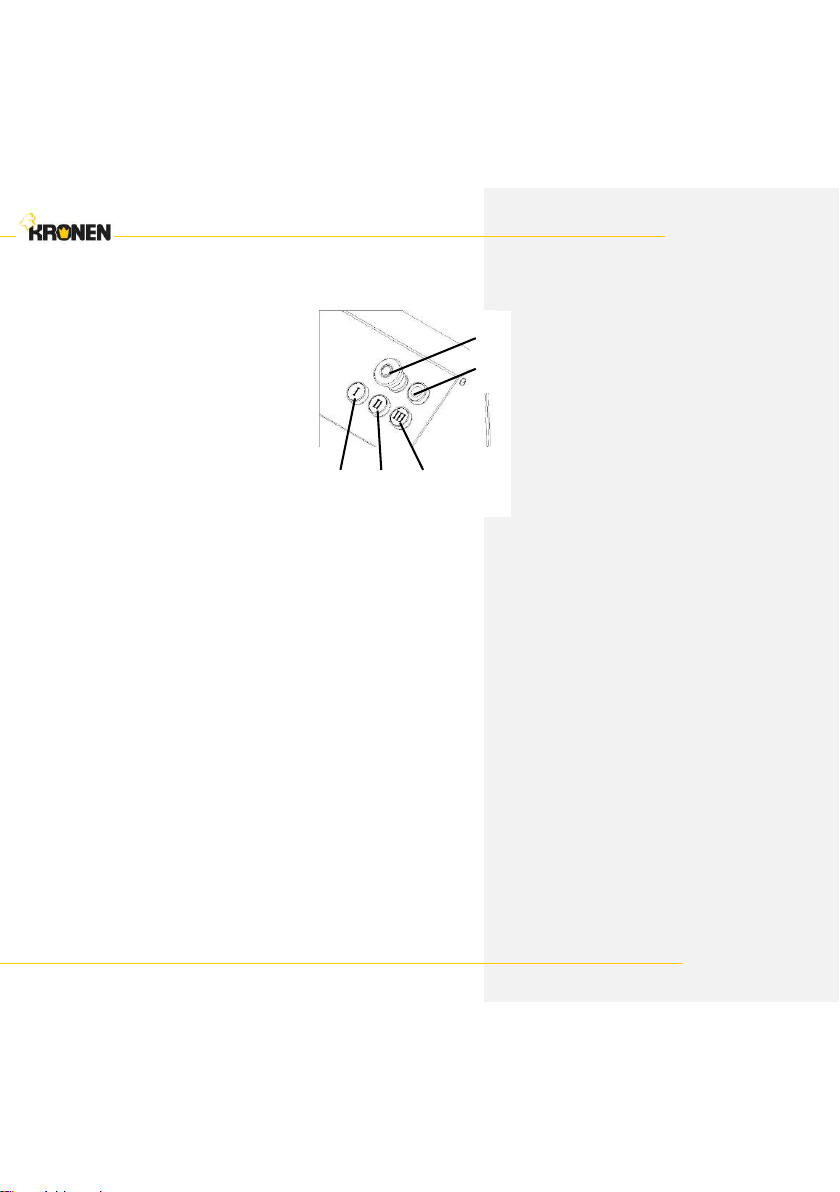

Operating Elements
The vegetable slicer has five push buttons. By
pushing the green button (10), you start the en-
gine, by pushing the red button (11) you stop the
engine. Around the green button (10) is a frame
to avoid an unintended turn on of the machine. On
the other hand, the red button (11) is elevated to
make a turn off easier.
To choose between the different engine speeds
you need to use the three white buttons, which
are marked with the numbers I, II, III they also
represent the speed levels. Speed level I(button
12) is 250 rpm, level II (button 13) 350 rpm and
level III (button 14) is 450 rpm.
After you turn on the machine speed level Iis in use. By pushing one of the other
two buttons, you can pick different speed levels. When you turn off the machine
by moving the pushing handle (5) the speed level will not change.
When you turn off the machine by pushing the red button (11) or opening the lid
(3) the speed level resets to level I. The glowing of the corresponding button
indicates the active speed level.
11
10
12 13 14

Instruction Manual KG-453
15
Safety Appliance
The safety appliance consists of:
-Starting the machine by pushing green button (10).
-Switch in the case, the vegetable slicer can only be started and operated
when the lid (3) or the hopper lid (23)is closed. When opening the lid
(3), or of the hopper lid (23)switches the vegetable slicer automatically.
-Switch in the case, the vegetable slicer can only be operated and started
when the cover (6) is attached. When removing the cover (6) on the
vegetable slicer automatically.
-Switch in the housing, which is operated by the pivoting of the pushing
handle (5), or safety guard (21). The pushing handle (5) automatically
stops the engine when it is pivoted away from the fill opening to the left.
When swinging back of the pushing handle (5) the motor will start auto-
matically.
-Engine overheating protection that turns off engine immediately if there
is any possibility of overheating.
-Fusible slice- out, in case of over current to protect all the other safety
appliances.
Advice: In case of loss of power or one of the safety appliances is active, not
including the pushing handle, you have to start the machine again by pushing the
green button.

Instruction Manual KG-453
16

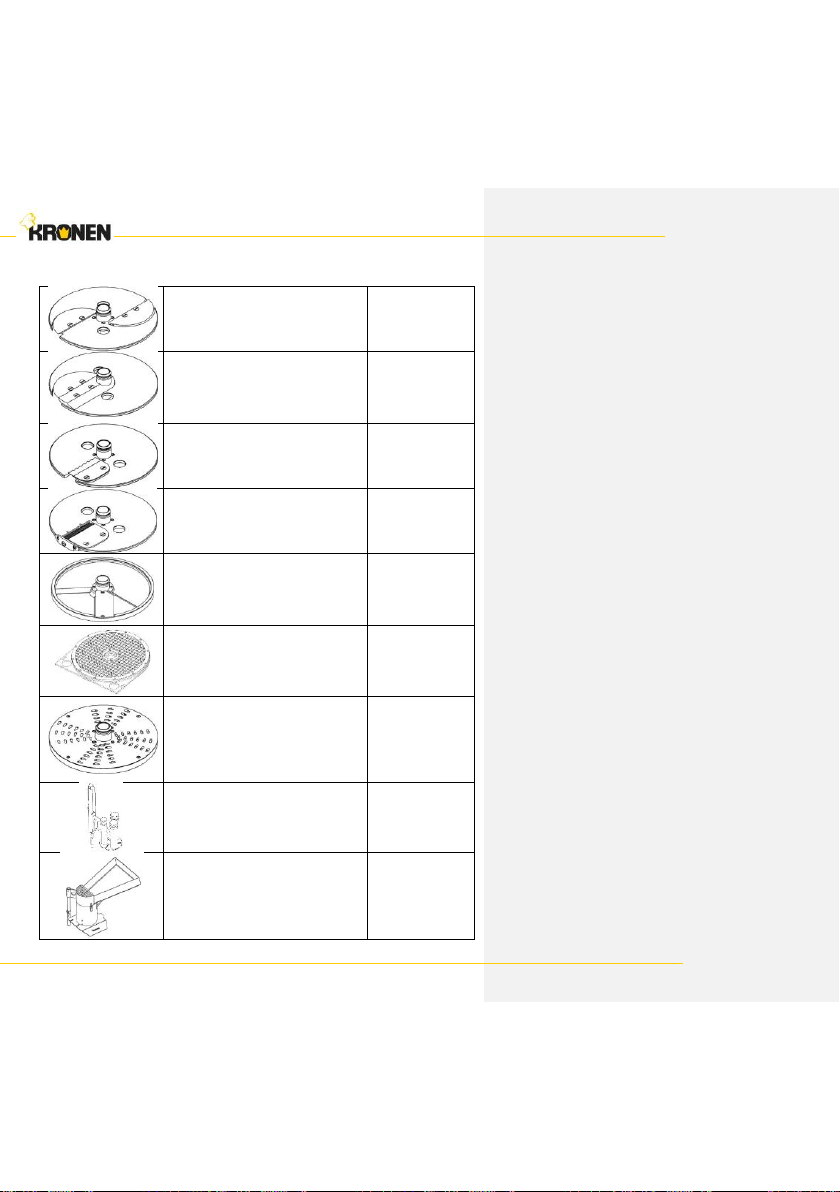

Accessories
Slicing disk for fine-slice with 2
knives
1 mm
2 mm
3 mm
Slicing disk for gross-slice with one
knife
4 mm
5 mm
8 mm
6 mm
10 mm
Slicing disk for raffle slice
4 mm
Slicing disk for Julienne-slice
2,2x2,2 mm
2,5x2,5 mm
4x4 mm
6x6 mm
Slicing disk for use with cube grate
7,5 mm
10 mm
12,5 mm
15 mm
20mm
Cube grate
7,5x7,5 mm
10x10 mm
12,5x12,5 mm
15x15 mm
20x20 mm
Raffle- and grating disk
2 mm
3 mm
4 mm
6 mm
8 mm
Grating disk
3-Tube feeder
Hopper

Instruction Manual KG-453
17
5. Transportation and Packaging
Always transport the slicer in the intended box.
Always transport the machine upright and make sure slicer is secured.
In case there is more than one slicer on the pallet do not put another pallet on top
of it.
Check the box of possible damages when the machine is shipped.
In case of damages, talk to the responsible shipping company.
Open the box by slicing the tape with a tape slicer. Do not use sharp knives.
Lift the vegetable slicer out of the box and put it on the table.
Make sure that shipment consists out of the things you ordered. In case the ship-
ment is not complete talk to the responsible salesman.
There are no transportation devices installed on the vegetable slicer.
Dispose or recycle the machine according to the local laws.
Store the vegetable slicer at a temperature between -10 till +40°C. The maximum
humidity is 90% without condensation water.
Always lift and hold the machine at the body. Never at the
lid or at the pushing handle.

Instruction Manual KG-453
18
6. Installation and Initial Operation
The vegetable slicer is shipped ready for use. This does not include the slicing
disks which have to be ordered separately. The installation and the initial opera-
tion can be done by the user
The table has to fulfill certain requirements:
-Horizontal and flat
-Not slippery
After the vegetable slicer is at work, you can place it on the front two feet hori-
zontally. Plug the cord into the intended outlet. The mains plug have to be viewed
and easily accessible at any time by the operator.
Before you do that, make sure that the required specifications on the label are
fulfilled. In case they don’t match don’t plug in the machine or turn it on. In this
case, call the responsible customer service.
The outlet has to comply with the CEE 7/7 standards.
The electrical equipment must be by a faulty circuit breaker (FI)
and a 16 amp fuse to be protected.
In normal operation of the Vegetable slicer leakage can occur > 3.5 mA.
A conventional residual current device (RCD) as a protective device is not per-
mitted. Use a residual current device (RCD) of type B.

Instruction Manual KG-453
19
Before the first use make sure you cleaned the slicer. Follow the instructions in
chapter “7 Use and Operating” passage cleaning.
Check the following points with slicing disks not installed.
-Check if the engine turns off when you move the pushing handle to the
left side and if the engine turns back on when you move the pushing
handle back to the right.
-Check if you can turn on the machine when the lid is open.
-Make sure the vegetable slicer cannot be turned on when the cover is
removed.
In case the machine is not working properly it needs to get fixed by your cus-
tomer service.

Instruction Manual KG-453
20
7. Use and Operating
Safety instruction for operating the slicer
Description of danger symbols
A general danger symbol, a non-compliance with the safety regulations means
danger.
Prohibition sign "Do not grab inside" (pictogram P015 ac-
cording to EN ISO 7010)
The sign forbids access to the ejector during operation.
It is strictly prohibited to put your fingers in the ejector
while the machine is running. The risk of injury is too
high.
The slicing disks have sharp knives. Be careful when
touching the slicing disks to avoid injuries.
The use of the ejector is absolutely necessary. When not
in use it can lead to jamming of the machine. When not in
use, it can also lead to injury from the rotating shaft.
