OPERATING INSTRUCTIONS
efuturo mobile charging station

2
www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com
OPERATING INSTRUCTIONS
efuturo mobile charging station
Introduction
Dear customer!
You have chosen a product from efuturo. We thank you for placing your trust in efuturo and our products. In this
manual, you will find all the information you need for safe and proper use. Therefore, read the manual completely before
use and always follow the instructions contained in the manual.
General
These instructions will help you to take the device into operation and to operate it without malfunction or risk.
!
Read the manual before you take the device into operation.
This manual will help you to:
• avert dangers
• familiarise yourself with the device
• achieve optimum function
• identify and remedy defects in good time
• avoid malfunctions due to improper installation
• prevent repair costs and downtimes
• increase the reliability and lifetime of the device
• prevent risks to the environment
The manual is an important part of the product and must be kept for future reference.
efuturo GmbH does not accept liability for damage caused by failure to observe the instructions in this manual.
Intended use
Testing: If in doubt, have the charging infrastructure checked for suitability by a qualified electrician.
With our MODE 2 charging stations, you can charge your electric or hybrid vehicle at a suitable charging infrastructure.
Any other use is not permitted and is therefore contrary to the intended use. The charging station is only safe if this
operator‘s manual and the documentation for the vehicle are observed.
• Before using the charging station, read this operator‘s manual and the documentation for your vehicle
• Non-observance of the instructions in this operator‘s manual and on the device can lead to personal injury or damage
to property, such as electric shock, short circuit or fire

3
www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com
OPERATING INSTRUCTIONS
efuturo mobile charging station
Use contrary to the intended use
!
This is a Mode 2 charging station that is only suitable for electric vehicles with a Type 2 socket.
Do not use it for electric vehicles with sockets of other types.
Use contrary to the intended use increases the risk of personal injury and damage to property. The following in particular
are prohibited:
• Changing or manipulating the charging cable/charging station
• Connecting the charging cable to a faulty or unsuitable charging infrastructure, e.g. one that is not designed for a
corresponding continuous load
• Using a defective charging cable
The user is responsible for all personal injury and damage to property resulting from use contrary to the intended use.
efuturo GmbH does not accept liability for operating errors and damage resulting from use contrary to the intended use.

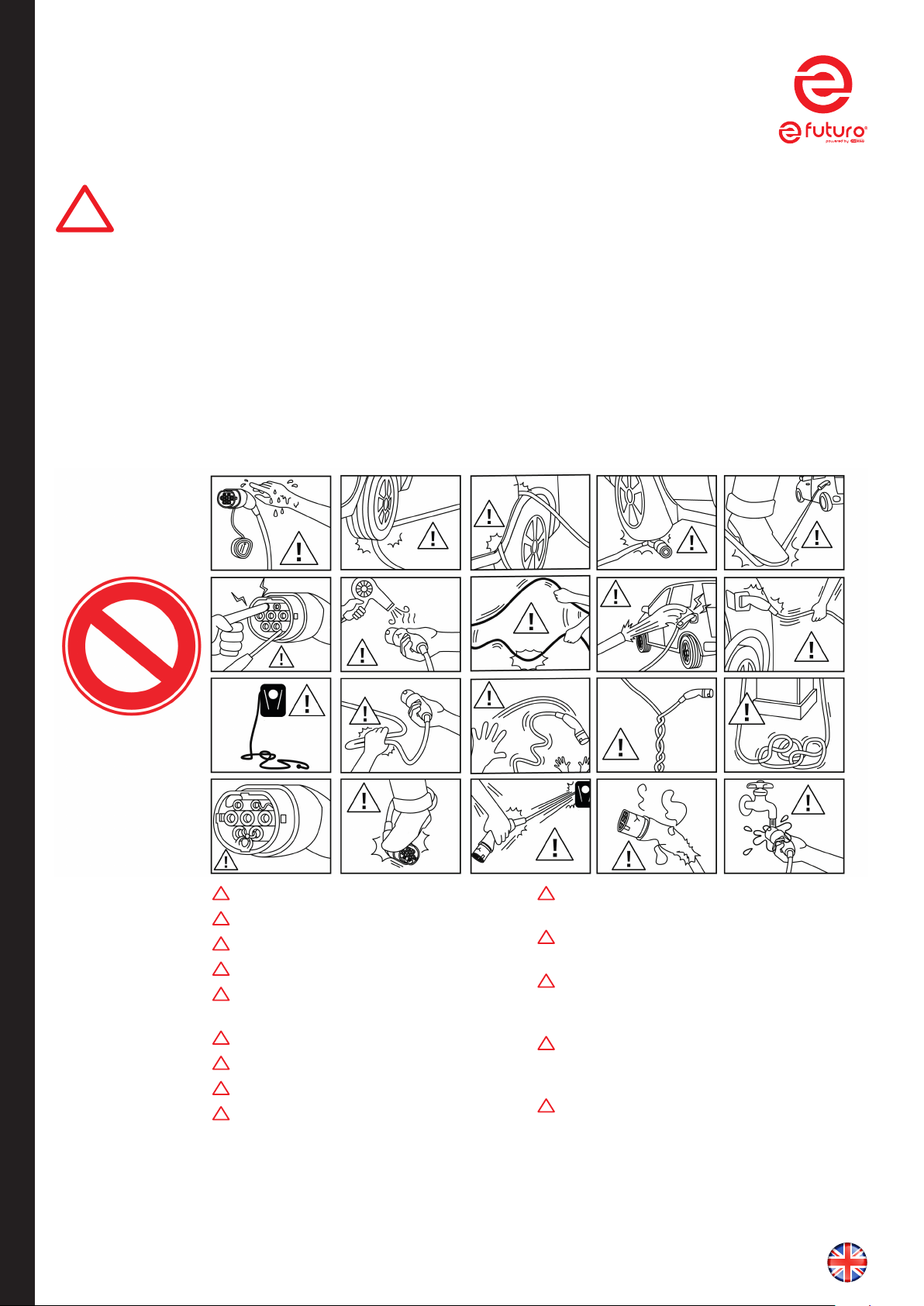

Basic safety instructions
!
Do not drive over the plug
!
Do not drive over the charging cable
!
Do not squash the charging cable
!
Do not drive over the charging station
!
Only pull the charging cable out of the
charging socket directly at the plug
!
Do not heat the plug and cable
!
Do not kink the cable
!
Do not twist the cable
!
Keep children away from the charging
cable
!
Keep animals away from the charging
cable
!
Do not use adapter plugs or extension
cables
!
Connect the charging cable to a suitable
charging infrastructure that does not have
any defects
!
Protect plug connections and plug-and-
socket devices against moisture and
liquids
!
Do not use the charging cable in
potentially explosive environments
containing flammable liquids, gases or
dust

4
www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com
OPERATING INSTRUCTIONS
efuturo mobile charging station
Technical data
Model efuturo universal efuturo universal max efuturo universal pro
Connector on vehicle side Type 2 Type 2 Type 2
Charging mode Mode 2 Mode 2 Mode 2
Standard / directive EN 61851-21-2: 2017 EN 62752: 2016 EN 62752: 2016
Protection class IP 66 IP 66 IP 65
Working temperature -40°C to +75°C -40°C to +75°C -30°C to +75°C
Dimensions of housing 56 x 105 x 245 mm 56 x 105 x 245 mm 56 x 105 x 235 mm
Plug on mains side Earthed plug Earthed plug Earthed plug
Certification CE, RoHS TÜV, CE, RoHS CE, RoHS
Charging capacity up to 3.7 kW up to 3.7 kW up to 3.7 kW
Nominal voltage 230 V 230 V 230 V
Nominal frequency 50 Hz 50 Hz 50 Hz
Rated current 10 A, 16 A
adjustable
10 A, 16 A
adjustable
6 A, 8 A, 10 A, 15 A, 16
A adjustable
Length 5.5 m 5.5 m 5.5 m
Overheating protection Yes Yes Yes
Charging time can be selected no no Yes
LCD display no Yes Yes
Operation
!
DAMAGED CHARGING CABLE – FATAL SHOCK HAZARD
Self-test function: The self-test function of the charging cable checks all important parameters when the charging
cable is plugged into the charging infrastructure and only allows charging if all test criteria are met.
A damaged charging cable can lead to serious or fatal injury.
• Check the charging cable for damage (e.g. cracks) before each use
• Do not use a damaged charging cable
Starting charging process
• Uncoil charging cable
• Remove protective cap from the plug on the vehicle side
• Connect power supply to the charging cable, select the current and make the time setting* if necessary
• Connect Type 2 plug on vehicle side
• Start charging process on the vehicle
*Selection of current and time setting:
efuturo universal and universal max:
Use the power button to select the maximum charging current. Select the charging current before plugging in the charging
plug (vehicle side).

5
www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com
OPERATING INSTRUCTIONS
efuturo mobile charging station
efuturo universal pro:
Use the power button to select the maximum charging current. Select the charging current before plugging in the charging
plug (vehicle side).
Use the time setting key to select between 1 and 12 hours (or inactive). This allows you to set how long your charging
process will last. Select the charging time before plugging in the charging plug (vehicle side).
Use the time delay key to start the charging process at a later time. With this function, you can charge your vehicle at
night when electricity is often cheaper. Here too, you can choose between 1 and 12 hours or inactive. Select the time
delay before plugging in the charging plug (vehicle side).
Ending charging process
• As soon as the vehicle is charged, end the charging process
• Ending the charging process on the vehicle
• Disconnect Type 2 plug on vehicle side
• Disconnect power supply to the charging cable
• Put the protective cap on the plug on the vehicle side
• Coil up the charging cable without kinks
• Stow the charging cable properly in the vehicle
Status of the light emitting diodes (LEDs)
efuturo universal:
1 5
2 6
3 7
4 8
Status
Operating mode
Charging mode
Fault
LED display status
Switched on
Charging
Fault
1
2
3
4
5
67 8
efuturo universal max:
1 4
2 5
3 6
LED display status
Separated mode
Connected mode
Charging mode
Charging finished
Fault
1
2 3 4 5 6

6
www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com • www.efuturo.com
OPERATING INSTRUCTIONS
efuturo mobile charging station

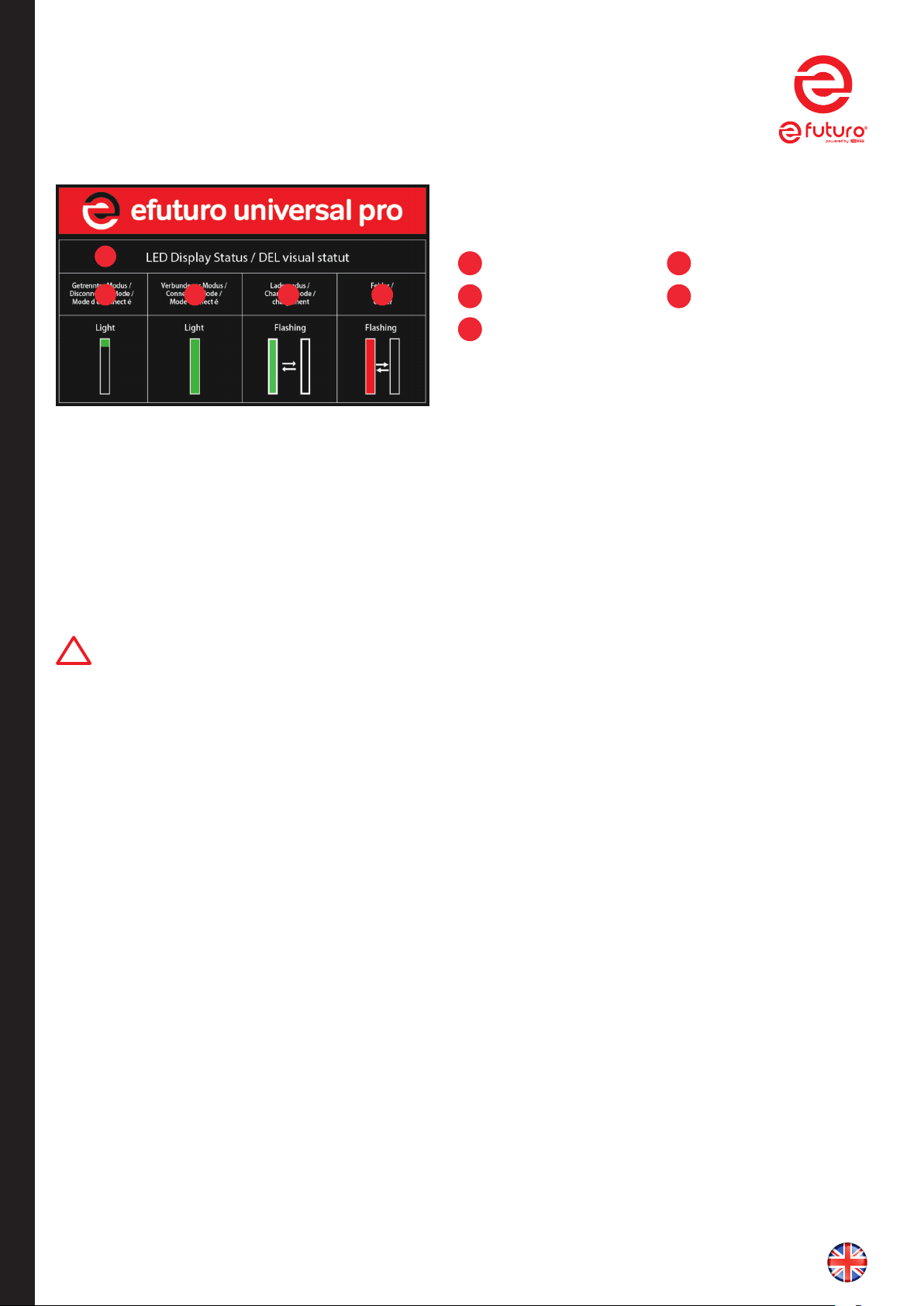

efuturo universal pro:
1
2 3 4 5
1 4
2 5
3
LED display status
Separated mode
Connected mode
Charging mode
Fault
Storage
During normal use, you will generally carry the charging station with you in the vehicle. You can use the carrying bag
provided by efuturo for this purpose. Place the protective caps fitted at the factory on the charging plugs and then coil
up the charging cable without kinks. Now stow it in your vehicle. If you store the charging cable for a relatively long period
of time, you should clean it beforehand.
Cleaning
Depending on the contamination and the conditions of use, the charging cable can be cleaned with a dry or damp cloth.
!
Do not use aggressive cleaning agents
Disposal
The charging station must not be disposed of with household waste.
• Please send the defective device back to us. We will handle the professional disposal on your behalf
• If you have any questions, contact your dealer or disposal company
• Dispose of the packaging material in the waste containers for cardboard, paper and plastic
