KSB Compacta UZ10.450D Installation instructions

Floodable Sewage Lifting Unit
Compacta - Amarex N/KRT
from series S-V/1
Installation/Operating
Manual

Legal information/Copyright
Installation/Operating Manual Compacta - Amarex N/KRT
Original operating manual
KSB Aktiengesellschaft Frankenthal
All rights reserved. Contents provided herein must neither be distributed, copied, reproduced, edited
or processed for any other purpose, nor otherwise transmitted, published or made available to a third
party without KSB´s express written consent.
Subject to technical modification without prior notice.
© KSB Aktiengesellschaft Frankenthal 01.11.2011

Contents
Glossary ................................................................................................ 5
1 General ................................................................................................ 7
1.1 Principles .......................................................................................................... 7
1.2 Installation of partly completed machinery .................................................. 7
1.3 Target group ................................................................................................... 7
1.4 Other applicable documents .......................................................................... 7
1.5 Symbols ............................................................................................................ 7
2 Safety ................................................................................................... 8
2.1 Key to safety symbols/markings ..................................................................... 8
2.2 General ............................................................................................................ 8
2.3 Intended use .................................................................................................... 8
2.4 Personnel qualification and training ............................................................. 9
2.5 Consequences and risks caused by non-compliance with these operating
instructions ...................................................................................................... 9
2.6 Safety awareness ............................................................................................. 9
2.7 Safety instructions for the operator/user .................................................... 10
2.8 Safety instructions for maintenance, inspection and installation work .... 10
2.9 Unauthorised modes of operation ............................................................... 10
2.10 Note on explosion protection ...................................................................... 10
3 Transport/Temporary Storage/Disposal ........................................... 11
3.1 Checking the condition upon delivery ......................................................... 11
3.2 Transport ....................................................................................................... 11
3.3 Storage/Preservation ..................................................................................... 12
3.4 Return to supplier ......................................................................................... 12
3.5 Disposal .......................................................................................................... 13
4 Description ........................................................................................ 14
4.1 General description ....................................................................................... 14
4.2 Designation ................................................................................................... 14
4.3 Name plates ................................................................................................... 15
4.4 Design details ................................................................................................ 15
4.5 Configuration and function ......................................................................... 17
4.6 Technical specifications ................................................................................. 17
4.7 Fluids handled ............................................................................................... 18
4.8 Collecting tank .............................................................................................. 19
4.9 Noise characteristics ...................................................................................... 19
4.10 Scope of supply ............................................................................................. 19
4.11 Dimensions and weights ............................................................................... 19
Contents
Compacta - Amarex N/KRT 3 of 56

5 Installation at Site ............................................................................. 21
5.1 Safety regulations ......................................................................................... 21
5.2 Checking the site before installation .......................................................... 21
5.3 Installing the lifting unit ............................................................................... 21
5.4 Connecting the piping .................................................................................. 22
5.5 Cellar drainage .............................................................................................. 24
5.6 Connection to power supply ........................................................................ 24
5.7 Checking the direction of rotation .............................................................. 24
6 Commissioning/Start-up/Shutdown ................................................. 26
6.1 Commissioning/start-up ................................................................................ 26
6.2 Operating limits ............................................................................................ 26
6.3 Commissioning/start-up of control unit ....................................................... 27
6.4 Shutdown ...................................................................................................... 29
7 Operation .......................................................................................... 31
7.1 Control panel ................................................................................................. 31
7.2 Manual-0-automatic selector switch ............................................................ 33
7.3 Control panel ................................................................................................. 33
8 Servicing/Maintenance ...................................................................... 38
8.1 General information/Safety regulations ...................................................... 38
8.2 Servicing/inspection ...................................................................................... 38
8.3 Dismantling the pump .................................................................................. 40
8.4 Reassembly .................................................................................................... 40
8.5 Tightening torques ....................................................................................... 41
8.6 Disposal/recycling of the lifting unit ............................................................ 41
8.7 Check list for commissioning/inspection ➀ and maintenance ➁ ................ 41
9 Trouble-shooting ............................................................................... 43
10 Related Documents ........................................................................... 45
10.1 General assembly drawing/exploded view and list of components ........... 45
10.2 Connection examples .................................................................................... 48
10.3 Dimensions .................................................................................................... 49
10.4 Wiring diagrams ............................................................................................ 50
11 Certificate of Decontamination ....................................................... 53
12 Draft EC Declaration of Conformity ................................................. 54
Index .................................................................................................. 55
Contents
4 of 56 Compacta - Amarex N/KRT

Glossary
Backflow
Waste water flowing back from the sewer into
the connected drainage piping
Backflow loop
The section of the discharge pipe of a waste
water lifting unit that is located above the
flood level
Certificate of decontamination
A certificate of decontamination certifies that
the unit has been properly cleaned and
decontaminated to eliminate any
environmental and health hazards arising from
components in contact with the fluid handled.
Collecting tank
Unpressurised component of a sewage lifting
unit in which the incoming waste water is
stored prior to automatic lifting
DIN 1986-3 and -30
German standard which stipulates technical
rules for the operation, maintenance and
servicing of drainage systems in buildings and
on premises
Discharge line
Pipe for transporting waste water to a level
above the flood level into the sewer system
DOL starting
For low power ratings (usually up to 4 kW), the
three-phase motor is connected directly to the
mains voltage with an electromechanical
protection device.
Domestic waste water
Faeces-free waste water from washbasins,
showers, washing machines, etc.
Dual-pump unit
Sewage lifting unit containing a duplicate
pumping device which starts up automatically
as necessary
Effective volume
Volume in the collection tank between start
and stop level that can be lifted
EN 12 050-1
European standard governing sewage lifting
units used for the disposal of domestic waste
water produced below the flood level. It
defines general requirements as well as
principles of construction and testing.
EN 12 056-4
European standard governing the selection,
operation and maintenance of sewage lifting
units within buildings and sites.
Flood level
Maximum backflow level of waste water in a
drainage system
Inlet line
Pipe used for draining waste water from
sanitary installations into the lifting unit
Noise characteristics
The noise emission to be expected, indicated as
sound pressure level LpA in dB(A)
Nominal diameter DN
Identifier (inside diameter) used for
characterising mating components such as
pipes, pipe connections and fittings
Separator
Device which uses gravity to prevent any
ingress of harmful substances into the drainage
system by separating these substances from the
waste water, e.g. grease separator
Sewage lifting unit
Device for collecting and automatically lifting
waste water with or without faeces above the
flood level
Stormwater
Water from natural precipitation which has not
been contaminated by any form of use
Vent line
Pipe provided to limit pressure fluctuations
within the sewage lifting unit. The vent line is
led through the roof.
Waste water
Water which has been changed by some type
of use, e.g. domestic waste water
Glossary
Compacta - Amarex N/KRT 5 of 56

Working space
The space required for performing work on the
unit
Glossary
6 of 56 Compacta - Amarex N/KRT

1 General
1.1 Principles
This operating manual is supplied as an integral part of the type series and variants
indicated on the front cover. The manual describes the proper and safe use of this
equipment in all phases of operation.
The name plate indicates the type series/size, the main operating data and the order
number. The series/serial number uniquely identifies the lifting unit and serves as
identification for all further business processes.
In the event of damage, immediately contact your nearest KSB service centre to
maintain the right to claim under warranty.
Noise characteristics (⇨ Section 4.9 Page 19)
1.2 Installation of partly completed machinery
To install partly completed machinery supplied by KSB, please refer to the sub-
sections under Servicing/Maintenance.
1.3 Target group
This manual is aimed at the target group of trained and qualified specialist technical
personnel.
1.4 Other applicable documents
Table 1: Overview of other applicable documents
Document Contents
Sub-supplier product literature Operating manuals and other product literature
of accessories and integrated machinery
components,
operating manual of submersible motor pump
1.5 Symbols
Table 2: Symbols used in this manual
Symbol Description
✓Conditions which need to be fulfilled before proceeding with the
step-by-step instructions
⊳Safety instructions
⇨Result of an action
⇨Cross-references
1.
2.
Step-by-step instructions
Note
Recommendations and important information on how to handle
the product
1 General
Compacta - Amarex N/KRT 7 of 56

2 Safety
All the information contained in this section refers to hazardous situations.
2.1 Key to safety symbols/markings
Table 3: Definition of safety symbols/markings
Symbol Description
!DANGER
DANGER
indicates a high-risk situation which, if not avoided, will result in
death or serious injury.
!WARNING
WARNING
indicates a medium-risk situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION
indicates a hazardous situation which, if not avoided, could
damage the machine and its functions.
Explosion protection symbol
provides information about avoiding explosions in potentially
explosive atmospheres in accordance with EU Directive 94/9/EC
(ATEX).
General hazard
In conjunction with one of the signal words this symbol indicates a
hazard which will or could result in death or serious injury.
Electrical hazard
provides information about protection against electrical voltages.
In conjunction with the signal word CAUTION, this symbol indicates
a hazardous situation for the machine and its functions.
2.2 General
This manual contains general installation, operating and maintenance instructions
that must be observed to ensure safe operation of the lifting unit and prevent injury
and damage to property.
The safety information in all sections of this manual must be complied with.
This manual must be read and completely understood by the specialist personnel/
operators responsible prior to installation and commissioning.
The contents of this manual must be available to the specialist personnel at the site
at all times.
Instructions attached directly to the lifting unit must always be complied with and be
kept in a perfectly legible condition at all times. This applies to, for example:
▪Arrow indicating the direction of rotation
▪Markings for connections
▪Name plate
The operator is responsible for ensuring compliance with all local regulations not
taken into account in this manual.
2.3 Intended use
The lifting unit must only be operated within the operating limits described in the
other applicable documents.
▪The lifting unit must only be operated when in perfect technical condition.
▪Do not operate partially assembled lifting units.
!DANGER
2 Safety
8 of 56 Compacta - Amarex N/KRT

▪The lifting unit must only handle the fluids described in the product literature of
the respective design variant.
▪Never operate the lifting unit without the fluid to be handled.
▪Observe the information on minimum flow rates specified in the product
literature (to prevent overheating, bearing damage, etc).
▪Observe the information on maximum flow rates specified in the product
literature (to prevent overheating, mechanical seal damage, cavitation damage,
bearing damage, etc).
▪Do not throttle the flow rate on the suction side of the lifting unit (to prevent
cavitation damage).
▪Consult the manufacturer about any other modes of operation not described in
the product literature.
Prevention of foreseeable misuse
▪Never exceed the permissible operating limits (pressure, temperature, etc.)
specified in the product literature.
▪Observe all safety information and instructions in this manual.
2.4 Personnel qualification and training
All personnel involved must be fully qualified to install, operate, maintain and
inspect the equipment this manual refers to.
The responsibilities, competence and supervision of all personnel involved in
installation, operation, maintenance and inspection must be clearly defined by the
operator.
Deficits in knowledge must be rectified by means of training and instruction
provided by sufficiently trained specialist personnel. If required, the operator can
commission the manufacturer/supplier to train the personnel.
Training on the lifting unit must always be supervised by technical specialist
personnel.
2.5 Consequences and risks caused by non-compliance with these operating
instructions
▪Non-compliance with these operating instructions will lead to forfeiture of
warranty cover and of any and all rights to claims for damages.
▪Non-compliance can, for example, have the following consequences:
–Hazards to persons due to electrical, thermal, mechanical and chemical
effects and explosions
– Failure of important product functions
– Failure of prescribed maintenance and servicing practices
– Hazard to the environment due to leakage of hazardous substances
2.6 Safety awareness
In addition to the safety information contained in this manual and the intended use,
the following safety regulations shall be complied with:
▪Accident prevention, health and safety regulations
▪Explosion protection regulations
▪Safety regulations for handling hazardous substances
▪Applicable standards and laws
2 Safety
Compacta - Amarex N/KRT 9 of 56

2.7 Safety instructions for the operator/user
▪The operator shall fit contact guards for hot, cold and moving parts and check
that the guards function properly.
▪Do not remove any contact guards while the pump is running.
▪Provide the personnel with protective equipment and make sure it is used.
▪Contain leakages (e.g at the shaft seal) of hazardous fluids handled (e.g.
explosive, toxic, hot) so as to avoid any danger to persons and the environment.
Adhere to all relevant laws.
▪Eliminate all electrical hazards. (In this respect refer to the applicable national
safety regulations and/or regulations issued by the local energy supply
companies.)
2.8 Safety instructions for maintenance, inspection and installation work
▪Modifications or alterations of the lifting unit require the manufacturer's prior
consent.
▪Use only original spare parts or parts authorised by the manufacturer. The use of
other parts can invalidate any liability of the manufacturer for resulting damage.
▪The operator ensures that all maintenance, inspection and installation work is
performed by authorised, qualified specialist personnel who are thoroughly
familiar with the manual.
▪Carry out work on the lifting unit during standstill only.
▪The pump casing must have cooled down to ambient temperature.
▪Pump pressure must have been released and the pump must have been drained.
▪When taking the lifting unit out of service always adhere to the procedure
described in the manual.
▪Decontaminate lifting units which handle fluids posing a health hazard. (⇨
Section 8.1 Page 38)
▪As soon as the work is complete, re-install and/or re-activate any safety-relevant
and protective devices. Before returning the product to service, observe all
instructions on commissioning. (⇨ Section 6.1 Page 26)
▪Make sure the lifting unit cannot be accessed by unauthorised persons (e.g.
children).
2.9 Unauthorised modes of operation
Always observe the limits stated in the product literature.
The warranty relating to the operating reliability and safety of the lifting unit
supplied is only valid if the equipment is used in accordance with its intended use.
2.10 Note on explosion protection
DANGER
Never use sewage lifting units in potentially explosive atmospheres.
2 Safety
10 of 56 Compacta - Amarex N/KRT

3 Transport/Temporary Storage/Disposal
3.1 Checking the condition upon delivery
1. On transfer of goods, check each packaging unit for damage.
2. In the event of in-transit damage, assess the exact damage, document it and
notify KSB or the supplying dealer (as applicable) and the insurer about the
damage in writing immediately.
3.2 Transport
DANGER
Lifting unit falling off the pallet
Risk of injury by falling lifting unit!
▷Always transport the lifting unit in horizontal position.
▷Give due attention to the weight data and the centre of gravity.
▷Never suspend the lifting unit by its power cable.
▷Use suitable, approved transport equipment, e.g. crane, forklift or pallet trucks.
Table 4: Weight
Sizes Weight
Per pump Lifting unit1)
[kg] [kg]
UZ10.450D
UZ10.900D
85
85
305
380
UZ11.450D
UZ11.900D
87
87
315
390
UZ12.450D
UZ12.900D
142
142
400
485
UZ13.450D
UZ13.900D
153
153
420
505
UZ14.450D
UZ14.900D
180
180
470
555
UZ15.450D
UZ15.900D
180
180
470
555
✓The lifting unit has been checked for in-transit damage.
1. Use suitable transport equipment (in acc. with weights table).
2. Transport the tank/pump to the place of installation.
3. Remove the transport fixtures.
4. Use suitable lifting gear to set the tank/pump down at the place of installation
(as shown).
1) Weight of the lifting unit without water fill
3 Transport/Temporary Storage/Disposal
Compacta - Amarex N/KRT 11 of 56

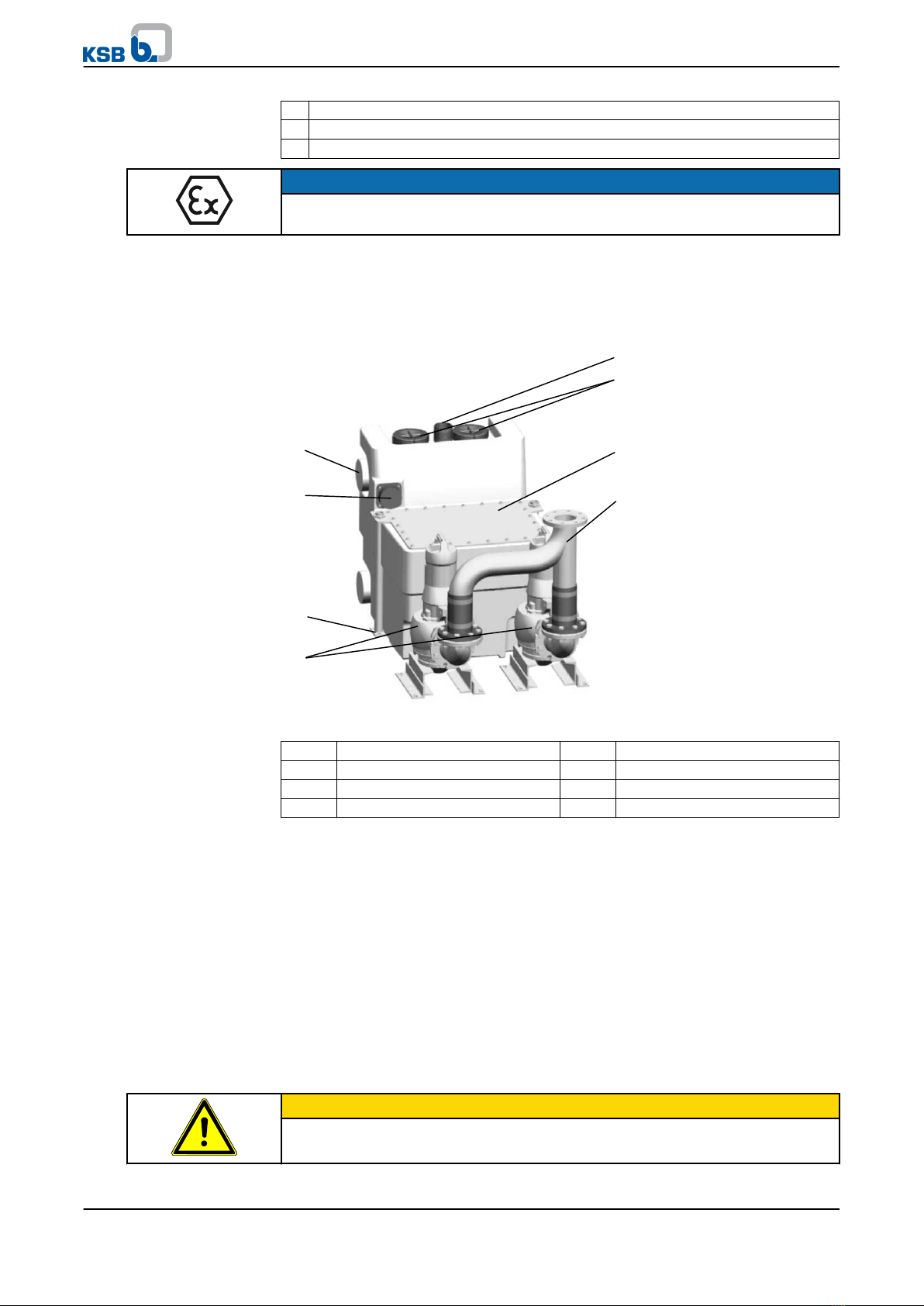

Fig. 1: Transporting the tank and the pump
3.3 Storage/Preservation
If commissioning is to take place some time after delivery, we recommend that the
following measures be taken for storing the lifting unit:
CAUTION
Damage during storage by frost, humidity, dirt, UV radiation or vermin
Corrosion/contamination of the lifting unit!
▷Store the lifting unit in a frost-proof, roofed area.
CAUTION
Wet, contaminated or damaged openings and connections
Leakage or damage of the lifting unit!
▷Only open the openings of the lifting unit at the time of installation.
Store the lifting unit in a dry, protected room where the atmospheric humidity is as
constant as possible.
3.4 Return to supplier
1. Drain the pump as per operating instructions.
2. Always flush and clean the pump, particularly if it has been used for handling
noxious, explosive, hot or other hazardous fluids.
3. If the fluids handled by the pump (set) leave residues which might lead to
corrosion damage when coming into contact with atmospheric humidity, or
which might ignite when coming into contact with oxygen, the pump set must
also be neutralised, and anhydrous inert gas must be blown through the pump
for drying purposes.
4. Always complete and enclose a certificate of decontamination when returning
the pump (set).
Always indicate any safety and decontamination measures taken. (⇨ Section 11
Page 53)
NOTE
If required, a blank certificate of decontamination can be downloaded from the KSB web
site at: www.ksb.com/certificate_of_decontamination
3 Transport/Temporary Storage/Disposal
12 of 56 Compacta - Amarex N/KRT

3.5 Disposal
WARNING
Fluids posing a health hazard and/or hot fluids
Hazard to persons and the environment!
▷Collect and properly dispose of flushing liquid and any residues of the fluid
handled.
▷Wear safety clothing and a protective mask, if required.
▷Observe all legal regulations on the disposal of fluids posing a health hazard.
1. Dismantle the pump (set).
Collect greases and other lubricants during dismantling.
2. Separate and sort the pump materials, e.g. by:
- Metals
- Plastics
- Electronic waste
- Greases and other lubricants
3. Dispose of materials in accordance with local regulations or in another controlled
manner.
3 Transport/Temporary Storage/Disposal
Compacta - Amarex N/KRT 13 of 56

4 Description
4.1 General description
Sewage lifting units for the collection and automatic lifting of unpressurised waste
water with or without faeces to a level above the flood level.
▪The sewage lifting unit consists of either one or two collecting tanks, two pump
sets and the unit control system.
NOTE
The flow velocity in the discharge line must not be less than 0.7 m/s and not higher than
2.3 m/s.
NOTE
The effective volume of the lifting unit must be greater than the volumetric content of the
discharge pipe up to the backflow loop.
4.2 Designation
Example: Compacta UZ X 12.450 D
Table 5: Key to the designation
Code Description
Compacta Type series
UZ Number of pumps (dual-pump unit)
X Special design
12 Hydraulics code
450 Total volume of collecting tank in litres
D Three-phase motor
Example: BC 2 400 D V N A 100 B 2
Table 6: Key to the designation
Code Description
BC Type (e.g. BC = Basic Compact Unit)
2 Number of pumps
400 Voltage, e.g. 400 V, resulting in the number of wires (e.g.
400 V, 4 or 5 wires)
D Starting method (e.g. DOL starting)
V Sensors 0.5 - 4.5 Volt
N Without ATEX function
A Installation option with rechargeable battery
100 Rated current x 10 (e.g. 10 A)
B Pump variant
2 Country-specific version
Lifting unit
Control unit
4 Description
14 of 56 Compacta - Amarex N/KRT

4.3 Name plates
Examples:
For the pump name plate refer to the installation/operating manual of the
submersible motor pump.
KSB Aktiengesellschaft
D-67227 Frankenthal
Compacta UZ12.450 D
S -
No.:
Q
max
120 m
3
/h • H
max
14,5 m
S 3 • IP 68
EN 12050 - 1
Made by KSB
1
2
3
4
5
6
7
8
1 Size 2 Serial No.
3 Maximum flow rate 4 Mode of operation
5 European standard 6 Series code
7 Maximum head 8 Enclosure
Key to the series code
Calendar year 2009 2010 2011 2012 2013
1st half of the year S-U S-W S-Y S-A S-C
2nd half of the year S-V S-X S-Z S-B S-D
Aktiengesellschaft
D-67225 Frankenthal
LevelCon trol Basic 2 S - X
BC2 400 DFNO 100
Ue: 3/(N)/PE/AC 400V 50/60 Hz
Ie: 6,3-10,0 A
BD706005 IP54
Made by KSB
1
2
3
4
5
Fig. 2: Example of name plate
1 Designation 4 Rated current
2 Product code 5 Circuit diagram number/enclosure
3 Rated voltage
4.4 Design details
Design
▪Fully submersible lifting unit 2)
▪Ready-to-connect lifting unit
▪Either one or two gas-tight and water-tight plastic collecting tanks
Impeller types
▪With free-flow impeller
Bearings
▪Grease-packed, maintenance-free rolling element bearings
Shaft seal
Two bi-directional mechanical seals with environmentally-friendly oil reservoir.
Pump
Tank
Control unit
Lifting unit
Control unit
2) Maximum flooding height: 2 metres, maximum flooding period 7 days
4 Description
Compacta - Amarex N/KRT 15 of 56

DANGER
Flooding of control unit
Danger of death from electric shock!
▷Operate the control unit in flood-proof rooms only.
LevelControl Basic 2
Type BasicCompact (BC)
▪Pump control and monitoring unit in compact plastic housing
▪For either one or two pumps
▪With display
▪Level detection via:
– Level sensor 0.5 - 5 V
▪DOL starting
2
3
1
Fig. 3: Type Basic Compact (BC)
1 Control panel
2 Master switch (optional)
3 Manual-0-automatic switch
LevelControl Basic 2
Type Basic Control Cabinet (BS)
▪Pump control and monitoring unit in sheet steel housing
▪For either one or two pumps
▪With display
▪Level detection via:
– Level sensor 0.5 - 4.5 V
▪DOL starting or star/delta starting
1
2
3
Fig. 4: Type Basic Control Cabinet (BS)
4 Description
16 of 56 Compacta - Amarex N/KRT

1 Master switch
2 Control panel
3 Manual-0-automatic switch
NOTE
The control units are not explosion-proof, and therefore must only be operated outside
potentially explosive atmospheres.
The control unit is always located outside the potentially explosive atmosphere and
may only be installed in a flood-proof room.
4.5 Configuration and function
1
3
7
8
2
4
6
5
Fig. 5: Compacta
1 Inlet nozzle 2 Level sensor
3 Transport and float protection 4 Pump
5 Vent connection 6 Hand hole cover
7 Tank 8 Discharge pipe
The lifting unit is provided with several horizontal inlet nozzles (1). The pump (4)
pumps the fluid handled into the vertical discharge line (8).
The fluid to be handled flows into the lifting unit through horizontal inlet nozzles (1)
and is collected in a gas-, odour- and water-tight plastic tank (7). When the level
sensor detects a defined fill level, the fluid is automatically pumped off to a level
above the flood level and towards the public sewer by either one or two pumps (4).
Two bi-directional mechanical seals with environmentally-friendly oil reservoir.
4.6 Technical specifications
4.6.1 Power data
CAUTION
The rated current must not be exceeded.
Higher currents and power ratings are available on request.
Design
Function
Sealing
4 Description
Compacta - Amarex N/KRT 17 of 56

Table 7: Control unit power data, LevelControl Basic 2
Characteristic Value
Rated operating voltage 3 ~ 400 V AC +10 % -15 %
1 ~ 230 V AC +10 % -15 %
Mains frequency 50 Hz ± 2 %
Enclosure 400 V: IP 54
230 V: IP 54 with pump plugs disconnected
IP 22 with pump plugs connected
Rated insulation voltage 500 V AC
Rated current per motor
(standard models)
Type
BC:
1.6 A / 2.5 A / 4 A / 6.3 A / 10 A
Type
BS:
1.6 A / 2.5 A / 4 A / 6.3 A / 10 A / 14 A / 18 A /
23 A / 25 A / 40 A / 63 A
4.6.2 Technical specifications for sensors
Analog level sensor
▪Input voltage 0.5 - 4.5 V
Motor protection sensors
▪Max. 2 x bimetal (thermal circuit breaker) for each pump, 24 V, motor monitoring
▪Max. 1 x moisture monitor for each Amarex® N/KRT pump
Process inputs
▪1 x external alarm input, 24 V, via volt-free contact
▪1 x remote acknowledgement, 24 V, via volt-free contact
Process outputs
▪1 x volt-free signalling output changeover contact (250 V, 1 A, NO/NC contact)
▪1 x signalling output (12.6 to 13.2 V), e.g. for connecting a horn, alarm
combination or flashlight (12 V connection)
Rechargeable battery
Connection for rechargeable battery, for mains-independent power supply of:
▪Electronics
▪Sensors
▪Alarm equipment
Battery life/charging time
Battery life:
▪Approx. 10 hours when supplying the integrated piezo buzzer 85 dB(A),
electronics, and sensors
▪Approx. 4 hours when supplying external alarm equipment (e.g. horn, alarm
combination, or flashlight)
Charging time
▪Approx. 11 hours (if battery is fully discharged)
4.7 Fluids handled
WARNING
Pumping of impermissible fluids
Hazardous to persons and the environment!
▷Only discharge permissible fluids into the public sewer system.
▷Check the suitability of pump/system materials.
According to DIN 1986-3 the following fluids can be discharged into sewer systems:
Water contaminated by domestic use, human and ‒ as far as required and permitted
Permissible
fluids
4 Description
18 of 56 Compacta - Amarex N/KRT

‒ animal faeces together with the necessary flushing water as well as stormwater in
case no other way of disposal is possible. 3)
Substances / water which must not be discharged into the sewer system are, amongst
others:
Solid matter, fibres, tar, sand, cement, ash, coarse paper, paper towels, cardboard,
debris, garbage, offal, grease, oil.
Waste water from installations situated above the flood level (EN 12 056-1).
Waste water containing hazardous substances (DIN 1986-100), e.g. greasy waste
water from large-scale catering kitchens.
For drainage of greasy water a grease separator to DIN 4040-1 must be fitted.
4.8 Collecting tank
The collecting tank is designed for unpressurised operation; that means the waste
water is stored in the tank in unpressurised condition and is then pumped into the
sewer system.
Size Total volume Effective volume
Litres Litres
UZ450 450 290
UZ900 900 580
4.9 Noise characteristics
The sound pressure level depends on the local conditions and the duty point and is in
the region of <70 dB(A).
4.10 Scope of supply
Depending on the model, the following items are included in the scope of supply:
▪Sewage lifting unit consisting of:
–Either one or two gas-, odour- and water-tight collecting tanks made of
impact-resistant plastic material, with two fully floodable submersible motor
pumps
▪Flexible hose connections and hose clips
▪Automatic level transmitter
▪Electronic control unit
4.11 Dimensions and weights
For dimensions and weights refer to the outline drawing of the lifting unit.
Table 8: Dimensions and weights
Max. current
[A]
Size HxWxD
[mm] [kg]
Type BC
10 400 x 278 x 135 3
Type BS1
10 400 x 300 x 155 10
14 600 x 400 x 200 14
18 600 x 400 x 200 14
23 600 x 400 x 200 14
25 600 x 400 x 200 14
40 760 x 600 x 210 18
Impermissible
fluids
Lifting unit
Control unit
3) Other types of waste water, e.g. industrial waste water, must not be discharged into the local sewer system without prior
treatment.
4 Description
Compacta - Amarex N/KRT 19 of 56

Max. current
[A]
Size HxWxD
[mm] [kg]
63 760 x 600 x 210 18
Type BS2
10 400 x 300 x 155 16
14 760 x 600 x 210 19
18 760 x 600 x 210 19
23 760 x 600 x 210 19
25 760 x 600 x 210 19
40 760 x 600 x 210 24
63 760 x 600 x 210 26
4 Description
20 of 56 Compacta - Amarex N/KRT
