KSR IDS-101 User manual

Auto Data Scan
USER Manual
(KSR)

Contents
1. INTRODUCTION..........................................................................1
1.1 Tool specification..............................................................1
1.2 Brief introduction of instrument ......................................1
2. Extension connector install.......................................................5
3. Diagnosis
appendix…………………………………………………….6
4. KSR Diagnosis ..........................................................................7
4.1 KSR diagnosis’s appendix .............................................9
4.2 Operation instruction......................................................10
4.2.1 ECU ID....................................................................12
4.2.2 DATA STREAM.......................................................13
4.2.3 TROUBLE CODE ...................................................17
4.2.4 ERASE TB CODE ..................................................19
5. Royal Enfield diagnosis .........................................................20
5.1 Royal Enfield diagnosis’s appendix ..............................20
5.2 Operation instruction......................................................21
5.2.1 ECU ID....................................................................23
5.2.2 DATA STREAM.......................................................25
5.2.3 FREEZED DATA.....................................................29
5.2.4 TROUBLE CODE ...................................................30
5.2.5 ERASE TB CODE ..................................................32
5.2.6 CO ADAPTION.......................................................33
6. SYM & Lambreta diagnosis ...................................................35
6.1 SYM & Lambreta diagnosis appendix ...........................35
6.2 Operation instruction......................................................36
6.2.1 ECU ID....................................................................38

6.2.2 DATA STREAM.......................................................41
6.2.3 TROUBLE CODE ...................................................48
6.2.4 ERASE TB CODE ..................................................50
6.2.5 CO ADAPTION.......................................................51
6.2.6 SET-RESET............................................................52
7. SMC & BRIXTON diagnosis ...................................................83
7.1 SMC & BRIXTON diagnosis appendix...........................83
7.2 Operation instruction......................................................84
7.2.1 ECU ID....................................................................85
7.2.2 DATA STREAM.......................................................86
7.2.3 TROUBLE CODE ...................................................90
7.2.4 ERASE TB CODE ..................................................92
8. LML diagnosis ......................................................................103
8.1 LML diagnosis appendix ..............................................103
8.2 Operation instruction....................................................104
8.2.1 ECU ID..................................................................105
8.2.2 DATA STREAM.....................................................107
8.2.3 TROUBLE CODE ................................................. 111
8.2.4 ERASE TB CODE ................................................113
8.2.5 CO ADAPTION.....................................................114
8.2.6 THROT.ADAPTION ..............................................115
8.2.7 STEP MOTOR RESET .........................................116
8.2.8 STEP MOTOR INIT...............................................118
8.2.9 CHECK OUTPUT .................................................119
9. BENELLI-QJ diagnosis ........................................................121
9.1 Benelli-QJ diagnosis appendix....................................121
9.2 Operation instruction....................................................122
9.2.1 ECU ID..................................................................123

9.2.2 DATA STREAM.....................................................124
9.2.3 TROUBLE CODE .................................................128
9.2.4 ERASE TB CODE ................................................130
10.CF MOTO diagnosis.............................................................131
10.1 CF_MOTO diagnosis appendix ..................................131
10.2 Operation instruction..................................................132
10.2.1 ECU ID................................................................135
10.2.2 DATA STREAM...................................................135
10.2.3 TROUBLE CODE ...............................................141
10.2.4 ERASE TB CODE...............................................143
10.2.5 ACTIVATION TEST.............................................144
10.2.6 SPECIAL FUNCTION.........................................145
4. Software Upgrade Guide........................................................147
5. IMPORTANT NOTICE..............................................................153

1
1. INTRODUCTION
This manual covers the Power Scan vehicle diagnostic tool . It provides
technical information on using the interface, connections to it, communications
with it, and other related information.
1.1 Tool specification
Input power : DC +10V to 20V
Environment Operation
Operation Temperature :+10ºC to 50ºC
Storage Temperature :-10ºC to 80ºC
Operating Humidity :20% to 80% (non-condensing)
Non-operating Humidity :10% to 90% (non-condensing)
1.2 Brief introduction of instrument
The main controller need to connect the diagnostic cable to get power
supply .Fig 2-1 is the picture of main controller . It provides the user interface for
user to implement major function on front panel ..

2

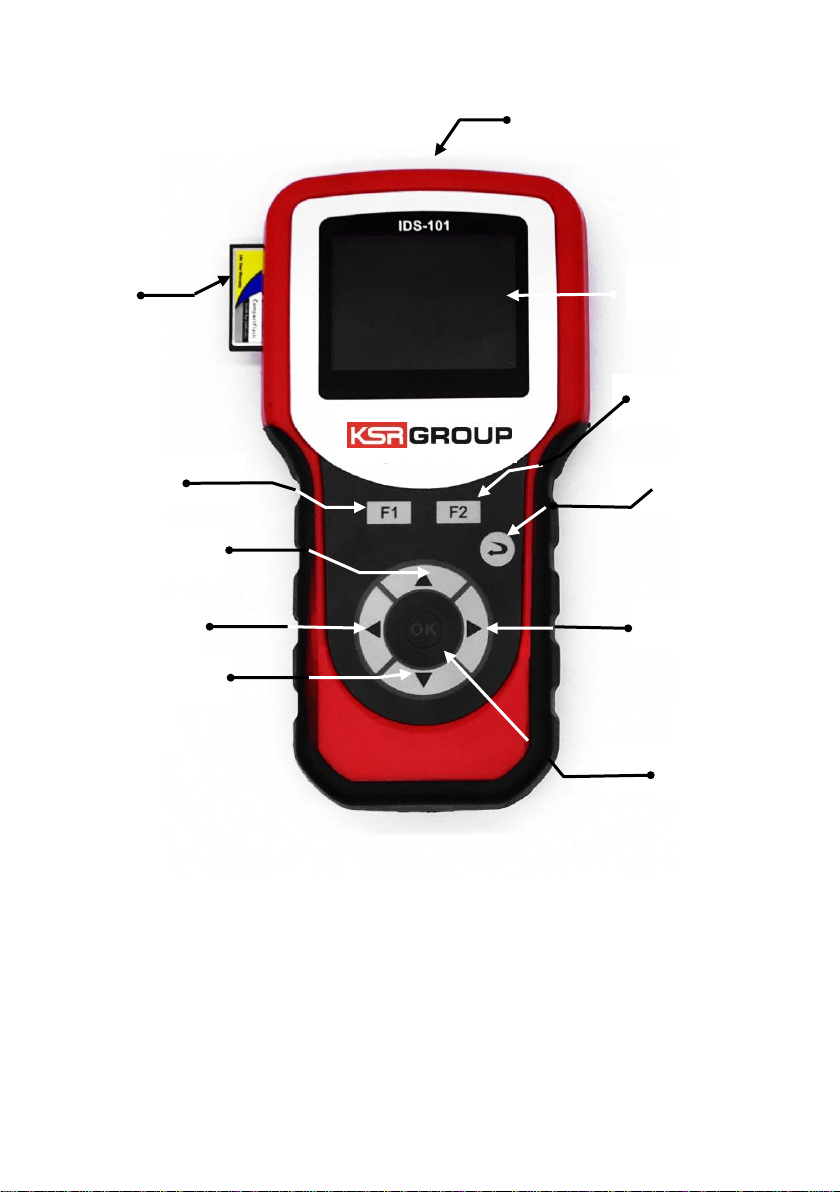

Fig 2.1 Main controller picture
Main parts Descriptions:
U-Key : Move cursor to up, or in some functions ( i.e. Activation ), increase
value.
D-Key : Move cursor to down, or in some functions ( i.e. Activation ) , decrease
F2-KEY
Cf card socket
ESC-KEY
F1-KEY
LCD Screen
R-KEY
ENTER-KEY
L-KEY
D-KEY
U-KEY
Extension connector
port

3
value.

4
R-Key : Move cursor to right, or in some functions( i.e. Data-Stream ) , change
to next page.
L-Key : Move cursor to left, or in some functions( i.e. Data-Stream ) , change to
previous page.
Enter-Key : Confirm selection.
ESC-Key : Exit selection, return to previous menu.
LCD screen :
It displays the menu, messages , diagnostic result. User can see some
characters like ▲,►,▼,◄, <--I ,x. These characters show the valid keys
on current display page.
▲: U-Key
►: R-Key
▼:D-Key
◄:L-Key
<--|: Enter-Key
x : ESC-Key
Normally, Every display page would show prompts in the bottom
position.
25 Pins socket----------- for 25 PIN extension line to insert
CF card socket------- for firmware update (Optional) .

5
2. Extension connector install
Fig 2-3 show the extension connector installation. Connect the extension
connector female port to the main controller 25-pin male socket.
Fig 2-3 Extension connector connection methodology
Diagnostic cable install
For every vehicle, there is the different diagnostic cable needs to install on
vehicle, then user can build connection with vehicle through this cable .
About the different cable maps to the different vehicle , please refer to the
section “diagnostic cable “ in every vehicle description chapter.
Fig 2-5 shows the diagnostic cable install with extension connector.
Main controller 25 Pin male socket
Extension connector female port

6
Fig 2-5 Diagnostic cable connection
CAUTION :
Make sure all parts connection are always in power off state. If connect
every part in power on state, it would damage the tool.
Diagnostic cable
Extension connector male port

7

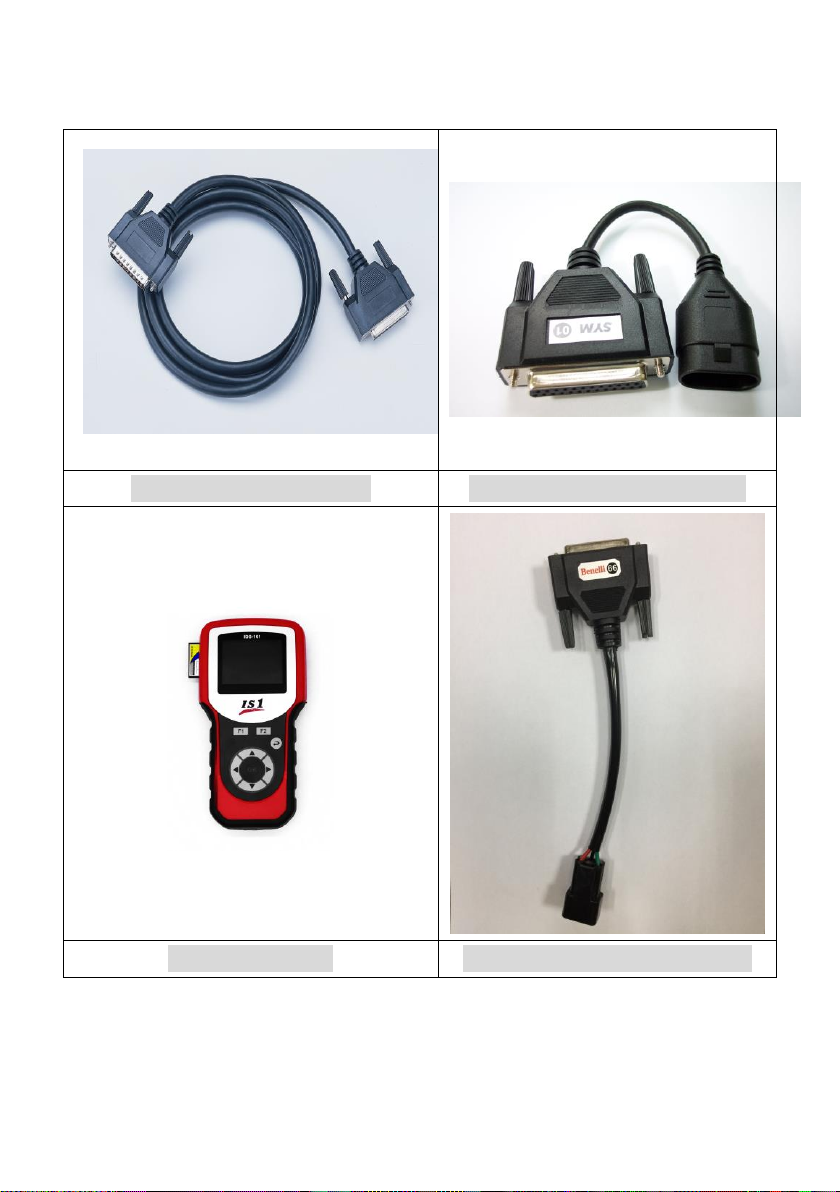

3. Diagnosis appendix
25 PIN extension line
SYM Diagnosis cable (1)
Diagnosis tool
KSR Diagnosis cable (66)

8
Benelli ABS Diagnosis cable
(70)
EU 4 Diagnosis cable (23)
CF MOTOR Diagnosis cable
Royal Enfield Diagnosis cable

9
(46)
(71)
LML Diagnosis cable (14)
BATTERY LINE
Coming soon
Lambretta Diagnosis cable

10
Diagnosis tool Function introduction and some cautions
1. Diagnosis tool
Function
Description
25PIN
socket
25PIN extension line，insert into the socket
CF groove
For checking the maintenance procedure .
software upgrade etc in the future (function
expansion)
The power cord
For connecting 1PIN power cord and
connecting the battery to upgrade the
software
2.diagnosis tool buttons
▲▼Up and down: choose the test items
◄► Left and right: choose the test item and form feed
ENTER: enter execution
EXIT: exit Quit
Some Caution
1. Check if the ignition Switch is turned on the engine is working
2. Check if turn on the diagnosis tool
3. Check if the diagnosis cable is connecting to the vehicle well
4. Check if the diagnosis socket is short circuit
5. Check if the software version is used for this vehicle
6. Check if the test system is used for this vehicle
7. Check if the System fault indicator is flashing

11
4.1 KSR Diagnosis
4.1. KSR diagnosis’s appendix
25 PIN extension line
Diagnosis cable【V-66】
Diagnosis cable【V-70】FOR ABS
diagnosis tool
Diagnosis cable【V-23】FOR EU4

12
4.2 Operation instruction
▓After entering, it will appear the factory menu for selection, as
the following display.
▓Select function : Start Diagnosis
▓Select function : KSR_E30
= FIRST PAGE =
1. Start Diagnosis
2.Tool Function
= FIRST PAGE =
1. KSR_E30
2. CF_MOTO_E30

13
▓Select function : KSR MOTOR
▓Select function : DELPHI ENGINE
MAIN MENU
1. KSR MOTOR
2.Royal Enfield
3.SYM
4.Lambreta
5.SMC
6.BRIXTON
7.LML
8.BENELLI-QJ
MAIN MENU
1. DELPHI ENGINE
2.ABS
3.OBD Engine

14
Synerject ECU main menu :
KSR MOTOR
1.ECU ID
2.DATA STREAM
3.TROUBLE CODE
4.ERASE TB CODE
4.2.1 ECU ID
Show the ECU ID DATAS
ECU ID （DELPHI）
END MODEL : ：038
BASE MODEL ：10560
ENABLE COUNTER ：006
<Enter>confirm<UP><DOWN>
EXIT>Exit<LEFT><RIGHT>

15
4.2.2 DATA STREAM
KSR MOTOR
1.ECU ID
2.DATA STREAM
3.TROUBLE CODE
4.ERASE TB CODE
▓DATA STREAM Page:（MT-05）.
（01-07）DATA STREAM
（02-07）DATA STREAM
AIRFLOW RATIO----------------factor
A/F CMD---------------------afr
A/F REAL--------------------afr
BLM LEARN-------------------factor
BLM LEARN #2----------------factor
AIR TEMP.-------------------degC
AIR TEMP.#2-----------------degC
CLOSELOOP MUL.--------------count
CLOSELOOP MUL.#2------------count
FUEL CORR.------------------pct
FUEL CORR.#2-----------------pct
BLM SINGLE----------------cellNo.2
FUEL PUMT RATIO--------------pct
INJECT.TIME------------------ms
INJECT TIME#2----------------ms
AIR EFFECT.------------------pct
AIR EFFECT.#2----------------pct
STEP MTR CMD-----------------step
IDLE ACCU.STUDY--------------pct
IDLE TARGET------------------rpm

16
（07-07）DATA STREAM
TPS VOLT.--------------------count
LAST RUN----------------------Sec
▓Press [left]/[right] key to change page.
（03-07）DATA STREAM
（04-07）DATA STREAM
IDLE OFFSET--------------------rpm
CURRENT DTC--------------------
HISTORY DTC--------------------
RUNNING TIME-------------------sec
IGN.ANGLE CMD------------------ca
IGN ANGLE----------------------ca
DYNA.IGN.ANGLE-----------------ca
IGN.CHARGE---------------------ms
FUEL CUTOFF--------------------
OVERSPD CUTOFF-----------------
TILTED SWITCH--------------------
FUEL PUMP RUNNING----------------
O2S HEATER-----------------------
IGN.SWITCH-----------------------
IDLE SPEED STATE-----------------
P/N SWITCH-----------------------
DIAG.SWITCH----------------------
MIL- - - - - - - - - - - - - - - - - - - - - - - - --
SEQUENCE IGN.MODE- - - - - - - - - --
ENGINE RUNNING- - - - - - - - - - - - -
（05-07）DATA STREAM
（06-07）DATA STREAM
WARM UP-------------------------
23 GEAR ERR CNT---------------count
AIRFLOW SINGLE--------------cellNo.1
BARO---------------------------kpa
COOL.TEMP----------------------degC
CYL.FAIL COUNT----------------count
CYL.SUCC.COUNT----------------count
IAT---------------------------degC
BATT.VOLT.-----------------------V
IAP-----------------------------kpa
IAP COMP.----------------------kpa
IAP CMD------------------------kpa
IAP ANGLE----------------------CA
O2S SENSOR VALID---------------
O2S SENSOR VALID #2------------
O2S VOLT.---- -----------------mV
O2S VOLT#2---------------------mV
ENGINE RPM--------------------rpm
TPS---------------------------pct
TPS COMP.---------------------pct
