KStar K1022 User manual

READ AND SAVE THIS INSTRUCTIONS
FOR DOMESTIC COOKING ONLY
Installer: Leave this manual with the homeowner.
Homeowner: Cleaning, Maintenance and Operating
instructions on the coming pages.
RANGE HOOD ITEM NO.: K1022/K1022A
REFERED MODEL NO.: 3502C1
MOTOR WITH UL CERTIFICATE
NUMBER: E312110

INTENDED FOR DOMESTIC COOKING ONLY
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
WARNING
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s
guidelines and safety standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
WARNING
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A.You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
CAUTION
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and
restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a
maximum of 33" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. This product is equipped with a thermostat which may start blower automatically. To reduce the
risk of injury and to prevent power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
10. Use with approved cord-connection kit only.
11. Please read specification label on product for further information and requirements.

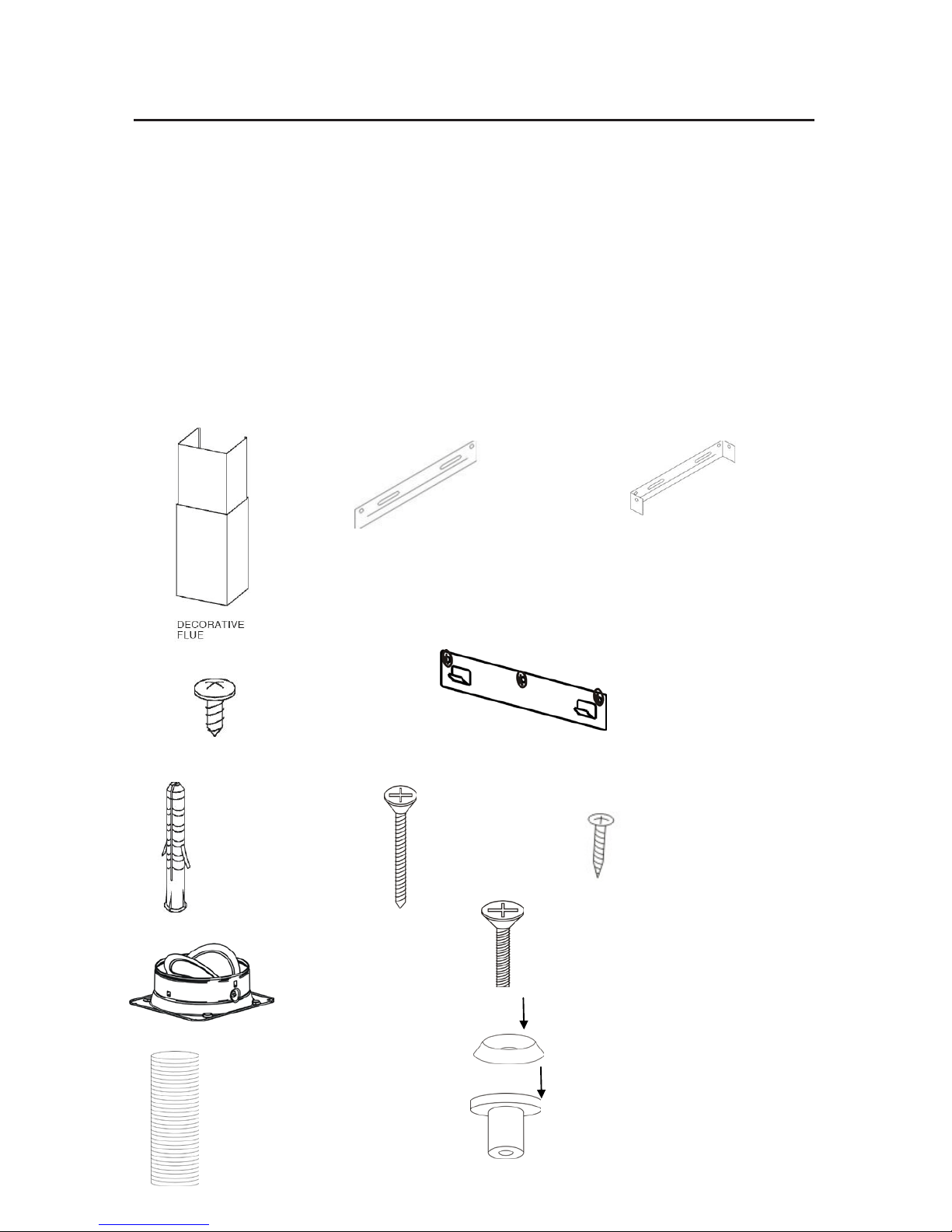

PREPARE THE HOOD
1 - Vent 1 - Warranty Card
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:
1 - Mounting Bracket 1 - Installation Instructions
1 - Duct fixing support 2- Safety screw (ST4mm x30mm)
1 - Slidery duct fixing support
7 - Mounting Screws (4 x 50mm)
8 - Mounting Screws (4 x 8mm)
4 - Mounting Screws (4 x 25mm for glass installation)
4 - Glass washer (for glass installation)
4 - Rubber washer (for glass installation)
9 - Drywall Anchors (φ8 holes)
1 - Aluminum Flex Duct
VENT
DUCT FIXING SUPPORT SLIDERY DUCT FIXING SUPPORT
MOUNTING
SCREWS (4
X 8MM)
MOUNTING
SCREWS (4 X
50MM)
DRYWALL
ANCHORS
ALUMINUM FLEX
DUCT
MOUNTING BRACKET
SAFETY SCREW (ST4MM
x30MM)
MOUNTING
SCREWS
(4 X 25MM)
GLASS
WASHER
RUBBER
WASHER

WARNING
Note: This range hood must be properly grounded. The unit should be installed by a qualified
electrician in accordance with all applicable national and local electrical codes.

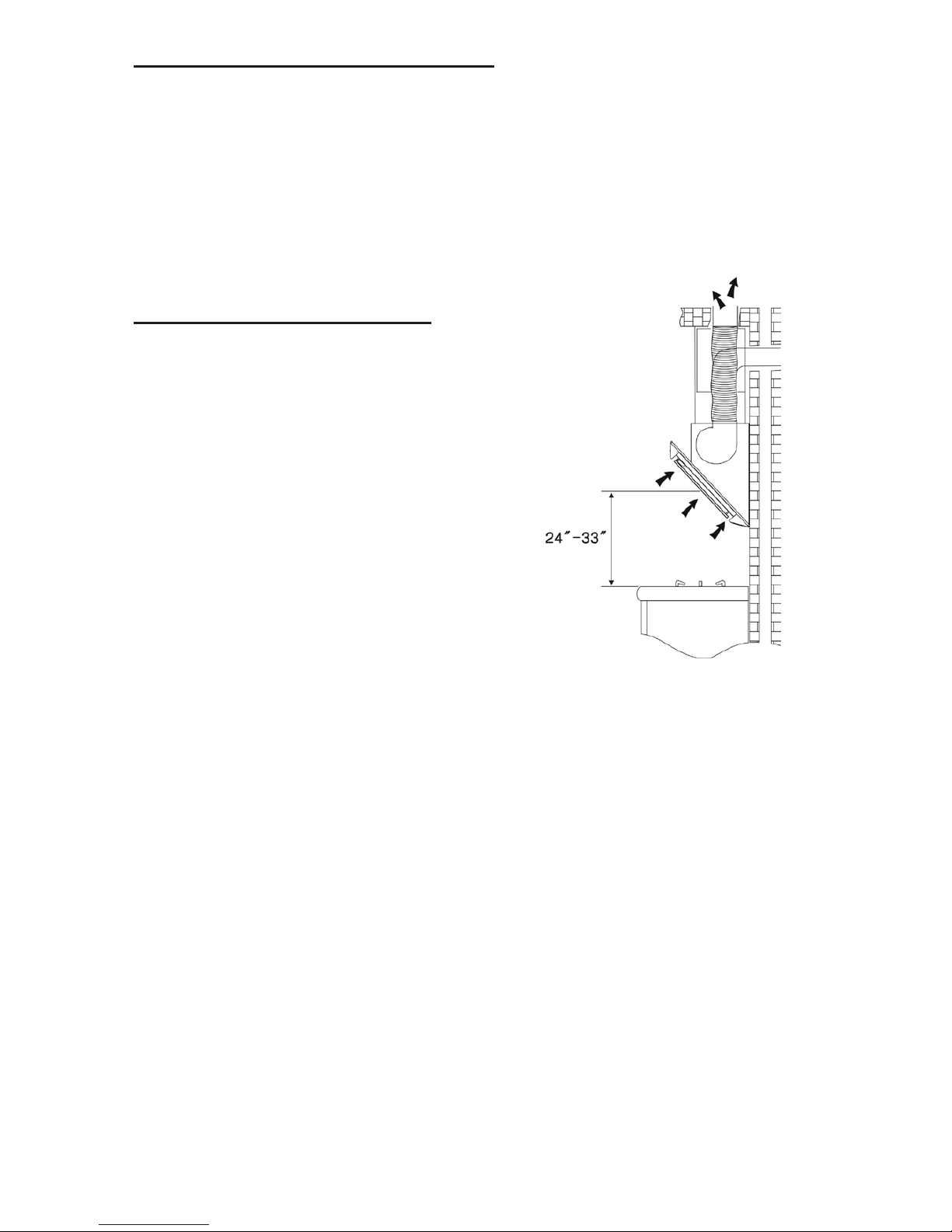

The minimum hood distance above cooktop must not be less than 24’’. A maximum of 33” above
cooktop is highly recommended for best capture of cooking impurities. Distances over 33” are at the
installer and users discretion.
NOTE: To reduce the risk of fire, use only metal
ductwork.
INSTALL THE DUCTWORK
1. Decide where the ductwork will run between the hood
and the outside.
2. A straight, short duct run will allow the hood to
perform most efficiently.
3. Install the Aluminum Flex duct on the vent towards
hood location.

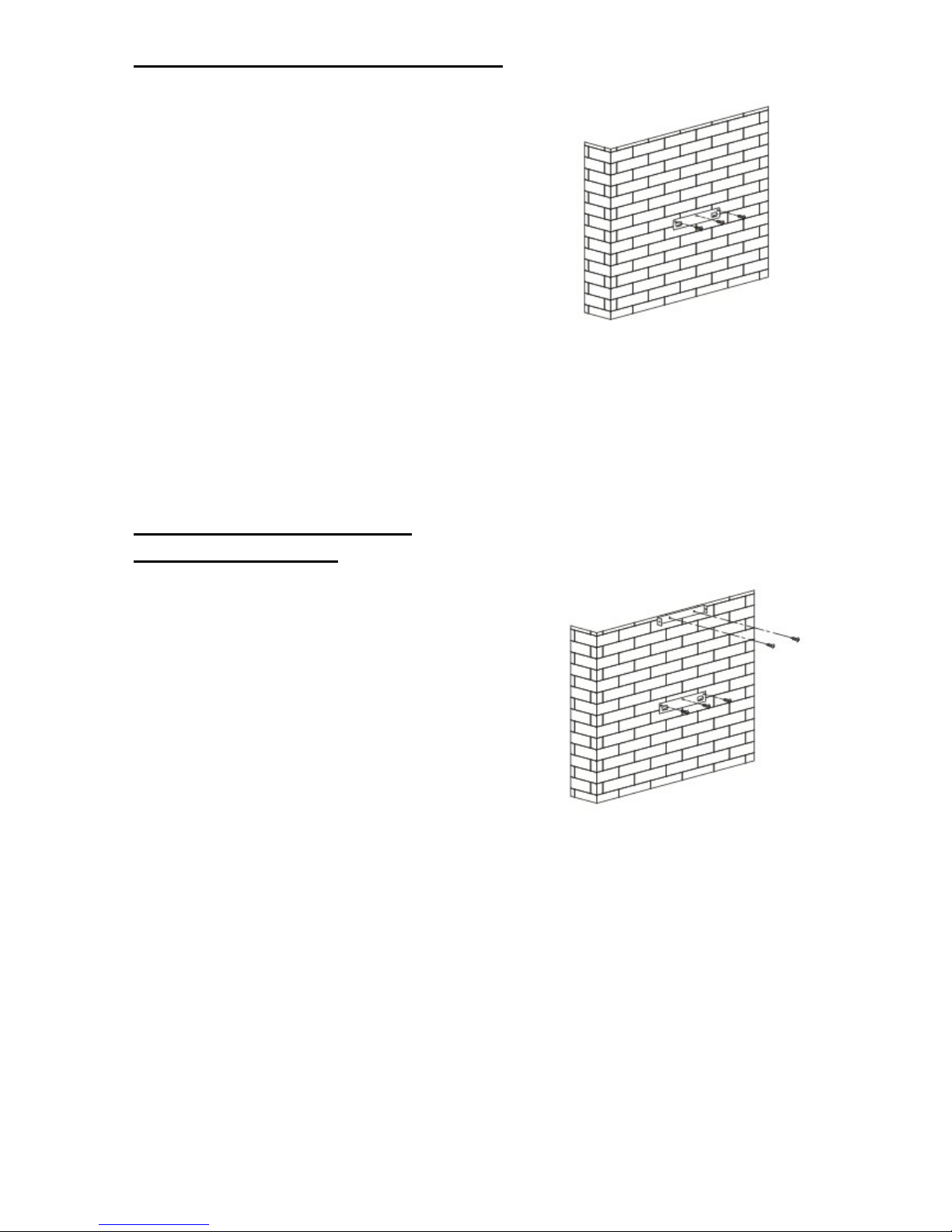

INSTALL MOUNTING BRACKETS
1. After evaluating the height of the hood, place the hook
center over installation location. Drill 3 holes of Ø8mm
on a suitable place to fix the mounting brackets.
2. Put the drywall anchors into the holes and fix the
mounting screws (4x50mm) into the anchors, and install
the hook on the wall as shown.
INSTALL SLIDERY DUCT
1. Calculate the final height of the U-shaped section, drill
2 holes of Ø8mm on a suitable place in line with the
slidery duct fixing support.
FIXING SUPPORT
2. Put the drywall anchors into the holes and fix the
mounting screws (4x50mm) into the anchors, and
install the hook on the wall as shown. (The rest two
pares of 4x50mm screw and drywall anchors are for
spare)

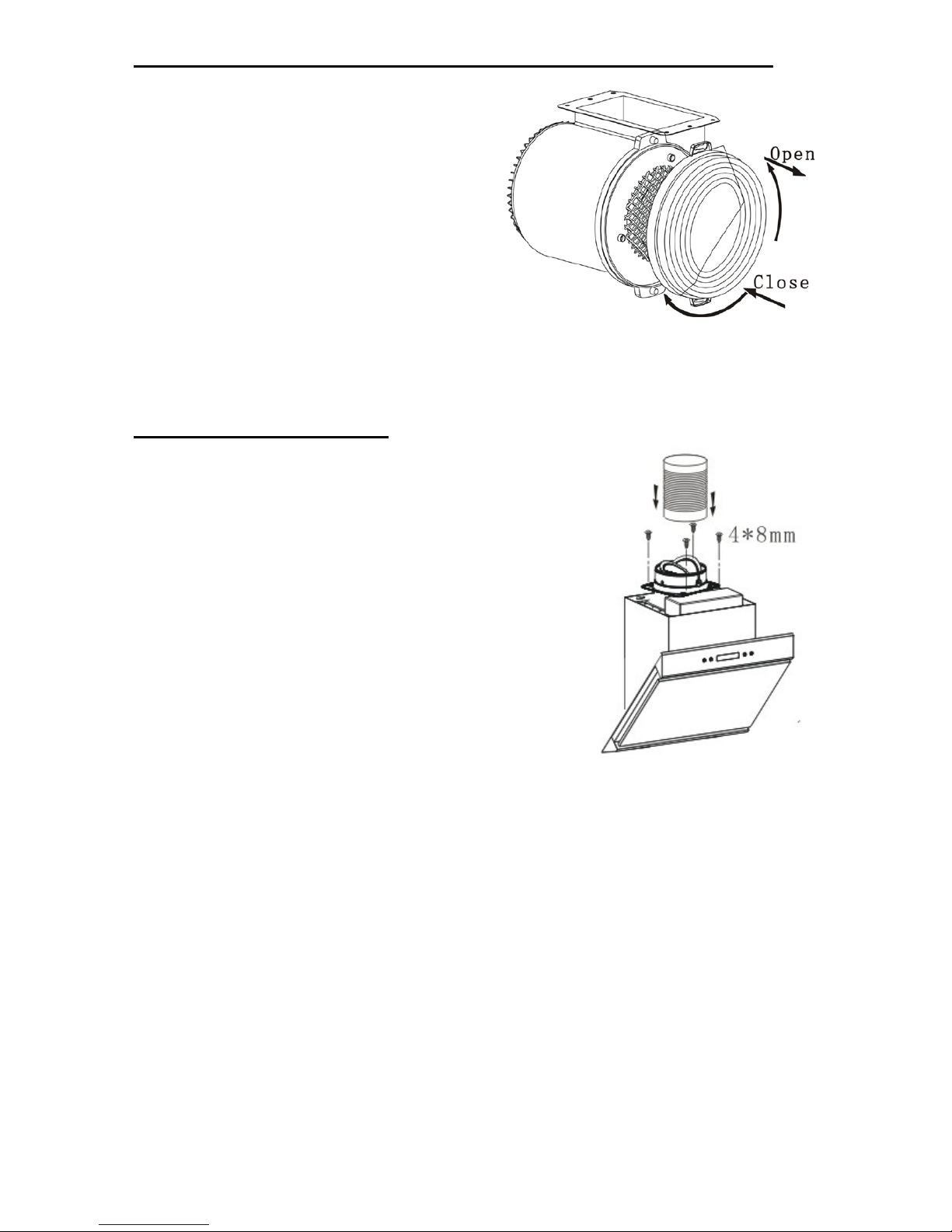

1. Purchase a non-ducted recirculation filter from
your dealer.
NONE-DUCTED RECIRCULATION FILTER INSTALLATION
2. Install the filter by rotating it onto the equipment
which is stands on two sides of the motor.
PREPARE THE HOOD
Note: On stainless steel hoods, carefully remove the
plastic protective film from all exterior surfaces of the
hood and decorative flues, prior to final installation.
3. Pick out the hood from the carton.
4. Install the vent into the duct connector of the cooker hood.
5. Fix the extensive pipe onto the vent.

INSTALL THE HOOD
Note: at least two people will be required to mount the
hood.
1. Raise the hood into its mounting position.
2. Align the rectangular opening on the back of the hood with
the wall-mounting bracket. Gently lower the hood until it
securely engages the bracket.
3. Open the Baffle filter and find the two φ6 mm holes on
the back of the hood. Level the hood with 2 mounting
screws (4*30mm). Use drywall anchors provided.
4. Put the glass in the lead way, use four screws (4x25mm)
with glass washer and rubber washer to fix the glass.
(Note: the screws and washers should be install as
shown.)
5. Measure the height of the glass to the slidery duct fixing
support. Adjust the height of the chimney according to the
height. Then use the duct fixing support with two screws
(4x8mm) to fix the chimneys. Shown as in the pic.
6. Put the chimney on the hood, use two screws(4x8mm)to
fix the chimney to the slidery duct fixing support.

Proper maintenance of the Range Hood will
assure proper performance of the unit.
MAINTENANCE
Filters
The filters must be cleaned approximately once
every 30 hours of operation (when the central
segment on the display goes on or starts
blinking).
Use a warm detergent solution. Filters are
dishwasher safe.

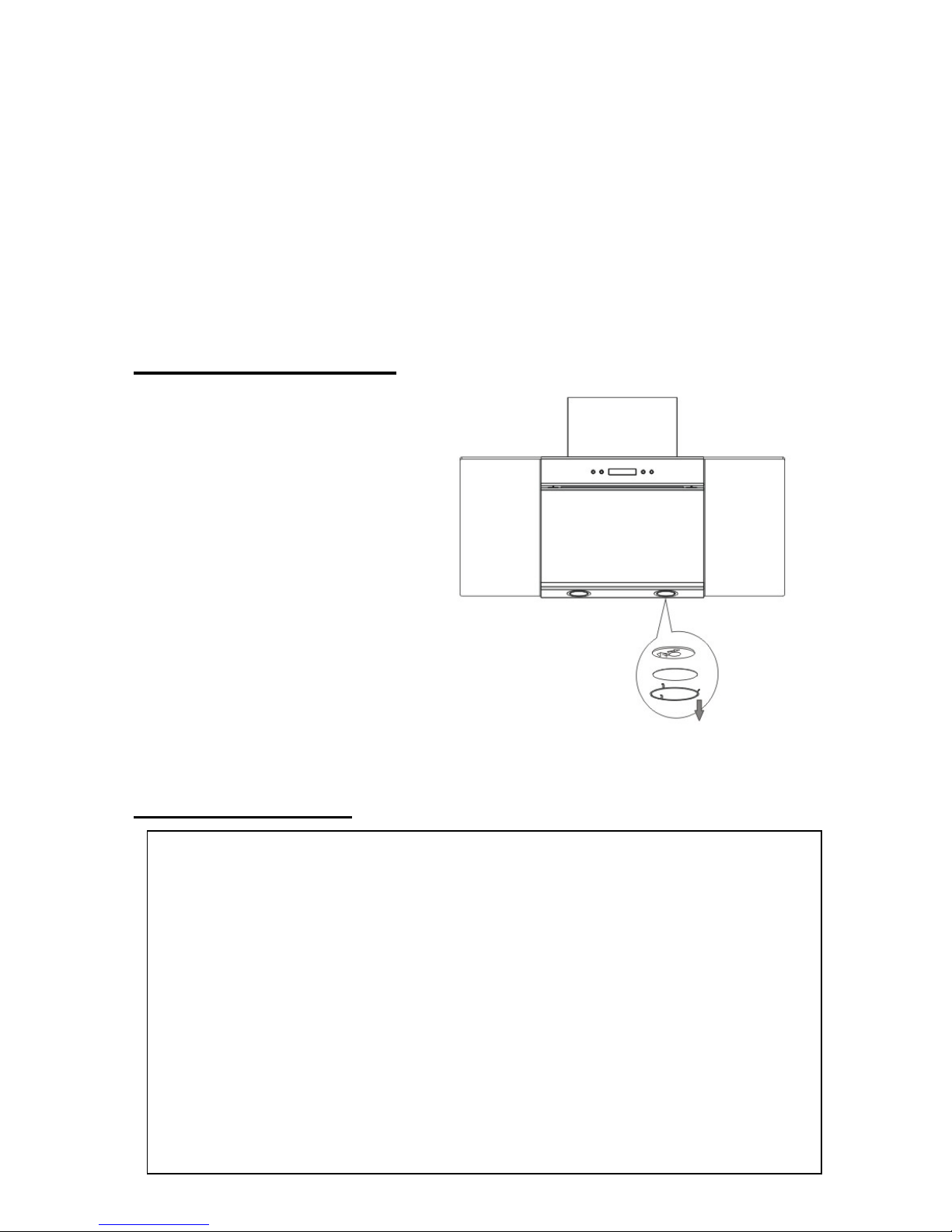

Remove filter by pushing filter towards the back
of hood and rotating filter downward.
Ductfree(Carbon) Filters
The ductfree filters should be changed every 6 months. Rotate the filters to remove and replace.
Hood Cleaning
Stainless steel is one of the easiest materials
to keep clean. Occasional care will help preserve its fine appearance.
Cleaning tips:
Hot water with soap or detergent is all that is usually needed.
Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water
marks.
For discolorations or deposits that persist, use a non-scratching household cleanser or stainless
steel polishing powder with a little water and a soft cloth.
For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleaser and
water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too
much pressure which may mar the surface.
DO NOT allow deposits to remain for long periods of time.
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
causing rust.
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals
which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.

OPERATION
Controls
Always trun the hood ON before cooking in order to establish an air flow in the kitchen. After
turing off the range, let the hood run for a few minutes to clear the air.
LCD switch
1. Power on: Switch on the power supply, and the backlight is lit, displaying “24-hour system”. The output
is then blocked up, and the machine enters standby status. The backlight disappear automatically 30
seconds later under the condition of none operation.
2. Press “Lamp” key: Press the indicator key once, the indicator on the LCD screen is lit and lights on.
Press it for a second time, indicator on the LCD screen distinguished and the lights off. The
Lamps work independently, not controlled by Timer and Power.
3. Power on key , the motor is provided with three speeds, i.e. low, medium and high.
1) Press key , is displayed on the display screen, and the motor start working on low speed,
key also lit.
2) Press key when the motor is working on the low speed, motor transfers to medium speed.
keep lit and work.
3) Press key when the motor is working on medium speed, and motor transfers to high speed,
key keep lit and work.
4) It could be chose “low speed-medium speed-high speed-low speed-medium speed……”by key
under working position..
4. Press key , the motor is adjusted. Press key again, the motor stop. Key and
power off on display.
5. Timer key: it has been set on 12:00, when power off, it also show 12:00.Customer need to set the
time again.
1) When lamp button and speed button don’t work, the timer key is used for time setting.
A) Long press timer key for 2-5 seconds, time segment ,and the first two hour bit segment
flash, use key for the digit increase, use key for the digit decrease. Namely: The variable
is 01 each time when it is pressed; the hour segment is with the largest digit of 23. If it exceeds 23,
key is null and void. If it is equal to 00, then the key is null and void.
B) Press the timer key for the 2nd time, time segment , and the last two minute bit segment
flash, se key for the digit increase, use key for the digit decrease. Namely: The variable
is 01 each time it is pressed; the hour segment is with the largest digit of 59. If it exceeds 59,
key is null and void. If it is equal to 00, then the key is null and void.
C) Press the timer key for the 3rd time, and it is the time setting confirm and exit.
D) Long press timer key for 2-3 seconds under this operation mode, and it is for the hour setting;
Press it for the 2nd time: Setting for the minute; Press it for the 3rd time: For the time setting exit and
confirm, and it will be repeated again and again (if the 1st time pressing doesn't exceed 2 seconds, then it
can't run this operating procedure.)
2) The timer key is the timer setting key when the motor is working. If only press Lamp key, the timer key

is null and void.
A) Press timer key, enter the setting display. 1st time setting is 5 min. Use speed key for increase
gradually, use lamp key for decrease gradually, the time should be set 1:00—60:00 min. Finish setting,
press timer key to confirm.
B) Example: Let the setting time be 5min, the display is 5:00, 4:59, …00:1, with 0:00 displays per
minute, and once “00: 00” appears, the motor position and the indicator power supply will be cut off
automatically, (the display screen displays “24-hour system”, the output is blocked up, and the soot
machine enters standby status, and the backlight will be put out automatically 30 seconds later.)
When use time setting next time, press timer key and not change timer setting, the soot machine will
keep the time automatically . 5 min later, it starts to decrease gradually. If reset the time, it will work for
new time.
HALOGEN BULBS
To change bulbs:
ALWAYS SWITCH OFF THE
ELECTRICITY SUPPLY BEFORE
CARRYING OUT ANY OPERATIONS ON
THE APPLIANCE.
1. Use a screwdriver to pull out the
lampshade and get off the glass.
CAUTION: BULB MAY BE HOT,PLEASE
ROTATE WHEN THE BULB IS COOL!
2. Replace with a Type JC, 12Volt, 20Watt
Max, G-4 Base bulb. Do not touch
replacement bulb with bare hands! If the
bulb is touched with the bare hand, it
should be cleaned with a lint-free cloth
moistened with methylated spirit.
3. Fix the glass and lampshade back the
the light after replacing the bulb.
WARRANTY
We will warrant this product free from defects in material and quality for one year and motor for
5 years. If any problems occur from correct usage, please contact the service department for
under warranty service.
This warranty does not cover the following:
The filter mesh and bulb.
Commercial use.
Amendment of the date of manufacture on the rating plate.
Damaged caused to the body by usage of detergent sprayer.
Pollution made to the led parts, glass parts and S/S parts.
Incorrect installation, misuse, abuse or neglect.
Incorrectly fitted to insufficient or unsuitable power.
Taken apart or serviced by unauthorized service engineers or replaced with other manufacture’s
components.
For commercial use the maintenance and free service should be discussed with our authorized
agent.
Beyond the 12 month limited warranty period, the purchaser should pay for charge of
components and call out.
In the event of a service call, please provide the warranty card and receipt of date of purchase.

K-Star International Group Inc.
K-Star Electronic Appliance Inc.
Toll Free:[phone]
Email:[e-mail]
http://www.kstarus.com
