KT&C KPC-HDX222M User manual

HD CCTV
Digital Video Camera
OPERATION MANUAL
Thank you for choosing our high quality camera. Before attempting to connect operate this
unit, please read and follow these instructions.
M141-HDX222-002

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that
contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION
2

CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTIONS
3. FEATURES
4. EQUIPMENT AND ACCESSORIES
5. CAMERA COMPONENT DESCRIPTIONS
6. INSTALLATION
7. DIMENSIONS
8. SPECIFICATIONS
9. OSD MANUAL
3

1. CAUTIONS
4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
WARNING
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly approved
by the party responsible for compliance could void the user’s authority to operate the
equipment.
1. A regulated DC12V 500mA power supply is recommended for use with this camera for the best
picture and the most stable operation. An unregulated power supply can cause damage to the
camera. When an unregulated power supply is applied, the product warranty will be void.
2. It is recommended that the camera be used with a monitor that has a CCTV quality 75Ω video
impedance level. If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may cause smears
on the picture and possible damage to the Image Sensor.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a main socket-outlet with a protective earth connection.

1. CAUTIONS
5
WEEE
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources. Household users should contact either
the retailer where they purchased this product, or their local government ofce, for details of
where and how they can take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
This symbol is intended to alert the user to the presence of un-insulated
“dangerous voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock.
This symbol is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL

6
2. IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. FEATURES
• High Resolution
SONY 1/3” 2.1M/P Progressive Color CMOS Image Sensor,
1920x1080 30fps
• Support various digital video output
720p60, 720p50, 1080p30, 1080p25
• Video Outputs
Primary HD-SDI (BNC)
Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable
• OSD menu for setup and configuration
• Lens Control
DC Iris
• Power Source
DC 12V / AC 24V ( Dual Power Type )
DC 12V ( DC Power Type )
7

4. EQUIPMENT AND ACCESSORIES
HD CCTV
Digital Video Camera
Auto Iris Lens
Connection Plug
C-mount Adaptor Ring
Operation Manual
8
+ -
* NOTE
PLEASE REMOVE PROTECTION FILM

5. CAMERA COMPONENT DESCRIPTIONS
• FRONT
9
TRIPOD MOUNTING HOLE(1/4"-20 UNC)
TRIPOD MOUNTING HOLE(1/4"-20 UNC)
C-MOUNT ADAPTOR RING
MOUNT COVER
CS-MOUNT ADAPTOR RING
CS-MOUNT ADAPTOR RING FIXING SCREW(2EA)
AUTO
IRIS JACK

10
5. CAMERA COMPONENT DESCRIPTIONS

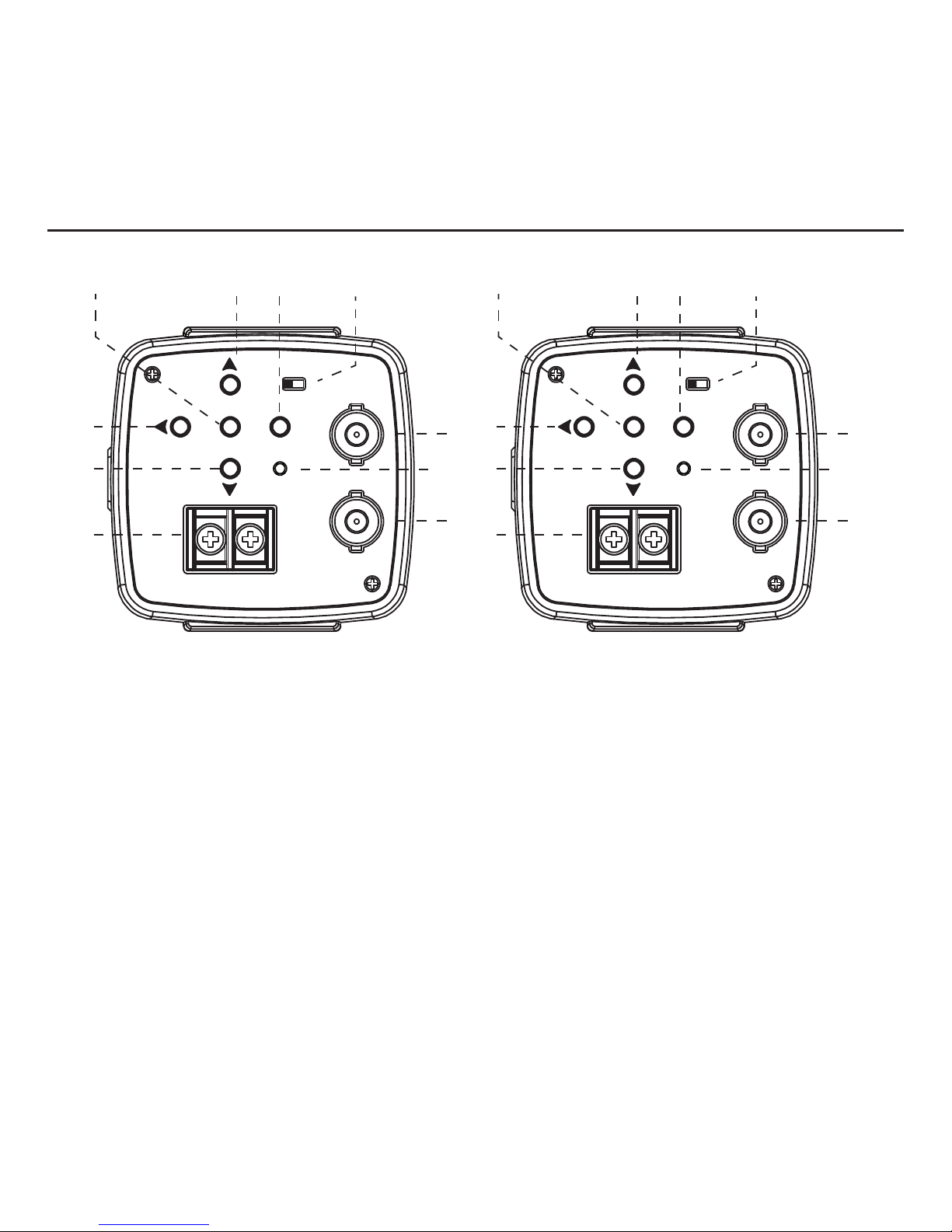

• BACK
①. MENU BUTTON
②. UP BUTTON
③. DOWN BUTTON
④. LEFT BUTTON
⑤. RIGHT BUTTON
⑥. POWER LED
(The LED turns on when power is supplied)
⑦. VIDEO OFF/ON SWITCH
⑧. HD SDI OUTPUT JACK
⑨. VIDEO OUT JACK
(Used to connect an external video monitor in jack)
⑩.POWER TERMINAL
(Used to connect an DC12V power source)
(Options : AC24V / DC12V)
➊ ➋ ➎ ➐
➌
➓
➍➑
➒
➏
DC12V
MENU/SETMENU/SET
VIDEOVIDEO
OFF/ONOFF/ON
POWERPOWER
HD SDI
OUTPUT
HD SDI
OUTPUT
DC12V/AC24V
➊ ➋ ➎ ➐
➌
➓
➍➑
➒
➏
VIDEOVIDEO
AC24V / DC12V
DC12V GND
+ -

6. INSTALLATION
• LENS CONNECTION
Mega Pixel Lenses are sold separately. Lenses such as an auto iris lens,
CS-Mount lens and C-Mount lens can be used (adapter included for C-Mount Lens).
NOTE
• Please keep the lens clean.
• Any foreign objects and Finger marks on the lens can cause
inferior image quality in low light level conditions.
When using an auto iris lens
1. Please peel off about 8mm
of the outer skin of the auto iris lens cable.
2. Please peel off about 2mm of the outer skin
of the insulated conductor inside the lens cable.
11

6. INSTALLATION
3. Please remove the cover of the auto iris lens connection plug and
solder the lens cable to the connector pin in the plug.
* PIN ASSIGNMENT OF THE LENS CONNECTOR
1) Video auto iris lens
Pin 1: Power source(DC 12V)
Pin 3: Video signal
Pin 4: Shield, GND(Ground)
2) DC auto iris lens
Pin 1: DAMP-(CTL-)
Pin 2: DAMP+(CLT+)
Pin 3: DRV+
Pin 4: DRV-(GND)
4. Please replace the auto iris lens connection plug cover and take off the sensor
protection cap and then attach the auto iris lens to the camera by screwing it in
clockwise.
12

6. INSTALLATION
5. Please insert the connection plug from the auto iris lens cable into the auto
lens connector, which is located on the side of the camera.
13
C-mount lens : 10 mm or less
CS-mount lens : 5 mm or less
* NOTE
Use the lens under the specification as shown.
Otherwise the lens can damage the camera or
abnormal fixing may result.

6. INSTALLATION
Installation of C-Mount Lens
Installation of CS-Mount Lens
14
CS-MOUNT ADAPTOR RING
CS-MOUNT ADAPTOR RING
C-MOUNT ADAPTOR RING

MENU/SET
VIDEO
OFF/ON
POWER
HD SDI
OUTPUT
VIDEO
DC12V/AC24V
DC12V / AC24V REGULATED
POWER SUPPLY
HD SDI INPUT
SDI
RECEIVER
DISPLAY
DEVICE
TV
MONITOR
VIDEO INPUT
BNC FEMALE
VIDEO OUTPUT
HD SDI OUTPUT
6. INSTALLATION
• MONITOR CONNECTION
15
CAUTIONS
When you output Video
WDR function does not work
- DC12V
- DC12V/AC24V
MENU/SET
VIDEO
OFF/ON
POWER
HD SDI
OUTPUT
DC12V GND
VIDEO
+ -
HD SDI INPUT
SDI
RECEIVER
DISPLAY
DEVICE
TV
MONITOR
VIDEO INPUT
BNC FEMALE
VIDEO OUTPUT
HD SDI OUTPUT
DC12V REGULATED
POWER SUPPLY

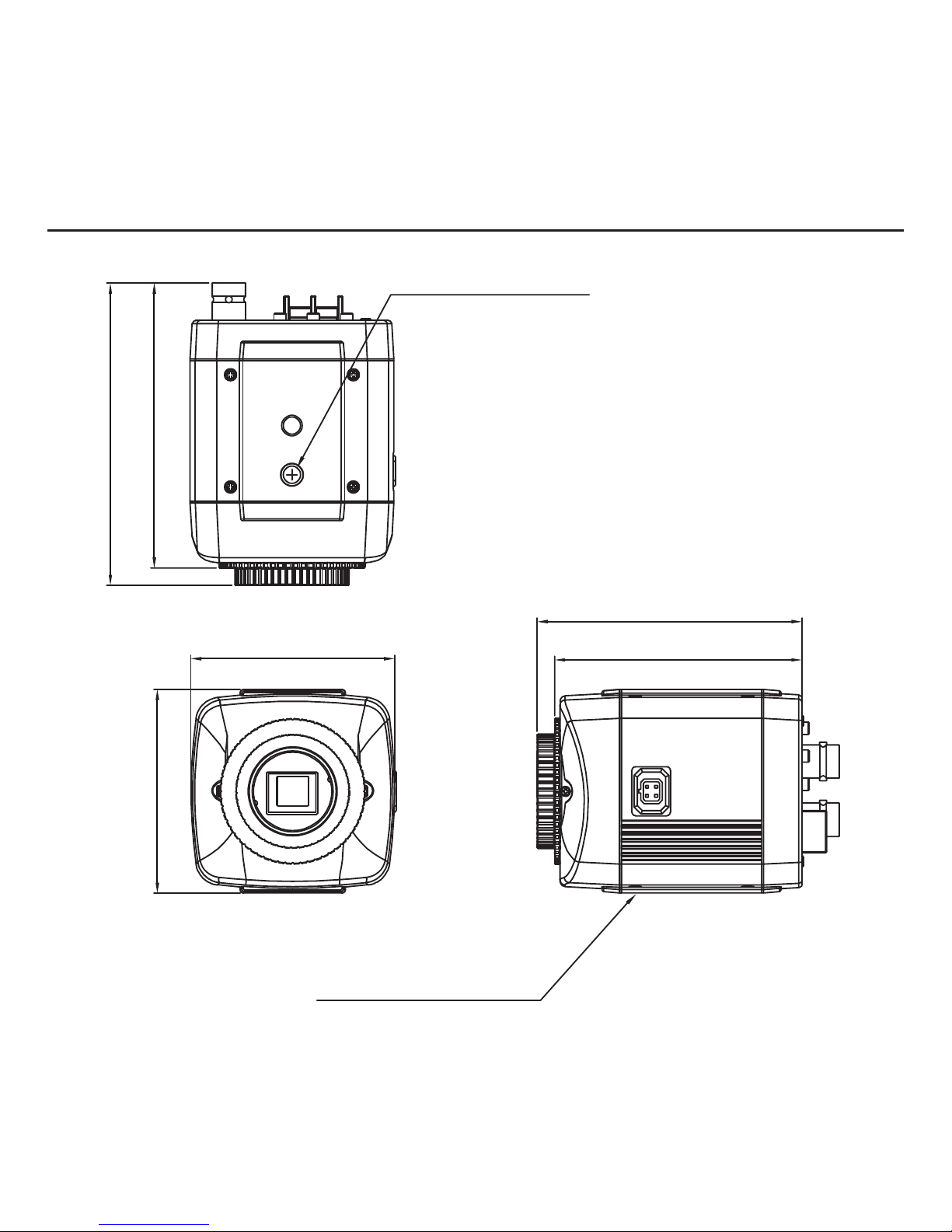

7. DIMENSIONS
Unit(mm)
16
86.1(C-MOUNT)
81.1(CS-MOUNT)
58
58
75.5(C-MOUNT)
70.5(CS-MOUNT)
TRIPOD MOUNTING HOLE
(1/4"-20 UNC, Depth 5)
TRIPOD MOUNTING HOLE
(1/4"-20 UNC, Depth 5)

8. SPECIFICATION
Image Device SONY 1/3” 2.1M/P Progressive Color CMOS Image Sensor
Effective Pixels 1984 (H) x 1105 (V) 30fps
Unit cell size 2.8um (H) x 2.8um (V)
Video Output Mode HD-SDI: 720p60, 720p50, 1080p30, 1080p25
TV Out: NTSC / PAL selectable
Minimum Illumination 0.1 Lux
S/N Ratio More than 50dB
Shutter Speed Auto / Manual selectable
Manual Shutter Speed 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K
Day & Night Digital Day & Night
Controllable Max Gain 29 dB
White Balance AUTO / AUTOext / PUSH / MANUAL
Lens Control DC Iris
OSD Menu Yes
Power
Consumption
DC DC12V(±10%), Max. 200mA
DUAL DC12V(±10%), Max. 270mA
AC24V(±10%), Max. 3.6W
Weight DC12V: 175g, DUAL: 200g
Dimension 58(W) x 58(H) x 70.5(D)
Conformity CE, FCC, KC
Temperature / Humidity
(no condensing)
Operation: 14°F~122°F(-10°C~+50°C / 20~80%)
Storage: -4°F~158°F(-20°C~+60°C / 20~95%)
Specifications and designs are subject to change for improving the
functionality of this product without notice.
17

9. OSD MANUAL
• Menu structure
Main Sub Menu Sub Menu
EXPOSURE
BRIGHTNESS 0 ~ 20
AE MODE NORMAL AE / INDOOR
LENS(IRIS) MANUAL / AUTO
SHUTTER
MANUAL /
AUTO /
FLICKER
LEVEL 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K.
RETURN BACK / EXIT
DSS OFF, X2, X3, X4, X5, X6, X7, X8
AGC 0 ~ 10
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
WHITE
BALANCE
WB MODE
AUTO
/AUTOext
/PUSH
/MANUAL
COLORTEMP. LOW / MIDDLE / HIGH
R-GAIN 0 ~ 20
B-GAIN 0 ~ 20
RETURN BACK / EXIT
SATURATION 0 ~ 20
RESET DATE BACK / DEF.
RETURN BACK / EXIT.
WDR / BLC
MODE OFF, WDR, BLC, D-WDR
WDR WGT 0 ~ 4
BLC OSD OFF ~ ON
BLC POS-X 0 ~ 20
BLC POS-Y 0 ~ 20
BLC SIZE-X 0 ~ 20
BLC SIZE-Y 0 ~ 20
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
DNR OFF, LOW, MIDDLE, HIGH
DAY &
NIGHT
COLOR/
B&W/
AUTO
D&N DETECT AGC
DELAY 1sec, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60sec
D->N LEVEL 3 ~ 20
N->D LEVEL 0 ~ 16
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
18

9. OSD MANUAL
Main Sub Menu Sub Menu
SHARPNESS 0 ~ 20
GAMMA 0 ~ 4
FLIP OFF, H FLIP, V FLIP, HV FLIP
LENS SHADING OFF, ON
DZOOM 1x, 2x, 4x, 6x, 8x, 10x, 12x, 14x, 16x, 18x, 20x
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
SPECIAL
PRIVACY OFF / ON
ZONE NO 0 ~ 15
ZONE OP OFF / ON
X-POS 0 ~ 60
Y-POS 0 ~ 40
X-SIZ 0 ~ 40
Y-SIZ 0 ~ 40
COLOR BLK, WHT, YEL, CYN, GRN, MAG, RED, BLU
TRANS. 0 ~ 4
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
HLMASK OFF / ON
LEVEL 0 ~ 20
COLOR BLK, WHT, YEL, CYN, GRN, MAG, RED, BLU
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
PATTERN OFF / 0 / 1
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
SYSTEM
SDI FORMAT 1080P / 720P
SDI FPS 30(60) / 25(50)
CVBS FORMAT NTSC /
PAL
CVBS VIEW CROP / FULL
RETURN BACK / EXIT.
APPLY OK / ON
SYSTEM INFO.
S/W VERSION
SET VERSION
RETURN BACK / EXIT.
REBOOT
RETURN BACK / EXIT.
19

9. OSD MANUAL
• Function Description
0. SETUP
- EXPOSURE : Go sub menu for camera exposure control.
- WHITE ALANCE : Go sub menu for camera white balance control.
- WDR/BLC : Go sub menu for camera WDR or BLC action.
- DNR : Control noise reduction setting.
- DAY & NIGHT : Go sub menu for camera day & night control.
- IMAGE : Go sub menu for adjust image functions.
- SPECIAL : Go sub menu for special feature control.
- SYSTEM : Go sub menu for system control & information.
- RESET DATA ALL : Reset camera’s all feature data to default value.
1. EXPOSURE
- BRIGHTNESS : Adjust image brightness value.
- AE MODE : Adjust AE control mode.
- LENS(IRIS) : Select lens iris control type.
- SHUTTER : Select shutter speed control type.
• LEVEL : Adjust shutter speed at manual shutter mode.
- DSS : Adjust digital slow shutter control level.
- AGC : Adjust max gain level for brightness control.
2. WHITE BALANCE
- WB MODE : Select white balance control mode.
• AUTO : Full auto control mode in color temperature rage 2300K~10000K.
• AUTOext : Extended auto mode for special illumination.
• PUSH : Enable fix the control setting for specific environment.
Push & release, for fix WB control setting.
• MANUAL : Enable WB control setting by user’s intention.
◦COLOR TEMP. : Select color temperature range for WB control at manual mode.
◦ R-GAIN : Adjust red color gain for WB control at maual mode.
◦ B-GAIN : Adjust blue color gain for WB control at manual mode.
- SATURATION : Adjust color saturation level.
20
