KTI KC-300DM series User manual

-1-
10/100BASE-TX TO 100BASE-FX
MEDIA CONVERTERS
KC-300DM Series
InstallationGuide
DOC.060215-KC-300D

-2-
(C)2003KTINetworksInc.Allrightsreserved.Nopartofthisdocumen-
tation may be reproduced in any form or by any means or used to make
any directive work (such as translation or transformation) without per-
missionfromKTINetworksInc.
KTI Networks Inc. reserves the right to revise this documentation and to
make changes in content from time to time without obligation on the part
of KTI Networks Inc. to provide notification of such revision or change.
For more information, contact:
UnitedStates KTINetworksInc.
P.O.BOX631008
Houston,Texas77263-1008
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
URL: http://www.ktinet.com/
International Fax: [phone]
E-mail: [email protected]
URL: http://www.ktinet.com.tw/

-3-
The information contained in this document is subject to change without
prior notice.Copyright (C) All Rights Reserved.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
FCC NOTICE
This device complies with Class B Part 15 the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received including the interference that may cause.
CE NOTICE
Marking by the symbol indicates compliance of this equipment to
the EMC directive of the European Community. Such marking is indica-
tive that this equipment meets or exceeds the following technical stan-
dards:
EMC Class B
EN 50081-1/1992 : EN55022, EN61000-3-2, EN61000-3-3
EN 50082-1/1998 : EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8, EN61000-4-11

-4-
Table of Contents
1. Introduction.........................................................5
1.1 Key Features ................................................................................. 5
1.2 Specifications ................................................................................ 6
1.3 Optical Specifications.................................................................. 10
1.4 Special Functions.........................................................................11
1.4.1Auto MDI/MDI-X Function ...........................................................11
1.4.2 Auto-negotiation Function..........................................................11
1.4.3 Far End Fault Function ..............................................................11
1.4.4 Link Fault Pass Through Function ........................................... 12
1.4.5 Remote TP Port Monitoring Function ....................................... 13
1.4.6 Loop Back Test Function .......................................................... 13
2. Installation.........................................................14
2.1 Unpacking .................................................................................... 14
2.2 Mounting the Device .................................................................... 14
2.3 Applying Power ............................................................................ 15
2.4 Making TP Port Connection ......................................................... 16
2.5 Making FX Port Connection ......................................................... 17
2.6 LED Indicators ............................................................................. 19
2.7 Performing Loop Back Test ......................................................... 20
3. Optional Configuration Settings......................21
3.1 User Inaccessible Jumpers........................................................ 21
3.1.1 Forwarding Mode Setting JP1 .................................................. 22
3.1.2 802.3x Function Setting JP2..................................................... 23
3.1.3 FXDuplex Setting JP3 .............................................................. 23
3.2 JP1-JP3 Factory Default Settings ................................................ 23

-5-
1. Introduction
The 10/100BASE-TX to 100BASE-FX media converter series provides a
mediaconversionallowinghigh-speedintegrationoffiberopticandtwisted-
pair segments.With 10BASE-T and 100BASE-TX support, the converters
provideseamlesstranslation betweenEthernetand FastEthernetnetworks.
A complete set of LEDs allows for quick status verification.
1.1 Key Features
The media converters also provide the following key features:
• Convert speed and media type
• Support full wire speed conversion
• Support 10Mbps and 100Mbps speed on TP connections
• Auto MDI/MDI-X detection function on the TP port
• Auto-negotiation function on the TP port
• Link fault pass through function
• Provide manual configuration settings for TP port to support
connection to non-auto-negotiation devices
• Transparent to 802.1Q VLAN tagged packets
• Far End Fault function on FX port
• ProvideLEDstatusdisplayforremoteTPportmonitoring
• ProvideLoopBackTestfunction forinstallationdiagnostics
• Support wide range of fiber options on the FX port
• Support media converter center chassis installation
• Support center chassis management
• Provide user-inaccessible settings for specific system applications
• Low power consumption

-6-
1.2 Specifications
Twisted-PairInterface(TPPort)
Connector ShieldedRJ-45
Pin Assignments Auto MDI/MDI-X detection
SignalCompliance IEEE802.310BASE-T,802.3u100BASE-TX
Data Speed 10Mbps or 100Mbps
Duplex Mode Half-duplexorFull-duplex
Configuration Auto-negotiation capable and optional
forced manual settings
Cable Types 10Mbps - Category 3, 4, or 5 UTP
100Mbps - Category 5 UTP
Supported Link Distance Up to 100 meters

-7-
FiberOpticInterface(FXPort)
SignalCompliance IEEE802.3u100BASE-FX
Connector SC,ST,MT-RJ,VF-45,LCorSingleSC
Data Speed 100Mbps
Duplex Mode Full-duplex and optional half duplex
Cable Types Multimode(MMF) -50/125,62.5/125µm
Singlemode(SMF)-9/125µm
Supported Link Distance MMF up to 2km
SMFupto100km
Single SMF WDM up to 40km
Eye Safety compliance IEC825Class1
LoopBackTestButton(LOOPTEST)
PUSH Start loop back test
RELEASE Stop loop back test
UserAccessibleSettings(SW)
NO. SETTING STATE FUNCTION
SW1 TPPortConfiguration OFF Auto-negotiation (default)
ON Forcedmode
SW2 TPPortDuplex OFF Fullduplex(default)
ON Halfduplex
SW3 TP Port Speed OFF 100Mbps(default)
ON 10Mbps
SW4 Link Fault Pass Through OFF Disable(default)
ON Enable
SW5 Auto-status-report OFF Disable(default)
ON Enable
OptionalSettings(UserinaccessibleJP1-JP3onboard)
NO. SETTING STATE FUNCTION
JP1 Forwarding mode Open Store-and-forward(default)
Short Smart-forwardmode
JP2 802.3xfunction Open Enable(default)
Short Disable
JP3 FX port duplex Open Fullduplexmode(default)
Short Halfduplexmode

-8-
LEDIndicators
LED DISPLAY STATE INTERPRETATION
PWR Power status ON Power on
OFF Power off
TPLINK TP port link status ON Link up and no traffic
OFF Linkfault
Blink Rx/Txactivities
TP100M TP port speed status ON 100Mbps
OFF 10Mbps
TP FDX TP port duplex status ON Fullduplex
OFF Halfduplex
Blink Collisions on half duplex
FXLINK FX port link status ON Link up and no traffic
OFF Linkfault
Blink Rx/Txactivities
FXOL FX port optical link ON Optical signal is detected
OFF No optical signal
RTPLINK Remote TPport link ON Link up and no traffic
OFF Linkfault
RTP100M Remote TP port speed ON 100Mbps
OFF 10Mbps
RTPFDX RemoteTPportduplex ON Fullduplex
OFF Halfduplex
RTP LINK/100M/FDX LEDs are also used for loop back test report.
DCPowerInput
DC Input Jack D6.3mm D2.0mm
Operating Input Voltages +4.75V~+12.6V
Power consumption 2Wmax.(0.27A@+7.5V)
Power Supply Options External AC-DC poweradapters
RatedAC120V/60HzDC7.5V1A
RatedAC230V/50HzDC7.5V1A
RatedAC100V/50-60HzDC7.5V1A
RatedAC100V/50-60HzDC5V1A
RatedAC240V/50HzDC7.5V1A

-9-
CenterConnector
Connector Futurebus 6x4
Function Center chassis installation
Signals Power inputs
Ground
Management interfaces
BasicInformation
Forwarding Throughput Fullwire speed at100M full duplex
10Mbps - 14,880 pps at 64-byte packets
100Mbps - 148,800pps at 64-byte packets
Packet Types Transparent and no modification for
-IEEE 802.3 standard packets
-IEEE802.1Q VLAN taggedpackets
Packet Length Upto1522 bytes at store-and-forward mode
Nolimitat smart-forward mode100to100
FlowControl Back-pressure for half-duplex mode
802.3xpause-framebaseforfullduplexmode
Mechanical
Dimension H23mmxW72.5mmxD108mm
Housing Enclosed metal with no fan
Mounting Desktop, Wall mount, Center chassis
Weight 212g
Environmental
OperatingTemperature -20oC~60oC(KC-300DM-EC)
-5oC~40oC(Other models)
StorageTemperature -20oC~85oC
RelativeHumidity 5%~ 90%
Certificate
FCC Part 15 Class B
CE/EMC EMIEN50081-1ClassB,EMSEN55024
CE/LVD EN60950

-10-
1.3 Optical Specifications
The media converter series provides the following fiber options:
DuplexFiberSeries
Model Port Fiber Wavelength TxPower Rx Sensitivity
300DM-T ST MMF 1310nm -19~-14dBm -31dBm
300DM-C SC MMF 1310nm -19~-14dBm -31dBm
300DM-EC SC MMF 1310nm -20~-14dBm -31dBm
300DM-JM MT-RJ MMF 1310nm -19~-14dBm -31dBm
300DM-VM VF-45 MMF 1310nm -20~-14dBm -31dBm
300DM-SA2 SC SMF 1310nm -15~-8dBm -31dBm
300DM-SL2 SC SMF 1310nm -15~-8dBm -32dBm
300DM-SL3 SC SMF 1310nm -15~-8dBm -34dBm
300DM-SL4 SC SMF 1310nm -5 ~ 0dBm -34dBm
300DM-SL6 SC SMF 1310nm -5 ~ 0dBm -35dBm
300DM-SL7 SC SMF 1310nm -3 ~ +3dBm -37dBm
300DM-SL9 SC SMF 1310nm 0 ~ +5dBm -37dBm
300DM-SL10 SC SMF 1550nm -3 ~ +3dBm -37dBm
300DM-SL12 SC SMF 1550nm 0 ~ +5dBm -37dBm
Single FiberBi-DiWDM Series
Model Port Fiber Wavelength TxPower Rx Sensitivity
300DM-W3515 SC SMF Tx1310nm -14~-8dBm -31dBm
Rx1550nm
300DM-W5315 SC SMF Tx1550nm -14~-8dBm -31dBm
Rx1310nm
300DM-W3540 SC SMF Tx1310nm -8~0dBm -34dBm
Rx1550nm
300DM-W5340 SC SMF Tx1550nm -8~0dBm -34dBm
Rx1310nm
SingleModeCWDM Series
Model Port Fiber Wavelength TxPower Rx Sensitivity
300DM-CxxW40 SC SMF Tx1xx0nm -5 ~ 0dBm -35dBm
Rx1100-1650nm
300DM-CxxW80 SC SMF Tx1xx0nm 0 ~ +5dBm -37dBm
Rx1100-1650nm

-11-
1.4 Special Functions
1.4.1Auto MDI/MDI-X Function
This function allows the TP port to auto-detect the twisted-pair signals
and adapts itself to form a valid MDI to MDI-X connection with the
remote connected device automatically.
1.4.2 Auto-negotiation Function
When TP port is set on Auto-negotiation mode (SW1:ON), it is featured
with auto-negotiation function and full capability. It performs a negotia-
tion process for the speed and duplex configuration with the connected
device automatically when each time a link is being established.
1.4.3 Far End Fault Function
The FX port is facilitated with this function, which conforms to IEEE
802.3u 100BASE-FX specifications. When the FX port detects a link
failure on its receiving circuitry, it will send out an FEFI (Far End Fault
Indication) signal to the remote connected device to indicate a remote
fault is detected. It also is capable to receive FEFI signal sent from the
remote link partner. Upon receiving an FEFI signal, it indicates a link
failure occurred on the transmitting path. This function allows the con-
verter to report a fiber link fault even when a link failure occurred on
transmitting fiber cable.

-12-
1.4.4 Link Fault Pass Through Function
When this function is enabled, a link fault detected on the TP port will
forcealinkdownontheFXport.Similarly, a link fault detected on the FX
port will also force a link down on the TP port. As illustrated in the
following figure, this function allows to pass TP link fault to the remote
link partner and makes the converter like aTPcable extender.

-13-
1.4.5 Remote TP Port Monitoring Function
The converter provides LEDindicators labeled RTPLINK/100M/FDX to
display the TP port status of its remote link partner on FX port. As
illustrated in the following figure, the remote MC must be enabled for
periodical status report.

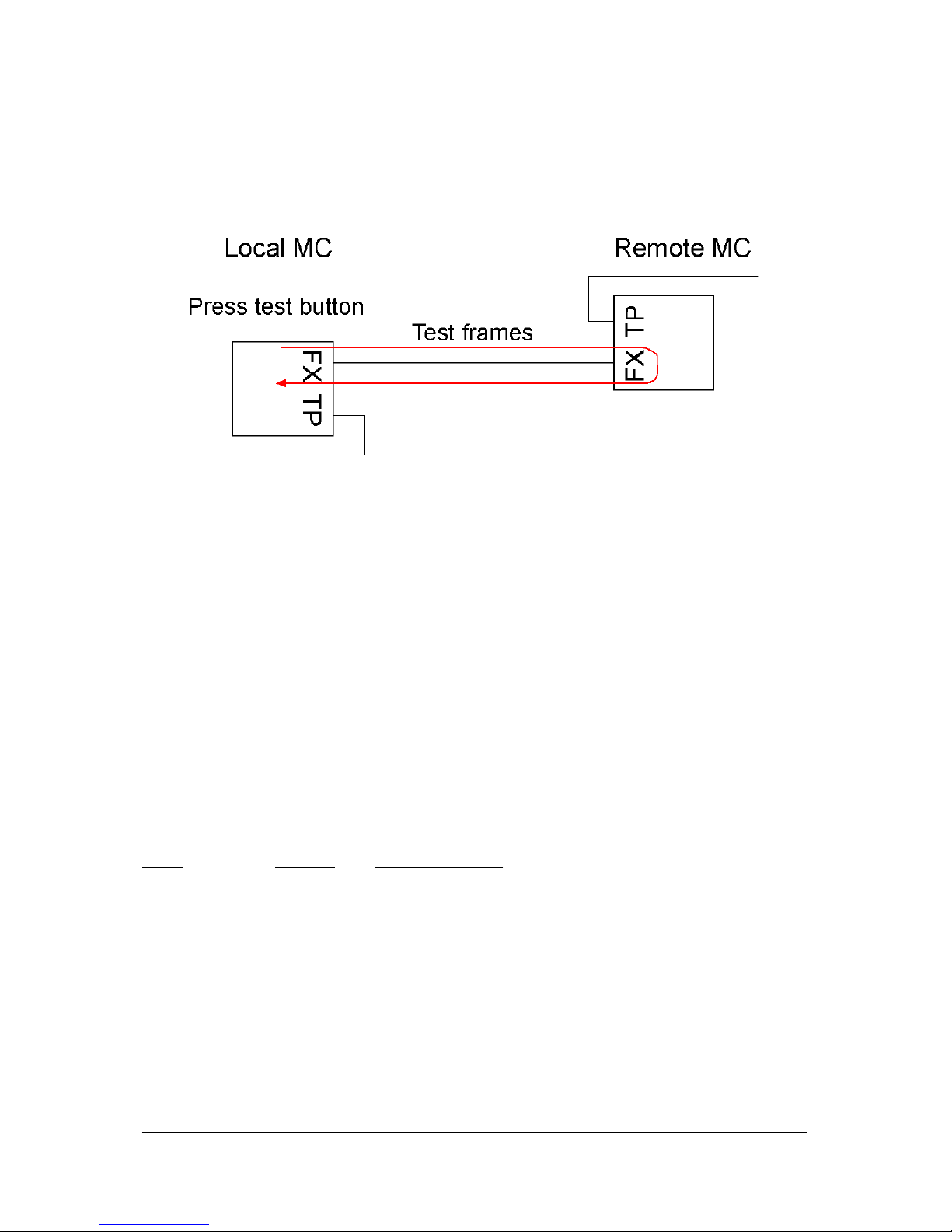

1.4.6 Loop Back Test Function
As illustrated in the following figure, the local MC starts a loop back test
by pressing the loop back test button. It sends test frames from its FX
port to the remote MC. The remote MC forwards the received test frames
back to local MC from its FX port. The local MC verifies the loop back
test frames and display the test result on RTP LINK/100M/FDX LEDs.
This function can help installer to check the full path from a local MC
through fiber to a connected remote MC and back to local MC.

-14-
2. Installation
2.1 Unpacking
Check that the following components have been included:
• Installation guide (or contained in the product CD)
• 10/100MediaConverter
• OneAC power adapter
Ifanyitemisfoundmissingordamaged, please contact your local reseller
forreplacement.
2.2 Mounting the Device
DesktopMounting
The media converter can be mounted on a desktop or shelf. Make sure
that there is proper heat dissipation from and adequate ventilation around
the device. Do not place heavy objects on the device.
WallMounting
The media converter also can be mounted on a wall. On bottom of the
device, wall mounting hole is provided for wall mounting.
InstallationintoCenterChassisKC-1300
Themedia converter also can be installed inKC-1300 center chassis.The
center chassis provides the power supply to the converter. Up to 16 units
can be installed in one chassis. Unscrew and remove the cover of the
center connector before inserting the converter into the chassis. Refer to
the operation manual of center chassis KC-1300 for more information.

-15-
2.3 Applying Power
Before you begin the installation, check the AC voltage of your area. The
ACpoweradapterwhichisusedtosupply theDCpower fortheunit should
have the AC voltage matching the commercial power voltage in your area.
TheACPowerAdapterSpecifications
AC input power: AC power voltage of your area, options -
RatedAC120V/60HzDC7.5V1A
RatedAC230V/50HzDC7.5V1A
RatedAC100V/50-60HzDC7.5V1A
RatedAC100V/50-60HzDC5V1A
RatedAC240V/50HzDC7.5V1A
Steps to apply the power to the converters are:
1. Connect power adapter DC plug to the DC input jack located on the
back of the converter before connecting to the AC outlet.
2. To ensure against accidental disconnection, tie the DC cable with
the cable tie located the back of the converter.
3. Connect the power adapter to the AC outlet.
4.CheckPowerLED indication.

-16-
2.4 Making TP Port Connection
TP port is featured to support connection to :
•Auto-negotiation devices
•Auto-negotiation incapable 10BASE-T devices
•Auto-negotiation incapable 100BASE-TX devices
NetworkCables
10BASE-T: 2-pairUTPCat.3,4,5,EIA/TIA- 568100-ohmSTP
100BASE-TX: 2-pairUTPCat. 5,EIA/TIA-568100-ohm STP
Link distance: Up to 100 meters
ConfigurationSetup
To make a proper connection, the following configuration settings are
recommended:
TP port link partner SW1 SW2 SW3
Auto-negotiation device Off: auto Off: full duplex Off: 100M
Fixed 10M half duplex device On: forced On: half duplex On: 10M
Fixed 100M half duplex device On: forced On: half duplex Off: 100M
Fixed 10M full duplex device On: forced Off: full duplex On: 10M
Fixed 100M full duplex device On: forced Off: full duplex Off: 100M

-17-
2.5 Making FX Port Connection
FX port operates on 100Mbps and full duplex (factory default).Avariety
of fiber options is provided as follows:
DuplexFiberSeries
Model Connector Wavelength Fiber Ref.distance
300DM-T ST 1310nm DuplexMMF 2km
300DM-C SC 1310nm DuplexMMF 2km
300DM-JM MT-RJ 1310nm DuplexMMF 2km
300DM-VM VF-45 1310nm DuplexMMF 2km
300DM-SA2 SC 1310nm DuplexSMF 20km
300DM-SL2 SC 1310nm DuplexSMF 20km
300DM-SL3 SC 1310nm DuplexSMF 30km
300DM-SL4 SC 1310nm DuplexSMF 40km
300DM-SL6 SC 1310nm DuplexSMF 60km
300DM-SL7 SC 1310nm DuplexSMF 70km
300DM-SL9 SC 1310nm DuplexSMF 90km
300DM-SL10 SC 1550nm DuplexSMF 100km
300DM-SL12 SC 1550nm DuplexSMF 120km
DuplexFiberCWDMSeries
Model Connector Wavelength Fiber Ref. Distance
300DM-CxxW40 SC Tx 1xx0nm SMF 40km
Rx 1100 - 1650nm
300DM-CxxW80 SC TX 1xx0nm SMF 80km
RX 1100 - 1650nm
Tx 1xx0nm : 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm

-18-
Single FiberBi-DiWDM Series
Model Connector Wavelength Fiber Ref. Distance
300DM-W3515 Bi-Di SC Tx 1310nm Single SMF 15 - 20km
Rx 1550nm
300DM-W5315 Bi-Di SC Tx 1550nm Single SMF 15 - 20km
Rx 1310nm
300DM-W3540 Bi-Di SC Tx 1310nm Single SMF 40km
Rx 1550nm
300DM-W5340 Bi-Di SC Tx 1550nm Single SMF 40km
Rx 1310nm
Since the WDM single fiber media converters use different wavelengths
for transmission and receiving respectively, the link partner device lo-
cated on the remote end of the single fiber should match the wavelength
used on the single fiber converter.

-19-
2.6 LED Indicators
LinkFaultPassThroughFunctionisdisabled
LED Display Status Interpretation
PWR Power status On Power on
Off Poweroff
TPLINK TP port link status On Link up and no traffic
Off Linkfault
Blink Rx/Txactivities
TP100M TP port speed status On 100Mbps
Off 10Mbps
TPFDX TP port duplex status On Fullduplex
Off Halfduplex
Blink Collisions on half duplex
FXLINK FX port link status On Link up and no traffic
Off Linkfault
Blink Rx/Txactivities
FXOL FX port optical link On Optical signal is detected
Off No optical signal is detected
LinkFaultPassThroughFunctionisenabled
TPLINK FXLINK FXOL Interpretation
On On On Both TP and FX ports link up
Off Off On (1) TP port link fault or
(2) FX port received FEFI signal
(FXport Tx path failed.)
Off Off Off (1) TP port link fault or
(2)FXportRxlinkfailuredetected
RemoteTPportmonitoring
LED Display Status Interpretation
RTPLINK Remote TPport link On Link up and no traffic
Off Linkfault
RTP100M Remote TP port speed On 100Mbps
Off 10Mbps
RTPFDX Remote TP port duplex On Fullduplex
Off Halfduplex

-20-
2.7 Performing Loop Back Test
To perform a loop back test between a local MC and a remote MC con-
nected by a fiber cable, the steps are:
1. Push and press Loop back test button of local MC.
2. Check RTPLINK LED. It blinks to indicate the MC is in loop back
test mode.
3. Check RTP100M LED. It is ON to indicate a complete of loop back
test and OFF during test.
4. Check RTPFDX LEDfor the test result. It is ONto indicate aTEST
PASS and OFF forTEST FAIL.
5. Release Loop back test button. RTPLINK/100M/FDX LEDs are back
to display remote TP port status.
SummaryofLoopBackTestLEDs
LED Status Interpretation
RTPLINK Blink The MC is on Loop Back Test mode.
RTP100M On Loop back test complete
Off Loop back test in operation
RTPFDX On Loop back test Ok
Off Loop back test fail
