KTS-Electronic GOLD ID-XL User manual

GOLD ID-XL
User’s manual
Pulse Induction-based
Metal Detector
KTS-Electronic GmbH & Co. KG
Germany

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
Table of contents
1. General guidelines.............................................................................................. 3
1.1 Preface.......................................................................................................... 3
1.2 Scope of delivery ......................................................................................... 3
2. Assembly............................................................................................................. 4
3. Usage and selection of searchcoils.................................................................. 4
3.1 25 cm searchcoil.......................................................................................... 4
3.2 Cylindrical coil ............................................................................................. 4
3.3 1 x 1 m PVC search frame........................................................................... 5
3.4 Assembly of the search frame.................................................................... 5
3.5 Battery and chargers................................................................................... 6
4. Electronic unit..................................................................................................... 6
4.1 Back .............................................................................................................. 7
4.2 Search recommendations and hints for Reset operation......................... 8
4.3 Precise location of metal objects ............................................................. 10
5. Search process................................................................................................. 10
6. Error signals ..................................................................................................... 11
7. Technical data................................................................................................... 11
8. Warranty............................................................................................................ 12
8.1 Warranty expiration ................................................................................... 12
8.2 Care............................................................................................................. 13
8.3 Legal note................................................................................................... 13
9. Contact.............................................................................................................. 13

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
3
1. General guidelines
1.1 Preface
Dear customer,
we congratulate you on your purchase of GOLD ID-XL metal detector.
To avoid possible operation errors we ask you to study this manual carefully.
We wish you a successful search with your new GOLD ID-XL and are at your disposal,
should additional questions arise.
Your KTS-Electronic Team
1.2 Scope of delivery
GOLD ID-XL electronic unit with installed li-ion battery and leather bag
25 cm (10") searchcoil (waterproof) incl. carbon telescope bar
Cylindrical coil (waterproof) 5 cm Ø, 20 cm (7.9”) in length with 10 m (33 ft.) cable
1 x 1 m (3.28 x 3.28 ft) search frame incl. bag
Mobile quick-charger (2800 mAh), voltage converter with car charger cable, additional 110 Volt
adapter
Hard-top case
User’s manual

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
4
2. Assembly
1. Mount the carbon telescope bar by screwing the carbon tube (adjustable in length)
to the armrest.
2. Insert the coil plug into the provided socket on the rear of the electronic unit. The
electronic unit is kept in a device bag made of leather through which lower opening
the plug has to be inserted (see also page 7, para 4.1).
Note: There is no need to swivel the searchcoil any longer. Just hold the searchcoil flat and
parallel to the ground and determine your own search speed.
3. Usage and selection of searchcoils
In addition to your GOLD ID-XL we deliver several searchcoils, each suitable for
certain applications.
3.1 25 cm searchcoil
The 25 cm searchcoil is particularly suitable for the
search after small metal objects.
For a successful search it is recommendable to
hold the searchcoil parallel to the ground.
3.2 Cylindrical coil
By its dimensions of 5 x 20 cm the cylindrical coil
(is delivered with a 10 m cable) especially is
applicable in narrow spaces (e.g. crevices) or in
inaccessible areas (wells, shafts, other
excavations.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
5
3.3 1 x 1 m PVC search frame
The search frame primarily is used for the deep sounding after medium-sized and
large metal objects. Furthermore vast territories are scanned in a quick and convenient
manner.
The search frame should be held at a distance between 20 cm and 50 cm (see
images) to the ground. If space is over 50 cm it can happen that small to middle-sized
metal pieces are not indicated.
3.4 Assembly of the search frame
1. Connect the pipes (8 pieces) in numerical order.
2. Arrange the search frame on a flat surface and be sure, that the frame is straight.
3. Subsequently the cable has to be placed on the pipe and fixed at the corners with the
provided tape. Please make sure, that cable and search frame are firmly connected to
each other.
Note: Metal detectors create magnetic fields in the searchcoil. Under certain circumstances
they can be affected in their functionality when operated in the vicinity of industrial plants or
electronic devices.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
6
3.5 Battery and chargers
The strong pulse power is reached by the built-in
2800 mAh-li-Ion battery, which is charged within 90
minutes. Please note, that the supply cable for the
battery charger has to be always removed after each
charging procedure.
The actual working time amounts to (depending upon
coil size and usage of headphones) approx. 4-8
hours.
In addition, we deliver an inverter which enables
charging in the car.
Note: The maximum charging time is 90 minutes. To avoid a defect on charger or built-in
battery, this charging time must not be exceeded (a disregard could lead to a loss of
warranty on of damaged charger).
4. Electronic unit
The electronic unit is installed in a solid box and carried in a leather bag.

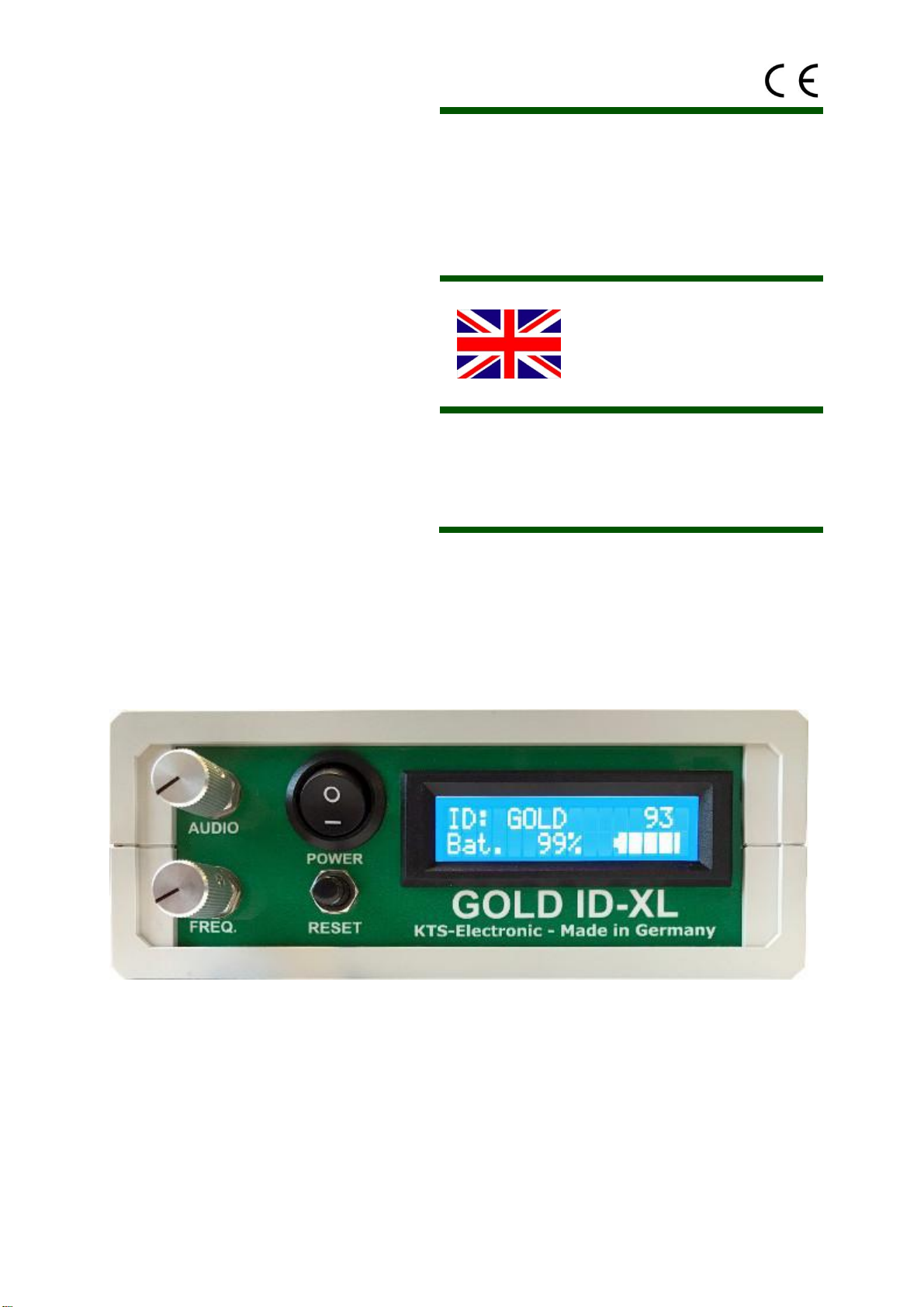

Display: ID: Presentation of metal type and display of conductivity
BAT: Battery control (graphically and in percent).
Power: ON-/OFF-button.
Reset: Automatic zero balance at the touch of a button. By pressing the Reset-button
device is aligned to the actual soil condition.
Freq.: Frequency adjustment.
Audio: Volume control

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
7
4.1 Back
1. Socket for coils: The connecting socket for coils is located on the left side. The
connector plug of the searchcoil has to be plugged into the socket. Before removing the
plug the locking knob must be pressed, only then an extraction is possible. The connector
is compatible with all GOLD ID-XL searchcoils.
2. Headphone socket: Any commercial headphones with 6.3 mm jack can be plugged in.
During use the loudspeaker is turned off. Matching, light weight headphones are provided.
3. Charger (connection to the charging device): To recharge the battery, insert the plug of
the charger into the provided socket and check the charging process. The maximum
charging time is 90 minutes (to avoid a defect on the charger or the built-in battery, please
do not exceed this time). The charger connector should be removed after each charge.
The GOLD ID-XL is ready for use within a very short time:
1. Activate the metal detector with the ON-/OFF-button. The respective searchcoil should be cable-
connected to the electronic unit beforehand.
2. Hold the searchcoil towards the ground and press the Reset-button for a brief moment. You
herewith attain a zero balance, which is necessary for a trouble-free search. Please make sure,
that there are no metal objects near the searchcoil during zero balance. This could cause a wrong
adjustment of the metal detector and produce unwanted indicator effects (as the case may be
repeat the Reset-procedure on another, metal-free spot).
3. Please set the frequency initially to the lowest level (turn the Freq.-modulator counterclockwise).
By means of Audio control the volume is set. To become acquainted with the handling of the
device we generally recommend to start with the lowest frequency adjustment. With progressing
experience it is expedient, to increase the frequency gradually what will have a positive effect on
the search performance.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
8
4.2 Search recommendations and hints for Reset operation
During the search process be sure that you do not carry items of metal with you. This
could cause a wrong adjustment when pressing the Reset key and can produce false
indicator effects. Furthermore this can lead to a wrong metal discrimination. While
searching be ensured, that the sound remains constant, otherwise an inappropriate
adjustment caused by magnetic fields may occur. Should this be the case press
Reset-button again and adjust frequency once more. Hold searchcoil over the ground
and control display.
The Reset-button should be pressed after each of the following modifications:
1. After every switch-on of the metal detector.
2. After every exchange of searchcoils.
3. During the search, if sound becomes instable due to bad soil conditions or
geomagnetism.
During search and in particular before excavation of the object the following factors
should be taken into account in order to make the search more targeted and thus more
successful.
1. Change of sound (frequency)
2. Intensity of sound
3. Continuity of sound
4. Extent of value (digital display)
The change of sound is the first sign for the finding of a metal object. At the same time
there should other circumstances be considered and the own search experience be
used as support:
The more intense the sound, the larger the metal object and the nearer it is located to
the surface. While a high search tone is audible, it is required to move the searchcoil in
the close surrounding to determine the shape of the metal object.
ID (metal discrimination):

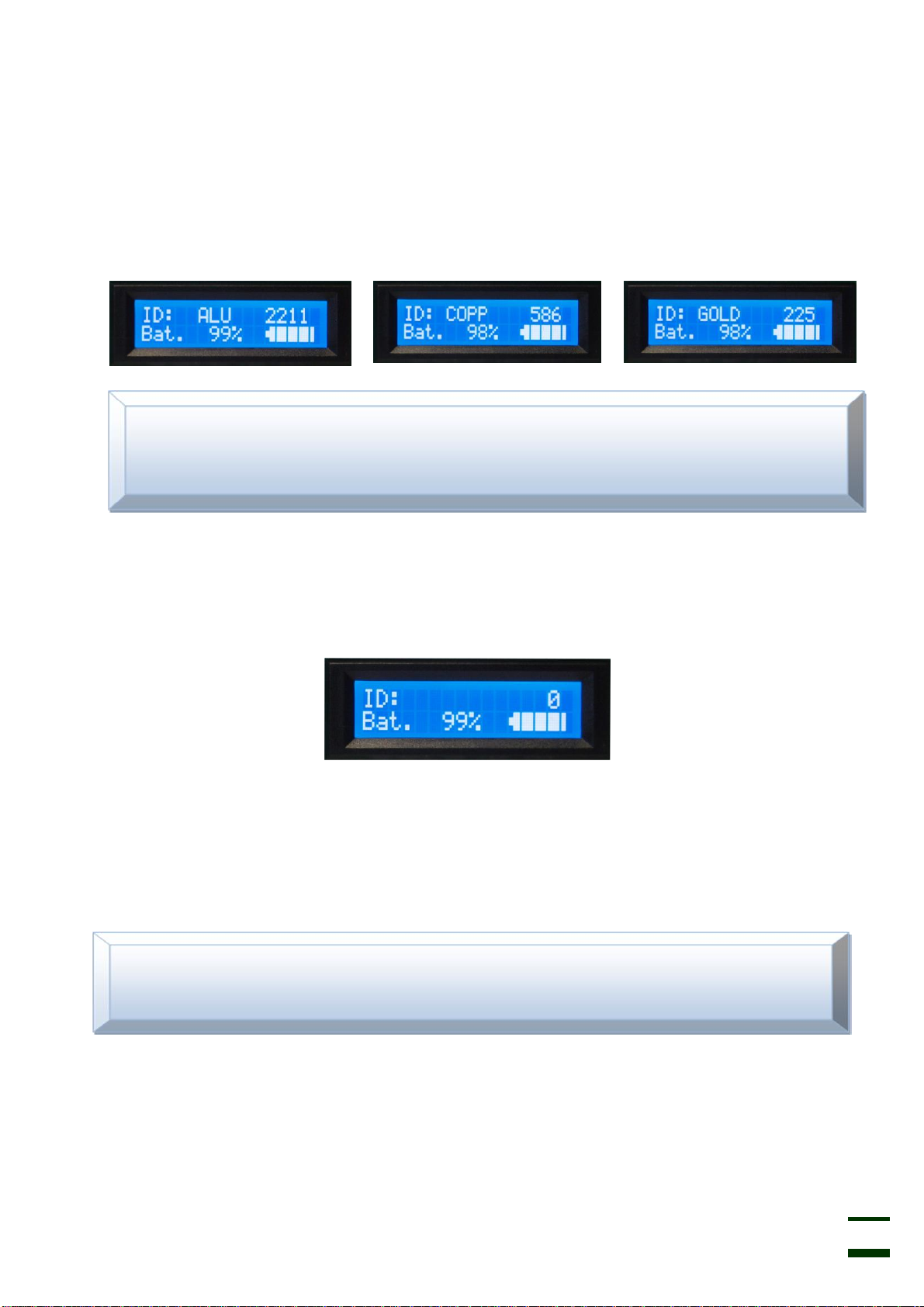

Unlike to other metal detectors GOLD ID-XL performs a constant metal discrimination.
Conductivity value and metal type (e.g. “Gold”) are displayed.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
9
GOLD ID-XL enables the discrimination after a special measuring method. Here 5
measurements are carried out, which will calculate the average value. The average
value calculation leads to a more precise metal type discrimination. The identification
of the metal type makes it possible to distinguish varying metal objects with the
appropriate values. The average value is shown in sector gold with up to 400, in the
range of copper with 1200 and in the field of light metals, e.g. aluminum, with 2800.
Note: The GOLD ID-XL shows a very sensitive reaction towards small gold objects (e.g.
nuggets). Through the increase of frequency the depth performance also rises. However, in
case of difficult soil conditions an increase in disturbances can occur, which can be reduced
by a renewed reset and a reduction in the frequency.
As long as the searchcoil is positioned exactly over the metal object the displayed
conductibility value is crucial.
A weak signal will not be sufficient for metal determination. To compute the
conductibility of a metal object a signal with high intensity is necessary.
Please bear in mind that –depending on soil conditions as well as size and shape of
located objects –the measured values may vary. Indicated values are guide values,
which can be complemented by your own search routine in your search area.
See also the explanation of false signals on page 11.
Note: To avoid incorrect conductivity values it is absolutely necessary to repeat the
adjustment of soil balance. When pressing the Reset-button make sure, that there are no
metal parts in the soil.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
10
4.3 Precise location of metal objects
GOLD ID-XL works with the pulse induction searching system and detects without
having to move the searchcoil. While approaching an object with the searchcoil you
will notice an increase of sound frequency. As soon as the searchcoil is positioned
exactly over the object, the highest tone is reached and the indicated conductivity
value corresponds with to the assumed kind of metal.
With this method not only the exact spot is located, through the sound continuity also
the shape of the discovered object can be identified. For example, a long-lasting high
tone stands in longitudinal direction for a slim object, e.g. a pipe. A round object can
be assumed, if a high tone in any direction is heared.
5. Search process
Please note the following:
Avoid conducting overhead lines
Do not use cell phone during operation
Do not process measurements during thunderstorms
Keep dry
Accurate operation is only guaranteed with a fully charged battery
For operation or charging only use the components enclosed or released by KTS
GmbH & Co. KG.
Application:
1. After switch-on and regulation of volume and frequency press the Reset-button for soil
calibration.
2. For the ground balance regulation hold coil on a metal-free spot and press the Reset-
button. With the ground balance regulation the influence of minerals in the soil is
neutralized and error signals are decreased.
3. Repeat the ground balance regulation at various spots, so that the calibration is always
carried out correctly. This shall particularly apply, if the soil layers have changed due to
possible excavations.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
11
6. Error signals
During development of GOLD ID-XL special emphasis was laid on stability and the
avoidance of malfunctions. Despite the high number of filters and modulators it cannot
be ruled out that certain soil conditions cause disturbances, which could influence the
measured values.
Apart from a wrong soil balance adjustment incorrect signals can emerge by the
following effects:
1. Abnormal effects (e.g. magnetic ferric oxide soils) may cause, that large iron metal parts
are indicated as precious metal. Therefore the conductance value of the located metal can
be falsified.
2. Adverse conditions can lead to wrong indications so that large iron objects may be
shown as precious metal.
3. Small parts of bronce partially could be specified as iron. The accuracy of measured
values therefore is only ensured starting from an object of 5 x 5 cm in dimension.
4. The measured values can be falsified, because other metal parts are detected near the
located metal object.
5. Strongly magnetic interference fields within residential areas and in the vicinity of ground
cables can influence the measured values, especially when working with the large
searchcoil.
6. Disturbances often occur in the peripherals of radio stations.
7. Strongly magnetic fields, particularly in the neighbourhood of high voltage masts, can
cause disfunctions.
7. Technical data
Electronic unit
Dimensions ca.: 18 x 22 x 7 cm
Weight: 1450 g (incl. bag with shoulder strap)
Power supply: integrated li-Ion battery 12 Volt (fully charged 14-16 V) / 2800 mAh
Operating time: approx. 4-8h
Charging time: max. 90 minutes
car-recharger: external car-recharger (connectable to cigarette lighter)
25 cm search coil
Dimension: 25 cm Ø
Weight: approx. 514 g
Cylindrical coil
Dimension: 5 cm Ø, Length: 20 cm
Weight: approx. 654 g
1 x 1 m Search frame
Dimensions: 8-fold demountable, incl. bag, approx. Length 60 cm
Total weight incl. bag: approx. 1,2 kg

KTS-Electronic GmbH & Co. KG –GOLD ID-XL
12
8. Warranty
We grant repair work free of charge resulting from production failures originated by
errors and defects 24 months effective from date of purchase.
According to the following conditions we remedy deficiencies free of charge, if they are
evidently based on manufacturing errors or material defects and are reported to us
immediately after assessment of damage within 24 months after delivery to the
ultimate buyer.
Divergencies from the required quality of the goods, which are insignificant for the
suitability of value and use (failures caused by chemical or electrochemical influences,
damages resulting from wetness as well as from non-standard handling in general) are
irrelevant and excluded from the warranty.
Defective parts will be repaired gratuitous or replaced by unobjectionable parts of our
choice. KTS reserves the right to exchange the device for a product of equivalent
value in case the returned product cannot be repaired in an appropriate budget time
frame. On-site repairs cannot be demanded. Replaced, resp. exchanged parts will
merge into our property.
The guarantee claim expires in cases of improper handling, gross carelessness or if
repairs, modifications, additionally installed parts or extentions are carried out from
persons which are not authorized on our part to do so.
Guarantee claims will neither effect an extention of the term nor they will implement a
new guarantee period.
Further claims are excluded, in particular such through extraneous causes resulting
product damages, provided there is no obligatory legal liability. We therefore are not
liable for any accidential, indirect or other subsequent damages of any kind, which
lead to limited use, data loss, profit setbacks or operating failures.
We therefore are not liable for any accidential, indirect or other subsequent damages
of any kind, which lead to limited use, data loss, profit setbacks or operating failures.
8.1 Warranty expiration
KTS-Electronic GmbH & Co. KG can agree upon a service after the term of guarantee
is expired. In this case repairing and shipment will be charged.

KTS-Electronic GmbH & Co. KG –GOLD ID-XL V1.01
13
8.2 Care
Your GOLD ID-XL requires little maintenance, yet there are some items, which you
should consider, in order to receive its optimal functionality. Avoid extreme
temperatures, since it can be possible that electronic construction units are damaged
thereby. Protect the electronic housing with a plastic bag in case you should get
caught by rain, fog or dust. Always keep your equipment clean and dry and wipe off
sand and dirt.
8.3 Legal note
Before you start searching please note that the monument protection as well as other
legal standards are relevant. KTS-Electronic GmbH & Co. KG. assumes no
responsibility for possible legal violations.
In case of doubts we recommend a comprehensive consultation with an attorney or
national monument offices.
9. Contact
KTS-Electronic GmbH & Co. KG
Kurhessen Strasse 1
64546 Moerfelden-Walldorf
Germany
Tel: [phone]
Fax: [phone]
www.kts-electronic.com
eMail: [email protected]
Office hours:
Mondays –Thursdays: 9:00 am to 4:30 pm
Fridays: 9:00 am to 4:00 pm
Copyright: KTS-Electronic GmbH & Co. KG, Moerfelden-Walldorf/Germany, 2017
The right to reproduction or the disposal of graphics and/or texts of this publication is
without autor’s explicit consent not allowed.
