Kuppersbusch E5 Manual

TECHNICAL INFORMATION T7-94-01
SUPPORT
Responsible: Oliver Juling Phone: 0209 401-718
Date: 6.09.2020 Fax: 0209 401-743
Internal use only
EN
E5 Control Unit
1 On / Offkey 10 Tablet Detergent Indicator
2 Programme Selection P 11 Play Icon
3 F1 & F2 (Function Key 1/2) 12 End of Programme Icon
4 F1 Function Led 13 Remaining Time / Prog. Duration
5 F2 Function Led 14 F3 Function Led
6 Programme Number 15 Time Delay Icon
7 Salt Indicator 16 F4 Function Led
8 Rinse Aid Indicator 17 F3 & F4 (Function Key 3/4)
9 Auto Door Opening Indicator 18 Time Delay Key
1 E5 Key combinations
2 + 18 Setting Menu (available in ON mode)
1 + 2 Service Menu (available in OFF mode)
1.1 Settings Menu
As described in the user manual this menu is designed for customer preferences settings:
When the dishwasher is in program selection mode; Press [P] and [Delay] keys about 3sec to
enter the settings menu.
• Press [P] key to navigate in Settings menu and display current settings.
• Press [Delay] key to change settings
• Press [On/Off] key to exit from the menu.

T7-94-01 Page 2
Internal use only
1.1.1 Internal light (if available)
Will be available in settings menu if the dishwasher has inner light feature.
L:0 Internal light always off.
L:1 Internal light will be on for 2min. after opening the door
1.1.2 Microfilter cleaning (if available)
Will be available in settings menu if the dishwasher has filter cleaning feature.
F:0 Filter cleaning function will not work.
F:1 Filter will get cleaned automatically after each washing programme to have a better washing
performance
1.1.3 Auto door opening (if available)
Will be available in settings menu if the dishwasher has auto door opening feature.
o:0 Auto door opening feature always off.
o:1 The door will be opened at the end of each program to have a better drying performance

T7-94-01 Page 3
Internal use only
1.1.4 Auto Tablet detection (if available)
Will be available in settings menu if the dishwasher has Auto tablet detection feature.
a:0 Auto tablet detection feature is disabled
a:1 Auto tablet feature is enabled to make automatic tablet detergent detection during the
washing cycle
1.1.5 Regeneration level
As described in the user manual the regeneration level need to be set according to the water
hardness.
• Press [Delay] key to change regeneration setting
• Press [On/Off] key to exit from the menu.
1.1.6 Rinse aid level
As described in th user manual the rinse aid level need to be set according to the water hardness.
• Press [Delay] key to change rinse aid setting
• Press [On/Off] key to exit from the menu.
P:0 RinseAid dosing is disabled in washing programs
P:1 1 dose RinseAid will be used
P:2 2 doses Rinse Aid will be used
P:3 3 doses RinseAid will be used
P:4 4 doses Rinse Aid will be used

T7-94-01 Page 2
Internal use only

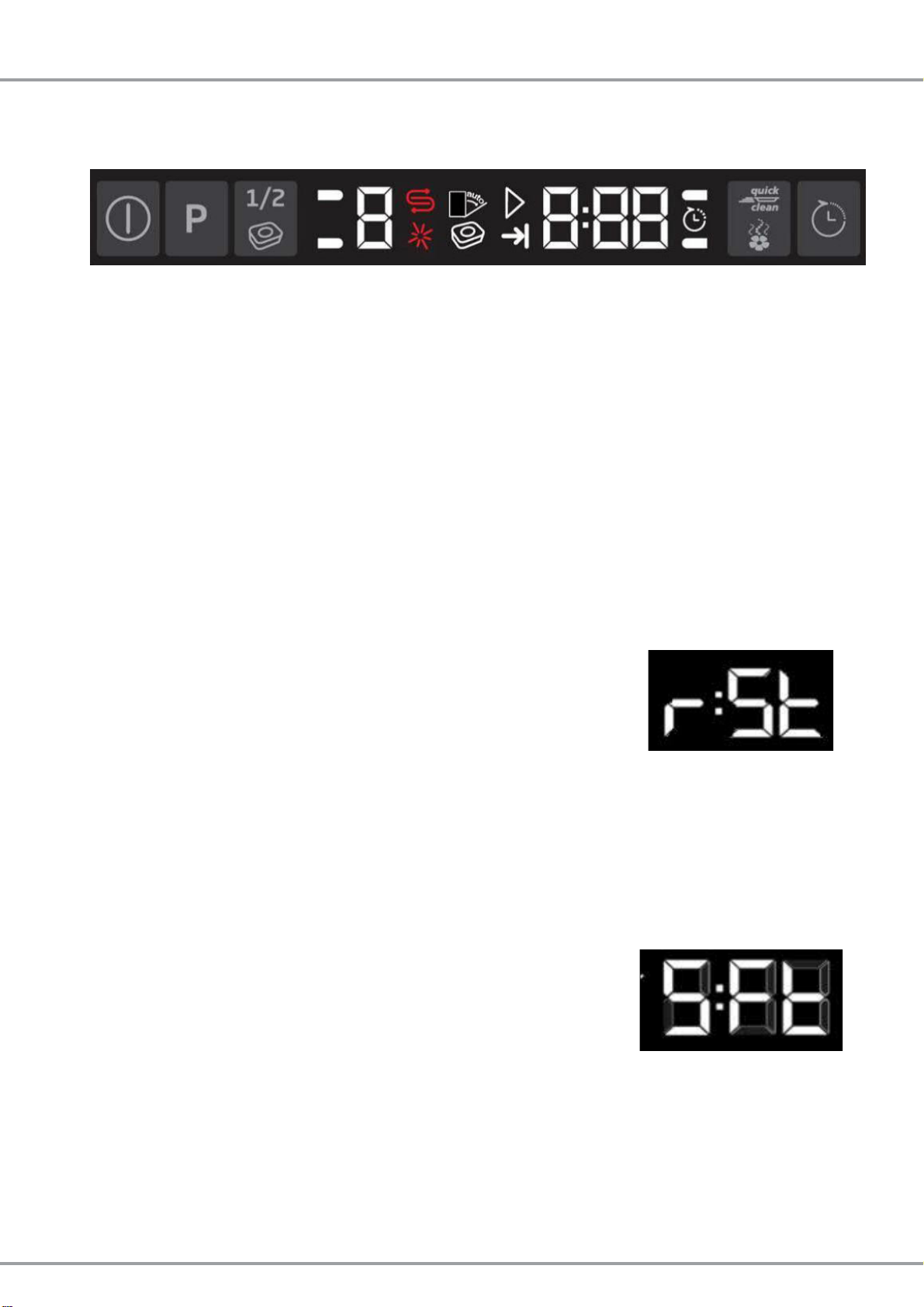

1.2 Service Menu
This menu is designed for service professionals and include diagnostic programs when the
dishwasher is in OFF mode.
• Press [P] and [On/Off] keys about 3sec to enter the settings menu.
• Press [P] key to navigate in service menu.
• Press [Delay] key to start selected programme.
• Press [On/Off] key to exit from the menu.
1.2.1 EeProm RESET
Eeprom Reset programme is used to set the dishwasher to the factory defaults.
• Press [Delay] key to reset.
• In 1 sec Reset will be done and end of program icon will be displayed.
1.2.2 Service Functional Test SFT
Service Functional Test is the diagnostics tool used by service professionals.
• Press [Delay] key to start SFT programme.
• Previous errors will be deleted before the program beginning.
• During the Service Functional Test (SFT) you need to press [Delay] key to continue the test when
it stops and waits for the internal controls.
• End of program will blink at the end of the test.

T7-94-01 Page 3
Internal use only
2 Errors and Troubleshooting
E5 Dishwashers are electronically controlled and some faulty conditions can be detected by the
electronics. These errors are detected not only in the functional test program but also during the
washing cycles. The previously detected errors are kept in memory and shown in display.
Whenthetestprogramsarestarted,errordatainmemorywillbeclearedwhichenablestounderstand
if the same fault occurs duringthe functional test again.At the end of the test diagnossed errors date
will also be cleared.

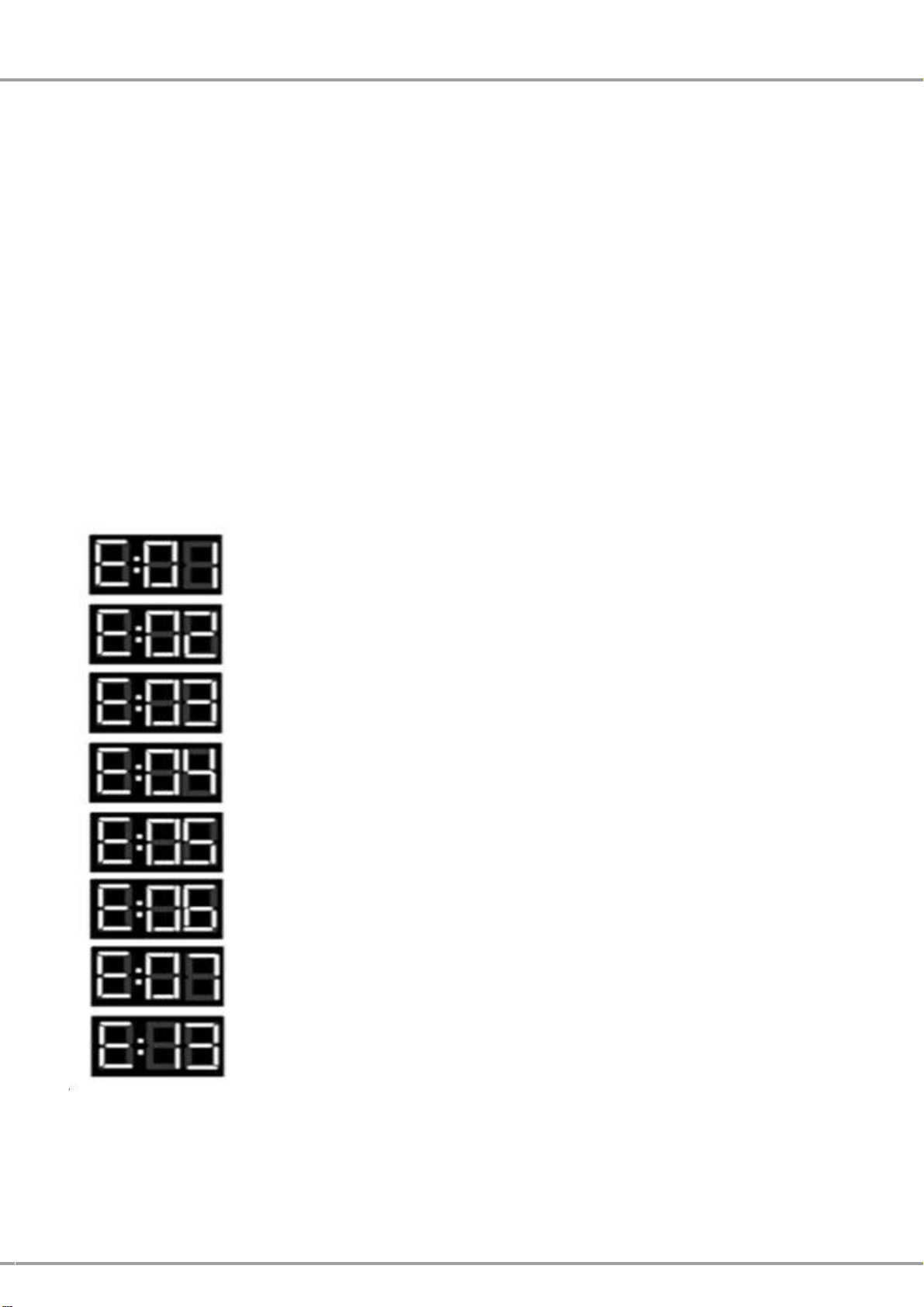

2.1 Error codes
Errors diagnosed during the dishwasher usage will be displayed on screen;
• [E:01] and [E:02] will be displayed also in normal use.
• Other error codes will be displayed only in service mode.
Overflow
No water
Heater fault
Turbitiy fault
Position error Valve Spray arm control
NTC fault
Water inlet valve fault
Heating pump (BLDC motor) Dry running error

T7-94-01 Page 2
Internal use only
2.2 Troubleshooting
2.2.1 Overflow [Er:01]
If the control system senses an overflow signal, this error will occurs.
Control unit drains the water inside and checks the signal;
• If there is no overflow signal, dishwasher will continue to work normally.
• If the overflowsignal remains, the system stops responding to any user input except the ON/OFF
button and waits for the service.
Possible reasons:
• Broken components or torned hoses
• Malfunction of drain pump
• Malfunction of flowmeter
• Malfunction of water inlet valve
• Cable harness errors
• Faulty electronics
2.2.2 No water [Er:02]
Incoming water to the machine is monitored via a water counter (flow meter) system. During the
“Water Inlet” step if no pulses could be sensed by the electronics, No Water condition occurs.
At this condition the dishwasher will wait until water signal is detected. If necessary water signal is
detected the machine will continue its normal operation.
Possible reasons:
a. Malfunction of water inlet valve
b. No water
c. Insufficient water pressure
d. Cable harness errors
e. Faulty electronics

T7-94-01 Page 3
Internal use only
2.2.3 Heater fault [Er:03]
The water temperature in the machine is measured by an NTC (negative temperature coefficient).
At heating steps, if the temperature rise is less than 1 °C within 3 minutes heating fault occurs.
When the fault detected software skips the heating step and continues the program
with the next step.
Possible reasons:
a. Malfunction of heater
b. Malfunction of NTC (constant NTC resistance)
c. Cable harness errors
e. Faulty electronics
Note: During the first 3 minutes of a heating step the water temperature is not controlled. The
control system waits so that the temperature inside the machine reaches balance.
2.2.4 Turbitiy fault [Er:04]
Turbidity sensor is the component that measures the amount of dirt in the water. The machine
uses this data for the steps of Auto Program (if applicable). If the proper data from the turbidity
sensor cannot be received, Turbidity Sensor Error occurs.
When the error occurs, the software continues the program as heavy dirt level.
Possible reasons:
a. Malfunction of Turbidity Sensor
b. Cable harness errors
c. Faulty electronics
2.2.5 Position error Valve Spray arm control [Er:05]
The spray arm valve is the component that diverts the water flow between the upper and lower
trays. Position of the valve is checked by the main board. The position error occurs if the proper
position signal could not be received from the valve.
When the error occurs, the electronics drives the valve until proper position signal is achieved.
Possible reasons:
a. Malfunction of spray arm control valve
b. Cable harness errors
c. Faulty electronics

T7-94-01 Page 2
Internal use only
2.2.6 NTC fault [Er:06]
At the heating step, if NTC resistance is measured beyond the specified resistance values or if the
NTC resistance is measured as open/short circuit NTC fault occurs.
When the fault is detected software skips the heating step and continues the program with the
next step.
Possible reasons:
a. Malfunction of NTC
b. Cable harness errors
c. Faulty electronics
2.2.7 Water Inlet Valve Fault [Er:07]
Main board monitors water counter pulses at every step of the washing program.
If pulses are received from the counter at any step other than Water-Inlet; Water Inlet Error occurs.
When the fault is detected software drains the water inside the dishwasher.
Possible reasons:
a. Malfunction of water inlet valve (stuck as open)
b. Faulty electronics
2.2.8 Heating pump (BLDC motor) Dry running error [Er:13]
The heating pump (BLDC motor) checks the amount of water. If the flow rate decreases a dry run-
ning error occurs.
Possible reasons:
a. Malfunction of water inlet valve (less water in dishwasher)
b. Dirty filter or spray arm
c. Faulty connection between motor and electronics
