INSTALLATION INSTRUCTIONS
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the
installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY NEGATIVELY AFFECT PRODUCT PERFORMANCE AND
FUNCTIONALITY OR DAMAGE THE PRODUCT ITSELF OR THE PRODUCT TO WHICH IT IS BEING ATTACHED.

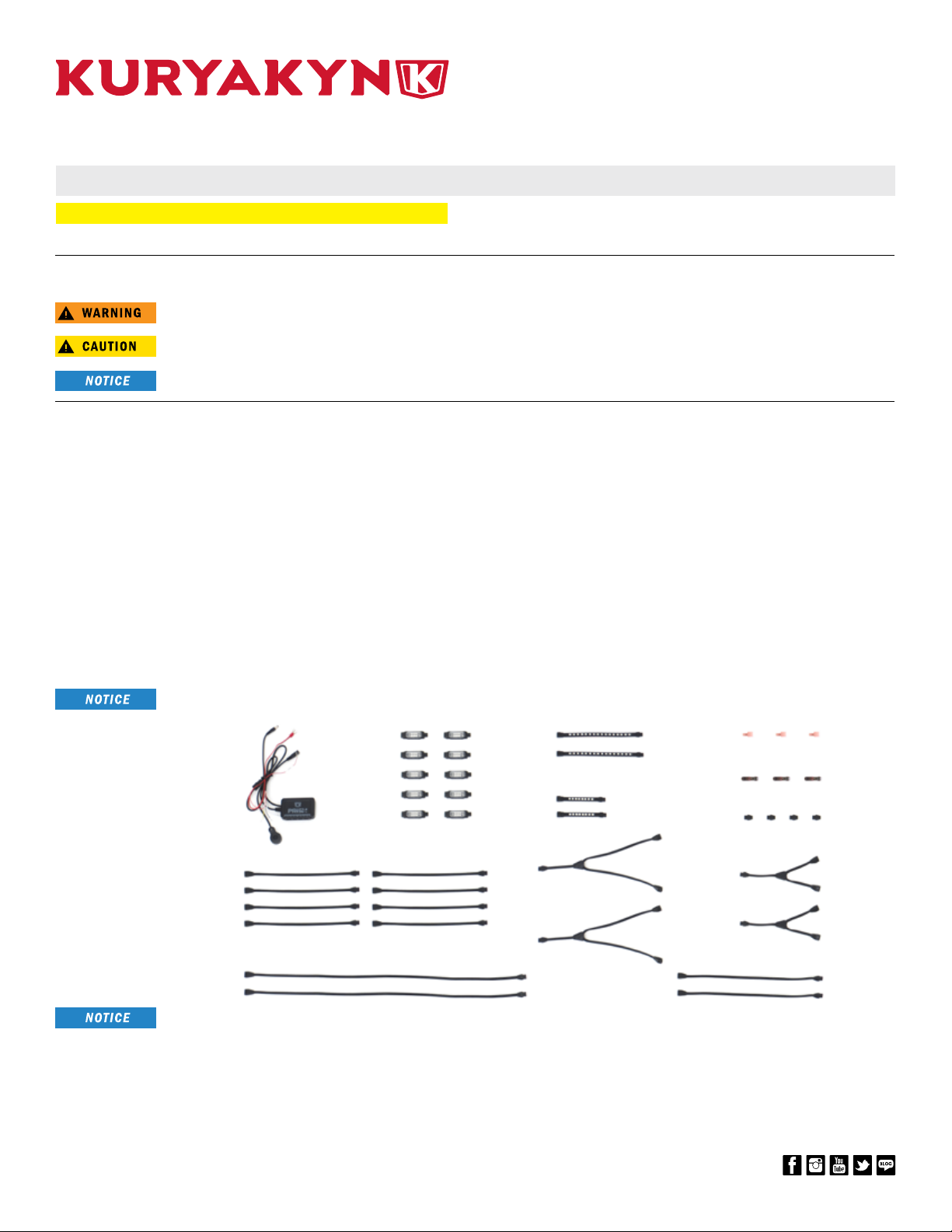

ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1Bluetooth Controller 1Hardware Kit, containing:
10 Light Pod 12 Alcohol Pad
28” Flex-Strip 1Dielectric Grease
24” Flex-Strip 16 4” Cable Tie
89” Extension Cords 5Adhesive Pads
212” Extension Cords 1Adhesive 4” Strip
224” Extension Cords 1Adhesive 8” Strip
2Y-Connectors - Short 3T-Tap Connector
2Y-Connectors - Long 3Spade Connector
4Loop Connectors
YOU WILL ALSO NEED:
Phillips screw driver, wire crimper, electrical tape, masking tape, clean rag and warm soapy water
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES THIS COPY
AND IS AWARE OF ITS IMPORTANCE FOR FUTURE USE.
REFER TO THE LAST PAGE OF THE INSTALLATION INSTRUCTIONS FOR L.E.D. COUNTS FOR EACH VARIATION OF PRISM+
LIGHTS. BLUETOOTH CONTROLLERS HAVE A MAX CAPACITY OF 250 L.E.D.S CONNECTED TO IT AT A TIME. MAX CAPACITY
PER CHANNEL IS 100 L.E.D.S, BUT THE CONTROLLER SHOULD NEVER EXCEED A TOTAL OF 250 L.E.D.S CONNECTED TO IT.
STEP 1 Read and understand all steps in the instructions before
starting the installation. Park the motorcycle on a hard, level
surface and turn o󰀨 the ignition. Let motorcycle cool.
BLUETOOTH
CONTROLLER
PIC 1
SPADE
CONNECTORS
T-TAP
CONNECTORS
LOOP
CONNECTORS
Y-CONNECTORS
SHORT
Y-CONNECTORS
LONG
9” EXTENSION CORDS
LIGHT PODS 4” FLEX-STRIP
8” FLEX-STRIP
24” EXTENSION CORDS 12” EXTENSION CORDS
DOWNLOAD APP TO PHONE: KURYAKYN PRISM+

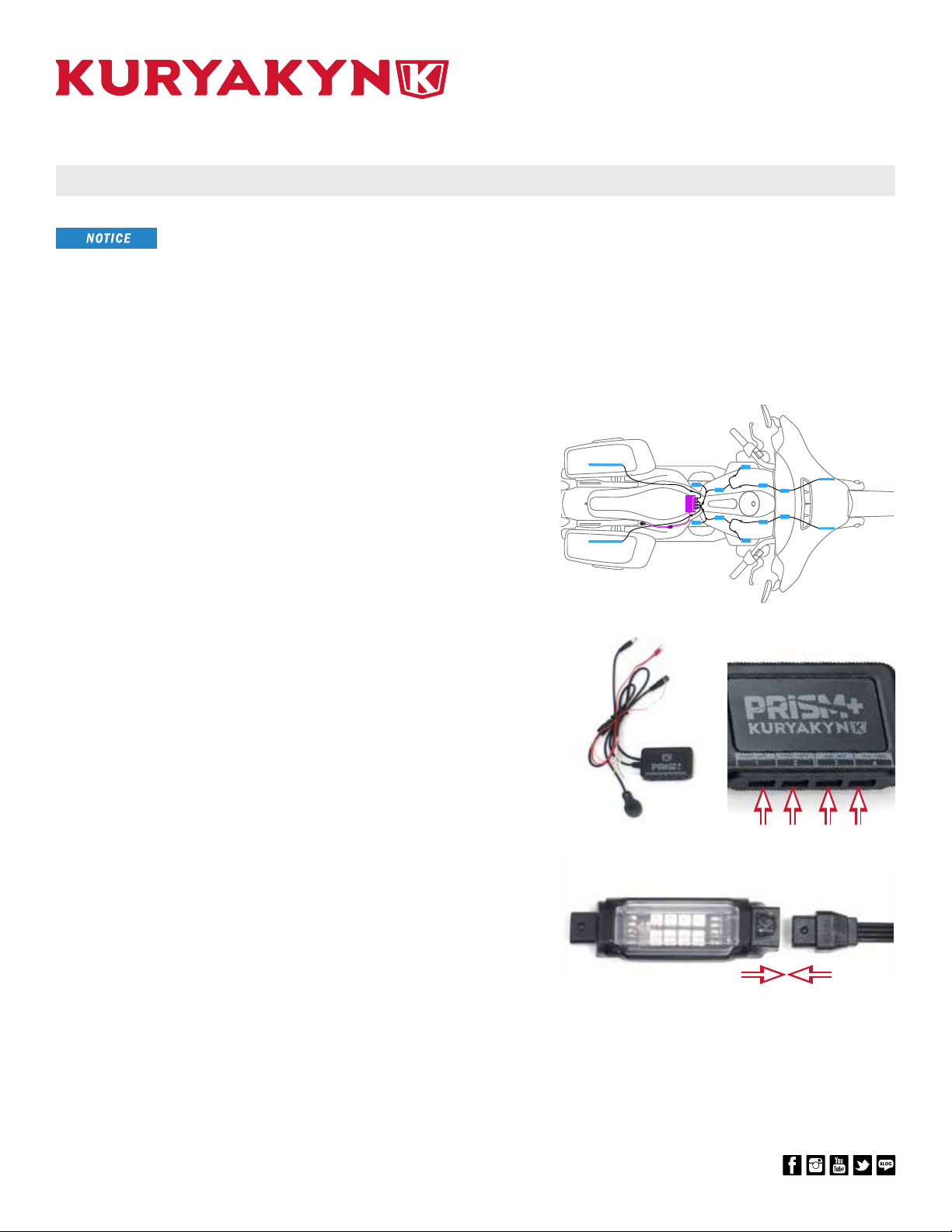

PAGE 2
302803
DPF-MRK-003 REV D 7/24/19
PRISM+ PRO KIT WITH CONTROLLER 2803
866 277 9598 | [e-mail]
454 COUNTY ROAD VV SOMERSET, WI 54025
KURYAKYN.COM
INSTALLATION INSTRUCTIONS
-CONTINUED-
ENSURE PROPER ADHESION OF THIS PRODUCT. REMOVE ALL
GREASE, OIL, BUGS, DIRT, AND OTHER DEBRIS (INCLUDING
WAX AND POLISH) FROM THE INSTALLATION AREA. KURYAKYN
WILL NOT PROVIDE WARRANTY COVERAGE ON PRODUCTS
OR COMPONENTS LOST OR DAMAGED DUE TO IMPROPER
INSTALLATION.
DO NOT ATTEMPT THIS INSTALLATION IN TEMPERATURES
BELOW 50°F (10°C). PROPER ADHESIVE BONDING ONLY OCCURS
ABOVE 50°F (10°C).
STEP 2 Using warm soapy water and a clean rag, remove all dirt
and debris from the installation areas for the lights; allow the
area to dry completely. Wipe the installation areas with the
included alcohol pads to remove any wax or polish; allow
the area to dry completely. DO NOT INSTALL PARTS AT THIS
TIME!
LF
1
RF
2
LR
3
RR
4
STEP 3 Refer to FIG 1. Determine areas of the bike you wish to
apply lights to. Test t the lights and mark the desired
locations with masking tape. Determine which provided
cords and connectors will be suitable for your desired
locations. Make adjustments to placement where needed.
Note: The diagram shows suggestions, not requirements, of where to
install Prism+ lights. Get creative and have fun!
STEP 4 Refer to PIC 2 and 3. Locate provided Bluetooth Controller.
Gain access to your motorcycle’s battery for installation of
the Bluetooth Controller.
Note: Battery location and access will vary. Refer to your motorcycle’s
service manual for assistance.
STEP 5 Fasten the controller’s two positive hook terminals (red
wires with hook terminals) to the positive post on the
battery, and the negative hook terminal (black wire with
hook terminal) to the negative post on the battery. Fully
secure hooks in place. Do NOT connect pigtail wires labeled
“brake”, “left”, “right” at this time.
STEP 6 Refer to PIC 3. Connect cords and lights to the controller,
being aware of the four di󰀨erent channels on the controller:
front left, front right, rear left, and rear right. Turn on the
Bluetooth Controller switch, open the Kuryakyn Prism+ App
on your phone, and pair the two devices. Test for proper
function of the lights before fully installing them on your
bike.
Note: Refer to PIC 4. Make note of the raised dot and the Kuryakyn
K-shield logo on opposite ends on each part. When connecting cords
to cords, cords to lights, or lights to lights be sure that the raised dot
and K-shield logo are both visible when connecting. When parts are
connected, the K-shield logos of those parts should be visible on the
same side. If within your chain of cords and lights a shield is facing in the
opposite direction, it is connected incorrectly.
TOP VIEW OF BIKE DIAGRAM
PIC 2
FIG 1
PIC 3
RAISED
DOT
K-SHIELD
LOGO
PIC 4
K-SHIELD
LOGO
RAISED
DOT

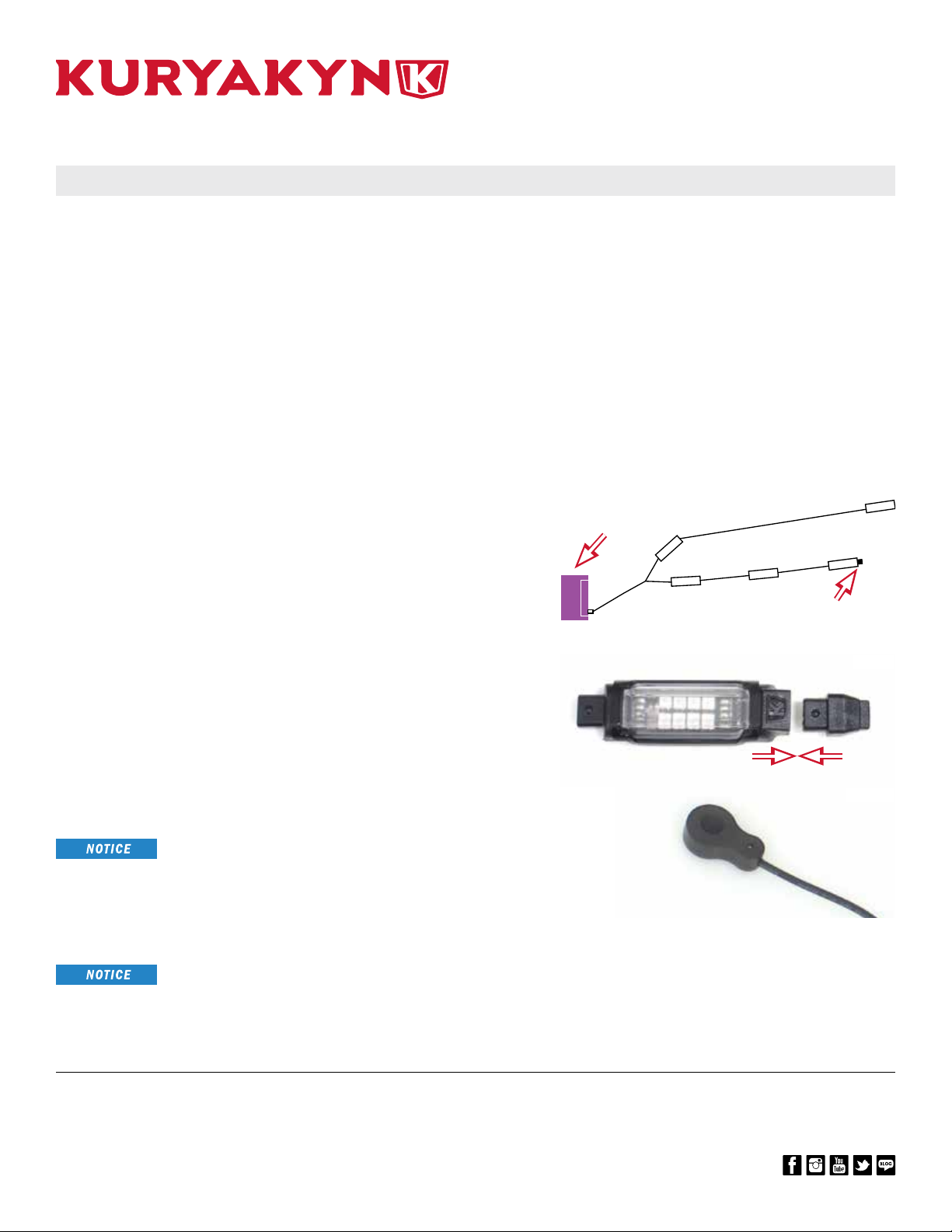

PAGE 3
302803
DPF-MRK-003 REV D 7/24/19
PRISM+ PRO KIT WITH CONTROLLER 2803
866 277 9598 | [e-mail]
454 COUNTY ROAD VV SOMERSET, WI 54025
KURYAKYN.COM
INSTALLATION INSTRUCTIONS
-CONTINUED-
STEP 7 After testing the lights, disconnect all lights and cords from
the Bluetooth Controller.
THE THERMAL LIMIT OF THE MODULE IS 55˚C (131˚F). IF THE
BLUETOOTH CONTROLLER EXCEEDS THESE TEMPERATURES
PRISM+ LIGHTS MAY MALFUNCTION.
STEP 8 Set the controller within a safe open space located in or
around the motorcycle’s frame near the battery. Feed the
controller’s power switch out from the inner frame area and
set it, but do not install it, in desired location.
OPTIONAL
BRAKE-REAR TURN SIGNAL FUNCTIONALITY
• Brake-rear turn light features work when “RIDE” mode
is turned on in the Kuryakyn Prism+ App.
• Optional Brake-Rear Turn functionality is not
compatible with all years, makes and models.
STEP 9 IF NOT USING THE BRAKE-REAR TURN FEATURE, OR IT IS NOT
APPLICABLE TO YOUR MOTORYCLE:
Use electrical tape to individually wrap the exposed pigtails
wires, and secure them in a safe place. Proceed to Step 11.
STEP 10 CONNECTION OF BRAKE-REAR TURN PIGTAILS, IF APPLICABLE
TO MOTORCYCLE:
Refer to PIC 5 through 8.
Be aware of the pigtail wires coming from the controller:
red = battery, white = brake, black = left turn signal, and
yellow = right turn signal. Connect spade connectors to the
exposed Controller pigtail wires.
On the bike, locate a brake light wire, a left turn signal
wire, and a right turn signal wire (colors of wires will vary
depending on bike models - refer to your service manual
for assistance). Install a supplied T-Tap to each of the bike’s
light wires that were just located.
Plug the Spade Connectors into corresponding the T-Taps.
STEP 11 Locate the extension cords that will connect to the
controller. Apply a small amount of dielectric grease to
the plugs and attach them to the controller, and feed them
through the bike frame to desired locations. Verify the
position of the lights again, and re-adjust their placements if
necessary before fully installing them.
TO ENSURE PROPER FUNCTIONALITY OF THE LIGHTS (BRAKING
AND TURN SIGNALS, IF APPLICABLE), BE SURE THEY ARE
CONNECTED TO THEIR PROPER CHANNEL: FRONT LEFT, FRONT
RIGHT, REAR LEFT, OR REAR RIGHT.
T-TAP
BRAKE
OR TURN
LIGHT
WIRE
SPADE
CONNECTOR
ATTACH TO
CONTROLLER
PIGTAIL
PIC 8PIC 7PIC 6
PIC 5

PAGE 4
302803
DPF-MRK-003 REV D 7/24/19
PRISM+ PRO KIT WITH CONTROLLER 2803
866 277 9598 | [e-mail]
454 COUNTY ROAD VV SOMERSET, WI 54025
KURYAKYN.COM
INSTALLATION INSTRUCTIONS
-CONTINUED-
STEP 12 Use your ngernail to rub the adhesive backing; this will
activate the adhesive. Do not remove backing until actually
placing lights on bike.
STEP 13 Apply a small amount of dielectric grease to the extension
cords that are connected to the controller. Connect lights to
the cords.
STEP 14 Remove and discard backing from light’s adhesive backer.
Align and place light to bike. Press into place for one
minute; full bonding will occur after 24 hours.
STEP 15 Repeat the process of applying dielectric grease to lights
and cords, connecting them, and adhering lights to the bike
until all lights are installed.
STEP 16 Refer to FIG 2 and PIC 9. Per each channel, connect a
loop connector on the end of the branch that has the most
L.E.D.s on it. Be sure the raised dot on the Loop Connector
is aligned with the K-shield logo on the light. Refer to the
L.E.D. count table located on the last page to help you
determine how many lights are on each branch and each
channel.
Note: FIG 2 is for reference only, as connection of cords and lights will
vary.
LF
1
RF
2
LR
3
RR
4
STEP 17 Test function of lights. Ensure all of the lights properly
function before operating motorcycle.
STEP 18 Refer to PIC 10. Remove and discard adhesive backer from
the Bluetooth Controller’s switch. Align and place it on the
bike. Press into place for one minute; full bonding will occur
after 24 hours.
STEP 19 Secure all cords in a safe place. Ensure that cords are
secured away from any moving parts, excessive heat or
pinch points.
SECURE ALL WIRING AWAY FROM ANY MOVING PARTS, PINCH
POINTS OR EXTREME HEAT. KURYAKYN WILL NOT ISSUE A
WARRANTY ON ANY ELECTRICAL COMPONENT THAT FAILS
DUE TO PINCHED, CRIMPED, BROKEN, ABRADED, MELTED OR
FRAYED WIRES.
STEP 20 Reinstall seats and any other part that may have been
removed during the process to gain access to your battery.
IT IS THE INSTALLER’S RESPONSIBILITY TO ENSURE THAT ALL
OF THE FASTENERS (INCLUDING PRE-ASSEMBLED) ARE TIGHT-
ENED BEFORE OPERATION OF THE MOTORCYCLE. KURYAKYN
WILL NOT PROVIDE WARRANTY COVERAGE ON PRODUCTS OR
COMPONENTS LOST DUE TO IMPROPER INSTALLATION OR LACK
OF MAINTENANCE. PERIODIC INSPECTION AND MAINTENANCE
ARE REQUIRED ON ALL FASTENERS.
K-SHIELD
LOGO
BLUETOOTH
CONTROLLER’S
SWITCH
OFF BIKE VIEW
RAISED
DOT
LOOP
CONNECTOR
LOOP CONNECTOR:
MOST L.E.D.S ON A
BRANCH
BLUETOOTH
CONTROLLER
PIC 10
PIC 9
FIG 2

PAGE 5
302803
DPF-MRK-003 REV D 7/24/19
PRISM+ PRO KIT WITH CONTROLLER 2803
866 277 9598 | [e-mail]
454 COUNTY ROAD VV SOMERSET, WI 54025
KURYAKYN.COM
INSTALLATION INSTRUCTIONS
-CONTINUED-
LIMITED WARRANTY
Kuryakyn warrants that any Kuryakyn products sold hereunder, shall be free of defects in materials & workmanship for a period of one (1) year from the date of purchase by
the consumer excepting the following provisions:
1. Kuryakyn shall have no obligation in the event the customer is unable to provide a receipt showing the date the customer purchased the product(s).
2. The product must be properly installed, maintained & operated under normal conditions.
3. Kuryakyn shall not be liable for any consequential & incidental damages, including labor & paint, resulting from failure of a Kuryakyn product, failure to deliver, delay in w
in nonconforming condition, or for any breach of contract or duty between Kuryakyn & a customer.
4. Kuryakyn products are often intended for use in specific applications. Kuryakyn makes no warranty if a Kuryakyn product is used in applications other than intended.
5. Kuryakyn electrical products are warranted for one (1) year from the date of purchase by the consumer. L.E.D.’s contained in components of Kuryakyn products will be
warranted for defects in materials & workmanship for 3 years from the date of purchase whereas all other components shall be warranted for one (1) year.
6. All warranty claims must be directed to the place of purchase. Merchandise sold through internet auction sites or any other unauthorized reseller shall not carry a
Kuryakyn warranty. If unsure, please contact the place of purchase to verify they are an authorized Kuryakyn reseller.
RETURN POLICY
Merchandise determined to be defective may be returned up to one year from the date of purchase. Returns must be processed through original seller. Returned
merchandise for any other reason other than warranty claims must be in like new condition & subject to a 20% restocking fee. All returns are subject to inspection for
determination of full or partial credit. Any returned part that shows evidence of being used or installed contrary to manufacturer’s instructions, &/or subjected to improper
handling, packaging or return shipping by the customer, will not be eligible for exchange, refund or warranty consideration. All returned electrical items will be inspected &
tested. If electrical item is deemed functional, no credit will be issued & item will be returned. All sales are final on discontinued or closeout merchandise.
©2015 KURYAKYN HOLDINGS, LLC ALL RIGHTS RESERVED
KURYAKYN, KURYAKYN K logo and the marks appearing on this instruction sheet are registered and common law trademarks of Kuryakyn Holdings except noted third-party trademarks. A full listing of trademarks and trademark
registrations owned by Kuryakyn Holdings can be found at www.kuryakyn.com/legal-notice.
Emissions Notice: The California Air Resources Board (CARB) does not permit the use of aftermarket emission-related parts(s) that alter the performance of OEM emission-related devices unless CARB has issued an Executive
Order, other than on racing vehicles on closed courses. Check your local laws and manufacturer’s information.
Listed Manufacturers and product model names are for reference only. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or
endorsement by them. All specifications are subject to change without notice.
For additional information on third-party product and company names, please consult our Web page at www.kuryakyn.com/legal-notice
FCC WARNING STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: any changes or modications to this device not explicitly approved by manufacturer could void your authority
to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may no cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure
condition without restriction.

PAGE 6
302803
DPF-MRK-003 REV D 7/24/19
PRISM+ PRO KIT WITH CONTROLLER 2803
866 277 9598 | [e-mail]
454 COUNTY ROAD VV SOMERSET, WI 54025
KURYAKYN.COM
INSTALLATION INSTRUCTIONS
-CONTINUED-
PRISM COMPONENTS L.E.D. COUNT
HEADLIGHT 7” 48
HEADLIGHT 5-3/4” 36
PASSING LIGHT 4-1/2” 24
ROULETTE 16
FLARE 8
4” STRIP 8
8” STRIP 16
POD* 8 L.E.D. COUNT
(*4 CONTROLLER READ COUNT)
*The bluetooth controller reads a pod light as 4 L.E.D.s, even though they have
a total of 8 L.E.D.s.
CREATING A SINGLE CHAIN OF PODS AND/OR STRIP LIGHTS:
Refer to FIG 1.1. Do not exceed the 100 L.E.D. maximum
capacity per channel. Place a loop connector on the very end of
the chain of lights.
LF
1
RF
2
LR
3
RR
4
444
CREATING A SINGLE CHAIN OF PODS AND/OR STRIP LIGHTS
WITH A HEADLIGHT OR ROULETTE WHEEL:
Refer to FIG 2.1. Do not exceed the 100 L.E.D. maximum
capacity per channel. Place Headlight or Roulette Wheel on the
end of the chain.
LF
1
RF
2
LR
3
RR
4
4 4 4 48
USING A Y-CONNECTOR WITH A HEADLIGHT, THE PASSING
LIGHTS, A ROULETTE WHEEL, OR THE FLARE LIGHTS:
Refer to FIG 3.1. When Y-Connectors are used with a Headlight,
the Passing Lights, a Roulette Wheel, or the Flare Lights, each
branch of the Y-Connector needs to have the same amount
of L.E.D.s to function properly. Lights can be placed before a
Y-Connector as long as the 100 L.E.D. maximum capacity per
channel is not exceeded.
When balancing a branch using Pod Lights the controller reads
them as 4 L.E.D.s, but the actual count is 8 L.E.D.s per Pod. The
8 count is used in the overall total of L.E.D.s on a channel. Make
sure not to exceed the 100 L.E.D. maximum capacity
per channel.
LF
1
RF
2
LR
3
RR
4
8 8 8
8 8 8 48
LF
1
RF
2
LR
3
RR
4
4 4 4
4
4
4
LF
1
RF
2
LR
3
RR
4
4 4 4
4
4 4 4 4
4
4 4
USING A Y-CONNECTOR WITH PODS AND/OR STRIP
LIGHTS ONLY:
Refer to FIG 4.1 and 4.2. When using Y-Connectors, the branch
with the most L.E.D.s on it needs to have a loop connector
added to the end of it.
REFER TO THE L.E.D. COUNT TABLE FOR EACH VARIATION OF PRISM+ LIGHTS. BLUETOOTH CONTROLLERS HAVE A
MAX CAPACITY OF 250 L.E.D.S CONNECTED TO IT AT A TIME. MAX CAPACITY PER CHANNEL IS 100 L.E.D.S, BUT THE
CONTROLLER SHOULD NEVER EXCEED A TOTAL OF 250 L.E.D.S CONNECTED TO IT.
FIG 1.1
FIG 2.1
FIG 3.1
FIG 4.1
FIG 4.2
LOOP
CONNECTOR
LOOP
CONNECTOR
LOOP
CONNECTOR
SINGULAR Y-CONNECTOR EXAMPLE
MULTIPLE Y-CONNECTORS EXAMPLE
96 L.E.D.S ON
ONE CHANNEL
SHOWN
6x 4” STRIPS = 1 HEADLIGHT
