Kuvings REVO830 User manual

KUVINGS
WHOLE SLOW JUICER
OPTIMIZED FOR CARROTS & CELERY
MANUAL
• After you read this manual,
keep in the place you can reach easily.
•
Household use only.
REVO830
10EN221026A
HOW TO USE

43
CONTENTS
Important Safeguards
Safety Warning
Parts
How to Assemble
How to Operate
Tips on Operation
Tips on Ingredients
Ingredients Preparation

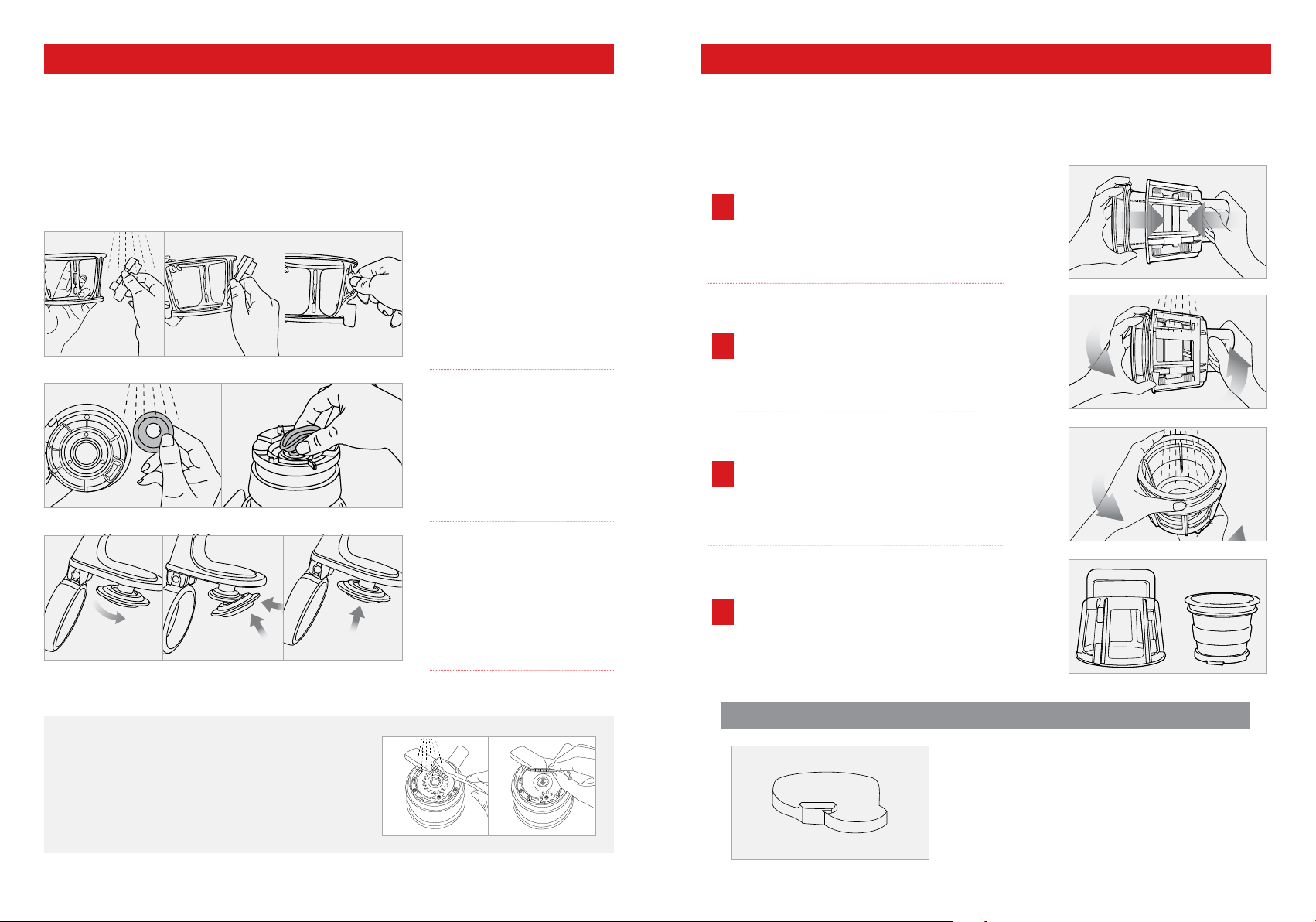

How to Disassemble and Clean
How to Clean Silicone Parts
How to Use the Cleaning Tool
OPTIONAL | How to use the Lid Cap
OPTIONAL | How to Use the Blank Strainer
OPTIONAL | How to Use the Coarse Strainer
OPTIONAL | How to Use the Smoothie Strainer

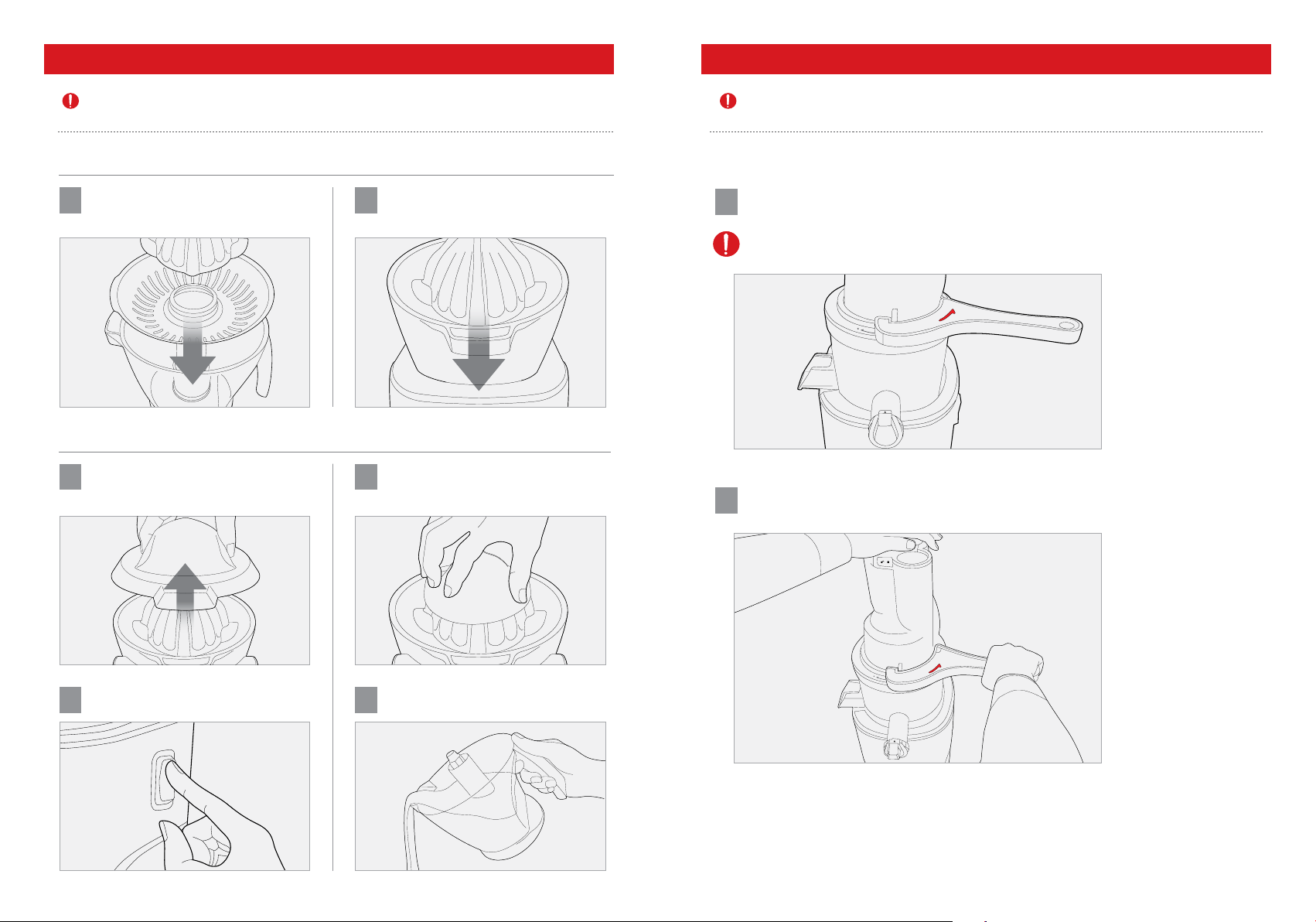

OPTIONAL | How to Use the Citrus Maker
OPTIONAL | How to Use the Lid Opener
Troubleshooting Q&A
Specications
03
05
07
09
11
13
14
15
19
21
22
23
25
27
29
30
31
32
• This appliance is for household use only. Please carefully follow the instructions
in the manual.
(The appliance cannot be covered under the manufacture warranty if the product is
abnormally or commercially used.)
• Save the instruction manual for future reference
• If the appliance is given away as a gift, please include the manual with the product.
• These instruction shall also be available in an alternative format.
e.g on a website. www.kuvings.com
1. Read all instructions.
2. To protect against risk of electrical shock, do not put motor or base of
unit in water or other liquid.
3. Keep away from children.
4. Unplug from outlet when not in use, before putting on or taking o
parts, and before cleaning.
5. Avoid contacting moving parts.
6. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in order
to avoid a hazard.
7. The use of attachments not recommended or sold by the
manufacturer may cause re, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. Always make sure juicer cover is clamped securely in place before
motor is turned on. Do not unfasten clamps while juicer is in
operation.
11. Be sure to turn switch to OFF position after each use of your juicer.
Make sure the motor stops completely before disassembling.
12. Do not put your ngers or other objects into the juicer opening while
it is in operation. If food becomes lodged in opening, use food pusher
or another piece of fruit or vegetable to push it down. When this
method is not possible turn the motor o and disassemble juicer to
remove the remaining food.
13. Do not use the appliance if the rotating sieve is damaged.
14. When a separable Juice Cup(1,2) is provided, do not operate without
the Juice Cup(1,2) in place.
15. Please do not alter the appliance in anyway.
16. Do not use the appliance for anything other than it's intended
purpose as described in the manual.
17. This appliance should be used for limited period of time.
18. This appliance can not be used by children and persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children.
19. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge.
When using electrical appliances, basic safety precautions
should always be followed including the following:

65
The following precaution is provided to ensure the safety of the user. Please carefully read
through the precautions and exercise a degree of care when using the appliance.
Warning : Warns risk of death or severe injuries.
Caution : Warns risk of injuries or appliance damage.
Prohibited Follow instruction
Must take action Do not disassemble
SAFETY WARNING SAFETY WARNING
Do not repair, disassemble the base, or customize the appliance.
The appliance may not operate properly causing re,
electrical shock or injury.
Do not put the parts in the dishwasher or extremely hot water.
The parts may wear faster.
Do not use the appliance on an uneven surface.
It may cause a malfunction if the appliance tips over.
To protect the power cord, please do not aggressively bend or put
heavy object on top of the power cord.
It may cause short circuit or even re.
Keep away from children and store the appliance in a safe place.
It may cause injury.
Please do not store or operate the appliance near any heating
appliance.
The appliance may become discolored or deformed.
Do not use any hazardous chemical to clean the appliance or
ammable sprays near the appliance.
It may change the color of the appliance or could result in a re.
For cleaning parts that come in contact with food, please follow
the instruction on pages 19-22.
Do not plug multiple power cords on a single outlet during operation.
It may cause an explosion or re.
Do not touch the power cord with wet hands.
It may cause electrical shock.
Use a dry towel to clean the power cord if it is dirty or wet.
It may cause electrical shock or re.
Do not drop the appliance nor inict strong force to the appliance.
It may damage or break the appliance.
Do not unplug by pulling o the power cord cable.
It may damage the power cord and cause electrical shock.
Do not put your nger or other objects into the feeding tube while it
is in operation.
It may cause injury.
Do not leave the appliance unattended. Unplug the power cord from
the outlet when not in use.
Operating the juicer without ingredients can cause damage to the
screw.

87

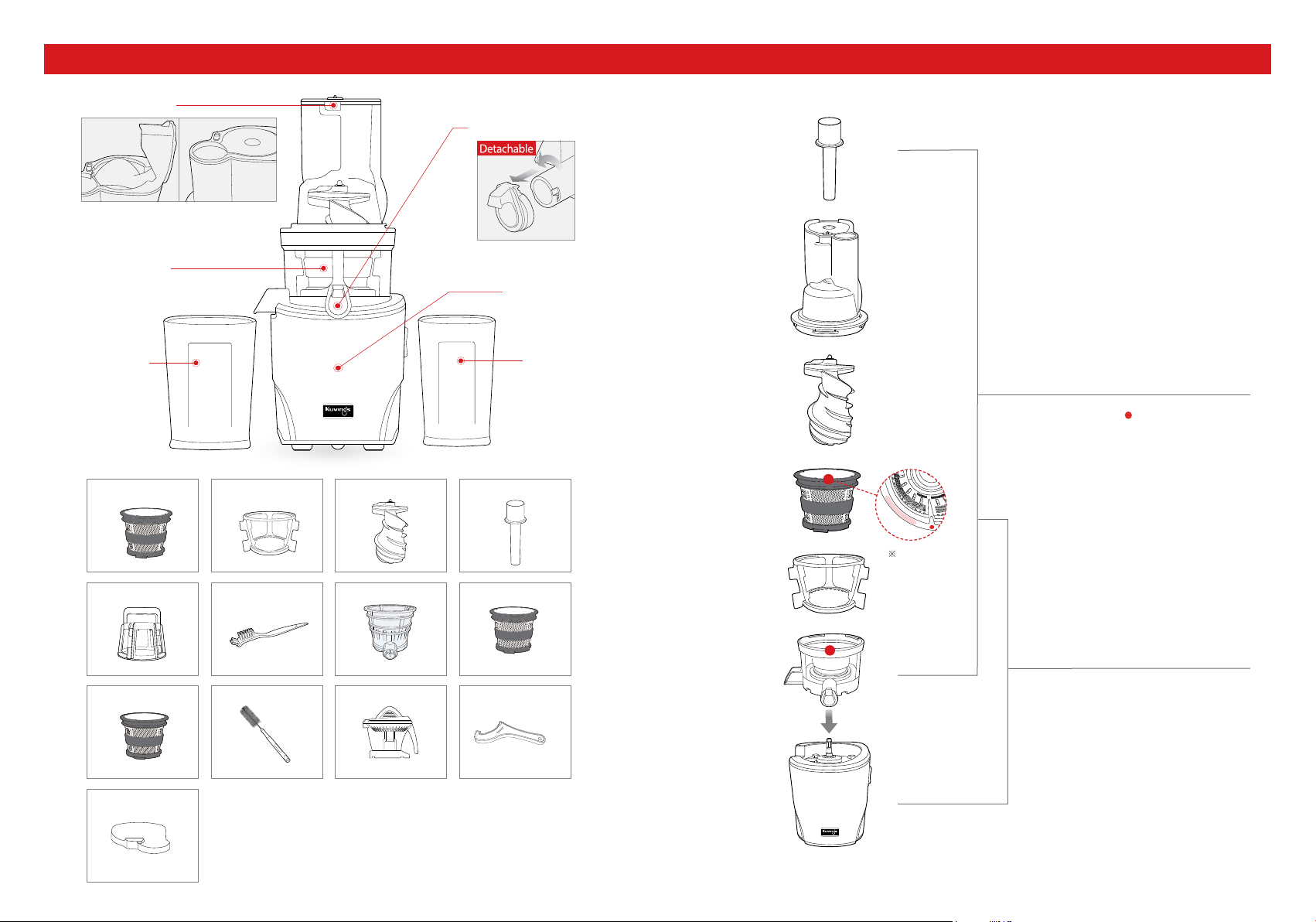

PARTS
Align the red dots on each part and
assemble in the order shown. Once
assembled, turn the drum lid clockwise
to close.
STEP 1
Top-set Assembly
STEP 2
Top-set and body assembly
Place the assembled Top-set on the body.
Position the juice outlet so that it is
in front of the body.
* The products illustrated in this booklet may vary slightly from the actual product.
2. Juicing Bowl
3. Juice Cup 1
5. Body
6. Juice Cup 2
1. Feeding Tube
Flap Gate Auto-Cut Chute
7. Juicing Strainer 9. Juicing Screw8. Rotation Wiper 10. Pusher
11. Rotating Brush 12. Cleaning Brush 13. Blank Strainer
[OPTIONAL]
14. Coarse Strainer
[OPTIONAL]
[OPTIONAL]
15. Smoothie Strainer
19. Lid Cap
[OPTIONAL]
[OPTIONAL]
16. Round Brush
[OPTIONAL]
17. Citrus Maker
[OPTIONAL]
4. Smart Cap
18. Lid Opener
Check the
name of the
Strainer
+
+
+
+
+
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R

109
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
HOW TO ASSEMBLE
STEP 1
Top-set assembly
STEP 2
Top-set and Body Assembly
Check Before
Operating • Wash the parts before rst use.
• Ensure that the silicone ring is assembled properly.
The juicing screw needs to be locked in
place in order to close the drum lid.
Note |
Place the juicing screw into the strainer.
Turn and press down on it until it clicks
into place.
2
Place the drum lid onto the juicing bowl,
aligning the white dot on the drum
lid with the red dot on the juicing bowl.
Turn the drum lid clockwise until the
lock mark on the lid is lined up with the
red dot on the juicing bowl.
3
Assemble the strainer into the rotation
wiper then place this assembly in to the
juicing bowl ensuring the red dot on the
strainer is aligned with the red dot on
the juicing bowl.
1
For easy assembly hold the drum lid
by grabbing the drum lid and turn
clockwise as shown in the illustration.
TIP
4
Place the assembled Top-set on the
body. Position the juice outlet so that
it is in front of the body.
5
Place the juice cup 1,2 under the spout.
When juicing with ingredients with high
juicing content, place the juice cup 1 under
the juice spout.
Note |

1211

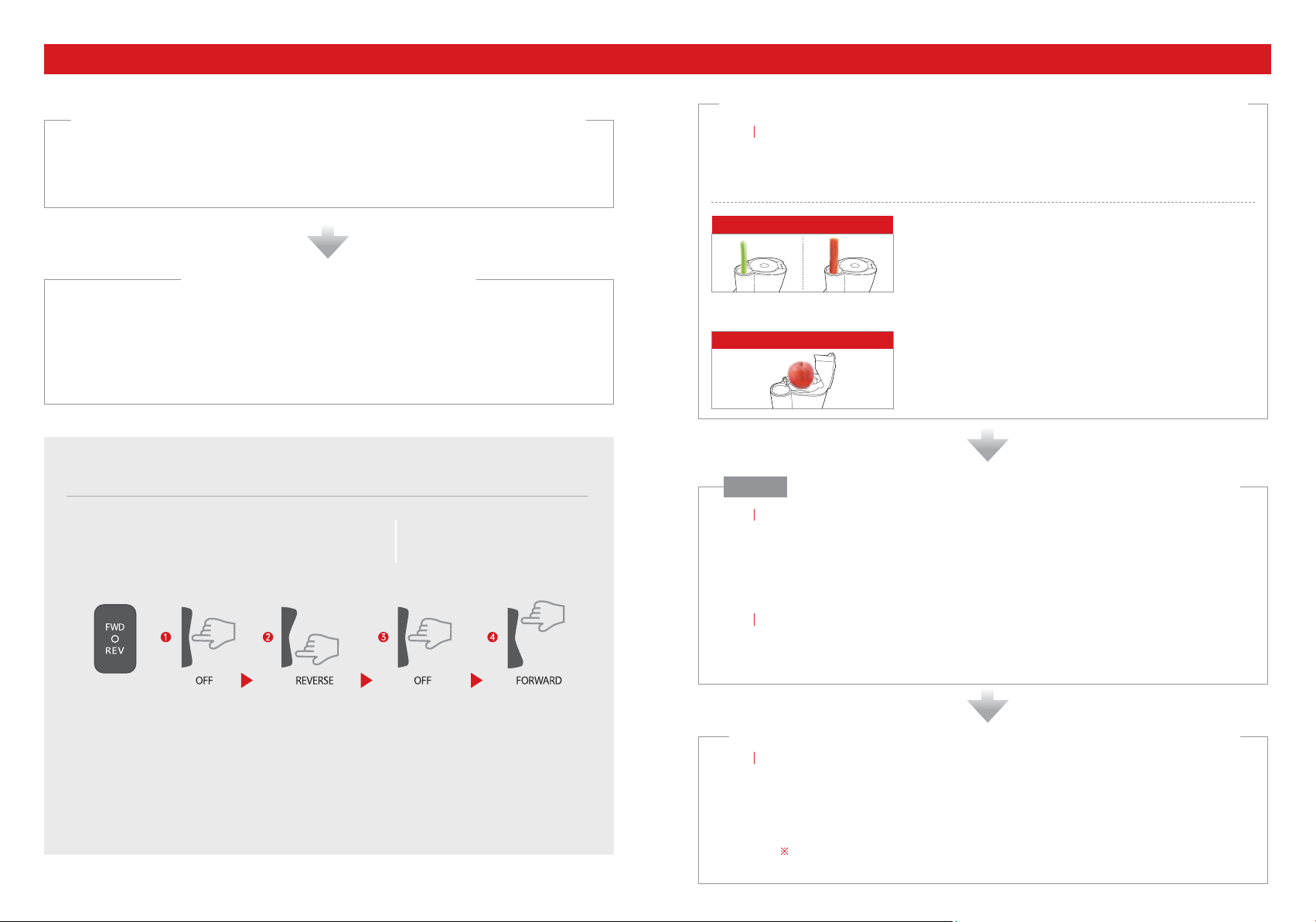

HOW TO OPERATE
After preparing the ingredients, plug the power cord into a wall outlet.
Note | ·Do not touch the power cord with wet hands. It may cause electrical shock,
short-circuit, or re.
·Ensure the power cord is plugged into a power outlet.
Press the FORWARD button to operate.
Note |
If the ingredients become jammed in the screw and the drum lid does not open, press the OFF
button. Then press and hold the REVERSE button until the ingredients become dislodged.
Repeat REVERSE - OFF - FORWARD as often as needed to achieve the desired result.
·Forward: Pulls down and slowly masticates the ingredients.
·Reverse: Pushes the ingredients back up to dislodge them.
If the juicer stops during operation
Switch the button to OFF position then press and
hold the REVERSE button until the ingredients
become dislodged.
Repeat REVERSE - OFF - FORWARD as needed.
FORWARD : Pulls down the food
OFF : Stops the operation
REVERSE : Pushes the food back up

Note | ·REVERSE: Pushes the ingredients back up to dislodge them.
The REVERSE button only works while holding down the switch.
·Switch OFF ensuring that the juicer comes to a complete stop. Then press REVERSE.
Hold the REVERSE button for 2-3 seconds and release. Repeat as needed. Let the
juicer stop completely before using the REVERSE button to prevent malfunction.
·If the juicer does not work after these steps, disassemble and clean the parts before
operating the juicer again.
Use the smart cap to make mixed juice, block juice from dripping,
or rinse between dierent juices.
TIP
Note
Smart Cap
·Juicing with the smart cap closed creates various mixed juice creations with dierent fruits
and vegetables, milk, banana, beans and other ingredients.
·After juicing, close the smart cap to stop juice from dripping, especially when disassembling
the juicing bowl o of the base.
·When making dierent juices, quickly rinse any left over avors by running a glass of water
in the juicer with the smart cap closed.
·Leave the smart cap open when juicing ingredients that often creates foam during extraction.
(e.g. apples, celery)
·Pay close attention when operating with the smart cap closed. Juice may overow if the juice
collected in the juicing bowl exceeds its capacity.
After juice and pulp have been completely extracted, switch the unit OFF.
Note ·If the remaining ingredients in the juicing bowl have not been extracted completely, the drum
lid may not open easily. (After each extraction, run the juicer for additional 30 seconds to let
the juicer extract the remaining pulp.)
When the drum lid is stuck, press the REVERSE - OFF - FORWARD button in the order, switching
back and forth 2~3 times to dislodge. Then place your hands on top of the drum lid and
rmly press down as you simultaneously turn the drum lid counter clockwise to open.
Depending on the ingredients, pour water down the feeding tube to rinse out the interior
of the juicing bowl and then try to take o the drum lid.

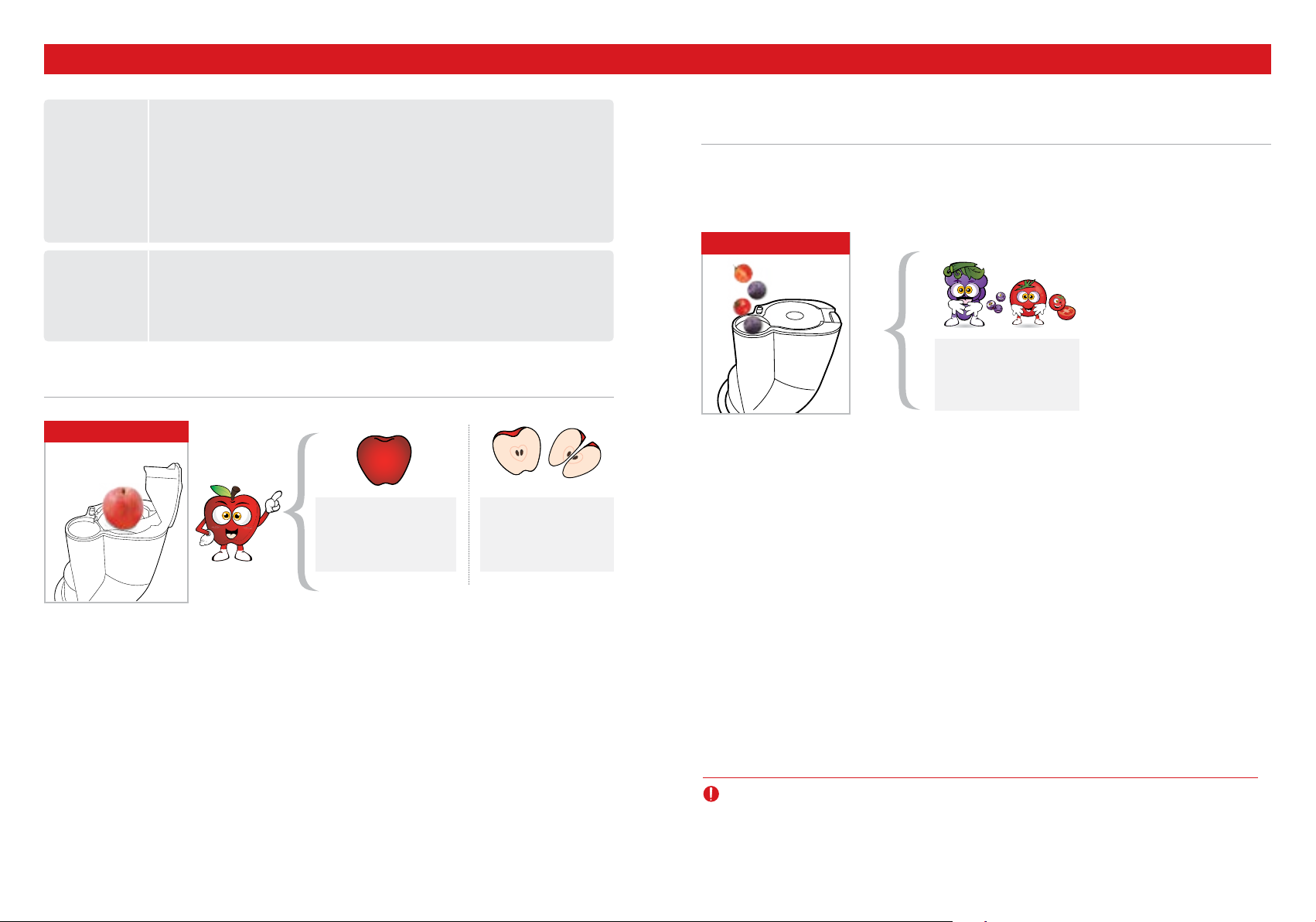

Insert the prepared ingredients into the feeding tube, one piece at a time.
Note
Tip |
Hard vegetables & high ber foods | (E.g. carrots & celery, kale)
Insert into the Auto-Cut Chute
·Prepare ingredients for optimal extraction.
·If large quantity of ingredients are put into the feeding tube, it can cause the juicer to stop.
Insert the ingredients one piece at a time.
·Remove hard seeds or pits in fruits. When juicing frozen fruits, completely thaw before juicing.
·
Tough and brous ingredients:
Ingredients with a thickness of 1.5 inches or less, can be fed whole.
For thick ingredients, cut it by 1.5 inches of width or less, before
feeding.
·Fibrous leafy vegetables (celery, kale, collard greens, etc.):
Cut the stems into 1.5 inch wide and bundle up the leafy part as you
insert them into the juicer.
Insert into the Flap Gate
Tip |
Soft Fruits & Vegetables | (E.g. apples, oranges & tomatoes)
·
Soft ingredients: Insert the prepared ingredients into the ap gate
and push down the ingredient with the ap gate lid to extract.
If the ingredients are larger than the ap gate, cut ingredients
into 1-4 pieces.

1413

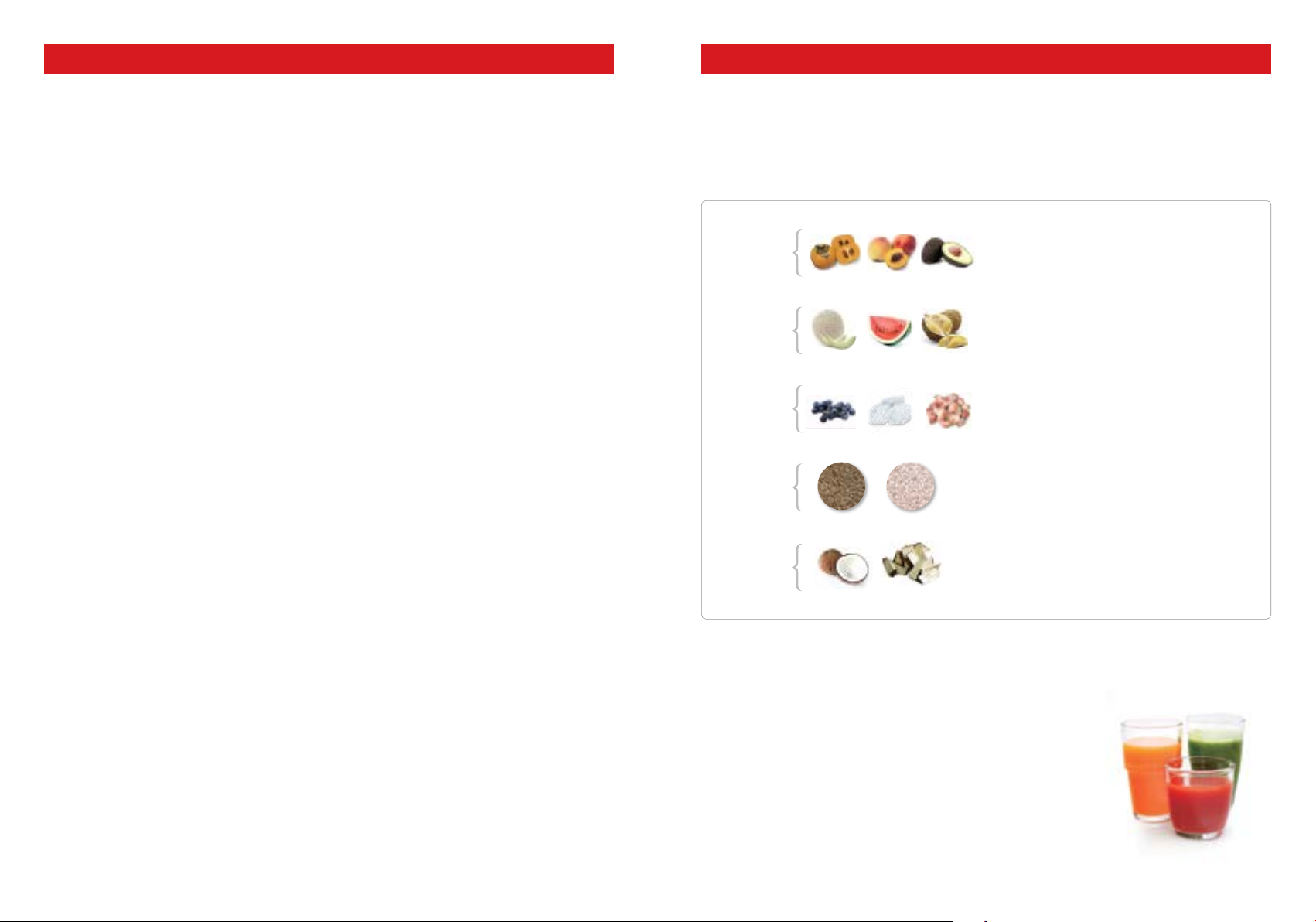

TIPS ON OPERATION TIPS ON INGREDIENTS
Peach, nectarines, apricot, plum, mango, etc.
Remove hard seeds from the ingredients
before juicing.
Hard seeds
Pineapple, melon, mango, orange, etc.
Peel the skins from the ingredients before juicing.
Hard or
inedible
skins
Frozen strawberry, blueberry, raspberry, etc.
Completely thaw frozen fruits before juicing.
Do not use ice.
Frozen
fruits or ice
Sesame seed, butter, margarine, etc.
Do not extract ingredients containing vegetable
or animal oil. This can reduce performance and
even damage the juicer.
Vegetable/
animal oil
Coconut, sugarcane, whole grains, etc.
Do not extract ingredients with no water
content.
Others
The Slow Juicer is an innovative product that uses a patented slow-
speed masticating technology to efficiently extract the juice from
ingredients. The juicer is designed to obtain the best result from
ingredients with firm composition and with high water content.
For best result, each ingredient should be prepared and extracted
depending on its characteristics and properties.
Experience the best quality juice by understanding each ingredient’s characteristics
and knowing the optimal way of handling the ingredients.
DO NOT
put the following ingredients into the juicer
Juicer damage due to owner negligence or from not following the instructions in the owner’s manual
will void the warranty service.
1.Operating the juicer without ingredients can cause damage to the screw.
2.Do not continuously operate the juicer for more than 30 minutes.
This can damage the motor from overheating.
After continuous use, let the juicer rest for 30 minutes to cool down before starting another
session.
3.Do not put hand, utensil, tong, or other objects into the feeding tube other than the
provided pusher.
4.During operation, do not put spoon, spatula or other objects into the juice spout of
the juicing bowl.
If other object is put into the juice spout during operation, such materials can get stuck and
damage the juicer parts.
5.Do not put dried whole grains, fruits with hard seeds or ice.
These may damage the juicer parts (e.g. juicing bowl, juicing screw, and strainer).
· Beans or grains can be used if soaked overnight or boiled.
· Fruits with pits and hard seeds (e.g. nectarines, peaches, mangoes and cherries) must be pitted
before juicing.
· When using frozen fruits with small seeds such as grapes, completely thaw before inserting
them into the juicer.
· Use of ice in the juicer will decrease the product durability over time.
6.Do not use ingredients containing excessive amounts of vegetable oil or animal fat.
Do not use the juicer to extract vegetable oil from ingredients.
If vegetable/animal oil gets on the juicing screw, it may reduce performance and even damage
the part.
7.Do not reinsert the extracted pulp into the juicer. This can cause the juicer to stop or
cause the drum lid not to open.
8.After juicing ingredients with seeds like grapes, thoroughly clean all the crevices on
the bottom of the juicing screw.

1615
INGREDIENTS PREPARATION
Before
Operating:
Juice Yield:
Soft fruits and vegetables
(e.g. apples,oranges,tomatoes)
1~4 wedges
Flap Gate
PREPARATION TIPS:
·If the ingredients are larger than the ap gate, cut to 1-4 wedges.
JUICING TIPS:
·Fruits with hard seeds must be pitted before extraction.
·Use the pusher to push the ingredients down the feeding tube. (The pusher also helps prevent juice
from spraying out of the feeding tube when extracting ingredients with high water content)
·Leave the smart cap open when juicing ingredients that create excessive foam during extraction.
(Foam can accumulate if operated with the smart cap closed. )
·It is recommended that the extracted juice be consumed within 48 hours after extracting. Depending
on the density of the ingredients the extracted juice can gradually show layers over time.
·When an ingredient is being masticated by the juicing screw, the squeezed ingredient may splash juice
through the feeding tube. Use the pusher to block out the juice splash when juicing.
·Before Operating: If the juicer is jammed or if the drum lid does not open,
press the REVERSE button and hold until it becomes dislodged.
Repeat REVERSE-OFF-FORWARD as needed.
·Continue operating the juicer until all the ingredients in the juicing bowl are
extracted. The drum lid may not open easily if there is a lot of pulp remaining
in the juicer.
·Every ingredient yields dierent amounts of juice.
·For the optimal extraction and maximum juice yield, cut the ingredients
following the guidelines given in this section.
·Insert ingredients slowly monitoring how the ingredients are extracted.
The juice yield may vary depending on the juicing speed.
- Peel the skin o oranges,
and for tomatoes and
apples, take out the stem.
- Slowly insert the ingredients
down the ap gate.
- If the ingredients are
larger than the ap gate
cut the ingredients
into pieces that will t
into the ap gate.
If the lid does not open due to excessive amount of small seeds left in the juicing bowl,
continuously run the juicer for 30 second to extract any leftover seeds. If the lid is still stuck, repeat
REVERSE - OFF- FORWARD until the ingredients become dislodged. Place both hands on the drum
lid and rmly press down while simultaneously turning the drum lid to open. (depending on the
ingredient, pour some water down the feeding tube for quick rinsing to help dislodging).
Slowly insert ingredients with small seeds to prevent the seeds from clogging the strainer.
| (E.g. apples, oranges & tomatoes)
Ingredients with small seeds
(e.g. raspberry, pomegranate, grape)
Caution |
Auto-Cut Chute
Insert ingredients slowly
to minimize the amount
of leftover seeds in the
strainer.
PREPARATION TIPS:
·Thoroughly rinse ingredients like grapes. Take the grapes o and discard the stem.
·For best result, juice with ingredients with higher amount of uid(e.g. apple, pear)
·When juicing frozen ingredients(e.g. raspberry, strawberry), make sure they are completely thawed.
JUICING TIPS:
·Depending on the size of the grape, insert 3~5 grapes at a time while monitoring the extraction result.
·Thaw frozen ingredients like pomegranate and raspberry then insert about 1 tablespoon (5g) at a time.
·Frozen ingredients usually lose signicant amount of uid from thawing. When juicing, mix milk or
yogurt to balance the uid lost.

1817
INGREDIENTS PREPARATION
Fibrous and/or tough leafy ingredients
(e.g. celery, kale)
Caution | · For ingredients like pineapple, slice o the rind of the pineapple and cut around the brous
core. Cut the esh of the pineapple to smaller pieces.
· Recommended amount of juicing per session is 500g. When juicing more than 500g, wash the
top-set before continue juicing.
PREPARATION TIPS:
· Separate each stem. Cut the outer stems that are thick and tough to 1.5 inch wide.
· Soak the leafy greens in cold water for about 30 min prior to juicing for the best result.
JUICING TIPS:
· One at a time, slowly insert the prepared ingredients.
· Insert more ingredients after the previously inserted ingredients have been completely extracted.
Roll leaves into spiral as inserting into the juicer.
For bet result, disassemble and wash the top-set before juicing again.
For ingredients like wheatgrass, grab a handful and insert in a bundle.
* It's best to juice with ingredients with higher amount of uid, like apples or carrots.
carrot, apples : brous ingredients = 9:1 [recommended ratio]
Hard fruits and vegetables
(e.g. carrots, beets, ginger, kohlrabi, quince)
How to Use
the Smart
Cap:
· Juicing with the smart cap closed allows mixed juice creations with dierent
fruits, vegetables and liquids.
· After juicing, close the smart cap to block excess juice from dripping,
especially when disassembling the juicing bowl o the body.
· When making dierent juices quickly rinse away any leftover avors by
running a glass of water in the juicer with the smart cap closed.
· Leave the smart cap open when juicing ingredients that create excessive
foam during extraction (e.g. apples, celery).
· Pay close attention when operating the juicer with the smart cap closed.
Juice may overow if the juice collected in the juicing bowl exceeds its
capacity marked on the juicing bowl.
Adjusting
the amount
of pulp in
the juice:
· Depending on the ingredient, you may get extra pulp in the juice when
juicing continuously.
· To reduce the amount of pulp, disassemble the top-set and wash frequently.
PREPARATION TIPS:
· Prepare carrots after removing the stem.
· Soak ingredients like carrots in cold water for about 30 min prior to juicing for the best result.
JUICING TIPS:
· Slowly insert the ingredients one at a time.
· To maximize the juice yield, juice with ingredients with high water content.
Hard fruits and vegetables may put excess strain onto the motor and cause it to stall.
Ingredients with a
thickness of 1.5 inches
or less, can be fed whole.
For thick ingredients, cut
it by 1.5 inches of width
or less, before feeding.
Beets, ginger, quince and
kohlrabi are cut into
1 inch or less interval for
horizontally and vertically.
Auto-Cut Chute Auto-Cut Chute
Caution |
Do not juice root vegetables with less moisture such as beets, ginger, or kohlrabi, or hard fruits
like quince by itself.
* When juicing alone, it may cause the decrease the performance of product.
Bundle up the leafy part and insert
them by facing down.
Do not collect more than 500g per
session.
If leafy ingredients wrap around
the juicing screw, open the lid
and remove the bers before
continue juicing.
Auto-Cut Chute

2019
HOW TO DISASSEMBLE AND CLEAN
Turn the top-set counter clockwise and
lift o the body.
3
Quick Rinsing
* The products illustrated in this booklet may vary slightly from the actual product.
Switch OFF and unplug the power cord
from the wall outlet.
1
Note | Extract all the remaining pulp in the
juicing bowl before stopping the juicer.
For easier clean up, operate the juicer for
an additional 30 seconds after the juice is
extracted.
When the drum lid is stuck, press the
REVERSE – OFF – FORWARD button in this
order, switching back and forth 2 to 3 times
to dislodge. Then place both hands on
the drum lid and firmly press down while
simultaneously turning the drum lid to open.
* Fill the juicing bowl with water and run
the juicer before opening the drum lid. It
may help to open the drum lid when stuck.
·
·
·
Place the juicing bowl under running
water.
5
TIP | The round brush can clean the juice
spout of the juicing bowl.
Turn the drum lid counter clockwise to
open.
2
Note | When moving the appliance, do not lift
by grabbing the feeding tube. Always lift
the appliance by grabbing the body or
handle.
Under running water, clean the outside
of the juicing screw with a dish scrub. Use
the tip of the cleaning brush to push out
any residue in the crevices on the bottom
of the juicing screw.
6
Tip |
Note | After juicing ingredients with seeds, make
sure to thoroughly clean the bottom
crevice of the juicing screw. (If this area
isn’t properly cleaned, it can cause the
part to be damaged).
Thoroughly clean the juicing screw
ensuring that the juicing screw is clean
without any residue.
Completely dry before using.
Clean the body with a soft damp towel
and dry.
7
Note | If the towel is dripping wet, make sure
to squeeze out the excess liquid before
using it on the juicer.
With the smart cap closed, ll the juicing
bowl with water and turn on the juicer.
1
Let it run for a moment. Open the
smart cap and let the water run out of
the juicing bowl.
2
Tip | It is not necessary to completely clean
the juicer in between making multiple
juices during a single juicing session.
When nished with juicing, always
disassemble and clean thoroughly
between juicing sessions to prevent
residue buildup.
Remove the juicing screw, strainer and
rotation wiper unit from the juicing bowl.
Clean with provided brush.
4
Note | Immediately clean the juicer after each
use. If remaining residue in the juicer dries
up, it can make disassembling and clean-
up dicult. The excess build up can cause
poor performance in future uses.
For easier disassembly, place the top-
set in the sink and run the water through
from the top of the top-set.
Thoroughly dry the bottom of the juicing
screw.

2221
HOW TO USE THE CLEANING TOOL
HOW TO CLEAN SILICON PARTS
Clean the rotation wiper under running water.
Thoroughly dry after cleaning. Before assembling the top-set, ensure that the silicon ring is
rmly inserted.
If the silicon ring is not rmly inserted, juice may leak from the bottom of the juicing bowl.
Tip |
Note |
The cleaning tool makes clean-up quick and easy.
Completely dry after cleaning.
Tip |
* The products illustrated in this booklet may vary slightly from the actual product.
Cleaning inside of the bowl
Please unscrew the cover on the bottom and clean inside.
After cleaning, make sure that protrusion part of gear is
placed on the outer part so it ts (connects) with the drum.
Sequence of assembly is in reverse order of disassembly.
Silicon Ring
Remove the Silicon ring from
strainer to clean.
After cleaning, push in the silicone
ring.
Smart Cap
Remove from the juice spout
to clean.
After cleaning, attach the smart
cap to the smart cap silicon on
the juice spout.
Silicon Brush
Pull out the silicon brush from the
rotation wiper to clean.
After cleaning, insert into the slot
with the tail pointing down as
shown in the illustration.
Hold the cleaning tool with one hand and insert
the strainer into the cleaning tool.
Note | Insert the strainer until you hear a click.
1
Under running water, rotate the cleaning tool
and the strainer in opposite directions to clean.
2
Thoroughly rinse the inside and outside of
the strainer under running water.
3
After cleaning, remove the strainer from the
cleaning tool. Dry before storing.
4
OPTIONAL |HOW TO USE THE LID CAP
Once washing & drying of drum lid is completed,
put on Lid cap on drum lid to store.

2423
OPTIONAL |HOW TO USE THE BLANK STRAINER
* Dissemble is opposite of Assemble.
Insert the blank strainer into the juicing bowl
while aligning the red dots of the blank strainer
and the juicing bowl.
Insert the juicing screw into the blank strainer
with a twisting motion.
Place the lid onto the juicing bowl by aligning
the white dot of the lid with the red dot of the
juicing bowl. Then, rotate the lid clockwise until
the lid is secured.
Before use, make sure the silicone ring is correctly in place.
To assemble the top-set place the juicing screw
and the blank strainer in the juicing bowl and
close the lid.
HOW TO CLEAN THE SILICON RING
The blank strainer is used only with frozen ingredients. Depending on the dierent
ingredients, allow the frozen items to thaw for 5 to 20 minutes before use.
Slowly process a smaller amount per batch.
CAUTION
Do not use ice or process ingredients containing vegetable or animal oil.
It may cause a malfunction.
Remove hard seeds from the ingredients and peel the skins from the ingredients
before juicing.
1
1
Carefully place the silicon ring
by aligning grooves and wedges.
The silicon ring is removable for cleaning.
After cleaning, place the silicon ring on
as shown in the picture.
Lid
Juicing Screw
Blank Strainer
Juicing Bowl
When using the blank strainer,
always leave the Smart Cap open.

2625
OPTIONAL |HOW TO USE THE COARSE STRAINER
* Dissemble is opposite of Assemble.
Insert the rotation wiper and the coarse strainer
into the juicing bowl while aligning the red dot
of the coarse strainer and the juicing bowl.
Insert the juicing screw into the coarse strainer
with a twisting motion.
Place the lid onto the juicing bowl by aligning
the white dot of the lid with the red dot of the
juicing bowl. Then, rotate the lid clockwise until
the lid is secured.
Make sure to insert the coarse strainer into the rotation wiper before use.
To assemble the top set, place the juicing screw
and the coarse strainer in the juicing bowl and
close lid.
CAUTION
1
1
• When using ‘‘COARSE STRAINER’ make sure to remove any hard seeds or pits
from ingredients.
• Remove skin or rind that is tough, hard and/or leathery.
• When juicing frozen ingredients, make sure they are completely thawed,
do not use ice.
• Do not try to juice ingredients containing vegetable or animal oil.
This can reduce performance and even damage the juicer.
• Do not put the following ingredients into the juicer; coconut, kudzu,
sugarcane, whole gains etc.
Lid
Juicing Screw
Rotation Wiper
Juicing Bowl
Coarse
Strainer
When using the coarse strainer,
always leave the Smart Cap open.

2827
OPTIONAL |HOW TO USE THE SMOOTHIE STRAINER
* Dissemble is opposite of Assemble.
CAUTION
When making smoothie, add milk or other types of liquid between ingredients.
Check the consistency of the smoothie by looking through the juicing bowl, and add more liquid as needed.
(The required period to thaw the ingredients will depend on how long the ingredients were
in the freezer and the temperature it was kept in).
When using frozen ingredients, make sure to thaw your frozen ingredients for about 5 to
20 minutes before use.
Please do not insert ingredients like ice, meat, oil or fat based ingredients.
These ingredients may damage the components.
Please remove hard or thick seeds, pits, or peel before use.
CAUTION
Insert the rotation wiper and the smoothie strainer
into the juicing bowl while aligning the red dots of
the smoothie strainer and the juicing bowl.
Insert the juicing screw into the smoothie strainer
with a twisting motion.
Place the lid onto the juicing bowl by aligning the
white dot of the lid with the red dot of the juicing
bowl. Then, rotate the lid clockwise until the lid is
secured.
To assemble the top set, place the juicing screw and
the smoothie strainer in the juicing bowl and close
the lid.
When using the smoothie strainer, make sure the
smart cap is closed to make the better smoothie.
1
1
HOW TO CLEAN THE SILICON COVER
Carefully place the silicon cover
by aligning grooves and wedges.
The silicon cover is removable for cleaning.
After cleaning, place the silicon cover in
regular sequence on as shown in the picture.
Lid
Juicing Screw
Rotation Wiper
Juicing Bowl
Smoothie
Strainer

3029
Place the strainer and cone onto the
center of the juicing bowl.
Remove the protective lid.
Turn the juicer on by pressing FWD.
Place the assembled top set onto the
juicer body making sure that it is aligned
as shown.
Citrus maker will not work unless it is
properly aligned and placed onto the
juicer.
If there is too much pulp, clean the cone
and strainer.
1
1 3
42
2
How to assemble
How to operate
1
2
OPTIONAL |HOW TO USE THE CITRUS MAKER
Citrus juicer will not work unless it is properly aligned and placed onto the juicer as shown
in the illustration.
OPTIONAL |HOW TO USE LID OPENER
Use the lid opener when the lid doesn't open gently after juicing.
Grab the feeding tube and turn the lid opener counter clockwise.
1
2
Be sure that the top set is on the main body, then use lid opener.
Place the lid opener by connecting the hooks as shown in the illustration.
1
1
1
CAUTION

3231
TROUBLESHOOTING Q&A
When there is no power to the juicer:
·Check if the power cord is properly plugged in.
·Check if the drum lid and the juicing bowl are
properly assembled.
·Check if the top-set and the body are properly assembled.
·Juicer will not operate if parts are not assembled properly.
Low juice yield:
·Dierent ingredients hold dierent amounts of uid
that will yield dierent amounts of juice.
·If the ingredients are not fresh, they may contain reduced
amount of uid, which will yield less juice.
Sock ingredients in cold water for about 30 min prior to
juicing for the best result.
·If the ingredient itself has low water content, it may
help to soak it in water before juicing.
·If juicing ingredients with small seeds, after a few
servings, it may reduce the juice yield.
For best result, disassemble and wash the top-set in
between juicing.
·If there is seed residue on the bottom of the
strainer, this can aect juicer performance and
the overall juice yield.
There is too much pulp in the juice:
·To reduce the ne pulp, clean the top-set frequently
and extract the pulp.
·If the strainer and the screw are damaged and aecting
the juicer’s performance, it is recommended the parts
be replaced.
* The lifetime of each part may vary depending on length
and method of use and ingredients extracted.
The drum lid will not close:
·Make sure the juicing screw is pushed all the way in to
the strainer in order for the drum lid to close properly.
·If the juicing screw is not properly in position, the drum
lid may not close.
Odd noise from the juicer:
·Check if the parts are assembled correctly.
Try reassembling the parts and listen for the odd noise.
·Do not start the juicer unless there are ingredients and/
or liquid in it.
·Operating the juicer without ingredients can cause
damage to the screw.
·If the juicer is operated without ingredients or liquid,
the noise level can increase and also can lead to damage.
·The friction noise from the juicing screw and the strainer
will disappear when ingredients are inserted into the juicer.
·If the noise occurs when ingredients are inserted into
the juicer, check the size of the ingredients. Do not insert
anything over 1.5 inch in thickness.
·Depending on the type of ingredients, the dimensions
can be smaller.
·The noise can occur if the juicer is operated on an
uneven or slanted surface. Place the juicer on a
horizontally at surface when operating.
The extracted pulp is very moist:
·During the very beginning of extraction, the pulp can
be more moist.
·Depending on the ingredient’s condition, the extracted
pulp can be aected; especially when the ingredient is
not fresh, the juice can be extracted with the pulp.
During operation, the juicing bowl shakes:
·The juicing screw and the strainer are set up to crush
and squeeze the ingredients. It is normal for the juicing
screw and the strainer to vibrate.
·If the ingredient contains strong ber, the vibration
from the top-set may be stronger.
During juicing, the juicer stopped:
·Check the power cord and make sure it is plugged in
correctly.
·Check that all the parts are correctly assembled.
·If too many ingredients are inserted at one time, this
can cause the juicer to stop.
·When the juicer stops because there are too many
ingredients inserted in it, press the REVERSE - OFF -
FORWARD button in this order, switching back and
forth 2 to 3 times.
·The reverse setting will push the ingredients up, and
the forward setting will pull the ingredients down.
·After using more than 30 minutes, if the juicer stops
due to the overload protection, let the juicer cool for 30
minutes to 1 hours before juicing again.
·If there are hard seeds within the ingredients, remove
them before juicing. Hard seeds can damage the juicer.
Layers of separation in the juice:
·Depending on the density of the ingredients, the
extracted juice may show layers of dierent juices.
It is dierent from separation due to oxidation
caused by juicing with a high-speed juicer.
The drum lid is stuck:
·After juicing, let the juicer operate for another
30 seconds to extract the remaining pulp.
·If there is too much pulp in the top-set, this can cause
the drum lid to not open. In this situation, press
the REVERSE-OFF-FORWARD button in the order,
switching back and forth 2 to 3 times. Then place both
hands on the drum lid and firmly press down while
simultaneously turning the drum lid to open.
·Pour water down the feeding tube to rinse out
the insides and then try opening the drum lid.
Juice dripping down the body:
·If the silicon ring on the bottom of the strainer is not
put in correctly, the juice may seep out on to the juicer
body. Before assembling the parts, check and make
sure the silicon ring has the at part in the middle, on
the inside of the strainer and the skirt on the outside of
the strainer.
Is it possible to juice ingredients with tough ber?
·Ingredients like celery or ginger contain long
bers that may wrap around the juicing screw
and aect the juicer’s performance. When
juicing brous ingredients, do not collect more
than 1 lb. of juice. After collecting this quantity
or less, clean the top-set completely before
juicing again.
Discoloration of the plastic parts:
·After juicing, if the juicer is not cleaned right away,
the remaining pulp inside the top-set
can dry up which can make disassembling and
cleaning hard. This can also aect the juicer’s
performance and color.
·Ingredients that are rich in carotenoids such
as carrots and spinach may dye plastic parts.
When the parts are dyed with carotenoids, rub
vegetable oil in to the dyed areas and use mild
detergent to clean.
·Vegetable oil should only be used during
clean-up for parts that are discolored. Do not
use vegetable oil on the juicing screw or the
strainer. If vegetable oil or oil from animal fat
gets on the juicing screw or the strainer, this
can aect the juicer’s performance and may
result in damaged parts.
·The silicone pieces on the top-set can be
detached to be thoroughly cleaned.
Using for purposes other than juicing:
·This juicer is designed to juice ingredients like
fruits and vegetables.
·Do not use the juicer for extracting vegetable oil.
·Do not juice ingredients with high contents of
vegetable/ animal oil.
·If vegetable/animal oil gets on the juicing screw
or the strainer, this can aect the performance
of the juicer and could result in damaged parts.
TROUBLESHOOTING Q&A
SPECIFICATIONS
Product Juicer
Model REVO830, KSP-2428CB, KSP-2458CB, KSP-2428CE, KSP-2458CE
Voltage AC220-240V, 50-60Hz
Power Consumption 200W
Maximum Use Less than 30 min
Weight 7.5kg
Dimension 256 x 210 x 480 mm
Manufacturer NUC Electronics Co., Ltd.
Type Low speed compression
Origin Made in Korea
