goodnature X-6 User manual

CONFORMS TO UL STD 763,
CERTIFIED TO CSA STD C22.2 #195
CONFORMS TO CE, IEC TESTED
SERIAL #
COMMERCIAL COLD
PRESS JUICER
OWNER’S MANUAL
R05

02
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Total Weight:
1000 lb.
454 KG
Pressure:
CAPABLE OF 12 TONS TOTAL
FORCE ON PRODUCE
Capacity per Hour:
JUICE: 40-100 GAL. / 150-380 L.
WITH HOPPER AND GRINDER:
77” x 59” x 62”
196cm x 150cm x 158cm
WITH HOPPER, WITHOUT GRINDER:
57” x 59” x 59”
145cm x 150cm x 150cm
WITHOUT HOPPER OR GRINDER:
46” x 59” x 46”
117cm x 150cm x 117cm
MACHINE SPECIFICATIONS
Introduction
X-6 Press | 1HP | 220VAC | 8.12 Amp | Single Phase
EG-260 Grinder | 2HP | 220Vac | 5.6 Amp | Single Phase
WARNING: To limit risk of personal injury and material damage, all users must read these instructions
in their entirety and follow them strictly.
Dimensions (H” x W” x D”):

03
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Table of Contents
SECTION 1
SECTION 2
SECTION 2.1
SECTION 2.2
SECTION 3
SECTION 3.1
SECTION 3.2
SECTION 4
SECTION 4.1
SECTION 4.2
SECTION 4.3
SECTION 4.4
SECTION 4.5
SECTION 5
SECTION 5.1
SECTION 5.2
SECTION 5.3
SECTION 5.4
SECTION 5.5
SECTION 6
SECTION 6.1
SECTION 6.2
SECTION 7
PAGE 05
PAGE 07
PAGE 07
PAGE 07
PAGE 09
PAGE 09
PAGE 10
PAGE 11
PAGE 11
PAGE 12
PAGE 13
PAGE 14
PAGE 15
PAGE 17
PAGE 17
PAGE 19
PAGE 20
PAGE 22
PAGE 24
PAGE 25
PAGE 25
PAGE 27
PAGE 28
Safety Precautions
Unpacking
Unpacking
Enclosed Parts List
Machine Diagrams
X-6 Press Diagrams
EG-260 Grinder Diagrams
Installation and Setup
Installation
Electrical Diagram
Setup - Rack Straps
Setup - Press Bags
Setup - Bag Keepers
Operation
Grinder Operation
Changing Grinder Disc
Press Operation
Adjusting Press Speed
Adjusting Hydraulic Pressure
Cleaning
Machine Cleaning
Bag Cleaning
Maintenance

04
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Table of Contents
SECTION 8
SECTION 9
SECTION 9.1
SECTION 9.2
SECTION 9.3
SECTION 9.4
PAGE 30
PAGE 31
PAGE 31
PAGE 33
PAGE 34
PAGE 34
Troubleshooting
Useful Information
Replacement Parts List
Improving Yield
Warranty
Contact Information

05
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 1: Safety Precautions
DANGER: This machine is not intended for use by persons (including children) with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the machine by a person responsible for their safety.
WARNING: Disconnect all power before performing maintenance to avoid risk of serious electric shock.
WARNING: Power must be supplied to the X-6 and EG-260 by a licensed electrician. Failure to do so may
result in serious personal injury due to electric shock or damage to the machine.
WARNING: Disconnect all power before moving the machine. Avoid damaging the power supply cord during
movement and use cautionary steps to avoid tipping.
WARNING: Be aware of all pinch points and moving parts and take precautions to keep loose clothing,
hair, or foreign objects away from them to avoid personal injury and damage to the machine.
WARNING: Electrical and mechanical repairs are not to be carried out by the operator unless
authorized to do so.
DANGER: Never place hands, arms, or any foreign items into the grinder hopper, grinder chute, or grinder
housing during operation. Personal injury including lacerations and amputations, or damage to the machine
can occur.
WARNING: Always check with your local health department regarding procedures required to ensure proper
cleaning and sanitation in order to avoid serious foodborne illness to consumers.
For the US: http://www.fda.gov/Food/default.htm
DANGER: Never place any body part between the platens while the machine is on. Failure to follow this
instruction could result in serious personal injury due to crushing.
WARNING: Discontinue use immediately and have machine serviced if any components are damaged or
malfunctioning to avoid risk of personal injury and damage to the machine.

06
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 1: Safety Precautions
WARNING: Operator shall not interfere with interlock device.
CAUTION: Safety glasses must be worn at all times during operation of the EG-260 Grinder. Machine can be
run at a very high speed; splatter and projectiles causing eye damage and irritation is possible.
WARNING: Operator should ensure the surrounding area is free of debris and slipping hazards to
prevent injury.
NOTICE: Noise levels exceed 80 decibels. Protective ear equipment should be worn to prevent injury.
WARNING: In the event of an accident or breakdown, all power supply should be disconnected from source
and Goodnature customer service should be contacted for support.
WARNING: Operator should not use unauthorized means of gaining access to parts of the machine which are
not normally accessible.
CAUTION: Blades on the grinder disc are very sharp. Use caution when changing the disc to avoid personal
injury including lacerations.
WARNING: Operator should ensure plug is visible from points of access.
NOTICE: The X-6 Press is only to be used in conjunction with the EG-260 Grinder. Do not mount any other
equipment to the X-6 Press.
NOTICE: Relieve pressure from hydraulic system by cycling the directional control lever prior to servicing.

07
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 2: Unpacking
This equipment underwent strict quality control and was carefully inspected mechanically and electrically before
shipment. It should be physically free of marks or scratches and in good electrical order upon delivery. Inspect for
physical damage, electrical damage, and any loose or bare wires.
If any items are damaged due to shipping, contact the freight carrier within 15 days of receiving your shipment.
There is an enclosed parts list below. Inspect all enclosed parts carefully and make sure no parts are missing. If
any parts are missing or damaged please contact Goodnature Products at 1-800-875-3381.
After unpacking and before running, it is important to check that one of the fasteners had become loose during
shipping. Check all nuts, bolts, and screws to make sure everything is tight.




2.1 UNPACKING
QTY
5
4
1
2
1
1
1
1
2
5’
1
1
1
DESCRIPTION
Plastic ridged racks with strap hooks
White straps with holes
White cloth bag set
Stainless steel clamp with tightening screw
Black buna rubber clamp gasket
Stainless steel adapter for hose attachment
Stainless steel paddle with scraper end
Plastic paddle
Rubber cords (3’ long)
Clear, vinyl 1” diameter tube
3/4” x 1-3/4” hose clamp
Solid end cap, 1-1/2”
Black buna rubber clamp gasket
2.2 ENCLOSED PARTS LIST
PART #
19224-R01
14064
14010
14279
14054
18581
19568
12339
20486
11153
11154
11512
11513
PART NAME
Press Rack Assembly
Rack Strap
Press Bag Set (medium weave)
Juice Tray & Hopper Tri-Clamps
Juice Tray Clamp Gasket
Juice Tray Hose Adapter
Pomace Scoop
Cake Separator
Bag Keepers
Juice Tray Hose
Juice Tray Hose Clamp
Hopper Drain End Cap
Hopper Drain Gasket

08
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 2: Unpacking
2.2 ENCLOSED PARTS LIST - CONTINUED
PART #
11127
11128
11130
19103
11810
12566
13967
19351
19664
13778
15438
QTY
1
1
1
1
8
1
1
1
1
4
1
PART NAME
Grinder Disc 3/16”
Grinder Disc 1/4”
Grinder Disc 1/2”
Grinder Disc Backing Plate
Screws for Backing Plate
Grinder Shredder plate Knob
Shredder plate Knob Washer
Hopper Chute
Hopper Gasket
Hopper Knobs
Product Feeder
DESCRIPTION
Metal grinder disc with small holes
Metal grinder disc with medium holes
Metal grinder disc with large holes
White plastic disc with raised spokes
Stainless steel PHMS 10-32 x 3/4 screws
Triangular stainless steel knob for disc
Stainless steel washer for shredder plate knob
26” Stainless steel tube with square base
White U-shaped gasket with four holes in the corners
Black plastic knobs
Round stainless steel paddle with handle
IF PURCHASED, ENCLOSED PARTS FOR EG-260 GRINDER:

09
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL

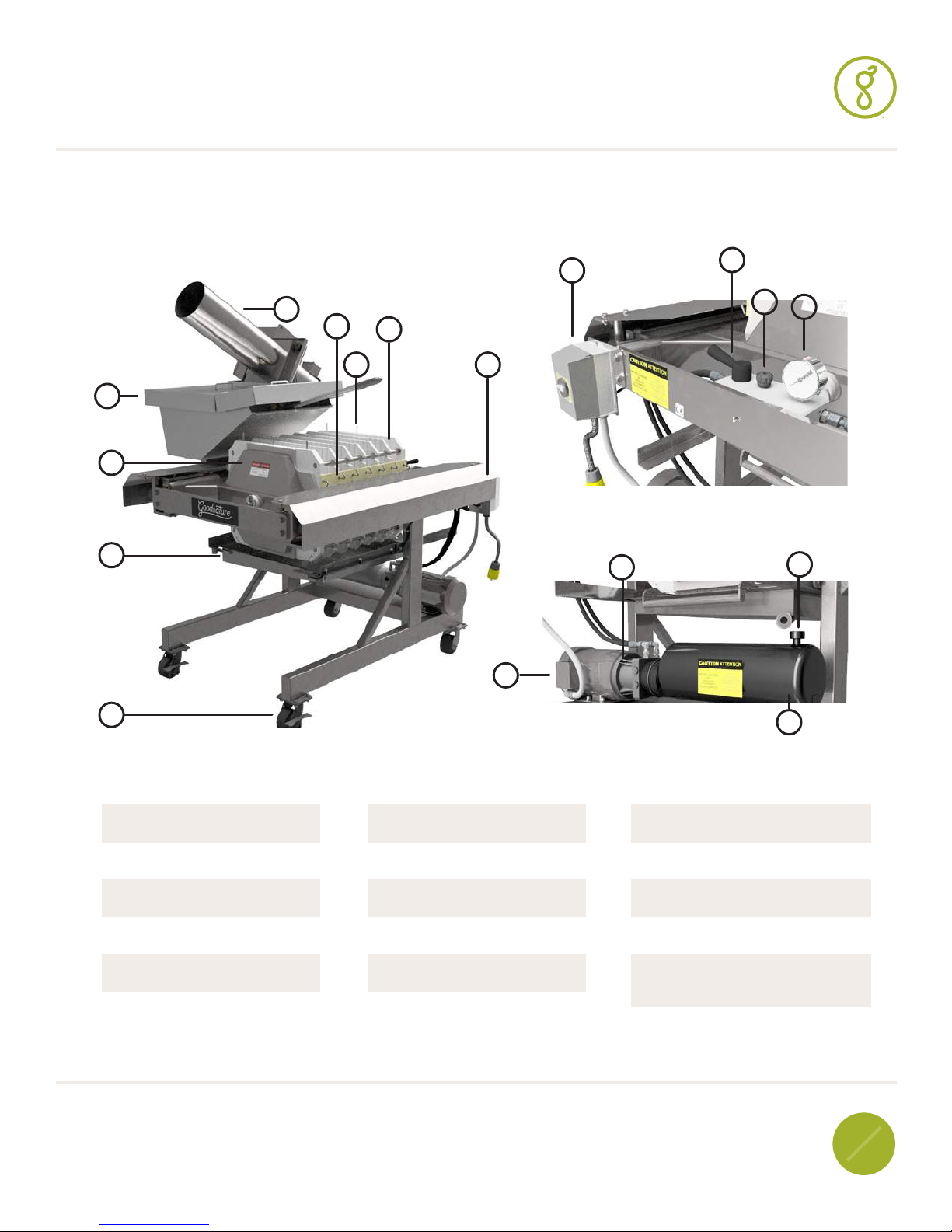

Fig 1.3: Hydraulic Assembly
Section 3: Machine Diagrams
1
13
10
11
7
8
2
5 6
3
12
9
14 16
15
4
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Pomace Hopper
Moving Platen
Press Racks
Rack Strap
Bag Pin
Safety Guard
Juice Tray
Casters
Start/Stop Switch box
Pressure Gauge
Flow Control Valve
Directional Control Lever
Motor for Hydraulic Power Unit
Hydraulic Pump Assembly
Hydraulic Reservoir
Reservoir Breather Cap
EG-260 Grinder
(Add-on Item)
Fig 1.1: X-6 Press
Fig 1.2: Switch and Valve Assembly
3.1 X-6 PRESS DIAGRAMS

10
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 3: Machine Diagrams
Fig 2.1: EG-260 Grinder
Fig 2.2 Fig 2.3 Fig 2.4
9 11 13
10 12 14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Electrical Box
Hopper
Hopper Knobs
Grinder Stems
Safety Interlock Switch
Power Disconnect Switch
Keypad
Emergency Stop
Hopper Gasket
Drive Hub
Retaining Screw
Grinder Disc Backing Plate
Grinder Disc
Shredder Plate Knob
3.2 EG-260 GRINDER DIAGRAMS
1
6
7
8
5
2
3
4

11
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 4: Installation and Setup
WARNING: Power must be supplied to the X-6 and EG-260 by a licensed electrician. Failure to do so may
result in serious personal injury due to electric shock or damage to the machine.
4.1 INSTALLATION
Inspect for physical damage, electrical damage, or any loose or bare wires. Make sure there are no loose nuts, bolts,
or any other fasteners.
Check for proper voltage before connecting any power to the machine.
Standard electrical supply for the X-6 and EG-260 is 1Ph 220V 50/60Hz.
Place a properly grounded electrical outlet close enough to the press so the cord from the motor will reach it
without the use of an extension cord. This outlet should be on a dedicated circuit protected by a 20 Amp breaker.
The grinder should be on a dedicated circuit separate from the press with a 20 Amp breaker.






12
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 4: Installation and Setup
WARNING: Power must be supplied to the X-6 and EG-260 by a licensed electrician. Failure to do so may
result in serious personal injury due to electric shock or damage to the machine.

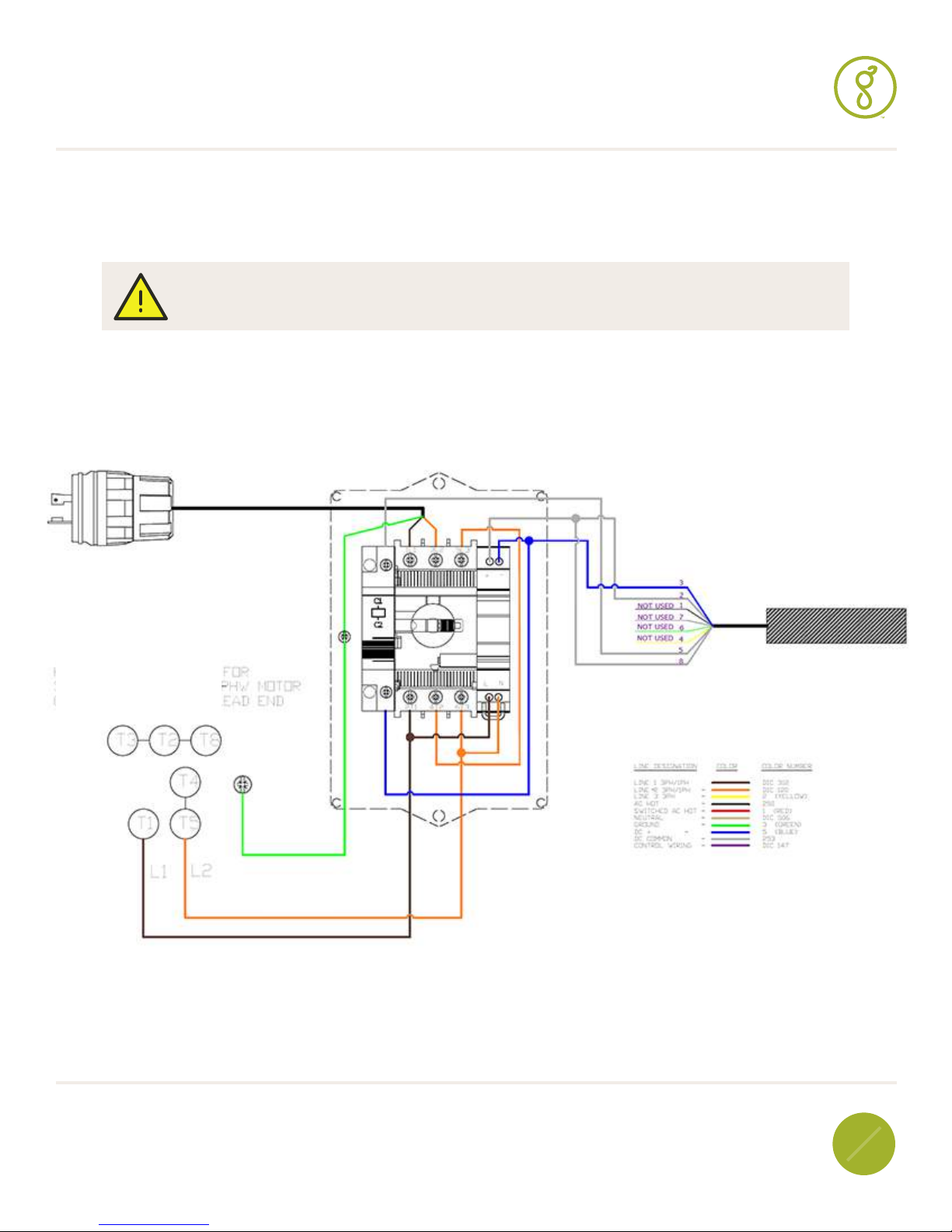

4.2 ELECTRICAL DIAGRAM

13
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 4: Installation and Setup
4.3 SETUP - RACK STRAPS
Begin at either end of the press.
Take one rack strap and feed the hook shaped pins located on the sides of the racks through the holes of the strap
along the length of the unit. (See Fig 4.1)
Rotate the press to the next set of hook shaped pins and install the second strap. (See Fig 4.2)
Repeat this process until all four straps are installed.
The X-6 includes four rack straps. These straps are used to open the racks to the proper layer thickness.





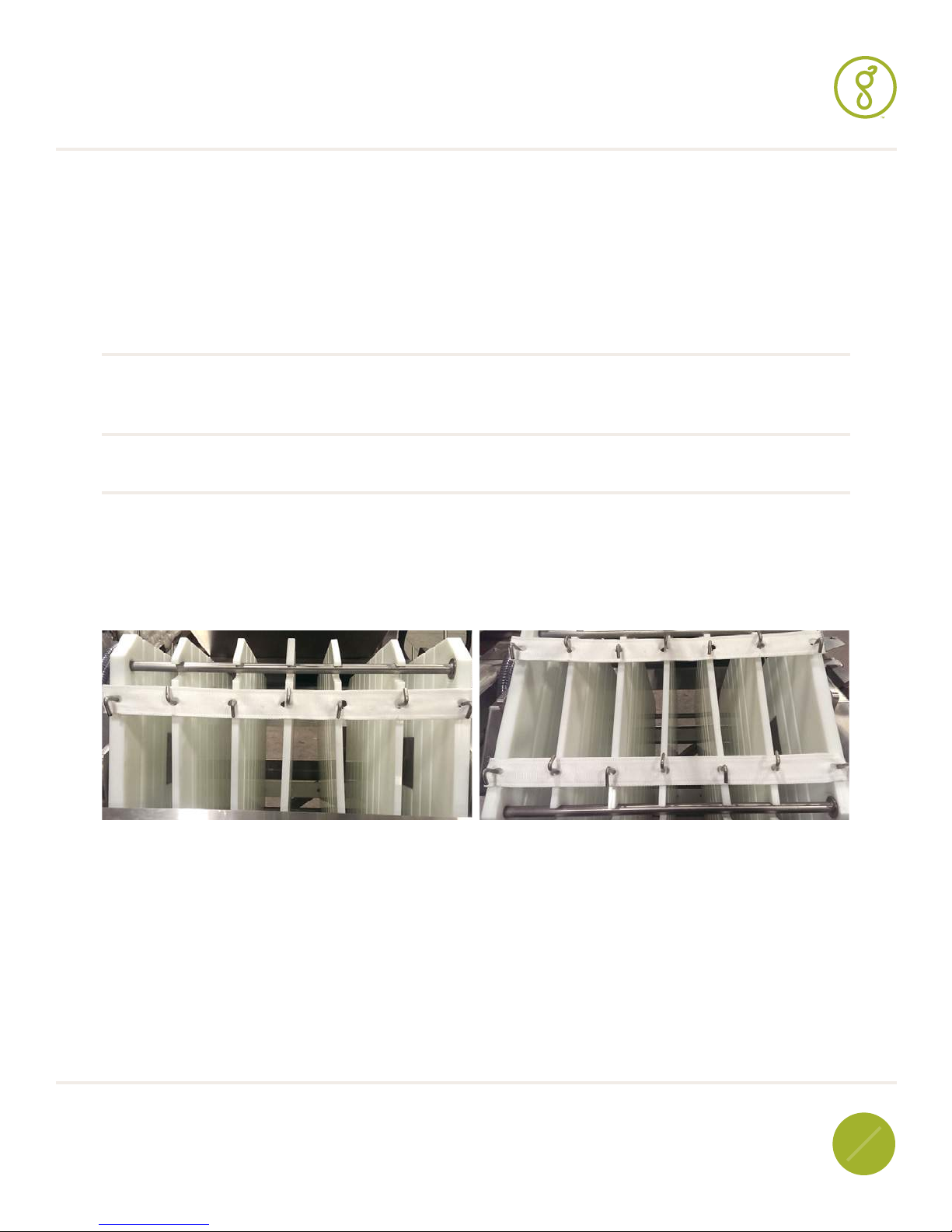

Fig 4.1: Installing press rack straps Fig 4.2: Installing press rack straps

14
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 4: Installation and Setup
4.4 SETUP - PRESS BAGS
Fig 4.3: Installing press bags over pins Fig 4.4: Attaching bags by Velcro
One full set of X-6 press bags consists of 3 pairs of bags; two pairs of end bags and one pair of middle bags. The end bags
have three grommet holes along the top edge that attach to the pins on the end racks. Opposite from the grommet side,
one end bag has a flap with a strip of hook velcro and the other has a strip of loop velcro on the inside of the bag. The
middle bag has a strip of loop velcro on the inside and a flap end with hook velcro.
1
2
3
4
5
Rotate the press area so the straight pins on the end racks are pointing up.
Start at one end of the press and take the end bag with the hook velcro flap and place it between the first two racks of the
press area with each grommet over its accompanying pin.
Install the middle bag between the following racks with the loop velcro side attaching to the end bags’ hook velcro flap.
Install the other end bag over the grommets on the opposite side of the racks and wrap the hook velcro flap from the
middle bag onto the loop velcro strip of the end bag.
Ensure the grommets of the end bags are each on a rack pin. Between every press rack should be a bag securely attached to
one another with velcro. (See Figures 4.3 and 4.4)

15
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 4: Installation and Setup
4.5 SETUP - BAG KEEPERS
Fig 4.5: Threading the Rubber Cord Fig 4.6: Rubber Cord into Rack Slot
The two rubber cords included with the press keep the bags from falling out when the press is inverted for dumping the cake.
1
2
3
4
Rotate the press 90° so the bottom of the bags are at the top.
Start at one end and feed the cord through the hole in the end rack, through the grommet in the bottom of the first
bag, through the groove in the next rack and through the hole in the next bag. Continue threading the cord until the
other end rack is reached. (See Fig 4.5)
Pull the cord through the hole of the end rack and pull down tightly until the cord is firmly seated in the rack slot.
The tighter the cords are, the easier the dry cake will dump out when the press is rotated. (See Fig 4.6)
Rotate the press and repeat the steps to install the cord on the opposite side.

16
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 5: Operation
DANGER: Never place hands, arms, or any foreign items into the grinder hopper, grinder chute, or grinder
housing during operation. Personal injury including lacerations and amputations, or
damage to the machine can occur.
NOTICE: All pits and large seeds should be removed from produce before grinding to prevent damage
to the machine.
NOTICE: Never overload the EG-260 grinder motor by forcing produce through as this will cause
unnecessary wear on the machine.
CAUTION: Safety glasses must be worn at all times during operation. Machine can run at a very high speed;
splatter and projectiles causing eye damage and irritation is possible.
NOTICE: Only stop the machine with the Emergency Stop button in the event of an emergency. The E-Stop
button stops the machine very rapidly and will cause unnecessary wear on the machine.
Before beginning, ensure proper setup has been completed. Make certain the press pomace hopper cover is in place before
grinding. Refer to previous pages for further instructions.
Plug in the machine. To power on grinder, pull out the red emergency stop button and press the green ‘Run’ button on the
Keypad. The grinder will return to the speed to which is was set the last time it was run.
The grinder should be freely turning in a counterclockwise direction with no interference or rubbing. If it is not, shut the
grinder o and contact Goodnature Customer service.
To change speed of grinder, use the up and down arrows on the keypad.
NOTE: The speed of the grinder is displayed in frequency (Hz) and not in rotations per minute (RPM). 30Hz ≈1725 RPM;
60Hz ≈3450 RPM. IMPORTANT: Run grinder at a minimum speed of 30Hz.
Once grinder is up to desired speed, drop produce in end of hopper chute. Use the Product Feeder to gently push the produce
down the chute. Never use excessive force or overload the motor. Push the product feeder until it contacts the triangular
shredder plate knob.
5.1 GRINDER OPERATION

17
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 5: Operation
Continue grinding produce until the bags are about 50-75% full. This will allow the slurry to move around during pressing
and not come up and out of the bag.
When grinding is complete, power o grinder by pressing the red ‘Stop’ button on the keypad. (Fig 5.1)
NOTE: When grinding is complete, there may be some produce collected behind and around the grinder disc, as well as in the
base of the hopper chute. This is normal and does not mean your machine is operating outside of specifications.
Fig 5.1
5.1 GRINDER OPERATION - CONTINUED

18
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 5: Operation
WARNING: Disconnect all power before performing maintenance to avoid risk of serious electric shock.
CAUTION: Blades on the grinder disc are very sharp. Use caution when changing the disc to avoid personal
injury including lacerations.
1
2
3
4
5
6
7
8
9
10
If the grinder is mounted to the X-6, the Pomace Hopper Cover needs to be removed before attempting to change the grinder
disc.
Unscrew the hopper knobs then remove the hopper chute.
Remove the shredder plate knob from the center of the grinder disc assembly.
Loosen but do not remove all eight retaining screws around the perimeter of the grinder disc.
Rotate the grinder disc slightly clockwise to free it from the retaining screws.
Attach desired grinder disc.
Rotate the grinder disc slightly counterclockwise so that the retaining screws move into the slots on the disc.
Tighten all screws. Do not over tighten and strip the threads on the grinder disc backing plate.
Replace and tighten the shredder plate knob.
Replace the hopper and hopper knobs.
5.2 CHANGING GRINDER DISC

19
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 5: Operation
DANGER: Never place any body part between the platens while the machine is on. Failure to follow this
instruction could result in serious personal injury due to crushing.
WARNING: Be aware of all pinch points and moving parts and take precautions to keep loose clothing, hair, or
foreign objects away from them to avoid personal injury and damage to the machine.
CAUTION: Safety glasses must be worn at all times during operation. Machine can run at a very high speed;
splatter and projectiles causing eye damage and irritation is possible.
1
2
3
4
5
6
7
8
9
Make sure all components are in place as described in Section 4: Installation and Setup.
Place press area in filling position (open and upright).
Make sure the juice tray is in place and a hose is connected to it using the provided hose clamp and gasket.
Use the Pomace Scoop to pull ground mash (pomace) from the pomace hopper into the bags.
As the bags fill, use the Cake Separator to evenly distribute pomace in each bag.
Check to make sure the directional control lever is in the neutral position.
Power on the hydraulic power by turning the rotary switch clockwise.
Pull the control lever away from the machine to begin closing the press.
The speed of the press can be controlled with the flow control valve located adjacent to the control lever. For more
detailed information on speed control, refer to Section 5.4: Adjusting Press Speed
NOTE: Juice will begin to rush out of the bag and into the juice tray. If the produce in the press bag starts to move up in the bag or out of
the top of the bag, slow the press down or put it in neutral to give it a chance to drain. The most eective method to pressing is a slow and
gradual increases in pressure. Rushing the press cycle can negatively eect yield and cause the press bag to burst. Refer to Section 9.2:
Improving Yield.
5.3 PRESS OPERATION

20
35
GOODNATURE X-6 COMMERCIAL COLD PRESS JUICER
OWNER’S MANUAL
Section 5: Operation
10
11
12
13
14
15
16
17
18
To retract the platens after pressing, push the control lever towards the machine.
Once the platen is fully retracted, place the directional control lever to the neutral position and rotate the power switch
counter-clockwise to de-energize the hydraulics.
Gently work the cake separator between the bag and the dry pomace cake on both sides of the cake on all layers. Be careful
not to wear the bottom and sides of the bags by forcefully jamming the cake separator into the bags.
Slide the juice tray out from underneath the racks so that you may turn the racks upside down to empty the pomace from
bags.
Place a catch container beneath the press area to catch the spent pomace.
Rotate the press area 180° and shake the bags to allow the cake to fall out.
Remove the catch container and dispose of the spent pomace.
Rotate the press area back to its upright position and slide the juice tray back under the press.
Re-load the press with more pomace for another pressing, or proceed to cleaning if finished for the day.
5.3 PRESS OPERATION - CONTINUED
