• After you read this manual,
keep in a place you can reach easily.
•
Household use only.
10AA221019A
REVO830
US
HOW TO USE
ENDE
FR EN

32
CONTENTS
Important Safeguards
Safety Warning
Parts
How to Assemble
How to Operate
Tips on Operation
Tips on Ingredients
Ingredient Preparation
How to Disassemble and Clean
How to Clean Silicone Parts
How to Use the CleaningTool
How to Use the Blank Strainer
How to Use the Smoothie Strainer
How to Use the Lid Opener
Troubleshooting Q&A
Specications
02
04
06
08
10
12
13
14
18
20
21
22
24
26
28
29
• This appliance is for household use only. Please carefully follow the instructions
in the manual.
(The appliance cannot be covered under the manufacture warranty if the product is
abnormally or commercially used.)
• Save the instruction manual for future reference.
• If the appliance is given away as a gift, please include the manual with the product.
1. Read all instructions.
2. To protect against risk of electrical shock, do not put motor or base of
unit in water or other liquid.
3. Keep away from children.
4. Unplug from outlet when not in use, before adding or removing parts,
and before cleaning.
5. Avoid contact with moving parts. Do not attempt to alter the parts to
disable the safety interlock mechanisms.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or is dropped or damaged in any manner.
Contact the manufacturer at their customer service telephone number
for information on examination, repair, or adjustment.
7. The use of attachments not recommended or sold by the manufacturer
may cause re, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. To unplug the machine from an outlet, grasp the plug and pull.
Never pull from the power cord.
11. Always attach plug to the appliance and check that the control is OFF
before plugging cord into wall outlet. To disconnect, turn the control to
OFF, then remove plug from wall outlet.
12. Make sure juicer is assembled properly before motor is turned on.
Do not remove drum lid or parts while juicer is in operation.
13. Turn switch to OFF position after using juicer. Make sure the motor stops
completely before disassembling.
14. Do not put your ngers or other objects into the juicer opening while it
is in operation. If food becomes lodged in opening, use food pusher or
another piece of fruit or vegetable to push it down. When this method
is not possible, turn the motor o and disassemble juicer to remove the
remaining food.
15. Do not use the appliance if the rotation wiper is damaged.
16. Make sure the juice cup and pulp cup are always in place before operating
juicer.
17. Please do not alter the appliance in any way.
18. Do not use the appliance for anything other than its intended purpose
as described in the manual.
19. This appliance should be used for the recommended use time.
20. This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they are closely supervised by a person responsible for
their safety. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
21. Do not use or store the appliance near a heated oven or stove.
When using electrical appliances, basic safety precautions
should always be followed including the following:
EN
EN

54
The following precaution is provided to ensure the safety of the user. Please carefully read
through the precautions and exercise a degree of care when using the appliance.
Warning : Warns risk of death or severe injuries.
Caution : Warns risk of injuries or appliance damage.
Prohibited Follow instruction
Must take action Do not disassemble
SAFETY WARNING SAFETY WARNING
Do not repair, disassemble the base, or customize the appliance.
The appliance may not operate properly, causing re,
electrical shock or injury.
Do not put the parts in the dishwasher or extremely hot water.
The parts may wear faster.
Do not use the appliance on an uneven surface.
It may cause a malfunction if the appliance tips over.
To protect the power cord, please do not aggressively bend or put
heavy objects on top of the power cord.
It may cause short circuit or even re.
Keep away from children and store the appliance in a safe place.
It may cause injury.
Please do not store or operate the appliance near any heating
appliance.
The appliance may become discolored or deformed.
Do not use any hazardous chemicals to clean the appliance or
ammable sprays near the appliance.
It may change the color of the appliance or could result in a re.
For cleaning parts that come in contact with food, please follow
the instructions on pages 18-21.
Do not plug multiple power cords in a single outlet during operation.
It may cause an explosion or re.
Do not touch the power cord with wet hands.
It may cause electrical shock.
Use a dry towel to clean the power cord if it is dirty or wet.
It may cause electrical shock or re.
Do not drop the appliance nor inict strong force to the appliance.
It may damage or break the appliance.
Do not unplug by pulling o the power cord cable.
It may damage the power cord and cause electrical shock.
Do not put your nger or other objects into the feed chute while it is
in operation.
It may cause injury.
Do not leave the appliance unattended. Unplug the power cord from
the outlet when not in use.
Operating the juicer without ingredients can cause damage to the
screw.
EN
EN

76
PARTS
Align the red dots on each part and
assemble in the order shown. Once
assembled, turn the drum lid clockwise
to close.
STEP 1
Top-set assembly
STEP 2
Top-set and base assembly
Place the assembled top-set on the base.
Align the juice spout with the logo on the
base.
* The products illustrated in this booklet may vary slightly from the actual product. * The products illustrated in this booklet may vary slightly from the actual product.
2. Juicing Bowl
3. Pulp Cup
5. Base
6. Juice Cup
* Feed Chute
Flip Gate Auto-Cut Chute
7. Juicing Strainer 9. Juicing Screw8. Rotation Wiper 10. Pusher
11. Cleaning Tool 12. Cleaning Brush 13. Blank Strainer
14. Smoothie Strainer
4. Juice Cap
1. Drum Lid
15. Round Brush
16. Lid Opener
Check the
name of the
strainer
+
+
+
+
+
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
EN
EN

98
HOW TO ASSEMBLE
STEP 1
Top-set assembly
STEP 2
Top-set and base assembly
Check Before
Operating • Wash the parts before rst use.
• Ensure that the silicone ring is assembled properly.
The drum lid will not close unless the
juicing screw is all the way in.
Note |
Place the juicing screw into the strainer.
Turn and press down on it until it clicks
into place.
2
Place the drum lid onto the juicing bowl,
aligning the white dot on the drum
lid with the red dot on the juicing bowl.
Turn the drum lid clockwise until the
lock mark on the lid is lined up with the
red dot on the juicing bowl.
3
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
Insert the strainer into the rotation
wiper, then place into the juicing bowl,
ensuring the red dot on the strainer is
aligned with the red dot on the juicing
bowl.
1
For easy assembly, hold the drum lid
and turn clockwise as shown in the
illustration.
TIP
4
Place the assembled top-set on the
base. Align the juice spout with the
logo on the base.
5
Place the pulp cup under the pulp
spout and place the juice cup under the
juice spout as shown in the illustration.
These cups can be interchanged
depending on the quantity of juice
created.
Note |
EN
EN

1110
HOW TO OPERATE

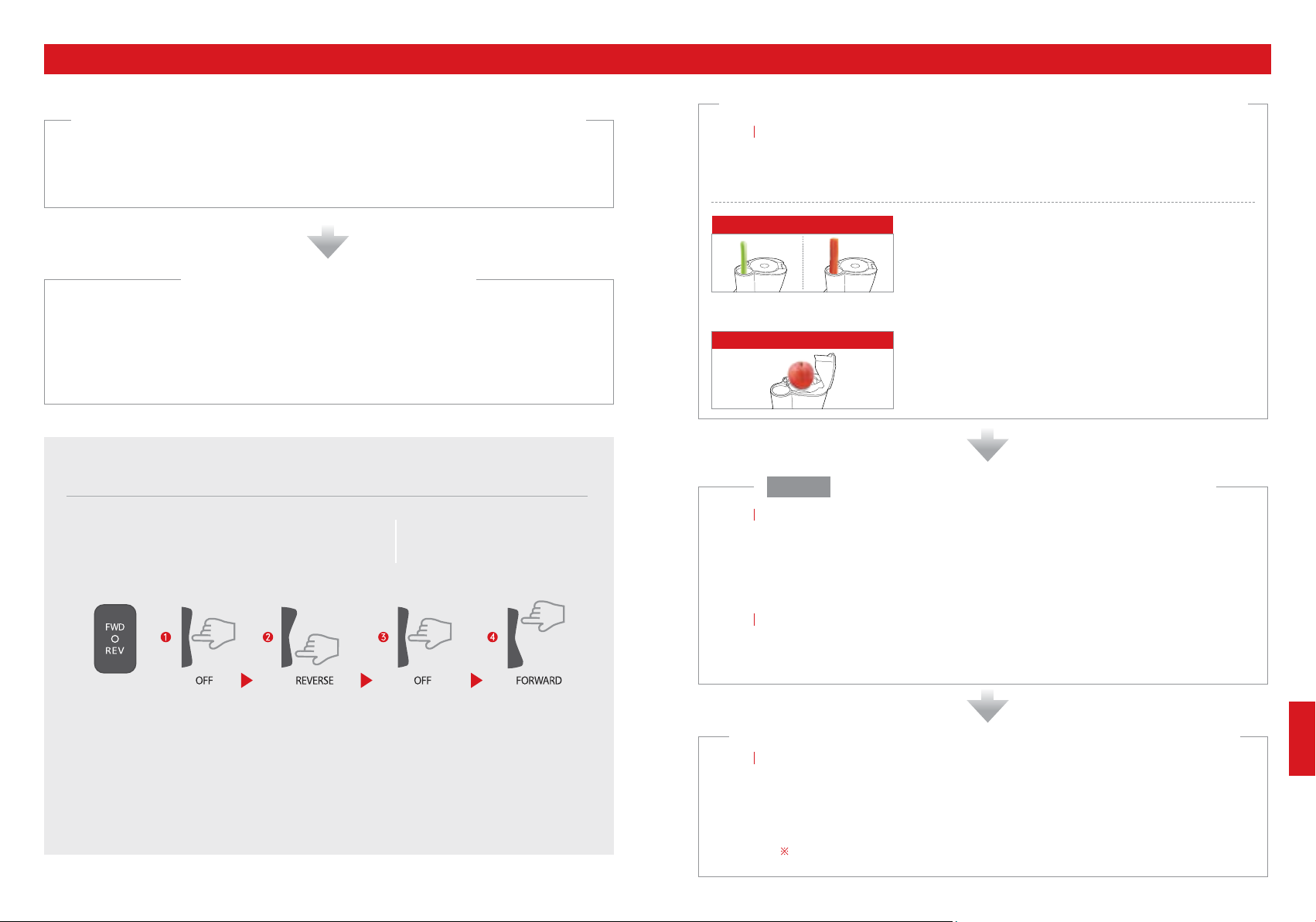

After preparing the ingredients, plug the power cord into a wall outlet.
Note | ·Do not touch the power cord with wet hands.
It may cause electrical shock, short-circuit, or re.
·Ensure the power cord is plugged into a power outlet.
Press the FORWARD button to operate.
Note |
If the ingredients become jammed in the screw and the drum lid does not open, press the OFF
button. Then press and hold the REVERSE button until the ingredients become dislodged.
Repeat REVERSE - OFF - FORWARD as often as needed to dislodge food.
·Forward: Pulls down and slowly masticates the ingredients.
·Reverse: Pushes the ingredients back up to dislodge them.
If the juicer stops during operation
Switch the button to OFF position then press and
hold the REVERSE button until the ingredients
become dislodged.
Repeat REVERSE - OFF - FORWARD as needed.
FORWARD : Pulls down the food
OFF : Stops the operation
REVERSE : Pushes the food back up

Note | ·REVERSE: Pushes the ingredients back up to dislodge them.
The REVERSE button only works while holding down the switch.
·Switch OFF, ensuring that the juicer comes to a complete stop. Then press REVERSE.
Hold the REVERSE button for 2-3 seconds and release. Repeat as needed. Let the
juicer stop completely before using the REVERSE button to prevent malfunction.
·If the juicer does not work after these steps, disassemble and clean the parts before
operating the juicer again.
TIP
Note
Use the juice cap to make mixed juice, prevent drips,
or rinse between dierent juices.
Juice Cap
·Juicing with the juice cap closed creates various mixed juice creations with dierent fruits,
vegetables, and other ingredients.
·After juicing, close the juice cap to stop juice from dripping, especially when disassembling
the juicing bowl o of the base.
·When making dierent juices, quickly rinse any leftover avors by running a cup of water
through the juicer with the juice cap closed.
·Leave the juice cap open when juicing ingredients that often create foam during extraction.
(e.g. apples, celery)
·Pay close attention when operating with the juice cap closed. Juice may overow if the juice
collected in the juicing bowl exceeds its capacity.
After juice and pulp have been completely extracted, switch the unit OFF.
Note ·If the remaining ingredients in the juicing bowl have not been extracted completely, the drum
lid may not open easily. (After each extraction, run the juicer for an additional 30 seconds to
let the juicer extract the remaining pulp.)
When the drum lid is stuck, press the REVERSE - OFF - FORWARD buttons in that order,
repeating 2-3 times to dislodge food. Then place your hands on top of the drum lid and rmly
press down as you simultaneously turn the drum lid counterclockwise to open.
Depending on the ingredients, pour water down the feeding tube to rinse out the interior
of the juicing bowl and then try to take o the drum lid.
Insert the prepared ingredients into the feed chute, one piece at a time.
Note
Tip |
Hard vegetables & high ber foods | (E.g. carrots, celery, kale)
Insert into the Auto-Cut Chute
·Prepare ingredients for optimal extraction.
·If a large quantity of ingredients are put into the feed chute it can cause the juicer to stop.
Insert the ingredients one piece at a time.
·Remove hard seeds, pits, and thick rinds from fruit.
·
Tough and brous ingredients:
Ingredients with a width of 1.5 inches or less can t into the auto-cut
chute. Larger ingredients need to be trimmed to t into the auto-cut
chute.
·Fibrous leafy vegetables (celery, kale, collard greens, etc.):
Ensure stems are no more than 1.5 inches wide. Bunch the leaves
together to t into the auto-cut chute.
Insert into the Flip Gate
Tip |
Soft fruits & vegetables | (E.g. apples, oranges, tomatoes)
·
Soft ingredients: Insert ingredients into the ip gate and push
down with the ip gate lid.
If the ingredients are larger than the ip gate, cut them into smaller
pieces.
EN
EN

1312
TIPS ON OPERATION TIPS ON INGREDIENTS
Peach, nectarines, apricot, plum, mango, etc.
Remove hard seeds from the ingredients
before juicing.
Hard seeds
Pineapple, melon, mango, orange, etc.
Peel the skins from the ingredients before juicing.
Hard or
inedible
skins
Large frozen fruits.
Do not process whole frozen fruits. Thaw frozen
fruits slightly before making smoothies or sorbet
with the juicer. Do not process ice.
Large frozen
fruits or ice
Sesame seed, butter, margarine, etc.
Do not extract ingredients containing vegetable
or animal oil. This can reduce performance and
even damage the juicer.
Vegetable/
animal oil
Coconut, sugarcane, whole grains, etc.
Do not extract ingredients with no water
content.
Others
The Slow Juicer is an innovative product that uses a patented slow-
speed masticating technology to efficiently extract the juice from
ingredients. The juicer is designed to obtain the best results from
ingredients with firm composition and with high water content.
For best results, each ingredient should be prepared and extracted
depending on its characteristics and properties.
Experience the best quality juice by understanding each ingredient’s characteristics
and knowing the optimal way of handling the ingredients.
DO NOT
put the following ingredients into the juicer:
Juicer damage due to owner negligence or from not following the instructions in the owner’s manual
will void the warranty service.
1.Operating the juicer without ingredients can cause damage to the screw.
2.Do not continuously operate the juicer for more than 30 minutes.
This can cause the motor to overheat.
After continuous use, let the juicer rest for 30 minutes to cool down before starting another
session.
3.Do not put hands, utensils, tongs, or other objects into the feed chute other than the
provided pusher.
4.During operation, do not put spoons, spatulas or other objects into the juice spout of
the juicing bowl.
If objects are put into the juice spout during operation, such materials can get stuck and
damage the juicer parts.
5.Do not put dried whole grains, fruits with hard seeds, or ice into the machine.
These may damage the juicer parts.
(e.g. juicing bowl, juicing screw, and strainer)
· Beans or grains can be used if soaked overnight or boiled.
· Fruits with pits and hard seeds (e.g. nectarines, peaches, mangoes and cherries) must be pitted
before juicing.
· Use of ice in the juicer will decrease the product durability over time.
6.Do not use ingredients containing excessive amounts of vegetable oil or animal fat.
Do not use the juicer to extract vegetable oil from ingredients.
If vegetable/animal oil gets on the juicing screw, it may reduce performance and even damage
the part.
7.Do not reinsert the extracted pulp into the juicer. This can cause the juicer to stop or
cause the drum lid not to open.
8.After juicing ingredients with seeds, like grapes, thoroughly clean all the crevices on
the bottom of the juicing screw.
EN
EN

1514
INGREDIENT PREPARATION
Before
Operating:
Juice Yield:
Soft fruits and vegetables
(e.g. apples, oranges, tomatoes)
Halve or quarter
Flip Gate
PREPARATION TIPS:
·If the ingredients are larger than the ip gate, them in half or into wedges.
JUICING TIPS:
·Fruits with hard seeds must be pitted before extraction.
·Use the pusher to push the ingredients down the feed chute.
(The pusher also blocks any juice that may spray during extraction.)
·Leave the juice cap open when juicing ingredients that create excessive foam during extraction.
(Foam can accumulate if operated with the juice cap closed. )
·It is recommended that the extracted juice be consumed within 48 hours. Depending on the density
of the ingredients, the extracted juice can gradually show layers over time.
·When an ingredient is being masticated by the juicing screw, the squeezed ingredient may splash juice
up the feed chute. Use the pusher to block out the juice splash when juicing.
·Before Operating: If the juicer is jammed or if the drum lid does not open,
press the REVERSE button and hold until ingredients become dislodged.
Repeat REVERSE-OFF-FORWARD as needed.
·Continue operating the juicer until all the ingredients in the juicing bowl are
extracted. The drum lid may not open easily if there is a lot of pulp remaining
in the juicer.
·Every ingredient yields dierent amounts of juice.
·For optimal extraction and maximum juice yield, prepare the ingredients
following the guidelines given in this section.
·Insert ingredients slowly, monitoring how the ingredients are extracted.
The juice yield may vary depending on the juicing speed.
- Peel the skin o oranges.
Remove the stems of
tomatoes and apples.
- Slowly insert ingredients
into the ip gate.
- If the ingredients are
larger than the ip gate,
cut the ingredients into
smaller pieces.
If the lid does not open due to excessive amount of small seeds left in the juicing bowl,
continuously run the juicer for 30 seconds to extract any leftover seeds. If the lid is still stuck,
repeat REVERSE - OFF- FORWARD until the ingredients become dislodged. Place both hands on the
drum lid and rmly press down while simultaneously turning the drum lid to open. Depending on
the ingredients, pour some water down the feed chute to help with dislodging.
Slowly insert ingredients with small seeds to prevent the seeds from clogging the strainer.
| (E.g. apples, oranges & tomatoes)
Ingredients with small seeds
(e.g. raspberry, pomegranate, grape)
Caution |
Auto-Cut Chute
Insert ingredients slowly
to minimize the amount
of leftover seeds in the
strainer.
PREPARATION TIPS:
·Thoroughly rinse ingredients. Remove and discard any stems.
·For best results, juice with ingredients that contain more water (e.g. apples, pears).
JUICING TIPS:
·Depending on the size of the berry, insert 3-5 at a time while monitoring the extraction.
·For small ingredients like pomegranate seeds and raspberries, insert about 1 tablespoon (5g) at a time.
EN
EN

1716
INGREDIENT PREPARATION
Fibrous and/or tough leafy ingredients
(e.g. celery, kale)
Caution | · For ingredients like pineapple, slice o the rind of the pineapple and cut around the brous
core. Cut the esh of the pineapple into smaller pieces.
·
Recommended amount of juicing per session is 2 cups (500g).
When juicing more than 2 cups, wash the top-set before juicing the next batch.
PREPARATION TIPS:
· Separate each stem. Cut the outer stems that are thick and tough to be 1.5 inches wide.
· Soak the leafy greens in cold water for about 30 min prior to juicing for best results.
JUICING TIPS:
· One at a time, slowly insert the prepared ingredients.
· Insert more ingredients after the previously inserted ingredients have been completely extracted.
Roll leaves into spirals before inserting into the juicer.
For best result, disassemble and wash the top-set before juicing again.
For ingredients like wheatgrass, grab a handful and insert in a bundle.
* It's best to juice with ingredients with higher amounts of liquid, like apples or carrots.
Hard fruits and vegetables
(e.g. carrots, beets, ginger, kohlrabi, quince)
How to Use
the Juice
Cap:
· Juicing with the juice cap closed allows mixed juice creations with dierent
fruits, vegetables and liquids.
· After juicing, close the juice cap to block excess juice from dripping,
especially when disassembling the juicing bowl o the base.
· When making dierent juices, quickly rinse away any leftover avors by
running a cup of water through the juicer with the juice cap closed.
· Leave the juice cap open when juicing ingredients that create excessive
foam during extraction (e.g. apples, celery).
· Pay close attention when operating the juicer with the juice cap closed.
Juice may overow if the juice collected in the juicing bowl exceeds its
capacity marked on the juicing bowl.
Adjusting
the Amount
of Pulp in
the Juice:
· Depending on the ingredient, you may get extra pulp in the juice when
juicing continuously.
· To reduce the amount of pulp, disassemble the top-set and wash frequently.
PREPARATION TIPS:
· Prepare carrots after removing the stem.
· Soak ingredients like carrots in cold water for about 30 min prior to juicing for best results.
JUICING TIPS:
· Slowly insert the ingredients one at a time.
· To maximize the juice yield, juice with ingredients with high water content.
Hard fruits and vegetables may put excess strain onto the motor and cause it to stall.
Ingredients with a
thickness of 1.5 inches
or less can be inserted
whole. For thicker
ingredients, cut them
by 1.5 inches of width
or less before feeding.
Beets, ginger, quince, and
kohlrabi can be cut into
1 inch or less pieces for
easier juicing.
Auto-Cut Chute Auto-Cut Chute
Caution |
It is not recommend to juice large amounts of dry root vegetables, such as beets, ginger,
kohlrabi, or hard fruits like quince, by themselves.
* Bulk juicing these dry ingredients may cause a decrease in product performance.
Bundle up the leafy part and insert
them facing down.
Do not collect more than 2 cups
(500g) per session.
If leafy ingredients wrap around
the juicing screw, open the lid
and remove the bers before
continuing to juice.
Auto-Cut Chute
EN
EN

1918
HOW TO DISASSEMBLE AND CLEAN
Turn the top-set counterclockwise and
lift o the base.
3
Quick Rinsing
* The products illustrated in this booklet may vary slightly from the actual product.
Switch OFF and unplug the power cord
from the wall outlet.
1
Note | Extract all the remaining pulp in the
juicing bowl before stopping the juicer.
For easier clean up, operate the juicer for
an additional 30 seconds after the juice is
extracted.
When the drum lid is stuck, press the
REVERSE – OFF – FORWARD button in this
order, switching back and forth 2 to 3 times
to dislodge. Then place both hands on
the drum lid and rmly press down while
simultaneously turning the drum lid to open.
Fill the juicing bowl with water and run the
juicer before opening the drum lid. It may
help to open the drum lid when stuck.
·
·
·
Place the juicing bowl under running
water.
5
TIP | The round brush can clean the juice
spout of the juicing bowl.
Turn the drum lid counterclockwise to
open.
2
Note | When moving the appliance, do not lift
by grabbing the feed chute. Always lift
the appliance by grabbing the base or
handle.
Under running water, clean the outside of
the juicing screw with a dish scrubber. Use
the tip of the cleaning brush to push out
any residue in the crevices on the bottom
of the juicing screw.
6
Tip |
Note | After juicing ingredients with seeds, make
sure to thoroughly clean the bottom
crevice of the juicing screw. (If this area
isn’t properly cleaned, it can cause the
part to be damaged).
Thoroughly clean the juicing screw
ensuring that the juicing screw is clean
without any residue.
Completely dry before using.
Clean the body with a soft damp towel
and dry.
7
Note | If the towel is dripping wet, make sure
to squeeze out the excess liquid before
using it on the juicer.
With the juice cap closed, ll the juicing
bowl with water and turn on the juicer.
1
Let it run for about 1 minute. Open
the juice cap and let the water run
out of the juicing bowl.
2
Tip | It is not necessary to completely clean
the juicer in between juices during a
single juicing session.
When nished with juicing, always
disassemble and clean thoroughly
between juicing sessions to prevent
residue buildup.
Remove the juicing screw, strainer and
rotation wiper unit from the juicing bowl.
Clean with provided brush.
4
Note | Immediately clean the juicer after each
use. If remaining residue in the juicer dries
up, it can make disassembling and clean-
up dicult. The excess build up can cause
poor performance in future uses.
For easier disassembly, place the top-set
in the sink and run water through the top
of the top-set.
Thoroughly rinse the bottom of the
juicing screw.
*
EN
EN

2120
HOW TO USE THE CLEANING TOOL
HOW TO CLEAN SILICON PARTS
Clean the rotation wiper under running water.
Thoroughly dry after cleaning. Before assembling the top-set, ensure that the silicon ring is
rmly inserted.
If the silicon ring is not rmly inserted, juice may leak from the bottom of the juicing bowl.
Tip |
Note |
The cleaning tool makes clean-up quick and easy.
Completely dry after cleaning.
Tip |
* The products illustrated in this booklet may vary slightly from the actual product.
Cleaning inside of the bowl
Please unscrew the cover on the bottom and clean inside.
After cleaning, make sure that protrusion part of gear is
placed on the outer part so it ts (connects) with the drum.
Sequence of assembly is in reverse order of disassembly.
Silicon Ring
Remove the silicon ring from
strainer to clean.
After cleaning, push in the silicone
ring.
Juice Cap
Remove from the juice spout
to clean.
After cleaning, attach the juice
cap silicon to the juice spout.
Silicon Brush
Pull out the silicon brushes from
the rotation wiper to clean.
After cleaning, insert into the slot
with the tail pointing down as
shown in the illustration.
EN
EN
After cleaning, remove the strainer from the
cleaning tool. Dry before storing.
4
Under running water, rotate the cleaning tool
and the strainer in opposite directions to clean.
2
Thoroughly rinse the inside and outside of the
strainer under running water.
3
Hold the cleaning tool with one hand and insert
the strainer into the cleaning tool.
1
Note |Insert the strainer until you hear a click.

2322
HOW TO USE THE BLANK STRAINER
* Disassemble in reverse order of assembly.
Insert the blank strainer into the juicing bowl
while aligning the red dots of the blank strainer
and the juicing bowl.
Insert the juicing screw into the blank strainer
with a twisting motion.
Place the lid onto the juicing bowl by aligning
the white dot of the lid with the red dot of the
juicing bowl. Then, rotate the lid clockwise until
the lid is secured.
Before use, make sure the silicon ring is correctly in place.
To assemble the top-set place the juicing screw
and the blank strainer in the juicing bowl and
close the lid.
HOW TO CLEAN THE SILICON RING
1
1
Carefully insert the silicon ring
by aligning grooves and wedges.
The silicon ring is removable for cleaning.
After cleaning, insert the silicon ring as
shown in the picture.
Lid
Juicing Screw
Blank Strainer
Juicing Bowl
When using the blank strainer,
always leave the juice cap open.
EN
EN
• Allow the frozen items to thaw for 5 to 20 minutes before use.
• Put a small portion of ingredients at a time and give enough time for the juicer to process
before putting more.Do not overfeed.
• When using the blank strainer, always leave the Smart Cap open.
• Make sure the silicone ring is correctly in place.
• Do not insert ice, meat, oil, or fat-based ingredients.
• Remove hard seeds, pits, or peels.
IMPORTANT TIPS

2524
HOW TO USE THE SMOOTHIE STRAINER
* Disassemble in reverse order of assembly.
Insert the rotation wiper and the smoothie strainer
into the juicing bowl while aligning the red dots of
the smoothie strainer and the juicing bowl.
Insert the juicing screw into the smoothie strainer
with a twisting motion.
Place the lid onto the juicing bowl by aligning the
white dot of the lid with the red dot of the juicing
bowl. Then, rotate the lid clockwise until the lid is
secured.
To assemble the top-set place the juicing screw and
the smoothie strainer in the juicing bowl and close
the lid.
When using the smoothie strainer, make sure
the juice cap is closed to make a thoroughly
combined smoothie.
1
1
HOW TO CLEAN THE SILICON COVER
Carefully insert the silicon cover
by aligning grooves and wedges.
The silicon cover is removable for cleaning.
After cleaning, insert the silicon cover as
shown in the picture.
Lid
Juicing Screw
Rotation Wiper
Juicing Bowl
Smoothie
Strainer
Use the smoothie strainer to create a rich smoothie texture with frozen
berries, banana, mangoes, and avocados.
EN
EN
IMPORTANT TIPS
• It's normal to have leftover pulp inside the juicer when using the smoothie strainer.
Limit to making a maximum of 2 cups of smoothie per session.

• For best result, add at least 1/2 cup of juice or any type of liquid for every 1 cup of smoothie.
Add a little more liquid if needed.
• Put a small portion of ingredients at a time and give enough time for the juicer to process
before putting more.Start with soft ingredients rst then add harder ingredients for the
best result.

• When using frozen ingredients, make sure to thaw for at least 10 minutes before using it.
• Limit to processing 1 cup of loose greens per session. Do not use vegetable stems or celery.
• Keep the smart cap closed when using the smoothie strainer.
• Remove hard seeds, pits, or any peels.
• Do not insert ice, meat, oil, or fat-based ingredients.

2726
HOW TO USE THE LID OPENER
Use the lid opener when the lid doesn't open normally after juicing.
Hold the feed chute steady and turn the lid opener counterclockwise.
1
2
Be sure that the top-set is on the main body before using the lid opener.
Position the lid opener horizontally and connect the hooks as shown in the illustration.
1
1
CAUTION
TROUBLESHOOTING Q&A
When there is no power to the juicer:
·Check if the power cord is properly plugged in.
·Check if the drum lid and the juicing bowl are
properly assembled.
·Check if the top-set and the base are properly assembled.
·Juicer will not operate if parts are not assembled properly.
Low juice yield:
·Dierent ingredients hold dierent amounts of liquid
that will yield dierent amounts of juice.
·If the ingredients are not fresh, they may contain reduced
amounts of liquid which will yield less juice.
Soak ingredients in cold water for about 30 min prior to
juicing for the best results.
·If the ingredient itself has low water content, it may
help to soak it in water before juicing.
·If juicing ingredients with small seeds, after a few
servings the juice yield may be reduced.
For best results, disassemble and wash the top-set in
between juice sessions.
·If there is seed residue on the bottom of the
strainer, this can aect juicer performance and
the overall juice yield.
There is too much pulp in the juice:
·To reduce the ne pulp, clean the top-set frequently
and remove the pulp.
·If the strainer and the screw are damaged and aecting
the juicer’s performance, it is recommended the parts
be replaced.
* The lifetime of each part may vary depending on length
and method of use and ingredients extracted.
The drum lid will not close:
·Make sure the juicing screw is pushed all the way into
the strainer in order for the drum lid to close properly.
·If the juicing screw is not properly in position, the drum
lid may not close.
Odd noise from the juicer:
·Check if the parts are assembled correctly.
Try reassembling the parts and listen for the odd noise.
·Do not start the juicer unless there are ingredients and
or liquid in it.
·Operating the juicer without ingredients can cause
damage to the screw.
·If the juicer is operated without ingredients or liquid,
the noise level can increase and can also lead to damage.
·The friction noise from the juicing screw and the strainer
will disappear when ingredients are inserted into the juicer.
·If the noise occurs when ingredients are inserted into
the juicer, check the size of the ingredients.
Do not insert anything over 1.5 inches in thickness.
·Depending on the type of ingredients, the dimensions
can be smaller.
·The noise can occur if the juicer is operated on an
uneven or slanted surface. Place the juicer on a
horizontally at surface when operating.
The extracted pulp is very moist:
·During the very beginning of extraction, the pulp can
be more moist temporarily.
·Pulp can be aected by the ingredient's condition.
When the ingredient is not fresh, the juice often sticks
to the pulp.
During operation, the juicing bowl shakes:
·The juicing screw and the strainer are set up to crush
and squeeze the ingredients. It is normal for the juicing
screw and the strainer to vibrate.
·If the ingredient is very brous, the vibration from the
top-set may be stronger.
During juicing, the juicer stopped:
·Check the power cord and make sure it is plugged in
correctly.
·Check that all the parts are correctly assembled.
·If too many ingredients are inserted at one time,
this can cause the juicer to stop.
·When the juicer stops because there are too many
ingredients inserted in it, press the REVERSE - OFF -
FORWARD button in this order, switching back and
forth 2 to 3 times.
·The reverse setting will push the ingredients up,
and the forward setting will pull the ingredients down.
·After using for more than 30 minutes, the juicer may
stop due to overload protection. Let the juicer cool for
30 minutes to 1 hour before juicing again.
·If there are hard seeds within the ingredients, remove
them before juicing. Hard seeds can damage the juicer.
Layers of separation in the juice:
·Depending on the density of the ingredients,
the extracted juice may show layers of dierent juices.
It is dierent from separation due to oxidation
caused by juicing with a high-speed juicer.
The drum lid is stuck:
·After juicing, let the juicer operate for another
30 seconds to extract the remaining pulp.
·If there is too much pulp in the top-set, this can cause
the drum lid to not open. In this situation, press
EN
EN

2928
the REVERSE-OFF-FORWARD button in that order, and
repeat 2-3 times. Then place both hands on the drum
lid and firmly press down while simultaneously turning
the drum lid to open.
·Pour water down the feed chute to rinse out the inside
and then try opening the drum lid.
Juice dripping down the base:
·If the silicon ring on the bottom of the strainer is not
put in correctly, the juice may seep out onto the juicer
base. Before assembling the parts, check and make
sure the silicon ring has the at part in the middle, on
the inside of the strainer and the skirt on the outside of
the strainer.
Is it possible to juice ingredients with tough ber?
·Ingredients like celery or ginger contain long
bers that may wrap around the juicing screw
and aect the juicer’s performance. When
juicing brous ingredients, do not collect more
than 1 lb. of juice. After collecting this quantity
or less, clean the top-set completely before
juicing again.
Discoloration of the plastic parts:
·After juicing, if the juicer is not cleaned right away,
the remaining pulp inside the top-set
can dry up which can make disassembling and
cleaning hard. This can also aect the juicer’s
performance and color.
·Ingredients that are rich in carotenoids such
as carrots and spinach may dye plastic parts.
When the parts are dyed with carotenoids, rub
vegetable oil in to the dyed areas and use mild
soap to clean.
·Vegetable oil should only be used during
clean-up for parts that are discolored. Do not
use vegetable oil on the juicing screw or the
strainer. If vegetable oil or oil from animal fat
gets on the juicing screw or the strainer, this
can aect the juicer’s performance and may
result in damaged parts.
·The silicon pieces on the top-set can be
detached to be thoroughly cleaned.
Using for purposes other than juicing:
·This juicer is designed to juice ingredients like
fruits and vegetables.
·Do not use the juicer for extracting vegetable oil.
·Do not juice ingredients with high contents of
vegetable/animal oil.
·If vegetable/animal oil gets on the juicing screw
or the strainer, this can aect the performance
of the juicer and could result in damaged parts.
TROUBLESHOOTING Q&A SPECIFICATIONS
Product Juicer
Model REVO830, REVO830M
Voltage AC120V, 60Hz
Power Consumption 240W
Maximum Use Less than 30 min
Weight 7.5kg (16.5 lbs)
Dimension 256 x 210 x 480 mm (10 x 8 x19 in)
Manufacturer NUC Electronics Co., Ltd.
Type Low speed compression
Origin Made in Korea
EN
EN

REVO830
DE
FR
EXTRACTEUR BASSE
VITESSE KUVINGS
OPTIMISÉ POUR LES CAROTTES & CÉLERI
MANUEL
• Après avoir lu ce manuel, conservez-le à
portée de main.
• La couleur du produit peut être différente.
• À usage domestique uniquement.

3332
TABLE DE MATIÈRES
MISES EN GARDE IMPORTANTES
Lorsque vous utilisez des appareils électriques,
respectez toujours les consignes de sécurité suivantes:
CONSERVEZ CES INSTRUCTIONS
• Cet appareil est exclusivement destiné à un usage domestique. Veuillez suivre
attentivement les instructions contenues dans ce manuel.
(L'appareil ne peut bénécier de la garantie du fabricant s'il est utilisé d'une
manière non prévue par le fabricant ou à but commercial.)
• Conservez le manuel d'utilisation pour une consultation ultérieure.
• Si l'appareil est transmis à quelqu'un, veuillez remettre cette notice.
DE
FR
1. Lisez toutes les instructions.
2. Pour se protéger contre le risque de choc électrique, ne mettez pas le
moteur ou la base de l'unité dans l'eau ou tout autre liquide.
3. Tenir hors de portée des enfants.
4. Débranchez la prise lorsqu'elle n'est pas utilisée, avant d'ajouter ou de
retirer des pièces et avant de la nettoyer.
5. Évitez tout contact avec les pièces mobiles. N'essayez pas de modier
les pièces pour désactiver les mécanismes de verrouillage de sécurité.
6. Ne faites pas fonctionner un appareil dont le cordon ou la che est
endommagé ou après un dysfonctionnement de l'appareil, une chute ou
un dommage quelconque. Contactez le fabricant au numéro de téléphone
de son service clientèle pour obtenir des informations sur l'examen, la
réparation ou le réglage.
7. L'utilisation d'accessoires non recommandés ou vendus par le fabricant
peut provoquer un incendie, un choc électrique ou des blessures.
8. Ne pas utiliser à l'extérieur.
9. Ne laissez pas le cordon pendre au-dessus du bord de la table ou du
comptoir.
10. Pour débrancher la machine d'une prise murale, saisissez la che et tirez.
Ne tirez jamais sur le cordon d'alimentation.
11. Fixez toujours la che à l'appareil et vériez que la commande est éteinte
avant de brancher le cordon dans la prise murale. Pour débrancher,
mettez la commande sur OFF, puis retirez la che de la prise murale.
12. Assurez-vous que le presse-agrume est correctement assemblé avant
de mettre le moteur en marche. Ne retirez pas le couvercle ou les pièces
pendant que le presse-agrume fonctionne.
13. Mettez l'interrupteur sur la position OFF après avoir utilisé le presse-agrume.
Assurez-vous que le moteur s'arrête complètement avant de le démonter.
14. Ne mettez pas vos doigts ou d'autres objets dans l'ouverture du presse-
agrume lorsqu'il est en marche. Si un aliment se loge dans l'ouverture,
utilisez un poussoir à aliments ou un autre morceau de fruit ou de légume
pour le pousser vers le bas. Lorsque cette méthode n'est pas possible,
éteignez le moteur et démontez le presse-agrume pour retirer les aliments
restants.
15. N'utilisez pas l'appareil si le balai rotatif est endommagé.
16. Assurez-vous que le gobelet à jus et le gobelet à pulpe sont toujours en
place avant d'utiliser le presse-agrume.
17. Veuillez ne pas modier l'appareil de quelque façon que ce soit.
18. N'utilisez pas l'appareil pour un usage autre que celui auquel il est destiné,
tel que décrit dans le manuel.
19. Cet appareil doit être utilisé pendant la durée d'utilisation recommandée.
20. Cet appareil n'est pas destiné à être utilisé par des personnes (y compris
des enfants) dont les capacités physiques, sensorielles ou mentales sont
réduites, ou qui manquent d'expérience et de connaissances, à moins
qu'elles ne soient étroitement surveillées par une personne responsable de
leur sécurité. Les enfants ne doivent pas jouer avec l'appareil. Le nettoyage
et l'entretien ne doivent pas être eectués par des enfants sans surveillance.
21. N'utilisez pas et ne stockez pas l'appareil à proximité d'un four ou d’une
cuisinière chauée.
Mise en garde importantes
Avertissement de sécurité
Pièces
Assemblage
Mode d'emploi
Conseils d'utilisation
Conseils sur les ingrédients
Préparation des ingrédients
Comment démonter et nettoyer l'appareil
Nettoyage des pièces en silicone
Utilisation du matériel de nettoyage
Utilisation du ltre à sorbets
Utilisation du ltre à smoothies
Utilisation de l'ouvre couvercle
Dépannage Questions & Réponses
Caractèristiques
32
34
36
38
40
42
43
44
48
50
51
52
54
56
57
59

3534
Interdit Attention Ne pas démonter Suivez les consignes
Les précautions suivantes sont fournies an d'assurer la sécurité de l'utilisateur.
Veuillez lire attentivement toutes les consignes et les suivre lorsque vous utilisez
l'appareil.
AVERTISSEMENTS DE SÉCURITÉ AVERTISSEMENTS DE SÉCURITÉ
Avertissement : Ce symbole signale le risque de mort ou de blessures graves.
Attention : Ce symbole signale le risque de blessures ou d’endommagement de l’appareil.
Ne pas brancher plusieurs cordons d’alimentation électrique sur une
seule prise pendant le fonctionnement.
Cela peut engendrer une explosion ou un incendie.
Ne pas toucher le cordon d'alimentation avec des mains humides.
Cela peut engendrer un choc électrique.
Utiliser un tissu sec pour nettoyer le cordon d'alimentation s'il est sale
ou humide.
Cela peut engendrer un choc électrique ou un incendie.
Ne pas faire tomber l'appareil ou le soumettre à une force importante.
Cela peut endommager ou casser l'appareil.
Ne pas débrancher en tirant sur le cordon d'alimentation électrique.
Cela peut endommager le cordon d'alimentation et engendrer un
choc électrique.
Ne pas placer ses doigts ou un autre objet dans le tube d'alimentation
lorsqu'il est en fonctionnement.
Cela peut causer des blessures.
Ne pas laisser l'appareil sans surveillance. Débrancher le cordon
électrique de la prise en dehors des périodes d'utilisation.
Ne pas réparer, désassembler la base ou modier l'appareil.
L'appareil pourrait ne pas fonctionner correctement, cela peut
engendrer un incendie, un choc électrique ou causer une blessure.
Ne pas placer les pièces dans le lave-vaisselle ou dans une eau très
chaude.
Les pièces peuvent s'user plus vite.
Ne pas utiliser l'appareil sur une surface irrégulière.
Cela peut engendrer un dysfonctionnement si l'appareil bascule.
Pour protéger le cordon d'alimentation électrique, veuillez ne pas le
plier brutalement ou placer d'objets lourds sur le cordon d'alimentation.
Cela peut être à l'origine d'un court-circuit ou même incendie.
Tenir éloigné des enfants et conserver l'appareil dans un endroit sûr.
Il peur être à l’origine d'une blessure.
Ne pas conserver ou utiliser l'appareil à proximité d'une source
de chaleur.
L'appareil peut subir un changement de couleur ou une déformation.
Ne pas utiliser les produits chimiques dangereux pour nettoyer
l'appareil, vaporiser ou pulvériser de liquides inammables à
proximité de l'appareil.
Ils pourraient être à l'origine d'un changement de couleur de
l'appareil ou conduire à un incendie.
Concernant le nettoyage des pièces en contact avec les aliments vous
référez scrupuleusement aux consignes fournies pages 48 et 51.
Faire tourner l'extracteur de jus à vide peut endommager la vis de
pressage.
DE
FR

3736
PIÈCES
Alignez les points rouges gurant de
chaque côté et assemblez dans l'ordre
indiqué. Une fois assemblé, faites tourner
le couvercle dans le sens des aiguilles
d'une montre pour fermer.
ÉTAPE 1
Assemblage du bloc supérieur
ÉTAPE 2
Assemblage du bloc supérieur avec la base
Placez la partie supérieure assemblée sur la
base. Alignez le bec à jus avec le logo sur la
base.
* Le produit illustré dans ce manuel peut varier légèrement du produit réel. * Le produit illustré dans ce manuel peut varier légèrement du produit réel.
2. Bol d’extraction
3. Bac a bres
5. Base
6. Bac a jus
* Tube d'embouchure
Embouchure clapet Embouchure
auto-coupe
7. Filtrer 9. Vis de pressage8. Balais rotatif 10. Poussoir
11. Brosse de nettoyage 12. Brosse de nettoyage
14. Filtre à smoothie
4. Bouchon à jus
(Capuchon)
1. Couvercle
15. Goupillon
16. Ouvre Couvercle
VÉRIFIER LE NOM
DU FILTRE
13. Filtre à sorbet
+
+
+
+
+
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
DE
FR

3938
ASSEMBLAGE
Assemblage du bloc supérieur
ÉTAPE 1
Vériez l’assemblage
avant la première
utilisation
• Lavez les éléments avant l'utilisation.
• Assurez-vous que le joint en silicone soit correctement placé sur le ltre.
1
Insérez le ltre dans le balai rotatif, puis
placez-la dans le bol d’extraction, en
veillant à ce que le point rouge du ltre
soit aligné avec le point rouge du bol
d’extraction.
2
Placez la vis de pressage sur le tamis.
Tournez et appuyez jusqu’à ce que qu’elle
s’enclenche en place.
Notes | Le couvercle ne se ferme pas si la vis de
presage n'est pas complètement enfoncée.
ÉTAPE 2
Assemblage du bloc supérieur avec la base
3
Placer le couvercle sur le bol d'extrac tion
en alignant le signe du couvercle sur
le point rouge du bol d'extraction.
Tournez le couvercle dans le sens des
aiguilles d'une montre jusqu'à ce que la
marque de fermeture sur le couvercle
s'aligne avec le point rouge sur le bol
d'extraction.
Pour faciliter le montage, tenez le
couvercle et tournez-le dans le sens
des aiguilles d'une montre comme
indiqué sur l'illustration.
CONSEIL
4
Placez la partie supérieure assemblée sur
la base. Alignez le bec à jus avec le logo
sur la base.
5
Placez le gobelet à pulpe sous le bec à
pulpe et placez le gobelet à jus sous le
bec à jus comme indiqué sur l'illustration.
Ces gobelets peuvent être interchangées
en fonction de la quantité de jus créée.
created.
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
J
U
I
C
I
N
G
S
T
R
A
I
N
E
R
DE
FR
Note |
