KYK Hyd-Hisha User manual

KYK Co.,Ltd promises to treat every customer fairly and
respectfully with their health and happiness our number one priority.
The head office address / Manufacturing Company
#406~410Sun-il technopia,555 Dunchon road,Joongwon-Gu,
SungnamCity,Kyunggi-Do,KOREA
TEL. [phone] FAX. [phone] Made inKorea

USERMANUAL
Hyd-Hisha

Thank you for Being ourCustomer!
Dear Customer,
We sincerely appreciate your purchase of KYK alkaline water Ionizer
medical substance producer and we hope your health and happiness.
Before operating the product, you must read the user manual carefully.
You can know not only how to use but also the strong points of the
product with a manual, use the strong points well to select custom
water for various purposes and use it effectively, and, moreover,
optimize the performance and life of the product.
All employees of our company promise to think in customer’s shoes
at all times and be dedicated to the benefits, health, and happiness of
the customer.
Thank you.
Sincerely
President

| Table of Contents |
Special Features 4
Major Components 5
Parts and Features 6
Before installation 7
Installation 8
Installation checklist 13
How to use 14
When to changethe filters 16
How to changethe filters 17
Summary of Operation Notices 20
Notices for Safety 20
Product Specifications 22
Warranty Registration 23
※Note: This product is a medical substance producer and you should
read this manual carefully before operating the product.

4
1. Selection, creation, and flow of custom water for variouspurposes
For beginner and children
N ormal use for adults
N ormal use for adults
Water to take medicine or drinking water (Purified water)
2. KYK’s patented invention of the platinum-coated titanium electrode
structure and electrolyzer system
3. Instant Rich Hydrogen Generation
4. High-performance, high-efficiency SMPS power control system with
little power loss and low heating
5. Minimized failure and maximized life by the newly-developed
cutting-edge modularization system by part of the inner structure
6. Newly-developed control system from detection and control of the
amount of filter use to the use period
7. Automatic Hydrogen concentration adjustment system
depending on the water flow rate and flow
pressure.

5
~ Front ~
Back
❶Faucet ❷Control buttons
❸Filterlifespan indicator ❹Speaker ❺Filter cover
❹ON/OFFValve
❻Powercable
❾Inlet port
❽Ozone port
❼Spare port
Inlet Port Ozone Port Spare port
Accessories
User manual
Tubing
Diverter valve
Water Pressure
Regulator
6x8 90°
elbow connectors
Bottom
Body

6
Control Panel
Filter lifespan indicator
Ozone Hydrogen
water water
Ozone Water Level1 Hydrogenwater
Purifiedwater Level2Hydrogenwater
Clean/Set Level 3 Hydrogen ffj dfdfdfdf Level3Hydrogenwater
Water control valve
Select water type and
turn the valve ON.
Clean/Set:
600~800ppb
800~1000ppb
Level3 Hydrogen water
1000~1200ppb

7

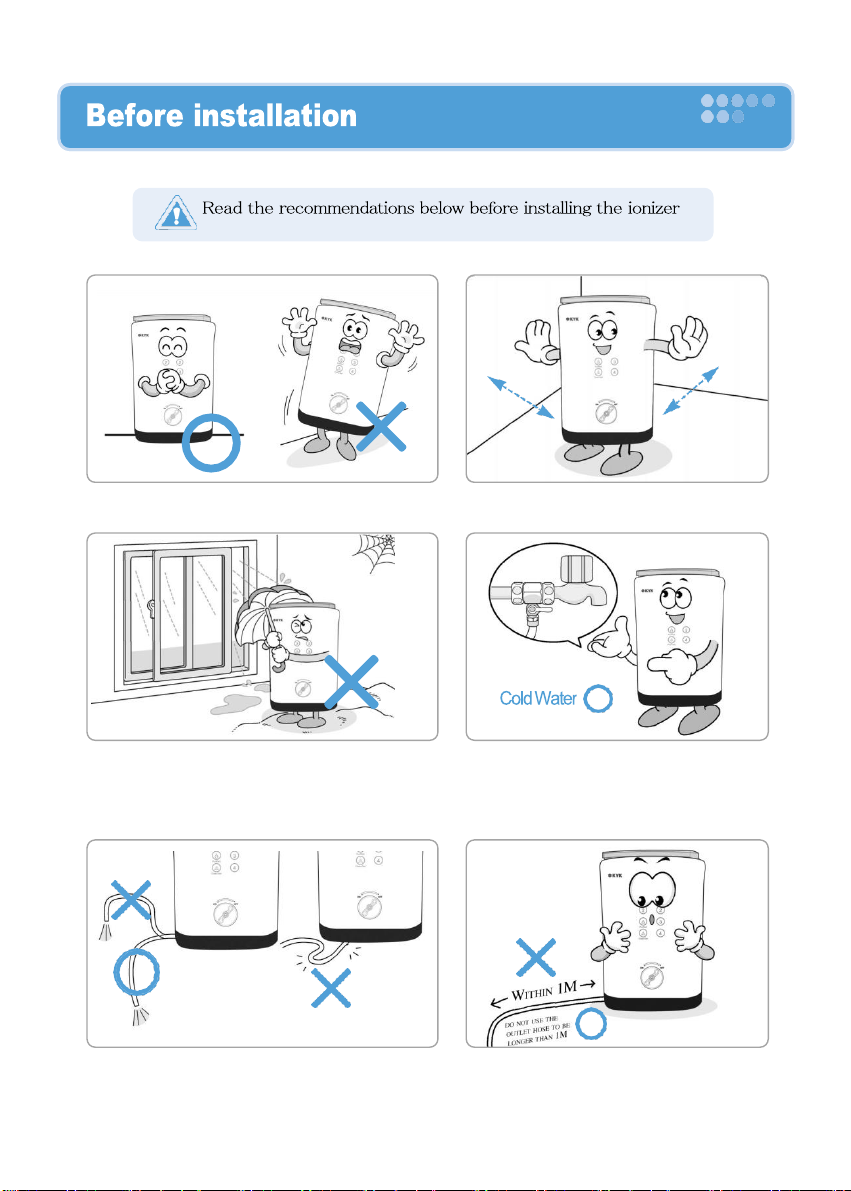

Donottilttheproduct
Install the product atleast 10 cm away from
walls.
Keep the product in dry places, avoid high moisture
areas or directsunlight. Connect the ionizer only to cold water
supply. Damage resulting from
connecting the ionizer to hot water supply
is not covered by the warranty.
ozone hose must be placed lower than machine
without being pressed. Ozone hose should be shorter than 1M.

8
Lockthetapwater;connectthedevicetocoldwatersupply.
Thehoseincludedwiththedeviceis6ø:1/4inch.

9
The connecting hose with product
for incoming water
Water Entrance

1
0
Allhookuppartofpipearrangementhastobecoveredbyteflontapeforavoidingthe
leakage and you control the bounding number oftape for keeping the level ofa horizontality
and aperpendicularity.
Whenyoudecomposeandreassembletheproduct,ifyougivetheoverforce,itwillbe
possibletoleakafterassemblingtheproductbecauseofapipearrangementdistortionofraw
water,abreakoutofrubberpackingandabreakage.
If you stop down the nut too strong, the water will be possible to leak because the hose in
thehosestopdownnutcanbetorn.Orifyoustopdownthenuttooloose,thewaterwillleak
becausethehoseismissedfromtheswitchvalve.
So you connect the hose safely by giving the proper strength carefully.
If you misconnect hoses between inlet and ozone port, it may not generate
hydrogen and cause the main failure. Any failure from this misconnection should be
covered by the person who did the installation.
Switch valve of incoming water

11
Turn off the water control
valve before inlet water
connection
Firmly attach 90°elbow
fittings to inlet and ozone
port on the back of the
machine.
Install the water pressure
regulator before the
machine and connect
plastic hose to fitting on
inlet port
CAUTION Inlet, ozone port check

1
2
Firmlyconnect plastic
hose to fitting of ozone
port
Open the diverter for water supply
and powerON. Withaudio alarm,
machine isready to be used all
LED lighted on for 3 sec. Default
setting is Level 2 Hydrogen Water.
Leave the machine work for 2 min.

13
How to check the water pressure and set up
Ifthewaterpressureistooloworhigh,thebuzzerwillbesounded,whenyoudrainthewater.
Themachinewillsoundthewarning,ifthewaterpressureislowerthan0.5liter,higherthan
3.5liter.Whenyouinstallthemachineforthefirsttime,turnonthemachinewithclosedwater
pressure controllingvalve, andthenslowlyopenthevalveto adjustthewaterpressure.
(The proper water pressure is 1.5~3.0kgf/cm and water pressure is 0.8L/min)
The case that ground water or solid quality of water is used
■ If the quality of groundwater is bad, useouter filters.
■ For areas with high limestone in the water, use special filter to removelimestone.
For hard water, choose appropriate outer filters.Clean the machine by pressing CLEAN
button regularly.
Diverter installation may cause pipe particles or rusts. Run
the water out to your tap to protect the machine.

1
4
How to operate
1. Place the faucet on the right place for water dispense.
2. Press the button for operation and open the ON/OFF Valve.
You will see lots of hydrogen in water. Take hydrogen water immediately.
3. Appropriate water flow rate is 0.7~0.8 ℓ/min.
4. Once you close the ON/OFF valve, water stops.
Once you start water dispensing, filter lifespan indicator shows you
how much filter life left for 3 sec and the light will move to show you
it is working.
Default setting is Level 2 Hydrogen Water
To protect electrolysis cell, after 30 liter generating, it will give you
audio alert and go for automatic cleaning for 60 sec.

15
filter
lifetime
indicator
■Filter life time may be different by source water
quality.
■Filter replacement time:
KYK machine shall give you notice once installed filter is expired by
capacity and time.
For bad inlet water, place outer filter before the machine.
In case of any abnormal scent from the dispensed water, replace filter with
new one even the filter is available.
Incase of your filter expires by time, replace your filter for safe use of
Hydrogen rich water

1
6
How to change the filters
Close the diverter
.
Unplug the machine.
Remove the filter cover . Pull the filter forward to
take it out.

17
Pull electric ware out from
the filter chip. Grab the filter and rotate it counter-clock-wise. Pull it
out.
Please remove the safety seal
of the new filter. Place it on the
filter holder and press. Close it
byturning itclock-wise.
Make sure that the rubber ring in the
connection between the filterand the
main body is not detachedor jammed.
Failure to do so may cause a leak of water.

1
8
Push the filter into the machine.
Close the filter cover. Plug
the power in and drain water
for 2~3 minutes to remove
anyparticles from thefilter. .
Connect the wire to the
filter chip.
