KYMCO Agility 16+ 50 2022 User manual

WARNING
To avoid damage from the electronic fuel injection system, do not remove or install the
battery when the ignition switch is in the " ON " position.
The long-term storage of the vehicle could cause fuel and engine oil deterioration and
probably get into a non-start situation.
Service more frequently when operating in severe conditions such as dusty area, high
speed riding, frequent start and stop or extreme riding habit.
Make sure to keep away from any flammable materials such as dry grasses or leaves,
avoid them in contact with the exhaust pipe or muffler when parking the vehicle.

Read this Manual carefully
This Owner's Manual contains important information on safety, operation and maintenance
of KYMCO . Anyone who is going to ride should carefully read and Agility 16+ 50/125/200
understand the contents of this manual before riding. For personal safety, understand and
follow all of the warnings contained in this Owner's Manual and the labels attached on
vehicle. This Owner's Manual should be considered a permanent part of the vehicle, keep it
with the scooter. ON-ROAD USE ONLY for this scooter.
Particularly important infor mation is provided in this manual by the
following symbols and signal words:
The SAFETY ALERT symbol means ATTENTION! BE ALERT!
YOUR SAFETY CAN BE AFFECTED.
WARNING
CAUTION
NOTE:
Failure to follow these instructions can result in severe injury or death.
These instructions point out the special precautions must be followed
to avoid damage.
The NOTE indicates the additional important information.

Identification Numbers Record
Vehicle Identification Number (VIN)
Engine Serial Number (ESN)
Record the Vehicle Identification
Number or , Engine Serial Number
, in the blanks above for a reference
to assist you in ordering parts from the
authorized KYMCO dealer or in case the
vehicle is stolen.
3
2
12
3
1
1
xxxxxxxxxxxxx

SECTION 1–SAFETY INTRODUCTION...1
Forward..................................................1
Scooter Safety.........................................2
Accessories & Modifications.....................4
Locations of Parts & Controls....................5
SECTION 2–CONTROLS & FEATURES......8
Ignition Switch.........................................8
Instruments...........................................9
12V Charging plug..................................14
Right-hand Handlebar Switch...................16
Left-hand Handlebar Switch....................17
Fuel Recommendation............................18
Seat......................................................19
Helmet Holder and Hook........................20
Suspension...........................................21
SECTION 3–OPERATION.....................22
Pre-ride Inspection.................................22
Break-in................................................23
Starting the Engine................................24
ABS System(Optional)...........................26
TABLE OF CONTENTS
Spark Plug..............................................36
Brake Fluid Level Inspection.....................37
CBS........................................................38
Brake Pad Inspection ............................39
Battery...................................................41
Fuse.......................................................42
Tires......................................................43
Tires Inspection......................................44
Clean the Vehicle.................................45
SECTION 4–MAINTENANCE....................28
Maintenance Schedule.............................28
Engine Oil...............................................31
Engine Oil Replacement...........................32
Transmission Fluid Change ......................33
Air Filter Element Change ........................34
Throttle Operation...................................35
Crankcase Blow-by Drain......................46
Storage..................................................47
EMISSION CONTROL..........................48
MAINTENANCE RECORD........................49
SPECIFICATIONS...................................51

SECTION 1 -
FORWARD & SAFETY INTRODUCTION
Thanks for purchasing this KYMCO , and welcome to the KYMCO Agility 16+ 50/125/200
family.Please read this owner's manual carefully before riding so that you will be
thoroughly familiar with the proper operation of controls, features, capabilities, and
limitations.
To ensure a long, trouble-free life for using the vehicle, provide it with the proper care
and maintenance as described in this manual.
For replacement parts and accessories, you should always use genuine KYMCO
products, as they have been specially designed for the vehicle and manufactured to
meet the standards. Keep this owner's manual with the scooter at all times so that you
can refer to it whenever you need information. This manual should be considered a
permanent part of the scooter and should remain with the vehicle when it is sold.
All information, illustrations, photographs and specifications contained in this manual
are based on the latest product information available at the time of publication. Due to
improvements or other changes, there may be slightly different from the vehicle.
KYMCO reserves the right to make product and publication changes at any time without
notice or obligation.
1

IMPORTANT SAFETY INFORMATION
It will be used with pleasure for a longer time
if you take responsibility for your safety and
understand the challenges that you could
face on the road. There is much that you can
do to protect yourself. Here are many
helpful recommendations and some very
important tips in this manual.
Wear a helmet
The safety equipment starts with a quality
helmet. One of the most serious injuries in a
crash is a head injury. Always wear a
properly approved helmet and also wear
suitable eye protection.
Make you easy to see
To make yourself more visible, wear bright
reflective clothing to position yourself
clearly so that other drivers can see you,
signal before making a turn or changing
lanes, and use your horn because it will help
others notice you.
Know your Limits
Always ride within the limitation of personal
skills. Knowing these limits and staying
within them will help you to avoid accidents.
SCOOTER SAFETY
Keep the vehicle in safe condition
For safe riding, it's important to inspect the
vehicle before every ride and perform all
recommended maintenance. Never exceed
load limits, and only use the approved
accessories.
Inspect the vehicle before riding
Do not forget to perform an entire safety
inspection to ensure safety for all riders
before riding.
Be ver y conscious on a rainy day
Riding on a rainy day requires extra caution
especially when it's wet. Braking distance is
longer on a rainy day. Keep off the painted
surfaces, manhole covers and greasy spots
on the paved road as it can be especially
slippery. Use extreme caution on the railway
crossing or on the metal surface. Whenever in
doubt about the road condition, please slow
down.
Modification
Modification on the vehicle or removal of
original equipment may have the vehicle
become unsafe or illegal. Obey all the related
equipment regulations from the authority.
2

PROTECTIVE CLOTHING
For your safety, always wear an approved
scooter or scooter helmet, eyes protection,
boots, gloves, long pants, and a long-sleeve
shirt or jacket during a ride.
Helmets and protection
The helmet is the most important gear because
it offers the best protection against head injury.
The helmet should fit your head comfortably
and securely. Always wear a face shield or
goggles to protect eyes, but not to interfere with
the vision.
Additional riding gears
In addition to the head and eyes protection, you
should also use:
Sturdy boots with non-slip soles to help
protect feet and ankles.
Leather gloves to keep your hands warm and
prevent blisters, cuts, burns and bruises.
A scooter suit is designed for comfort as well
as protection. Bright color with reflection
strips can make you more noticeable. Be
sure to avoid loose clothes that could get
caught on any part of the vehicle.
3
SCOOTER SAFETY
The recommended riding gears:
①Wear gloves
②Clothes that fit properly
③Always wear a helmet with eye protection
④Wear bright or reflective clothing
⑤Footwear should be the proper size, have
low heels, and offer ankle protection.
WARNING
Not wearing a helmet increases your
chance of serious injury or death in an
accident.
Be sure your passenger and you
always wear an approved scooter
helmet that fits properly. You should
also wear eye protection and other
protective clothing during a ride.

No modifications:
KYMCO strongly advises against removing any original equipment or modifying the vehicle
in any way that will change its design or operation.
There is a large variety of accessories available to KYMCO vehicle owners. KYMCO cannot
have direct control over the quality or suitability of accessories you may wish to purchase.
The addition of unsuitable accessories can lead to unsafe operation. It is not possible for
KYMCO to test each accessory on the market or combinations of all the available
accessories; however, the KYMCO dealer can assist you in selecting quality accessories
and then install them correctly.
Use extreme caution when selecting and installing the accessories.
ACCESSORIES & MODIFICATION
4
WARNING
Improper accessories or modifications can make the vehicle unsafe and can lead to an
accident.
Never modify the vehicle through the improper installation or use of accessories. All
parts and accessories added to this vehicle should be genuine KYMCO parts or
equivalent components designed for use on this vehicle and should be installed and
used according to the correct instruction. If you have any questions, consult the
authorized KYMCO dealer.

5
LOCATION OF PARTS & CONTROLS
6
Side Stand
8
Engine Number
9Air Cleaner
Rear Brake Lever
1
Headlight
2
3
Front Left Turn Signal Light
Fuel Filler Cap
4
Helmet Hook
5
7
Seat
Rear Left Turn Signal Light
10
Tail/Brake Light
11
Luggage Box
12
3
456
1
2
7
89
4
5
6
10
11
12
NOTE: Your scooter may differ slightly in appearance from the images in this manual.
3
456
1
2
12
Reflector
13
13

6
LOCATION OF PARTS & CONTROLS
18 Center Stand
20 Front Brake Lever
21 Electric Starter Button
Right Turn Signal Light
14
15 Muffler
Oil Filler Cap/dipstick
16
Rear Passenger Foot Peg
17
19 Right Turn Signal Light
Ignition Switch
22
Vehicle Identification Number
23
NOTE: Your scooter may differ slightly in appearance from the images in this manual.
14
15 16 17
18
19
20
22
23
21

7
LOCATION OF PARTS & CONTROLS
Right Turn Signal Light
26
Left Turn Signal Light
27
Right Rearview mirror
24
Left Rearview mirror
25
NOTE: Your scooter may differ slightly in appearance from the images in this manual.
24
25
26
23
27
23

8
SECTION 2 - CONTROLS&FEATURES

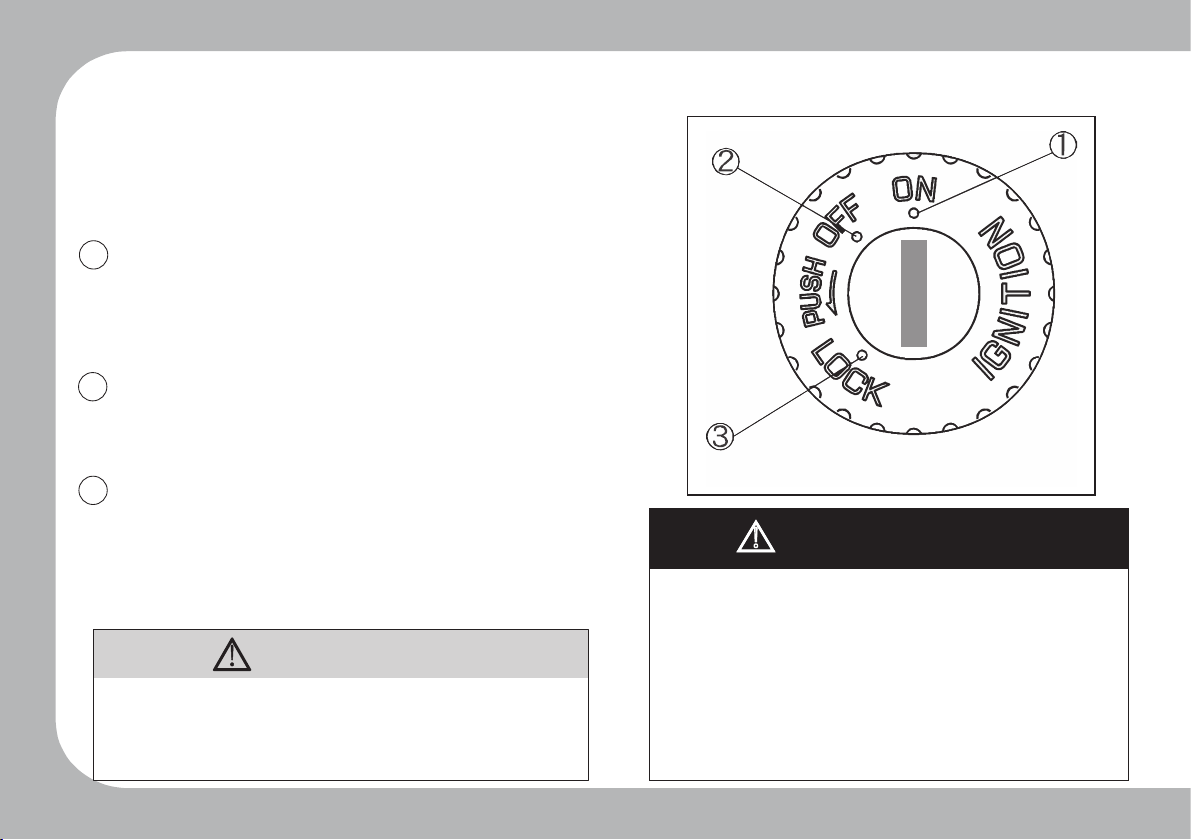

IGNITION SWITCH
The ignition circuit is "ON" and engine can now be
started. The key can not be removed from the
ignition switch in this position.
“ ON ” Position:
All electrical circuits are off. The engine can't run
or be started .
“ OFF ” Position:
To lock the steering, turn the handlebar all the way
to the left, push down and turn the key to the
"LOCK " position and remove the key. All electrical
circuits are off.
“ LOCK ” Position:
1
2
3
Use the ignition key to operate the ignition
switch, the steering lock and open the fuel
filler cap:
CAUTION
After locking the ignition switch, turn the
handlebar gently to confirm that the
steering is locked.
WARNING
Do not turn the ignition switch to the
lock position when riding, as this could
cause the steering to lock and result
in you losing control of your scooter.
Do not park your scooter in a position
that will interfere with vehicle or
pedestrian traffic.

CONTROLS & FEATURES

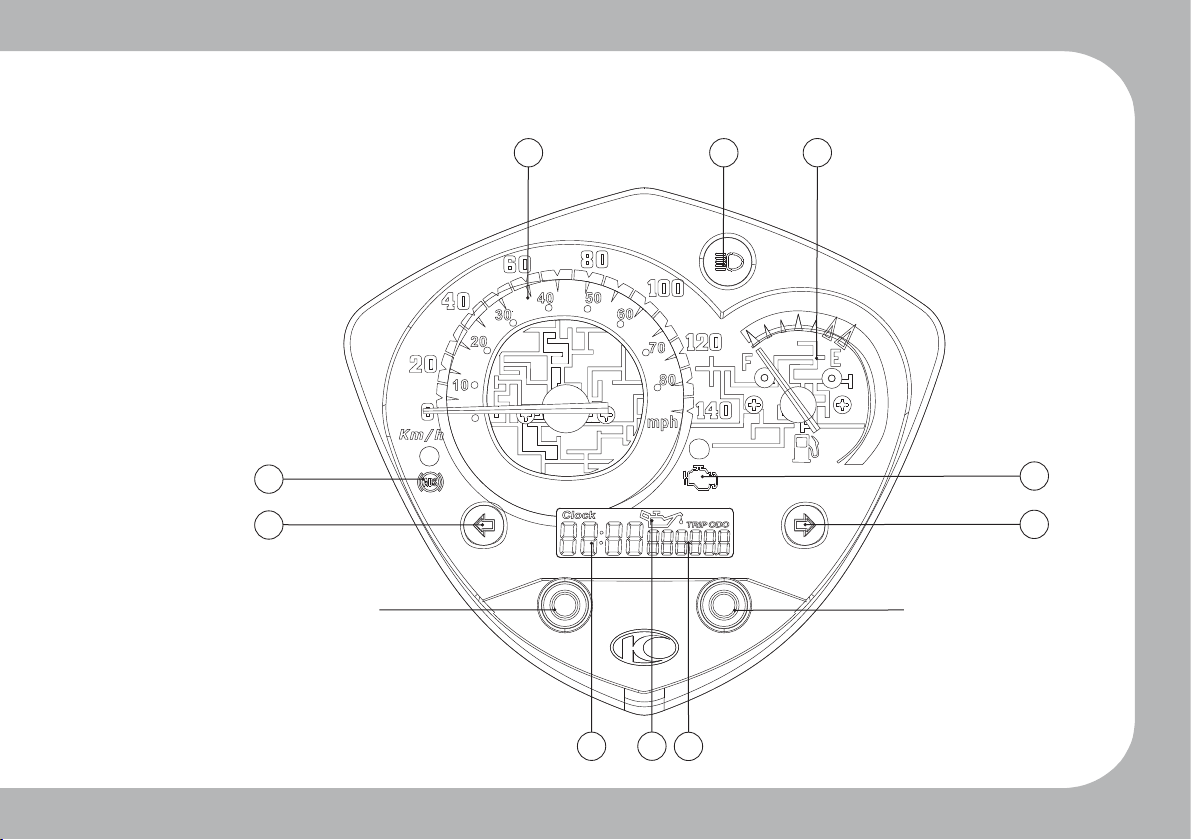

INSTRUMENTS
3
1
245
67
8
10
MODE Button ADJ Button
4
3
9
9

CONTROLS & FEATURES
Odometer/Trip meter:
1
2
Speedometer: Indicates the road speed
in kph
3
Turn Signal Indicator Light: Flashes when
either turn signal is being used. 7
8
9
6
11
12
NOTE: CELP lights on when you turn on
the ignition switch, it goes off after start
the engine.
4
High Beam Indicator Light: This light is
illuminated when the high beam is on.
5
Service indicator: It lights up every
2000km to remind you to do oil service. It
lights up every 20000km to remind you to
change the drive belt. Whenever the
ignition switch is turned on, it goes on
then off after selt diagonose .
6
7
It flashes every 2000km to remind you to
do oil service. Whenever the ignition
switch is turned on, it goes on then off
after set distance .
8
Digital Clock
9
CELP indicator:
ABS indicator light:
Press MODE button to toggle between
ODO mode, Trip mode and oil service
mode(blank mode).
Choose Trip or oil service mode, hold
both MODE and ADJ for 2 seconds to
reset.
10
Fuel Level Meter: It displays how much
fuel left in the fuel tank. When the fuel
tank is near empty ,it alerts the rider to
refill the fuel tank as soon as possible.
The ABS Indicator lights up constantly
when the Ignition Switch is activated; it
will go off when the vehicle speeds up≧
6km/h.
If it keeps on after starting the engine, it
indicates that a fault has been detected in
the EFI or electrical system. It needs
immediate inspection by the authorized
KYMCO dealer.
Service indicator:

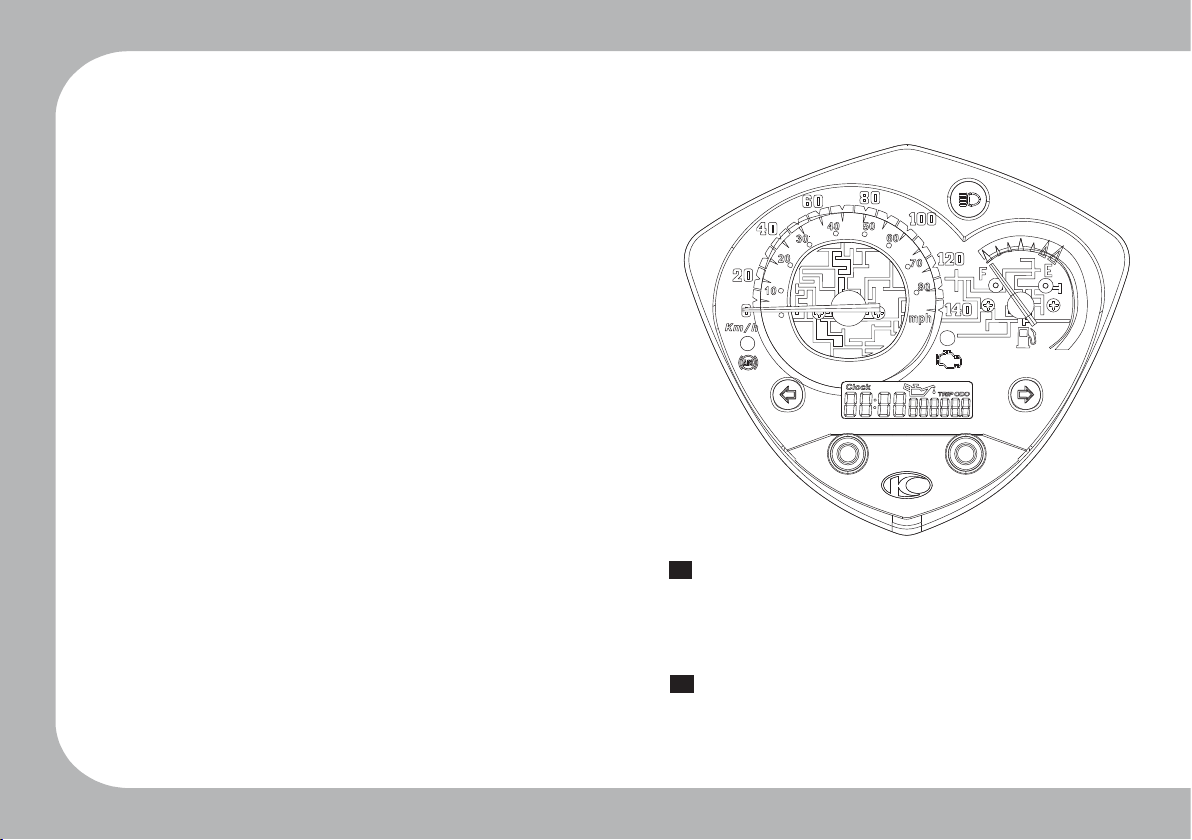

CONTROLS & FEATURES
After you change the engine oil, you need to
reset the Service Indicator.
1.Press MODE button to toggle between
ODO mode, TRIP mode and oil service
mode(blank mode).
2.Choose oil service mode(blank mode).
press MODE button and ADJ button at the
same time for 2 seconds and the display
will turns to 0.0,the service indicator is
reset.
Ser vice Indicator Reset:
3.The service indicator will turn on again
when you reach next 2000KM
NOTE: When the Service indicator is on,
the ODO/TRIP/Oil service will flash.
Service indicator
11

CONTROLS & FEATURES
3
1
2
A) To set the hour display, press the ADJ button
until it displays the desired hour time. To
change the minute display, press the MODE
button until the minutes digits begin flashing.
1.Press and hold the MODE and ADJ button at
the same time for more than 2 seconds. The
hour digits on the display will begin flashing,
indicating the clock time can be adjusted.
Adjust clock
B) To set the minute display, press the ADJ
button until it displays the desired minute time.
To change the month display, press the MODE
button until the month digits begin flashing.
C) To set the month display, press the ADJ
button until it displays the correct month time.
To change the day display, press the MODE
button until the day digits begin to flash.
D) To set the day display, press the ADJ button
until it displays the desired day digit. To end the
clock adjustment procedure,
2.press the MODE and ADJ button at the same
t i m e . T h e d i s p l a y w i l l s t o p f l a s h i n g
automatically.
N O T E : T h e a d j u s t m e n t w i l l b e
cancelled if any button is not pressed
within approximate ten seconds.
NOTE: The clock will be reset to 12:00
when the battery is disconnected.
12

ABS indicator light (For ABS model)
The ABS indicator light is located on the left
side of the multifunction meter. This ABS
system will self-diagnose itself, if it's
normal, the indicator light will come on when
the ignition switch is turned on and goes off
shortly after the vehicle starts moving. The
ABS indicator light will stay off as long as the
ABS system works normally.
If an ABS fault is detected by the ABS ECU,
the ABS indicator will light on and stay on
until the fault is resolved. Even there's an
ABS system failure, the system will work
normally in conventional braking condition
just like a vehicle without ABS system.
CONTROLS & FEATURES
NOTE: If the ABS indicates a fault, it's
very important to make the authorized
KYMCO dealer to check the ABS system
immediately.
13

CONTROLS & FEATURES
12V Charging Plug
This vehicle is equipped with a DC 12V
charging plug in the front Luggage box.
˙To use the DC 12V charging plug, turn on
the ignition switch, and then start the engine.
˙Open the door of the front Luggage box .
˙Open the DC 12V charging plug socket cap .
˙Plug the charge connector into the DC 12V
charging plug.
CAUTION
For battery charge of mobile phone
only.Use other electronic appliances
m a y c a u s e d a m a g e o n e l e c t ri c a l
system.
Don't use during rainy or moisture days
to avoid short circuit.
Cover the plug with liquid-tight rubber
to avoid damage from water.
Mind the length of the charging wire to
prevent steering interference ,it might
cause an accident.
1
2
1
2
xxxxxxxxxxxxx
There is a DC 12V charging plug in the front Luggage box.
Designed only for charging your cell phone,don't charge
other devices, Don't use during rainy or moisture days to
avoid short circut. Cover the plug with liquid-tight rubber to
avoid damage from water. Mind the length of the charging
wire to prevent steering interference ,it might cause an
accident.
14

CONTROLS & FEATURES

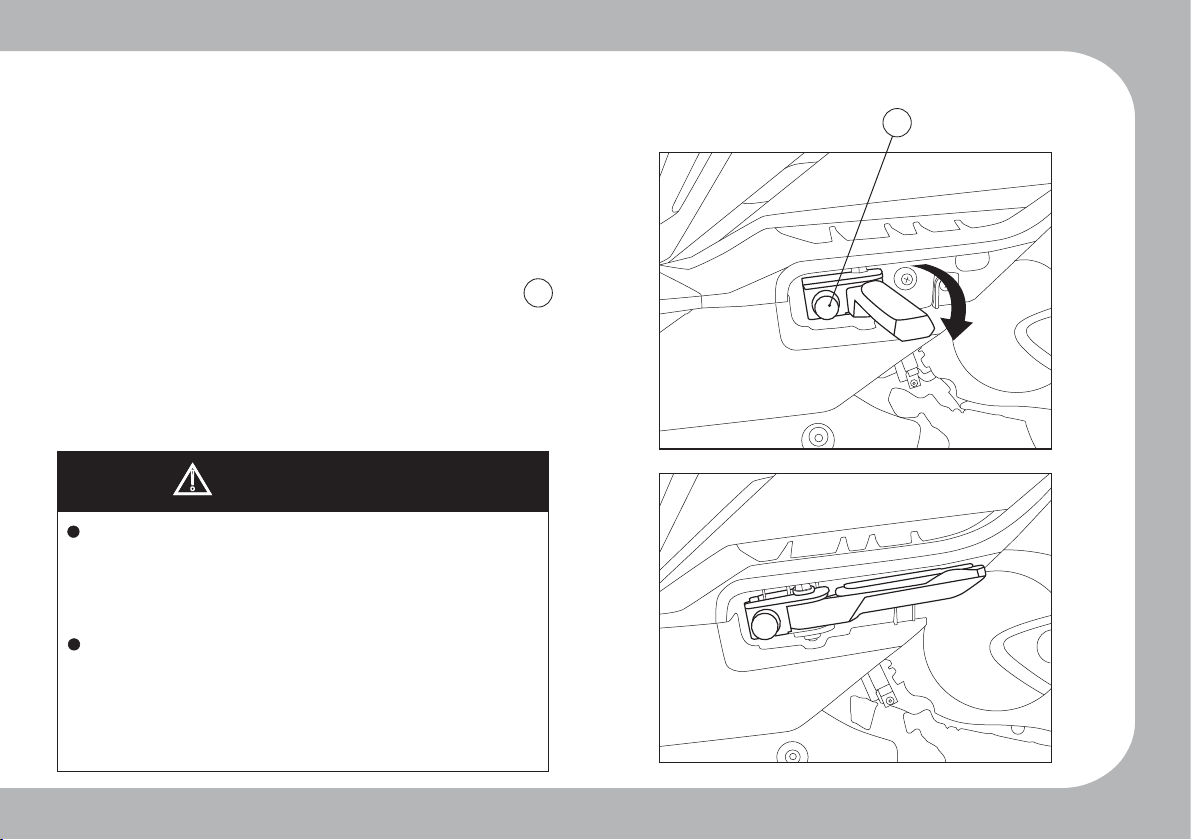

Passenger foot pegs
Your scooter is equipped with additional pegs
for use when you are carrying a passenger.
1.To move the passenger pegs from the
scooter's body, press the release button .
2.When you are not carrying a passenger,
press the pegs back into place.
1
1
WARNING
Riding with a passenger will change the
handling characteristics of your scooter.
Allow for extra braking distance and use
extra care when riding in traffic.
Be sure you and your passenger always
wear an approved motorcycle helmet
that fits properly. You should also wear
eye protection and other protective
apparel when you ride.
15

CONTROLS & FEATURES

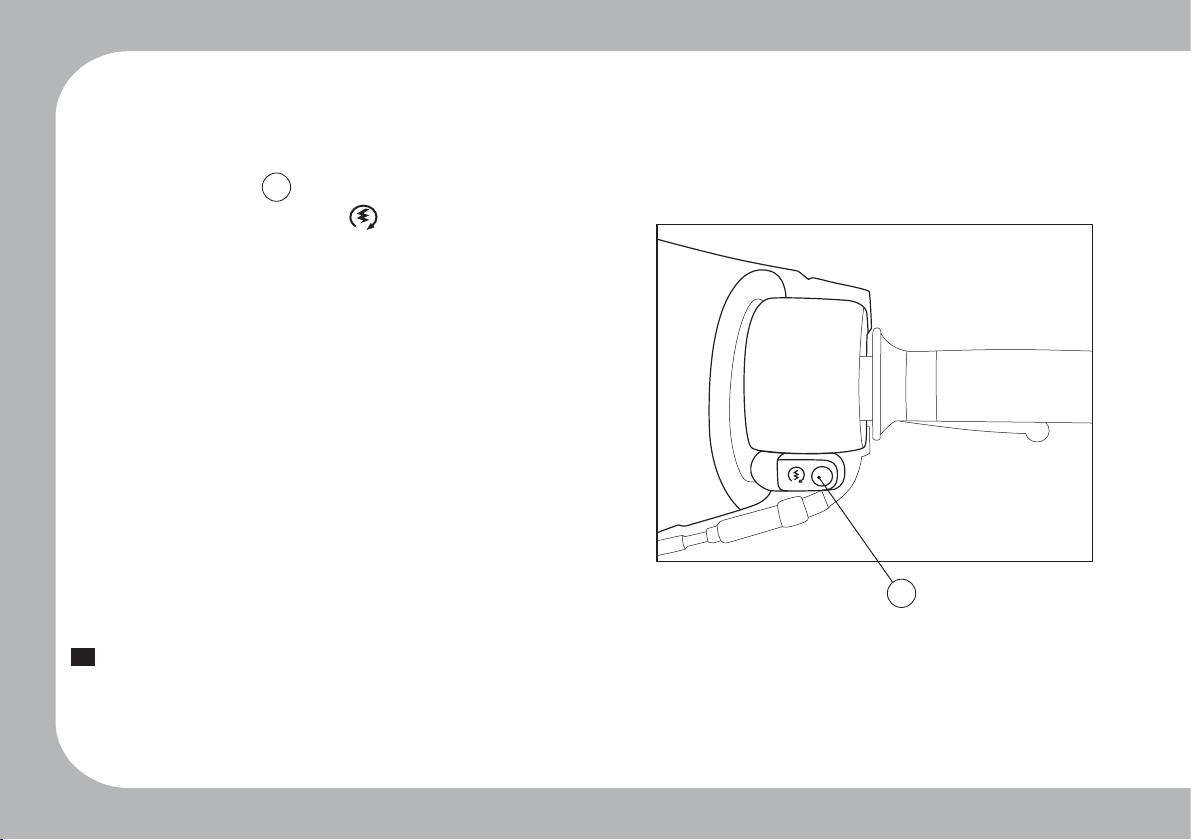

Right handlebar switch
Starter button :
Press starter button and pull brake “ ”
lever in the meantime to actuate the starter
motor.
2
1
1
16
NOTE: Hold the left brake lever, or the
starter motor won't work. Don't press the
starter button while the engine is running.
Right handlebar switch
Headlight switch :
“ ● ”position
The headlight and taillight will be off.
“ ”position
The position light and taillight (running
lamps) will be lit.
“ ”position
The headlight and taillight will be lit.
To prevent damage to the starter motor, do not operate the
starter motor for more than five seconds at a time. If the
scooter fails to start immediately, check the fuel level and
the battery condition, and allow the starter motor to cool
before attempting to start the engine again.
