Kyocera FS-5800C User manual

69
Care and Maintenance
Cleaning
Periodic cleaning of the printer is recommended. The frequency of cleaning is dependent
upon the environment in which the printer is used. You should clean the printer:
• At least once a month.
•When the printer experiences frequent media jams.
•When print quality has deteriorated.
■External
1
Turn the power OFF.
2
Clean all the covers with a soft cloth. Use any mild commercial
cleaner.
Caution:
Do not use benzine, thinner, aerosol cleaners, or any abrasive powder.
■Internal
When using isopropyl alcohol with a lint-free cloth, make sure that the alcohol is at least
90% pure, obtainable from your local pharmacy. (Do not use rubbing alcohol; it can
damage the printer.)
Cleaning the paper-pick rollers
1
Slide the media tray out (you do not have to remove it) to allow
access to the paper-pick rollers.
2
Open the left side cover.
3
Use the green handles to pull out the paper feeder.

70
Care and Maintenance
4
Gently rotate the paper-pick rollers 180°(the paper-pick rollers are
D-shaped) and wipe them with a lint-free cloth that has been
moistened with isopropyl alcohol.
5
Reinsert the paper feeder ( (1) ) and close the left side cover ( (2) ).
6
Slide the media tray back into place.
Note:
If you have an optional paper feeder installed, you may also need to clean the rollers
for the middle and lower media trays, which are accessed through the lower left side
cover.
Cleaning the home sensor
1
Open the printer’s front cover.
(1) (2)

71
Care and Maintenance
2
Remove the imaging unit:
(1)Loosen the two thumbscrews by turning them counterclockwise.
(2)Turn the lower green lever 180°counterclockwise.
(3)Grasping the front green handle, slide the imaging unit out until
it catches.
(4)Lift up the left green handle. Pull the imaging unit out of the
printer and cover it to protect it from light exposure.
Important:
Do not touch the green surface (the right side) or the black belt (the underside).
Finger prints may affect the print quality.
Safety Caution:
The imaging unit weighs approximately 6.5 kg (14.3 lbs.). Always use the handles
when lifting it.
Cautions:
• Do not expose the imaging unit to artificial light for more than 45 seconds; or you
may damage the unit. Never expose it to direct sunlight.
• Do not leave the printer’s front cover open for an extended period of time (for
example, several hours).
(1)
(1)(2)
Green surface
Black belt
(3)
(4)

72
Care and Maintenance
3
Use a dry, lint-free cloth to wipe the slot of the sensor.
4
Reinsert the imaging unit into the printer, holding it by its green
handles.
Match the arrow on the right side of the imaging unit with the arrow on the
printer, and slightly push the imaging unit into the printer. Then release the left
handle and push the unit in until it stops.
5
(1)Turn the lower green lever clockwise 180°to insert the unit
completely and to lock it.
(2)Tighten the two green thumbscrews by turning them clockwise.
(3)Close the front cover.
Sensor
Slot
(3)
(1)
(2)
(2)

73
Care and Maintenance
User Replaceable Components
When the printer panel indicates that a supply needs to be replaced, make sure that you
have replacement supplies on hand. The printer may continue to print until the supply is
completely used up; then it stops until you replace the indicated supply.
Printer component Printer panel message Average life*1
Toner developers 10,000 pages
Toner low (CMY)*2
TD-80x ( Colour )
Change the colour toner developer soon.
12,000 pages
Replace Toner (Black)*2
TD-80K (Black)
Change the black toner developer now.
Colour imaging unit Monochrome
Warning IU-80 57,000 pages
Imaging unit or
Colour
Change the Imaging unit soon. 14,250 pages
Monochrome
Replace IU-80 60,000 pages
Imaging unit or
Colour
Change the Imaging unit now. 15,000 pages
*1These figures are based on an average of 5% coverage of the printable area and standard density
for any one colour. The frequency of replacement will vary depending on the complexity of the
prints and the percentage of coverage and print density.
*2The starter developers that are shipped with the printer have an average life of approximately
3,000 pages, based on an average of 5% coverage.
Note:
If you print with high density when Toner low is displayed, you may get faded
printout before Replace Toner is displayed.

74
Care and Maintenance
Printer component Printer panel message Average life
Fuser unit *1 28,500 pages
(Oil supply roll Warning FK-80
installed) Fuser KIT
Change the Fuser unit soon.
31,000 pages
Replace FK-80
Fuser KIT
Change the Fuser unit now.
Oil supply roll 15,000 pages
Warning OS-80
Oil supply roll
Change the Oil supply roll soon.
15,500 pages
Replace OS-80
Oil supply roll
Change the Oil supply roll now.
Transfer unit 80,000 pages
Warning TU-80
Transfer roller
Change the Transfer unit soon.
*1Transparencies, coated paper, and other specialty media will result in shortening the life of a
consumable. When replacing the fuser unit, replace the oil supply roll as well. Do not insert the
used oil supply roll into the new fuser unit.

75
Care and Maintenance
Clearing a Jam
■Clearing a media jam
If the printer has frequent media jams, make sure that you follow these guidelines:
• Always use high-quality plain paper and transparencies. Refer to pages 111 and later.
• Make sure that you load specialty media only in the multi-purpose tray and that you
set the media thickness switch to the correct setting for the media used.
If a media jam occurs, the printer panel reports “Paper Jam.” It is followed by one of the
letters A through E that correspond to the various sensors throughout the paper path.
The following illustration shows the locations of the sensors that report media jams
(A through E).
Jam at A
Jam at C
Jam at D
Jam at E
( ☞P. 76)
( ☞P. 80)
( ☞P. 84)
( ☞P. 86)
Jam at B
( ☞P. 79)
Paper feeder (option)

76
Care and Maintenance
■Jam at A
1
A
(1)Open the left side cover corresponding to the selected media
cassette.
(2)Remove the jammed media.
(3)Close the left side cover.
— OR —
(4)Remove the media cassette.
(5)Remove the jammed media from inside the printer.
(6)Reinsert the media cassette.
(7)Open and close the front cover to clear the error message from
the message display.
(1)
(2)
(4)
(5)

77
Care and Maintenance
(Paper feeder)
1
B
(1)Open the lower left side cover.
(2)Remove the jammed media.
(3)Close the lower left side cover.
— OR —
(4)Remove the selected media cassette (middle or lower media tray).
(5)Remove the jammed media from inside the printer.
(6)Reinsert the media tray.
(7)Open and close the front cover to clear the error message from
the message display.
(1)
(2)
(4)
(5)

78
Care and Maintenance
(Muti-purpose tray)
1
C
Remove the jammed media from the multi-purpose tray.
2
C
Open and close the front cover to clear the error message from the
message display.

79
Care and Maintenance
■Jam at B
1
Open the left side cover.
2
Use the green handles to pull out the paper feeder.
3
Remove the jammed media on the paper feeder.
4
Reinsert the paper feeder and close the left side cover.

80
Care and Maintenance
■Jam at C
1

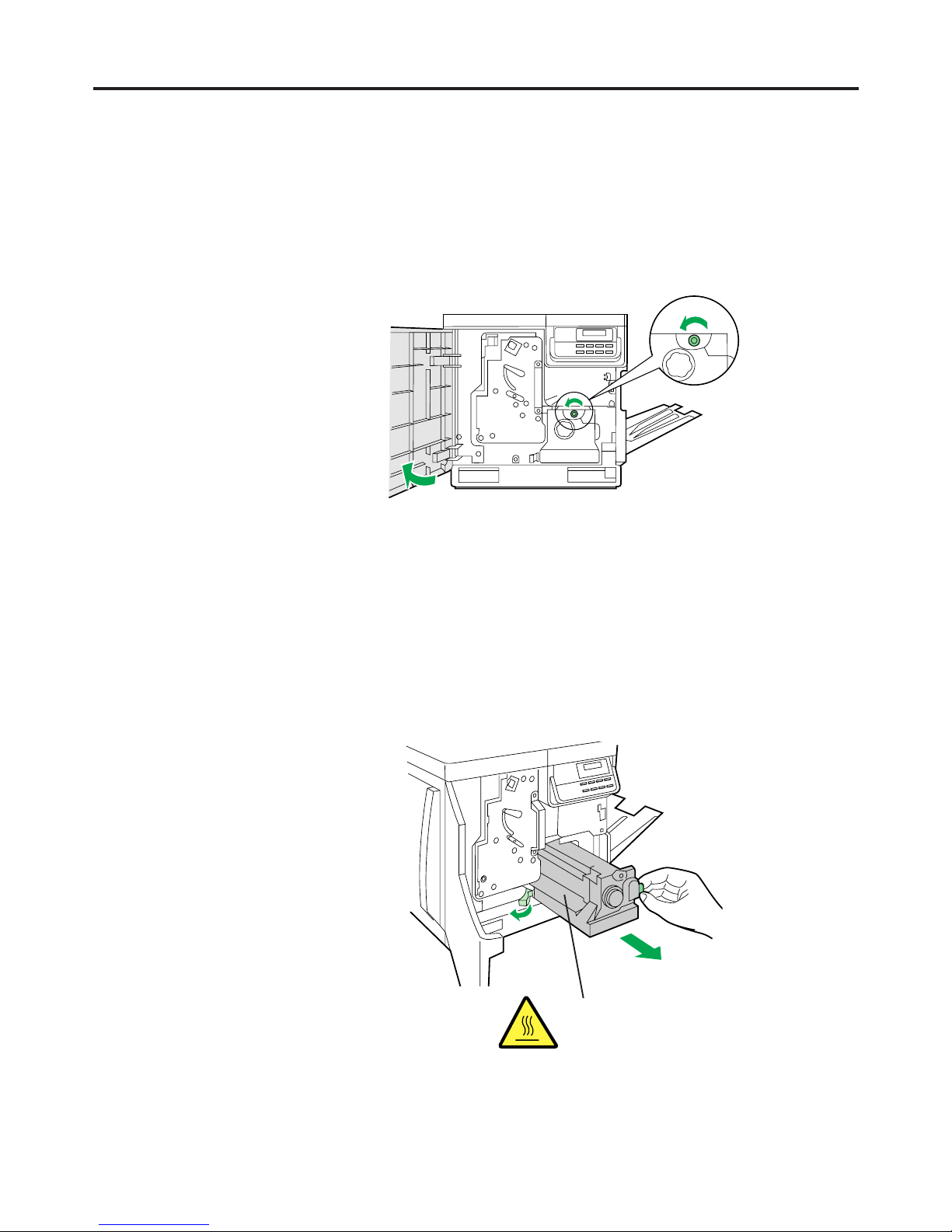

Remove the fuser:
(1)Open the printer front cover.
(2)Turn the small green thumbscrew counterclockwise to unlock the
fuser.
Safety Caution:
• The fuser is hot. To avoid personal injury, turn off the printer and wait 10 minutes
(after opening the front cover) for the fuser to cool before touching it.
(3)Holding the green tab on the right, slide the fuser out until the
safety catch stops it.
(4)Press the green lever on the left to release the safety catch.
(1)
(2)
CAUTION:
HOT SURFACE INSIDE
(3)
(4)

81
Care and Maintenance
2

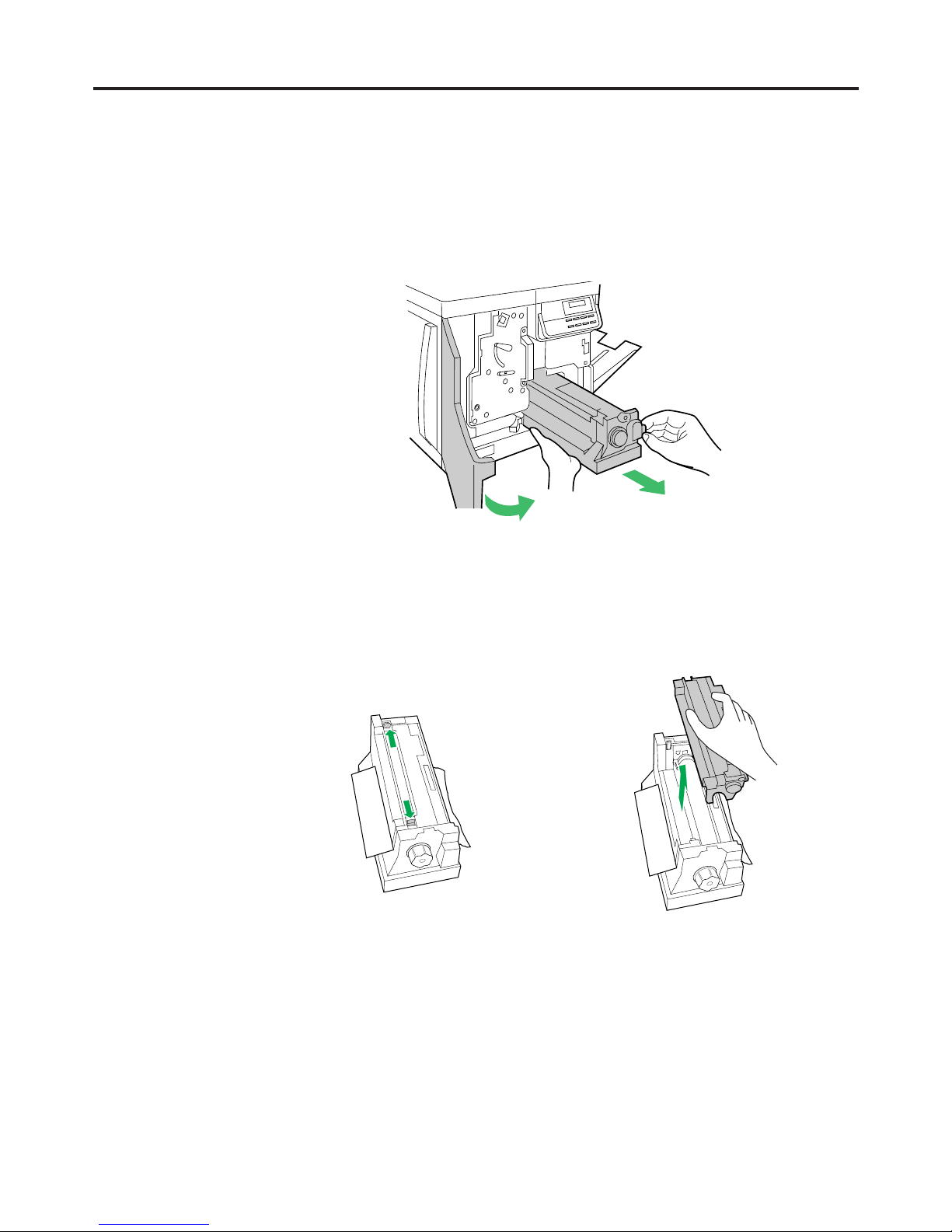

(1)Hold the fuser as shown below, and slide it out of the printer.
Safety Caution:
The fuser unit weighs approximately 3.1 kg (6.8 lbs.). Take care when handling it.
(2)Close the front cover.
3
Remove the oil supply roll:
(1)Press out on tabs to unlock the oil supply roll.
(2)Remove the oil supply roll out of the fuser.
Note:
If the paper is not jammed in the fuser unit, perform the following.
(1) Repeat steps 1 to 4 of Jam B on page 79.
(2) Skip step 4 and go to step 5.
(1)
(2)
(2)
(1)
(1)

82
Care and Maintenance
4
(1)Turn the fuser’s large green knob clockwise.
(2)Remove the jammed media.
5
(1)Replace the oil supply roll into the fuser.
(2)Press down firmly on the oil supply roll to snap both sides into
place.
Caution:
If the oil supply roll is not installed correctly, print quality will be diminished.
6
(1)Open the front cover.
(2)Slide the fuser back into the printer.
(1)
(2)
(1)
(2)
(2)
(1)
(2)

83
Care and Maintenance
7
(1)Turn the small green thumbscrew clockwise to lock the fuser.
(2)Close the front cover.
(2)
(1)

84
Care and Maintenance
■Jam at D
Safety Caution:
The fuser is hot. To avoid personal injury, turn off the printer and wait 10 minutes
(after opening the front cover) for the fuser to cool before touching it.
Note:
First check the exit opening for media that has jammed and folded like an accordion.
It is especially difficult to see if the media is transparency film.
1
A
(Printing face down)
(1)Open the front cover.
(2)Pull open the access door (above the plastic output tray). See if
the media is visible.
(3)Turn the large green knob on the fuser counterclockwise.
(4)Remove the media from inside the access door.
(1)
(2)
(4)
(3)

85
Care and Maintenance
Caution:
If the fuser knob will not turn, do not force it, or you may damage the fuser. Instead,
follow these steps:
a) Unlock the fuser by turning the small green thumbscrew counterclockwise.
b) Pull the fuser out. The media will probably tear.
c) Remove the oil supply roll.
d) Turn the fuser’s large green knob to release the jammed media.
e) Remove the jammed media from the fuser and the printer.
Safety Caution:
The fuser is hot. To avoid personal injury, turn off the printer and wait 10 minutes for
the fuser to cool before touching it.
Close the front cover.
1
B
(Printing face up)
(1)Open the front cover and the right side cover.
(2)Turn the fuser’s large green knob counterclockwise to release the
jammed media.
(3)Remove the jammed media from the right side of the printer.
(4)Close the front cover and the right side cover.
(3)
(1)
(2)

86
Care and Maintenance
■Jam at E
1
Remove the jammed media from the output tray.
— OR —
Pull open the access door (above the plastic output tray) and remove
the media.
2
Open and close the front cover to clear the error message from the
message display.

87
Care and Maintenance
Troubleshooting
Trouble Possible Cause Corrective Action
A single colour is not
uniform or many vertical
streaks (both light and
dark) of slightly differ-
ent density and non-
uniform colour.
The toner is almost depleted. Replace the colour toner
developer.
Half tone area has areas
of weak colour. Paper doesn’t match the environmental conditions, or
it has too much moisture.
Try fresh paper, or another
type of paper.
Store media in the original,
dust-free package in the
same environmental condi-
tions as the printer.
A single colour appears
faded. The colour density is set incorrectly in the printer
panel.
Check the density setting by
printing the Colour Calibra-
tion Page in the Colour
Calibration menu from the
printer panel. Compare the
settings with the colour
density samples on the Colour
Calibration Reference and, if
necessary, adjust the density
from the printer panel. Refer
to Setting the Colour Density
on page 31.
The toner is almost depleted. Replace the colour toner
developer soon (depending on
the complexity of your prints,
you can continue to print up
to 100 more pages).

88
Care and Maintenance
A single colour has a
sharp, dark or light
vertical streak.
Trouble Possible Cause Corrective Action
The toner developer is almost
depleted and is not properly
applying toner.
Replace the colour toner
developer.
Small white spots
appear on OHP trans-
parency.
OHP transparency has dust
on its surface. Remove dust or stain from OHP transparency.
A single colour shows a
light, repeating horizon-
tal line.
The roller in the toner
developer has a slight
impression after a long
period of storage.
Run 20-30 prints. The
impression will disappear
with continued time and use.
Prints are missing fine-
line detail. The imaging unit has reached its useful life. Replace the imaging unit.
Dark colour spots and
dark or light streaks
appear in all colours.
The imaging unit has
reached its useful life. Replace the imaging unit.
