Kyoritsu Electrical Instruments Works, Ltd. 6200 User manual

MODEL ６２００ ，６２０２
PORTABLEAPPLIANCETESTER
INSTRUCTIONMANUAL
KYORITSUELECTRICALINSTRUMENTS
WORKS，LTD.

1．Safe testing ...................................................................................... 1
2．Procedure of removing cover ...........................................................3
2．1Method of removing the cover .................................................. 3
2．2 Method of storing the cover ...................................................... 3
3．Product summary and explanation ...................................................4
3．1 Product summary ....................................................................4
3．2Test range ............................................................................... 4
3．3 Features ................................................................................. 5
3．4 Instrument layout .................................................................... 5
3．5 Optional accessory ................................................................. 7
3．6Explanation for indications and buzzer ................................... 8
3．6-1 DISPLAY ................................................................................. 8
3．6-2 LED for threshold value indication and buzzer ....................... 8
3．7 Applicable standards .............................................................. 8
4．Specification .................................................................................... 9
5．Preparation before a measurement ............................................... 11
5．1Visual inspection ................................................................... 11
5．2Connection to mains power supply ....................................... 11
5．2-1 Connection of mains cord ..................................................... 11
5．2-2 Check the mains power supply voltage ................................ 12
5．2-3 How to use M-7121 (Optional cord) ...................................... 12
5．2-4 NULL setting (Protective conductor resistance range) ..........13
6．Connection for the instrument and the device under test .............. 14
7．Measuring method ......................................................................... 15
7．1Measuring protective conductor resistance (RPE) ............... 15
7．2Measuring insulation resistance (RINS) ............................... 16
7．3Measuring equivalent leakage current (IEL) ......................... 17
7．4Measuring contact current (IL) .............................................. 18
7．5Measuring current consumption……… Only for M-6202 ...... 19
8．Fuse replacement .......................................................................... 20
9．Services ......................................................................................... 21
10．Case and strap assembly ...............................................................21
CONTENTS

― 1 ―
1.Safetesting
！
Electricity is dangerous and can cause injury and death. Always treat it with the
greatest of respect and care. If you are not quite sure how to proceed, stop a
measurement and take advice from a qualified person. This instruction manual
contains warning and safety rules which must be observed by the user to
ensure safe operation of the instrument and retain it in safe condition.
Therefore, read through these operating instructions before using the
instrument.
IMPORTANT:
1．This instrument must only be used by a competent and trained person and
operated in strict accordance with the instructions. KYORITSU will not
accept liability for any damage or injury caused by misuse or non-
compliance with the instructions or with the safety procedures.
2．It is essential to read and to understand the safety rules contained in the
instructions or with the safety procedures.
3．The symbol indicated on the instrument means that the user must refer to
the related sections in the manual for safe operation of the instrument. Be
sure to carefully read instructions following each symbol in this manual.
！
！
DANGER is reserved for conditions and actions that are likely to
cause serious or fatal injury.
WARNING is reserved for conditions and actions that can cause
serious or fatal injury.
CAUTION is reserved for conditions and actions that can cause
minor injury or instrument damage.
！
！
！

― 2 ―
DANGER
●This instrument can be connected only to the commercial power of
230V+10%-10%, 50/60Hz.
●For safety reasons, only use the Test Leads designed to be used with this
instrument and recommended by KYORITSU.
●Mains power supply to which the instrument is connected must be
protected with a fuse or a breaker of 16A (max. rating) against over load.
●Use only grounded mains outlets to supply the instrument.
●Do not touch the device under test while testing is in progress. Since a
high voltage of 500V is outputting continuously, especially while measuring
insulation resistance, user may get electrical shock. Also not to touch the
capacitor of the device under test as hazardous voltage may exist.
●When testing, always be sure to keep your fingers behind the safety
barriers on the test leads.
●Not to exceed max. throughput of 4000VA on current consumption (ILINE)
range of M-6202.
●Disconnect the instrument from the power supply when measurement is
finished. Do not leave the instrument with connected to the power supply.
！
WARNING
●Neveropentheinstrumentcase - because dangerous voltages are
present. Only fully trained and competent electrical engineers should open
the case.
●If abnormal conditions of any sort are noted (such as a faulty display,
unexpected readings, broken case, cracked test leads, etc) do not use the
instrument and return it to your distributor for inspection and repair.
●Never attempt to use the instrument if the instrument or your hand is wet.
！
CAUTION
●When using Test Leads with alligator clip, be sure to check the alligator
clip is firmly connected to the metal part of the device under test.
Otherwise, inaccurate measurement or arc at the contacts may occurs.
●The rated measuring voltage for insulation test is 500V.DC. For electrical
devices to be tested, if this test voltage seems not proper to apply,
contact your distributor and ask for advices.
●When testing faulty device, it may trip the circuit breaker of main power
supply during test and may cause interruption of service. Be careful when
the same main power supply is used for PCs.
KYORITSU is not liable for loss of data on PC during testing with this
instrument.
●The device under test is powered on during most tests, but please turn it
to OFF position after use.
●Use a cloth dipped in water or neutral detergent for cleaning the
instrument.
Do not use abrasives or solvents.
！

― 3 ―
2. Procedureofremovingcover
Model 6200 and 6202 have a dedicated cover to protect against an impact from
the outside and prevent the operation part, the LCD, and the connector socket
from becoming dirty. The cover can be detached and put on the back side of the
main body during measurement.
2.1 Methodofremovingthecover
2.2 Methodofstoringthecover
Fig.1
Fig.2

― 4 ―
3.1 Productsummary
Model 6200, 6202 perform tests and measurements in accordance with DIN
VDE 0701:2000 (Repair, modification and testing of electrical instruments) and
DIN VDE 0702:1995 (Repeat tests for electrical instruments). These standards
require to measure protective conductor resistance, insulation resistance and
equivalent leakage current of repaired or modified equipment or to test the
absence of voltage at the exposed metal parts of information technology
equipment and office machine. This instrument can perform voltage
measurement of main power supply, in addition to above measurements. For
M-6202, it can perform current consumption measurement.
This instrument is designed to check the electrical safety of the devices of
Safety Class I, Class II and Class III categories. As a guide IEC standard define
these three categories as follows:
Class l ：Devices which have a functional insulation throughout and an earth
connected case. These are often described as earthed devices.
Class ll ：Devices which have both functional and additional insulation where
any metal parts cannot become "Live" under fault conditions.
Class Ⅲ：Devices in which protection against electrical shock rely upon supply
from SELV circuit and in which hazardous voltage are not generated.
Note) SELV (safety extra low voltage) circuit is designed and protected that
under normal operating conditions, single fault condition and when basic
insulation is damaged, its voltage do not exceed a safe voltage.
3.2 Testrange
MODEL 6200 and 6202 have following features.
3. Productsummaryandexplanation
IL : Contact current measurement
IEL : Equivalent leakage current measurement
RINS : Insulation resistance measurement
RPE : Protective conductor resistance measurement
VOLT : Voltage measurement of mains power supply
ILINE : Current consumption measurement
M-6200 M-6202
O
O
O
O
O
×
O
O
O
O
O
O

（2）
（1）（7）
（8）
（9）
（10）
（11）
（12）（3）（4）（5）（6）
（15）（16）
（13）（14）Fig.3
― 5 ―
3.3 Features
●Compact, light weight and truly portable
●Robust Panel and Case
●Capable of measuring the voltage of main power supply
●Large custom digital display
●Easy to perform various tests specified in DIN VDE 0701/0702, capable of
judging pass/fail of tests by LED on the panel and by buzzer.

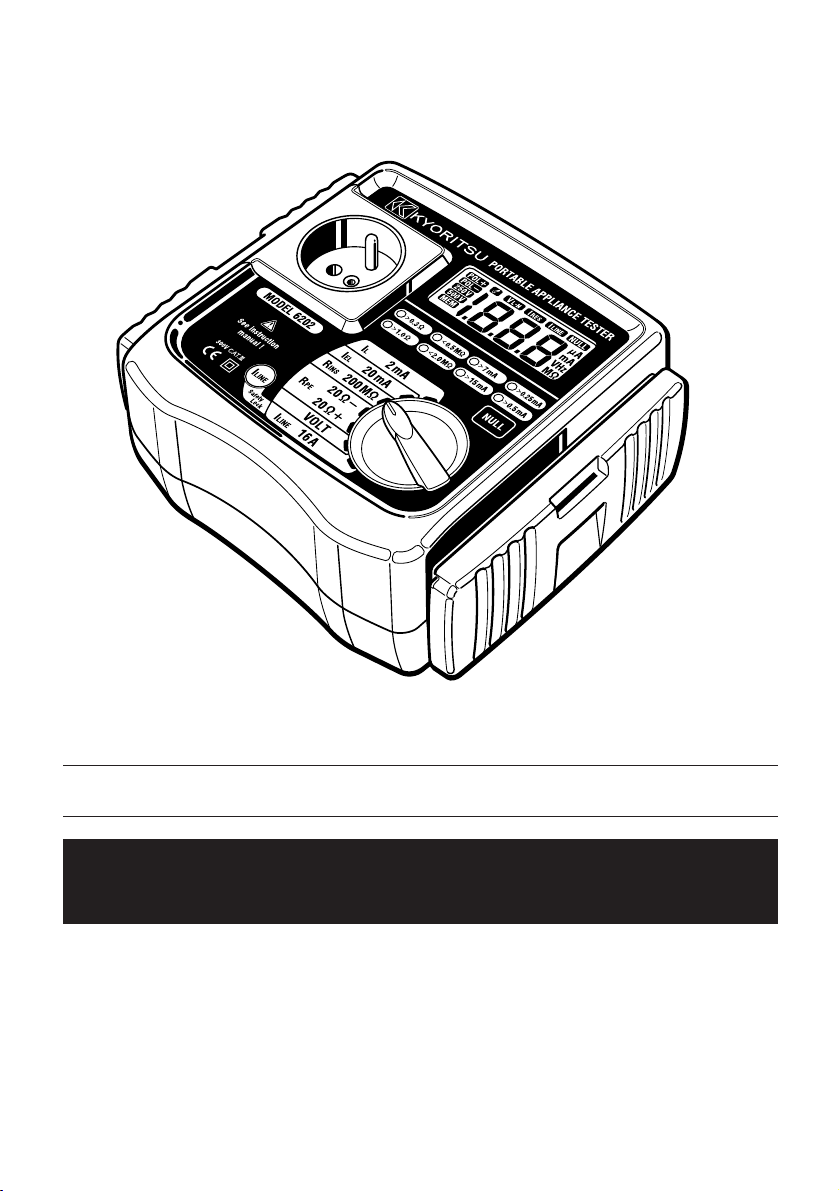

3.4 Instrumentlayout(Illust:M-6202)
（1）Test socket
If the device under test (hereinafter, referred as "DUT" in this document) is
equipped with a mains plug, the measurement of protective conductor
resistance, insulation resistance, equivalent leakage current and contact
current can be performed.
（2）Terminal block
The supplied mains plug and Test Leads can be connected to this terminal.
And this terminal can be used when making a measurement with an
optional cord.

― 6 ―
（3）Terminal block / Terminal for mains cord
The supplied mains cord can be connected to this terminal.
（4）Terminal block / L/N terminal
This terminal wired in parallel to two short-circuited Phase terminals at the
test socket (1).
The DUT Phase conductors can be connected to this L/N terminal and
measured, if the DUT is not equipped with a mains plug.
（5）Terminal block / PE/2mA terminal
Contact current at exposed conductive parts which are not connected with
protective conductor can be measured by connecting RPE-Test Lead. In
addition, this terminal is wired in parallel to the protective conductor
terminal at the test socket (1), so the DUT protective conductor can be
connected to this terminal, if the DUT earth terminal is not equipped with a
mains plug. Beyond this, exposed conductive parts at the DUT must be
connected to this terminal for insulation testing and the measurement of
equivalent leakage current.
（6）Terminal block / RPE-Test Lead terminal
RPE-Test Lead for resistance measurement of the protective conductor can
be connected to this terminal, and the alligator clip is to be connected with
the enclosure of the DUT.
（7）LCD
Measured values are displayed.
（8）LED for threshold value
The red LED lights up when limit values defined in the applicable standards
have been exceeded during the measurement of protective conductor
resistance, insulation resistance, equivalent leakage current and contact
current.
（9）NULL button
NULL setting shall be done before starting the measurement of protective
conductor resistance. (Cancel the resistance of the Test Lead, inside
protective fuse and so on.)
（10）Range switch
Select a range with the range switch.

Fig.5
Black-Neutral
Red-Phase
Green-Earth
Fig.4
― 7 ―
（11）Safety lock button (Only for M-6202)
To select the range for current consumption measurement, turn the range
switch while this button is being pressed. It is to prevent any hazards will
not occur on user by DUT operates suddenly.
（12）Protective fuse
Protected by fuse of 600V/500mA ceramic fuse (F type Φ6.35mm x 32mm)
against external over voltage.
（13）Mains cord : M-7125
This mains cord can be connected to the main power supply so that the
instrument can derive power from it. To measure contact current, the socket
of the mains power supply is to be equipped with an earth terminal.
（14）RPE-Test lead : M-7129
The Test Lead can be combined with either alligator clip or probe with blade
type prod.
Whichever can be used as usage.
（15）Attachment - Probe with blade type prod
（16）Attachment - Alligator clip
3.5 Optionalaccessory
（1）Test Lead for external terminal: M-7122
It can be used for a measurement via external terminal on the instrument.
（2）Test Lead for measuring distribution board : M-7121
It can be used when the mains cord (13), described in clause 3.4, cannot
be connected to the outlet (no earthing contact socket is available).
(Please refer to clause 5.2-3 for the connection)

3.6 Explanationforindications
3.6-1 M-6200Display(commonwithM-6202)
Note. 1) Over range display: "OL" symbol is displayed on the LCD over range
display.
2) LINE = PHASE
3.6-2 LEDforthresholdvalueindicationandbuzzer
When exceeding following limit values which are defined in DIN
VDE0702:1995, LED lights up and buzzer sounds.
3.7 Applicablestandards
Instrument operation: DIN VDE 0701:2000 / DIN VDE 0702:1995
Safety: IEC/EN61010-1 CATIII 300V-instrument
IEC/EN61010-2-031 CATIII 300V(600V)-test lead
EMC Interference Emission / Immunity : EN 61326-1
As for basic standards, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, and
EN 61000-4-11, criterion B.
(Criterion B: Temporary degradation of performance or loss, but self-recovering)
― 8 ―
Measuring range Condition LED for threshold
value indication Warning buzzer (continuous sound)
RPE >0.3Ω
RPE >1Ω
RINS < 0.5MΩ
RINS < 2.0MΩ
IEA >7.0mA
IEA >15mA
IL >0.25mA
IL >0.5mA
●
●
●
●
●
●
●
●
---
●
●
---
---
●
---
●
Protective conductor
resistance
Insulation resistance
Equivalent leakage
current
Leakage current /
contact current
(substantiation of
absence of voltage)
Fig.6
ThePolarityofprotective
earthconductorresistance
Power supply voltage
(Line-Neutral)
Currentconsumption
NULLindication
Units

― 9 ―
●General specification, measuring range and accuracy
Voltage (VOLT) measurement of mains power supply
Measurement of Protective conductor resistance (RPE)
Measurement of Insulation resistance (RINS)
Measurement of Equivalent leakage current (IEL)
Measurement of Contact current (IL)
4. Specification
Measuring range
Resolution
Accuracy
180 ~ 260V AC
1V
±(2%rdg+3dgt)
Rating
Measuring range
Resolution
Open-circuit voltage
Measuring current
Accuracy
20Ω+ and 20Ω- (Bi-polarity test)
0 ~ 19.99Ω
10mΩ
±5.0±0.4V DC
Within 200 ~ 250mA DC (when measuring 0 ~ 2Ω)
±(2%rdg+3dgt)
Rating
Measuring range
Resolution
Output voltage at open circuit
Short-circuit current
Rated current
Accuracy
500V / 200MΩ
0~19.99MΩ/ 199.9MΩ(2auto ranges)
10kΩ/100kΩ
500V DC +50% -0%
14mA DC or less
Within 1~1.5mA DC under the load of 0.5MΩ
±(2% rdg+3dgt)
Rating
Measuring range
Resolution
Open-circuit voltage
Short-circuit current
Accuracy
Internal resistance (RA Meter)
20mA AC
0 ~ 19.99mA AC
10μA
30V±5V AC
35mA AC or less
±(2% rdg+3dgt)
2kΩ
Rating
Measuring range
Resolution
Accuracy
Internal resistance (RA Meter)
2mA AC
0 ~ 1.999mA AC
1μA
±(2% rdg+3dgt)
2kΩ

― 10 ―
Measurement of current consumption (ILINE) (Only for M-6202)
Threshold and display (Threshold display is dependent on the accuracy on each
measuring range.)
Reference conditions
Unless otherwise specified, this specification is dependent on following
condition.
(1) Ambient temperature ： 23±5℃
(2) Relative humidity ： 45 ~ 75%
(3) Position ： Horizontal
(4) AC power source ： 230V, 50/60Hz
(5) Altitude ： 2000m or less
Operating temperature and humidity range
0℃~ +40℃Relative humidity: 85% or less (no condensation)
Storage temperature and humidity range
-20℃~ +60℃Relative humidity: 85% or less (no condensation)
Rate voltage and frequency
Rated voltage ： 230V ±10%
Rated frequency ： 50 ~ 60Hz ±1%
Operating method ： Dual slope integration
Display ： 3 1/2 digit in LCD, character height 17mm,
Max reading 1999 with units, symbols, etc.
Maximum rated power
Approx. 9VA
Maximum throughput of M-6202
Max. 4000VA
Rating
Measuring range
Resolution
Accuracy
Throughput
16A AC
0 ~ 15.99A AC
10mA
±(2% rdg+3dgt)
Max. 4000VA
Range
Protective conductor resistance
Insulation resistance
Equivalent leakage current
Contact current
Threshold
LED for threshold
display
Warning buzzer
(continuous sound)
RPE >0.3Ω
RPE >1Ω
RINS < 0.5MΩ
RINS < 2.0MΩ
IEL >7.0mA
IEL >15mA
IL >0.25mA
IL >0.5mA
●
●
●
●
●
●
●
●
---
●
●
---
---
●
---
●

― 11 ―
Outer dimension and weight
Outer dimension: 185(L) ×167(W) ×89(D)mm
Weight: Approx. 1kg (only the instrument body)
Symbols used on the instrument:
FEquipment protected throughout by DOUBLE INSULATION or
REINFORCED INSULATION
Caution (Refer to the accompanying instruction manual)
！
5．1Visualinspection
Before starting a measurement, user should undertake visual checks on the
mains cord, case and that the correct type and rated fuse is fitted to the DUT.
And also there should be no evidence of damage of a nature that may impair
the electrical safety of the item.
5.2 Connectiontomainspowersupply
5.2-1 Connectionofmainscord
Set the range switch on the instrument to "VOLT" range and insert the socket
of mains cord to the instrument. Then connect the plug to the outlet of mains
power supply.
CAUTION
●Always be sure to check there is no abnormal conditions or damages on
the instrument and cords. If any evidence of abnormality found,
measurement shall be stopped immediately.
●The outlet of mains power supply must have earth terminal.
●This instrument can be only connected to the commercial power of
230V+10%-10%, 50/60Hz.
！
5. Preparationbeforeameasurement
Fig.7

― 12 ―
5.2-2 Checkthemainspowersupplyvoltage
There is no power switch and the instrument is immediately ready for use.
Mains power supply voltage is displayed on the LCD. Please check the value,
and when it is from 207V to 253V, the instrument can perform correct
measurements. If the displayed value is out of above range, do not make a
measurement.
WARNING
●When the voltage of mains power supply is 260V or more, "HI-V" is
displayed on the LCD and buzzer sounds (discontinuous sounds). In that
case, disconnect the mains cord of the instrument from mains power supply.
5.2-3 HowtouseM-7121(Optionalcord)
If the mains cord M-7125 is not available, or no earthing contact socket is
available, connection of the mains power supply and the instrument can be
accomplished with the help of the optional cord.
WARNING
●The mains power supply to which the instrument to be connected shall be
protected against overload with fuse or circuit breaker. The rating of the
fuse and breaker shall not exceed 16A.
●Be careful not to get an electrical shock when connecting cords. This
instrument can be only connected to the commercial power supply when
the voltage between Neutral (N) and Phase (L1〜L3) is 230V+10%-10%,
50/60Hz.
CAUTION
●The rated current capacity of this instrument, when using the optional
cord, is 10A or less.
M-7121 Phase and Neutral probe have a fuse of 600V/10A (Fast acting
type ceramic fuse) for safety purpose.
！
！
！
Fig.8

― 13 ―

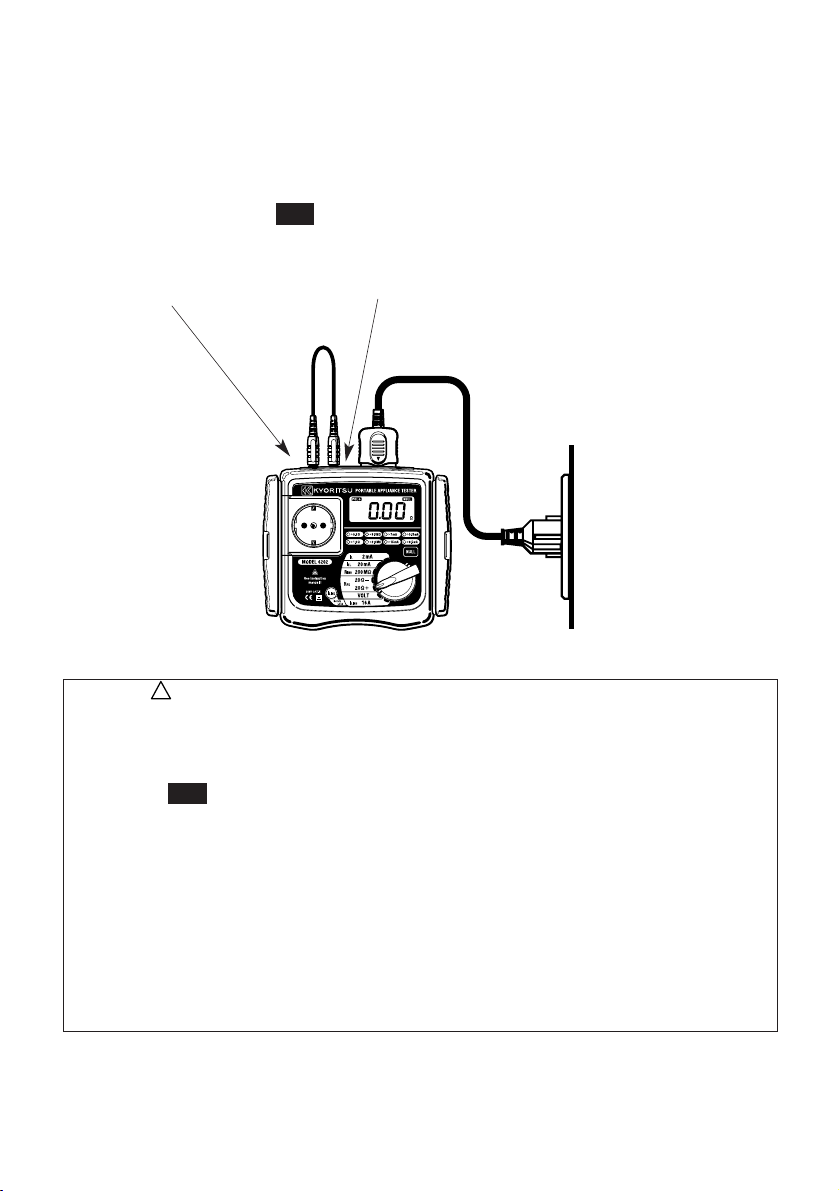

5.2-4 NULLsetting(Protectiveconductorresistancerange)
According to below figure, set the range switch to the range for protective
conductor resistance (either 20Ω+ or 20Ω- is OK). Press NULL button after
short-circuited PE/2mA and RPE -Test lead terminals with RPE-Test Lead.
Make sure that the " " mark appears on the LCD and indicated value is
"0.00Ω" ; Data is corrected.
CAUTION
●When pressing NULL button, the indicated value is stored as a reference
value. After that, the difference between the reference value (stored
value) and measuring value is indicated on the LCD.
●The " " mark is displayed on the LCD while the NULL function is
operating. Each time pressing NULL button, NULL function shall be
turned on and off.
●NULL function can not be released by changing the range while it is
operating. To release the function, power off the instrument.
●NULL function works on both 20Ω+ range and 20Ω- range, therefore,
there is no need to do NULL setting at both ranges.
●For the measuring method shown in the following clause 6.3 and 6.4,
NULL setting is required also for an optional cord.
NULL
！
RPE -Test lead terminal PE/2mA terminal
Fig.9
NULL

― 14 ―
6. Connectionfortheinstrumentandthedeviceundertest
When the DUT is equipped with a mains plug, use test socket, RPE -Test lead
and PE/2mA terminal for a measurement of protective conductor resistance,
insulation resistance and equivalent leakage current of DUT. But if not, connect
the DUT to L/N and PE/2mA terminal which are connected inparallel to the test
socket with the optional cord. Use one of the following test set ups, depending
upon the type and condition of the DUT.

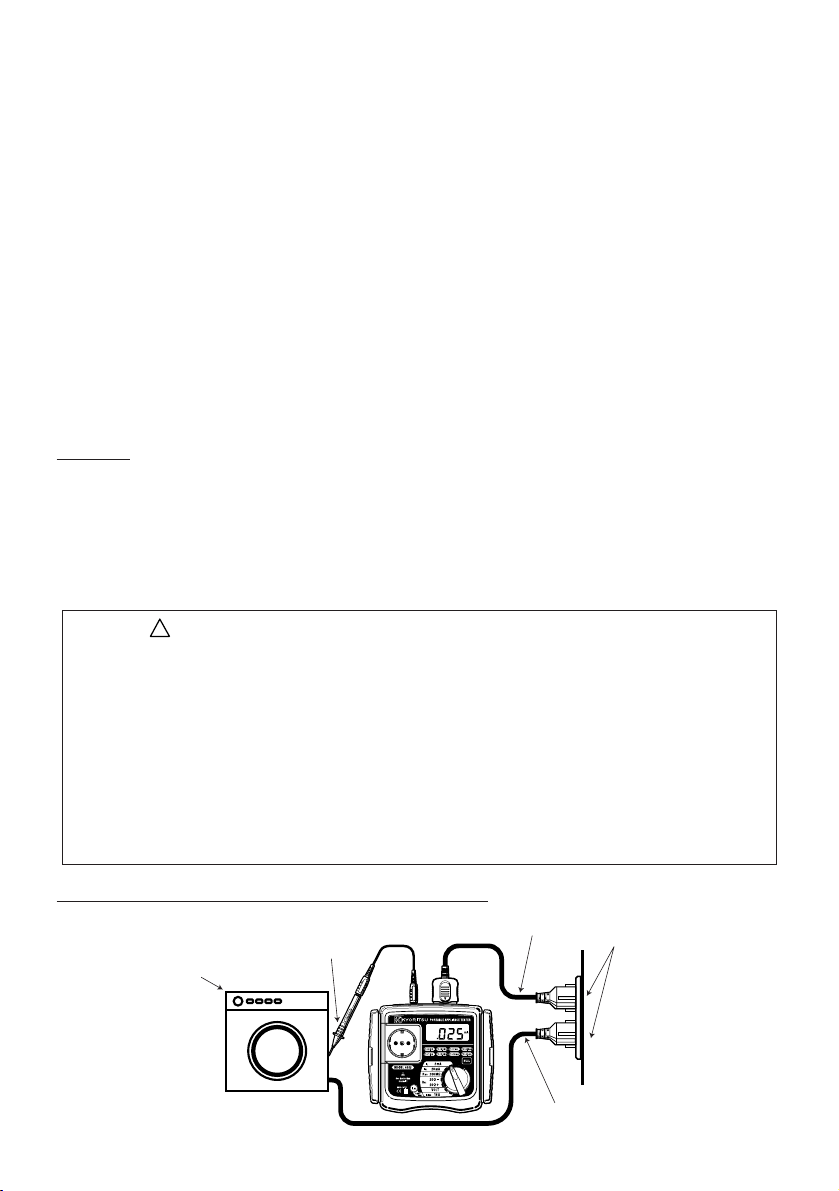

6.1 SafetyClassIDUTwithMainsPlug
6.2 SafetyClassIIDUTwithMainsPlug
6.3 DUTWithoutMainsPlugorSafetyClasslllDUT
6.4 3-PhaseDUT
SwitchtheDUTon.
Toenclosureformeasurementofprotectiveresistance
TestcordM-7129 RPE-TestleadTerminal
Connecttothetestsocket
Toexposedmetalparts TestcordM-7129
PE/2mAtermina
SwitchtheDUTon.
SwitchtheDUTon.
Toenclosureformeasurementofprotectiveconductorresistance
OptionalCord
SafetyClassⅢ
SwitchtheDUTon.
Toenclosureformeasurementofprotectiveconductorresistance
OptionalCord
Fig.10
Fig.11
Fig.12
Fig.13

― 15 ―
7. Measuringmethod
7.1 Measuringprotectiveconductorresistance(RPE)
The measurement of protective conductor resistance is of course not possible
for devices which are not equipped with a protective conductor (e.g. Safety
Class ll and III devices).The objective of this test is to ensure the connection
between the earth or the protective conductor of the commercial power earth
pin and the metal casing and accessible conductive parts of the DUT is
satisfactory and of a low enough resistance value to satisfy safety standards.
And this measurement should be done also by reversing the output polarity.
(1) Connect the DUT as described in clause 6.
(2) Set the range switch to the "RPE 20Ω+" position.
(3) Read the measured value in "Ω" from the LCD.
(4) Set the range switch to the "RPE 20Ω-" position.
(5) Move the cable from the DUT during a measurement, section by
section over its entire length, in order to locate interruptions.
Results
Protective conductor resistance may not exceed the following values.
Maximum allowable protective conductor resistance values depending on
cable length
Under no circumstances may a value of 1Ωbe exceeded. The table is also
valid for cable reels and extension cables.
CAUTION
●Follow the procedure described in 5.2-4 and do NULL setting before a
measurement.
●Alligator clip must make good contact with the enclosure of the DUT.
●When the terminal is open or the resistance value exceeds measuring
range, "OL" mark (over range display) appears on the LCD.
！
Length to (m)
Max. resistance (Ω)
5
0.3
12.5
0.4
20
0.5
27.5
0.6
35
0.7
42.5
0.8
50
0.9
More than 50m
1.0
Displayed on 20Ω+ range
Displayed on 20Ω- range
Displayed at NULL
setting Fig.14

― 16 ―
7.2 Measuringinsulationresistance(RINS)
This measurement may only be performed if the DUT has successfully
completed protective conductor resistance testing (Safety class l device). The
objective of this test is to ensure that the insulation between Phase or Neutral
conductor of the mains power supply and the metal casing and accessible
conductive parts of the DUT is satisfactory.
(1) Connect the DUT as described in clause 6. If it is a Class II or III device,
connect the PE/2mA terminal and exposed metal parts with Test Lead.
(2) Switch the DUT on.
(3) Set the range switch to "RINS 200MΩ" position.
(4) Read the measured value in "MΩ" from the LCD.
Results
Insulation resistance may not fall short of below values.
This instrument has LED indications which illuminate when the resulting
measurement is below the DUT threshold value of 0.5MΩor 2.0MΩ.
(according to DIN VDE 0702)
CAUTION
●When the terminal is open or the resistance value exceeds measuring
range, "OL" mark (over range display) appears on the LCD.
●Depending on the type of DUT, insulation resistance value is unstable
and the indication may not become stable. In that case, regard the
measured value as a reference value.
●Do not touch the DUT while testing is in progress. Since a high voltage of
500V is outputting continuously, user may get electrical shock.
！
Safety class
VDE0701
VDE0702
Ⅰ
1M
Ⅰ
(with heating elements) Ⅱ Ⅲ
1000Ω/V or
250kΩ
2MΩ
2M
0.3MΩ
0.5MΩ
Fig.15

― 17 ―
7.3 Measuringequivalentleakagecurrent(IEL)
The objective of this test is to ensure that leakage current between Phase or
Neutral and the earth connector of the mains power supply is satisfactory and
low enough to satisfy the relevant standard.
(1) Connection is the same as shown for the measurement of insulation
resistance.
(see clause 7.2)
(2) Set the range switch to the "IEL 20mA" position.
(3) Switch the DUT on.
(4) Read the measured value in "mA" from the LCD.
Result
Equivalent leakage current may not fall short of below values.
According to DIN VDE 0702, the measured current value between the
components to which voltage is applied during operation and exposed metal
parts may not exceed 7mA, or 15mA for devices with heating power of greater
than or equal to 6kW.
This instrument has LED indications which illuminate when the resulting
measurement is below the DUT threshold value of 7.0mA or 15.0mA.
(according to DIN VDE 0702)
CAUTION
●This instrument performs a "substitute leakage" test by applying a safe
test voltage of AC30V between Phase or Neutral and the earth connector
of the DUT. The results are displayed as thought the DUT would be
powered from a supply voltage of 230V. The resultant measurement is to
be accepted as advisory and not as an absolute measurement.
●Devices that are fitted with a differential mains filter will display the value
which is greater than the actual value.
！
Safety class
VDE0701
VDE0702/200
VDE0702
ⅠⅠ
(with heating elements)
1mA/kW
−
15mA(with heating power:
6kW or more)
Ⅱ
3.5mA
1mA
7mA
0.5mA
1mA
−
Fig.16

― 18 ―
7.4 Measuringcontactcurrent(IL)
Before performing this measurement, the protective conductor resistance test,
in clause 7.1, must be first performed and passed. Contact current measurement
to be performed instead of insulation resistance measurement for Safety class ll
devices, or for Safety class l devices with exposed conductive parts which are
not connected to the protective conductor. (see Fig.17)
(1) Connect the DUT to the mains outlet. Be sure to connect the same
mains outlet to which the instrument is connected.
(2) Set the range switch to the "IL 2mA" position.
(3) Connect the RPE - Test lead with probe to PE/2mA terminal.
(4) Power the DUT on.
(5) Contact exposed metal parts at the DUT with the test probe.
(6) Read the measured value in "mA" from the LCD.
Result
For Safety Class l, I(with heating elements), and II devices, according to DIN
VDE 0701, Part240, measured values may not exceed 0.25mA, and may not
exceed 0.5mA according to DIN VDE 0701 as well.
This instrument has LED indications which illuminate when the resulting
measurement is below the DUT threshold value of 0.25mA or 0.5mA.
CAUTION
●The mains outlets to which the test instrument and the DUT are
connected must be connected to the same mains outlets.
●Contact current measurement must be performed with the mains plug
poled in both directions. The larger of the two measured values applies.
●A defect in the DUT may cause tripping of the residual current circuit
breaker during testing, which would also result in interruption of supply
power. Data must be backed up before making measurements at data
processing equipment.
Connectionforcontactcurrentmeasurement
！
Sameoutlet
MainscordofM-6200
Toexposedconductiveparts
SwitchtheDUTon.
Tomainsoutlet
Fig.17
