BATTERY CHARGER RS-1000
Instruction Manual
BEFORE USING OUR BATTERY CHARGER RS1000, READ IN DETAILS ALL
INSTRUCTIONS CONTAINED IN THIS MANUAL. KEEP THIS MANUAL IN A
SAFE PLACE AS YOU MAY NEED TO USE IT AT A LATER DATE.
We draw the attention of all users of this device: please follow the safety
and maintenance instructions which are part of this manual. Also read the
caution markings on the charger, the manual, and the gift box.

35
INTRODUCTION:
Congratulations on purchasing this intelligent charging unit which enables definitely quick and
optimum charging to “AA” and “AAA” rechargeable batteries. With charging, discharging,
refreshing and capacity test functions as well as individual LCD displays for charging
compartments; this charging unit is reliable, user-friendly and ideal for use in the home, office or
on journey.
The Charging unit

36
CAUTIONS:
1. The charger is restricted to charging NiCd and NiMH rechargeable batteries only.
Never adopt this charger to other types of batteries such as alkaline, lithium, carbon zinc
or other types that are not specified.
2. The charging unit shall only be used only at normal indoor room conditions.
3. Always follow the charging instructions for the rechargeable battery. Observe the
recommended charging current of the rechargeable batteries. Never adopt a charging
current higher than recommended in the charging process.
4. Never use any power cable and transformer other than those originally supplied with the
charging unit.
5. The rechargeable batteries may become hot during charging (especially when high
charging current is chosen). User shall take extra care when taking out the batteries after
charging.
6. Unplug the charging unit from the power source when not in use.
FEATURES:
The Charging unit
 Charging rechargeable battery in various current (200, 500, 700 or 1000 mA). The

37
charging current can be set up to 1500 or 1800 mAh when two batteries are charged.
 Fast charging – 70 mins to charge up 2000 mAh batteries
 Individual LCD display for compartments
 Charging both “AA” and “AAA” rechargeable batteries simultaneously
 Overheat detection to protect rechargeable batteries from over-charging
 Charger error protection to protect the user should any malfunction and over-heat of the
batteries/charger is detected
 Minus delta voltage (-dV) detection for charge termination
 Damaged batteries detection
 Discharge mode (first discharging and then charging) to remove memory effect of
rechargeable batteries
 Refreshing old rechargeable batteries by discharging/ charging cycles
 Test function to check the capacities of rechargeable batteries
 Charging/ Discharging functions can be launched independently and simultaneously to
each rechargeable battery in the compartments
 Various display modes during charging/ discharging – the charging current (in mA), time
elapsed (in hh:mm), the terminal voltage (in V) and accumulated capacities (in mAh or Ah)

38
INVENTORY OF CONTENTS
1. Charging unit
2. Transformer
3. Size “C” battery adapter (4 nos.) & Size “D” battery adapter (4 nos.)
4. Holding Bag
5. “AA” rechargeable battery (4 nos.) & “AAA” rechargeable battery (4 nos.)
6. Instruction Manual

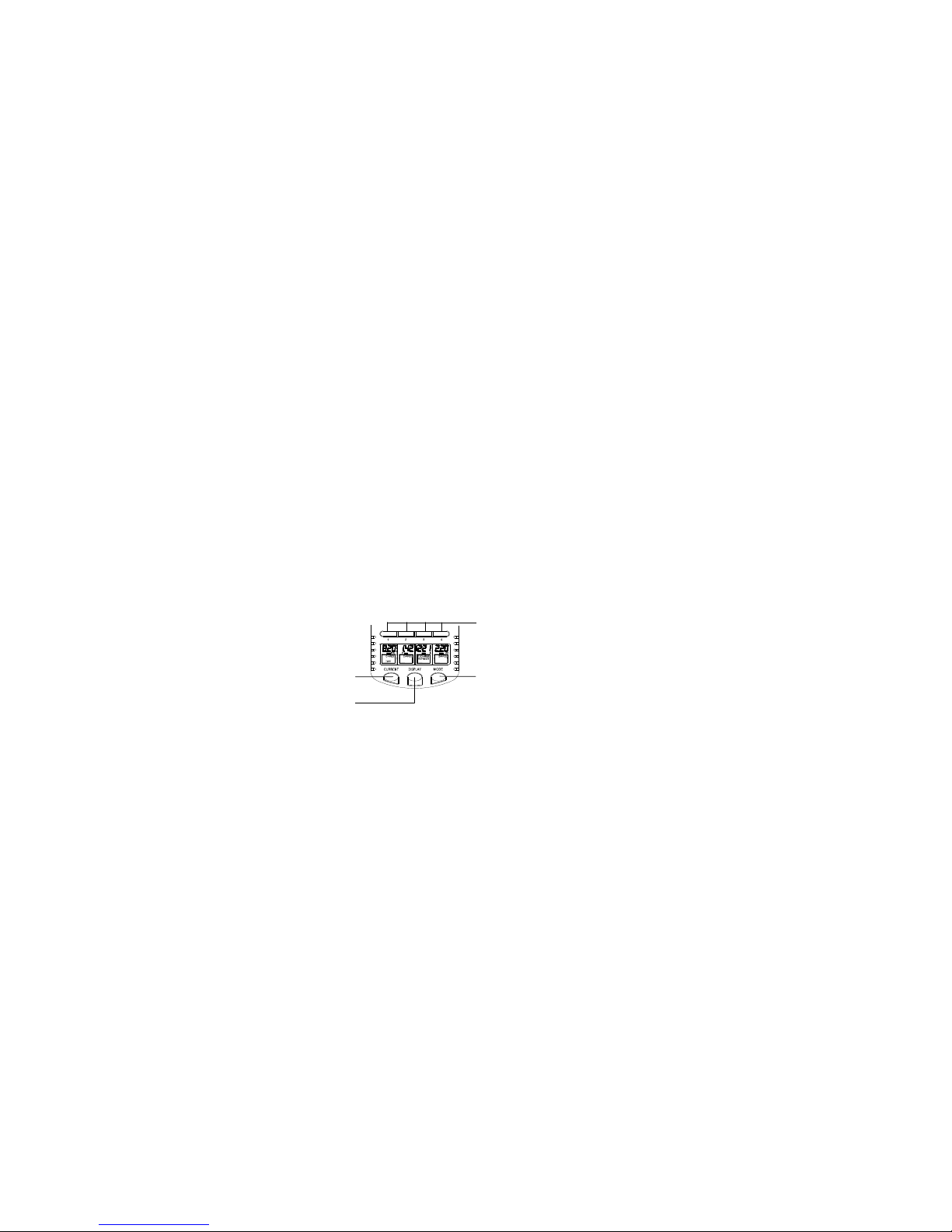

FUNCTION KEYS:
There are three easy-to-use function keys and four number keys in the charging unit:
Compartment
Number keys
DISPLAY
MODE key
CURRENT key

39
Compartment Number key
Press and release the Number key to select a particular battery compartment for charge modes
and/or display mode adjustment.
MODE key
The mode key shall first be pressed and held for about 1 second to activate the mode change.
The subsequent pressing of the mode key will enable to toggle between the “Charge”,
“Discharge”, “Test” and “Refresh” mode. To change the operating mode for individual
rechargeable battery, first press corresponding NUMBER key then press the MODE key.
DISPLAY key
Press and release to select the displays of the charging current (in mA), time elapsed (in
hh:mm), the terminal voltage (in V) and accumulated capacities (in mAh orAh) during the
charging or discharging process.
To change the display content of a particular rechargeable battery, first press corresponding
NUMBER key then press the DISPLAY key.

40
CURRENT key
Press to select the amount of current to be applied (within the first 8 seconds after batteries are
inserted) in different operating modes (also see “Start charging the rechargeable batteries”
below).
OPERATING MODES OF THE CHARGING UNIT
This powerful charging unit provides the following operating modes:
a. Charge up the rechargeable battery (CHARGE) – to charge up the rechargeable battery,
automatically switch to trickle charge after rechargeable battery is full.
b. Discharge then charge up the rechargeable battery (DISCHARGE) – to discharge the
rechargeable battery then charge it for minimizing the memory effect.
c. Refresh the rechargeable battery (REFRESH) – to refresh the rechargeable battery to its
maximum capacity by charging and discharging the rechargeable battery repeatedly until
no further increase in the capacity is estimated. For old rechargeable batteries or those
have not been used for a long times, refreshing may bring the rechargeable battery back
to the optimum condition.
d. Check the rechargeable battery capacity in mAh/ Ah (TEST)

41
CHARGE MODE
Charging at 200 mA is the default-operating mode of the charging unit.
When only one or two numbers of rechargeable batteries are charged, provided that only
compartment 1 and compartment 4 are used, a charging current up to 1500 or 1800 mA may be
set by the pressing the CURRENT key.
On the other hand, when charging three or four numbers of rechargeable batteries at the same
time, user may select a charging current of 200, 500, 700 or 1000 mA.

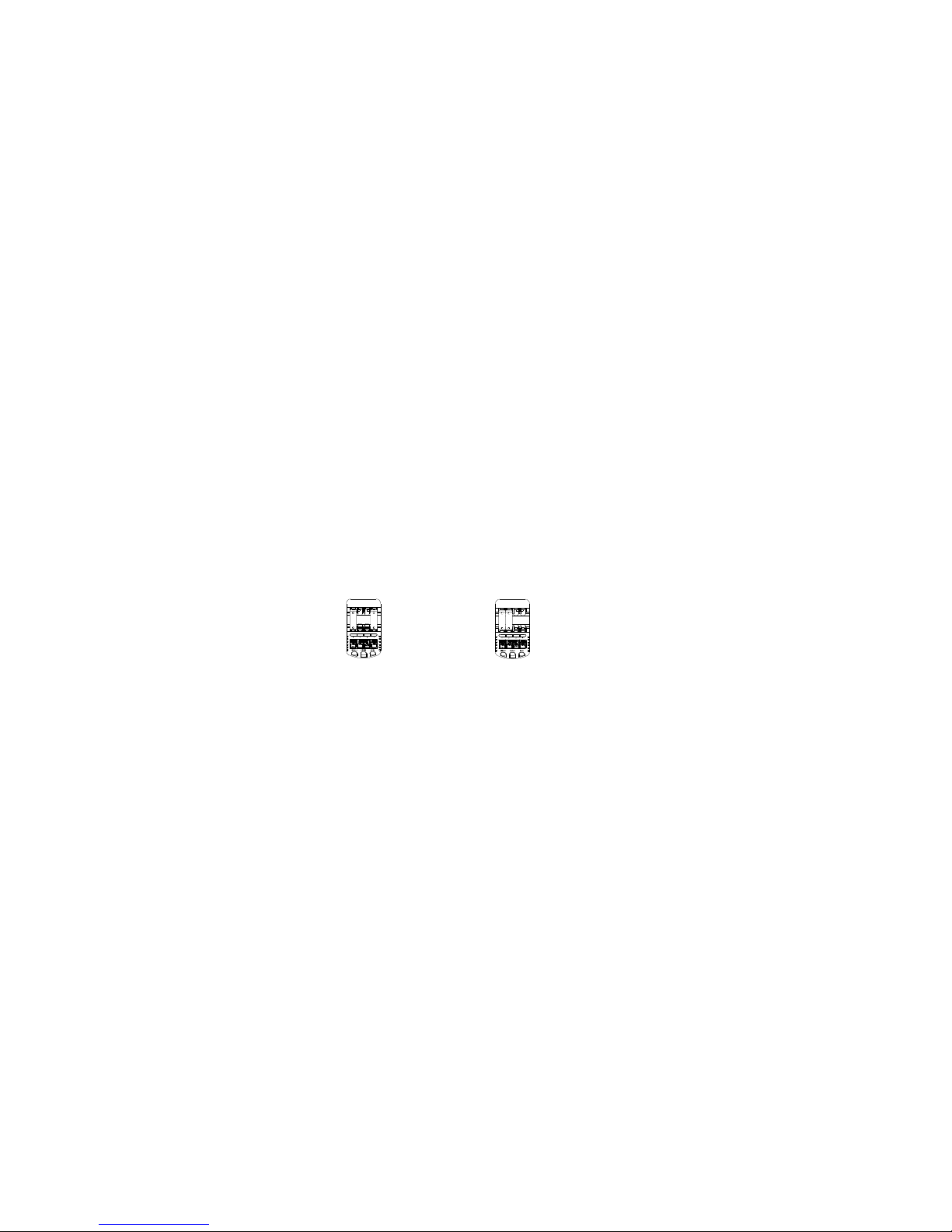

When charging two batteries at
compartment 1 & 4 – max.
charging current: 1800 mA
When charging two batteries at
compartment 1 & 2 – max.
charging current: 1000 mA

42
The estimated time of charging by various charging current is tabulated in Table 1.
When charging four batteries –
max. charging current: 1000 mA
When charging two batteries at
compartment 2 & 3 – max.
charging current: 1000 mA

43
Table 1. Charging Time with various charging current
Size of battery
Battery Capacity Charging current selected (mA)
Estimated charging time
1800 ~80 min
1500 ~100 min
1000 ~2 hr 30 min
700 ~3 hr 30 min
500 ~5 hr
AA 2600 mAh
200 ~12 hr
1800 ~70 min
1500 ~80 min
1000 ~2 hr
700 ~3 hr
500 ~4 hr
AA 2000 mAh
200 ~10 hr
700 ~70 min
500 ~100 min
AAA 1000 mAh 200 ~4 hr

44
Note:
 User shall always observe the recommended maximum charging current of the
rechargeable batteries. In general, 200 mA is a recommended charging current if rapid
charging is not necessary. It is definitely safe and optimum to the rechargeable batteries.
 When the transformer has been plugged to the power source, the version number of the
charger (for example “29” ) will be displayed first. Then all the segments will light up
momentarily and the “null” sign will be shown before batteries are placed. If damaged
batteries are placed to the charging unit, the charger will also show “null” on LCD.
“null” displayed - No battery or damaged battery is
placed to the charging unit

45
START CHARGING THE RECHARGEABLE BATTERIES
Once a rechargeable battery is inserted after the transformer has been plugged to the power
source, the battery voltage (for example, “1.39V”) will be displayed for 4 seconds. Then “200 mA
Charge” (default mode) will be shown on LCD for another 4 seconds,indicating that charging
with 200 mA is to be started if no alternation in setting is made.
Within this 8-second time from inserting the batteries the user may first select the
operating mode by the MODE key. Then within 4 seconds from the last key pressing,
user may select the charging/ discharging current by pressing the CURRENT key.
Note:
• The mode key shall first be pressed and held for about 1 second to activate the mode
change. The subsequent pressing of the mode key will enable to toggle between the
“Charge”, “Discharge”, “Test” and “Refresh” mode.
• There is a 8-second time allowed for choosing further functions after each key pressing.
If no more key is pressed, the LCD will blink one time to indicate the end of setting.
Afterward, the current can no longer be changed during the process and the selected
mode will be undergone.

46
During charging, the different displays- Charging current (in mA), Time elapsed (in hh:mm),
Terminal voltage (in V) and Accumulated capacities (in mAh or Ah) may be toggled and
selected by pressing the DISPLAY key (refer Table 4).
After the rechargeable battery is fully charged, “Full” sign will be shown on the display and the
user may take out them at this time. Or if the rechargeable batteries are kept placing at the
compartments, trickle charging will start. The trickle charging current is around 5% of the
selected charging current to keep the rechargeable batteries being full.

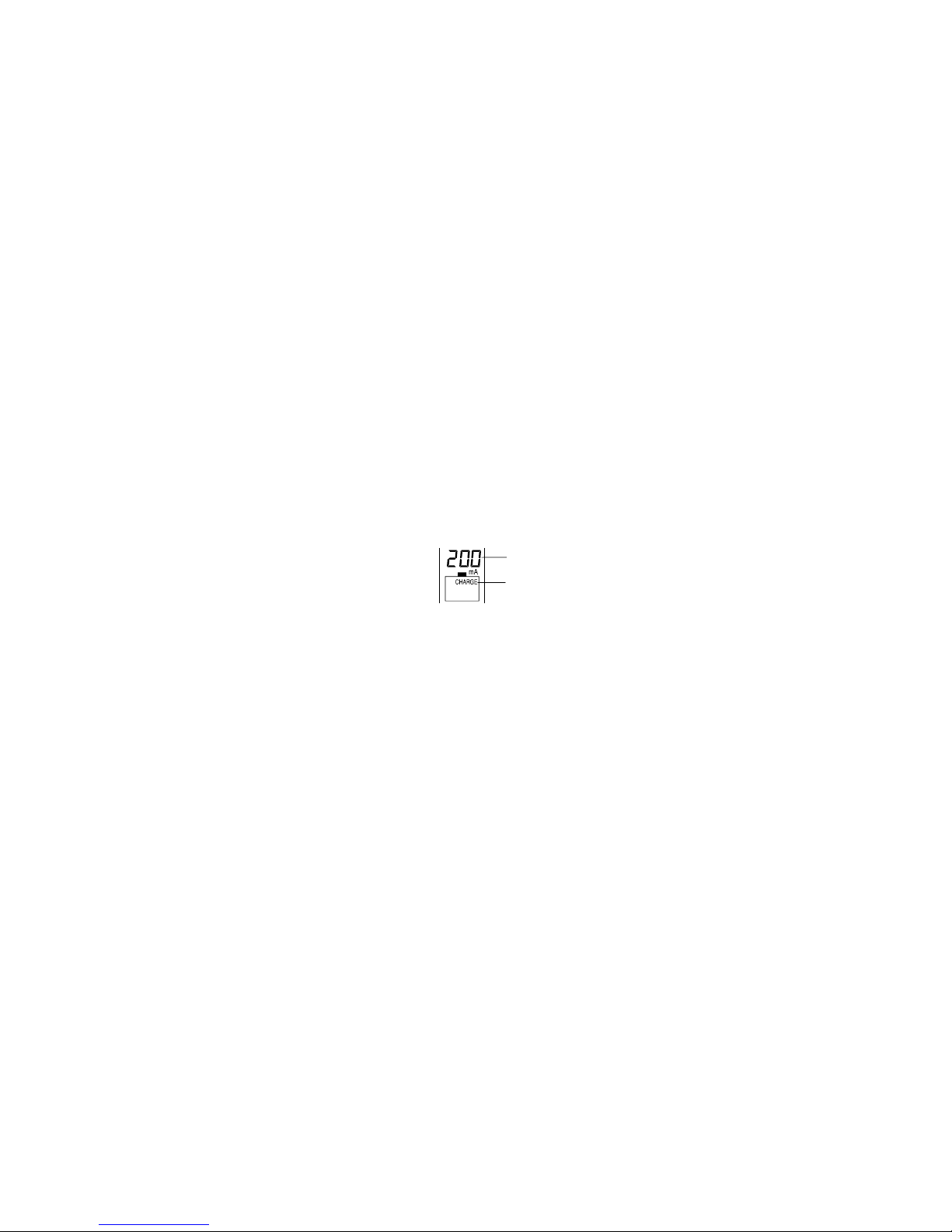

Charging current: 200 mA
Charge Mode
After 8 seconds from no more keys
pressing, the LCD will blink once to
indicate the setting is confirmed and
the selected mode activated

47
Note :
 The current cannot be altered once the setting has been confirmed in the initial stage.
This can avoid the user changing the current setting accidentally while doing setting on
other rechargeable batteries. If one wants to change the applied current afterward, the
rechargeable batteries must be taken out and inserted again.
 The maximum charging current of other rechargeable batteries are restricted by the
current setting of the first inserted rechargeable battery. For instance, if the first inserted
rechargeable battery is set to charge at 700 mA, then the second, third and fourth
rechargeable batteries can be only set to charging at a maximum current of 700 mA.
“Full” sign is shown -The battery
is fully charged

48
Therefore, user is recommend to place the battery with the highest expected charging
current at Compartment 1 first. To release the restriction of setting charging current, user
shall take out all four rechargeable batteries from the charging unit.
 To change the operating mode during charging, one can press the MODE key (for
selecting all rechargeable batteries) or NUMBER key then MODE key (for selecting
individual rechargeable battery). 8 seconds after the last key press the LCD will blink one
time to indicate the end of changing.
 When overheating condition occurs (over about 53°C, usually due to too high a charging
current selected), the charging will be stopped immediately for all channels charging and
discharging, and the display will shown “000 mA”, the charging process will only resume
once the temperature of the rechargeable batteries drops to a safe level. If overheat
conditions continue to occur, the rechargeable batteries shall be taken out to cool down
and then charged at a lower current.
When the battery is overheated the
charging will ceases automatically for
ALL channels. “000 mA” will be
displayed.

49
 For new rechargeable battery it is recommended to charge it with 200 mA current for re-
conditioning it from the long storage status.
 If the charger and/or the batteries are overheated to a dangerous temperature, or if the
charger has detected a wrong charging signal in its circuit, the charging will be stopped
immediately for all channels charging and discharging. The charger then will
automatically reset. User may need to reset the operating mode for the charger.
DISCHARGE MODE
Discharge mode will first discharge the rechargeable battery then charge it. Itis for removing the
memory effects of rechargeable batteries.
By pressing the MODE key within 8 seconds after inserting the rechargeable batteries, the
Discharge mode can be selected. (The mode key shall first be pressed and held for about 1
second to activate the mode change. The subsequent pressing of the mode key will enable to
toggle between the “Charge”, “Discharge”, “Test” and “Refresh” mode.)
Then user may also select different discharging current (see Table 2) by pressing the
CURRENT key, within 8 seconds after inserting the batteries. (The display will blink once to
indicate the setting has been confirmed and the current cannot be changed afterward.)

50
Note: The discharging current is always set to be half of the coming charging current whose
upper limit is 1000 mA (see Table 2). Therefore user is recommended to carefully select the
discharging current so that the charging current afterward will not be too high.
Table 2. DISCHARGE MODE Current
User-selected Discharging
current 100 mA 250 mA 350 mA 500 mA
Thereafter Charging current 200 mA 500 mA 700 mA 1000 mA

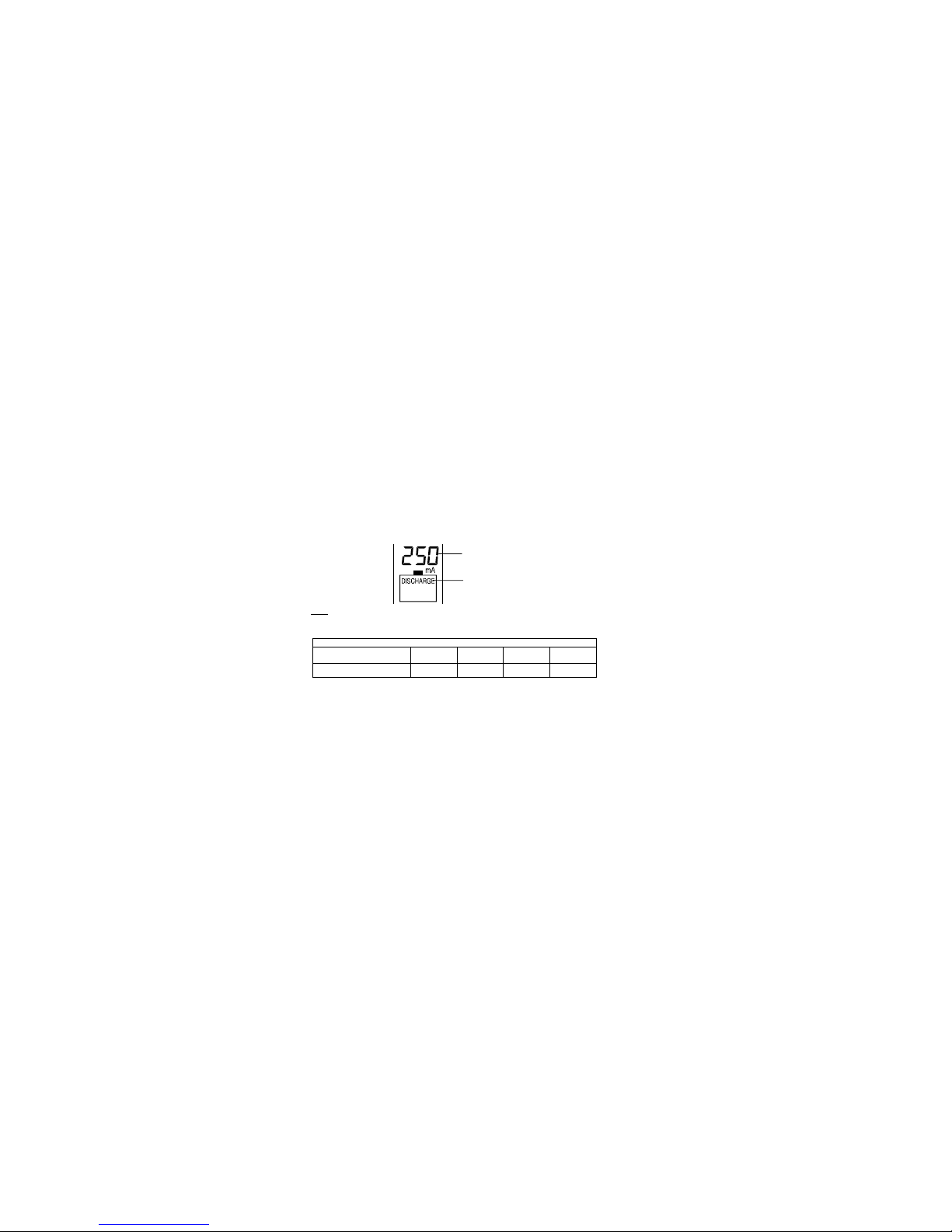

Discharging current: 250 mA
Discharge Mode

51
Finally batteries will be fully charged in discharge mode and “Full” will be displayed. If user
presses DISPLAY key at this time, "charge" icon instead of "discharge" icon will be displayed.
REFRESH MODE
Old rechargeable batteries and those have not been used for a long time require refreshing.
This process will recover the optimum capacity of the rechargeable batteries. By pressing the
MODE key within 8 seconds after inserting the rechargeable batteries, the Refresh mode can be
selected.
Refresh mode will start with discharging the rechargeable battery, then charging it. The
repeated discharging and charging cycles will be launched until no further increase in the
measured capacities is estimated.
Refresh mode (the battery is
being discharged)
Discharging current: 250 mA

52
Note:
 By pressing the MODE key within 8 seconds after inserting the rechargeable batteries,
the Refresh mode can be selected. (The mode key shall first be pressed and held for
about 1 second to activate the mode change. The subsequent pressing of the mode key
will enable to toggle between the “Charge”, “Discharge”, “Test” and “Refresh” mode.)
Then user may also select different discharging current by pressing the CURRENT key
(see “Note” in Discharge mode and Table 2), within 8 seconds after inserting the
batteries. (Or the display will blink once to indicate the end of setting and the current
cannot be changed afterward.)
 It may take up to several days to finish the refreshing process, depending on the selected
discharging current.
 The maximum refresh current is 1000 mA and not affected by the number of
rechargeable batteries inserted.
TEST MODE
In Test mode the rechargeable batteries will first be fully charged and then discharged to
determine the capacities. Finally, the rechargeable batteries are charged up again and the
capacity in (mAh) of (Ah) will be estimated and shown after the discharging ends.

53
By pressing the MODE key within 8 seconds after inserting the rechargeable batteries, the Test
mode can be selected. (The mode key shall first be pressed and held for about 1 second to
activate the mode change. The subsequent pressing of the mode key will enable to toggle
between the “Charge”, “Discharge”, “Test” and “Refresh” mode.)
Note:
 After selecting the Test mode, user may select different charging current in the Test
mode by pressing the CURRENT key, within 8 seconds after the batteries are inserted.
The afterward-discharging current will be half of the selected charging current (see Table
3).

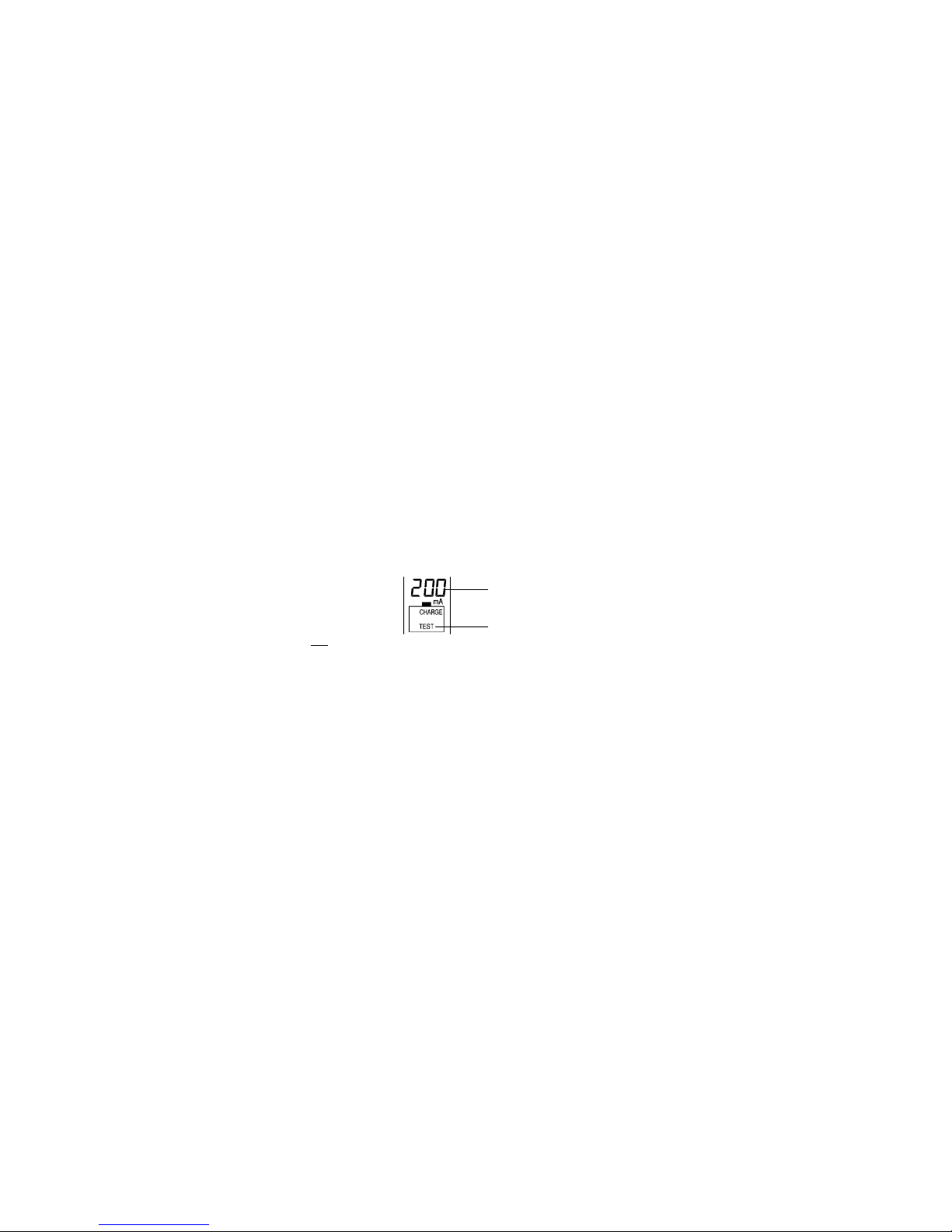

Test mode
The Charging
current in (mA)
