La San Marco PLUS 5 User manual

QUICK START GUIDE
7770.047

MACHINE DESCRIPTION
LEGEND
1 . PRODUCT CANISTER
2 . PRODUCT CANISTER / COFFEE HOPPER
3 . COFFEE HOPPER
4 . CARD READER
5 . DECAFFEINATED DOOR
6 . INFO BUTTON
7 . DISPLAY
8 . SHIFT BUTTON
9 . DOSE BUTTON
10 . RUBBER PROTECTION
11 . DOOR LOCK
12 . STEAM WAND
13 . ADJUSTABLE DELIVERY OUTLETS
14 . DRIP TRAY
15 . GROUNDS BIN
Only for US market (ETL Sanitation): The equipment shall be installed with backflow protection to
comply with applicable federal, state and local codes.
14
12
10
2
3
5
9
11
13
15
7
1
4
6
8

STARTING UP
After checking that the machine door is closed and the ground bin and the drip tray are inserted, power on the machine by means of the
main switch underneath the machine basement (Fig.A).
keep key SHIFT pressed and then press key INFO, (Fig.B) and the machine will set itself to on state.
(FOR SELF CONFIGURATION , keep key SHIFT pressed and then press key INFO, before closing the
machine front door).
When the boiler temperature of 50°C (122°F) is reached, the machine carries out a group rinsing. The display shows:
When the set-up temperature is reached, the keypad lights are on and the display shows:
For machine configuration Standard or Self:
DISPLAY THE AVAILABLE DRINKS SELECTION AND BOILERS TEMPERATURE
Press the INFO key with the machine in SELECT DRINK mode to display the available drinks selection :
Press the SHIFT key to display the available drinks selection for the SHIFT drink keys.
Where T1 / T8 indicate the numbers of the drink keys.
Press twice the INFO key with the machine in SELECT DRINK mode to display the boilers temperature :
Where XXX indicates the coffee boiler temperature and YYY indicates the steam boiler temperature.
T1 ESPRESSO BLACK COFFEE T2
T3 CAPPUCCINO LATTE MACCHIATO T4
T5 CHOCO MOCHA T6
T7 STEAM HOT WATER T8
COFFEE TEMPERATURE
XXX
STEAM TEMPERATURE
YYY
SELECT DRINK
G.AUTO CLEANING
B) keep key SHIFT pressed and then press key INFO.
Fig.B
A) Power on the machine by means the main switch
underneath the machine basement.
Fig.A

DISPENSING
1) COFFEE/CAPPUCCINO/CHOCO DISPENSING
Adjust the coffee dispenser to the correct height and place a cup under it then press the desired dose key.
For Waiters’ Card place the smart card above the proper reader before pressing the dose key.
The display shows:
Where “XXXXXXXX” indicates the selected dose key name.
The filling up of the cup icon indicates the amount of drink being dispensed.
PLEASE NOTE:
Pressing the same dose key during dispensing can stop the selected dose (not available for Self configuration).
By means of the SHIFT button the 8 selections can be tripled for a total of 24 drink doses. Press SHIFT button once or twice to
switch the second or third dose drinks menu.
2) HOT WATER DISPENSING
Adjust the hot water outlet to the correct height and place a cup under it, then press the hot water key. Dispensing will be automatically
stopped once the programmed dose is over. The display shows:
PLEASE NOTE:
Pressing the same dose key during dispensing may stop the selected dose.
WARNING:
Hot water cannot be dispensed simultaneously with steam.
3) DECAFFEINATED DISPENSING (not available for Self configuration)
Adjust the coffee dispenser to the correct height and place a cup under it , then open the decaffeinated coffee door, the display shows :
SELECT DRINK
- Pour in the powdered coffee
- Close the decaffeinated door
- Press the desired dose key. The display shows:
The selected dose will be dispensed without the activation of the grinders.
PLEASE NOTE:
If the decaffeinated door is not closed, or if the dose button is not selected, the machine will automatically cancel this function after 20
seconds. The coffee group will carry out a cleaning cycle of the brewing chamber. The display shows:
4) EXTRAMILK DISPENSING (only LM machine, not available for Self configuration)
Press any milk-based key and keep it pressed, after 2 seconds foamed milk will start being dispensed, the display shows:
By releasing the pressed key, dispensing will be stopped.
XXXXXXXX
HOT WATER
XXXXXXXX
EXTRA MILK

2► Use the steam wand to foam or
heat any liquid into the jug by
handling the rubber protection.
STEAM WAND USE AND CLEANING
STEAM WAND NOT AVAILABLE FOR MACHINE IN SELF CONFIGURATION
WE STRONGLY RECOMMEND TO USE AND CLEAN THE STEAM WAND AS ABOVE SHOWN
6► DO NOT leave the steam wand into
any liquid at any time
5► Clean the steam wand by means
of a cloth
1► Before using the steam wand press
the steam button to purge the nozzle. 3► Press the steam button to stop the delivery before removing the jug.
4► After using the steam wand press
the steam button to purge the nozzle

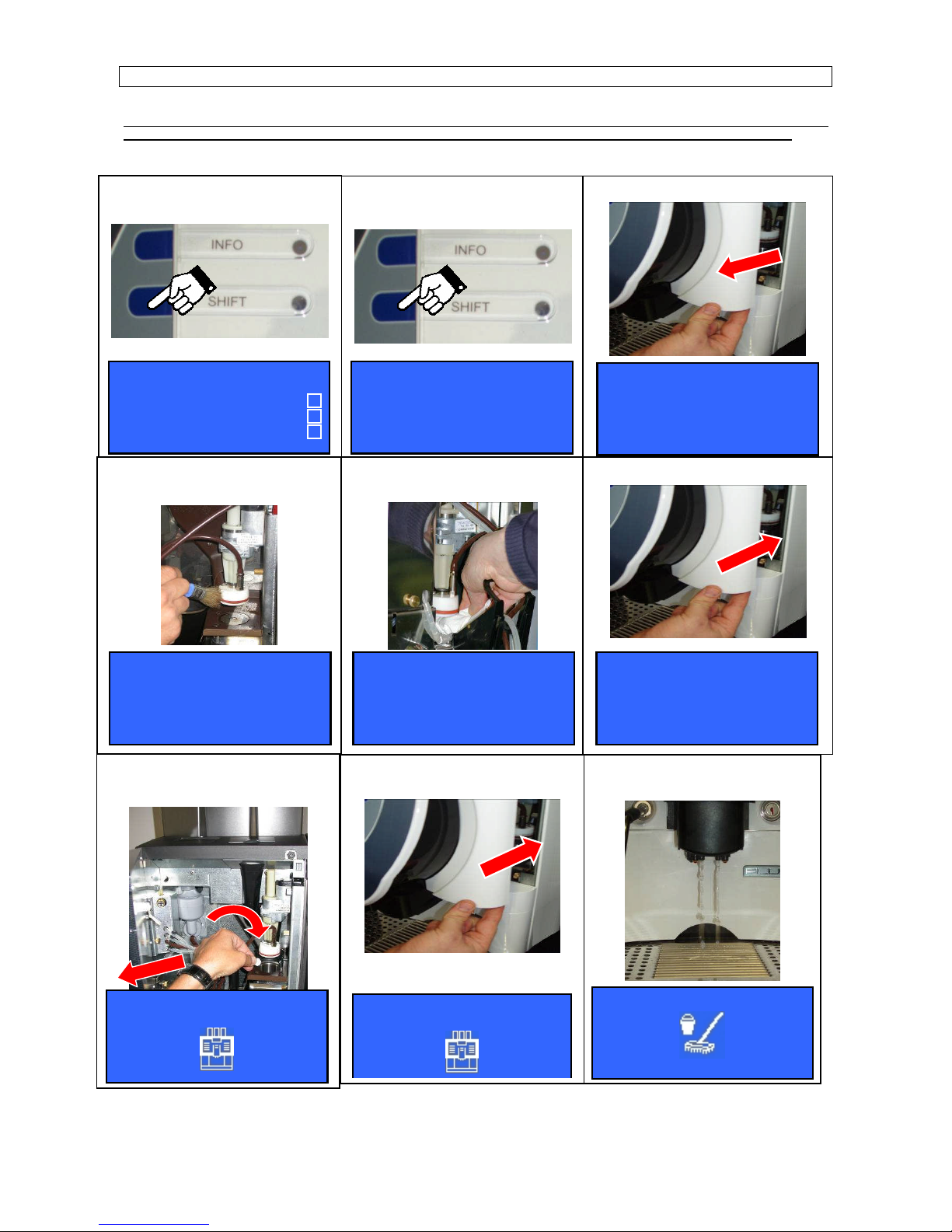

AUTOMATIC CLEANING OF COFFEE GROUP- MIXER AND MILK FROTHER
AT THE END OF EACH WORKING DAY , AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY
RECOMMEND TO CARRY OUT AUTOMATIC CLEANING OF THE COFFEE GROUP ,THE MIXER AND THE MILK FROTHER.
2
►
Press (Shift) key to start the group
cleaning cycle.
5
►
Clean the group filters by means of a
cloth.
1
►
Keep (Shift) key pressed for five
seconds.
GROUP
CLEANING
PRESS SHIFT BUTTON
GROUP CLEANING
MIXER CLEANING
MILKER CLEANING
3
►
Open the machine door.
4
►
Clean the group from any coffee
residues.
7
Open the front door -1-, insert the
detergent tablet into the brewing chamber
-2-
6
►
Close the front door.
GROUP CLEANING
OPEN FRONT PANEL
AND CLEAN COMPONENT
GROUP CLEANING
OPEN FRONT PANEL
AND CLEAN COMPONENT
GROUP CLEANING
CLEAN &
CLOSE FRONT PANEL
GROUP CLEANING
CLEAN &
CLOSE FRONT PANEL
GROUP CLEANING
CLEAN &
CLOSE FRONT PANEL
GROUP CLEANING
INSERT CLEANSER
9
►
Wait the end of the group cleaning
cycle delivery.
GROUP
CLEANING
ENDS IN XX Sec.
8
►
Close the front door
GROUP CLEANING
INSERT CLEANSER
1
2

1
6
►

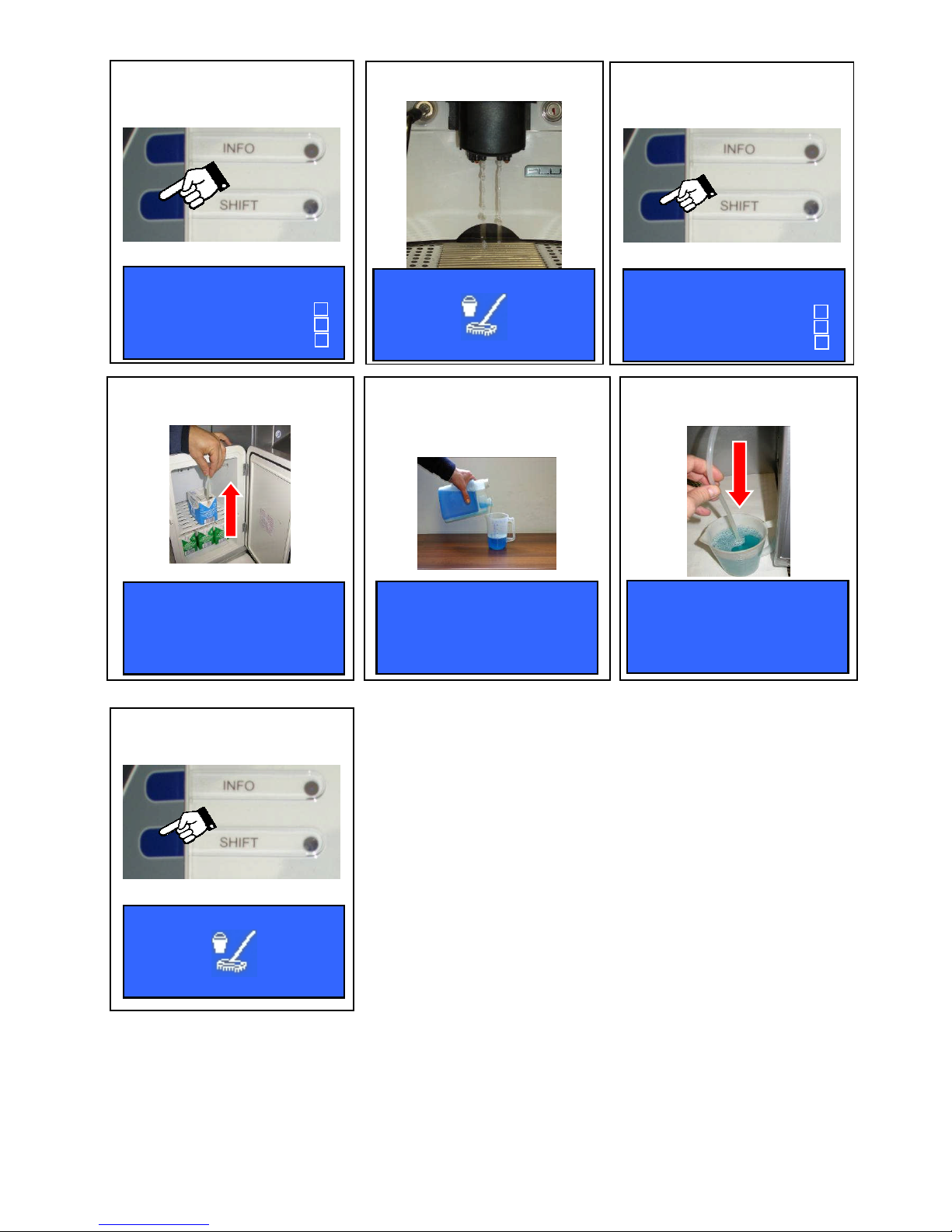

Press (Shift) key to start the milker
cleaning cycle.
1
1
►
Wait the end of the Mixer cleaning
cycle delivery.
1
5
►
Insert the milk feeding tube into a
container with detergent
1
4
►
Prepare a solution of water and
detergent (q.ty 200ml for standard
version, 500ml if milk pump present) by
following the instructions indicated in the
product label
1
3
►
Take the milk feeding tube out of the
milk box
10
►
Press (Shift) key to start the Mixer
cleaning cycle.
MIXER
CLEANING
PRESS SHIFT BUTTON
GROUP CLEANING √
MIXER CLEANING
MILKER CLEANING
MIXER
CLEANING
ENDS IN XX Sec.
1
2
►Press (Shift) key to start the milker
cleaning cycle.
MIXER
CLEANING
PRESS SHIFT BUTTON
GROUP CLEANING √
MIXER CLEANING √
MILKER CLEANING
MILKER
CLEANING
INSERT
CLEANING SOLUTION
PRESS SHIFT BUTTON
MILKER
CLEANING
INSERT
CLEANING SOLUTION
PRESS SHIFT BUTTON
MILKER
CLEANING
INSERT
CLEANING SOLUTION
PRESS SHIFT BUTTON
MILKER CLEANING
ENDS IN XX Sec.

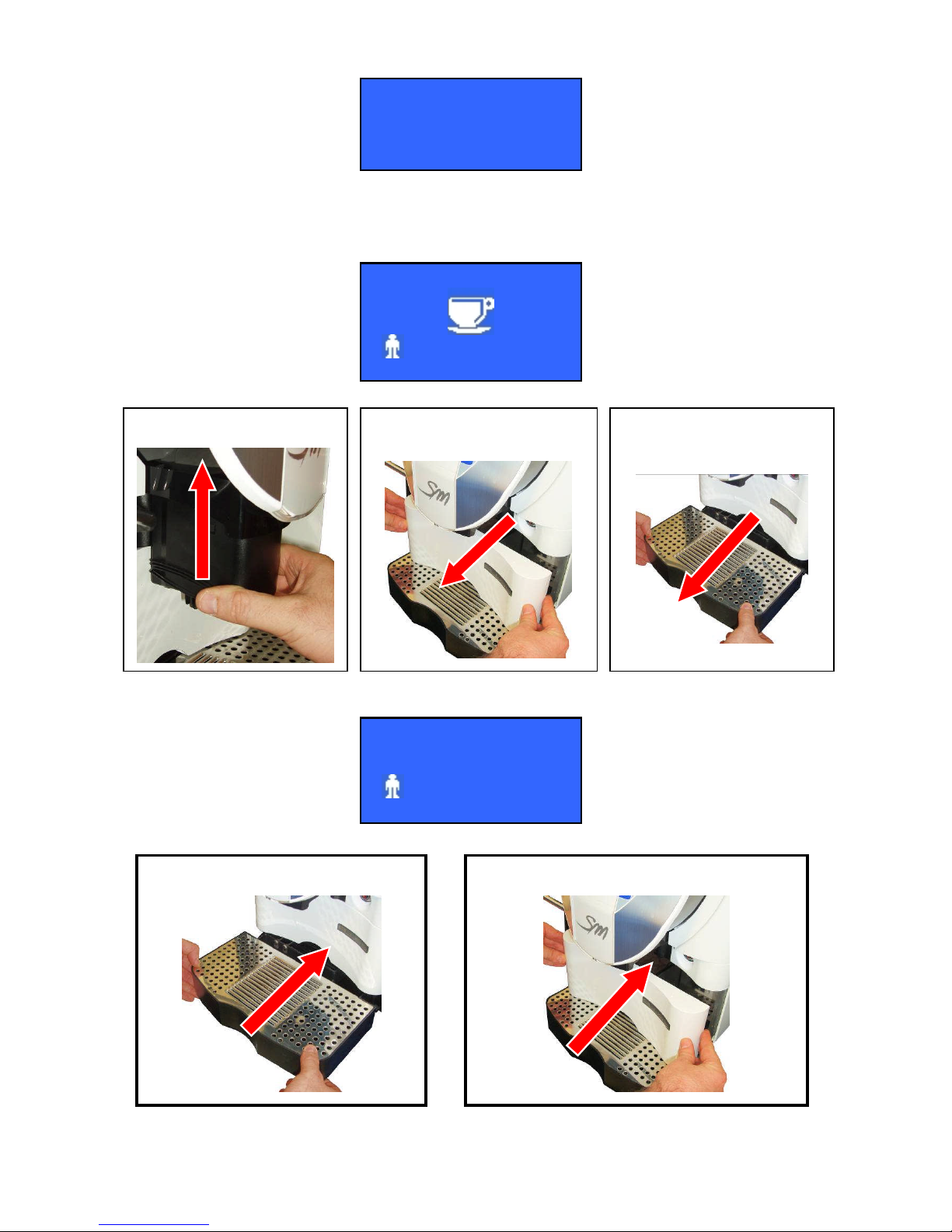

17►AT THE END OF THE MILKER CLEANING CYCLE THE DISPLAY WILL SHOW :
- Put the milk infeed pipe into a glass of cold water
- Press (Shift) key,the milk frother will start dispensing another cleaning cycle only with water.
AT THE END OF THE MILKER CLEANING CYCLE WITH ONLY WATER THE DISPLAY WILL SHOW :
21►WAIT AT LEAST 5 SECONDS , THE DISPLAY WILL SHOW :
MILKER
CLEANING
REPEAT CLEAN
USING ONLY WATER
PRESS SHIFT BUTTON
SELECT DRINK
GROUNDS BIN FULL
1
9
►
Remove and empty the grounds
bin.
20
►
Remove and empty also the drip
tray. ( only for machines without direct
water discharge )
SELECT DRINK
GROUNDS BIN OPEN
2
2
►
Reinsert the drip tray.
1
8
►
Lift the coffee outlets completely.
2
3
►
Reinsert the grounds bin .

PLEASE NOTE:
a) Do not interrupt the cleaning cycle. If the cleaning cycle is interrupted by any type of operation unrelated to the procedure, when the
machine functioning is set back again, the cleaning cycle will automatically be activated.
b) Only in case that after the automatic cleaning process of the coffee outlet or the milk frother are not properly dispensing, carry out a
manual cleaning; see the following steps.
FOR CLEANING OPERATIONS , La San Marco S.p.A. STRONGLY RECOMMEND TO USE THE FOLLOWING DETERGENT
PRODUCTS:
CLEANING TABLETS MILK FROTHER CLEANER
100 Tablets ( 1.2gr.) Code N° 06.00133 1 Litre per 60 cleaning Code N° 06.00136
MANUAL CLEANING OF MILK FROTHER AND COFFEE OUTLET
1
►Remove the coffee outlet from its
holder .
2
► Remove the milk frother from the
coffee outlet and disconnect Silicone
tubes No. -3- and -4.
4
►Disassemble the milk frother in all its
parts (first by turning and then by pulling as
shown in the picture) and wash it either by
hand or in a dishwasher. Make sure that all
the holes are free from milk residues and
also to use provided tools to clean the
holes. Check also that the O-rings are in
good condition
5►Disassemble the coffee outlet (1)
and wash it by hand or in a dishwasher.
Make sure that all the holes are free
from any coffee residues , and also to
use provided tools to clean the holes.

MANUAL CLEANING OF MIXER
WE STRONGLY RECOMMEND CLEANING THE MIXERS ONCE A DAY
1►Open the machine door
2
► Remove the pipe from the mixer
3
► Turn the flange 1 anticlockwise,
then remove the mixer 2
4
►
Remove the Decanter
5
►
Rinse the Mixer and the Decanter
in a sink
7
►
Turn the flange clockwise to
reinsert the mixer
8
► Reinsert the pipe from the mixer
6
►
Reinsert the Decanter
21

OTHER RECOMMENDED CLEANING
DRIP TRAY CLEANING GROUNDS BIN CLEANING
HOPPER CLEANING DISPENSER CLEANING
Once a day rinse the grounds bin in a
sink.
Once a day rinse the drip tray in a sink.
a) Turn the screw on the top of the
machine anticlockwise and then
remove the dispenser.
b) Once a week clean the dispenser
by means of a cloth and approved
food detergent.
a) Turn the screw on the top of the
machine anticlockwise and then
remove the hopper.
b) Once a week clean the hopper by
means of a cloth and approved food
detergent.

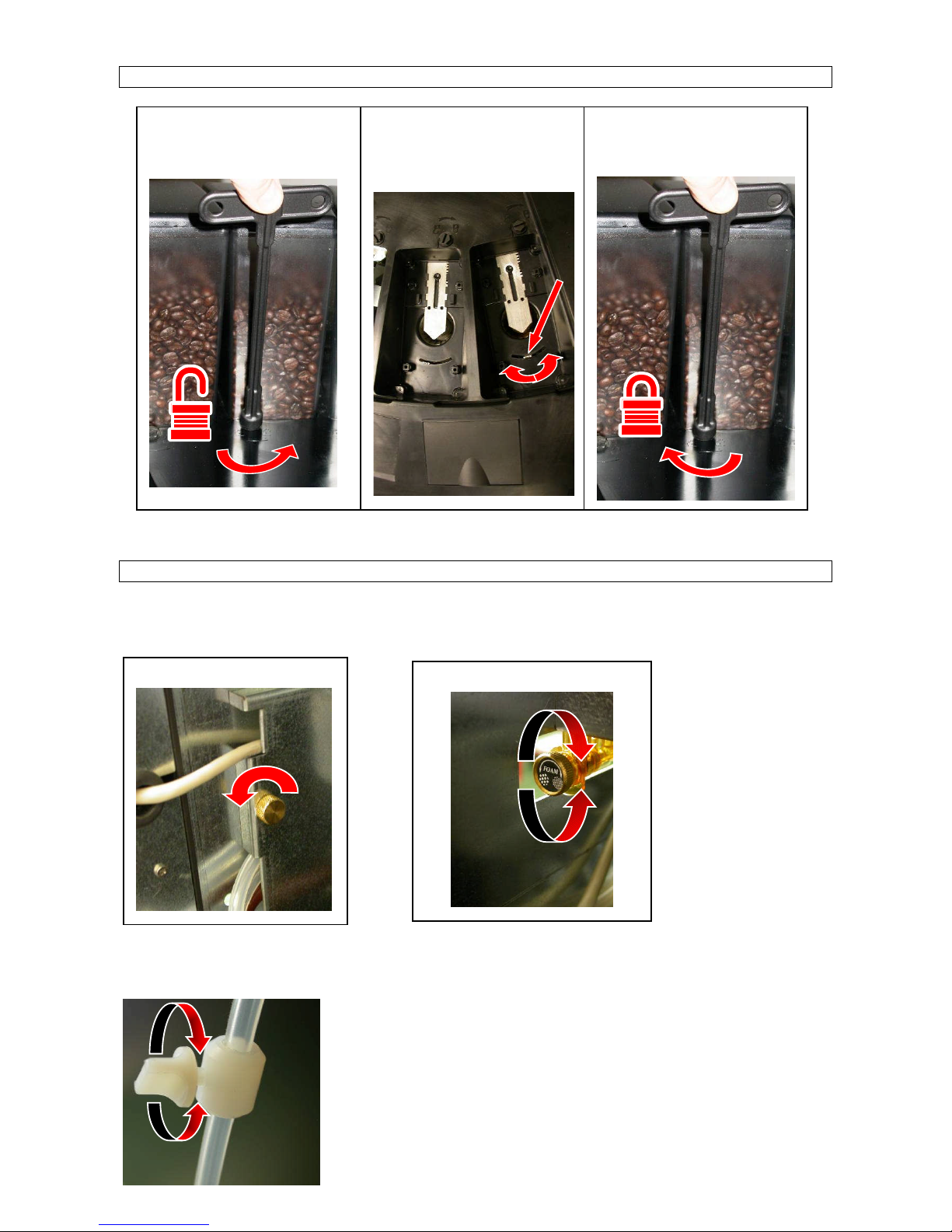

GRINDERS ADJUSTMENT
Please Note: Brew and throw two doses, the third one will be dispensed with the new grinder set
MILK FROTHER ADJUSTMENT
Foam setting
The milk frother is equipped with a FOAM REGULATOR which sets the quantity of air needed to froth milk.
Open the machine door and remove the metal cover of the air regulator on the left hand side of the machine. Fig A.
Turn the ring nut clockwise for thicker foam (small bubbles), or turn it anticlockwise for more voluminous foam (large bubbles) Fig.B.
.
lk temperature setting
The milk frother is equipped with a MILK TEMPERATURE REGULATOR which reduces the quantity of sucked milk.
Turn the regulator clockwise to increase the milk temperature, or turn it anticlockwise to reduce it.
Fig.A Fig.B
a) Turn the screw on the top of
the machine anticlockwise and
then remove the hopper.
b) Move the adjustment to the
right to get coarse coffee powder,
to the left for finer.
c) Reinsert the hopper and lock it
by turning the screw clockwise.

a) Lift the coffee outlets completely

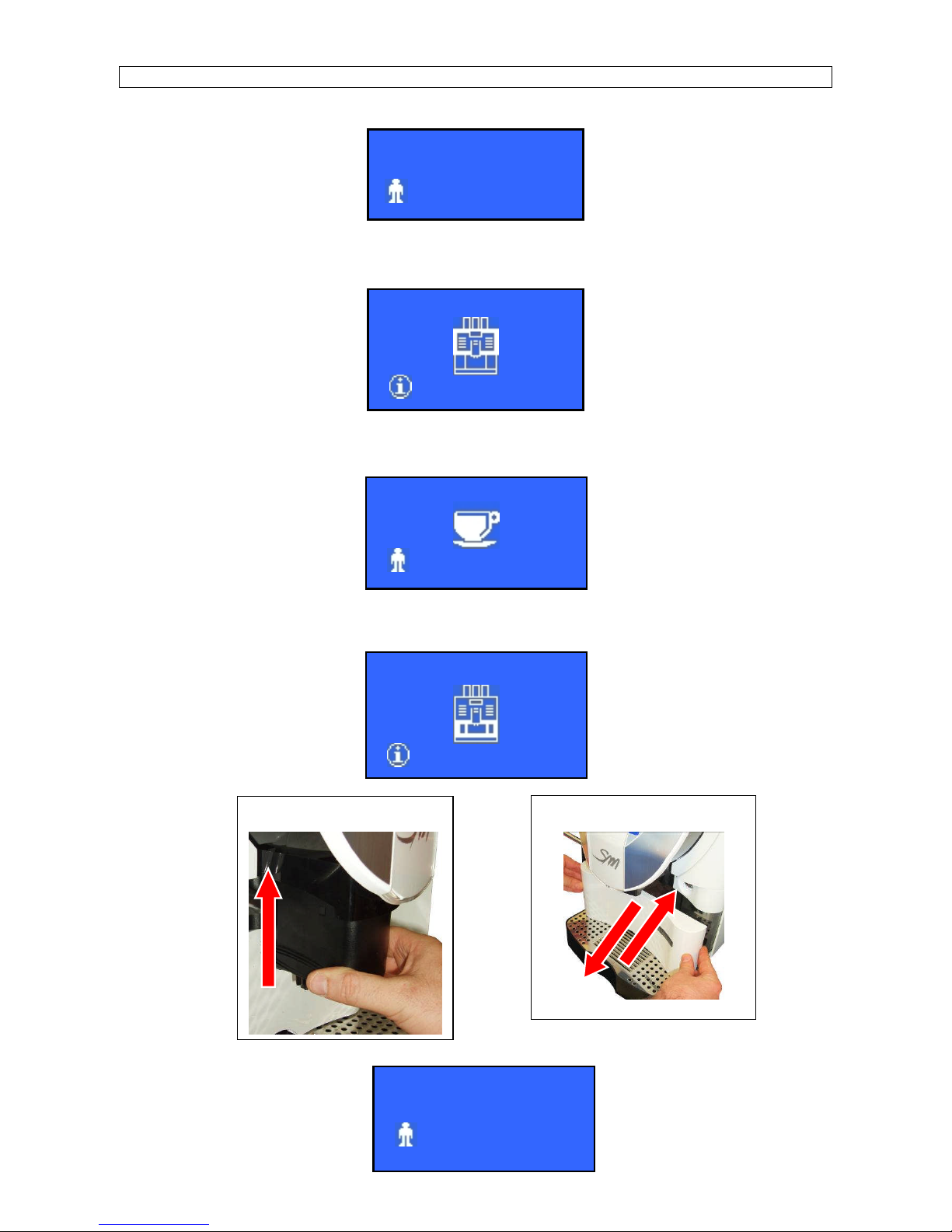

MACHINE FUNCTIONS MESSAGES
1) Alarm for machine door position
OFF
OPEN DOOR
Cause: the front door is open; the micro switch does not touch the door
Result: shutdown of the machine functions
Solution: press ( Info ) key, the display shows :
CLOSE FRONT PANEL
OPEN DOOR
Close the door and turn the machine ON.
2) Full grounds bin alarm
Cause: grounds bin full; the number of coffee grounds in the bin has reached the programmed value
Result: shutdown of the coffee-based dispensing selections
Solution: press ( Info ) key, the display shows :
After 10 seconds the display shows :
SELECT DRINK
GROUNDS BIN FULL
SELECT DRINK
GROUNDS BIN OPEN
b) Remove and empty the grounds bin.
EMPTY GROUNDS BIN
WAIT 10 SEC.
GROUNDS BIN FULL

Press ( Info ) key, the display shows :
CLOSE THE GROUNDS BIN
GROUNDS BIN OPEN
Reinsert the grounds bin into its housing.

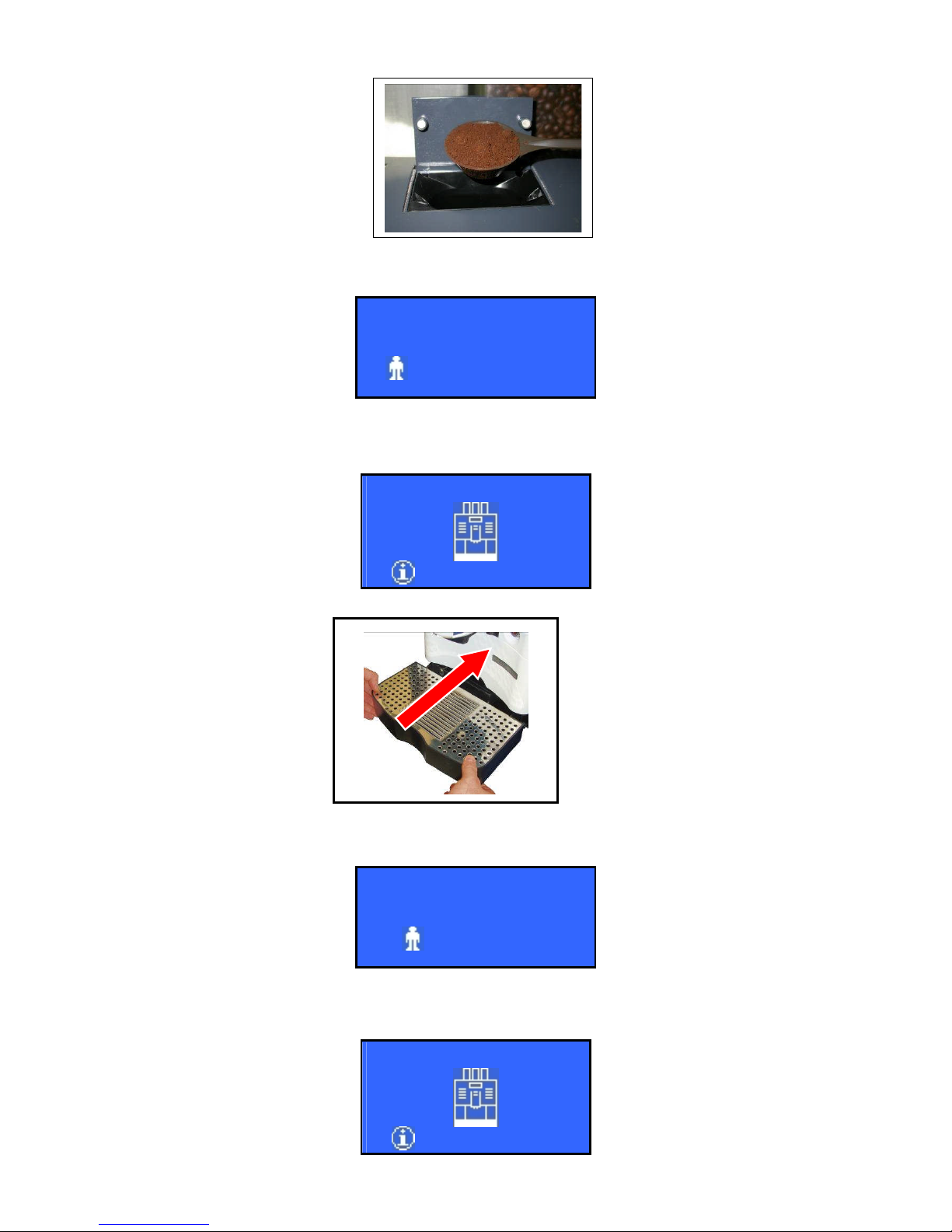

3) Message of missing coffee
Cause: there is no coffee into the hopper and therefore into the brewing chamber
Result: the machine interrupts the coffee-based dispensing selections
Solution : press ( Info ) key, the display shows :
to reset the alarm put coffee into the hopper and press again the dose required.
4) Message of missing decaffeinated
Cause: Missing coffee in the decaffeinated door and in the brewing chamber
Result: The machine interrupts the decaffeinated dispensing selections
Solution : press ( Info ) key, the display shows :
To reset the alarm put decaffeinated into the decaf door and press again the dose required.
SELECT DRINK
MISSING COFFEE
FILL THE HOPPER
MISSING COFFEE
SELECT DRINK
MISSING DECAF.
INSERT DECA COFFEE
POWNDER 7/8 gr. min.
MISSING DECAF.

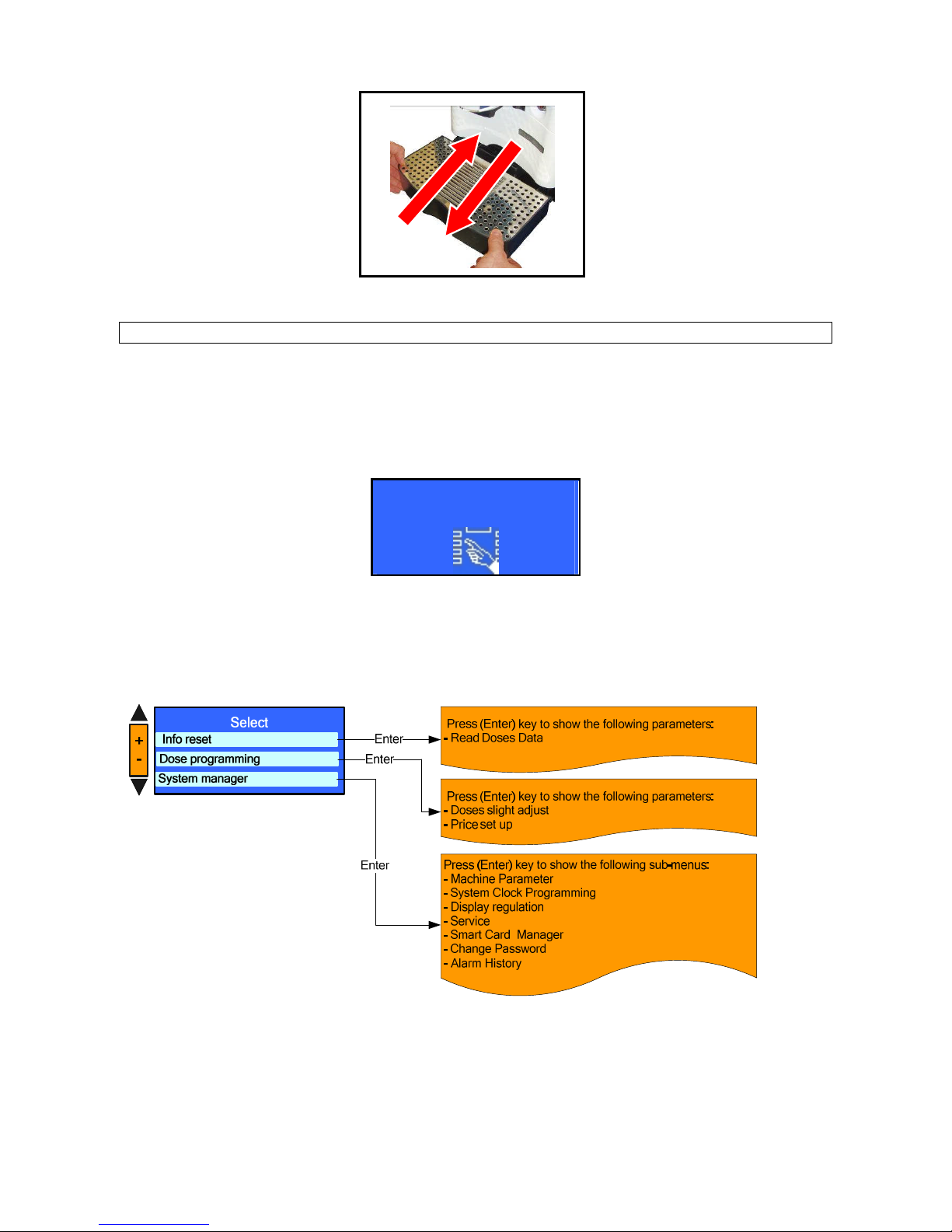

5) Message of drip tray not in position.
The display will show the following message:
Cause: the drip tray is not in position. The micro switch contact is open.
Result: The message is displayed without disabled the dispensing keys.
Solution : press ( Info ) key, the display shows :
reinsert the drip tray.
6) Message of drip tray full. ( ONLY FOR MACHINES WITHOUT DIRECT WATER DISCHARGE )
The display will show the following message:
Cause: waste bin is full. The quantity of water inside the drip tray touches the level probe .
Result: shutdown of the dispensing keys.
Solution : press ( Info ) key, the display shows :
SELECT DRINK
DRIP TRAY OUT
INSERT DRIP TRAY
DRIP TRAY OUT
SELECT DRINK
DRIP TRAY FULL
EMPTY THE DRIP TRAY
DRIP TRAY FULL

remove the drip tray and empty it.
PLEASE NOTE: FOR ALL OTHER MESSAGES PLEASE REFER TO YOUR SERVICE CENTER.
ACCESS THE MAIN SETTING MENUS WITH PASSWORD OR SMART-CARD
A) ACCESS THE MAIN SETTING MENUS WITH PASSWORD
To enter the programming environments, a password is required which define the access rights to the different environments.
The password must be composed with 5 numbers.
To insert the passwords proceed as follows:
-Turn the machine OFF
-Keep “SHIFT” key pressed for 5 seconds. The display shows:
Enter one of the following passwords:
-Waiter 6 1 1 1 1
-Owner 2 2 2 2 2
After insert the password the display shows the main menu programming environments:
PASSWORD
-----

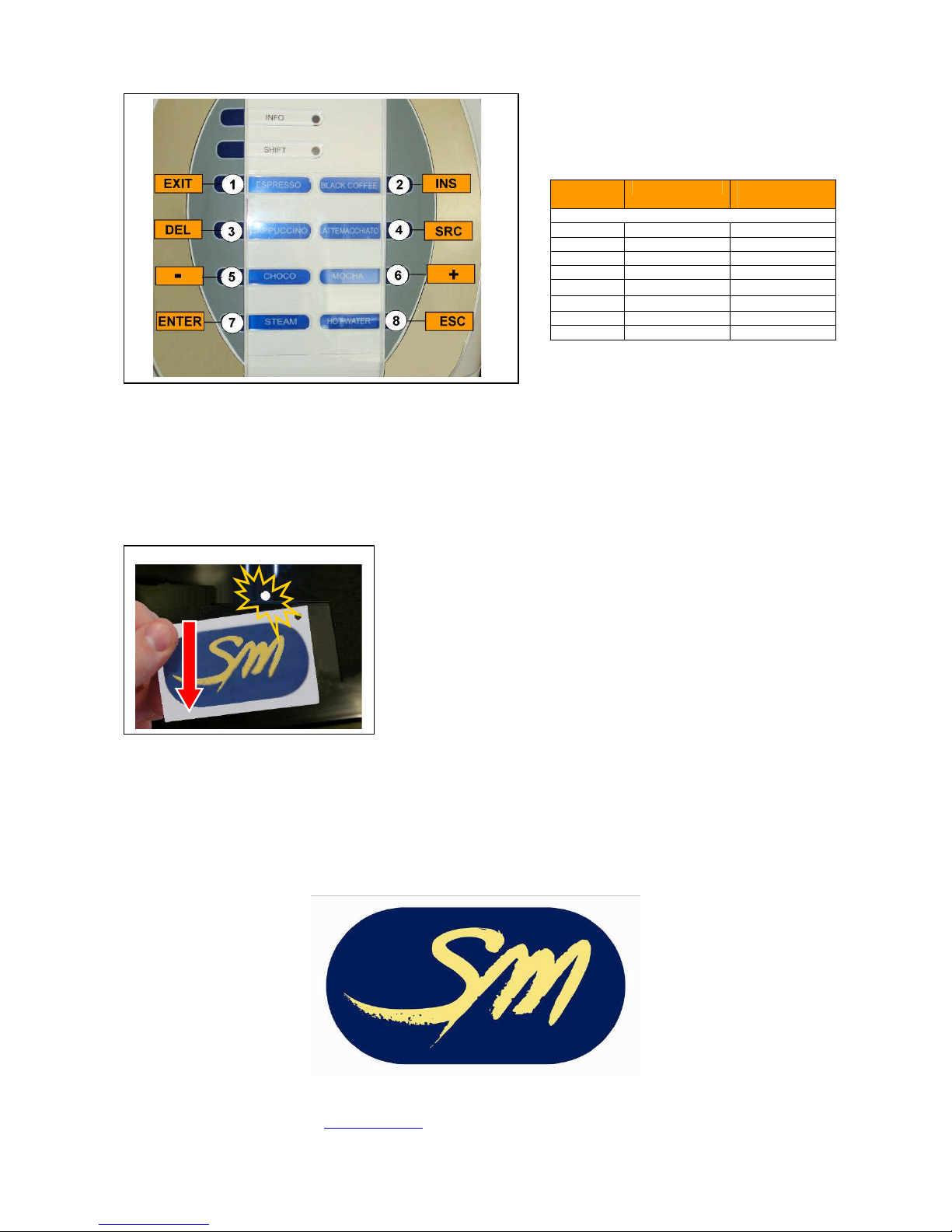

B) ACCESS THE MAIN SETTING MENUS WITH SMART CARD
To enter the programming environments, place one of the following smart cards above the proper reader with the led light ON with the
machine in OFF mode:
-WAITER SMART CARD
-OWNER SMART CARD
if the inserted card it is correct the reader led light off .
Keep “SHIFT” key pressed for 5 seconds, the display shows the main menu programming environments as above described.
Via Padre e Figlio Venuti , 10 - 34072 Gradisca d’Isonzo (GO) - Italia
Phone: [phone] Fax: [phone]
www.lasanmarco.it
KEYS
NUMBER
FUNCTION PASSWORD
NUMBER
1 Exit (edit ) 1
2 Insert blank 2
3 Delete character 3
4 Scroll 4
5-5
6+6
7 Enter 7
8 Esc 8
