ALLEY-GATOR RIGHT-HANDTM
OPERATOR’S MANUAL

ALLEY-GATOR RIGHT-HANDTM
OPERATOR’S MANUAL

Liability
In no event shall Labrie Enviroquip Group assume liability for any incidental, consequential or
special risks or damages arising from the use or misuse of the information provided herein, breach of
warranty, breach of contract, negligence, strict tort liability or any other legal theory and/or
hypothesis.
Such damages include but are not limited to: loss of profits, savings, capital or revenue, loss of use of
refuse body, parts, components or assemblies, cost of rental equipment, facilities or services resulting
from downtime, claims from third parties (including customers) of injury or damage of property, cost
of towing, transporting or storing equipment, cost of lodging and transportation for any persons.
All risks and damages, incidental or otherwise, are entirely the responsibility of the user.
Labrie Enviroquip Group will not assume responsibility for errors or omissions or subsequent design
changes with regard to the materials provided herein.
NOTE:Manual subject to change without notice.
September 2018

Liability ........................................................................................ ii
Table of Contents ........................................................................ v
Introduction ................................................................................ 1
Pre-operating Instructions ............................................................................................................................................................ 1
Mission Statement ........................................................................................................................................................................... 1
Vision Statement ............................................................................................................................................................................... 1
Introducing the ALLEY-GATOR RIGHT-HANDTM ........................................................................................................................... 2
Product Overview ...................................................................................................................................................................... 2
Standard Limited Product Warranty .......................................................................................................................................... 5
To Contact Labrie Plus .................................................................................................................................................................... 7
In the U.S. ...................................................................................................................................................................................... 7
In Canada ...................................................................................................................................................................................... 7
Safety ........................................................................................... 9
Safety Precautions for the Employer ......................................................................................................................................... 9
Safety Precautions for the Employee ..................................................................................................................................... 10
ALLEY-GATOR RIGHT-HANDTM Road Rules .................................................................................................................................. 11
Safety Decal Categories ............................................................................................................................................................... 11
Safety Decals and Locations ...................................................................................................................................................... 12
Operating Safely ............................................................................................................................................................................ 23
Safety Features ............................................................................................................................................................................... 23
Automatic Grease System ................................................................................................................................................... 23
Counter Balance Valves ........................................................................................................................................................ 23
Grease Manifold ...................................................................................................................................................................... 23
Pilot Operated Check Valves .............................................................................................................................................. 24
Environmental Spill Kit (optional) ..................................................................................................................................... 24
Access Ladder Proximity Switch (optional) ................................................................................................................... 24
IQAN MDM Master Control Module ................................................................................................................................. 25
Fire Extinguisher ..................................................................................................................................................................... 26
First Aid Kit ................................................................................................................................................................................ 27
Triangle Kit ................................................................................................................................................................................ 27
Global Motion Sensors (optional) ..................................................................................................................................... 27
Rear Vision Camera (optional) ........................................................................................................................................... 27
Hopper Camera/Side Door Camera (optional) ............................................................................................................ 28
Hoist Safety Prop .................................................................................................................................................................... 28
Tailgate Safety Pins ................................................................................................................................................................ 29
Tailgate Safety Prop ............................................................................................................................................................... 29
Safety Lockout Tests ..................................................................................................................................................................... 30
Access Ladder Proximity Switch (if equipped) ............................................................................................................. 30
Arm Limit Switches (2) .......................................................................................................................................................... 31
Hopper Cover Proximity Switch (if equipped) ............................................................................................................. 32
Body Raised Proximity Switch ............................................................................................................................................ 33
Lockout Reference Chart ..................................................................................................................................................... 34
Lockout/Tagout Procedure ................................................................................................................................................. 34
Utilizing Tailgate Pins ................................................................................................................................................................... 35
Positioning the Tailgate Safety Prop ...................................................................................................................................... 36
Stabilizing a Hoisted Body .......................................................................................................................................................... 38
Table of Contents

vi Table of Contents
In-Cab Control Console ............................................................. 41
ALLEY-GATOR RIGHT-HANDTM ASL Control Console ............................................................................................................... 42
Auto-Pack Switch .................................................................................................................................................................... 42
Hydraulic Pump Shutoff Push/Pull Button .................................................................................................................... 42
Danger Warning Lamp .......................................................................................................................................................... 43
Caution Warning Lamp ......................................................................................................................................................... 43
Eject/Reverse Switch .............................................................................................................................................................. 44
Body Up / Down Switch ........................................................................................................................................................ 44
Doors Enable Switch .............................................................................................................................................................. 45
Hopper Cover/Crusher Panel Switch ............................................................................................................................... 46
Rear Door Up/Down Switch ................................................................................................................................................ 47
Remote Joystick Control ....................................................................................................................................................... 47
Hopper Lamp Switch ............................................................................................................................................................. 48
Pack Lamp Switch ................................................................................................................................................................... 48
Backup Lamp Switch .............................................................................................................................................................. 49
Strobe Lamp Switch ............................................................................................................................................................... 49
MDM Control Module ............................................................................................................................................................ 50
Lift Controls ...................................................................................................................................................................................... 50
Joystick / Thumbswitch ........................................................................................................................................................ 50
Auxiliary Arm Controls ................................................................................................................................................................. 51
Operating Position Switch .......................................................................................................................................................... 53
Operating the ALLEY-GATOR RIGHT-HANDTM ............................... 55
Prior to Vehicle Operation .......................................................................................................................................................... 55
Qualified Operators Only ..................................................................................................................................................... 55
Operator Pre-Trip Inspection: Prior to Starting the Vehicle ............................................................................................ 56
Arm Inspection Procedure ................................................................................................................................................... 56
En Route ............................................................................................................................................................................................ 58
Loading the Hopper ...................................................................................................................................................................... 59
Auto-Packing ................................................................................................................................................................................... 61
ASL Body Capacity ......................................................................................................................................................................... 61
Preparing to Drive to the Landfill ............................................................................................................................................. 61
Preparing to Unload at the Landfill ......................................................................................................................................... 61
Unloading at Landfill .................................................................................................................................................................... 62
Hopper & Body Cleaning ............................................................................................................................................................. 63
Transportation Preparations ...................................................................................................................................................... 63
Shutting Down your ASL ............................................................................................................................................................. 64
Note:
Readers can go directly to chapters or sections by clicking the links in the Table of Contents.

1Introduction
The purpose of this manual is to introduce operators
to the operational procedures of the ALLEY-GATOR
RIGHT-HANDTM. For information regarding
maintenance procedures, refer to the maintenance
manual of the ALLEY-GATOR RIGHT-HANDTM.
Pre-operating Instructions
It is imperative that you have carefully reviewed this
manual prior to operating and/or performing any
maintenance on your new ALLEY-GATOR RIGHT-
HANDTM Automated Side Loader.
Upon receipt of your new ALLEY-GATOR RIGHT-
HANDTM, perform a complete lubrication of the unit.
Mechanisms must be properly lubricated (see
lubrication decal affixed to the side of body for details).
Factory lubrication is adequate for production and
transport purposes only. In addition, the return filter
element must be replaced after 50 hours of use. Refer
to the maintenance manual for instructions.
Mission Statement
Labrie Enviroquip Group is dedicated to provide
innovative designs, customized quality equipment and
elite customer service.
Vision Statement
The team at Labrie Enviroquip Group will successfully
lead the way the world views waste management. We
will excel at enhancing our community and protecting
the global environment. We are committed to being a
profitable company for our customers, shareholders
and employees.
Warning! ALLEY-GATOR RIGHT-HANDTM units must be
operated by only one person.

2Introduction
Introducing the ALLEY-GATOR RIGHT-HANDTM
The ALLEY-GATOR RIGHT-HANDTM is a straight-frame, side-loading vehicle, manufactured to the
highest standards, designed to fully automate the collection of residential and commercial trash and
organics.
The Right-Hand™ arm (Figure 1-1), which is a zero-grab arm, is ideal for narrow streets. Its very long
reach (12 feet), in-line design and great lifting capacity (1000 lbs) makes bin collection real easy even
between parked cars and other obstacles. The Right-Hand™ arm delivers the smoothness, the
precision and the speed you expect from an automated arm.

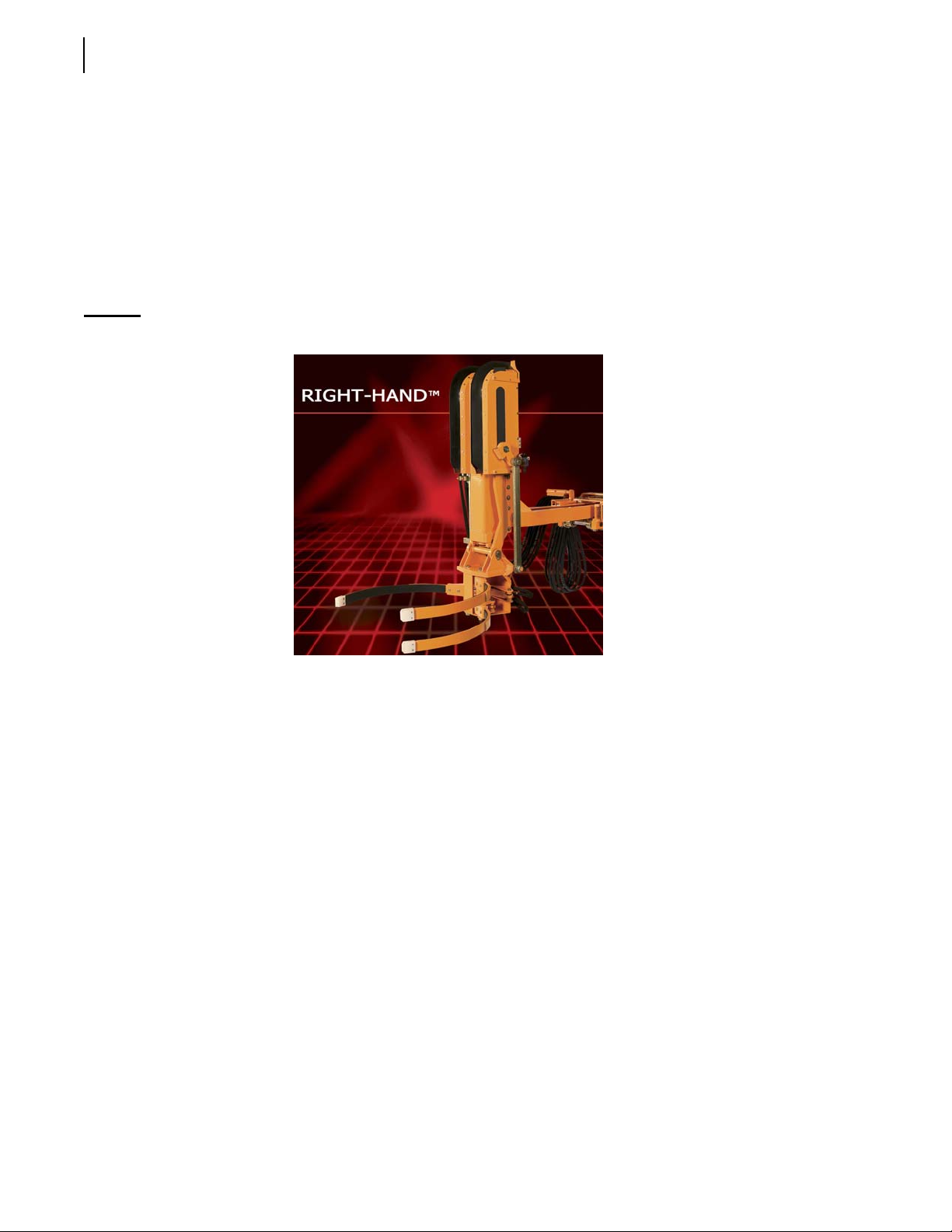

Figure 1-1 Right-Hand™ arm
The ALLEY-GATOR RIGHT-HANDTM uses a special type of packing system that is perfect for organic
collection: the Pendulum Packer system.
Also, the ALLEY-GATOR RIGHT-HANDTM offers a wide array of features: its hopper is leak free, has no
blade and no clean-out door. The single stage packing cylinders are located outside the hopper protected
from trash and waste products. The Pendulum packing system eliminates trash “build-up” behind the
packing panel allowing the hopper to “self-clean”; hence no need for the operator to clean behind the
blade.
The result is a productive, safe and easy-to-maintain truck fitted perfectly for organics collection.
Product Overview
The ALLEY-GATOR RIGHT-HANDTM has everything you need to perform your work efficiently: a large
hopper, fast packing cycles, an efficient unloading process, great payload capacity and powerful
hydraulics.

Introduction 3
Figure 1-2 The A LLEY -G ATOR R IGHT -H AND
TM
Body’s main components are the hopper (see Figure 1-4), the packer (see Figure 1-3) and the tailgate
(see Figure 1-3).
The hopper is the area of the body where refuse is dumped. The packer is the piece of equipment that
pushes refuse into the body. The tailgate is the rear pivotal door that prevents refuse from exiting the
body during collection. At landfill, the tailgate is raised to enable the discharge of refuse.
Figure 1-3 Pendulum type packer (left); tailgate (right)
Figure 1-4 Hopper

4Introduction
In the cab, you will find the console on which the auto-pack and hydraulic pump switches are located
(see Figure 1-5) as well as the arm joystick (see Figure 1-6) and the auxiliary arm/gripper controls, if
equipped (see Figure 1-7).

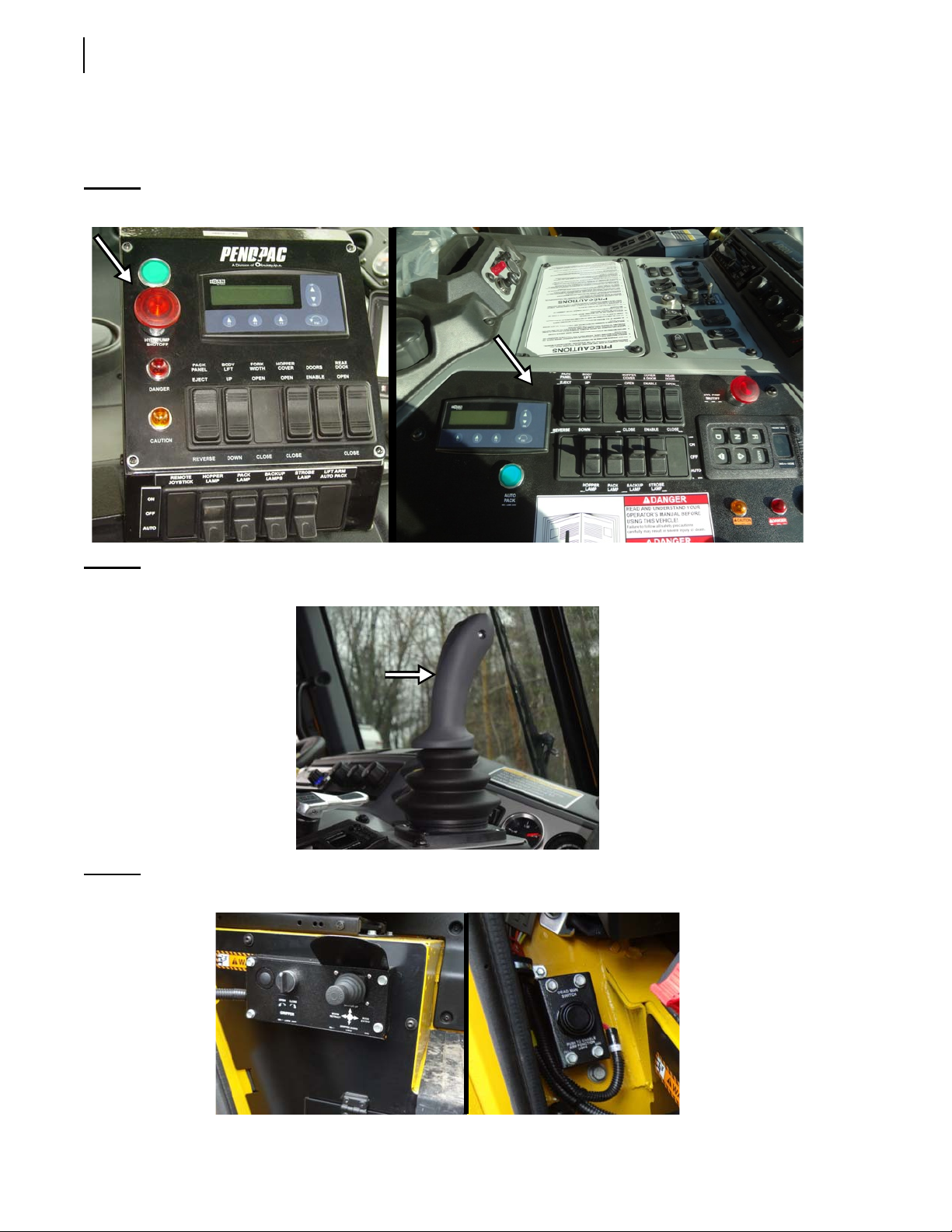

Figure 1-5 In-cab control console (standard version, left; built-in version, right)
Figure 1-6 Arm joystick
Figure 1-7 Auxiliary arm/gripper controls (optional) w/ deadman switch (right)

Introduction 5
Standard Limited Product Warranty
Subject to the other provisions hereof, LABRIE ENVIROQUIP GROUP, hereinafter called “Labrie”
warrants that all new Labrie products (the “Product”) shall be free of defects in material and
workmanship under normal use and service for a period of ONE (1) YEAR after delivery to the first
registered customer/end-user.
WITHOUT LIMITATION TO THE OTHER PROVISIONS HEREOF, THIS PRODUCT
WARRANTY DOES NOT COVER:
Any and all components or parts of the Product, including without limitation the vehicle chassis,
which are not manufactured and installed by Labrie, whether or not they are covered by an
original manufacturer’s or supplier’s warranty;
Paint;
Damages resulting from abuse, misuse of the Product or from negligence or accidents;
Damages resulting from use of the Product other than for its intended purpose or in a manner
other than its intended normal use and service;
Damages caused by improper maintenance of the Product including, without limitation, failure to
comply with the maintenance requirements set forth in the Product’s Parts and Maintenance
Manual;
Damages caused by the operation of the Product with parts or components known by the
customer/end-user to be defective or in need of maintenance;
Parts, components or systems which have been modified without the express authorization of
Labrie or of an authorized Labrie distributor;
Repairs which are not completed or otherwise expressly authorized by Labrie or an authorized
Labrie distributor;
Repairs or modifications which have been authorized by Labrie or an authorized Labrie
distributor that are performed by personnel which is not qualified to perform such repairs or
modifications;
Normal wear item parts including, without limitation, oils, fluids, filters, tracks, rollers, wear shoes,
tailgate seals, chains, divider blades and normal wear of the steel structure;
Any and all adjustments and maintenance resulting from normal use and service of the products.
For the purposes of this warranty, normal use and service means the operation of the new Product for
fifty (50) hours per week for its intended purpose and in compliance with the operation and
maintenance instructions which are provided by Labrie in the Product’s operation and maintenance
manuals. It is the customer/end-user’s responsibility to make sure that all operators are familiar and
comply with the operation manual and the warning decals on the Product.
In the event a part or component of the Product fails or becomes defective during the warranty period
and, in the opinion of Labrie, such failure or defect results from Labrie’s material or workmanship, the
part or component shall be repaired or replaced by Labrie or an authorized distributor at no cost
provided that the unit is brought to an authorized distributor’s service facility. However, the
aforementioned repair or replacement of parts or components may be performed by the customer/
end-user as provided herein if specifically authorized by Labrie or an authorized Labrie distributor.

6Introduction
Because the Product is engineered to work only with genuine Labrie parts and components, this
warranty shall be void and of no effect if i) the Product is modified other than by Labrie or by an
authorized Labrie distributor or other than in accordance with a specific authorization and
instructions from Labrie or from an authorized Labrie distributor or ii) if parts and components of
any other manufacturer are used as substitutes for genuine Labrie parts and components.
LABRIE MAKES NO WARRANTY AS TO MERCHANTABILITY, FITNESS FOR USE,
LEGALITY OF OPERATION IN ANY JURISDICTION OR ANY IMPLIED WARRANTY OF
ANY KIND OR NATURE. LABRIE SHALL NOT BE LIABLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE. NO OTHER PERSON, FIRM,
CORPORATION, INCLUDING THE LABRIE DISTRIBUTOR, CAN BIND LABRIE TO ANY
WARRANTY OTHER THAN THIS WARRANTY OR OTHERWISE MODIFY SAID
WARRANTY.
Labrie reserves the right to redesign and/or discontinue the manufacture of parts, components, and
Products.
This limited warranty may be transferred to subsequent end-users within fifteen (15) days of the
Product transfer provided that Labrie is notified in writing within the said fifteen (15) day period.

Introduction 7
To Contact Labrie Plus
In the U.S.
Address: 1198 Shattuck Industrial Blvd.
LaFayette, GA 30728
Toll Free: 1-800-231-2771
Telephone: [phone]
General Fax: [phone]
Sales Fax: [phone]
Parts and warranty: During business hours, 8:00 AM to 6:00 PM Eastern Standard Time
Technical Support Service: Available 24 hours
In Canada
Address: 175A Route Marie-Victorin
Levis, QC G7A 2T3
Toll Free: 1-877-831-8250
Telephone: [phone]
Service Fax: [phone]
Parts Fax: [phone]
Parts and warranty: During business hours, 8:00 AM to 5:00 PM Eastern Standard Time
Technical Support Service: Available 24 hours
Website: www.labriegroup.com
E-mail: [email protected]
IMPORTANT:For technical support and parts ordering, the serial number of your vehicle is required. Therefore,
Labrie Enviroquip Group recommends to keep record of the information found on the VIN plate,
which is located in the cab.

8Introduction

2Safety
Safety comes first and Labrie Enviroquip Group is
committed to your safety. Ultimately, safety is
everyone’s responsibility when operating or
maintaining your ALLEY-GATOR RIGHT-HANDTM
Automated Side Loader. Make it your first priority! Be
aware and apply the safety practices and features
detailed in this manual.
ALLEY-GATOR RIGHT-HANDTM equipment operators
are required to become knowledgeable with the
operation procedures as well as the safety precautions
of all operating applications. Refer to the pertaining
sections of this manual prior to operating your ALLEY-
GATOR RIGHT-HANDTM unit.
Maintenance personnel should not perform any
maintenance on the equipment if they are not well
acquainted with the operations of the equipment as
well as all safety precautions related to such operations.
Labrie Enviroquip Group will not accept any
responsibility for failures and/or injuries caused by
repairs done by the user and/or any persons other than
authorized Labrie Enviroquip Group representatives.
Safety Precautions for the
Employer
Labrie Enviroquip Group strongly believes that safety
is a team effort. With this in mind, we encourage the
employer to implement the following guidelines:
Provide all employees – both operators and
maintenance personnel – with proper safety
procedures and training. Ensure that they are
provided with the proper vehicle operation training
and continually monitor their operational
procedures. It is necessary that they have reviewed
the ALLEY-GATOR RIGHT-HANDTM manuals and
are familiar with all the warning decals on the
vehicle.

10 Safety
Provide operators with the necessary route rules and regulations. Instruct operators on awareness
to road hazards such as people, obstructions and overhead hazards. Please ensure that all vehicle
safety features, such as body safety prop and tailgate prop, are utilized by your personnel when
operating or servicing the ALLEY-GATOR RIGHT-HANDTM.
Provide and inform employees to wear the necessary safety equipment.
Ensure that a vehicle and safety equipment inspection is performed daily. Document the
inspections, including all maintenance, repair and malfunction items. Keep inspection documents
complete and current.
IMPORTANT:Under no circumstances should your ALLEY-GATOR RIGHT-HANDTM be operated if damaged or
malfunctioning. Have all repairs performed immediately.
Safety Precautions for the Employee
As an operator or maintenance employee, it is your responsibility to follow these guidelines:
Ensure that you have been provided with safe operating and/or maintenance service training and
procedures by your employer prior to operating the vehicle or performing maintenance service.
Carefully read this manual.
Obey proper operating procedures, safety guidelines and warning decals.
Use the vehicle only as intended.
Perform a daily vehicle inspection that includes the body and all operating systems, all vehicle
safety equipment and safety decals located on and in your vehicle. Ensure that the inspection is
documented and bring any defects to the attention of your supervisor.
Prior to leaving for your daily route, ensure that all mirrors, windows and lights are clean and
properly adjusted. Ensure that all cameras and monitors are properly adjusted and operating
correctly.
Do not operate any vehicle while under the influence of alcohol, narcotics or other intoxicants.
Do not leave the vehicle before it is brought to a complete stop and work brake or parking brake is
applied.
Know where to get assistance in the event of an emergency.
On your daily route, or during your service duties, stay safe. Obey all safety decals and safe
operating procedures. Watch for other people, obstructions and overhead hazards.
Always utilize the vehicle safety features, such as tailgate prop and hoisted body prop.
Remember to wear all safety equipment when loading and packing refuse or while performing
service duties.
IMPORTANT:Under no circumstances should you operate damaged or malfunctioning equipment. Report all
malfunctions to your supervisor immediately.

Safety 11
ALLEY-GATOR RIGHT-HANDTM Road Rules
Rule the road with safety. Stay safe and help keep those around you safe. Prior to performing your
daily route, know and obey the route rules and regulations provided by your employer and follow
these important guidelines. As an operator you should never do the following:
Drive with the body raised.
Drive with an unlocked tailgate.
Exit the cab without engaging the chassis parking brake.
Back up the truck while unloading refuse.
Hoist the body while on uneven ground.
Prop a loaded body with the hoist safety prop.
Enter the hopper or main body unless the engine is shut off, the key is removed and there is an
out-of-service tag on the steering wheel.
Stand under a raised body without the safety prop in place.
Safety Decal Categories
Recognizing and understanding the safety decals affixed to your vehicle can prevent damage and
could prevent injury or even death. Decals fall into the following four categories:
DANGER: (White letters on Red Background) Extreme hazard of severe injury or death.
WARNING: (Black letters on Orange Background) Danger of death or severe injury.
CAUTION: (Black letters on Yellow Background) Danger of injury or equipment damage.
NOTICE: (Black letters on Purple Background - no safety symbol) Practices not related to
personal injury.
Figure 2-1 Safety decal categories

12 Safety
Safety Decals and Locations
Pay careful attention to all safety decals and warnings while operating/working in and around the
ALLEY-GATOR RIGHT-HANDTM Automated Side Loader. Keep your decals clean and in good
condition at all times. For replacement decals, either individual or complete decal kits, call LabriePlus
at 1-800- 231-2771 in the U.S. or 1-877-831-8250 in Canada, and order using the part numbers as
printed on the bottom of the decal or as depicted on the following pages. Bilingual decals are available
in English/Spanish or English/French versions.
Be sure to familiarize yourself with the following decals.
P/N 0605-760 - English/Spanish
P/N 159874 - English/French
Located left side of arm. Also both
sides of vehicle near tailgate locks
P/N 0605-776 - English/Spanish
P/N 159872 - English/French
Located on hopper cover,
both sides of vehicle
P/N 0605-809 - English/Spanish
P/N 0401-538 - English/French
Located in cab, on the doghouse
Also on body, left side of ladder,
if equipped
P/N 0605-788 - English/Spanish
P/N 0401-535 - English/French
Located on both sides of tailgate
