Lacros Scamper S600 User manual

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
1
LACROS SCAMPER S600
ELECTRIC FOLDING BIKE

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
2
For your safety
Your safety is very important, so read the following safety advices carefully. More safety tips are listed further in
the manual:
1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with the
bike as soon as possible. We advise you to choose the first "practice rides" for easy roads with little traffic
and a smooth road surface.
2. When you want to ride, do not stand on the pedal, but first sit on the saddle and then start pedaling.
3. Ride the first rides preferably without electrical support to get familiar with your bike. After this you can start
with a low setting (motor support).
4. The LACROS bicycles have been tested by our employees. If you have any doubts about the bicycle and/or
the electrical installation of the bicycle, please contact us immediately.
5. Never expose the battery and the charger directly in the sun or heat surfaces. The battery is protected
against heat, but heating is better avoided.
6. Never use a charger other than the one supplied by Shinga B.V. It is very important for your safety to always
use the original charger.
7. The brakes are equipped with an "ABS" protection. As a result, the support stops when you use the brakes.
8. We recommend wearing a helmet while cycling.
The LACROS bicycles are delivered in accordance with the most recent European guidelines (page 3), if you have
any questions or comments, do not hesitate to contact us.
We are always available for users of LACROS bicycles:
E-mail: [e-mail]
Phone: [phone]
Thank you for your trust,
Ton van den Oetelaar
Director Shinga BV

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
3
Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG
Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and
halfway at the frame. The bike is equipped with a pedal support system which is powered by an external
battery. The battery can be in different locations, such as on the luggage carrier or in the frame. The battery is
charged via an external charger. This external charger is a separate product and is already provided with a CE
mark (for example, the Low Voltage Directive and the EMC Directive).
The input voltage of the battery is 36V, the motor has a power capacity of 250W and the maximum speed of the
bike is 25 km/h.
Guidelines:
Based on the above product description, the following guidelines apply:
•EMC-directive: 2014/30/EU
•Machine directive: 2006/42/EG
The Low Voltage Directive does not apply because the input voltage is only 36V. The charger of the battery is
separately marked with a CE mark.
Based on the above guidelines, a number of (corresponding) standards apply.
The following relevant documents must be mentioned in this context and are also used as input for all other
documentation:
•NEN-EN 15194:2015 Cycles (Electrically power assisted cycles - EPAC Bicycles)
•NEN-EN-ISO 4210-1:2014 and
•EN ISO 12100:2010

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
4
Table of contents
For your safety........................................................................................................................................................2
Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG............................................3
1. Unfolding the bicycle..............................................................................................................................................5
2. Folding the bicycle..................................................................................................................................................6
3. How to operate the bicycle.....................................................................................................................................7
Turn on the display.................................................................................................................................................7
Turn on LED lights..................................................................................................................................................7
Walk Assist.............................................................................................................................................................8
Additional options of the display.............................................................................................................................8
Display symbols......................................................................................................................................................8
De Shifter................................................................................................................................................................8
Adjusting the front fork suspension ........................................................................................................................8
4. Battery and recharging...........................................................................................................................................9
Recharge advice.....................................................................................................................................................9
Warning ................................................................................................................................................................10
How to recharge the battery .................................................................................................................................10
Removing the Battery...........................................................................................................................................11
5. Action radius.........................................................................................................................................................11
6. Safety rules ..........................................................................................................................................................12
7. Warranty provisions and legal requirements........................................................................................................13
Battery warranty....................................................................................................................................................13
8. Technical specifications .......................................................................................................................................14
9. EC declaration......................................................................................................................................................15

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
5

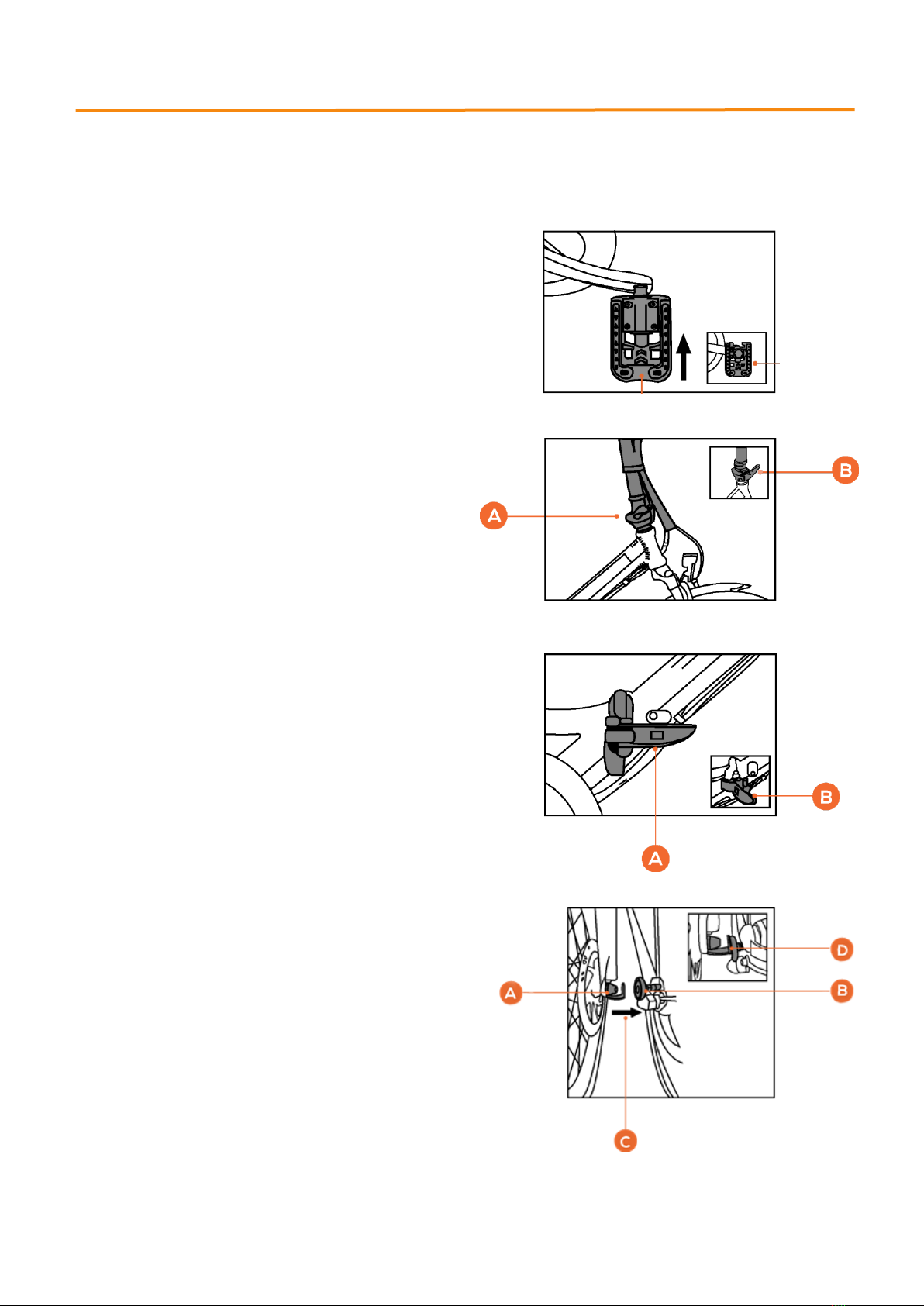

1.Unfolding the bicycle
Magnetic lock
Push the wheels apart to remove them from their
magnetic lock.
A = metal locking plate
B = magnet
C = direction in which you can lock
D = Locked position
Unfolding the frame
To unfold the frame, slide the wheels apart until the
frame is in a straight position. It is easy to stand
on the left side of the bike.
Secure the frame clamp
Secure the frame clamp (A + B) (middle hinge mounting on
the right of the frame tube) by first securing the latch with
the frame and then locking the clamp by pushing the clamp
against the frame. Secure the lock with the locking clip
(located just above the frame clamp) on the frame clamp.
Unfolding the steering wheel and securing
Pull the handlebar (A) up and secure it with the
handlebar clamp (B). Make sure that the Pin fits
properly in the handlebar clamp. Secure the clamp
with the locking ring by rotating towards the clamp
(located on the steering column near clamp).
Unfold pedals
Unfold the pedals by pulling the pedal to its horizontal position.
The pedal will automatically return to its correct position.
.

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
6

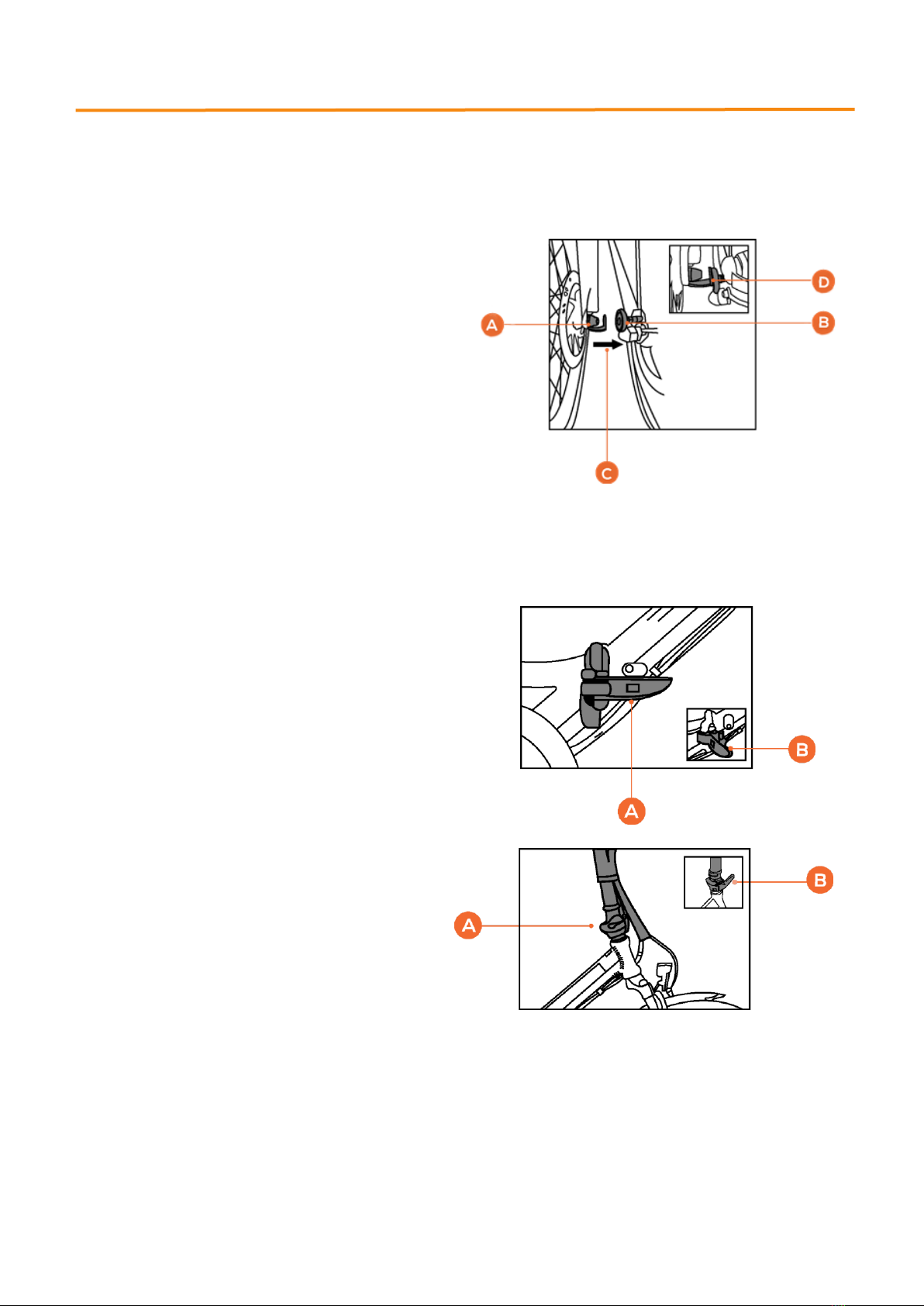

2.Folding the bicycle
Folding the pedals
Fold down the bicycle's stand and fold the pedals in by
pushing the entire pedal towards the bike and then
folding it up or down.
Note: Position the pedals horizontally with the left pedal
forward, so that it will not get in the way when the frame
is folded.
Handlebar clamp
Release the steering, first by rotating the locking ring (A)
away from the clamp. Open the clamp (B) so you can
fold the steering.
Frame clamp
Open the middle hinge mounting (right on the frame tube)
by moving the locking clip upwards. Pull the clamp (A + B)
outwards so that it comes loose. The frame is now open and
ready to fold.
Note: Do not use excessive force to release the clamp.
Folding the Frame
Stand to the left of the bike and fold the front wheel to
the rear wheel so that the wheels are close together.
Under the bottom bracket there is a triangular support on
which the bicycle can rest when folded.
Securing the wheels
Secure the bicycle by placing the wheels against each
other so that the magnets (A + B + D) connect each other
(C). It is advisable to provide the handlebars and frame
with protection during transport by means of, for example
a blanket.

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
7

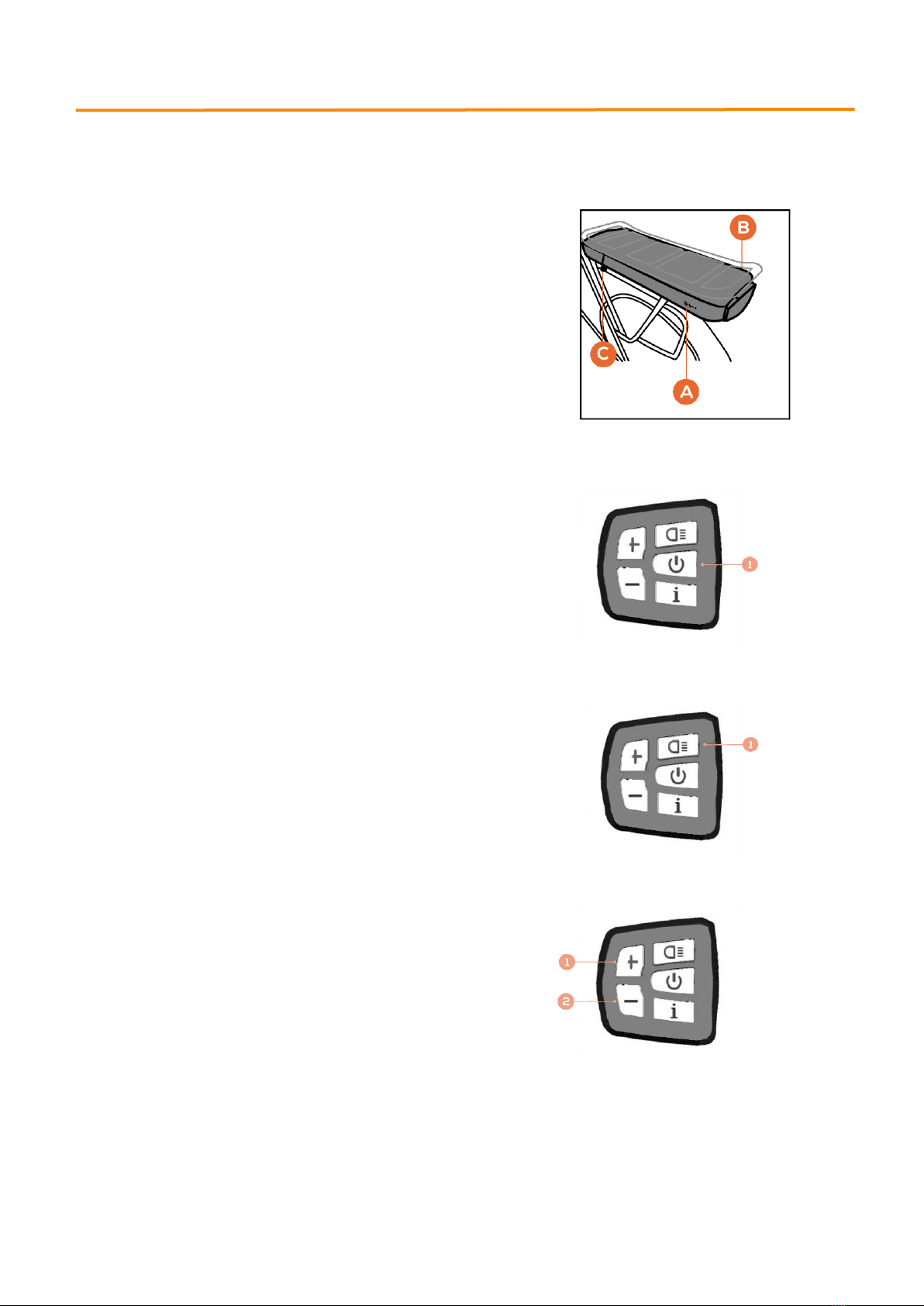

3.How to operate the bicycle
Switch on the battery and read the battery status
The battery (model 2019) is located on the luggage rack with the
Scamper. Switch on the electrical system with the button on the
left side of the battery (A). (Note, you only have the battery
activated, the display is still off)
The number of lights indicates the battery charge. This is a rough
indication of the battery charge.
A = on/off button B = charging point
C = lock
Turn on the display
Press (1) to turn on the bicycle electrical circuit. A menu now
appears on the display, the electric circuit is switched on.
Turn on LED lights
Press (1) for ± 2 seconds to turn the lights on. A light-symbol will
appear on the display. Press 2seconds to turn off lights.
Electric motor support
With the (1) and (2) buttons you can choose from the 5 levels
support modes which are shown at the bottom of the display.

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
8

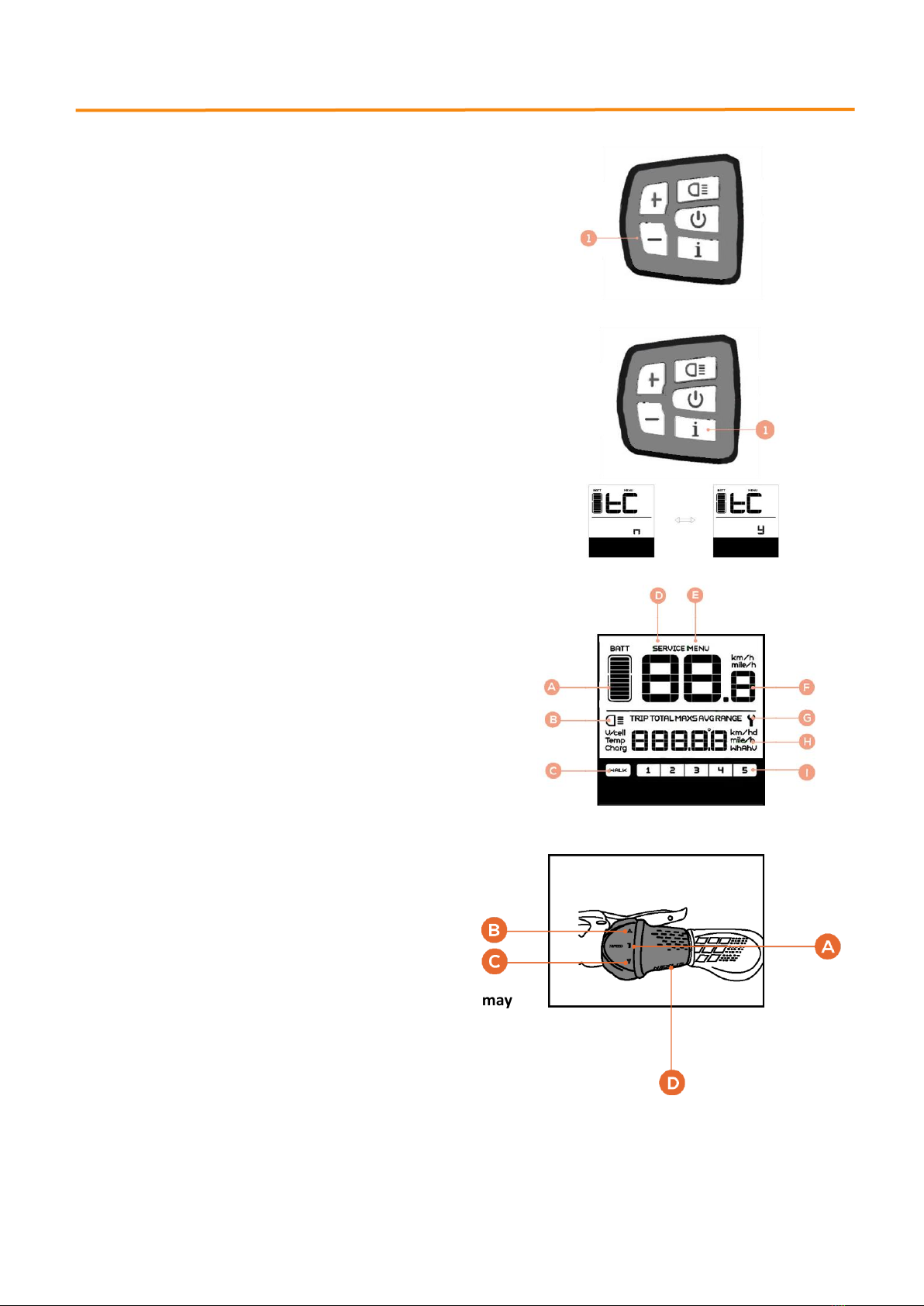

Walk Assist
Press and hold button (2) when stationary to activate the Walk Assist
which provides support from 0 km/h to 6 km/h. By using button (2)
while cycling, the electrical support goes directly to its maximum
(25 km/h).
Additional options of the display
By pressing button (1) briefly in succession, you can scroll
through various data:
Total Km/Miles reading (TOTAL), Trip reading (TRIP),
distant km in current support RANGE) and maximum speed (MAX).
Reset Trip, Time and Maximum speed data by pressing
the (a) button twice in succession. You will then arrive in the menu
where the letter "n" will be displayed, then press the (+) key once,
the "n" will then be replaced by an "y". Press the (a) key twice
again, to return. The trip distance is now reset.
Display symbols
a = battery indication f = Km/h indication
b = light g = error symbol
c = walk assist h = mileage
d = service notification I = current level motor support
e = menu
De Shifter
The shift mechanism of the hub gears is located on the
steering wheel, which has a rotary switch (D) and an
indicator (A). By rotating forward (D) you switch down,
by rotating towards you (D) you switch up.
Note: You must stop pedaling while switching gears. You may
damage your gears when pedaling during shifting gears.
Adjusting the front fork suspension
On top of the front fork suspension on the right side is a cap on which
you can turn to adjust the strength of the front fork suspension.
Indicated with a plus and a minus for less and more suspension.

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
9

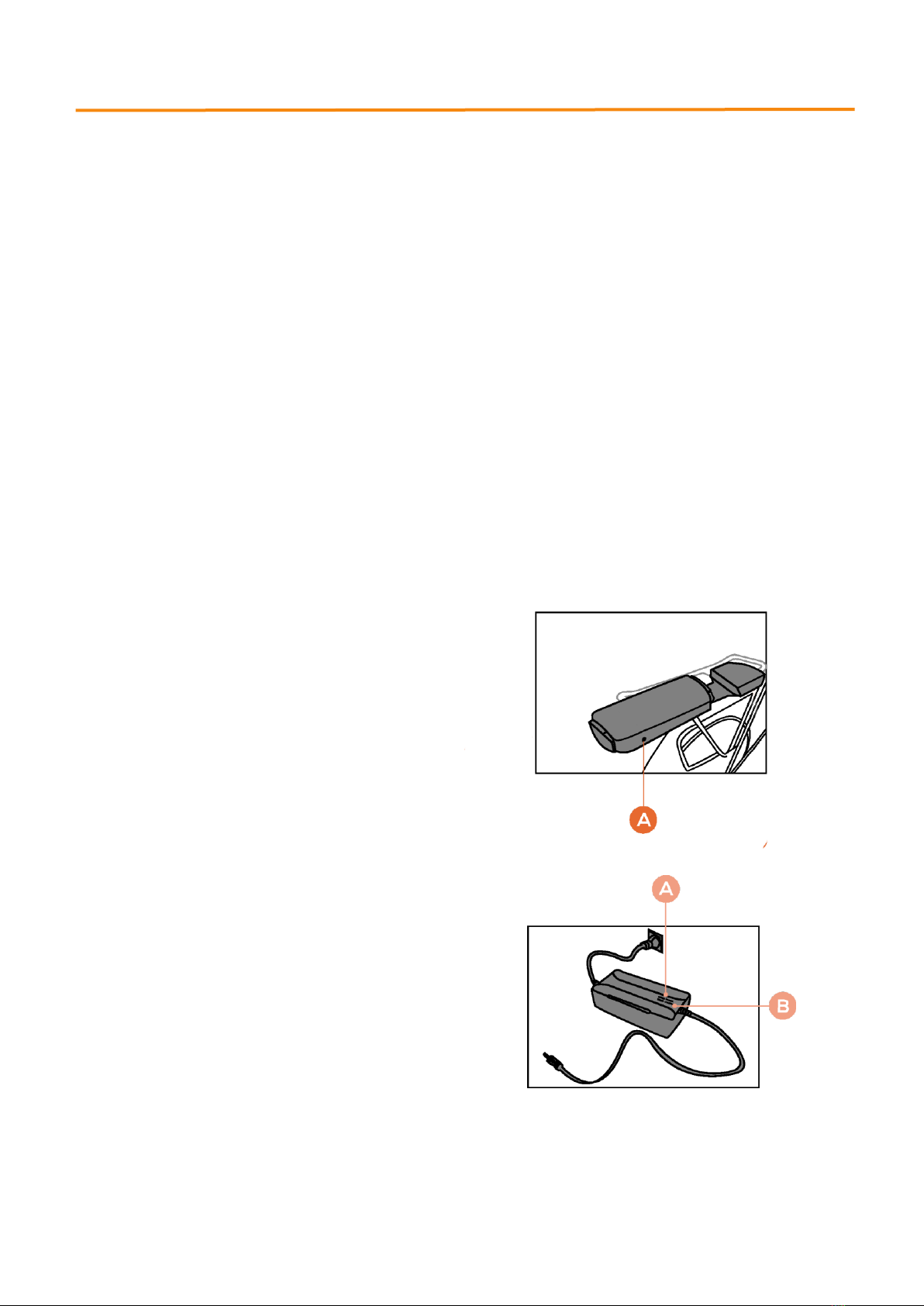

4.Battery and recharging
General:
•A full recharge takes approx. 4.5 - 8.5 hours. This depends on the capacity of your battery.
•The battery can be recharged both in and out of the bike.
•When replacing the battery, make sure that the contact points of the battery and the contact points of the
battery compartment match properly.
Recharge advice
•Always recharge the battery with the Lacros charger supplied with the bike. Do not use any other charger.
•The first 2 recharges of a new bicycle must be more than 60%. To realize this, wait the first 2 times before
recharging, until the battery indicator on the display has fallen below 40%.
•Recharging will stop automatically when the battery is fully charged. Only when the red indicator light on
the charger is lit, the battery will be recharged.
•After 2 full charges (first 2 charges), the battery does not have to run to a minimum of 40% before you start
recharging again. After 2 full recharges, the battery can be recharged at all times, even after short rides.
•The battery remains in good condition when you recharge the bike after every use (regardless of the
distance). So keep the battery as full as possible.
•The warranty on the battery expires if a deep discharge is detected (this can only happen if you leave the
battery on and leave it for a long time without recharging.)
•In the case of long-term storage: fully recharge the battery, disconnect the battery from the charger and
the bicycle and switch off the battery with the rocker switch. Charge the battery at least once every three
months.
•The battery performs less well below 10 °C, you will have less battery capacity.

CE ORIGINAL MANUAL LACROS SCAMPER S600
VERSION CE 1.2 EN
10
Warning
Read the warnings below carefully.
•Do not expose the battery to fire or heat. Never put the battery in fire.
•Do not drop the battery or damage it.
•Do not immerse the battery in water or any other liquid.
•Keep the battery out of the reach of children
•Never open the battery without permission from Shinga B.V. The battery is provided with a seal.
Breaking the seal will void the warranty, unless Shinga BV gives permission.
•Do not put liquids or metal in the charger.
•Do not connect the charger to the battery with wet hands.
•Do not touch the charger in case of lightning.
•Do not use the charger in a very humid environment.
•Do not use the charger for purposes other than charging the corresponding battery.
•Ensure good ventilation at the location of the battery and charger during charging.
•Do not connect the charger to the power socket if the charger is not being used.
•Do not charge the battery in full sun.
How to recharge the battery
The battery has one charging point (A) on the
right side of the battery. It is recommended to first
connect the charger to the battery and then plug the
220V plug into the socket. It is better for the battery
to connect it to the charger after every cycle. The
charger will stop charging as soon as the battery is
full. When the battery is full (when the light on the
charger is green) the charger can be disconnected.
A = Red (Power on/Recharge)
B = Green (Power off/fully charged)
