Lafferty 919158 Installation instructions

Lafferty Equipment Manufacturing, LLC
Installation & Operation Instructions
Model # 919158 · Pump Fed Sanitizer W/ SS Trigger Gun
# 224150
# 150350-1
REQUIREMENTS
Ready-to-Use Chemical Solution
Temperature up to 160°F
Pressure 35 to 125 PSI
Flow 1.7 GPM @ 40 PSI
Supply Line 1/2"
Hose 1/2" ID x 50'
Nozzle 2520
OPTIONS
Stainless Steel Hose Racks
Large Stainless Steel Hose Rack
Strainer
Strainer, "Y", SS, 1/2" MF
www.laffertyequipment.com
501-851-2820
OVERVIEW
The Pump Fed Sanitizer with SS Trigger Gun is a spray applicator for applying chemical solutions, such as sanitizers in food processing facilities, to a variety of
surfaces at 1.7 GPM @ 40 PSI. This unit receives ready-to-use chemical solution from a central chemical feed system and projects it through the hose, trigger gun,
wand and fan nozzle. Alternate flow rates are available upon request.
W AR N I N G ! R E A D A L L
I N S T R U C T I O N S B E F O R E
U S I N G E Q U I P M E N T !
Lafferty Equipment Manufacturing, LLC • 5614 Oak Grove Road • North Little Rock, Arkansas 72118
SAFETY & OPERATIONAL PRECAUTIONS
For proper performance do NOT modify, substitute nozzle, hose diameter or length.
Manufacturer assumes no liability for the use or misuse of this unit.
Wear protective clothing, gloves and eye-wear when working with chemicals.
Always direct the discharge away from people and electrical devices.
Follow the chemical manufacturer’s safe handling instructions.
Turn off solution supply when unit is not in use for extended periods.
TO INSTALL (REFER TO DIAGRAM ON NEXT PAGE)
1. Mount the unit to a suitable surface.
2. Connect the discharge hose as shown in the diagram and close the ball valve.
3. To prevent blocking the small jets flush any new plumbing of debris before connecting. And/or install a strainer.
(see options)
4. Connect pre-mixed solution supply line.
TO OPERATE
Always make sure the discharge is closed or pointed in a safe direction before turning inlet valve on. Discharge
can be shut off at any time during operation but should not be left off for long periods of time with the inlet
valve on.
1. With discharge trigger gun in hand open the inlet ball valve. Then pull the trigger to begin application.
2. When sanitizing is completed, release the trigger then close the inlet ball valve.
3. Briefly squeeze the trigger to relieve pressure in hose. If applicable rinse the work surface before solution dries.
UNIT FLOW RATES
PSI GPM
35 1.59
40 1.70
50 1.90
60 2.08
70 2.25
80 2.40
90 2.55
100 2.69
110 2.82
120 2.94
125 3.01
919158 • Pump Fed Sanitizer W/ SS Trigger Gun
- Page 2 -
919158 • Pump Fed Sanitizer W/ SS Trigger Gun
- Page 3 -
Troubleshooting Guide
Problem Possible Cause / Solution
Startup Maintenance
A) Weak pressure or will not spray 1, 2, 3, 4 5, 6
Possible Cause / Solution
Startup Maintenance
1. Inlet or discharge not completely open
Completely open ball valves (or trigger gun) during
operation
2. Solution pressure or volume too low/inlet piping too small.
Increase solution pressure or volume.
3. Discharge hose too long for available solution pressure,
kinked or wrong size
Straighten the hose or replace hose.
4. Nozzle size too small (SEE REQUIREMENTS)
5. Inlet orifice clogged
Check/clean inlet orifice for obstructions.
6. Hard water scale or chemical build-up may have formed in
the body causing poor or no flow
Follow Preventive Maintenance instructions below,
using hot water and/or de-scaling acid. When there is no
flow at all, carefully remove fittings and soak entire body
in de-scaling acid.
PREVENTIVE MAINTENANCE: When the unit will be out of service for extended periods, run water through the system to flush the chemical and help
prevent chemical build-up.
919158 • Pump Fed Sanitizer W/ SS Trigger Gun
August 18th 2022 - Page 4 -

Other Lafferty Accessories manuals

Lafferty 919155SS Installation instructions

Lafferty

Lafferty 919155SS Installation instructions

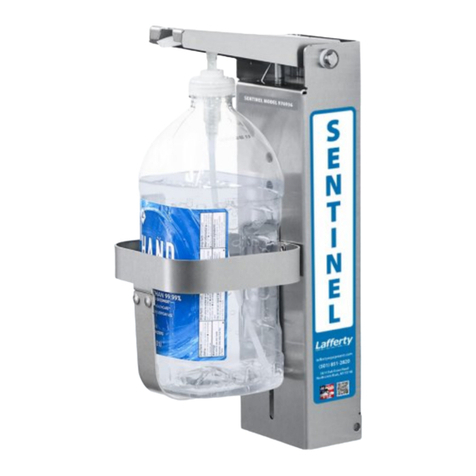

Lafferty Sentinel 976936 Installation instructions

Lafferty

Lafferty Sentinel 976936 Installation instructions

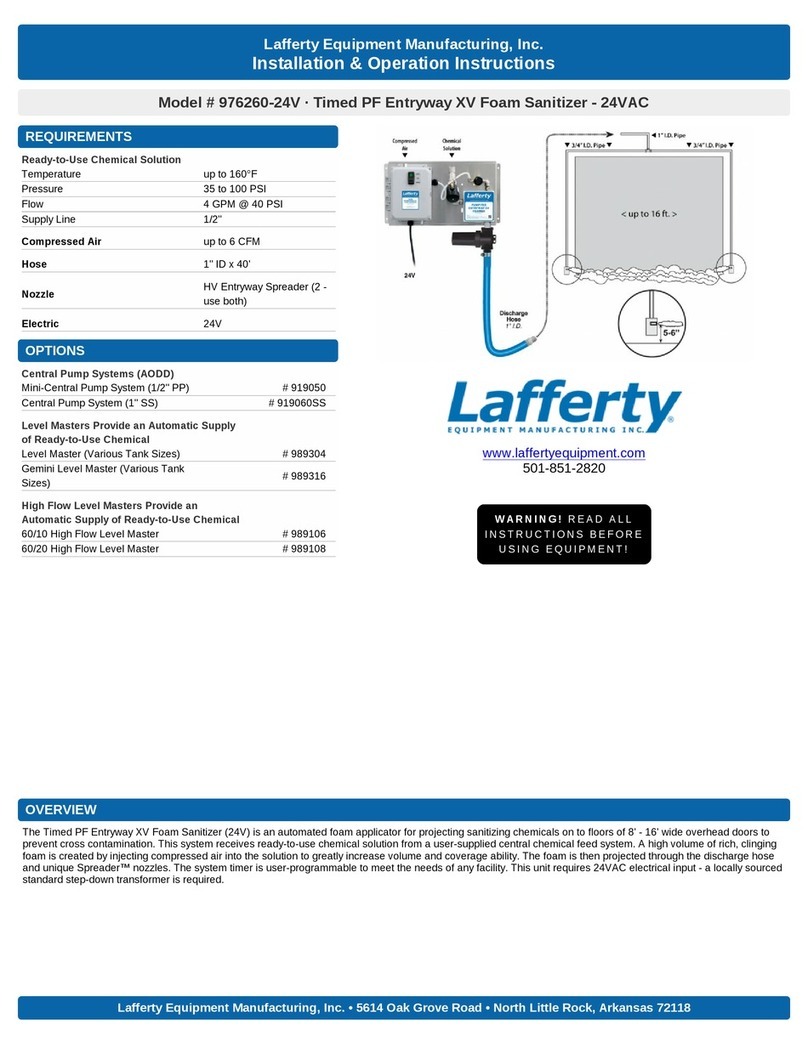

Lafferty 976260-24V Installation instructions
