Lake Lite Solar Marine Lite LL-SML Series User manual

CAUTION:CONTAINSNICKEL‐CADMIUMBATTERIES.BATTERYMUSTBERECYCLEDORDISPOSEDOFPROPERLY.
NOTE:
1. LED Light inside is activated by darkness, Unit must be in a dark area before light will activate. Place in dark room to test unit.
2. Battery must be charged in order for the LED Light to turn on. Make sure battery is connected inside and then place in sunlight to charge.
NOTE: BATTERY MUST BE INSTALLED & CONNECTED TO FUNCTION
Mounting your Light to a Surface
1. Purchasedesiredmountingscrewsorbolts
2. Place/SpaceMarineLiteindesiredlocationsonsurface
3. Usepenciltomarkmountingholes
4. Useelectricdrillwithsmalldrillbittomakepilotholes
5. UseScrewDriverorElectricScrewDrivertomountunit
RecommendedScrewsize#10or#12x1”orLonger
2‐Screws/Bolts
Foreachlight
ToolsRequired
Solar Marine Lite
MODEL: LL-SML-X
BatteryConnector
MountingSurface MountingSurface
INSIDEBUTTONS STORAGEMODE
1. RemoveBatteryCoverfrombottomofunit.
2. Connectbothsidesofthebatteryconnectortogether
3. InternalSwitch,ChangesbetweenFlashingorConstantModes.
4. InstallorcheckthatthesiliconeO‐Ringsealisinplaceand
correctlyinposition
5. Attachandtightenthebatterycoverwiththeprovided6‐screws.
Besuretoworkyourwayaroundtoeachscrewtofullytighten.

WARNING:LONGTERMSTORAGEDIRECTIONS:
1. ChargetheLightonaSunnyDay.
2. BeforeNightfallDisconnectBattery&storebatteryinclimatecontroller
areaforlongtermstorage.Youmayalsousethemagnettodisconnect
thebatteryforstorage.Makesurethemagnetwillnotfalloutduring
storageorthebatterymaybedamaged.Useapieceoftapetosecure
themagnetinplaceduringstorage
INSTALLINGTHEBATTERY
Flash/ConstantSwitch
InsertMagnetintoslot
Useapieceoftapetosecuremagnetinplace
(themagnetwilldisconnectthebatteryforstorage)
NEW:WatchOnline
InstallationVideo!
1nm
LakeLiteInc.
105W.SimonSt.
Laotto,IN46763
Phone:260‐918‐2758
Fax:260‐918‐3540
E‐mail[e-mail]
www.lakelite.com
www.solarmarinelites.com

Attachtheballastpoletothebottomofthebuoywiththe
4largehexboltsandlockwashers.
3 4
PleasefollowtheinstructionsoftheSolarMarineLight:
NOTEthebatteryisnotconnected:Removebottom,
connectbattery,selectlightingmodebeforeinstalling.
POBOX414
105W.SimonSt.
Laotto,IN46763
Phone:260‐918‐2758
Fax:260‐918‐3540
E‐mail[e-mail]
Usetheprovidedfoamtapeinthechannelaroundthetop
ofthebuoy.Besuretooverlapthetwoendsslightly.
1 2
www.lakelite.com
www.solarpilinglites.com
FoamTape
SOLAR REGULATORY BUOY
MODEL: LL-BUOY-P
Useprovidedscrewstoattachtheroundplatetothebuoy
top.Ensuretheplateistightandthefoamtapeismakinga
goodsealunderneath.Nextmountlighttotopofplate.
Mountplateto
topofbuoy
Mountlightto
topofplate

RequiredHardware
POBOX414
105W.SimonSt.
Laotto,IN46763
Phone:260‐918‐2758
Fax:260‐918‐3540
E‐mail[e-mail]
SLOW
WAKE
NO
WARNING:
Besuretousechainor
steelcableas
(ropewillwearonthe
cinderblocksandbreak)
HalfCinderBlock
(BallastWeight)
HalforFULLCinderBlock
(AnchorWeight)
4pcsChainQuickLinks
Chain
2pcsHalfCinderBlocks
LakeBottom
WaterLevel
SOLAR REGULATORY BUOY
MODEL: LL-BUOY-P
www.lakelite.com

Owner Registration Card
Please fill out and affix proper postage and return this owner
registration card within 10 days to insure that your new Solar Buoy
Light is covered by the limited warranty.
Purchaser’s Name .
Address .
State . Zip .
Purchase Date: . Number of Lights: .
Where Purchased (Store Name): .
Model No. LL-BUOY-P+SML
UPC No. Varies On Different
Models
Lake Lite Inc.
P.O. Box 414, Laotto, IN 46763
Lake Lite Inc. 1-Year Limited Warranty
The retailer warrants the Solar Lite to be free from defects in workmanship and material present at
time of shipment from the factory for a period of one year after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty service,
you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are you responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. There is no other
express warranty. The retailer hereby disclaims any and all warranties, including but not limited
to, those of merchantability and fitness for a particular purpose to the extent permitted by law. The
duration of any implied warranty, which cannot be disclaimed, is limited to the time period as
specified in the express warranty. Some states do no allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion
of incidental or consequential damage, so the above exclusion or limitation may apply to you.
This warranty gives specific legal rights, and you may also have other rights, which vary from
state to state. This warranty supersedes all prior warranties.
POBOX414
105W.SimonSt.
Laotto,IN46763
Phone:260‐918‐2758
Fax:260‐918‐3540
E‐mail[e-mail]
SOLAR REGULATORY BUOY
MODEL: LL-BUOY-P
52”
TOP
BOTTOM
10”
www.lakelite.com

Owner Registration Card
Please fill out and affix proper postage and return this owner
registration card within 10 days to insure that your new Solar Marine
Lite is covered by the limited warranty.
Purchaser’s Name .
Address .
State . Zip .
Purchase Date: . Number of Lights: .
Where Purchased (Store Name): .
Model No. SML-X
UPC No. Varies On Different Models
Lake Lite Inc.
P.O. Box 414, Laotto, IN 46763
Lake Lite Inc. 1-Year Limited Warranty
The retailer warrants the Solar Marine Lite to be free from defects in workmanship and material
present at time of shipment from the factory for a period of one year after the date of purchase by
the original purchaser. We agree to correct such defects without charge or at our option replace
with a comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and
reinstalling the product are you responsibility. Damage to any part such as by accident or misuse
or improper installation or by affixing any accessories, is not covered by this warranty. There is no
other express warranty. The retailer hereby disclaims any and all warranties, including but not
limited to, those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty, which cannot be disclaimed, is limited to the time
period as specified in the express warranty. Some states do no allow limitation on how long an
implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in connection with
product use or performance except as may otherwise be accorded by law. Some states do not allow
the exclusion of incidental or consequential damage, so the above exclusion or limitation may
apply to you. This warranty gives specific legal rights, and you may also have other rights, which
vary from state to state. This warranty supersedes all prior warranties.

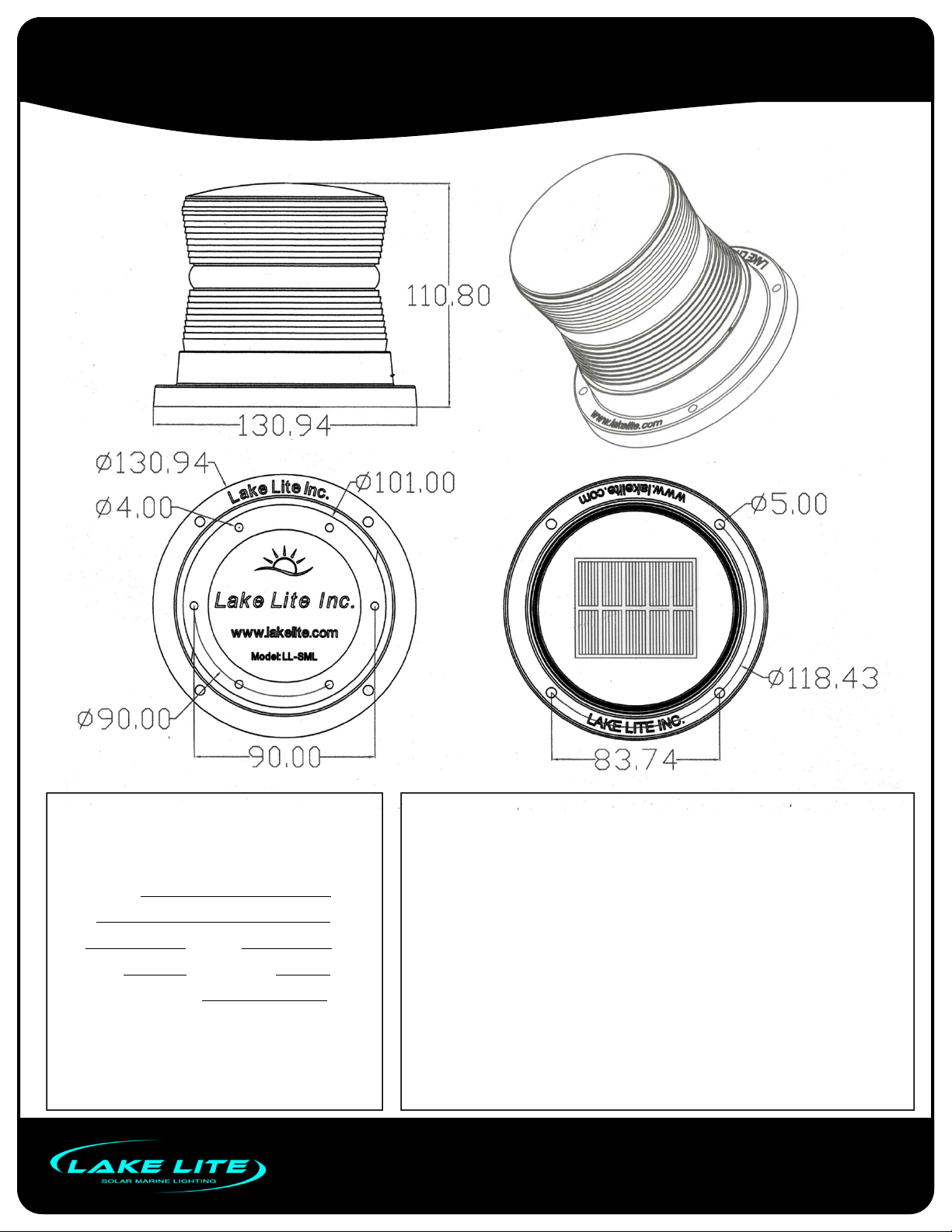

Dimensions=mm
Solar Marine Lite
MODEL: LL-SML-X
1 nm
