LAMBORGHINI FORTADOR Volt Elektra User manual
2
NOTE
Before starting, read this operating manual carefully in order to avoid improper use or situ-
ations that may be dangerous for people, animals or objects. The manufacturer shall bear no
responsibility and shall exclude the possibility to apply guarantee terms in the following cases:
any misuse or use in improper conditions, any damage resulting from normal wear-out or aging,
inappropriate application, neglect, improper operation or storage, exposure to moisture, arbi-
trary modication or repair, improper installation, using wrong power supply source, operator
errors, failure to obey this operating manual, or any other events for which the manufacturer
cannot be blamed, including any loss or damage in transport.
3
Note ..............................................................................................................................................................................2
Contents.......................................................................................................................................................................3
Introduction.................................................................................................................................................................4
Technical specication and description of the machine ....................................................................................5
Description of the machine......................................................................................................................................6
Safety requirements..................................................................................................................................................7
Unpacking ....................................................................................................................................................................9
Before each start-up...............................................................................................................................................10
How to install and use the machine for the rst time.....................................................................................11
Washing.....................................................................................................................................................................13
Cleaning ....................................................................................................................................................................15
Control panel functions .........................................................................................................................................16
Switch-o procedure..............................................................................................................................................18
Maintenance plan....................................................................................................................................................20
FAQ .............................................................................................................................................................................21
CE Attestation of conformity ...............................................................................................................................25
Transport...................................................................................................................................................................26
Final remarks............................................................................................................................................................27
CONTENTS
4
INTRODUCTION
Producent i Serwisant
www.fortador.com
Thank you for purchasing FORTADOR VOLT ELECTRA industrial steam cleaner.
The FORTADOR brand is an eect of our long-standing experience, and a response to our
Customers’ needs.
The technology conned in the state-of-the-art housing provides for higher capacity and per-
formance as well as lower failure rate than ever before.
The solutions used, which only occur in FORTADOR steam cleaner, make it possible to make
the machine operation easier and faster. The possibility to feed two dierent detergents at
the same time is a solution that has never been used so far. The 7-inch touch display keeps the
user inform on the status of uids (water, detergents) inside the machine, and on the running
pressure of the boiler.
The highest quality of the components and low energy consumption provide for even faster
return on investment.
The advantage of this machine consists in a very small size while featuring the maximum po-
wer. In a combination with the ECO PRO® system our boiler constitutes a guarantee the hi-
ghest power at the level of 8 bars and reliability. The Fortador VOLT ELECTRA is powered from
a regular electric socket and features the proprietary ECO PRO® system of reducing energy
consumption. The VOLT ELECTRA model is a MULTI TASK device, which enables to perform
many tasks. It possesses an integrated professional dry / wet extractor manufactured by the
renowed Ghibli & Wirbel company. Fortador VOLT ELECTRA does not generate any water or
chemical sewages.
5
TECHNICAL
SPECIFICATION
AND DESCRIPTION
OF THE MACHINE
Technical data are placed at the rating plate at the rear wall of the cover in the
area marked with the red frame. When contacting our Service Dept., please al-
ways refer to your machine’s serial no. from the rating plate.
400V/50-60Hz
5,5kW
1 Mpa
1,2 Mpa
Fortador Vol Electra
Fortador Europe
Technical data
Power supply 400 V / 50-60 Hz
Power 5,5 kW
Protection class IPX 4
Working pressure 8 – 10 bar
Maximum pressure 12 bar
Steam temperature 140°C
Boiler temperature 190º C
Boiler capacity 4 litres
Water tank capacity 5
Detergent tank capacity 5
Noise level 71 dB
Dimensions (W x L x H) 43 x 67 x 88 cm
Weight 45 kg
(without uids and accessories)
6

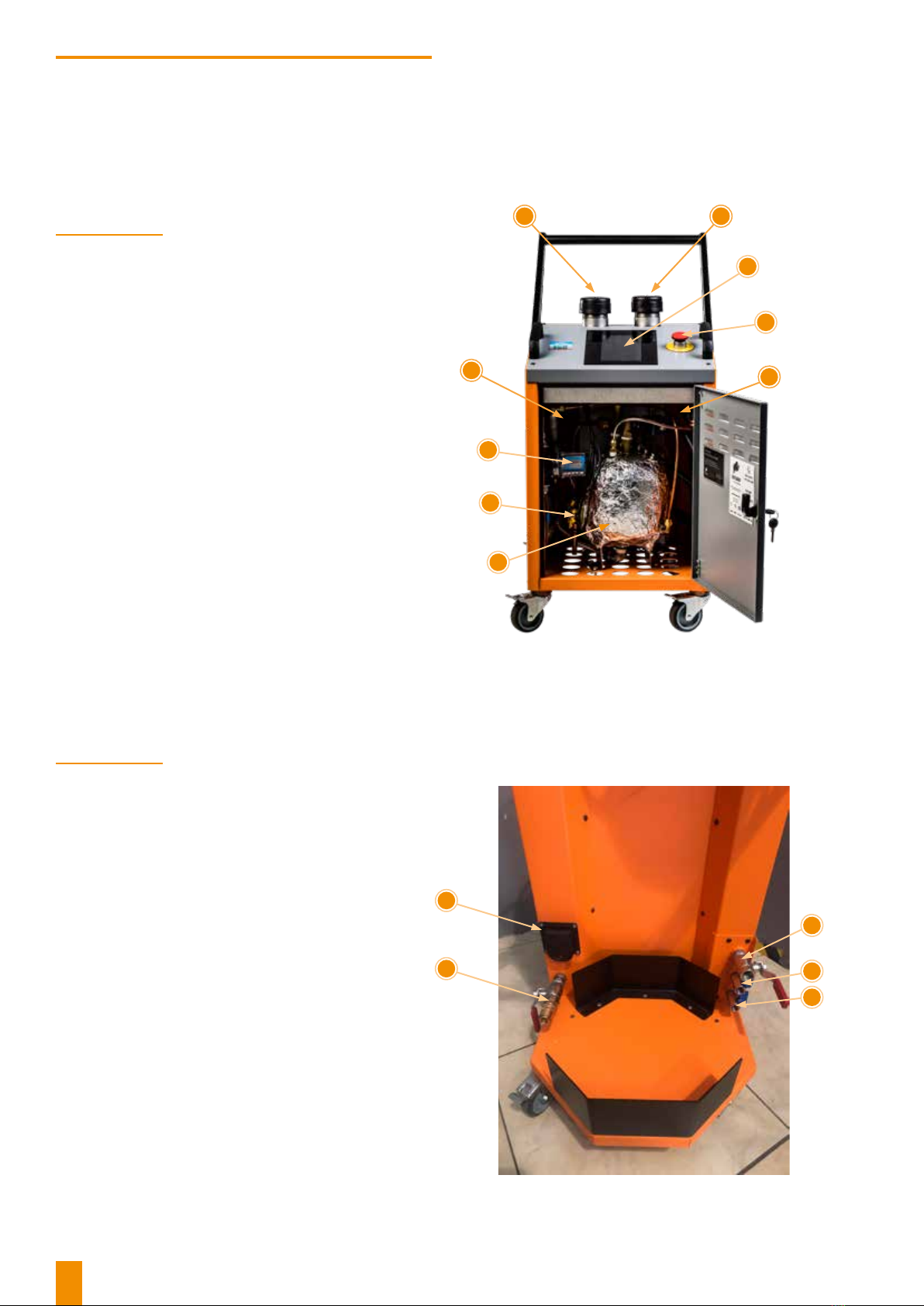

DESCRIPTION
OF THE MACHINE
1. Water tank
2. Detergent tank
3. Boiler
4. Pressure sensor (presostat)
5. Heater
6. Water and detergent pumps
7. Water lter
8. Touch screen 7”
9. Emergency stop
1
6
2
4
3
9
5
7
8
10. Washing hose power supply socket
11. Washing hose connection – quick connector
12. Water drain – valve
13. Detergent drain – valve
14. Boiler steam drain – valve 10
11
12
13
14
7
SAFETY
REQUIREMENTS
The FORTADOR steam cleaner is an industrial machine that must not be operated by persons who are not aware of hazards
associated therewith.
Guidelines and recommendations contained in this Manual must be properly understood and obeyed if the condition of the
machine proper and safe operation of is to be fullled.
Just as in case of most mechanical machines, all relative safety precautions must be observed while operating and servicing
the machine. Failure to observe this Operating Manual and recommendations contained in it may lead to injury or damage to
the machine or other objects situated nearby. At the same time, it must be borne in mind that it is not possible to present any
exhaustive guidelines or recommendations, which would make it possible to completely eliminate risks during its operation
or maintenance, and while handling or using chemical products that this machine has been designed to process. In case of
special applications and working conditions, some additional safety precautions can turn out to be necessary, which are not
discussed in this document. In such non-discussed cases, the user should obey generally adopted safety rules.
Before starting and operating the machine, please read this Operating Manual thoroughly.
This Operating Manual should be stored for later use or for the successive owner.
This machine heats up to high tempe-
ratures! Protective gloves and protec-
tive goggles must be worn while ope-
rating the machine.
During operation, hearing protectors
must be worn!
Never use the machine without we-
aring protective boots.
USE PROTECTIVE
GOGGLES
USE PROTECTIVE
BOOTS
USE PROTECTIVE
GLOVES
USE HEARING
PROTECTION
IMPORTANT:
8
• Prior to each start-up, check residual-current circuit-
breaker for proper operation in line with the procedure
as described in the “before each start-up” chapter. It is
forbidden to operate the machine with faulty residual-
current circuit-breaker, as it may pose a threat of
electric shock!
• Do not submerge the machine or any of its components
in water or any other uids.
• It is strictly forbidden to use the machine in explosive
areas.
• Never use the machine close to toxic / hazardous
substances.
• Never install the machine on temperature-sensitive
foundations.
• Do not leave the machine in places exposed to the forces
of nature.
• Do not operate machine buttons / valves using excessive
force.
• The machine should be installed on stable level ground.
Make sure that its front wheels are secured during
operation.
• Never block the gun’s trigger.
• Never leave the machine working unattended.
• Do not direct steam jet towards electronic devices.
• While washing your car, make sure that the nozzle is
more than 10 cm away from the surface.
• When not in use, the machine should be switched o and
drained.
• Use only good quality fuel diesel. Use of any fuel
other than diesel, or any fuel that is contaminated or
diluted, may result in damage to the burner and loss of
guarantee.
• Remember that the hose bending radius can never be
lower than 10 cm. Bending the hose to a tighter radius
results in teon breaking, and, in consequence, in hose
damage.
• Operating pressure can be dangerous for people and
animals.
• Operators should be sober, adult, and trained in machine
operation and maintenance.
• Spare parts cannot be dierent than those
recommended and manufactured by the manufacturer.
• In case power supply cable is damaged, it must be
replaced by an authorised service-provider under pain of
loss of guarantee.
• Water tank must be lled with tap water only. Do not
add any detergents, chemicals, or descaling agents to the
water tank.
• Do not use distilled water!
• Before starting the machine, check if its operational
openings are free from dirt.
• It is only allowed to use original hoses and guns.
• Do not start the machine if its electrical cable or any
other part is damaged.
• Do not operate the machine in the rain or when it is wet.
• Never tilt or topple the machine when switched on.
• Always switch o the machine before cleaning.
• Children are absolutely not allowed to contact the
machine.
• Be careful while working near children or animals.
• Do not use the machine when damaged or when its
power supply cable shows any signs of damage. In case
the machine fails to work the way it should, if it fell or
got damaged or was left outdoors or ooded, contact
our service dept.: help@fortador.com
• Do not try to pull or lift the machine by its power supply
cable or hose.
• Watch for hoses, guns, lters, and seals. As consumables,
they are covered by limited guarantee only.
• Never direct steam towards people or animals.
• Keep the machine away from naked ame, radiators,
ovens or any other heat sources.
• Do not use the machine in any conned, insuciently
ventilated areas. Its fumes may pose a threat to your
health.
• Do not operate the machine in an environment with very
high humidity of the air and/ or highly dusted areas.
• When in operation, the machine should not be moved.
• The machine should be connected to electrical
installation that is provided with reliable earthing.
It is forbidden to operate the machine connected to
electrical installation no earthing, as it may pose a
threat of electric shock!
9
UNPACKING
1. Carefully remove the machine from its packaging.
2. Check if the machine has not been damaged while being
shipped.
3. Check if its standard equipment is complete. We
recommend to keep the packaging.
Vacuum cleaner with accessories,
1 set (in Volt Pro version only)
Repair kit
Packaging dimensions STANDARD ACCESSORIES
120 cm
80 cm
116 cm
10
In order to provide for the machine’s proper and safe opera-
tion, this procedure should be conducted before it is started.
1. Check if your hoses have been properly connected.
2. Make sure that your valves work properly.
3. Re-ll the water tank.
4. Make sure that your hoses and guns are not damaged.
5. Do not put any heavy objects on hoses, and do not drive
your car on them.
6. Make sure that your steam supply valves are closed if you
do not use your gun for a longer time (10 minutes).
7. Check residual-current circuit-breaker operation by
pressing the Test button marked with a red square (the
machine should switch OFF). Operating the machine
with faulty residual-current circuit-breaker is strictly
prohibited.
8. Before starting the machine the operator should always
check cleanness and tight the cover of water lter.
residual-
current
circuit-breaker
11

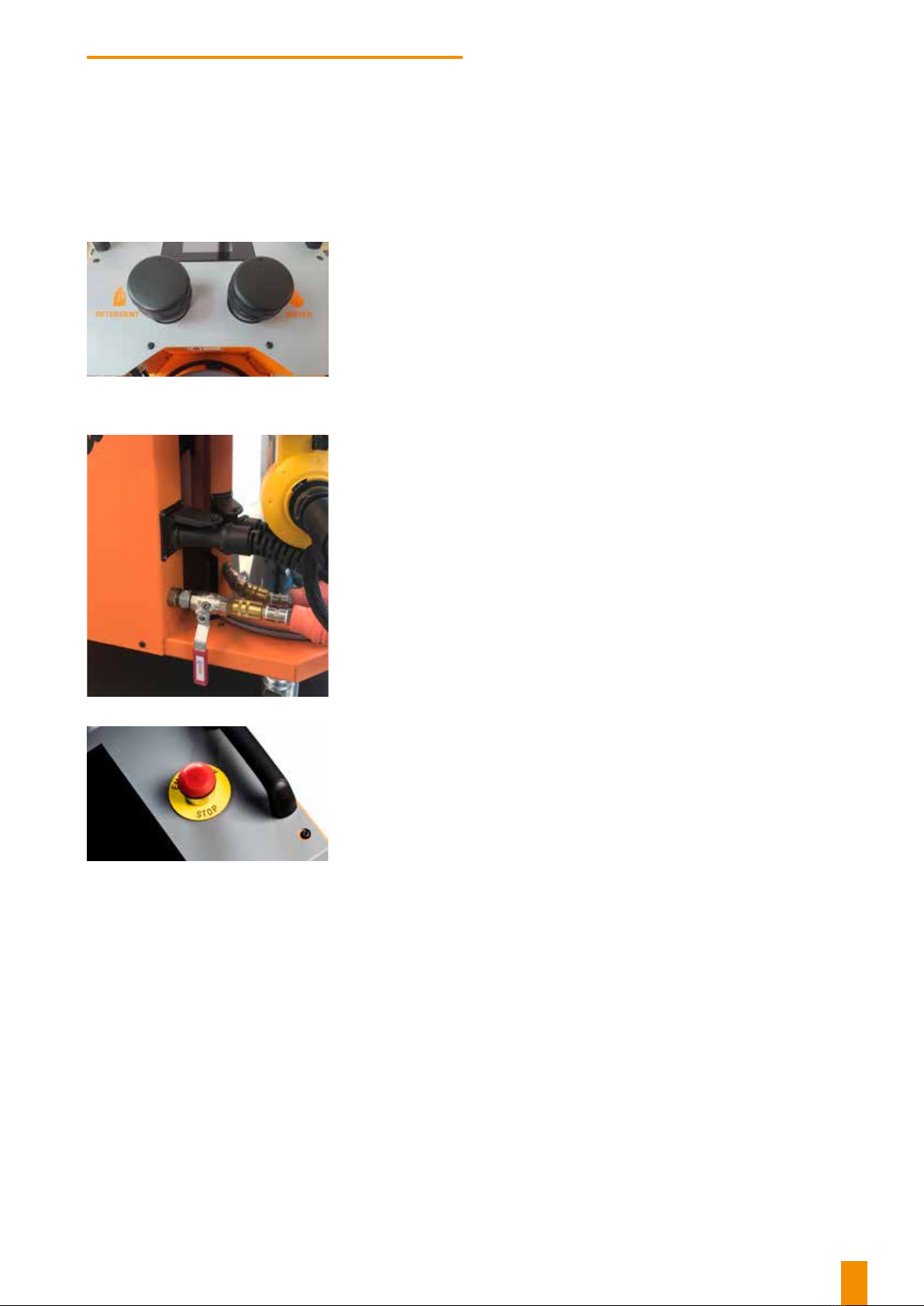

Re-ll the WATER and DETERGENT tank. Use only pure tap
water or water with Lamborghini softener (to extend the li-
fetime of your boiler and all hydraulic assemblies).
Important: Make sure not to start the machine before you
pour the water in.
Connect the machine to a 230 V or 110 V socket (depending
on version of the machine), and turn the emergency stop
ring clockwise.
Make sure that the steam hose is properly connected (see
the picture) – when connecting you should hear characte-
ristic click sound.
Connect washing hose adapters
1
3
2
HOW TO INSTALL AND USE
THE MACHINE FOR THE FIRST TIME
FORTADOR VOLT ELECTRA machine starting procedure.
12
Hold the gun trigger pressed until steam starts to come out.
Pressure will drop for a moment. When the 12 bar pressure
is reached, the machine is ready to work.
Touch the button on the display to start the machine. The
machine will begin to automatically ll the boiler with wa-
ter, and the heater will be activated as soon as the minimum
water level is reached.
After 7-10 minutes, the pressure will reach 12 bar. Such mes-
sage will be displayed on the screen.
4
5
6
13
WASHING
Re-ll the DETERGENT tank with the washing agent diluted
in water in proportions as described on the detergent label.
It is not recommended to use high-foam and acid pH reac-
tion formulations.
Remove the cloth lter from the vacuum cleaner.
Connect vacuum cleaner to the machine socket.
Connect 3 washing hose adapters:
• suction pipe to vacuum cleaner;
• electric plug to socket no. 10;
• steam hose to quick connector no. 11.
1
2
3
4
14
Test your gun functions. Gun button functions:
• Trigger used to eject steam or steam with detergent
(if the detergent-disposing button is pressed).
• Monostable button used to start detergent feeding
• Gun trigger lock
5
Start washing, making sure to move your washing gun only
from top to bottom (for a vertical surface) or towards you
(for a horizontal surface), dispensing the detergent all the
time to provide for best washing eects.
While washing, your vacuum cleaner should be kept swit-
ched on all the time, so that it can draw in the condensed
steam from the surface being washed.
Upon completion of washing, empty your vacuum cleaner
container, disconnect the hose from the machine, and pro-
ceed as in the “Switch-O Procedure” Section.
6
7
8
Detergent
feed
Gun trigger
lock
Steam
tigger
15
Open valve
Close valve
CLEANING
Holding the gun in both hands, press the trigger. Note: high
pressure results in gun recoil when its trigger is pressed. Be
careful! Work using both hands. Pull the hose, do not pull
the gun! Do not pull the gun by the hose!
While moving from one area to another, never pull the gun,
as this may lead to the connection of the hose with the gun
or the gun itself getting damaged.
2
1
Direct the steam jet towards the surface being cleaned, ma-
king sure to keep a safe distance of 10 cm between the gun
nozzle and the surface being cleaned.
3
In order to remove heavy soiling, it may be required to use
some detergent together with steam jet. Before activating
this function, re-ll the DETERGENT tank with detergent
diluted in water in proportions as described in the detergent
label.
NOTE: Failure to obey this sequence may lead to detergent
pump getting damaged!
5
In case of heavy soiling, use the “wet steam” function
that is activated using the orange arrow marked button.
Steam being fed using the cleaning gun will additionally
contain water mist.
4
16
CONTROL PANEL
FUNCTIONS
Main screen
Orange background of indicators
means that the uid level is sucient.
When indicators are shown with a red
background, it means that uids are
missing and that they should be re-
lled to continue operation.
Current boiler pressure
indicator
Service screen
Fuel level indicator
Wet steam feed starting button
Detergent level indicator (cleaning)
Information screen
17

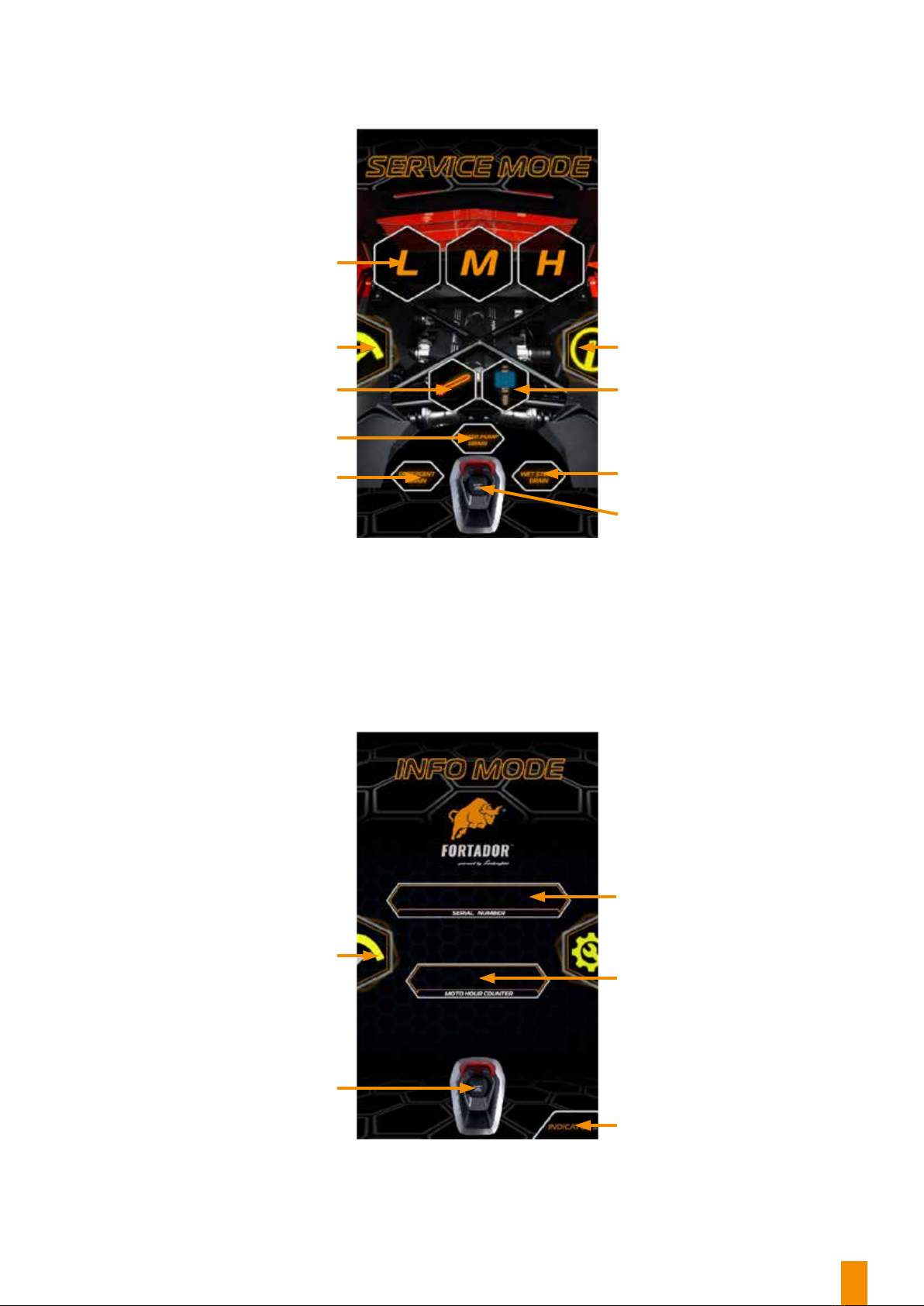

Boiler water level indicator shows
the current water level (L – Low, M –
Medium, H – High) by backlighting the
relative indication in yellow.
Serial display screen
Information screen
Serial number
Main screen
Moto hour counter
Information screen
Machine stop button
Boiler water level
indicator (L-low,
M-medium, H-high)
Return to Main Screen
Heaters operation
indicator
Water pomp
maintenance mode
Detergent
maintenance mode
Water pump ON
indicator
Wet steam maintenance
mode
Machine STOP button
Information screen
18
PROCEDURE
as presented herein.
Switch o the machine using the button on the touch
screen, and then disconnect it from its power supply. NOTE:
Failure to observe this sequence may result in damage to
the machine’s controller.
Disconnect the hoses, clean them and roll them up, being
careful not to exceed the allowable bending radius (min. 10
cm); NOTE: Bending the hose to any radius that is tighter
than allowed will result in its damage!
Place the machine so that the boiler draining valve outlet
no. 14 is directed into the open space. Carefully open valve
no. 14, paying special attention to the steam that is coming
from the outlet. High-pressure steam jet may lead to serious
burns!
3
4
1
Drain the boiler completely, leaving valve no. 14 in its
open position. This valve can only be closed just before
you start your work.
Clean the machine if dirty. By cleaning the machine each
time after you nish your work, you will keep it in very good
technical condition for a long time.
Leave the machine in dry, warm area that is free from dust.
5
6
7
2Press the gun’s trigger to release any steam that still rema-
ins inside hoses.
19

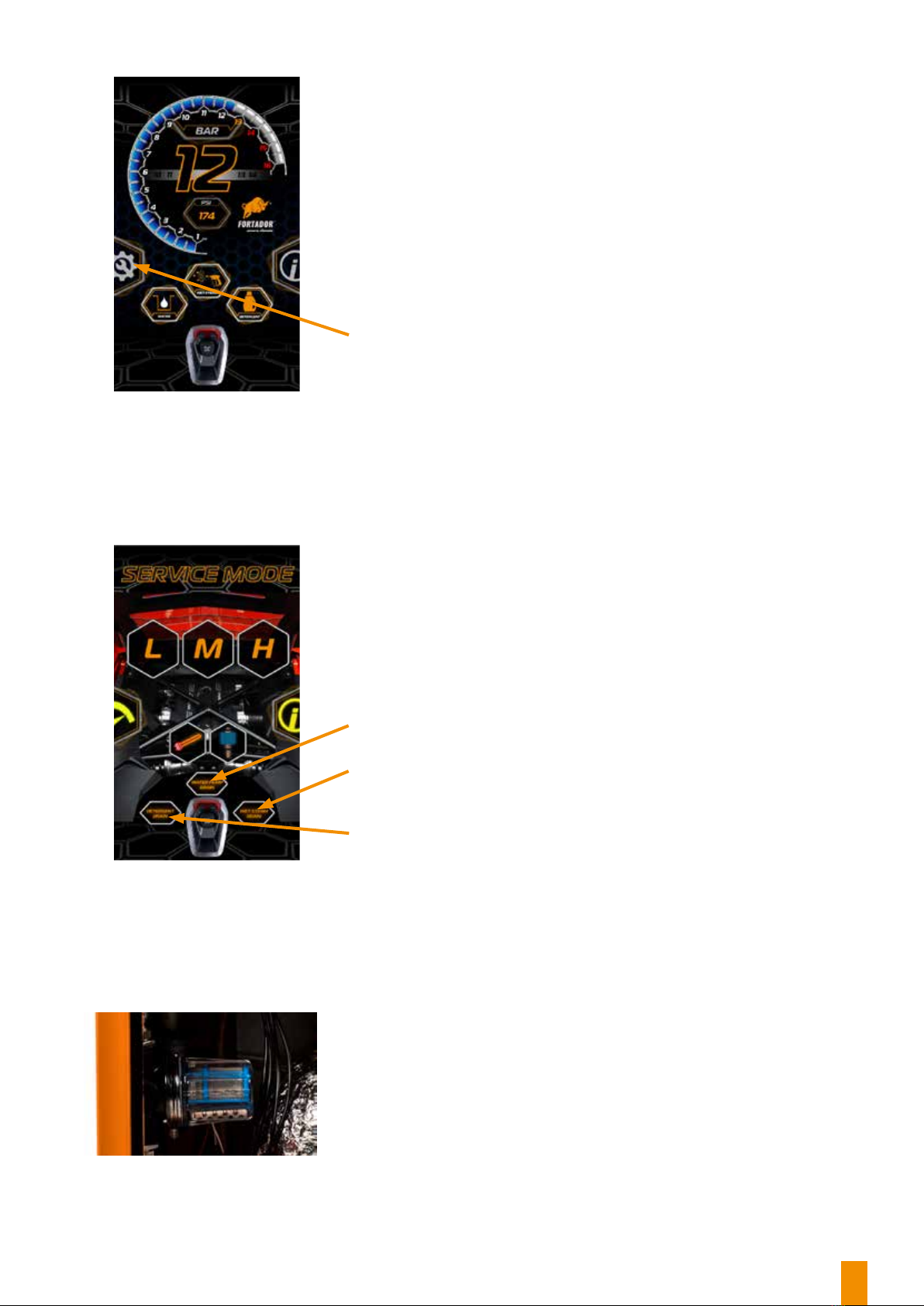

If the machine is to be stored in temperatures below 0ºC
(32 F), it must be drained from all uids (water, detergent)
using valves no. 12, 13 and 14. Then, all the water must be
pumped out from the water system, by entering the mainte-
nance mode by pressing the Maintenance mode button that
occurs for several seconds in the upper part of the display
when the machine is started.
Afterwards, by pressing the button marked with orange ar-
row, the water pump will be run for 5 seconds pumping out
any remaining water from the water system into the boiler.
Repeat this procedure several times, watching if any water
is still present in the tube that supplies water into the wa-
ter lter, and in the lter itself. If you cannot see any water
coming out, do not start water pump any more to avoid dry
running.
The last step is to remove the water from the water lter by
unscrewing its plastic dome and draining the rest of water.
When dry, re-install the dome on the water lter.
8
9
10
Service screen
Button used to start water pump
in maintenance mode
Button used to start detergent
pump in maintenance mode
Button used to start wet steam
pomp in maintenance mode
20
Service screen
Control of water, detergent
and fuel sensors required
Water and fuel detergent l-
ter cleaning required
Descaling device required
Technical inspection required Vacuum cleaner engine check
required
MAINTENANCE PLAN
The FORTADOR steam cleaner is made of best materials. In order to keep it in its
perfect condition, it requires scheduled maintenance in line with the below main-
tenance plan.
Within the guarantee period, scheduled maintenance must be performed by the
guarantee-issuing party or the authorised dealer. Failure to observe this condition
will result in loss of guarantee.
MAINTENANCE OPERATIONS TIME INTERVAL
(WORK HOURS COUNT)
Clean the water and detergent lter 100
Check (water, detergent) sensors 150
Descaling 50 – 200 (depending on water
hardness)
Replace the vacuum cleaner motor 500 - 1000
Table of contents
