LAMI Daisy-55EC User manual
+PUVTWEVKQP /CPWCN
5HY
Preface
Thank you for purchasing our ഀ.
This Instruction Manual (document) includes details for safe use of this product.
Please read this document thoroughly before using the product.
Also, carefully store this document for immediate use whenever necessary.
Preface P 1
اTable of Contents .................................................................................................................................. P
1
Precautions Before Use P 2
سList of Labels Attached to the Product and Meaning of Symbols ............................................................ P 2
سPrecautions for Handling....................................................................................................................... P 3
اPlace for Installation ............................................................................................................................. P 4
Characteristics and Confirmation of Parts P 5
Installation of the Machine P 6
سStand Assembly Method........................................................................................................................ P 6
سFoot Switch Installation Method............................................................................................................ P 6
سPower Connection for re-winding Device (Optional).............................................................................. P 6
اFuse Installation Method ....................................................................................................................... P 7
Name of Each Part P 8
سMain Body of DAISY-55EC ............................................................................................................. P 8
سOperation Panel..................................................................................................................................... P 9
اFoot Switch............................................................................................................................................P 10
Before Processing Laminate P 11
اAbout Laminate Film ............................................................................................................................. P 1
1
Cold Laminate Processing P 12
اInstallation and Processing of Cold Laminate Film ................................................................................. P 12
Maintenance P 15
سCleaning of Roller..................................................................................................................................P 15
سCleaning of paper tube holder................................................................................................................. P 15
اCover the product with cloth after use.....................................................................................................P 15
Troubleshooting P 16
سPower does not turn on · machine does not function................................................................................P 16
سProduct malfunctions or power is immediately turned off........................................................................P 16
سWrinkles are formed in the processing material....................................................................................... P 16
اProcessing material cannot be inserted · does not come out.....................................................................P 16
Others P 17
سProduct Specifications............................................................................................................................ P 17
اContact ..................................................................................................................................................P 17
6CDNGQH%QPVGPVU
...

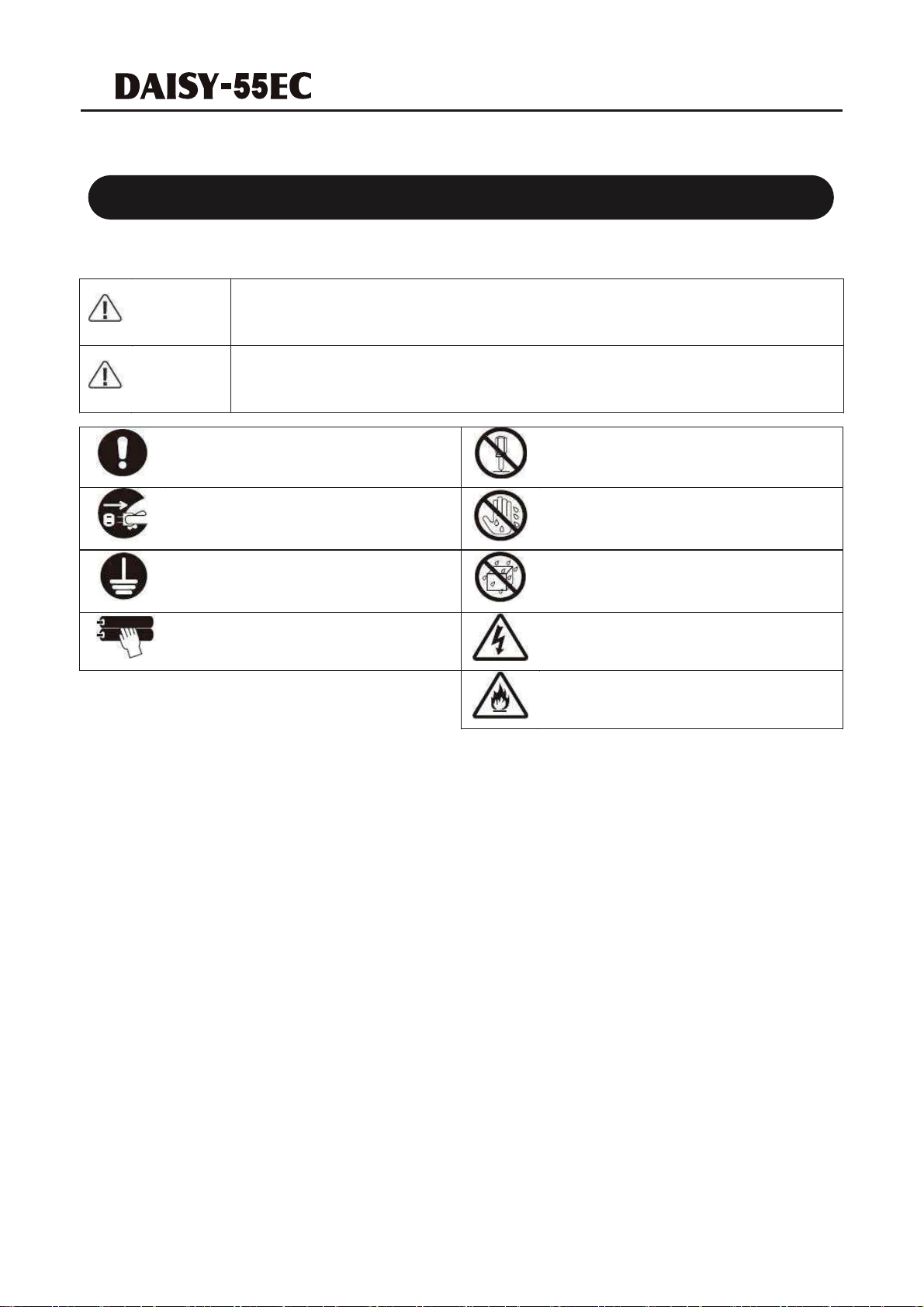

Precautions Before Use
This document uses symbols to explain the degree of harm and damage caused by incorrect use of the product and to
prevent harm on customers and others or damage on properties.
Warning If this symbol is neglected and the product is handled incorrectly, serious injury or death may
occur.
Caution If this symbol is neglected and the product is handled incorrectly, human injury or physical
damage on properties may occur.
This symbol indicates matters to be followed
to avoid injury.
This symbol prohibits disassembly of the
device for safety.
This symbol instructs the user to remove
power plug from the outlet for safety.
This symbol prohibits touching of the
product with wet hands.
This symbol instructs the user to connect
grounding for safety.
This symbol prohibits wetting of the
product by water.
This symbol warns the user about the risk of
hands rolling into the roller.
This symbol shows concern for electric
shock under improper handling.
This symbol shows concern for smoke and
ignition under improper handling.
/GCPKPIQH5
[
ODQNU

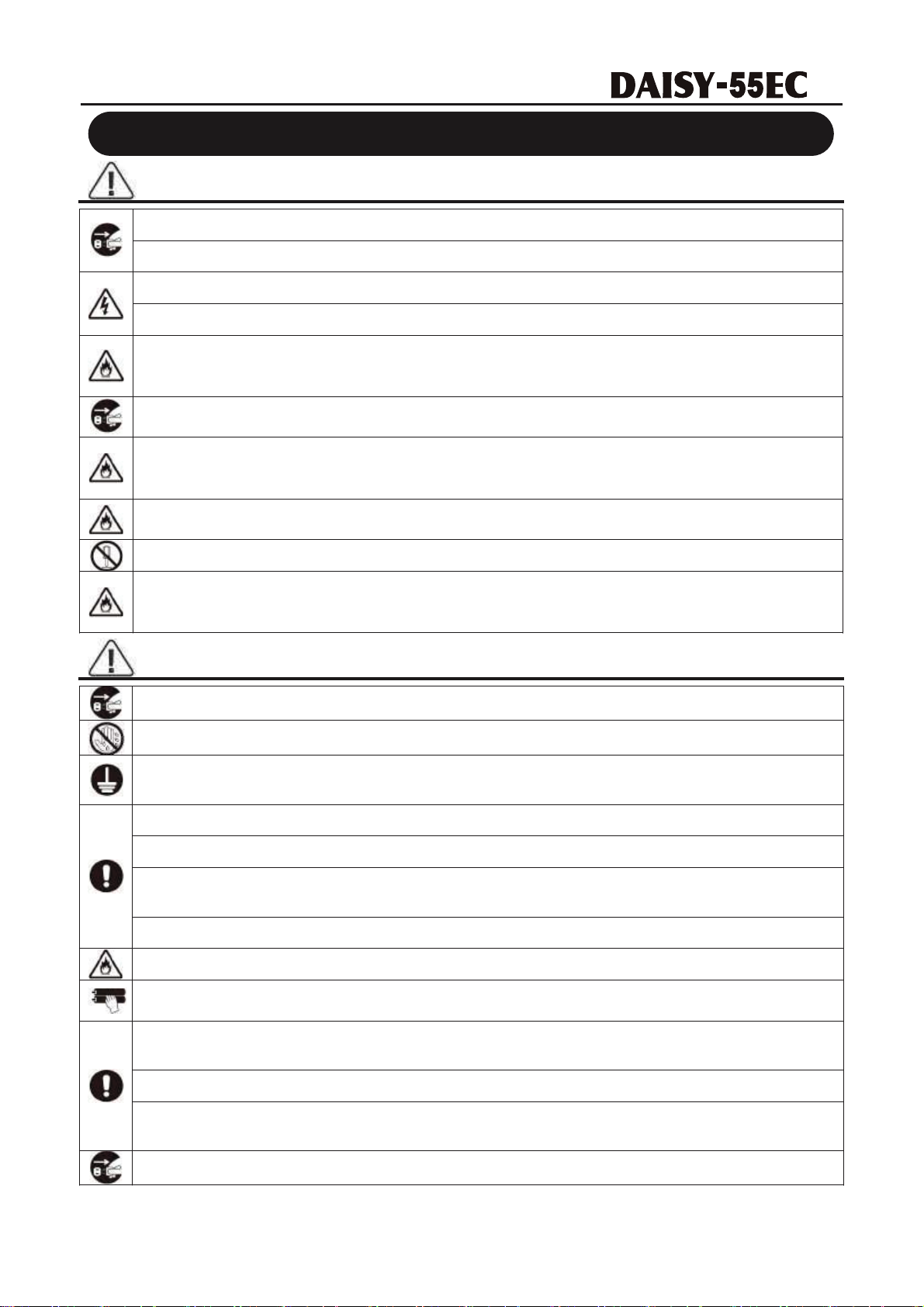

Warning
Power cable included in the product must be used. Do not use power supply not indicated on the product.
Do not place heavy objects on power cable, place cables nearby heating devices, or complex wiring.
Do not process power cable or use damaged power cable.
Accurately insert to the end of electrode.
When inserting power cable, the plug must be held. Excessive bending, twisting or pulling can damage the cable interior
and cause electric shock, fire, and failure.
Contact our company or store when power cord is damaged.
Regularly remove power cable from the outlet to clean the root and gap of electrode. Do not insert cable with foreign
substances such as dust attached.
Do not install the product in places with high temperature and humidity or poor ventilation, places with combustible and explosive gas
or poisonous gas, places covered with dust, and on top of easily burnt objects. When installing against a wall, the product should be
placed at least 50cm away from the wall.
Do not approach the product to firearms, high temperature, metals, and easily burnt objects. Do not put liquids into the
machine.
Do not disassemble or remodel the machine.
Do not use the product in abnormal state such as smoke, strange odor, and noise. If such condition is found, immediately
turn off the power switch and remove power cable from the outlet before contacting the store or our company. The product
must never be repaired by the customer for safety purpose.
Caution
Power cable must be removed from the outlet when the product is not used for long time.
Do not insert power cable with wet hands.
Grounding must be connected before connecting power to power cable. Power cable must be removed before grounding
disconnection.
Especially, keep the product away from children.
Do not ride the product or put heavy objects on top.
Do not place the product in unstable places (oscillating place, slanted place, and place with vibration of other
machineries). The product may fall down or over to injure persons nearby.
Avoid direct wind from air conditioner.
Never block the air vent. Blocked air vent can cause failure or fire from accumulation of internal heat.
During operation or insertion of laminate, be careful about clothes such as neck tie and necklace and body parts from entering the
device.
When film glue is attached to the laminate roller, squeeze cloth stained with neutral detergent and wipe out. (Do not
clean with benzene, thinner, or sponge.)
Lift the roller for laminate processing.
When the machine is not used, cover with a cloth to keep away from direct light or fluorescent light. Light can result in
rapid degeneration of the laminate roller rubber.
For safety, transport this product after turning the power switch off and removing power cable from the outlet.
2TGECWVKQPUHQT*CPFNKPI
This device shall be installed in the following places.
Horizontal and stable place
Use as slanted or in unstable state may result in adverse effects such as paper return.
Also, unexpected accidents can occur.
Place where exclusive power outlet is available
Do not use power types other than the rated voltage regulated on this Manual.
Grounding and earth leakage breaker must be installed.
Place with low humidity and sound ventilation
Installation of this product in place with high humidity can result in short circuit or failure.
Avoid outdoor places and places with direct light or air conditioner wind.

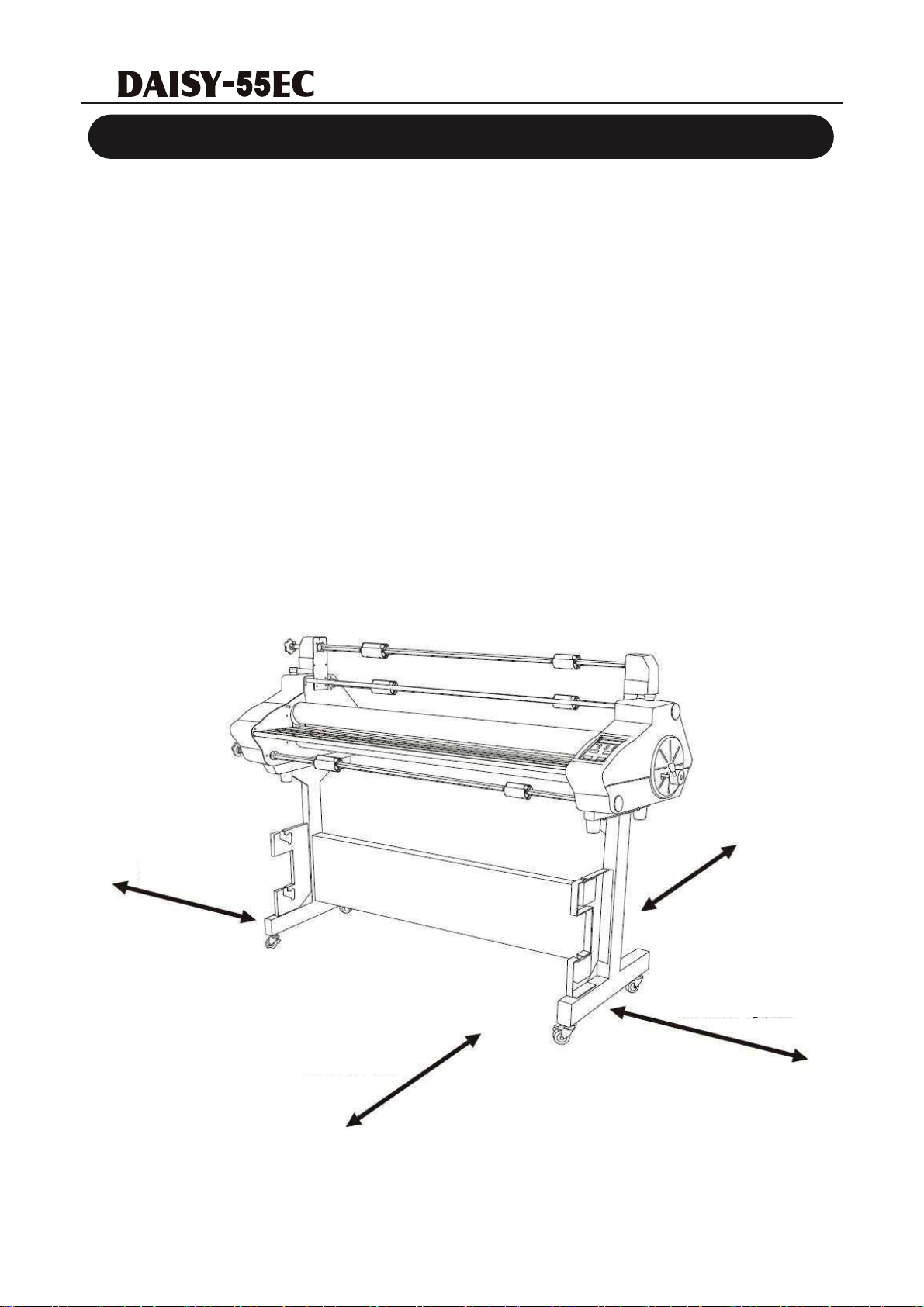

Workability
Secure sufficient space for workability.
Do not install the product too close to walls. If possible, space between the product and wall should be wide
enough to allow human passage.
2NCEGHQT+PUVCNNCVKQP
OOQTOQTG
OO
QT
OQTG
OOQTOQTG
OOQTOQTG

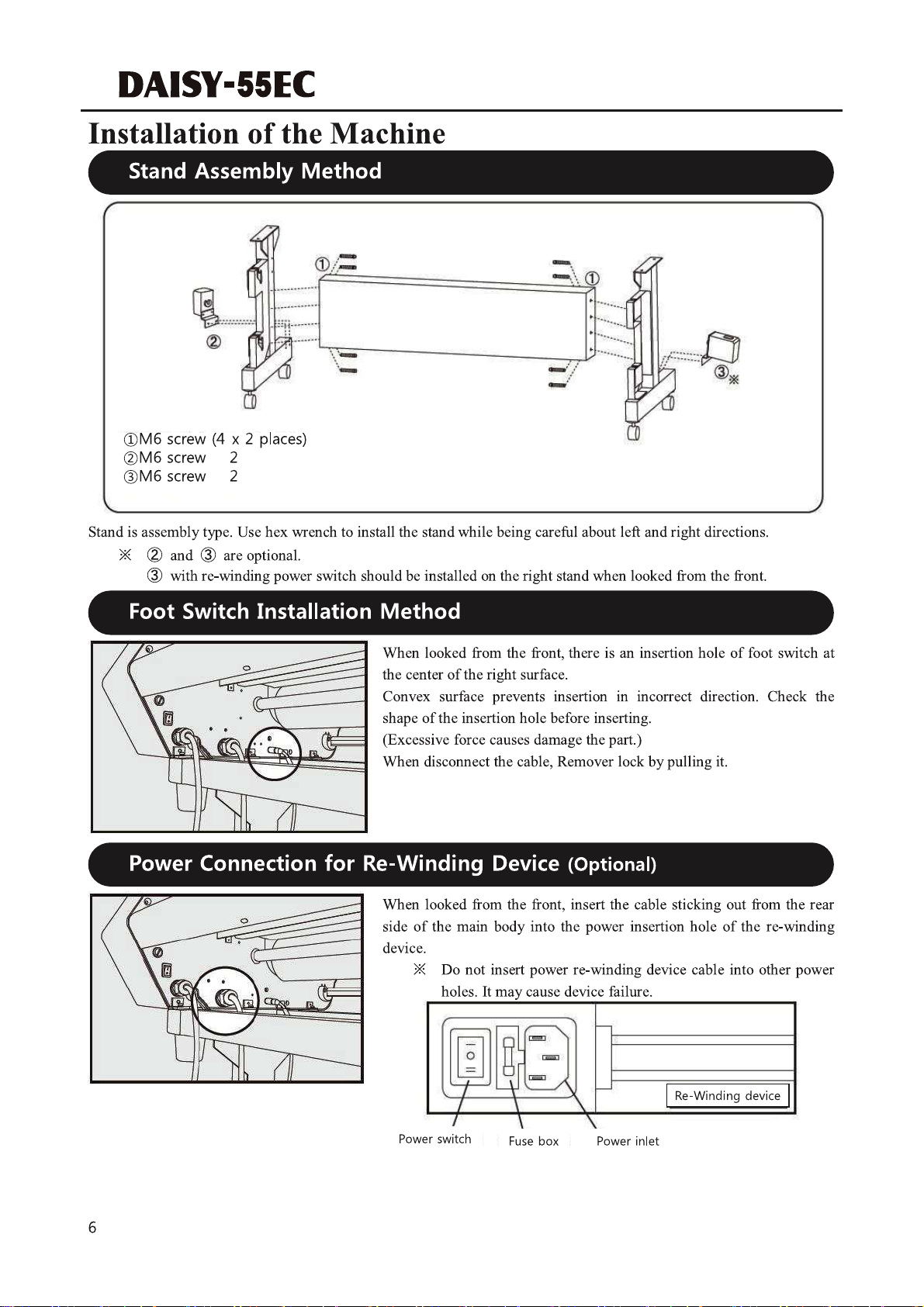

Fuse is placed nearby the power switch on the rear of right surface and power switch of the Re-winding device
(optional). (Spare fuse is only included in the Re-winding device.)
Take out the fuse using flat-head driver to check disconnection of the fuse.
If it is disconnected, replace with a new fuse before supplying power again.
(WUG+PUVCNNCVKQP/GVJQF
Power switchFuse
Fuse disconnection check
Re-Winding device
Rear-right
Options
Fuse
(spare fuse)
Fuse box
Visually check whether this part is
disconnected

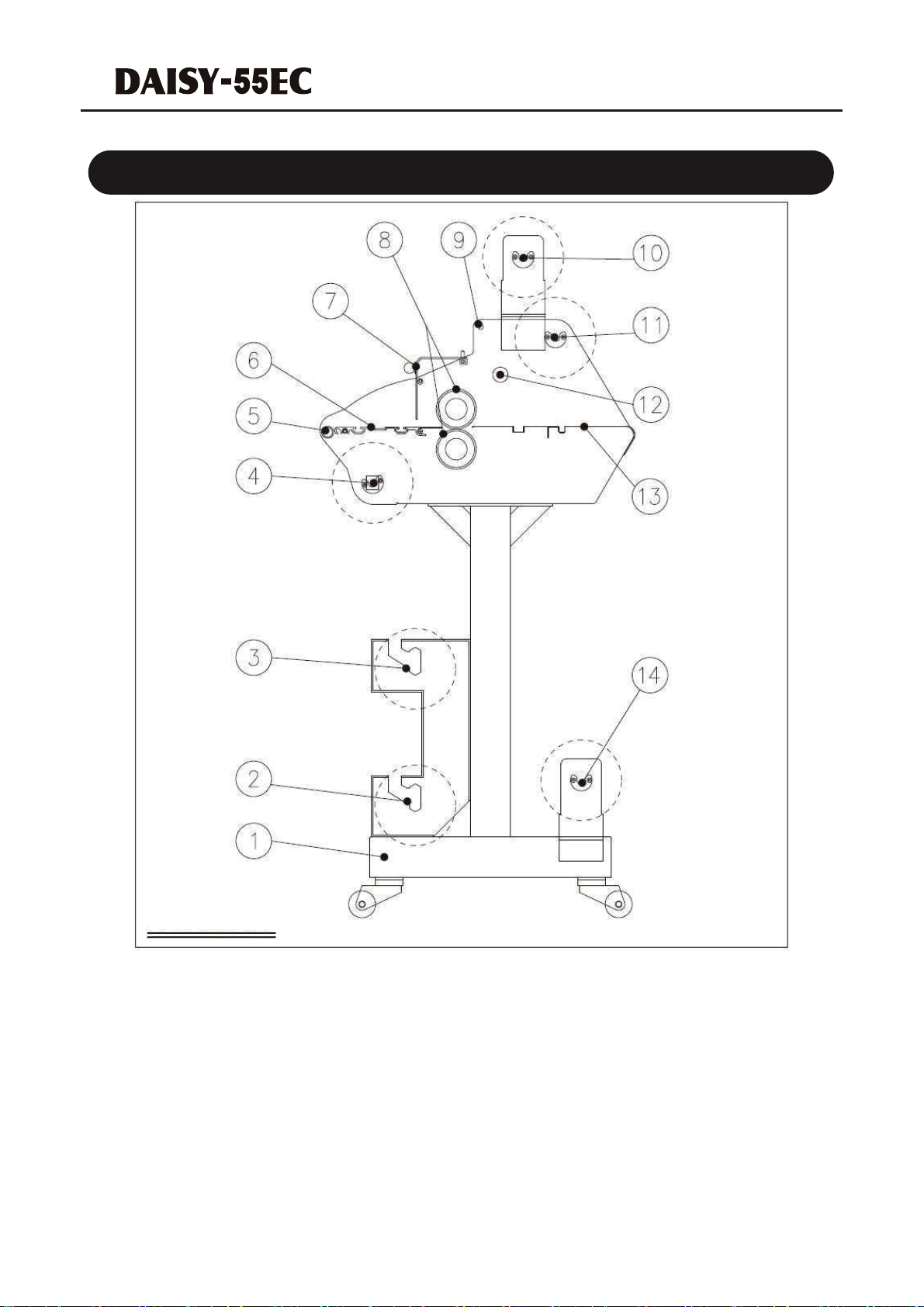

Name of Each Part
ձStand
ճMedia holder shaft
յIdle roller (front)
շFinger jamming prevention cover
չStay bar (reinforcement bar)
ջLaminate film shaft
սBack signboard
ղReserve film shaft
մFilm shaft for under-film
նFront signboard
ոLaminate roll
պFilm shaft for release paper
ռIdle roller (top)
վWinding film shaft
ղ,ճand վare optional.
/CKP$QF[QH
4KIJV5KFGQH
/CKP$QF[
&#+5;'%
LCD Display Panel
RUN
Displayed during laminate processing
STOP
Displayed when laminate processing is stopped
FORWARD
If FORWARDഀis shown on the LCD panel, the roller rotates in forward direction.
REVERSE
If REVERSEഀis shown on the LCD panel, the roller rotates in reverse direction.
EMEGENCY
When emergency stop button is pressed, EMERGENCYഀpops up on the LCD panel.
All functions come to stop. Emergency stop can be released by turning the emergency stop button to the right.
When EMERGENCYഀis displayed, only vertical control is allowed for the roller.
ŸOne emergency stop switch is placed on left and right sides of the top of the main body.
ŸRotate the button clockwise to release emergency stop.
1RGTCVKQP2CPGN
Speed
Forward and reverse rotation of roller
Current status

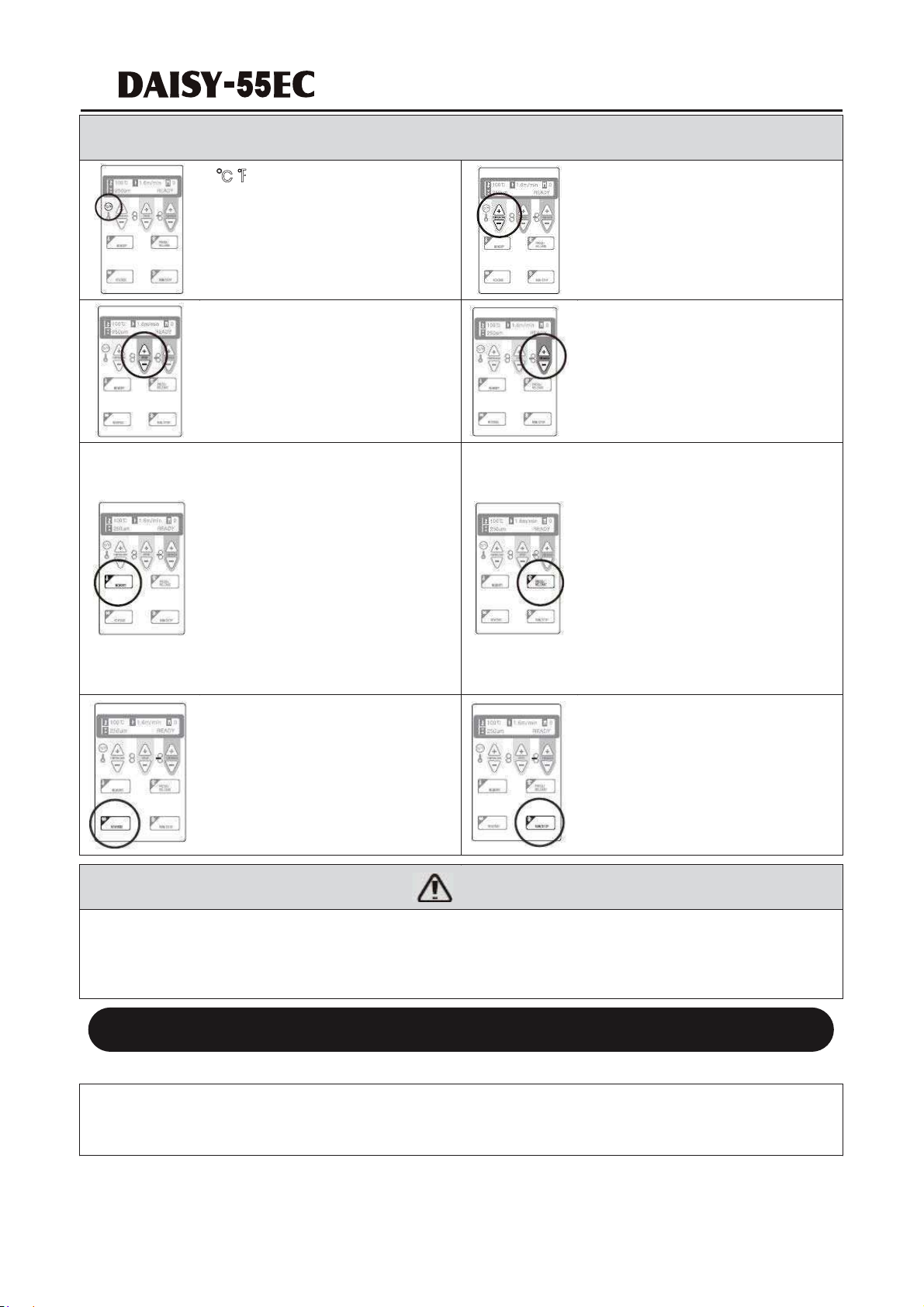

Buttons on the operating panel
Υ/Ϋbutton
This button is not used.
TEMPERATUREbutton
This button is not used.
SPEEDbutton
Rotational speed of the laminate roller
can be adjusted within 0 ~ 3.0 m/min.
THICKNESSbutton
This button is not used.
MEMORYbutton
This button is used during maintenance
to display appropriate mileage
When pressed once, mileage from
previous reset until now is displayed.
(Press RUN/STOPഀbutton while
pressing MEMORYഀto reset.)
When pressed once again, total
mileage until now is displayed. (This
cannot be reset)
When pressed again, it returns to the
original display.
PRESS/RELEASEbutton
This button is not used.
REVERSEbutton
When pressed once, the laminate roller
rotates in reverse direction
When pressed once again, it returns to
forward rotation.
RUN/STOPbutton
This button starts and stops roller
rotation.
The roller rotates when the button is
pressed with the roller at stop, and the
roller stops when the button is pressed
again.
Caution
lDo not operate 2 or more buttons simultaneously.
lThe following buttons cannot be used on the product.
Υ/Ϋഀbutton, TEMPERATUREഀbutton, THICKNESSഀbutton, PRESS/RELEASEഀbutton
This device can be operated by operation panel as well as foot switch included.
lThe roller begins to rotate when the foot switch is pressed with the roller at stop.
lThe roller stops rotating when the foot switch is pressed with the roller rotating.
(QQV5YKVEJ
Before Processing Laminate
There are two types of laminate film including roll typeand pack type.
This product uses cold roll filmtype.
ȄPack typeand hot roll filmcannot be used.
Thickness ( )Thickness of the laminate film is selected according to the use.
Thickness of the cold roll film used by this product ranges from 20 to 300 .
Size of Branch Pipe
(Inner Diameter)
Size of installable paper tube differs according to the laminate structure.
This product uses a 3-inch (about 77 mm) branch pipe.
Type of Roll Film
Hot roll film
Apply heat to melt glue and attach the film.
Cold film
Parting paper (release paper) is attached on the surface applied with glue.
Release the film with the Re-winding device and compress with the roller for use.
#DQWV.COKPCVG(KNO
2TGECWVKQPUHQT*CPFNKPI.COKPCVG(KNO
Ÿ
Do not place the laminate film in places with high temperature and humidity.
ŸWhen lamination is not being done, store the film on the exclusive film shelf or in a box.
ŸUse film appropriate for the laminator.
ŸIf a problem is found in the
film before use, do not use and contact the store. Reckless use may result in
failure of the laminator.
Cold Laminate Processing

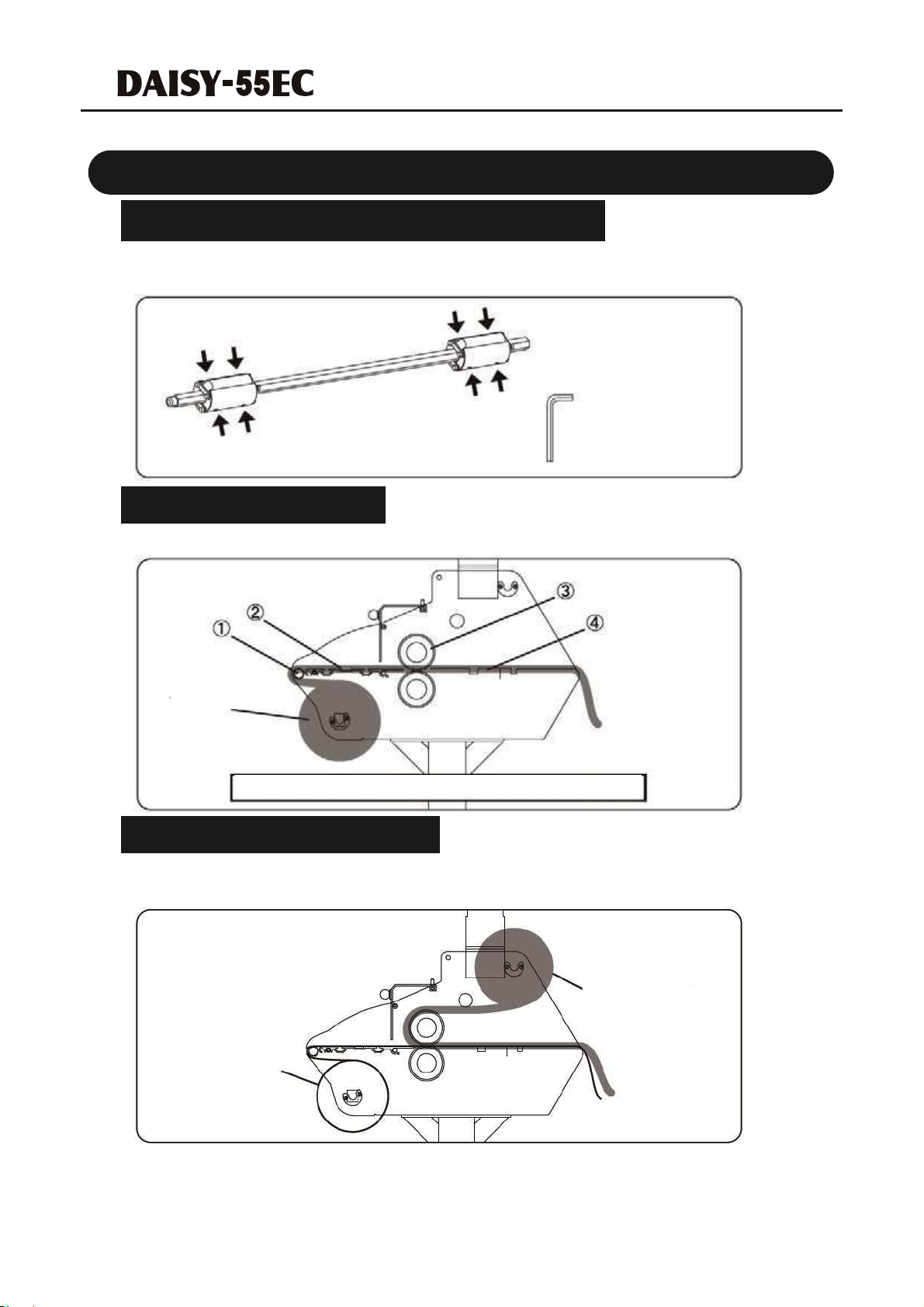

1Install the paper tube holder on the film shaft.
All 6 film shafts are common parts.
Use hex wrench to move or fixate the branch pipe holder.
2Install the under-film.
Refer to the figure below to pass the under-film while laminate roller (top) is lifted.
3Install the laminate film.
Pass the laminate roller through the under roller with the release paper attached and then put down the laminate
roller.
+PUVCNNCVKQPCPF2TQEGUUKPIQH%
Q
NF.COKPCVG(KNO
Fixate 4 sides of each
branch pipe holder.
Under
-
film
Laminate film
ձIdle roller (front)эղ front signboardэճ laminate rollэմback signboard
Under
-
film
Only cut the release paper on the laminate film and rotate the laminate roller until the cross section of the release
paper cut touches the re- winding paper tube.
Here, hold the release paper so that it does not get entangled.
When the release paper touches the re-winding paper tube, attach it using cellophane tape to finish installation.

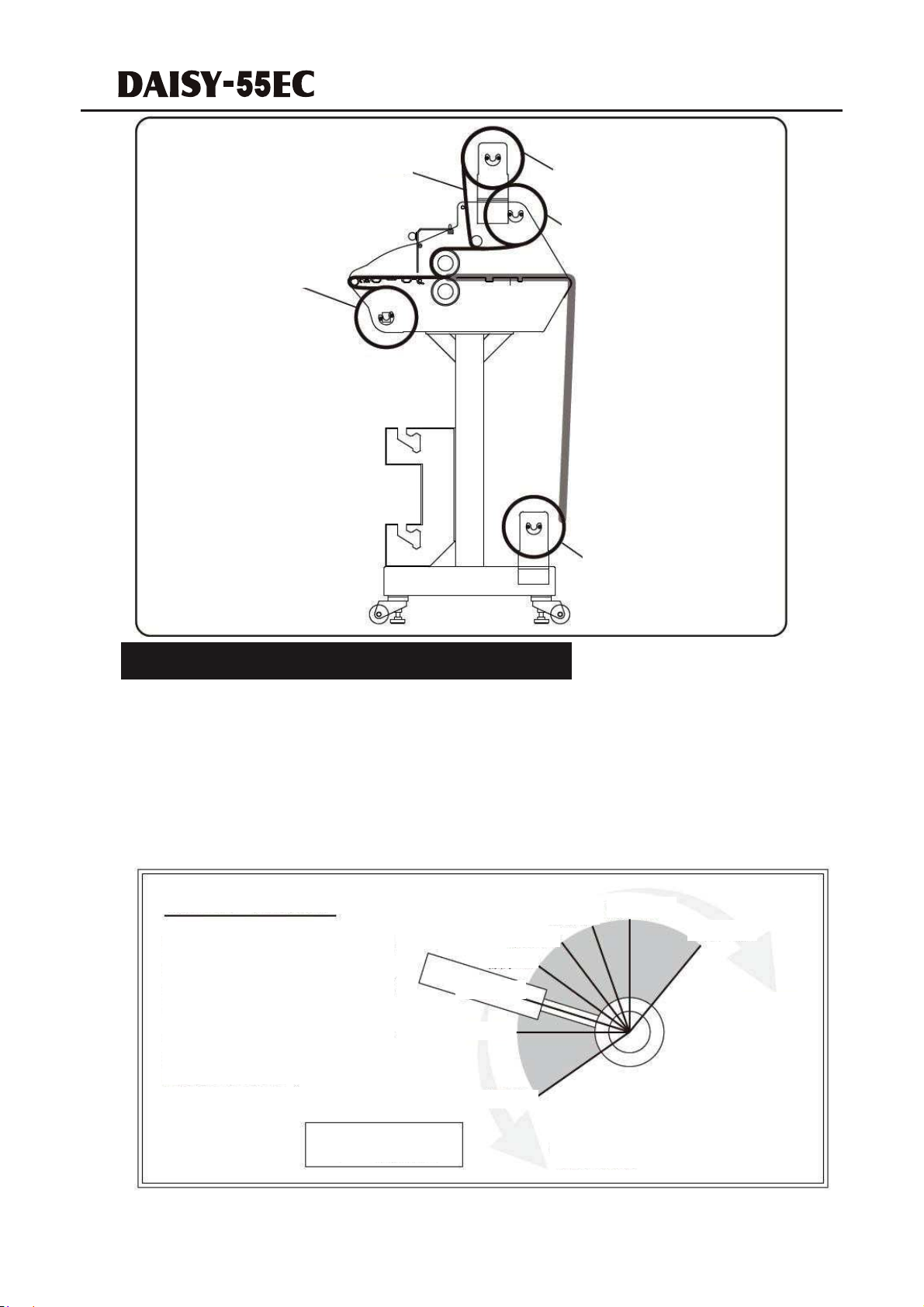

4Use the winding device.

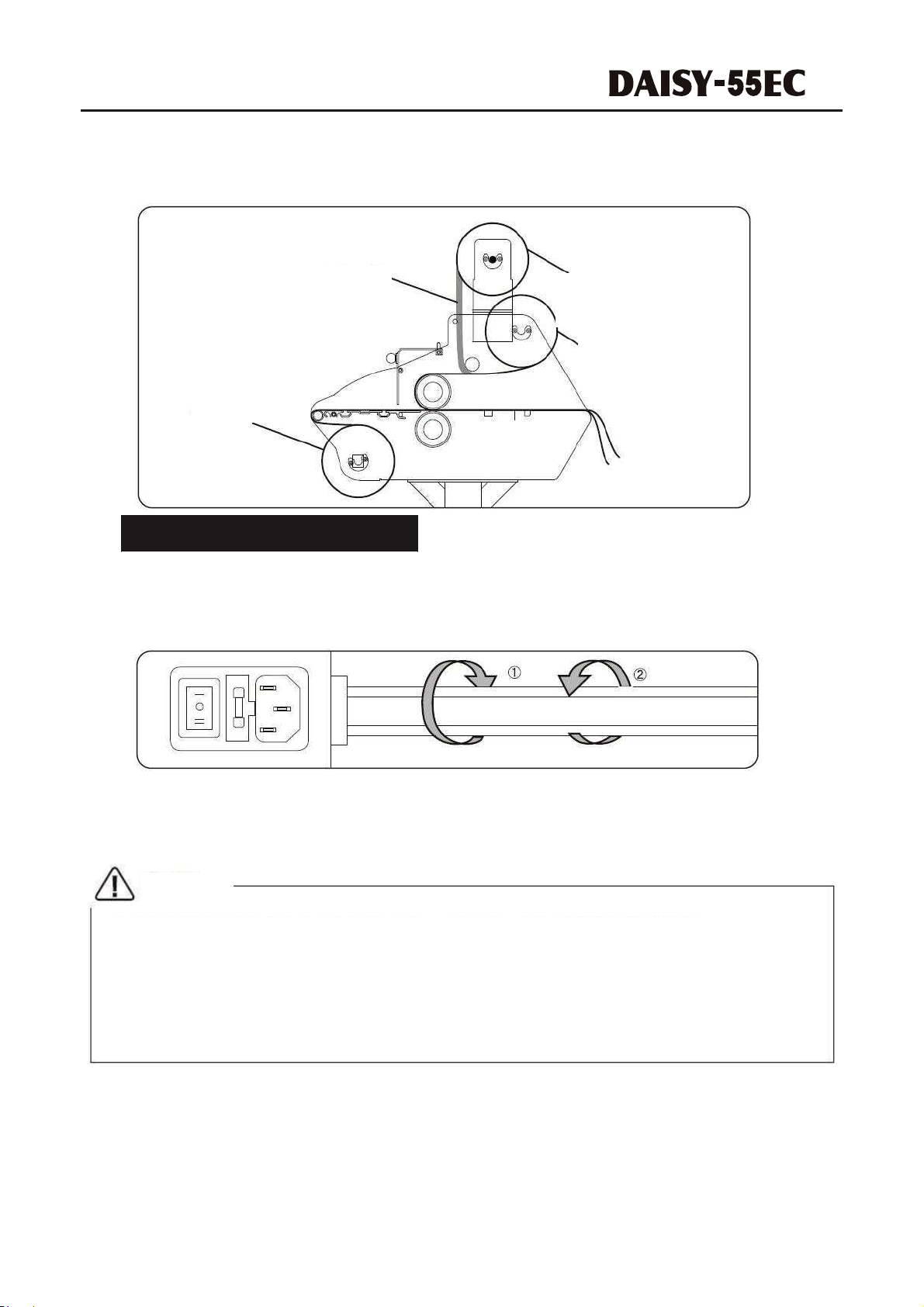

If the optional re-winding device is used, install the device according to the following sequence.
Attach the laminated product to the re-winding paper tube using tape. The motor starts rotating and winding
once the re-winding device switch is turned ON.
The re-winding device switch can be controlled to forward or reverse rotation.
When the switch is turned toఘdirection, the re-winding device rotates in direction ձ.
When the switch is turned to direction, the re-winding device stops rotation.
When the switch is turned to direction, the re-winding device rotates in direction ղ.
%CWVKQP
lThe re-winding device (optional) can be winded up to 50 m (about 30 kg).
Standard for the product of our company:
ŸUnder-film PET 12 !1400 mmഀ
ŸLaminate film PVC 80 !1350 mmഀ
ŸMedia PVC 80 !1370 mmഀ
During cold processing, winding is about 30 kg at 50 m.
Under
-
film
Laminate film
Release paper re
-
winding
paper tube.
Release paper
5Perform laminate processing.
1 : Use the handle to adjust pressure (gap) according to thickness of processing material.
2 : Adjust to the wanted speed using SPEEDഀbutton (speed can be adjusted during rotation of the laminate
roller) and press RUN/STOPഀbutton to rotate the laminate roller.
Here, the re-winding device for release paper automatically rotates. The re-winding device is controlled
by switch. (Refer to the above for switch operation method)
3 : Insert the script towards the laminate roller for laminate processing.
4 : Cut the processing material using cutter after processing.
5 : After completion of all processing works, use the handle to lift the laminate roller and cover with a cloth
for storage.
Paper tube for re-winding release paper
Release paper
Under-film
Laminate film
P
aper tube for product
Re-winding
Position of Pressure Lever
1 mm pressure is the optimal state for
cold processing in general.
Change pressure applied according to
necessity.
Panel processing is based on the position
of lever with thickness -
2mm of panel
thickness.
Pressure of level seen
from the right side
Pressure increases as lever is put
down
Pressure decreases
as
lever is lifted
Gap11mm
Gap8mm
Gap5mm
Gap
3mm
Pressure1mm
Pressure3
mm
Pressure5
mm
Gap
1mm
Maintenance
This product is composed of many rollers, and they must be cleaned according to usage.
The laminate can be maintained in desirable state by cleaning the rollers.
Clean each roller since rollers have paper scraps and dusts attached.
Cleanly wipe the paper tube holder using soft and dry cloth or wipe the contaminated part using cloth with water
completely squeezed out. Here, applying force on wiping or cleaning with materials other than cloth can rip or damage
the pipe.
After using the product, cover the main body with a large cloth to avoid dusts from entering.
%QXGTVJGRTQFWEVYKVJENQVJCHVGTWUG
%NGCPKPIQH$TCPEJ2KRG*QNFGT
%NGCPKPIQH4QNNGT
%CWVKQP
lThe roller must be stopped when cleaning.
lDo not clean the roller using hard objects such as steel wool. They can damage the roller.
lDo not apply force on the roller for long time.
lDo not clean using thick paper, which is sometimes seen in pack type laminato
r. Thick paper can block the
device and result in damage or failure.
Likewise, do not clean using thin paper. Paper can roll into the roller and the roller cannot be used.
Troubleshooting
The following measures are taken for troubleshooting.
lInsert outlet plug and check power switch
This product is used at AC240V . Make sure that the outlet plug is correctly connected.
Check that the power switch on the back of the main body is turned on.
If power cable is disconnected, it must be replaced. Contact our company or store.
lFuse is disconnected
Replace to a new fuse with identical spec. (Refer to P 7 for installation method.)
If the same symptom continues to occur, contact our company or store.
lHeater or light projector is used nearby or long drum (cord reel) is used
If such objects are in use, use power from a different system.
If a drum is used, remove the drum before connecting.
lOverload
Motor protection circuit may be functioning.
First remove power supply and wait for 10 seconds before resupplying power.
lAbnormal noise from the motor
If an abnormal noise is created by the motor, saw-tooth wheel is damaged or screw is loose.
Contact our company or store.
lThere is a problem in wiring
Contact our company or store.
lPCB malfunctions because of static electricity generated inside the machine
Turn the power off and then turn it on again.
lLaminate film and under-film are not installed properly
Refer to P 12 ~ 15 of this document to install them properly.
lTension is too weak
Strengthen tension.
lThe machine is slanted
Reinstall it on a flat surface.
lIs the script too thick?
Thickness of the script that can be processed by this product is 8 mm, including thickness of the film. If a thicker material
is inserted, the roller may not rotate or get damaged. Do not try to process anything thicker than the regulated thickness.
Even if thickness is within 8 mm, do not insert hard materials like metals.
lIs film or script rolled into the roller?
If the script remains in the insertion hole, press reverse button to pull the script out. Do not pull it too strong because
excessive pulling can cause failure of the machine.
If the script is not caught in the insertion hole, contact our company or store.
2TQEGUUKPIOCVGTKCNECPPQVDGKPUGTVGF
ś
FQGUPQVEQOGQWV
9TKPMNGUCTGHQTOGFKPVJGRTQEGUUKPIOCVGTKCN
2TQFWEVOCNHWPEVKQPUQTRQYGTKUKOOGFKCVGN[VWTPGFQHH
2QYGTFQGU
PQVVWTPQP
ś
OCEJKPGFQGUPQVHWPEVKQP
2TQFWEV5RGEKHKECVKQPU
'HWDLOVLQWKLVGRFXPHQWFDQEHFKDQJHGZLWKRXWQRWLFHWRPDNHLPSURYHPHQWVRQWKHSURGXFW
PP
PP
LQFK
0D[PPLQ
'LJLWDOSDQHOYDULDEOHW\SH
5RRPWHPSHUDWXUH
0DQXDOVHWWLQJV
$&9:
PP
NJ
)RRWVZLWFKVWDQG
࣭0HGLDKROGHUVKDIW
࣭5HVHUYHILOPVKDIW
࣭VHWRIZLQGLQJGHYLFH6KDIW3DSHUWXEHKROGHU0RWRU
0D[ODPLQDWLQJZLGWK
0D[VXEVWUDWHWKLFNQHVV
3DSHUWXEHVL]H
0D[ODPLQDWLQJVSHHG
3URFHVVLQJWHPSHUDWXUH
5ROOHUFOHDUDQFH
3RZHUUHTXLUHPHQWVFRQVXPSWLRQ
6L]H:['[+
:HLJKW
$FFHVVRULHV
2SWLRQV
,QWHUIDFHIRUVSHHGDGMXVWPHQW
Table of contents
Other LAMI Laminator manuals
