Lamona LAM3303 Guide

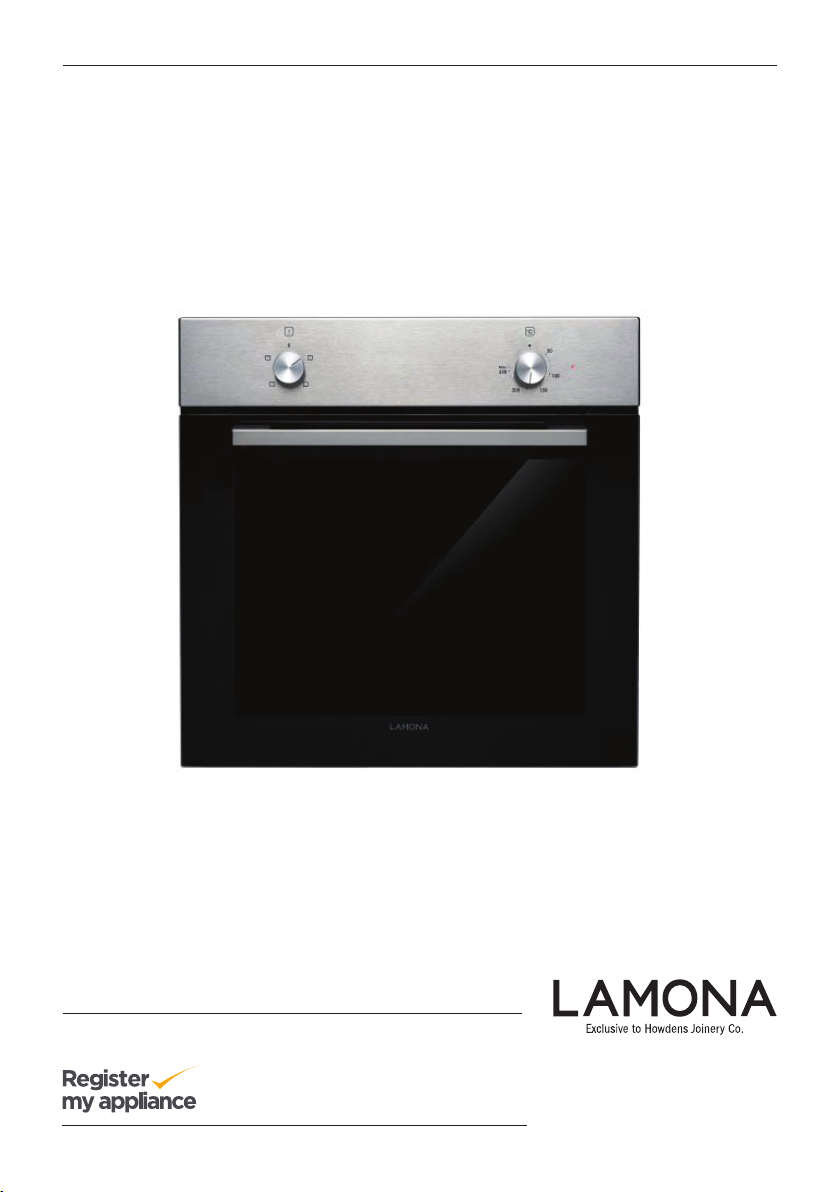

Built in Single Fan-Assisted Oven LAM3303
Instructions & Installation
www.howdens.com/appliance-registration

See back page for product serial number

Exclusive to Howdens Joinery.co Page _ 3
User manual LAM3303
Dear Customer,
Congratulations on your choice of oven.
The user manual will help you use your product quickly and safely.
•Please read this user manual before installing and using the oven.
•Always follow the safety instructions.
•Keep this user manual within easy reach for future reference.
•Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
Product information correct at the time of publication in January 2017.
The company has a policy of continuous product development and reserves the right to change any
products and specifications given in this manual.
The appliance is marked according to the European Directive 2012/19/EU on waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly you will help prevent potential negative consequences for the environment and
human health. The symbol on this product indicates that this product may not be treated
as household waste. Instead it should be handed over to the applicable collection point
for recycling of electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal. For more detailed information please
contact your local council household waste site.
i

www.howdens.com
Page _ 4
LAMONA Appliances
Index
Before using the oven & Safety 05
General Safety 05
Safety for children 05
Safety when working with electricity 08
Safety and cleaning 08
Shelf positions 09
General information 10
Oven layout 10
Control panel layout 10
Accessories 10
Operation modes 11
Operating modes 11
Preparation 12
First cleaning of the appliance 12
Initial heating 12
Tips for energy saving 12
How to operate the main oven 13
How to use the main oven 13
Select a temperature and operating mode 13
Shelf positions 13
Switch off the oven 13
Cooking and baking advice 14
Cooking table 15
Oven cooking table 15
Grill cooking table 16
Care and maintenance 17
General information 17
Cleaning the control panel 17
Cleaning the door 17
Removal of the oven door 17
Removing the inner door glass 18
Replacing the oven Lamp 19
Installation 20
Before installation 20
Electrical Connections 21
Cooling Fan 22
Technical specification 23
Troubleshooting 24
Your Guarantee 25

Exclusive to Howdens Joinery.co Page _ 5
User manual LAM3303
•Make sure that you have removed all packaging, wrappings, stickers and films from the oven’s
surface.
•It is recommended that you clean and wash the oven’s surface before using for the first time.
01 - Before using the Oven
02 - Safety
•This appliance is for
domestic cooking purposes
only. It must not be used for
other purposes, e.g room
heating, or drying towels and
dish cloths over the handle.
Commercial use will void the
guarantee (see guarantee
page).
•The manufacturer shall not
be liable for any damage
caused by improper use or
ha ndling errors.
General
•This product is not intended
to be used by persons
with physical, sensory
or mental disorders or
unlearned or inexperienced
people (including children)
unless they are supervised
by a person who will be
responsible for their safety
or who will instruct them
accordingly in the use of the
product.
Safety for children
•Children must be supervised
to prevent them from playing
with the product.
•Electrical products can
be dangerous to children.
Keep children away from
the product when it is
operating and do not allow
them to play with or near the
product.
•CAUTION: Accessible
parts of the oven may
become hot when the oven
or grill is in use. Children
should be kept away until
the product has cooled
down.”
•Do not store any items
above the appliance that
children may reach for.
•When the door is open, do
not load any heavy object on
it and do not allow children
to sit on it. The door or door
hinges may be damaged.
•The packaging materials will
be dangerous for children.
Keep the packaging
materials away from
children. Please dispose of
all parts of the packaging
according to environmental

www.howdens.com
Page _ 6
LAMONA Appliances
•Accessible parts may
become hot during use.
To avoid burns, children
less than 8 years of age
should be kept away unless
continuously supervised.
•This appliance can be used
by children aged 8 years
and above, persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge,
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
•Cleaning and user
maintenance must not be
made by children without
supervision.
•Connect the product to an
earthed outlet protected by
a fuse of suitable capacity
as stated in the “Technical
specifi cations” table. Our
company shall not be liable
for any problems arising
due to the product not being
earthed in accordance with
the local regulations.
•Do not operate the product if
the power cable is damaged.
Replace with a suitable
cable by a qualified person.
•Do not operate the product
if it is defective or has any
visible damage.
•Do not carry out any repairs
or modfications to the
product.
•Never wash down the
product with excessive
water, as there is the risk of
electric shock!
•Never use the product
when your judgment or
coordination is impaired by
the use of alcohol and/or
drugs.
•Product must be
disconnected from the
mains during installation,
maintenance, cleaning and
repair procedures.
•Repair procedures must
always be performed by
qualified persons. The
manufacturer shall not
be held responsible for
damages arising from
procedures carried out
by unauthorised persons,
which may also void the
guarantee.
•Be careful when using
alcoholic drinks in your
dishes. Alcohol evaporates
at high temperatures and
may ignite when it comes
into contact with hot
surfaces.
•Do not heat closed tins and
glass jars in the oven. The
pressure that would build-up
in the tin/jar may cause it to
burst.

Exclusive to Howdens Joinery.co Page _ 7
User manual LAM3303
•Do not place any materials
close to the product as
the sides may become hot
during use.
•WARNING FIRE RISK
- Do not place aluminium
foil, baking trays or cook on
the base of this oven, doing
so will cause permanent
damage to your appliance
and cabinetry with the
potential risk of fire.
•Parts of the oven may
become hot during or
immediately after use.
Care should be taken to
avoid touching the heating
elements, and components
inside the oven which maybe
hot. Always allow oven to
cool.
•If the door seal is very
dirty this can prevent the
door from closing properly
during use, resulting in
possible damage to adjacent
furniture and poor efficiency.
Always ensure the door seal
is clean.
•Product may become hot
when it is in use. Please be
careful not to touch these
hot surfaces.
•Always use heat resistant
oven gloves when putting
dishes in or removing dishes
from the hot oven.
•Do not use the product if
any door glass is removed or
damaged.
•Always use heat resistant
oven gloves when putting
dishes in or removing dishes
from the hot oven.
•Rear surface of the oven
may get hot when it is in
use. Make sure that the
electrical connections do
not contact the rear surface;
otherwise, connections may
be damaged.
•Do not trap the mains cable
and do not route it over
hot surfaces. The cable
insulation may melt and
cause a short circuit.
•Product must be installed
by a qualified person
in accordance with the
regulations in force.
Otherwise, the guarantee
may become void.
•When hot and cold air
meet, condensation can
form. The outer door is air
cooled and the inner glass
will become hot during
cooking, therefore some
condensation might form.
This is perfectly normal. All
condensation will disappear
as the oven reaches cooking
temperature.
•Make sure that the product
control knobs are switched
off after every use.

www.howdens.com
Page _ 8
LAMONA Appliances
Safety when working with
electricity
•Any work on electrical
equipment and systems
should only be carried out
by authorised or qualified
persons.
•In case of any damage,
switch off the product and
disconnect it from the
mains. To do this, turn off at
the fuse box.
•The appliance must be
installed so that it can be
completely disconnected
from the mains easily after
installation by the isolation
switch.
•Do not bend or trap cable
against hot surfaces during
install.
•Make sure that fuse rating is
compatible with the product.
•Do not switch the oven off
at the mains isolation switch
immediately after cooking.
Cooling fan continues to
run for up to 20-30 minutes
(approx) even after the oven
control is turned off.
•Keep all ventilation slots
clear of obstructions, as this
may cause premature failure
of the oven element.
•Do not allow the oven to cool
with the door open. Even if
the appliances door is only
open a little, front panels
become damaged over time.
of adjacent units could
become damaged over time.
Safety and cleaning
•Do not use harsh
abrasive cleaners or sharp
metal scrapers to clean the
oven door since they can
scratch the surface, which
may result in the shattering
of the glass.
•WARNING: Ensure that
the appliance is switched off
before replacing the lamp
to avoid the possibility of an
electric shock.
•Do not use oven light
for household room
illumination.
•Do not use steam
cleaners for cleaning.
•The appliance must not
be installed behind a
decorative door.
i

Exclusive to Howdens Joinery.co Page _ 9
User manual LAM3303
Shelf Positions
•The oven has 5 shelf
positions. It is important
to position the wire shelf
into the runners correctly
before placing items on the
shelf. Do not insert shelves
forcefully.

www.howdens.com
Page _ 10
LAMONA Appliances
a. Control panel
b. Handle
c. Oven Door
General Information
d. Heating element
e. Light
f. Oven shelf positions
a Oven/ grill function knob
b 0ven / grill temperature indicator
c Oven/grill temperature control knob
Oven tray / grill pan Grill pan wire rack / trivet Oven shelf (x2 included)
Oven layout
Control panel layout
Accessories
ab
c
50
100
150200
250
Max
°C
0
5
4
3
2
1
e
f
d
