User manual LAM3304
Dear Customer,
Congratulations on your choice of oven.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the oven.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
Product information correct at the time of publication in December 2018.
The company has a policy of continuous product development and reserves the right to change any
products and specifications given in this manual.
The appliance is marked according to the European Directive 2012/19/EU on
waste Electrical and Electronic Equipment (WEEE). By ensuring this product is
disposed of correctly you will help prevent potential negative consequences for
the environment and human health. The symbol on this product indicates that this
product may not be treated as household waste. Instead it should be handed over
to the applicable collection point for recycling of electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste
disposal. For more detailed information please contact your local council household
waste site.
i

www.howdens.com
Page _ 4
LAMONA Appliances
Index
Before using the oven
Safety
General 05
Safety for children
Safety when working with electricity
Safety and cleaning
Shelf positions
General information
Oven layout
Control panel layout
Accessories
Operating modes
Preparation
First cleaning of the appliance
Initial heating
Tips for energy saving
How to operate the main oven & grill
Select a temperature and
operating mode
How to use the oven and grill
Shelf positions
Switch o the oven
Cooking and baking advice
Cooking table
Oven cooking table
Grill cooking table
Care and maintenance
General information
Cleaning the control panel
Cleaning the oven door
Removal of the oven door
Removing the inner door glass
Replacing the oven Lamp
Installation
Before installation
Electrical Connections
Cooling Fan
Technical specification
Troubleshooting
Your guarantee
05
05
05
08
08
08
09
09
09
09
10
11
11
11
11
12
12
12
12
12
13
14
14
15
16
16
16
16
16
17
18
19
19
20
21
22
23
24

Exclusive to Howdens Joinery.co Page _ 5
User manual LAM3304
• 0DNHVXUHWKDW\RXKDYHUHPRYHGDOOSDFNDJLQJZUDSSLQJVVWLFNHUVDQGÀOPVIURPWKHRYHQ·VVXUIDFH
• ,WLVUHFRPPHQGHGWKDW\RXFOHDQDQGZDVKWKHRYHQ·VVXUIDFHEHIRUHXVLQJIRUWKHÀUVWWLPH
Before using the oven
Safety
• This appliance is
for domestic cooking
purposes only. It must
not be used for other
purposes, e.g room
heating, or drying towels
and dish cloths over the
handle. Commercial use
will void the guarantee
(see guarantee page).
• The manufacturer
shall not be liable for
any damage caused by
improper use or handling
errors.
General
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children) unless
they are supervised by
a person who will be
responsible for their safety
or who will instruct them
accordingly in the use of
the product.
Safety for children
• Children must be
supervised to prevent
them from playing with the
product.
• Electrical products can
be dangerous to children.
Keep children away from
the product when it is
operating and do not allow
them to play with or near
the product.
• CAUTION: Accessible
parts of the oven may
become hot when the oven
or grill is in use. Children
should be kept away until
the product has cooled
down.
• Do not store any items
above the appliance that
children may reach for.
• When the door is open, do
not load any heavy object
on it and do not allow
children to sit on it. The
door or door hinges may be
damaged.
• The packaging materials
will be dangerous for
children. Keep the
packaging materials away
from children.

www.howdens.com
Page _ 6
LAMONA Appliances
• Accessible parts may
become hot during use. To
avoid burns, children less
than 8 years of age should
be kept away unless
continuously supervised.
• This appliance can be used
by children aged 8 years
and above, persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge, if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved.
• Cleaning and user
maintenance must not be
made by children without
supervision.
• Connect the product to an
earthed outlet protected
by a fuse of suitable
capacity as stated in the
“Technical specifi cations”
table. Our company shall
not be liable for any
problems arising due to
the product not being
earthed in accordance
with the local regulations.
• Do not operate the
product if the power cable
is damaged. Replace
with a suitable cable by a
qualified person.
• Do not operate the product
if it is defective or has
any visible damage.
• Do not carry out any
repairs or modfications to
the product.
• Never wash down the
product with excessive
water, as there is the risk
of electric shock!
• Never use the product
when your judgment or
coordination is impaired
by the use of alcohol and/
or drugs.
• Product must be
disconnected from the
mains during installation,
maintenance, cleaning and
repair procedures.
• Repair procedures must
always be performed by
qualified persons. The
manufacturer shall not
be held responsible for
damages arising from
procedures carried out
by unauthorised persons,
which may also void the
guarantee.
• Be careful when using
alcoholic drinks in your
dishes. Alcohol evaporates
at high temperatures and
may ignite when it comes
into contact with hot
surfaces.
• Do not heat closed tins
and glass jars in the oven.
The pressure that would
build-up in the tin/jar may
cause it to burst.

Exclusive to Howdens Joinery.co Page _ 7
User manual LAM3304
• Do not place any materials
close to the product as
the sides may become hot
during use.
• WARNING FIRE
RISK - Do not place
aluminium foil, baking
trays or cook on the base
of this oven, doing so
will cause permanent
damage to your appliance
and cabinetry with the
potential risk of fire.
• Parts of the oven may
become hot during or
immediately after use.
Care should be taken
to avoid touching the
heating elements, and
components inside the
oven which maybe hot.
Always allow oven to cool.
• If the door seal is very
dirty this can prevent the
door from closing properly
during use, resulting
in possible damage to
adjacent furniture and
poor eciency. Always
ensure the door seal is
clean.
• Product may become hot
when it is in use. Please be
careful not to touch these
hot surfaces.
• Always use heat resistant
oven gloves when putting
dishes in or removing
dishes from the hot oven.
• Do not use the product if
any door glass is removed
or damaged.
• Always use heat resistant
oven gloves when putting
dishes in or removing
dishes from the hot oven.
• Rear surface of the oven
may get hot when it is in
use. Make sure that the
electrical connections
do not contact the rear
surface; otherwise,
connections may be
damaged.
• Do not trap the mains cable
and do not route it over
hot surfaces. The cable
insulation may melt and
cause a short circuit.
• Product must be installed
by a qualified person
in accordance with the
regulations in force.
Otherwise, the guarantee
may become void.
• When hot and cold air
meet, condensation can
form. The outer door is
air cooled and the inner
glass will become hot
during cooking, therefore
some condensation might
form. This is perfectly
normal. All condensation
will disappear as the
oven reaches cooking
temperature.
• Make sure that the product
control knobs are switched
o after every use.

www.howdens.com
Page _ 8
LAMONA Appliances
Safety when working with
electricity
• Any work on electrical
equipment and systems
should only be carried out
by authorised or qualified
persons.
• In case of any damage,
switch o the product
and disconnect it from the
mains. To do this, turn o
at the fuse box.
• The appliance must be
installed so that it can be
completely disconnected
from the mains easily after
installation by the isolation
switch.
• Do not bend or trap cable
against hot surfaces
during install.
• Make sure that fuse rating
is compatible.
• Do not switch the oven
o at the mains isolation
switch immediately after
cooking. Cooling fan
continues to run for up to
20-30 minutes (approx)
even after the oven control
is turned o.
• Keep all ventilation slots
clear of obstructions, as
this may cause premature
failure of the element.
• Do not allow the oven to
cool with the door open.
Even if the appliances door
is only open a little, doors
o f a d j a c e n t u n i t s c o u l d
become damaged over time.
Safety and cleaning
• Do not use harsh
abrasive cleaners or sharp
metal scrapers to clean the
oven door since they can
scratch, which may result in
the shattering of the glass.
• WARNING: Ensure that
the appliance is switched
o before replacing the
lamp to avoid the possibility
of an electric shock.
• Do not use oven light
for household room
illumination.
• Do not use steam
cleaners for cleaning.
• The appliance must not
be installed behind a
decorative door.

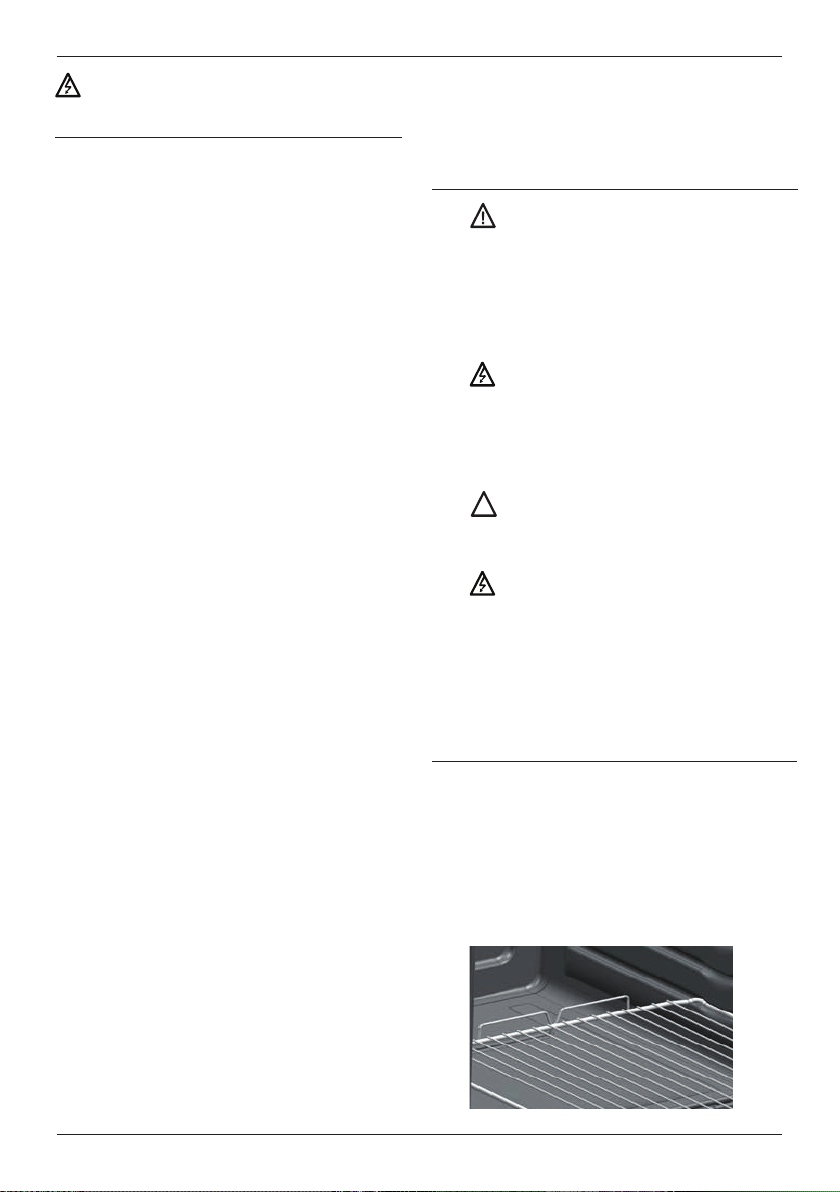

Shelf positions
• The oven has 5 shelf
positions. It is important to
position the wire shelf into
the runners correctly before
placing items it. Do not
insert shelves forcefully.
i

Exclusive to Howdens Joinery.co Page _ 9
User manual LAM3304
a. Control panel
b. Handle
c. Oven Door
General information
d. Heating element
e. Light
f. Oven shelf positions
a Oven / grill function knob
b 0ven / grill temperature indicator
c Oven / grill temperature control knob
Oven tray / grill pan Grill pan wire rack / trivet Oven shelf (x2 included)
Oven layout
Control panel layout
Accessories
5
4
3
2
1
e
f
d
a
b
c
ab
c
50
100
150200
250
Max
°C
0

www.howdens.com
Page _ 10
LAMONA Appliances
Operating modes
Fan Assisted cooking
7RSDQGERWWRPKHDWSOXVIDQLQWKHUHDUZDOODUH
RQ7KHKRWDLULVGLVWULEXWHGHYHQO\DQGTXLFNO\DOO
RYHUWKHRYHQE\WKHIDQ
Top and bottom heat
7RSDQGERWWRPKHDWLVXVHG7KHIRRGVWXIIVDUH
KHDWHGVLPXOWDQHRXVO\IURPDERYHDQGEHORZ
6XLWDEOHIRUFDNHVFRRNLHVDQGFDVVHUROHV)RUEHVW
UHVXOWVFRRNZLWKRQHWUD\RQO\
Bottom heat
2QO\ERWWRPKHDWLVXVHG,VSDUWLFXODUO\VXLWDEOH
IRUGLVKHVVXFKDVSL]]DZKLFKDUHUHTXLUHGWREH
EDNHGIURPERWWRP
Fan-Grill
7KHJULOOHIIHFWLVQRWDVVWURQJDVZLWKQRUPDO
JULOOLQJ
3XWVPDOORUPHGLXPVL]HGSRUWLRQVLQFRUUHFWVKHOI
SRVLWLRQXQGHUWKHJULOOHOHPHQWIRUJULOOLQJ
6HWWKHWHPSHUDWXUHWRPD[LPXPOHYHO
7XUQWKHIRRGDIWHUKDOIRIWKHJULOOLQJWLPH
Grill -Full
7KHIXOOJULOOHOHPHQWLQWKHWRSRYHQLVLQRSHUDWLRQ
7KLVLVVXLWDEOHIRUJULOOLQJODUJHUGLVKHV(QVXUH
FRUUHFWVKHOISRVLWLRQLVXVHGVHWWKHWHPSHUDWXUH
WRPD[LPXPOHYHODQGWXUQWKHIRRGDVUHTXLUHGWR
HQVXUHHYHQFRRNLQJ
Rapid Preheat
7KLVPRGHLVXVHGIRUKHDWLQJWKHRYHQTXLFNO\
7KLVPRGHLVQRWVXLWDEOHIRUWKHSUHSDUDWLRQRI
IRRG$IWHUVHOHFWLQJWKLVPRGHFKRRVHWKHGHVLUHG
WHPSHUDWXUH7KHWKHUPRVWDWODPSLVOLWDQGWKH
RYHQLVKHDWHG
When the heating process is completed, the lamp
JRHVRII1RZ\RXVHOHFWWKHGHVLUHGRSHUDWLQJ
PRGHIRUWKHSUHSDUDWLRQRIIRRG
