Dear Customer,
Congratulations on your choice of domestic appliance which has been designed to give you excellent
service.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the oven.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
This product’s packaging material is recyclable. Help recycle it and protect the
environment by dropping it off in the municipal receptacles provided for this purpose.
Your product also contains a great amount of recyclable material. It is marked with this
label to indicate the used appliances that should not be mixed with other waste. This
way, the appliance recycling organised by your manufacturer will be done under the
best possible conditions, in compliance with European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment. Contact your town hall or your retailer for the used
appliance collection points closest to your home. We thank you doing your part to protect
the environment.

Exclusive to Howdens Joinery.co Page _ 3
User manual LAM2300
Index
Before using the extractor 04
Safety 04
General 04
Fire Saftey 05
Safety for Children 05
Safety When Working With Electricity 05
General Information & Operation 06
Extractor Layout 06
Control Panel Layout 06
Using Your Cooker Hood 07
General Cleaning 07
Care and maintenance 08
General Cleaning 08
Grease Filters 08
Carbon Filters 09
Replacing the Lamps 09
Installation 10
Methods of Extraction 10
Extraction Via Ducting 10
Extraction Via Recirculation 10
Before Beginning Instalation 11
Installing Your Cooker Hood 11
Connecting to External Ducting 12
Electrical Connections 13
14
Troubleshooting 15
Your Guarantee 16

www.howdens.com
Page _ 4
• Makesurethatyouhaveremovedallpackaging,wrappings,stickersandlmsfromtheExtractor
• Itisrecommendedthatyoucleantheextractor’ssurfacebeforeusingforthersttime.
Before using the Extractor
This appliance is for domestic extraction
purposes only. It must not be used for other
purposes. Commercial use will void the guarantee.
The manufacturer shall not be liable for any damage
caused by improper use, installation or handling
errors
General
This product is not intended to be used by persons
with physical, sensory or mental disorders or
unlearned or inexperienced people (including
children) unless they are supervised by a person
who will be responsible for their safety or who will
instruct them accordingly in the use of the product.
• Connect the product to an earthed outlet
protected by a fuse of suitable capacity
asstatedinthe“Technicalspecications”
table. Our company shall not be liable for
any problems arising due to the product not
being earthed in accordance with the local
regulations.
• Do not operate the product if the power cable
isdamaged.Callqualiedserviceagent.
• Donotcarryoutanyrepairsormodications
on the product. However, you may remedy
some the problems that do not require any
repairsormodications.SeeTroubleshooting,
at the rear of this manual.
• Never wash down the product with excessive
water, as there is the risk of electric shock!
• Never use the product when your judgment or
coordination is impaired by the use of alcohol
and/or drugs.
• Product must be disconnected from the mains
during installation, maintenance, cleaning and
repair procedures.
• Repair procedures must always be performed
byqualiedserviceagents.Themanufacturer
shall not be held responsible for damages
arising from procedures carried out by
unauthorised persons, which may also void
the guarantee.
• Keep all ventilation slots clear of obstructions,
as this may cause premature failure of the
appliance
• Do not trap the mains cable and do not route
it over surfaces which may become hot. The
cableinsulationmaymeltandcauseareas
a result of a short circuit.
• Make sure that the product function buttons
are switched off after every use.
• Productmustbeinstalledbyaqualiedperson
in accordance with the regulations in force
otherwise, the guarantee may become void.
• The hood must be installed in accordance
with the installation instructions and all
measurements followed.
• If the cooker hood is installed for use above a
gas appliance then the provision for ventilation
must be in accordance with the Gas Safety
Codes of Practice BS.6172, BS.5440 &
BS.6891 (Natural Gas) and BS.5482 (LP Gas)
1994, the Gas Safety (Installation & Use)
Regulations, the Building Regulations issued
by the Department of the Environment, the
Building Standards (Scotland) (Consolidated)
Regulations issued by the Scottish
Development Department.
Safety

Exclusive to Howdens Joinery.co
Page _ 5
User manual LAM2300
Do not set your cooker hood less than
700mm above your cooker.
• When installed between adjoining wall
cabinets, the cabinets must not overhang the
hob.
• The edges of the cooker hood may be sharp
– be mindful of this as you handle your
appliance, especially during installation and
cleaning.
Do not clean behind the grease lter!
• If the room where the cooker hood is to be
used contains a fuel burning appliance such
asacentralheatingboilerthenitsuemust
beofthesealedorbalanceduetype.
• Ifothertypesofueorappliancesaretted,
ensure that there is an adequate supply of air
in the room.
• When the hood is being used in extraction
mode,ensurethattheductingisreretardant
and that there are no bends greater than 90
degreesasthiswillreducetheefciencyof
the hood.
• Ensure the ducting for the extractor mode has
the same diameter as the outlet hole all the
way through.
• Always put lids on pans and ensure that pans
are always on hobs when burners are lit.
• Remember that when in extraction mode, your
cooker hood is removing air from your room.
Ensure that proper ventilation measures are
being observed.
Fire Safety

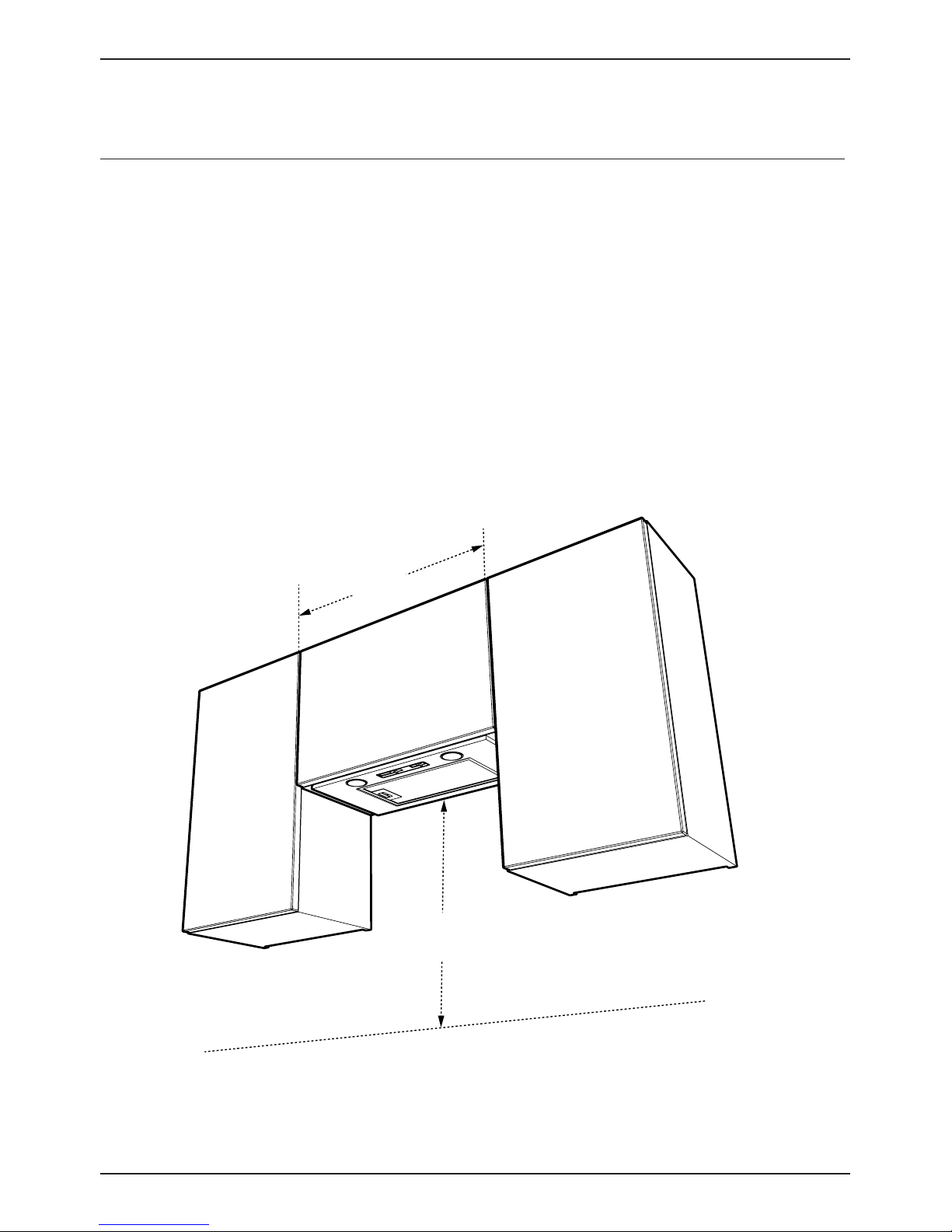

When installing the hood, ensure that the
following recommended distances are observed
between the highest point on the hob top
(including the burners) and the bottom of the
cooker hood:
Electric cookers: 700 mm
Gas cookers: 700 mm
Coal / oil cookers: 800 mm
• Neverambécookunderthiscookerhood.
• Dirtycookingoilisanevengreaterrerisk.
• Do not install above a cooker with a high level
grill.
Safety for children
• Electrical products can be dangerous to
children. Keep children away from the product
when it is operating and do not allow them to
play with or near the product.
• The packaging materials will be dangerous for
children. Keep the packaging materials away
from children. Please dispose of all parts of
the packaging according to environmental
standards.
Safety when working with
electricity
• In case of any damage, switch off the product
and disconnect it from the mains. To do this,
turn off the fuse at the fuse box.
• Make sure that fuse rating is compatible with
the product.

www.howdens.com
Page _ 6

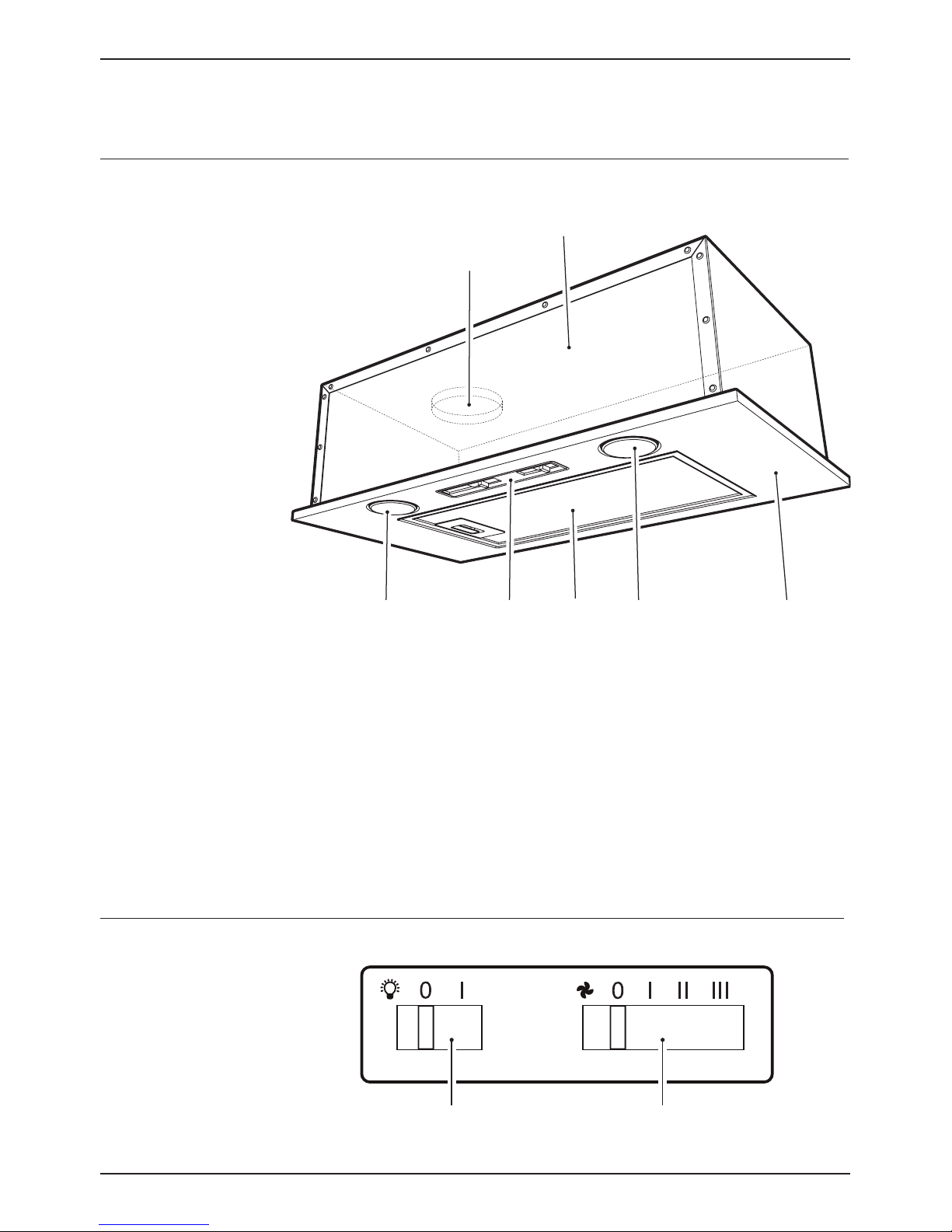

1. Exhaust / Recirculation Vent
2. Extractor Body
3. Light
4. Control Panel
5. Grease Filter
6. Extractor Facia
General Information & operation
Extractor layout
Control panel layout
7. Light off / Light on
8. Extraction off (0)
Low speed (I)
Medium Speed (II)
High Speed (III)
3. 4. 5. 3. 6.
1.
2.
7. 8.
Dimensions:
Extractor width: 525mm
Extractor depth: 275mm
Extractor height: 162mm ( Not including vent adapter)
Required aperture: 495mm wide X 275mm
Features:
•Slidercontroloperation.
•3speedextraction.
•2x40Wlights.
•Ducted-outorrecirculationmodes.
•Metalgreaselter.
•CarbonlterHJA2901
(optional for recirculation installation only)
•DuctingkitsAPL2805/6/7
(optional)

Exclusive to Howdens Joinery.co
Page _ 7
User manual LAM2300
Using Your Cooker Hood
To use your cooker hood
Light ON/OFF slider
0 = Light off
1 =Light on
Speed control slider
1. Off
2. Low speed
3. Medium speed
4. High speed
Ideally you should turn on your hood ten minutes before you start to cook, or at the very least when you
begincooking.Youshouldalsorunyourhoodfortenminutesafteryouhavenishedcooking.
This process must be followed before the cooker hood is used for the rst time.You should clean the
applianceusingadampnewclothandwarmsoapywaterbeforeusingtheapplianceforthersttime.You
should then dry it thoroughly using a soft cloth.
Makesurethatithasbeeninstalledbyasuitablyqualiedperson,aspertheinstallationinstructions.

www.howdens.com
Page _ 8
Before cleaning or attempting any type of maintenance, always make sure that the electricity
supply is disconnected.
To avoid the possibility of re, adhere strictly to all of the recommendations included in this booklet,
paying particular attention to the grease lters to ensure grease deposits do not build up.
The manufacturer declines all liability in cases where the instructions for the appropriate installation,
maintenance and use of the extractor hood are not observed.
If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call
theservicenumberontherearcoverofthisbookletorasuitablyqualiedrepairer.
General Cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
Care and maintenance
The Grease Filters
Yourextractorincludesagreaselterwhichhelps
to protect your kitchen & furniture from greasy
residuesbylteringoutgreaseparticles.
• Overtime,thegreaseltermaybecomeare
risk if the greasy residue is allowed to build up.
• Topreventarehazard,thegreaselter
should be cleaned.
• Depending on use, this should be done every
10-15daysorforlightusageonceamonth.
• Toremovethegreaselter,slidecatch
inwards,thenlowerthegreaseittedto
release it from the extractor.
• Donotwashthegreaselterinadishwasher.
• Cleanthegreaselterusinghotwaterand
normalwashing-updetergent
• Allowthegreaseltertodrycompletelybefore
retting.
• The extractor must never be operated without
thegreaselterinposition.
The Carbon Filters
If the appliance is going to be used in recirculation
modethenitisnecessarytotcarbonlters.This
will help to absorb odours caused by cooking.
Carbonltershavealimitedlife.Weadviseyou
to change them when there is a noticeable drop
in performance. The intervals between changing
thelterwilldependentirelyupontheamountof
cooking you do, but on average they will last about
6 months.
• Togainaccesstothecarbonlters,rstof
allremovethegreaseltersasmentioned
previously.
• Removetheoldltersandinstallnewcharcoal
ltersbyturningthemgently(HJA2906-pack
of 2)

Exclusive to Howdens Joinery.co
Page _ 9
User manual LAM2300
Replacing the Lamps

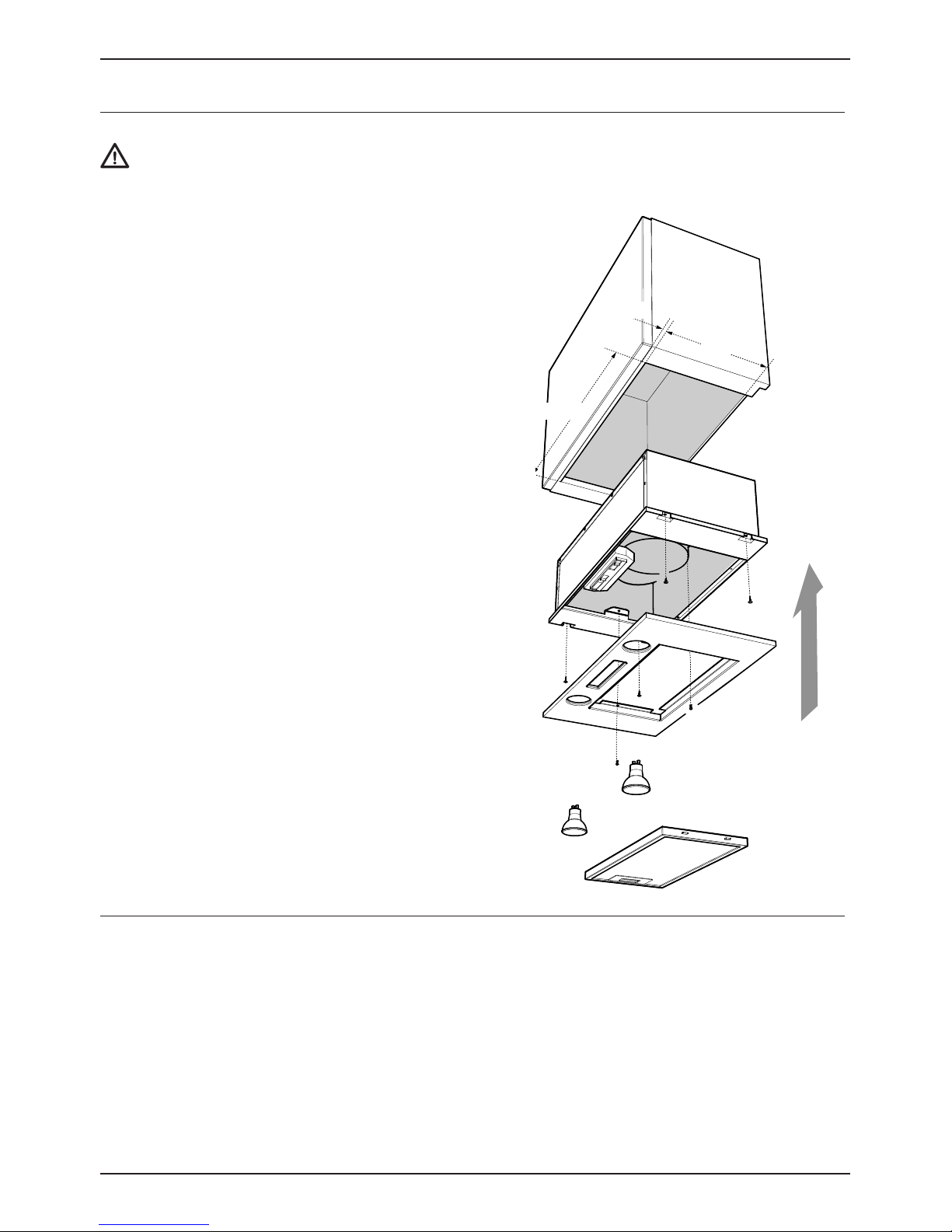

Theextractorhoodisttedwithlampsthatmayneedtobereplacedperiodically.
• To do this, ensure that the power is switched off and the lamps have had time to cool.
• Applyngerpressuretotheundersideofthelampthatneedstobe
• Replaced, and twist anticlockwise (from below) to release.
• Insert the new 40W type GU10. lamp and twist clockwise (from below) to engage the bayonet pins.
• Ifthelightstilldoesnotwork,makesurethatthebulbisingoodconditionandcorrectlyttedbefore
you call for technical assistance.
Lamp replacement is not covered by your guarantee
The lamps on this appliance should only be used during operation of the cooker hood. They should not
be left on permanently and used as a main lighting source. The extractor is for domestic use only.

www.howdens.com
Page _ 10
Methods of Extraction
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits
maybepurchasedfromthedepotwhereyouboughttheextractor.)Youdonotneedcharcoallterswhen
using the external ducting mode.
Extraction Via Ducting
Never use the hood in areas where devices with
exhaust pipes connected to the outside are
already operating unless perfect ventilation can be
guaranteed.
• Connect the external ducting kit to the outlet
of the extractor.
Charcoalltersarenotrequirediftheextractor
is to be ducted out.
Extraction Via Recirculation
For extraction via recirculation, attach charcoal
lterstothesidesofthemotorinsidethehood.
(PartreferenceHJA2906)
Before attempting to change or t the
charcoal lters ensure power to the extractor is
switched off.
• Removethegreaselter
• Alignthecarbonltersoverthepinslocated
on either side of the fan motor.
• Turn the carbon gently, until you feel them
click into postilion.
• Replacethegreaseltersbeforethepower
supply it turned back on.
Installation

Exclusive to Howdens Joinery.co
Page _ 11
User manual LAM2300
Before beginning installation
• Check that the product purchased is of a suitable size for the chosen installation area. In addition
check whether there is an electrical socket available that will be accessible once the hood is mounted.
If the product is going to be used in extraction mode, then there should also be space to connect a
ducting hose to the outside.
• Carryoutallnecessarymasonryworkpriortothettingofthecookerhoodandcabinetry.
• Ensurethatallelectricalconnectionsarecarriedoutbyasuitablyqualiedperson.
• Check inside the product and ensure that there is no transit packaging or any other materials, such as
packets of screws, guarantees etc. These should be removed and kept for future use.
• Ifpossible,disconnectandmovefreestandingorslot-incookersfromtheirposition,orprotectany
cook top that cannot be moved with a blanket
600mm (min)
822mm (Recommended )
700mm (Minimum)
Worktop

www.howdens.com
Page _ 12
Installing your cooker hood
You will have to decide before installing your cooker hood whether to use it in extraction mode or
recirculation mode.
1. We recommend that at least two people install
this hood.
2. Cut a rectangular aperture in the canopy unit
475mm wide X 275mm 14mm from the front
edge
3. If the extractor is to be ducted out, ensure that
it is possible to connect the ducting hose.
4. If the extractor is to be used in recirculation
mode, ensure that the canopy allows the
recirculating air to be circulated from the top
of the extractor and canopy.
5. Removethegreaselter‘A’asdescribed
Previously.
6. Remove the four screws securing the extractor
frame‘B’totheextractorbody.
7. If the extractor is to be ducted out, connect the
extractor to the vent hose.
8. With the help of an assistant introduce the
extractor into the opening cut into the canopy
housing, taking care not to trap the ducting
hose or the mains cable, and secure with the
wood screws provided.
9. Replace the extractor frame and the four
screws removed earlier from the extractor.
Connecting to external ducting
• Connect the coupling to the top or the rear of the cooker hood, and then connect a 125 mm ducting
hose to the coupling (please note that the ducting hose is not supplied with the appliance).
• Youmayndananti-draftapincludedwiththexturesandttingsforthecookerhood.
• The other end of the ducting hose should be connected to a discharge outlet that is suitable for
cooking vapours. It should have a cross section of at least 150 cm².
• The maximum distance between the coupling and your discharge outlet should be 3 metres, with one
90 degree bend.
495mm
275mm
14mm
A)
B)

Exclusive to Howdens Joinery.co
Page _ 13
User manual LAM2300
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)

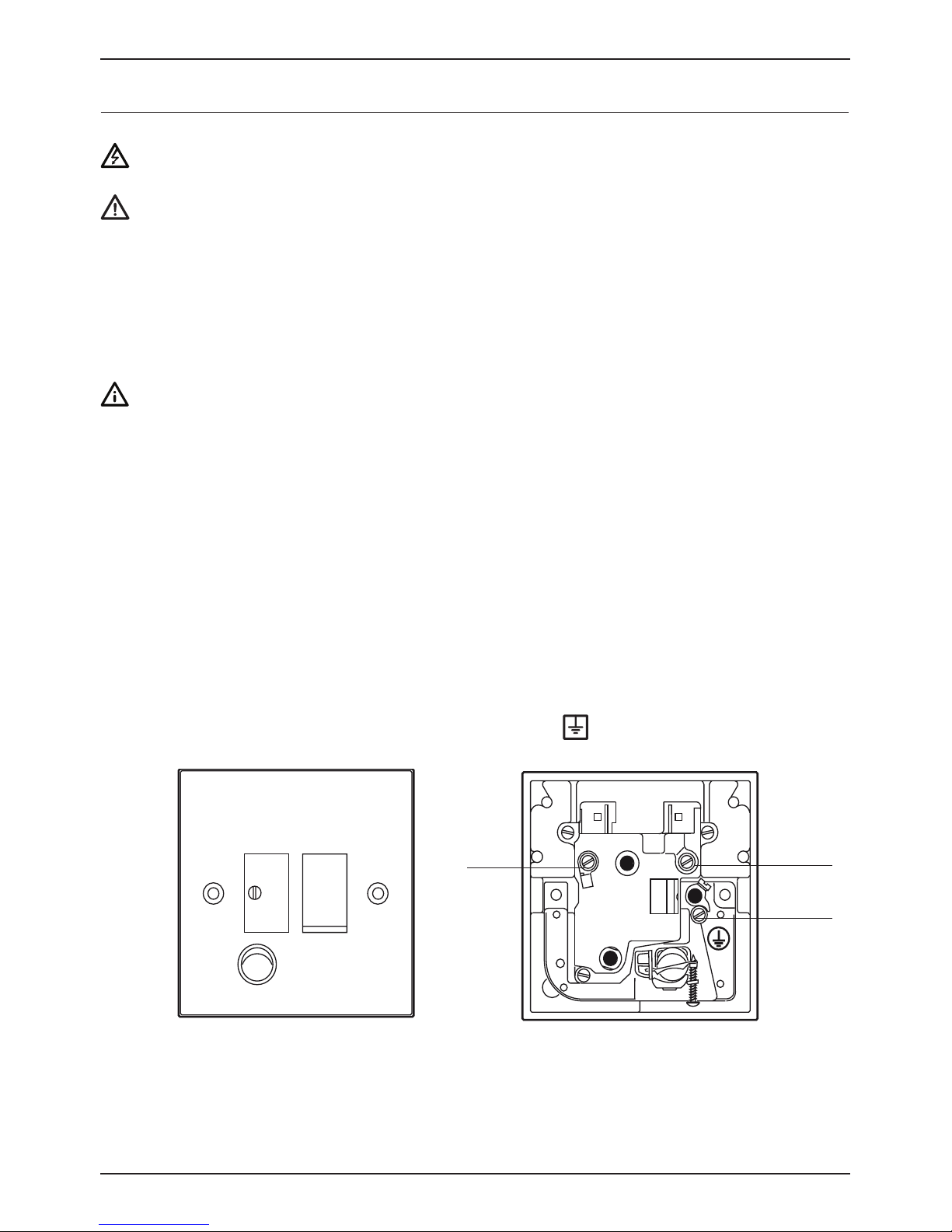

Electrical Connections
IMPORTANT: Ensure that the electricity supply is switched off before connecting.
WARNING: This appliance must be earthed! Howdens shall not be held responsible for any damage
caused by using the extractor without an earthed connection.
Yourappliancemustbeconnectedtoxedwiringviatheuseofadoublepoleswitchedfusedspuroutlet
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating).
We strongly recommend the appliance is connected by a qualied electrician
TheterminologyDOUBLEPOLE-/+meansthatboththeliveandneutralsuppliesareswitchedand
disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal house wiring and the terminations
labelled LOAD are for connection to the appliance.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue.....................Neutral
Brown..................Live
Green/ Yellow.....Earth
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which
is marked with the letter ‘L’ or coloured RED. The wire which is coloured Green and Yellow must be
connected to the terminal which is marked with the letter ‘E’ or Symbol

www.howdens.com
Page _ 14
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
Lamps fail to operate? • A replacement lamp is probably
necessary,butrstcheckthat
thelampiscorrectlyttedinto
its holder.
Disconnect the mains electricity supply before
adjusting or replacing the lamps.
The extractor lamps may become hot; therefore
ensurethebulbhascooledsufcientlybefore
replacing.
• Power is cut. Check if there is power. Check the fuses in the
fuse box. If necessary, replace or reset the fuses.
Motor is on but fan
does not seem to be as
efcient as usual?
• Cloggedlterscanreducethe
product’sefciency.Checkthe
greaseandcharcoallters(if
tted)alsoensureanyventingis
not obstructed?
Cleanthegreaselterswithwarmwaterandmild
detergent,and/orreplaceanycharcoallters
The extractor works
normaly but smells
linger?
• Cloggedlterscanreducethe
product’sefciencyandmay
cause unwanted smells.
Cleanthegreaselterswithwarmwaterandmild
detergent,and/orreplaceanycharcoallters.
Product does not
operate? • The mains fuse maybe defective or has tripped Check fuses in the fuse box. If necessary, replace or reset them.
• Product is not connected
properly. Check all power connections.
• If you cannot eliminate the problem after following the instructions in this section, consult your depot or the
Authorized Service Agent. Never try to repair a nonfunctional product yourself.
Troubleshooting
Technical specication
TECHNICAL INFORMATION
Dimensions:
Extraction capacity: 220 m³/hr
Noise level min/max: 48-90dB
Width : 525mm
Depth : 275mm
Height: 162 mm
YourCookerHoodisttedwith:
Single motor 100w
Slider control operation
3 Speed extraction
x2 40W GU10 Lamps
1Aluminiumgreaselter
Optional Extras:
Charcoallter: HJA2901 (PK2)
Ducting kits : APL 2805/6/7

Exclusive to Howdens Joinery.co
Page _ 15
User manual LAM2300
Your guarantee
Product Guarantee Details (UK only)
Your appliance has the benet of a comprehensive manufacturer’s guarantee which covers the cost of
breakdown repairs. (Details of which are shown on your Proof of Purchase Document).
• Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE)
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alternations which are likely to affect the
product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
• The product’s model & serial numbers
• Howdens Proof of Purchase document
• Your full contact details
Call the Service Line on 0845 00 60 006

Z
If supplied, please stick your self adhesive product rating plate
here, or make a note of the product serial number below in the
box below for future reference.
Serial Number : ...........................................................................................
Issue: 09/2014
