Lamona LAM2853 User manual

User Instructions and Installation
LAM2853
www.howdens.com/appliance-registration
Pendant Cooker Hood
ISSUE v2 120422

3
Exclusive to Howdens
Dear Customer
Congratulations on your choice of LAMONA
domestic appliance.
•Please read these instructions before use to
ensure safe and economical operation of
the appliance.
•Please keep these instructions in a safe
place for your future reference.
•If you have any questions, or if you are not
sure about any information contained in this
booklet please contact us - details at the
end of the booklet.
This appliance is intended to be used
in household and similar domestic
applications, see guarantee page for
Welcome
Warning and Safety information p.4
Before using the cooker hood p.4
Metal surfaces of the cooker hood and
condensation p.4
SAFETY p.4
General safety p.4
Children and general safety p.5
Safety when working with electricity p.5
Electrical connections p.5
Waste Electrical and
Electronic Equipment p.5
Danger of toxic fumes p.5
Contents
1. Cooker hood overview p.6
Control panel overview p.6
2. Installation p.7
Methods of extraction p.7
Ducting mode
Recirculation mode
Installing the cooker hood p.9
Electrical connection p.14
3. Operating the cooker hoodp.15
Control panel p.15
4. Care and Maintenance p.16
General cleaning p.16
Replacing lamps p.17
5. Problem Solving
7. Guarantee p.19
Important
information or useful
hints and tips,
Warning for hazardous
situations with regard
to life and property.
Warning for
electric shock.
Throughout this manual the
following symbols are used.

4www.howdens.com
Warning and Safety information
Please read these instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and/or
damage. Always keep the instructions with the
cooker hood for future reference.
Before using the cooker hood
• Make sure that you have removed all
from the cooker hood
• It is recommended that you clean the
cooker hood’s surface before using for the
Metal surfaces of the cooker hood
and condensation
When cooking with pansusing a large water
content, large quantities of vapour and steam
can be produced very quickly. This steam may
condense onto the cold metallic surfaces of
the cooker hood and even the splash back
area if tiled, glazed etc. (This is not a fault with
either the hob or cooker hood if correctly
The amount of this condensation on any
particular surface will depend on many factors
including the ambient temperature in the
kitchen, the related ambient temperature of
the metal surfaces, the general ventilation
within the kitchen, the type of food being
cooked and duration. Using lids on pans can
help reduce the amount of steam being
released and subsequent condensation.
SAFETY
This appliance is for domestic extraction
purposes only. It must not be used for other
purposes. Commercial use will void the
guarantee.
The manufacturer shall not be liable for any
damage caused by improper use, installation
or handling errors.
General safety
This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced
supervised by a person who willbe responsible
for their safety or who will instruct them
accordingly in the use of the product.
• Do not operate the product if the power
agent.
• Do not
on the product. However, you may remedy
some the problems that do not require any
• Never wash down the product with excessive
water, as there is the risk of electric shock!
• Never use the product when your judgment
or coordination is impaired by the use of
alcohol and/or drugs.
• Product must be disconnected from the
mains during installation, maintenance,
cleaning and repair procedures.
• Repair procedures must always be
manufacturer shall not be held responsible
for damages arising from procedures carried
out by unauthorised persons, which may also
void the guarantee.
• DO NOT
• Keep all ventilation slots clear of obstructions,
as this may cause premature failure of the
appliance.
• Do not trap the mains cable and do not
route it over surfaces which may become
hot. The cable insulation may melt and
• Make sure that the product function buttons
are switched OFF after every use.
• Product must be installed by a person in
accordance with the regulations in force
otherwise, the guarantee may become void.

5
Exclusive to Howdens
Warning and Safety information
Children and general safety
Electrical products can be dangerous to
children. Keep children away from the product
when it is operating and do not allow them to
play with or near the product.
The packaging materials willbe dangerous
for children. Keep the packaging materials
away from children. Please dispose of all parts
of the packaging according to environmental
standards.
Safety when working with electricity
In case of any damage, switch off the product
and disconnect it from the mains. To do this,
turn off the fuse at the fuse box.
Make sure that fuse rating is compatible with
the product.
Electrical connection
•
wiring via the use of a double pole switched
fused spur outlet with at least 3mm contact
separation, the isolation switch must be
accessible after installation.
•The fuse rating can be found in the Technical
•This appliance must be earthed.
•The electrical connection must comply with
current local and national safety regulations
•Do not connect the appliance to the mains
electricity by an extension lead or multi-
adapter.
•The appliance must not be used with
energy-saving plug devices. The appliance
will not function correctly and may overheat.
•If the mains cable needs to be replaced this
•Check that the appliance is working
correctly.
Waste Electrical and Electronic
Equipment (WEEE)
symbol for waste electrical and
product has been manufactured
with high quality parts and materials
which can be reused and are suitable for
recycling. Do not dispose of the waste product
with normal domestic and other wastes at the
end of its service life. Take it to the collection
centre for the recycling of electrical and
electronic equipment. Please consult your
local authorities to learn about these collection
centres.
This appliance complies with all relevant safety
standards.

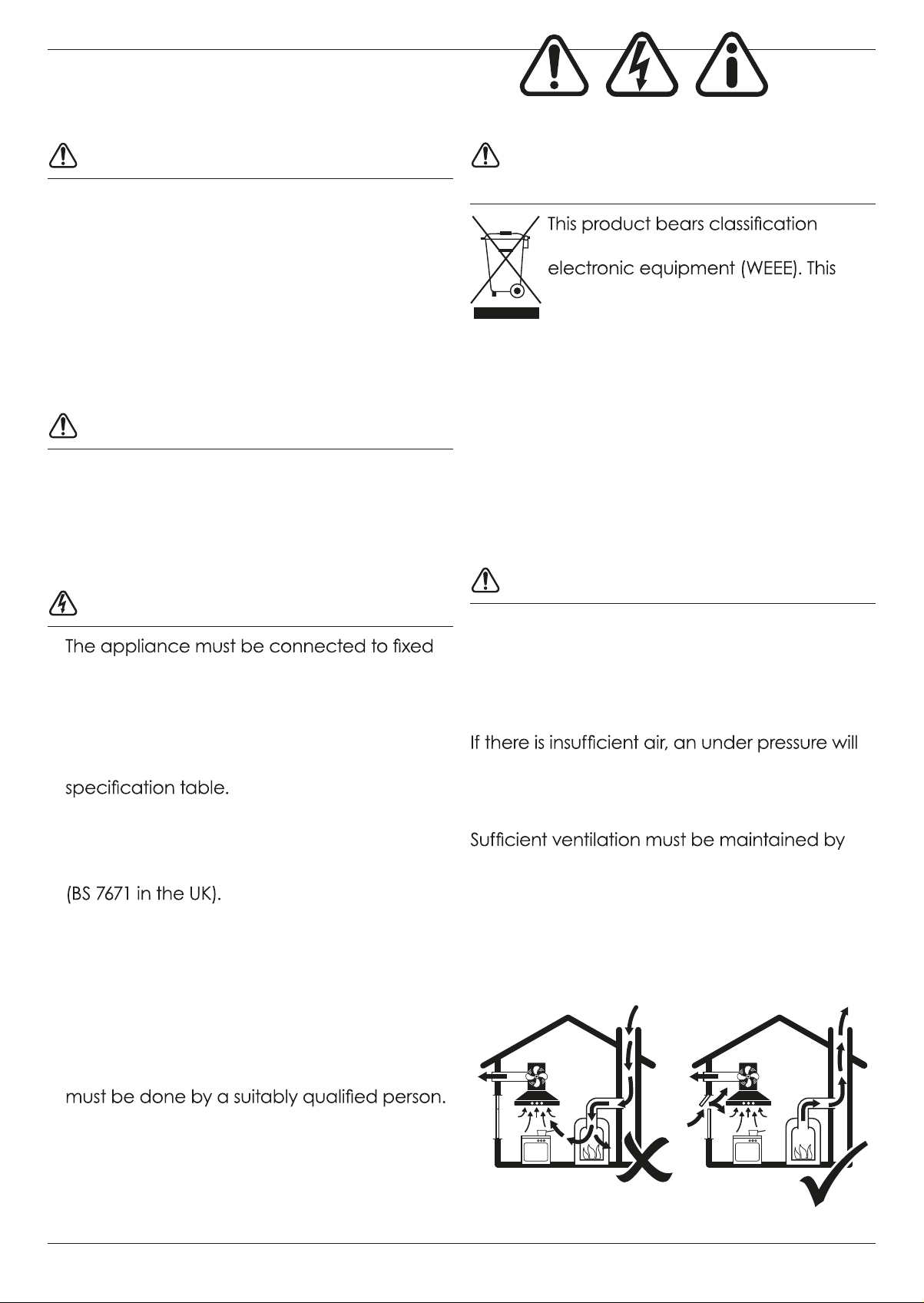

Danger of toxic fumes
Care should be taken when using the cooker
hood in the same room or same area of the
house at the same time as another heating
appliance that depends on the air from the
room.
occur. The heating appliance may be starved
of oxygen. This impairs combustion. Harmful
gases could be drawn back into the room.
air inlets which cannot be blocked, e.g. in
windows, doors and outside wall vents.
If the cooker hood is being operated in
recirculation mode, whereby the air is
redirected into the room, the above restrictions
do not apply.

6www.howdens.com

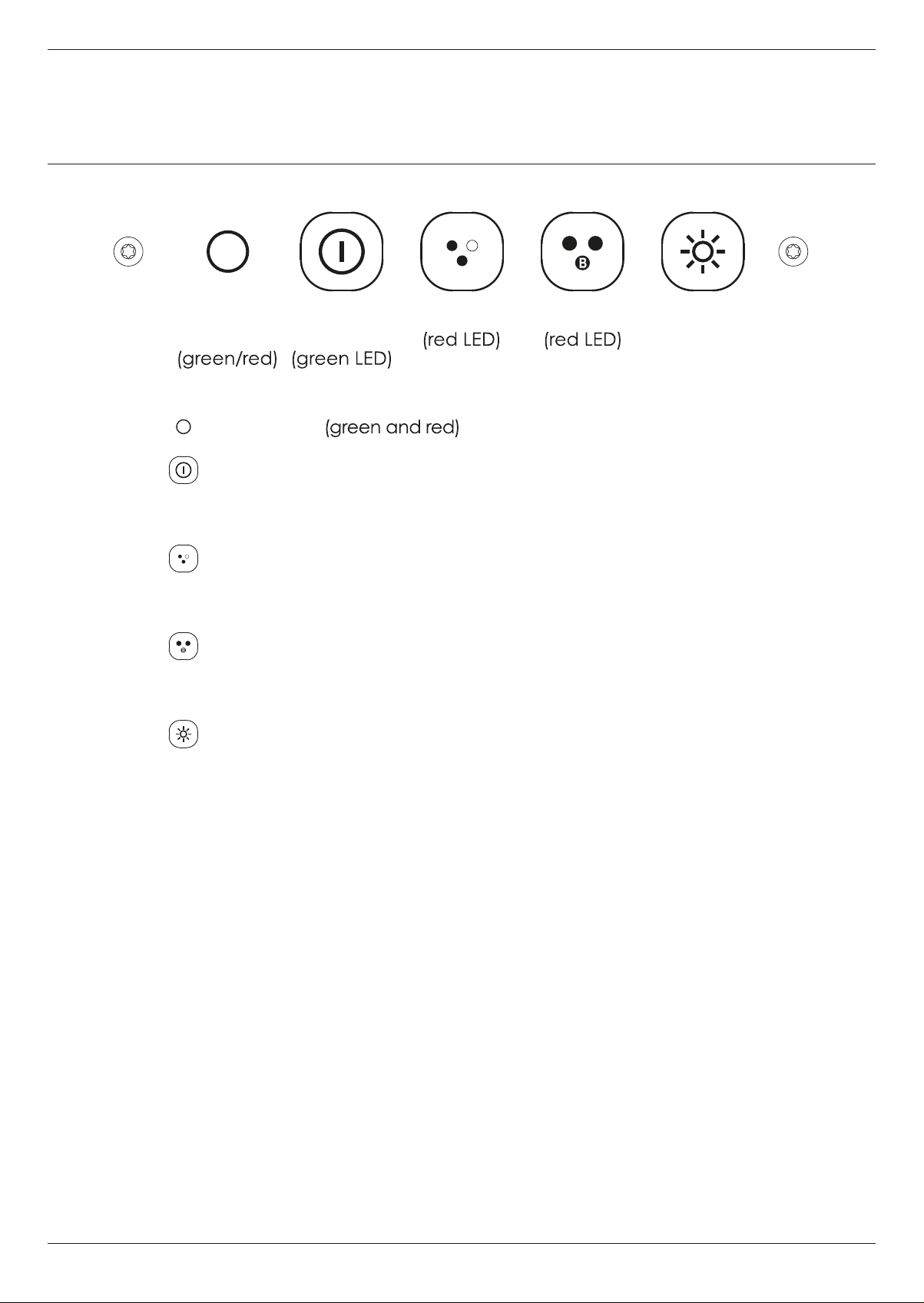

LampPower
Speed 1
Speed 2 Speed 3
LED
indicator
Light
Light
Cooker hood body
Control panel
1. Cooker hood overview
Control panel overview

7
Exclusive to Howdens
2. Installation
Methods of extraction

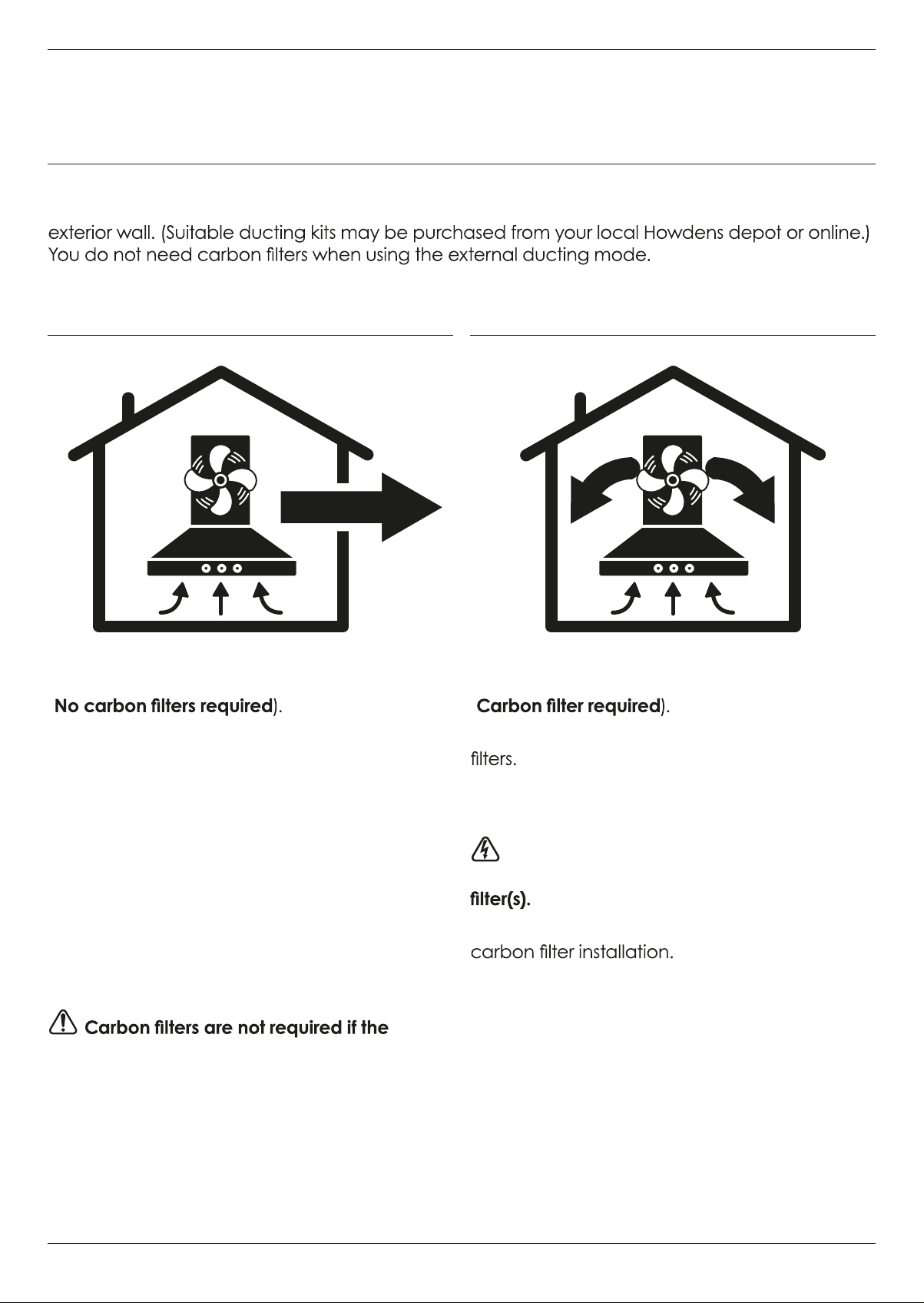

Extraction via exhaust ducting
(vented outside)
Extraction via recirculation
(vented internally)
The very best method of clearing the kitchen of unwanted odours is by connecting the
appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an
Ducting mode.
(
Ducting kits supplied separately.
Never use the hood in areas where devices
with exhaust pipes connected to the
outside are already operating unless perfect
ventilation can be guaranteed.
There must be adequate ventilation in the
room when the cooker hood is used at the
same time as an appliance burning gas or
other fuels.
• Connect the external ducting kit to the
outlet of the cooker hood.
cooker hood is to be ducted out.
Tips for ducting optimal air extraction:
• Keep duct work short and straight.
• Do not reduce the size or diameter of the
duct.
• Keep ductwork taught to minimise pressure
loss.
Recirculation mode.
(
For extraction via recirculation, install carbon
These can be ordered separately from your
local Howdens depot or online.
Ensure power is switched off to the cooker
hood before installing/changing the carbon
See Care and Maintenance Section for

8www.howdens.com
FRONT
FRONT
Electric
cable hole
FRONT
On opening the packaging, remove and
identify each component part.
Carefully place each part on a clean, scratch
free surface.
Do not
component parts.

9
Exclusive to Howdens
x 1 x 2
1300mm
Maximum
50
kg
10mm
Installing the cooker hood
These instructions must be strictly
adhered to. Failure to comply could result
in overheating and serious damage to your
appliance.
It is recommended that the installation is
carried out by two people.
2Maximum distance to ceiling. 1Minimum distance above hob.
Before drilling or chiselling the wall or
ceiling, check for pipes and power cables.
Minimum distance
to trim / cornice / overhang
650mm - from gas hob pan stand
450mm - electric hob surface

10 www.howdens.com
90°
FRONT
5mm
Installing the cooker hood
5Secure two screws, leaving 5mm
between screw head and ceiling.
6Locate ceiling bracket and rotate.

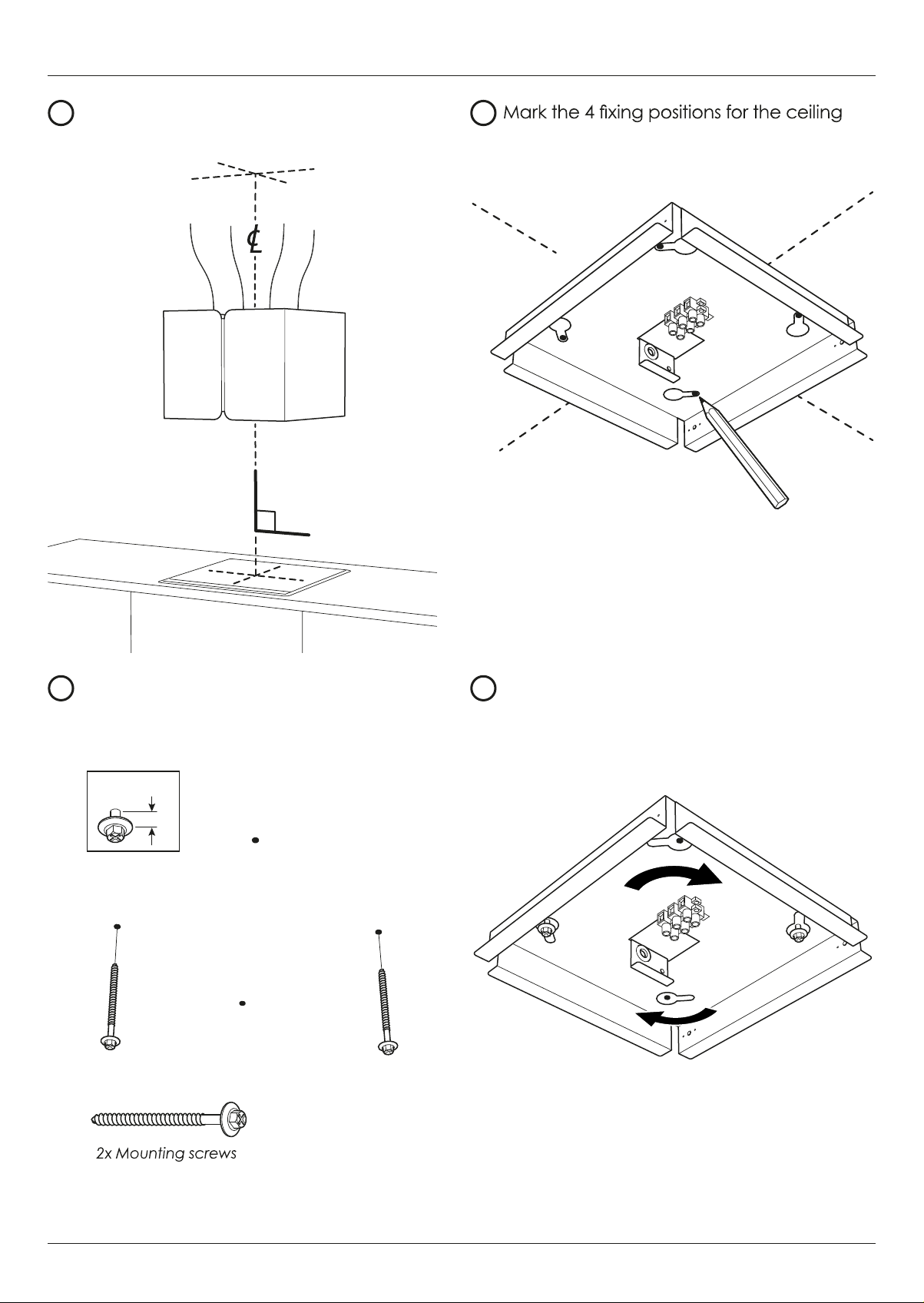

3Mark the centre of the ceiling bracket
directly above the hob.
4
bracket.

11
Exclusive to Howdens
x 1 x 2
x4
650mm
Minimum
FRONT
FRONT

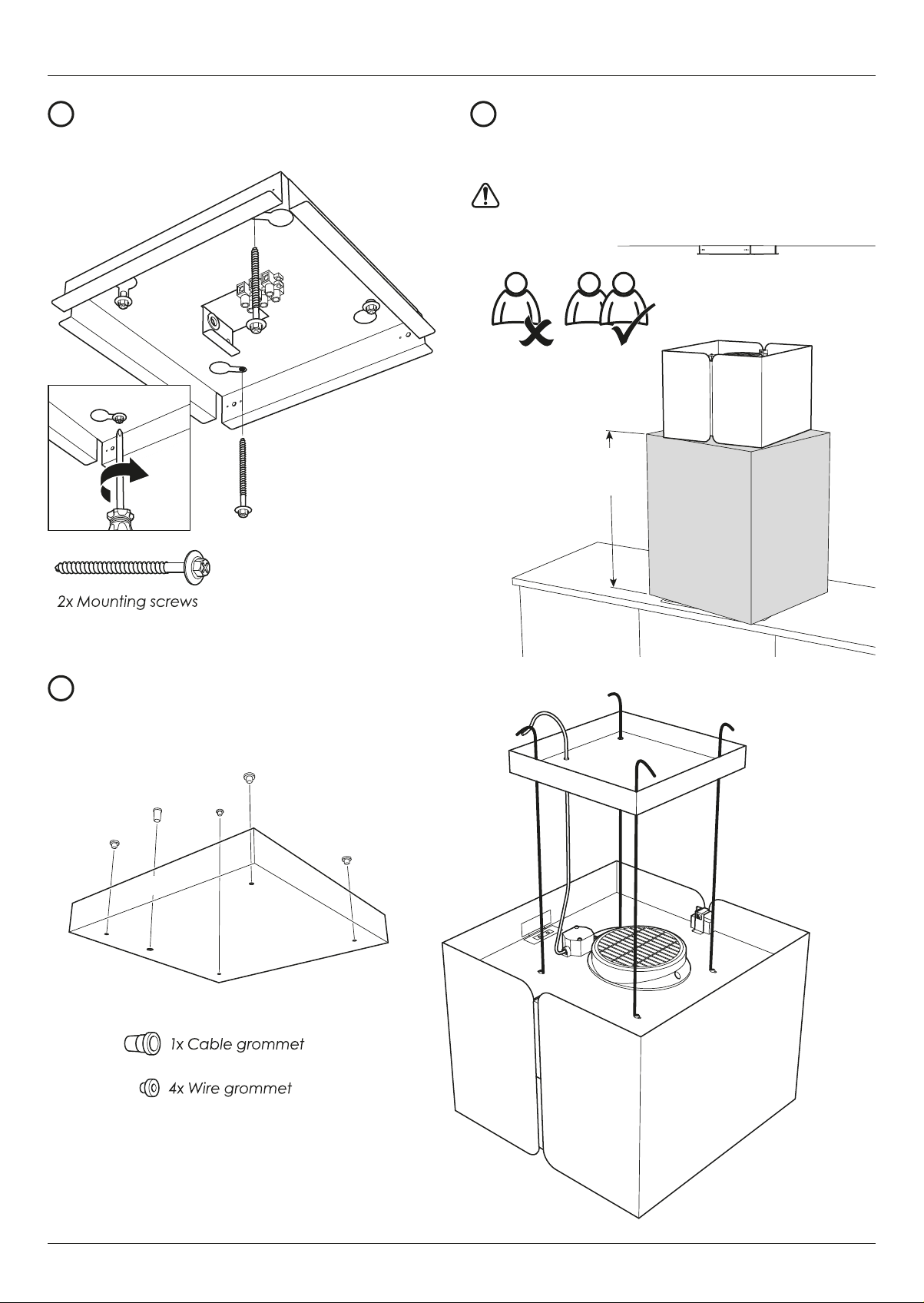

Installing the cooker hood
7Secure two additional screws and
tighten all screws x4.
9Insert grommets into ceiling bracket cover.
Thread the support wires and electric cable
through the cover.
8Use a non-metallic object to place the
cooker hood on, at least 650mm above
the hob surface, eg. the packaging box.
Ensure the hob is disconnected from the
mains electric.

12 www.howdens.com
x4
x4
x4
Installing the cooker hood
10 Thread the support wires into the ceiling bracket, x4.
10b. Thread back into the inside
of the ceiling bracket.
10a. Thread from the inside of
the ceiling bracket.
11a. Adjust the support wires.
11b. Ensure cooker hood is level.
11 Adjust the support wires to achieve the required height
from the hob and for levelling the cooker hood.

13
Exclusive to Howdens
x4

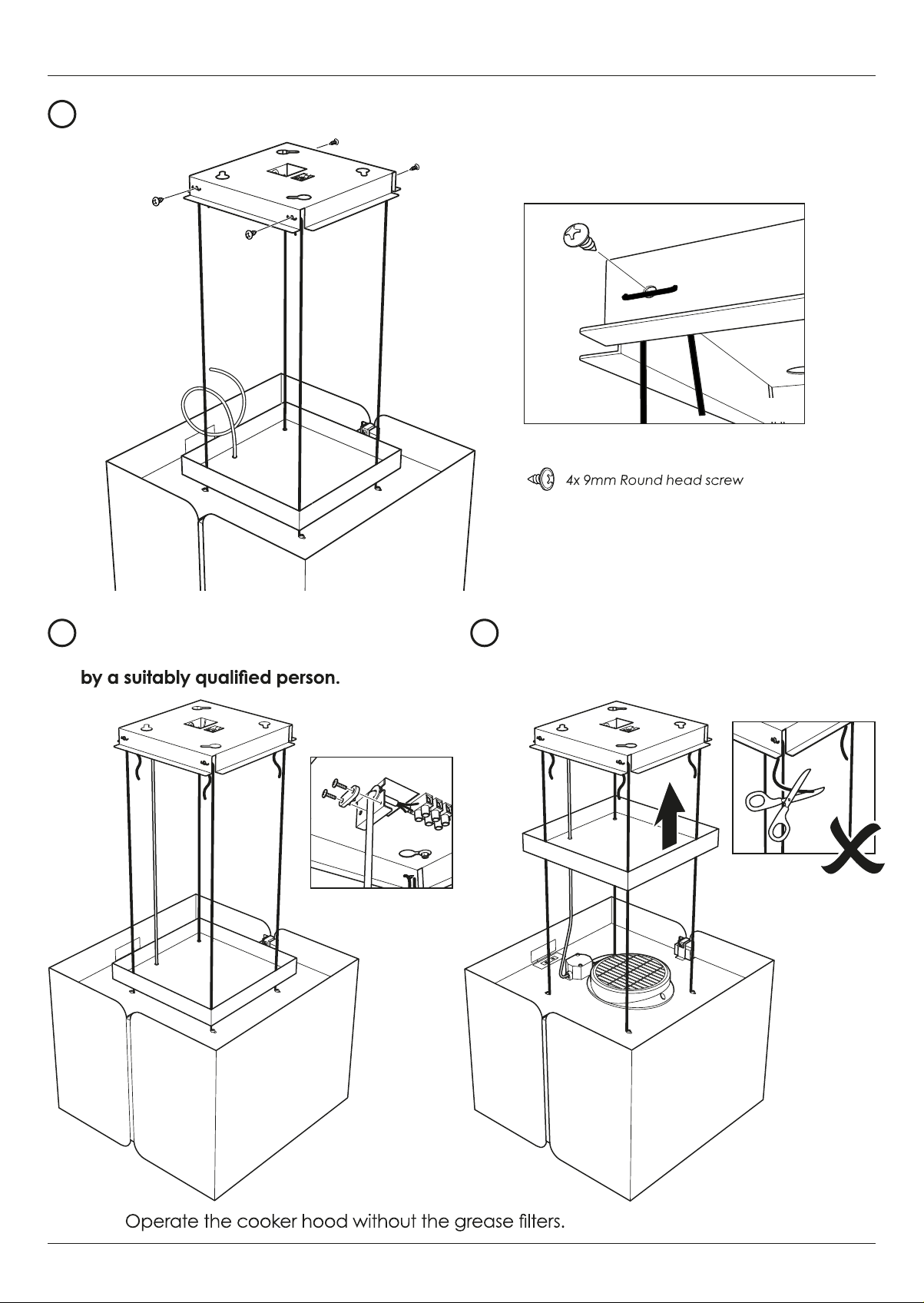

12a. Fit screws to secure.
12 Secure the support wires.
13 Connect electric cable.
The electric cable should be connected
14 Position the ceiling bracket cover.
Do not trim the support wires.
Installing the cooker hood
DO NOT:

14 www.howdens.com
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Electrical connections
IMPORTANT: Ensure that the electricity
supply is switched off before connecting.
and securely held in place or a cable grid is
back into the motor cavity.
wiring via the use of a double pole switched
fused spur outlet with at least 3mm contact
separation, the isolation switch must be
accessible after installation. (See technical
The appliance should be connected by a
be installed in accordance with all local
regulations.
The terminology DOUBLE POLE -/+
means that both the live and neutral supplies
are switched and disconnected at the same
time.
The terminations labelled SUPPLY are the
connections for the internal house wiring
and the terminations labelled LOAD are for
connection to the appliance.
IMPORTANT: The wires inthe mains lead are
coloured in accordance withthe following
code:-
Blue.....................Neutral
Brown..................Live
Green/Yellow.....Earth
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying
the terminals in your spur box, proceed as
follows;
The wire which is coloured blue must be
connected to the terminal which is marked
with the letter ‘N’ or coloured BLACK. The
wire which is coloured brown must be
connected to the terminal which is marked
with the letter ‘L’ or coloured RED. The wire
which is coloured Green and Yellow must be
connected to the terminal which is marked
with the letter ‘E’ or symbol.
Green & Yellow.
(Earth)

15
Exclusive to Howdens
LampPower
Speed 1
Speed 2 Speed 3
LED
indicator
3. Operating the cooker hood
Control panel
LED indicator ;
Power, Speed 1;
Press button to switch cooker hood On/Off.
LED shows green.
Speed 2;
Press button to activate speed 2.
LED shows red.
Speed 3;
Press button to activate speed 3.
LED shows red.
Lamp;
Press lamp button to switch on.
Repeat pressing will switch the lamp on or off.
Note: The lamp is not controlled by the Power On/Off button

16 www.howdens.com
4. Care and Maintenance
General cleaning
Before cleaning or attempting any type
of maintenance, always make sure that the
electricity supply is disconnected.
strictly to all of the recommendations included
in this booklet, paying particular attention to
not build up.
CAUTION: Accessible parts may become
hot when used with cooking appliances.
Wipe the external surfaces of the appliance
regularly using warm water and a mild
detergent. NEVER use abrasive cleaners,
or strong household cleaners as they may
affect the appearance of the product and/
or artwork on the control panel, voiding the
manufacturers warranty.
months or sooner depending on the type of
cooking being performed.
should be washed regularly using a neutral
detergent.
to crockery and kitchen utensils.
before reinstalling on the hood.

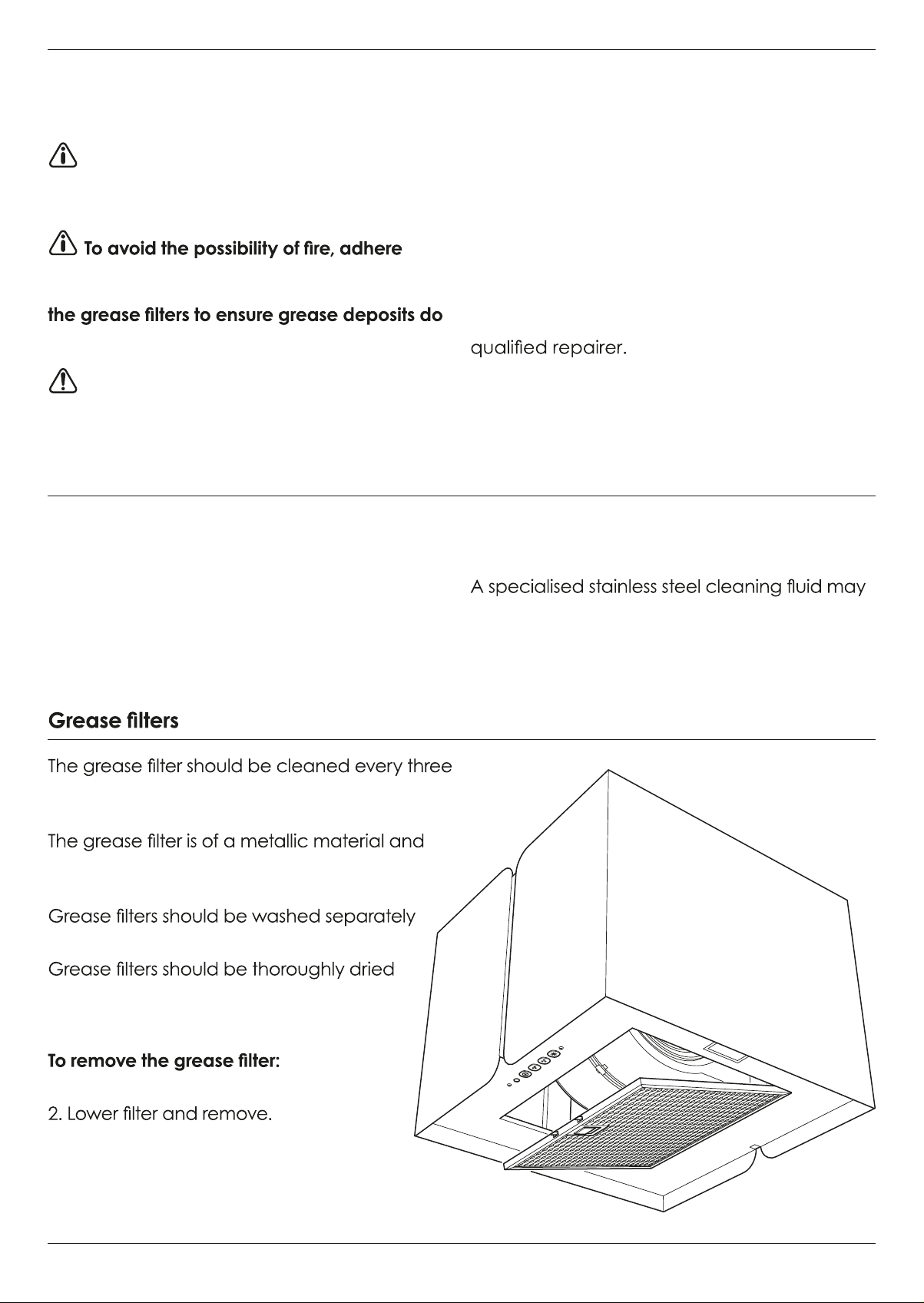

1. Push latch.
Install by reversing the process.
Stainless steel
The stainless steel must be cleaned regularly
to ensure long life. Dry with a clean soft cloth.
be used.
Note: Ensure that wiping is done along the
grain of the stainless steel to prevent any
unsightly criss-cross patterns appearing.
The manufacturer declines all liability in cases
where the instructions for the appropriate
installation, maintenance and use of the
cooker hood are not observed.
If the power cable is cut or damaged in any
way, disconnect the cooker hood from the
electricity supply and call the service number
on the rear cover of this booklet or a suitably

17
Exclusive to Howdens
power to the cooker hood is switched off.
changing them when there is a noticeable
drop in performance. The intervals between
the amount of cooking done, but on average
will last about 3 months.
from your local Howdens depot or online.
Part No. LAM2004.
releasing the retaining clip.
• Install by reversing the process.
• Reconnect the power supply.
Replacing lamps
The lamps on this model are
and replacement should be carried out by an
authorised service agent.
which will give many years of reliable service.
the service number.
Only use
replacement
lamps of type:
LED
Rectangle LED lamp 2 x 1W
AC 220-240V
used during operation of the cooker hood.
They should not be left on permanently and
used as a main lighting source. The cooker
hood is for domestic use only.

18 www.howdens.com
5 - Problem solving
If you cannot eliminate the problem
after following the instructions in this section,
consult your local Howdens dealer or an
Authorised Service Agent. Never try to repair
a non functional product yourself.
Metal surfaces of the cooker hood and
condensation
When cooking with pans using a large water
content, large quantities of vapour and
steam can be produced very quickly. This
steam may condense onto the cold metallic
surfaces of the cooker hood and even the
splash back area if tiled, glazed etc (This
is not a fault with either the hob or cooker
this condensation on any particular surface
will depend on many factors including the
ambient temperature in the kitchen, the
related ambient temperature of the metal
surfaces, the general ventilation within the
kitchen, the type of food being cooked and
the duration. Using lids on pans can help
reduce the amount of steam being released
and subsequent condensation.
TECHNICAL INFORMATION
General
Total power consumption 272 W
Fuse 3 Amp
Voltage / Frequency 220-240 V 50 Hz
Cable type / section 3 core 0.75mm2
Cable length 1.4 Metres
Lamps 2 x 1 W LED 4000 K
A
LAM2004
PROBLEM SOLVING
Symptoms Possible cause Solutions
Light functions but
fan does not.
• Motor temperature has exceeded and the
thermal fuse has tripped.
• Switch off the cooker hood and allow it to
cool down and the fuse will auto reset.
replace as required.
Lamps fail to
operate.
• Lamps internal fault.
• Lamp has passed its usable life.
• Call an authorised service agent.
Motor is on but fan
usual. obstructed.
mild detergent.
The cooker hood
works normally but
smells linger.
mild detergent.
Product does not
operate.
• The mains fuse may be defective or has
tripped.
• Product is not connected properly.
• Check fuses in the fuse box. If necessary,
replace or reset them.
• Check all power connections.

19
Exclusive to Howdens
7 - Guarantee
.
and serial number on the
appliance.
Inside the body of
the cooker hood.
Product Guarantee Details (UK & Republic of Ireland only)
Your appliance has the benefit of a comprehensive manufacturer’s guarantee which covers the
cost of breakdown repairs. (Details of which are shown on your Proof of Purchase Document).
• Any claim during the period of the guarantee
MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE.
• The product must be correctly installed and operated in accordance
with the manufacturer’s instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations
which are likely to affect the product.
• The guarantee is invalid if the product is tampered with, or repaired
by any unauthorised person.
(The guarantee in no way affects your statutory or legal right).
What to do if you need to report a problem.
Please ensure you have ready:
• The product’s model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.
Call the Depot number on your Proof of Purchase
Document supplied with the product/kitchen.
or
Call the LAMONA Service Line on:
Within UK 0344 460 0006
Within Republic of Ireland 01525 5703
* Product installed within a domestic kitchen or a non-domestic kitchen
where 8 or fewer people are using the appliance.
Spare parts availability - 10 years
Only fit Genuine Spare Parts
www.lamonaspares.co.uk (UK only)

Product serial number
Howden Joinery Ltd. Thorpe Road, Howden, East Yorkshire. DN14 7PA
Imported in EU by: Howdens Cuisines SAS. Z.A. du Bois Rigault Nord,
Product information correct at the time of publication in January 2022.
The company has a policy of continuous product development and
manual. Subject to the Terms and Conditions of Trading, a copy of the
Howdens Terms and Conditions is available upon request.
Copyright © 2022 Howden Joinery Ltd. All rights reserved.
Cet appareil
se recycle
Points de collecte sur www.quefairedemesdechets.fr
Privilégiez la répara�on ou le don de votre appareil!
À DÉPOSER
EN DÉCHÈTERIE
À DÉPOSER
EN MAGASIN
OU
REPRISE
À LA LIVRAISON
OU
