Dear Customer,
Congratulations on your choice of domestic appliance.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the oven.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent
potiential negative consequences for the environment and human health. The symbol on this product
indicates that this product may not be treated as household waste. Instead it should be handed over to
the applicable collection point for recycling or electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal. For more detailed information
please contact your local council household waste site.
This product complies with EU RoHS Directive (2011/65/EU) It does not contain harmful and prohibited
materials specified in the Directive.
Warning for possible hazards to health and property.
Warning possibility
Technical specifications may be changed without prior notice to improve the quality of the product.
Figures in this manual are schematic and may not exactly match your product.
of electric shock.
Product information correct at the time of publication in June 2017.
The company has a policy of continuous product development and reserves the right to change any
products and specifications given in this manual.

Page _ 4
Index
Before using the extractor 05
Safety 05
General 05
Safety for Children 05
Fire Safety 06
70yticirtcelEhtiWgnikroWnehWytefaS
General Information & Operation 08
r ContentsotcartxE08
Control Panel Layout 08
Using Your Cooker Hood 09
Care and maintenance 10
General Cleaning 10
Grease Filters 10
Carbon Filters 11
Replacing the Lamps 11
Installation 12
Methods of Extraction 12
Extraction Via Ducting 12
Extraction Via Recirculation 12
Before Beginning Installation 13
Installation Fixing Method Outline
Installation
Building and Fixing Extractor
Electrical Connections
Technical Specifications
Trouble Shooting
Your Guarantee
14
1
16 - 17
18
19
19
20
5

Page _ 5
• Make sure that you have removed all packaging, wrappings, stickers and from the Extractor
• It is recommended that you clean the extractor’s surface before using for the time.
Before using the Extractor
Safety
Important!
Always switch off the electricity
supply at the mains during
installation, maintenance and
cleaning.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in
a safe way and understand the
hazards involved. Children shall
not play with the appliance.
Cleaning and user maintenance
shall not be made by children with-
out supervision.
• Caution: The appliance and its
accessible parts can become hot
during operation. Children younger
than 8 years old should stay away
unless they are under permanent
supervision.
• The cooker hood must be
installed in accordance with the
instructions and all measurements
followed.
• All installation work must be
carried out by a competent person
or qualified electrician.
• Please dispose of the packing
material carefully. Children are
vulnerable to it.
• Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
•If the cooker hood is damaged, do
not attempt to use.
• If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
• Cooker hood is for domestic use
only (see guarantee page for
definition).
• Use suitable and appropriate
fittings for mounting the hood.

Fire Safety
Ventilation
Page _ 6
Important Safety Information
• Do not leave frying pans
unattended during use because
overheated fats or oils might catch
fire.
• Never leave naked flames under
the cooker hood.
• There is a fire risk if cleaning is
not carried out in accordance with
the instructions.
• Do not flambé under the cooker
hood.
• Do not use the cooker hood
without the grease filters or if the
filters are excessively greasy!
• The minimum distance between
the pan supports on the hob and
the lowest part of the cooker hood.
(When the cooker hood is located
above a gas appliance) shall be a
minimum of 650mm.
(Coal or oil 750mm)
• When in extraction mode, air in
the room is being removed by the
cooker hood. Please make sure
that proper ventilation measures
are being observed. The cooker
hood removes odours from room
but not steam.
• The air must not be discharged
into a flue that is used for
exhausting fumes from appliances
burning gas or other fuels.
• Make sure the ducting has no
bends sharper than 90 degrees as
this will reduce the efficiency of the
cooker hood (max duct length 3m,
150mm Ø).
• Always put lids on pots and pans
when cooking.
• Large quantities of vapour and
steam can be produced very quickly.
This steam may condense onto the
cold metallic surfaces of the
extractor (This is not a fault with
either the hob or extractor if
correctly installed.) The amount of
this condensation on any particular
surface will depend on many factors
including the general ventilation
within the kitchen, the type of food
being cooked and the duration.
• There shall be adequate
ventilation of the room when the
cooker hood is used at the same
time as appliances burning gas or
other fuels.

Electrical Safety
Page _ 7
Important Safety Information
• Do not use high level grills or
BBQ type products under this
extractor.
• In case of any damage, switch
off the product and disconnect
it from the mains. To do this,
turn off the fuse at the fuse box.
Make sure that fuse rating is
compatible with the product.
Using lids on pans can help reduce
the amount of steam being released
and subsequent condensation.
Induction hobs offer a powerful,
more efficient heating process but
do not generate the higher levels of
ambient heat that would normally
help dissipate vapour and steam as
with older hob technology.
• The manufacturer refuses to
accept any responsibilty for damage
to or damages arising from failure
to observe this instructions.
• Ensure the ducting for cooker
hood has the same diameter all the
way through and at the outlet.
• If the cooker hood is installed for
use above a gas appliance then the
provision for ventilation must be in
accordance with the Gas Safety
Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment, the
Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Department.

Page _ 8
General Information & Operation
Control Panel Layout
Extractor Contents
Struts x 8
Reducer
Ceiling plate
Chimney sections
Extractor body and glass
Cable grid
Fixings
2. 3. 4. 5.1.
1. Light on/off
2. Extractor Power off
3. Extractor power level 1
4. Extractor power level 2
5. Extractor power level 3

Page _ 9
Using Your Cooker Hood
Ideally
Caution - Accessible parts may become hot when used with cooking appliances.
you should turn on your hood ten minutes before you start to cook, or at the very least when you
begin cooking. You should also run your hood for ten minutes after you have cooking.
Make sure that it has been installed by a suitably person, as per the installation instructions.
Induction Hobs - Metal Surfaces of the Extractor and Condensation
Large quantities of vapour and steam can be produced very quickly. This steam may condense onto
the cold metallic surfaces of the extractor and even the splash back area if tiled, glazed etc. (This is not
a fault with either the hob or extractor if correctly installed).
The amount of this condensation on any particular surface will depend on many factors including the
general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans
can help reduce the amount of steam being released and subsequent condensation. Induction hobs offer
a powerful, more efficient heating process but do not generate the higher levels of ambient heat that would
normally help dissipate vapour and steam as with older hob technology.

Page _ 10
Before cleaning or attempting any type of maintenance, always make sure that the electricity
supply is disconnected.
The manufacturer declines all liability in cases where the instructions for the appropriate installation,
maintenance and use of the extractor hood are not observed.
If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call
the service number on the rear cover of this booklet or a suitably repairer.
General Cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
Care and Maintenance
The Grease Filters
Your extractor includes a grease which helps
to protect your kitchen & furniture from greasy
residues by out grease particles.
• Over time, the grease may become a
risk if the greasy residue is allowed to build up.
• To prevent a hazard, the grease
should be cleaned.
• Depending on use, this should be done every
10-15 days or for light usage once a month.
•
•
First remove the grease filters by pushing the
in the button on the handle and pulling the
filter away from the cooker hood.
Soak the grease filters in hot water and
washing up liquid for at least 3 minutes.
The use a soft brush to loosen any grease
deposits that have formed. Rinse the filters
thoroughly with hot water. Repeat the process
if necessary.
• If grease filters are washed in a dishwasher
(60˚c) the plastic may discolour
• Allow the grease to dry completely before
• The extractor must never be operated without
the grease in position.

Page _ 11
Care and Maintenance
The Carbon Filter
If the appliance is going
The cooker hood uses LED lamp modules which are not replacable by the user.
Please contact the service line if a lamp fails / needs replacing.
to be used in recirculation mode then it is necessary to fit carbon filter. This will
help absorb odours caused by cooking.
Carbon filters have a limited life. We advise you to change them when there is a noticable drop in peformance.
The intervals between changing the filter will depend entirely upon the amount of cooking you do, but on
average they will last about 3-6 months.
• To gain access to the carbon filter, first of all remove the grease filters as mentioned previously.
• Remove the old filter and install new charcoal filter by unlocking / locking the filter with the centre
fixings (filter part number LAM2002).
• The carbon filter is not washable and cannot be recycled.
Replacing the Lamps
The lamps on this appliance should only be used during operation of the cooker hood. They should not
be left on permanently and used as a main lighting source. The extractor is for domestic use only.

Page _ 12
Methods of Extraction
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits
may be purchased from the depot where you bought the extractor.) You do not need charcoal when
using the external ducting mode.
Extraction Via Ducting
Never use the hood in areas where devices with
exhaust pipes connected to the outside are
already operating unless perfect ventilation can be
guaranteed.
•
Carbon filter is not required if the extractor
is to be ducted out.
Extraction Via Recirculation
For extraction via recirculation, attach carbon
filter inside the hood.
(Part reference LAM2002)
switched off.
•
•
•
•
Remove the grease filters.
• Turn the retaining clips to release the
filter.
• Insert new filter, turn retaining clips to
fasten.
• Replace the grease before the power
supply is turned back on.
• Performance will be reduced when used in
recirculation mode, or if using long lengths
of ducting.
Installation
Do not connect the ducting system of this
appliance to any existing ventilation system
which is being used for any other purpose.
The air must not be discharged into a flue that
is used for exhausting fumes from appliances
burning gas or other fuels (not applicable to
appliances that only discharge the air back into
the
Keep ducting as short as possible, with the
minimum number of bends, for the best
airflow (max 3 metres).
room).
Connect the external ducting kit to the outlet
of the extractor.

Page _ 13
Before Beginning Installation
Check that the p
The maximum distance between the cooker hood and your discharge outlet should be 3 metres, with
one 90 degree bend. For each additional 90 degree bend, the maximum distance is reduced by a metre.
Use 150mm ducting for optimum performance.
Use appropriate fixings for ceiling construction type.

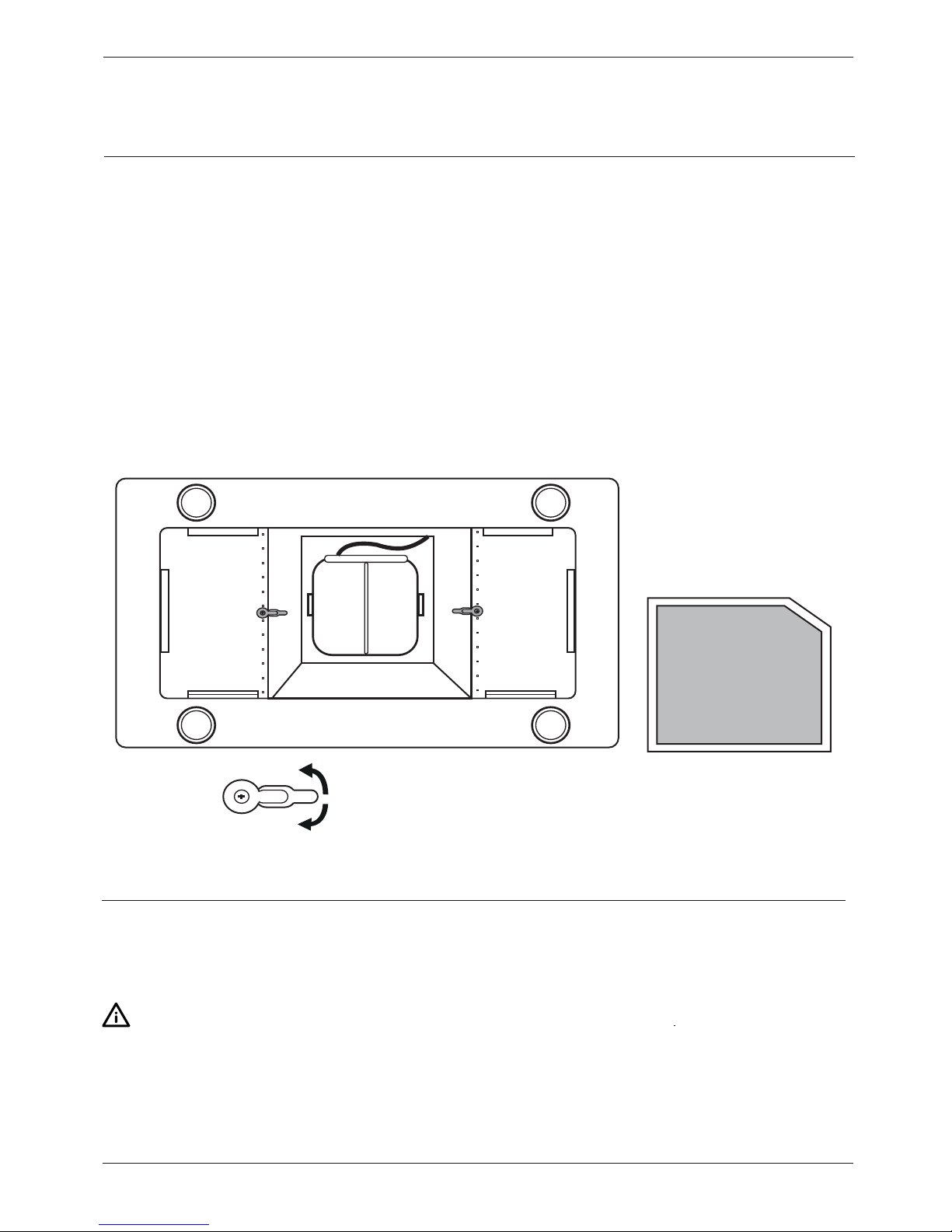

Cable Grid - Recirculation Mode
To ensure that mains cable does not fall and enter the motor housing, fit the cable grid.
roduct purchased is of a suitable size for the chosen installation area. In addition
check whether there is an electrical socket available that will be accessible once the hood is mounted.
If the product is going to be used in extraction mode, then there should also be space to connect a
ducting hose to the outside.
Carry out all necessary masonry work prior to the of the cooker hood and cabinetry.
Ensure that all electrical connections are carried out by a suitably person.
• Check inside the product and ensure that there is no transit packaging or any other materials, such as
packets of screws, guarantees etc. These should be removed and kept for future use.
•
Protect any hob already installed below with a blanket or cardboard etc, to prevent possible damage.

Page _ 14
Installation - Fixing Method Outline
1. Prepare venting (if applicable).
2. Prepare electrical connection point.
3. Securely fasten top plate to the ceiling (top fixing or extractor body fixing method).
4. Build extractor body and frame (top fixing or extractor body fixing method).
5. Lift and fasten extractor to ceiling (connect vent kit if applicable). CAUTION HEAVY!
6. Connect to a electrical point (power turned off at fuse or breaker).
7. Secure chimney sections.
8. Insert carbon filter if applicable.
9. Replace grease filters.
10. Power on at fuse or breaker.
Glass Fitting
Secure glass to extractor body using 4 x M4 22/25mm screw + washer + rubber grommet

The ceiling height (A) determines the method of installation.
If ceiling height is less than 2.45m:
‘Top plate’ fixing method (3 x person fit)
Fasten plate to ceiling, struts fasten to extractor, chimney slides over struts, lift whole unit up to fasten to
ceiling plate.
If ceiling height is more then 2.45m:
‘Extractor body’ fixing method (2/3 x persons fit - slightly easier)
Plate & struts fasten to ceiling, chimney sections are placed over struts and secured, then extractor is lifted
up to struts and fastened.
A
Recommended
750mm
890mm
Page _ 15

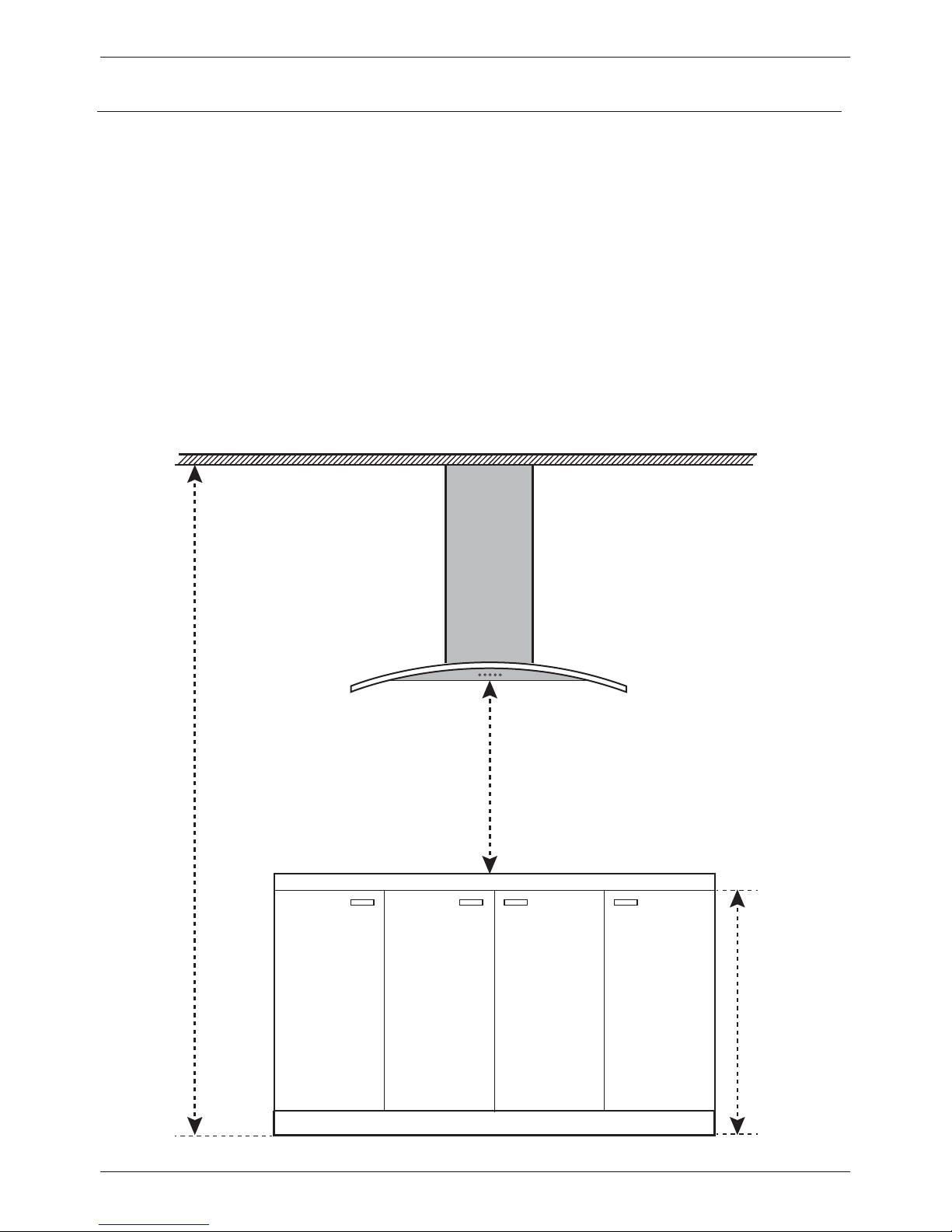

Installation

Based on the standard Howdens Kitchen Installation Manual set-up of:
Base unit height 890mm
Worktop* 40mm (dependant on worktop chosen)
Rec. Hob Clearance* 750mm
=1680mm (Height from floor to base of extractor)
2.4m - Ceiling Height Set-Up (= ‘Top Plate’ Fixing)
Build extractor and struts to height of c.720mm
Struts length set to c. 660mm
2.31m - Minimum Ceiling Height Possible (= ‘Top Plate’ Fixing)
Use single struts. Overall extractor height of c. 630mm
(Height is suitable for recirculation installation)
* Remove any loose / dropped screws and nuts etc to avoid possible vibrations / rattles
* Struts must have min. 100mm overlap
Using M4 (10mm) Screws, washers and nuts
Ceiling plate only fastens to the ceiling, assembled extractor and chimney sections are lifted
to fasten to ceiling plate. Upper chimney section is lifted and secured to ceiling plate.
1.
2.
3. 4.
(*Can be reduced to 700mm as a minimum dimension)
Page _ 16
Installation - Building & Fixing Your Extractor

2.69m - Maximum Height Set-Up (= ‘Extractor body’ fixing)
Build ceiling plate and struts to c.1016mm
Struts length set to c. 957mm (*100mm minimum strut overlap is necessary)
2.46m - Minimum height for ‘Extractor body’ fixing
Build ceiling plate and struts to c.780mm
Struts length set to c. 715mm
Note:
Lowest strut jointing nuts and bolts need to be set
c.270mm from the bottom of the strut to allow fixing to extractor body.
* Remove any loose / dropped screws and nuts etc to avoid possible vibrations / rattles
*Struts must have min. 100mm overlap

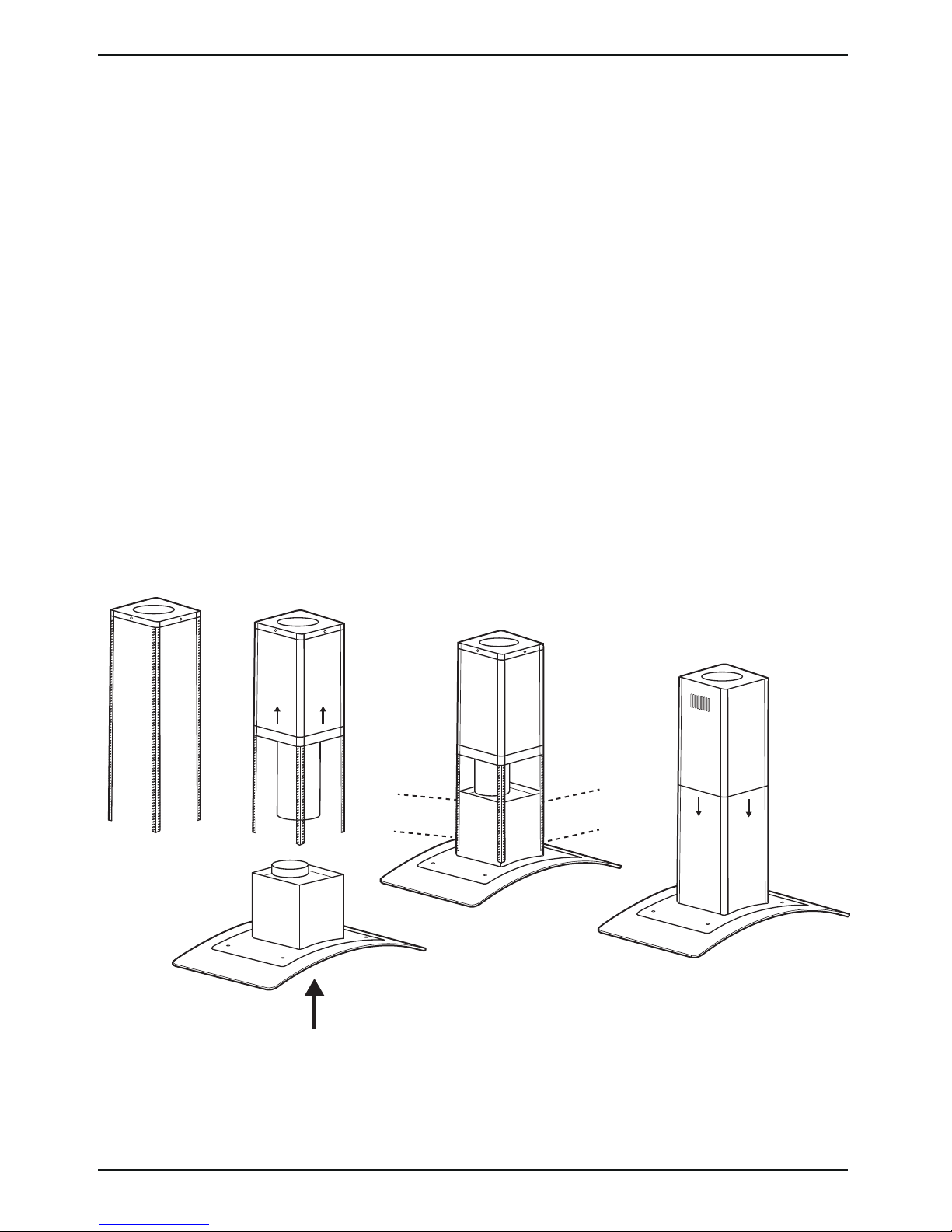

Ceiling plate with struts fasten to the ceiling, chimney sections are placed over the struts
and secured. Extractor body and glass is lifted to struts and secured. Chimney section lowers.
1.
2.
3.
4.
Page _ 17
Installation - Building & Fixing Your Extractor

Page _ 18
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)

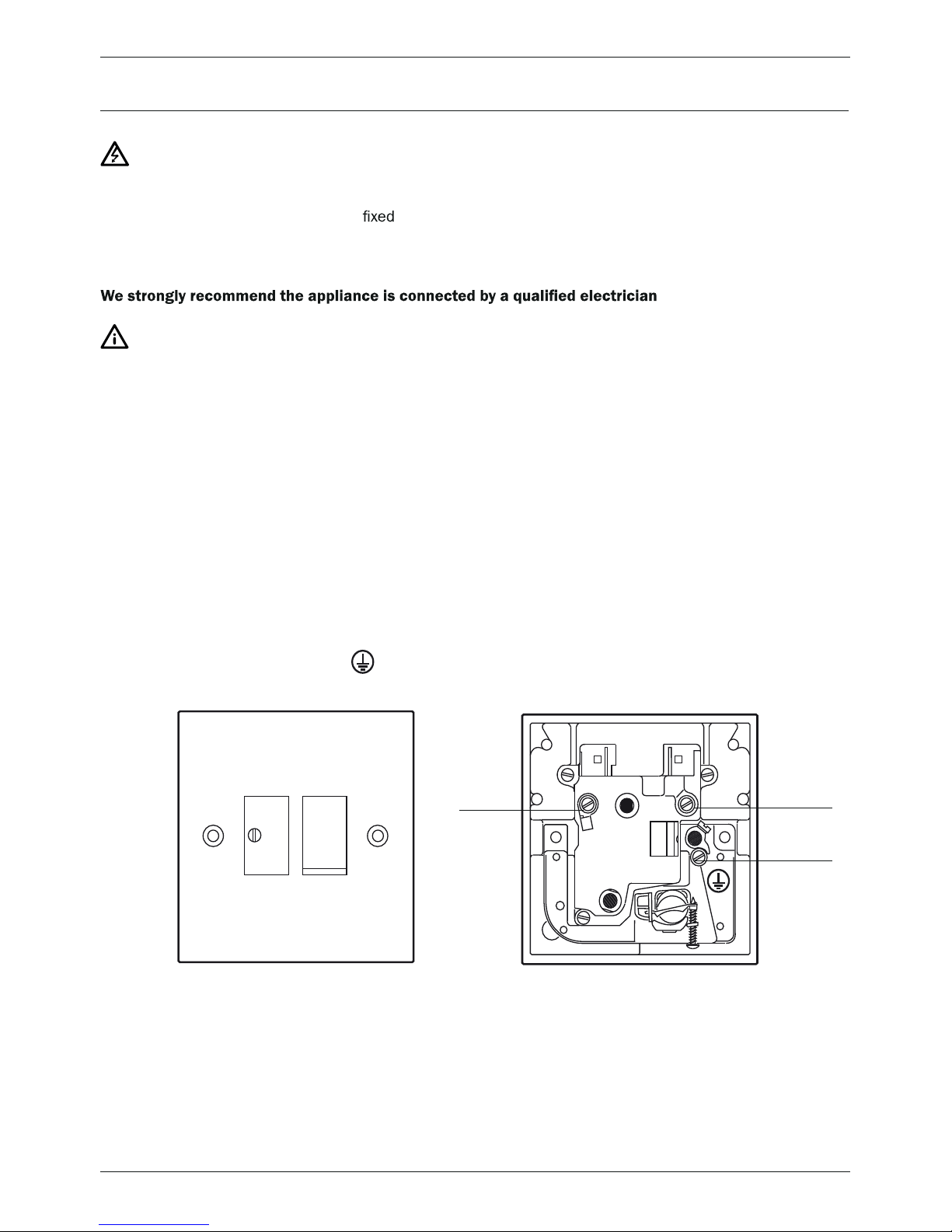

Electrical Connections
IMPORTANT: Ensure that the electricity supply is switched off before connecting.
Your appliance must be connected to wiring via the use of a double pole switched fused spur outlet
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating). We recommend the use of an RCD device as additional protection.
The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and
disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal house wiring and the terminations
labelled LOAD are for connection to the appliance.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue.....................Neutral
Br
Green / Yellow............Earth
own..................Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which
is ma
connected to the terminal marked
rked with the letter ‘L’ or coloured RED. The wire which is coloured GREEN / YELLOW must be

Page _ 19
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
Poor extractor
performance
Smells linger
Product does not
operate
Lamp does not operate
• Mains fuse or breaker has tripped.
• Defective lamp module.
• Clogged filters.
• Vent ducting; too long, too small
diameter, too many bends.
• Extractor mounted to high above
the hob.
• Call service line.
• Wash grease filters.
• Clogged filters. • Wash grease filters.
• Change carbon filters (if applicable).
• Change carbon filters (if applicable).
• Check installation.
• Check extractor for any obvious issues.
• Replace fuse / reset breaker.
• If you cannot eliminate the problem after following the instructions in this section, consult your depot or the
Service line.
Troubleshooting
Technical Specification
TECHNICAL INFORMATION
Dimensions:
Total Wattage: 113W
Voltage: 220V - 240V 50HZ
Width : 900mm
600mmDepth :
Your Cooker Hood is with:
Single motor 105W
Push button control
3 Speed extraction
x4 LED lamps
x2 Aluminium grease filters
Optional Extras:
Charcoal : LAM2002 (PK1)
Ducting kits : APL 2805/6

Page _ 20
Your Guarantee
Product Guarantee Details (UK only)
and serial number on
your machine.
Remove grease filters -
sticker in the motor
cavity area.
Your appliance has the benefit of a comprehensive manufacturer’s guarantee
which covers the cost of breakdown repairs. (Details of which are shown on your
Proof of purchase Document).
• Any claim during the period of the guarantee MUST BE ACCOMPANIED BY THE PROOF OF
PURCHASE.
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely to affect
the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal right)
What to do if you need to report a problem.
Please ensure you have ready:
• The product’s model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.
Call the Depot number on your Proof of Purchase
Document supplied with the product / kitchen.
or
Call the LAMONA Service Line on 0344 460 0006
*Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people
are using the appliance.
