Lamona LAM2500 User manual

Stainless Steel
Flat Glass Extractor
LAM2500 + ACS2560 (60cm)
+ ACS2570 (70cm)
+ ACS2590 (90cm)
User Instructions
issue1 Feb 2012

Page 2www.howdens.com
CONTENTS
Environmental Note 3
Product information 4
Parts Identication 4
Parts List 4
Methods of Extraction 5
Installation 6
Hanging Your Extractor 6
Extraction Via Ducting 7
Extraction Via Recirculation 7
Decorative Chimney Fitting 8
Electrical Connections 9
Operating Your Extractor 10
Extractor Controls 10
Maintenance 11
General Cleaning 11
The Grease Filter 11
The Carbon Filters 11
Replacing The Light Bulbs 11
Troubleshooting 12
Your Guarantee 13
Product Guarantee Details 13
Reporting a Problem 13
Contact details 14

Page 3www.howdens.com
ENVIRONMENTAL NOTE
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance
may not be treated as household waste. Instead it must be handed over to the applicable collection point
for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact
your local household waste disposal service.
• The packaging materials that Lamona uses are environmentally friendly and can be recycled
• Please discard all packaging material with due regard for the environment.
This appliance conforms to the following EEC Directive:
Thisappliancemeetstheprovisionsofthefollowingdirectives:89/336/EEC(electromagneticcompatibility),
73/23/EEC (electrical equipment designed for use within certain voltage limits) as amended.

Page 4www.howdens.com
PRODUCT INFORMATION
Keep this book in a handy place for reference as it contains important details on the safe and proper
use of your appliance. Should you sell the extractor please remember to pass the instruction book
on to the new owner.
The extractor is designed to give you the option to extract air by ducting to the outside and away (via
an exterior wall), or to re-circulate through charcoal lters to minimise odours, steam and condensation.
The choice is yours to decide at installation, and both systems are explained in the booklet. We recommend
that you read this booklet thoroughly before attempting to install or operate the extractor.
PARTS IDENTIFICATION
On opening your box you will nd the extractor hood, a two-piece telescopic decorative chimney, wall
xing bracket, a ducting connector and adaptor, and a bag of ttings. The canopy glass is supplied
separately.

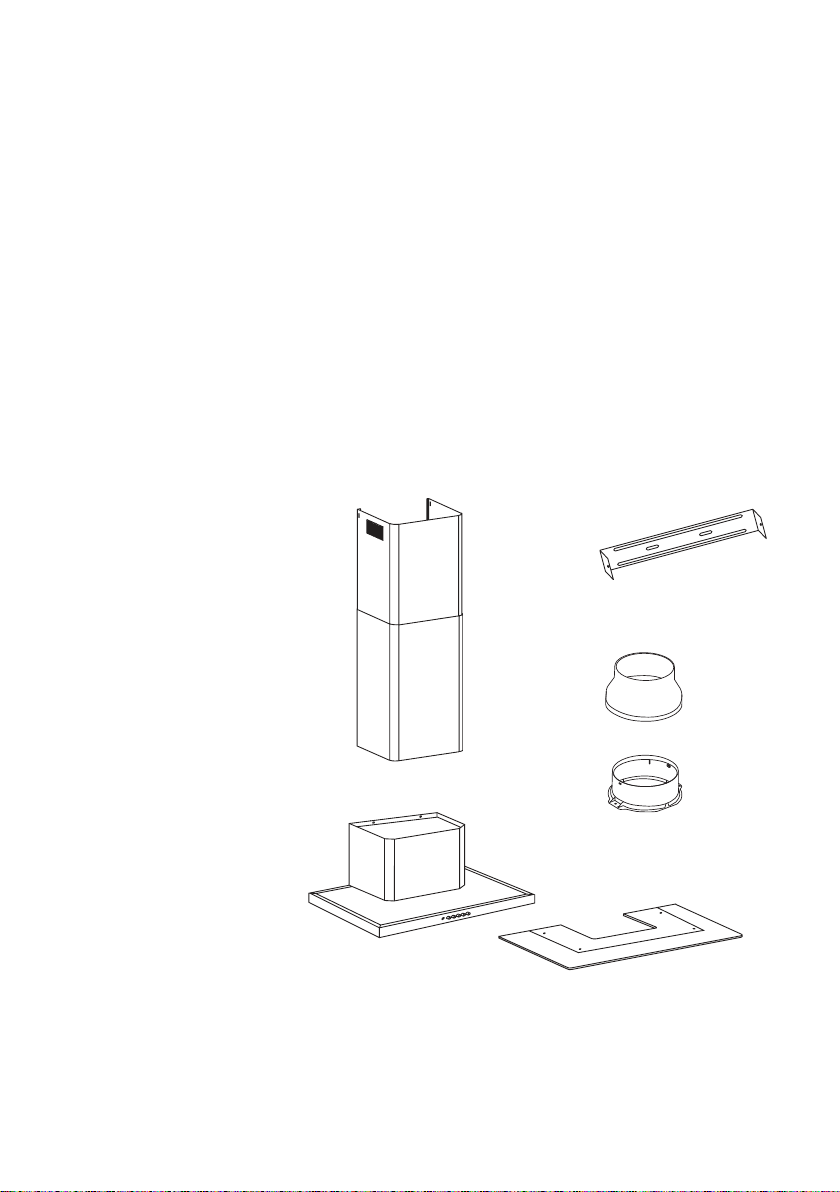

PARTS LIST
1) Telescopic Chimney
2) Extractor Hood
3) Upper Chimney Bracket
4) Ducting Adaptor
5) Ducting Connector
6) Canopy Glass
(supplied separately)
DATA
Power Supply:
230/240v ~ 50Hz
Rating:
195 W
Fuse Rating:
3 A
2 bulbs
GU10 halogen max 50W
1
2
3
5
6
4

Page 5www.howdens.com
METHODS OF EXTRACTION
The best method of cleaning the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere. Suitable ducting kits may be purchased from the
depot where you bought your extractor. You do not need a charcoal lter when using the ducting mode.

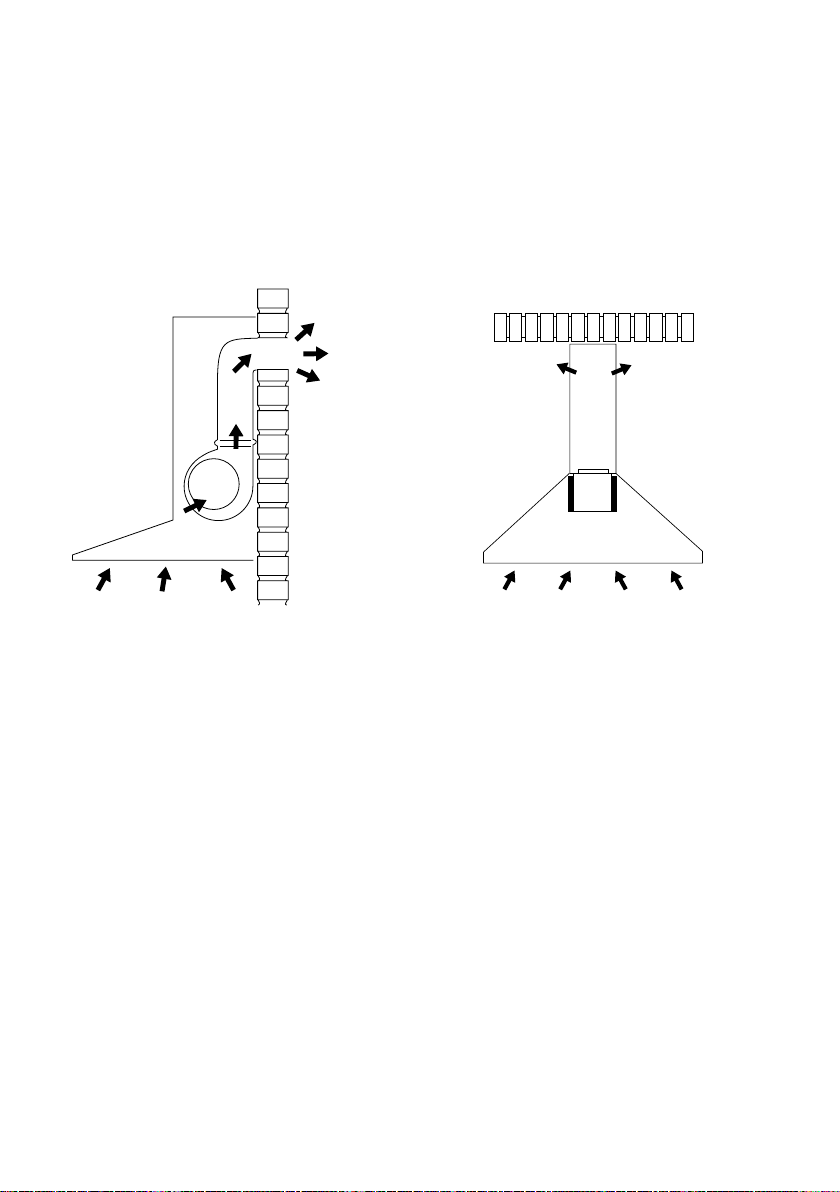

Ducting mode Recirculating mode
(No charcoal lter required) (Charcoal lters required)
REMEMBER: Before drilling or chiselling the ceiling or wall, check for pipes and power cables.
• Ensure the ducting tube is kept as short as possible and with the minimum of bends to permit the
smoothest airow (maximum length 3 metres).
• Ducted air must not be discharged into a ue, which is used for exhausting fumes from appliances
supplied with energy other than electricity.
• Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust
air.
• Ensure adequate room ventilation is provided when the extractor is used in the same room as
appliances supplied with energy other than electricity.
• Never duct into a hot air ow such as a central heating duct.
We strongly advise that all exterior outlets be tted with a non return valve or louvered slatting.

Page 6www.howdens.com
INSTALLATION
HANGING YOUR EXTRACTOR
IMPORTANT: This instruction must be strictly adhered to. Failure to comply could result in over-
heating and serious damage to your appliance.
Fig 1. Fig 2.
Note: It is recommended that the installation is carriedout by two people.
• Remove the grease lters before proceeding with the assembly. This will give access to the lower
hood xing holes and make the appliance easier to handle.
• The recommended xing height for the hood is 750mm above the worktop. This can be reduced to
a minimum of 700mm if required.

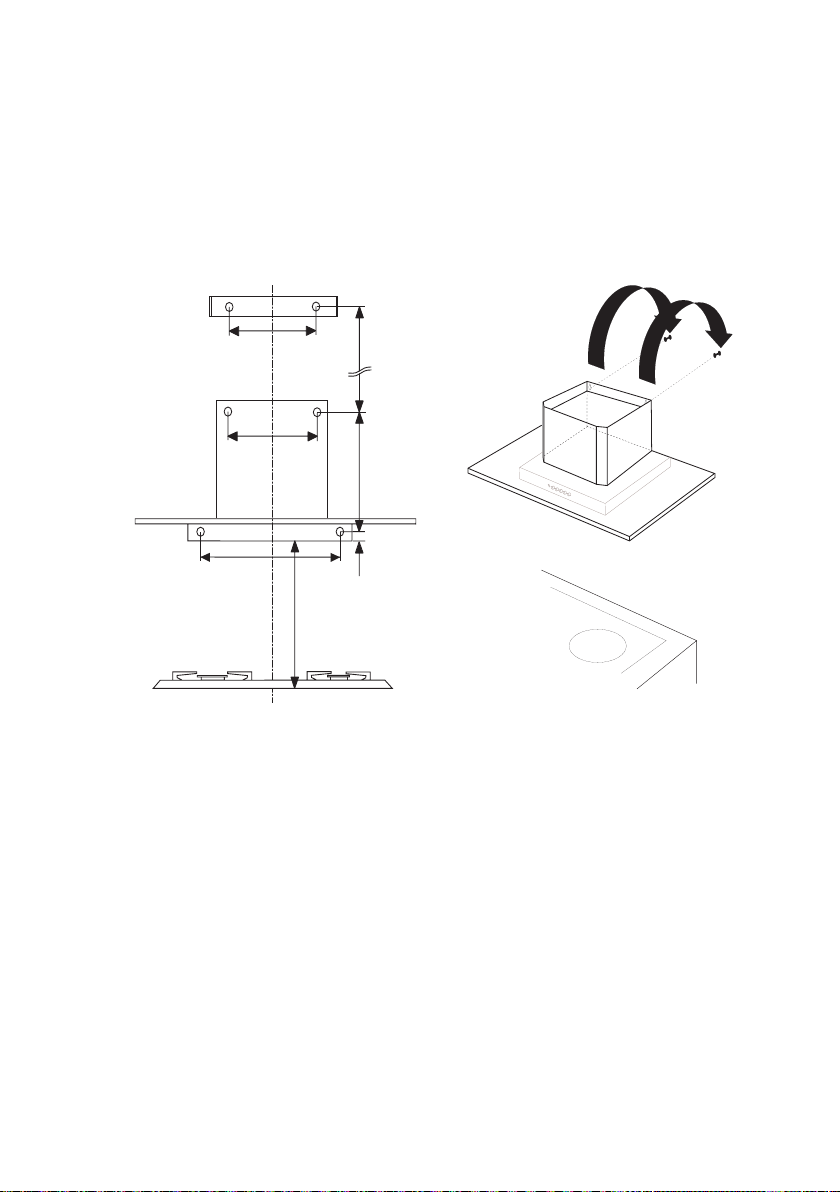

• With reference to g 1: mark, and drill the six holes required to mount the extractor and lower
chimney bracket to the wall. Use plugs and screws suitable for the wall construction (not supplied).
• With reference to g 2: the top two hood securing positions are keyholeslots. Screw these screws A
in rst leaving approximately 2mm between the screw head and the wall.
• With the help of an assistant locate the hood on these two screws, tightening if necessary.
Fixing Height Above Worktop
Recommended = 750mm
Minimum = 700mm
30
300
170
170
127
max 855
A

Page 7www.howdens.com
• From inside the hood, t the two remaining securing screws into the holes previously drilled.
• Using the screws and washers provided, carefully attach the glass canopy to the extractor body.

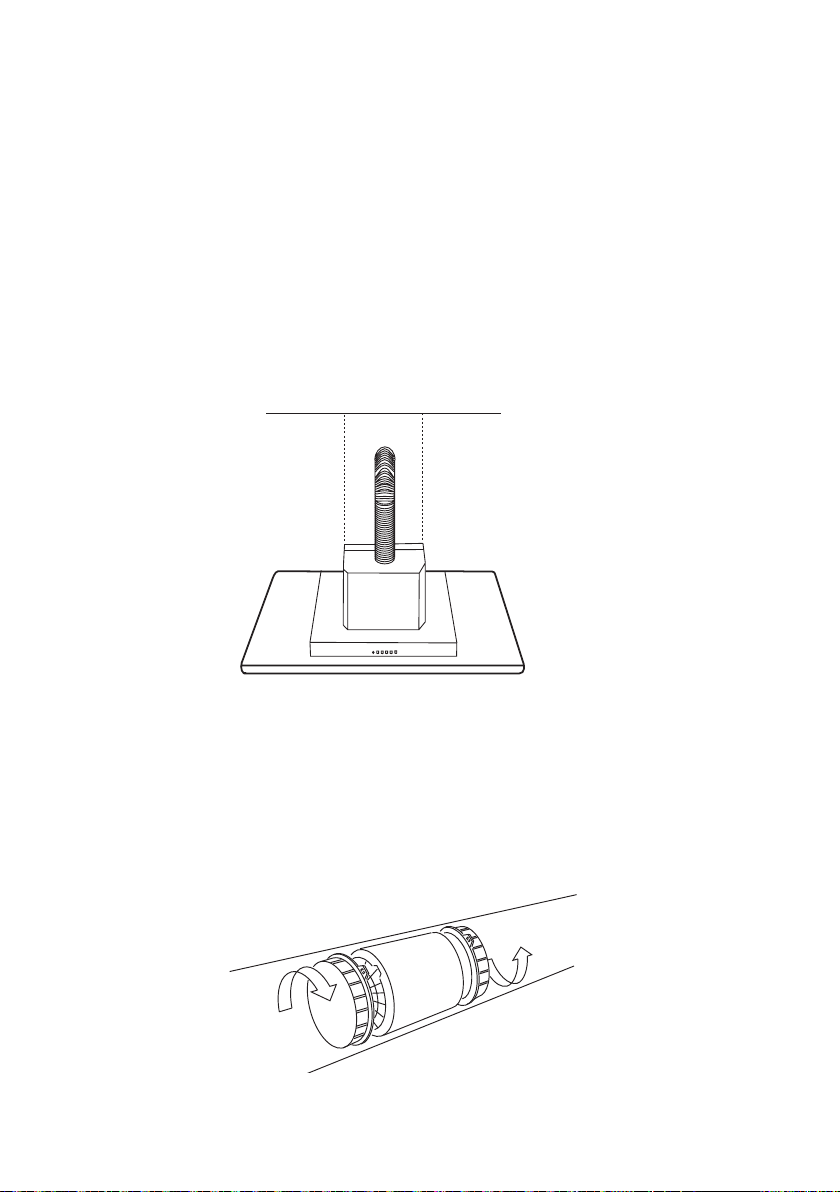

• Connect the ducting connector to the top of the hood using the screws supplied.
EXTRACTION VIA DUCTING
Never use the hood in areas where devices with exhaust pipes connected to the outside are already
operating unless perfect ventilation can be guaranteed. Connect the external ducting kit to the outlet of
the extractor.
EXTRACTION VIA RECIRCULATION
Attach 2 charcoal lters to the sides of the motor inside the hood. Note: these are not required if the
extractor is to be ducted out.

Page 8www.howdens.com

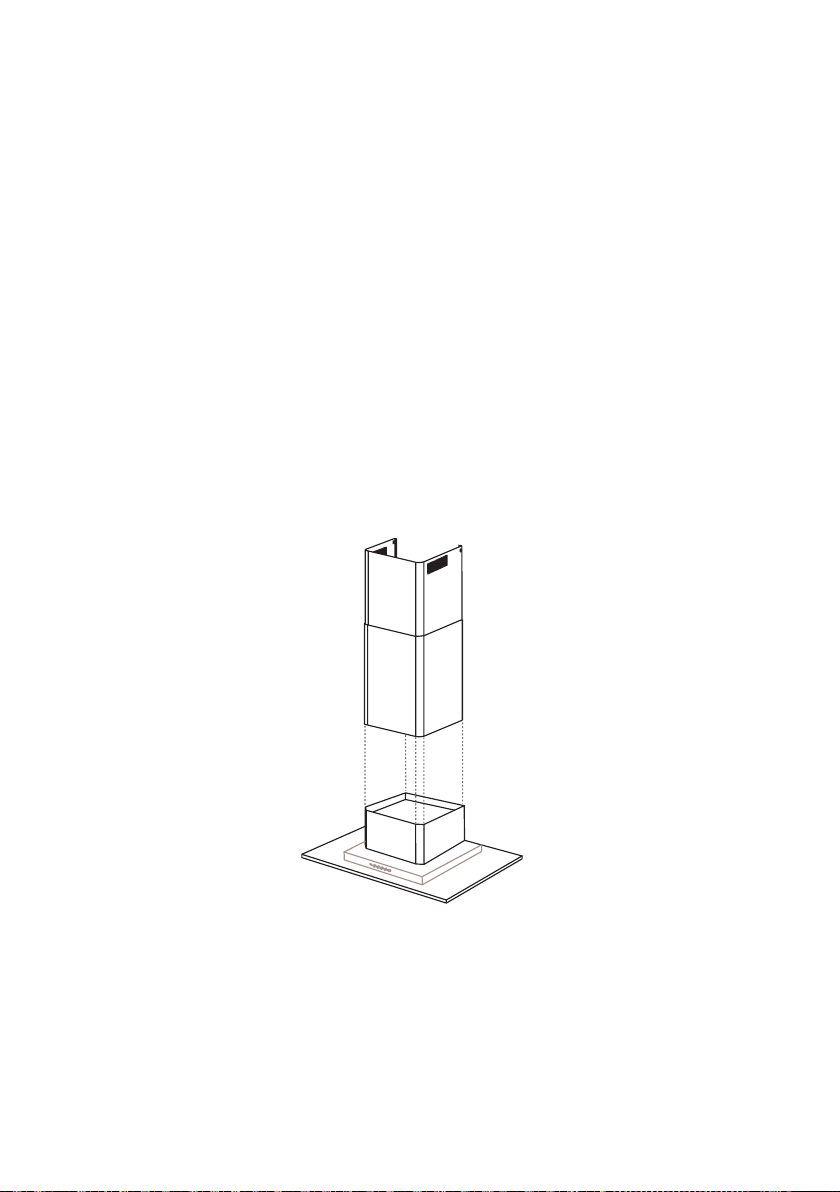

DECORATIVE CHIMNEY FITTING
• Connect the extractor to the electricity supply (see electrical connections page).
• Slide the upper chimney section inside the lower chimney section and t into recess on the top of
the hood.
• Secure the upper chimney bracket to the wall, against the ceiling.
• Extend the upper chimney section to the ceiling and secure to the upper chimney bracket with the
screws provided.
• Fit the grease lter to the hood.
DO NOT: attempt to operate the extractor without the grease lter in position.

Page 9www.howdens.com
ELECTRICAL CONNECTIONS
IMPORTANT: Ensure that the electricity supply is switched o before connecting.
Your appliance must be connected to xed wiring via the use of a double pole switched fused spur outlet
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating).
We strongly recommend the appliance is connected by a qualied electrician who will comply with all
local regulations.
NOTE: The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and
disconnected at the same time.
The terminations labelled SUPPLY are for the connection for the internal house wiring and the
terminations labelled LOAD are for the connection for the appliance.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue..........Neutral
Brown......Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or
coloured BLACK. The wire which is coloured brown must be connected to the terminal which is marked
with the letter ‘ L’ or coloured RED.
Fused Switch Wireing Example
FUSE ON
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
BLUE
(NEUTRAL)
BROWN
(LIVE)
TECHNICAL DATA
FUSE RATING:
3AMP
FUSE ON
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
BLUE
(NEUTRAL)
BROWN
(LIVE)
TECHNICAL DATA
FUSE RATING:
3AMP

Page 10www.howdens.com
OPERATING YOUR EXTRACTOR
EXTRACTOR CONTROLS
A) Motor on lamp. B) Light switch.
C) Motor O switch. D) Selects motor speed 1.
E) Selects motor speed 2. F) Selects motor speed 3.
AF
E
D
C
B

Page 11 www.howdens.com
MAINTENANCE
IMPORTANT: Before cleaning or attempting any type of maintenance, always make sure that the
electric supply is disconnected.
To avoid the possibility of re, adhere strictly to all of the recommendations included in this booklet,
paying particular attention to the grease lters to ensure grease deposits do not build up.
NOTE: The manufacturer declines all liability in cases where the instructions for the appropriate
installation, maintenance and use of the extractor hood are not observed.
If the power supply is cut or damaged in any way, disconnect the extractor from the electricity supply and
call the service number on the rear cover of this booklet.
GENERAL CLEANING
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
WARNING: Never have a naked ame in direct contact with the grease lters or within the
extractor hood.
THE GREASE FILTERS
The grease lter is of a metallic material and should be washed using
a neutral detergent or in a dishwasher.

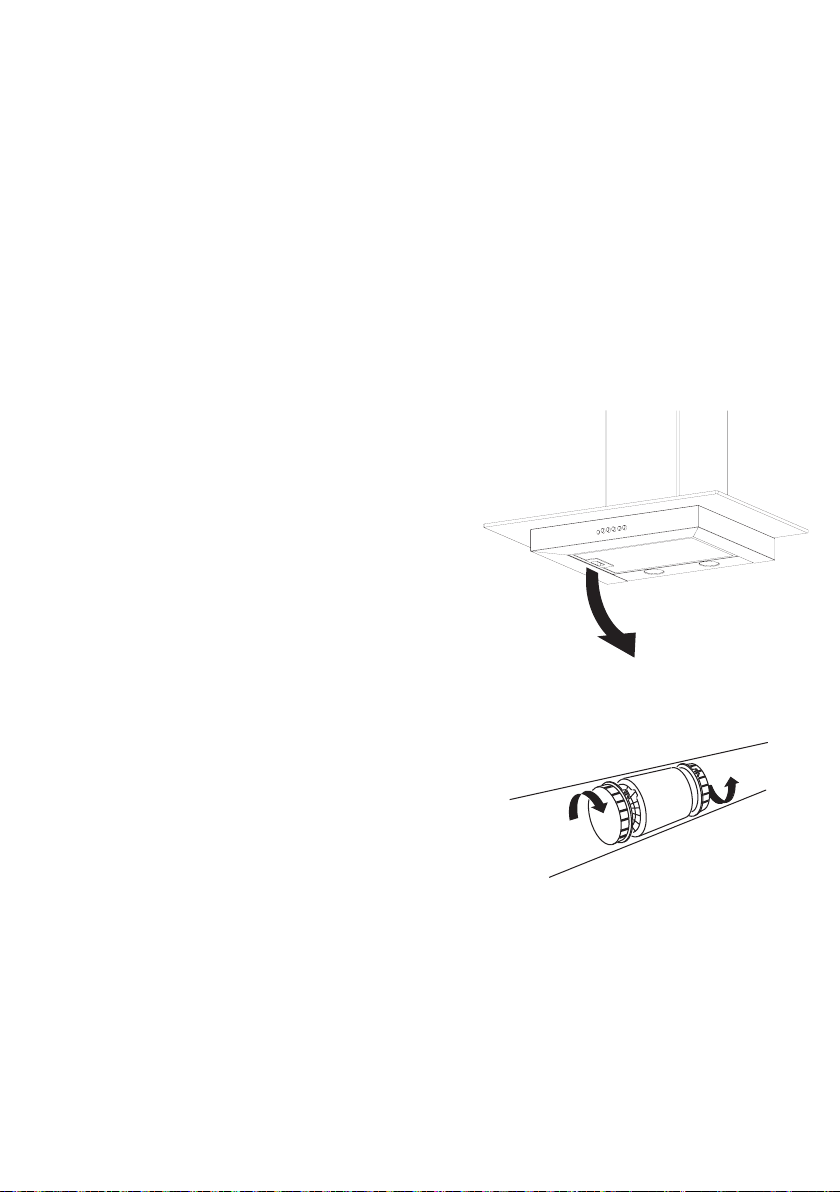

Removal of grease lter:
1. Press latch
2. Lower lter to remove
THE CARBON FILTERS
Carbon lters have a limited life. We advise you to change them when there is a noticeable drop in
performance. The intervals between changing the lters will depend entirely upon the amount of cooking
you do, but on average they will last about 6 months.
To gain access to the carbon lters rst of all, remove the
grease lters as above. Remove the old lters and reposition
new (LAM2900 - pack of 2).
REPLACING THE LIGHT BULBS
• Ensure that the power is switched o and the bulb is cold.
• Remove the grease lters to gain access to the bulbs.
• Unscrew to remove the lamp and replace it with a new lamp of the same type and wattage.
Remove grease lters to make it easier.
IMPORTANT WARNING: The replacement lamps must have aluminium reector, never use dichroic
lamps, to avoid unnecessary overheating on the lamp holders.
NOTE: LAMP REPLACEMENT IS NOT COVERED BY YOUR GUARANTEE

Page 12www.howdens.com
TROUBLE SHOOTING
Before you assume the worst, check this simple fault-nding guide to get to the root of the
problem:
Lamps fail to operate?
• A replacement is probably necessary, but rst check that the lamp is correctly tted into its holder.
Remember that the light bulbs are not covered by our guarantee. Remember to disconnect the
mains electricity supply before replacing the lamps. Do not touch the lamps with ngers - use a
suitable cloth.
Motor is on but fan does not seem to be as ecient as usual?
• Check the grease lter. If it has not been cleaned recently, it might be clogged with grease. If this
lter is relatively clean, check carbon lters (if tted). If they have not been replaced for more than
six months, remove and insert new ones. As time goes by, accumulated grease tends to stie the
carbon lters in just the same way as the grease lter, thereby reducing the eciency of both the
fan and the lter itself.
Works normally but cooking smells linger?
• If you’re using the unit in recirculating mode, change the charcoal lter. It may require
replacement.
Appliance does not work at all?
• Check your extractor is switched on at the mains. Next, check there is power to your home by
switching on adjacent lights etc.
Still not working? Call the Service Line
• If, having consulted the above diagnostics and you are still unable to remedy the situation, please
call the service number on the rear cover of this manual.

Page 13 www.howdens.com
Your Guarantee
Product Guarantee Details (UK only)
YOUR APPLIANCE HAS THE BENEFIT OF A COMPREHENSIVE MANUFACTURER’S GUARANTEE
WHICH COVERS THE COST OF BREAKDOWN REPAIRS. (DETAILS OF WHICH ARE SHOWN ON
YOUR PROOF OF PURCHASE DOCUMENT).
• Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF
PURCHASE)
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely to aect
the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way aects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
- The product’s model & serial numbers
- Howdens Proof of Purchase document
- Your full contact details.
Call the Lamona Service Line on 0845 00 60 006

Page 14www.howdens.com
CONTACT DETAILS
Lamona Customer Care
Telephone number [phone].
Lamona operates a policy of continuous improvement and reserves the right to adjust and modify
its products without prior notication.
