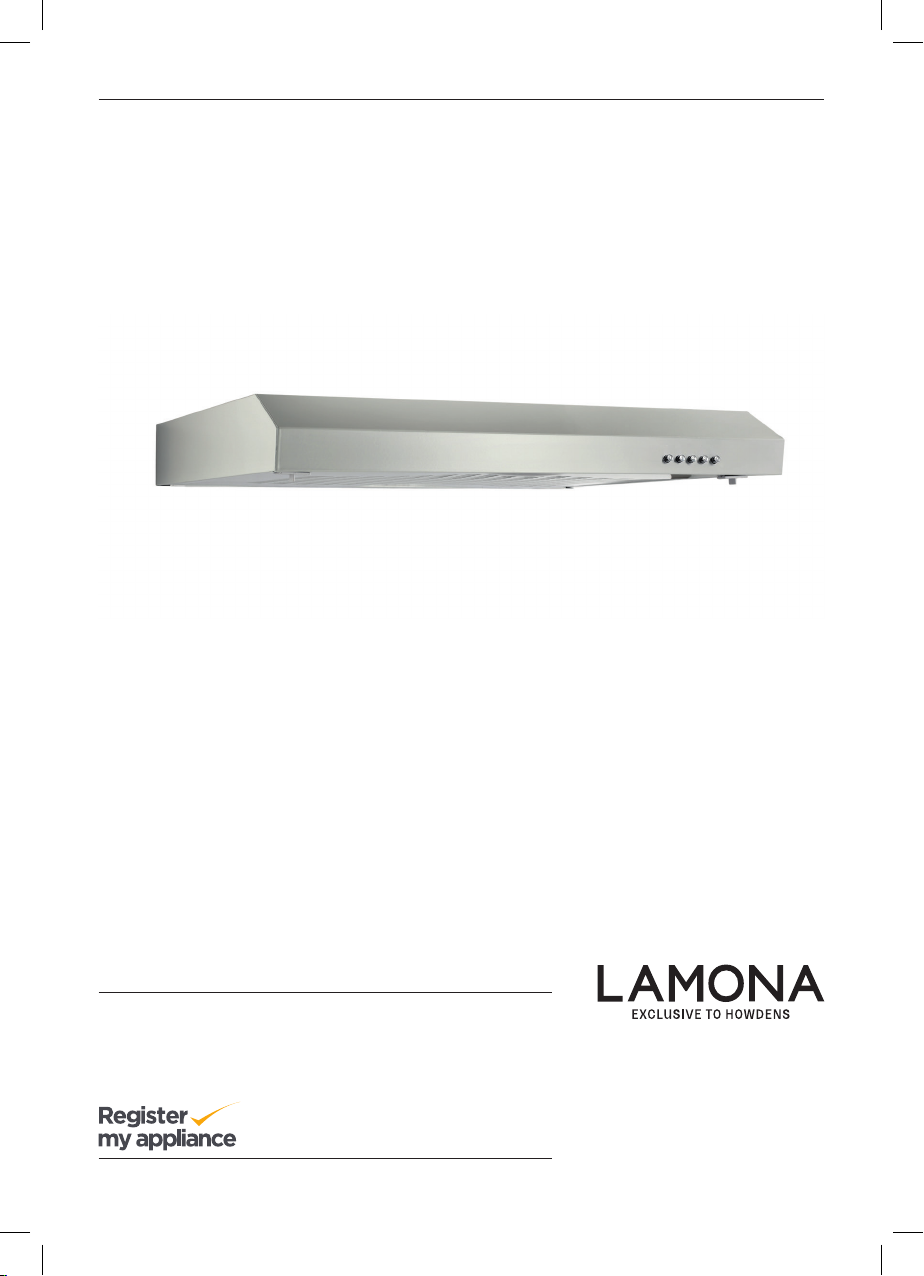

Lamona LAM2104 Guide

60cm Conventional Hood
Instructions and Installation
www.howdens.com/appliance-registration
(White) LAM2104
(Stainless Steel) LAM2105

See back page for product serial number

Page_3
Exclusive to Howdens
Dear Customer,
Congratulations on your choice of Lamona Conventional Hood.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the hood.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Energy Efficiency
In order to optimise efficiency of the product and reduce environmental impact we recommend the following:
• Product is installed in ducted configuration, using maximum Ø of ducting advised in this manual,
ducting as straight and as short as possible.
• Any filters are cleaned/replaced when necessary to maintain good airflow and grease filter efficiency.
• Switch on the hood at the minimum speed required to clear unwanted cooking odours.
• Switch off lighting when not in use or not required.
Metal Surfaces of the Hood and Condensation
When cooking with pans using a large water content, large quantities of vapour and steam can be
produced very quickly. This steam may condense onto the cold metallic surfaces of the hood and even the
splash back area if tiled, glazed etc.
(This is not a fault with either the hob or hood if correctly installed.)
The amount of this condensation on any particular surface will depend on many factors including the
ambient temperature in the kitchen, the related ambient temperature of the metal surfaces, the general
ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans can help
reduce the amount of steam being released and subsequent condensation.
This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent
potiential negative consequences for the environment and human health. The symbol on this product
indicates that this product may not be treated as household waste. Instead it should be handed over
to the applicable collection point for recycling or electrical and electronic equipment. Disposal must be
carried out in accordance with local environmental regulations for waste disposal. For more detailed
information please contact your local council household waste site.
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
Technical specifications may be changed without prior notice to improve the quality of the product.
Figures in this manual are schematic and may not exactly match your product.

Page_4
www.howdens.com
Index
Before using the hood 05
Safety 05
General 05
Fire Safety 07
Safety for Children 07
Safety When Working With Electricity 08
General Information & Operation 10
Hood Layout 10
Control Panel Layout 10
Using Your Cooker Hood 11
Care and maintenance 12
General Cleaning 12
Grease Filters 12
Carbon Filters 13
Lamps 14
Installation 15
Modes of Operation 15
Ducting to Exterior 15
Recirculating into Room 15
Before Beginning Installation 16

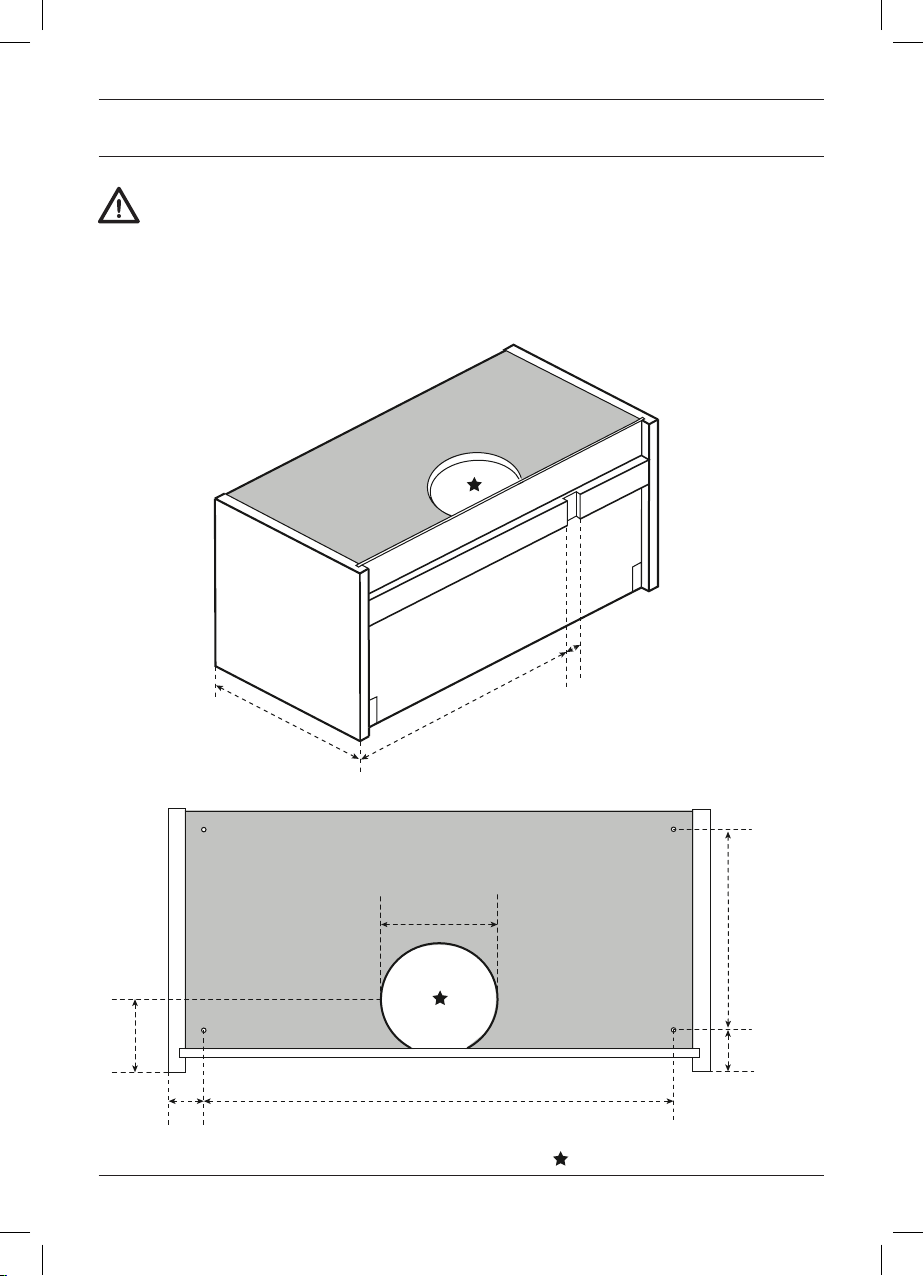

Installation Dimensions 17
Fittings 17
Cupboard Mount 18
Wall Mount 19
Electrical Connections 20
Technical Specifications 21
Trouble Shooting 21
Your Guarantee 22

Page_5
Exclusive to Howdens
• Make sure that you have removed all packaging, wrappings,
stickers and films from the Hood.
• It is recommended that you clean the hood’s surface before using
for the first time.
Before using the Hood
Safety
General
This hood is for domestic kitchen extraction purposes only. It
must not be used for other purposes (see guarantee page for
definition).
The manufacturer shall not be liable for any damage caused by
improper use, installation or handling errors.
This product is not intended to be
used by persons with physical,
sensory or mental disorders
or unlearned or inexperienced
people (including children)
unless they are supervised by a
person who will be responsible
for their safety or who will
instruct them accordingly in the
use of the product.
• Connect the product to an
earthed outlet protected by
a fuse of suitable capacity
as stated in the “Technical
specifications” table. Our
company shall not be liable for
any problems arising due to
the product not being earthed
in accordance with the local
regulations.
• Do not operate the product if
the power cable is damaged.
Call qualified service agent.
• Do not carry out any repairs
or on the product. However,
you may remedy some the
problems that do not require
any repairs or modifications.
See Troubleshooting, at the
rear of this manual.
• Never wash down the product
with excessive water, as there
is the risk of electric shock!

Page_6
www.howdens.com
• Never use the product when
your judgment or coordination
is impaired by the use of
alcohol and/or drugs.
• Product must be disconnected
from the mains during
installation, maintenance,
cleaning and repair
procedures.
• Repair procedures must
always be performed by
qualified service agents. The
manufacturer shall not be
held responsible for damages
arising from procedures
carried out by unauthorised
persons, which may also void
the guarantee.
• Keep all ventilation slots clear
of obstructions, as this may
cause premature failure of the
appliance
• Do not trap the mains cable
and do not route it over
surfaces which may become
hot. The cable insulation may
melt and cause a fire as a
result of a short circuit.
• Make sure that the product
function buttons are switched
off after every use.
• Product must be installed
by a qualified person in
accordance with the local
regulations in force otherwise,
the guarantee may become
void.
• The hood must be installed
in accordance with the
installation instructions and all
measurements followed.
• If the cooker hood is
installed for use above a
gas appliance then the
provision for ventilation
must be in accordance with
the Gas Safety Codes of
Practice BS.6172, BS.5440
& BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994,
the Gas Safety (Installation
& Use) Regulations, the
Building Regulations issued
by the Department of the
Environment, the Building
Standards (Scotland)
(Consolidated) Regulations
issued by the Scottish
Development Department.
General

Page_7
Exclusive to Howdens
Important Safety Information
• When the hood is being used in Exterior Ducted mode, ensure that
the ducting is fire retardant and that there are no bends greater
than 90 degrees as this will reduce the efficiency of the hood.
• Ensure the ducting for the Exterior Ducted mode has the same
diameter as the outlet hole all the way through.
• Always put lids on pans and ensure that pans are always on hobs
when burners are lit.
• Remember that when in Exterior Ducted mode, your cooker hood
is removing air from your room. Ensure that proper ventilation
measures are being observed.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
Fire Safety Safety for Children

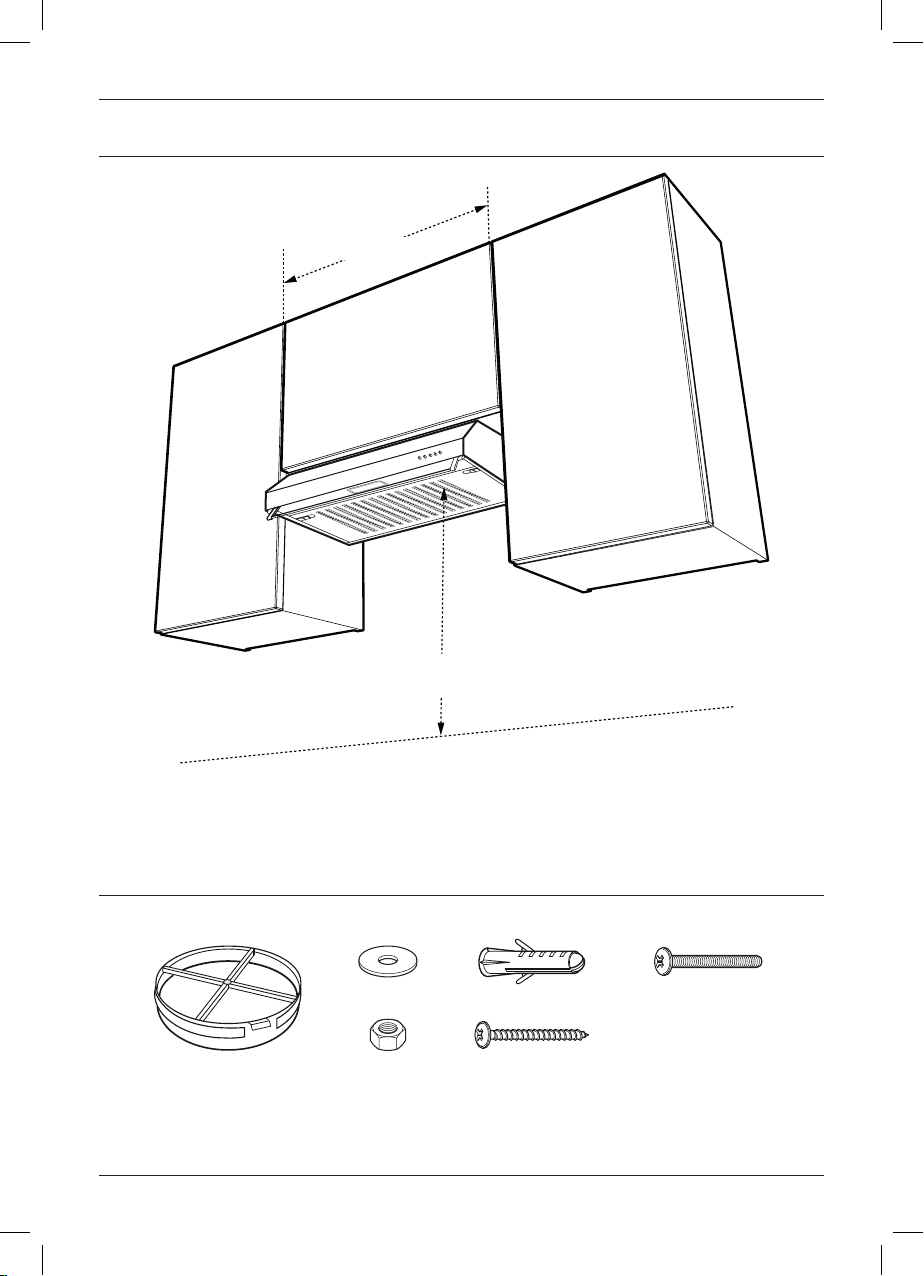

When installing the hood,
ensure that the following
recommended minimum
distances are observed
between the highest point
on the hob top (including the
burners) and the bottom of the
cooker hood:
Electric cookers: 650 mm
Gas cookers: 700 mm
Coal / oil cookers: 800 mm
• Never flambé cook under this
cooker hood.
• Dirty cooking oil is an even
greater fire risk.
• Do not install above a cooker
with a high level grill.

Page_8
www.howdens.com
• In case of any damage,
switch off the product
and disconnect it from the
mains. To do this, turn off
the fuse at the fuse box.
• Make sure that the fuse
rating is compatible with
the product.
• The appliance should be
connected by a suitably
qualified person in
accordance with local
legislation/regulations.
Safety when working with
electricity
Important Safety Information
• Please dispose of the packing
material carefully – children
are especially vulnerable to it.
• If the room where the hood
is to be used contains a fuel
burning appliance such as a
central heating boiler then its
flue must be of the sealed or
balanced flue type.
• If other types of flue or
appliances are fitted, ensure
that there is an adequate
supply of air in the room.
• Keep young children from
using, playing with or
tampering with the cooker
hood. Older children and
infirm persons should be
supervised if they are using
the cooker hood.
• The manufacturer refuses to
accept any responsibility for
damages arising to the hood
or it catching on fire, from
a failure to observe the fire
safety advice contained in
this instruction booklet.
• Note: Your hood is designed
to remove cooking odours
from the room and not steam.
• The packaging materials will
be dangerous for children.
Keep the packaging materials
away from children. Please
dispose of all parts of the
packaging according to
environmental standards.
Safety for Children

Page_9
Exclusive to Howdens
Important Safety Information
• Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
• Warning - Always ensure
that the hood has been
disconnected from the power
supply before carrying out
any work.
• The lights on this appliance
should only be used during
operation of the hood.
They should not be left on
permanently and used as a
lighting source.
• The hood should not be
exposed to a direct heat
source from the cooking
device underneath it, i.e.
a naked flame from a gas
burner or heat from electric
hob zones without a pan
on them.
• Do not attempt to use the
hood if it is damaged in any
way. Never attempt to use
it without the grease filters
fitted or if the filters are
excessively greasy!
Do not set your cooker
hood less 650mm above
your Electric Hob or 700mm
above your Gas Hob.
• When installed between
adjoining wall cabinets, the
cabinets must not overhang
the hob.
• The edges of the cooker hood
may be sharp – be mindful
of this as you handle your
appliance, especially during
installation and cleaning.
Do not clean behind the
grease filter
• If the room where the cooker
hood is to be used contains a
fuel burning appliance such
as a central heating boiler
then its flue must be of the
sealed or balanced flue type.
• If other types of flue or
appliances are fitted, ensure
that there is an adequate
supply of air in the room.

Page_10
www.howdens.com
General Information & Operation
Vent
Recirculation
Hood OFF
Low Speed
Medium Speed
High Speed
Light
Select lever position related to the type of install.
For vented operation carbon filters are not used.
Hood Layout
Control Panel Layout

Page_11
Exclusive to Howdens
Using Your Cooker Hood
Make sure that it has been installed by a suitably qualified person, as per the installation instructions.
Ideally you should turn on your hood ten minutes before you
start to cook, or at the very least when you begin cooking.
You should also run your hood for ten minutes after you have
finished cooking.
Caution - Accessible parts may become hot when used with
cooking appliances.
To Use Your Cooker Hood
Light ON/OFF - push button control (see page 10)
Push once to turn light ON, push again to turn light OFF
Speed control - push button control
Induction Hobs - Metal Surfaces of the Hood and Condensation
Large quantities of vapour and steam can be produced very quickly. This steam may condense onto
the cold metallic surfaces of the hood and even the splash back area if tiled, glazed etc. (This is not
a fault with either the hob or hood if correctly installed).
The amount of this condensation on any particular surface will depend on many factors including the
general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans
can help reduce the amount of steam being released and subsequent condensation.
0 = OFF Speed 1 = Slowest Speed 2 = Medium Speed 3 = Fastest

Page_12
www.howdens.com
Care and Maintenance
Before cleaning or attempting any type of maintenance,
always make sure that the electricity supply is disconnected.
To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet,
paying particular attention to the grease filters to ensure grease deposits do not build up.
The manufacturer declines all liability in cases where the instructions for the appropriate installation,
maintenance and use of the extractor hood are not observed.
If the power cable is cut or damaged in any way, disconnect the hood from the electricity supply and call
the service number on the rear cover of this booklet or a suitably qualified repairer.
Wipe the external surfaces of the hood regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
Your hood includes a grease filter which helps
to protect your kitchen & furniture from greasy
residues by filtering out grease particles.
• Over time, the grease may become a risk if
the greasy residue is allowed to build up.
• To prevent a hazard, the grease should
be replaced.
• Depending on use, this should be done
every 3-6 months.
• First remove filter cover by pushing the tabs
and lifting down.
• Replace the grease filter with LAM2099.
• Allow the grease filter to dry completely
before refitting.
• Reassemble in the reverse of the
removal method.
• The hood must never be operated without
the grease filter in position.
General Cleaning
The Grease Filters

Page_13
Exclusive to Howdens
Care and Maintenance
If the hood is going to be used in recirculation mode when it is necessary to fit carbon filters. This will help
absorb odours caused by cooking.
Carbon filters have a limited life. We advise you to change them when there is a noticable drop in
peformance. The intervals between changing the filter will depend entirely upon the amount of cooking you
do, but on average they will last about 3-6 months.
• To gain access to the carbon filter, first of all open hood as descrobed for changing the grease filters.
• Remove the old filter and install new carbon filter (LAM2009) over the top of the grease filter (LAM2099).
• The carbon filters are not washable and cannot be recycled.
The Carbon Filters

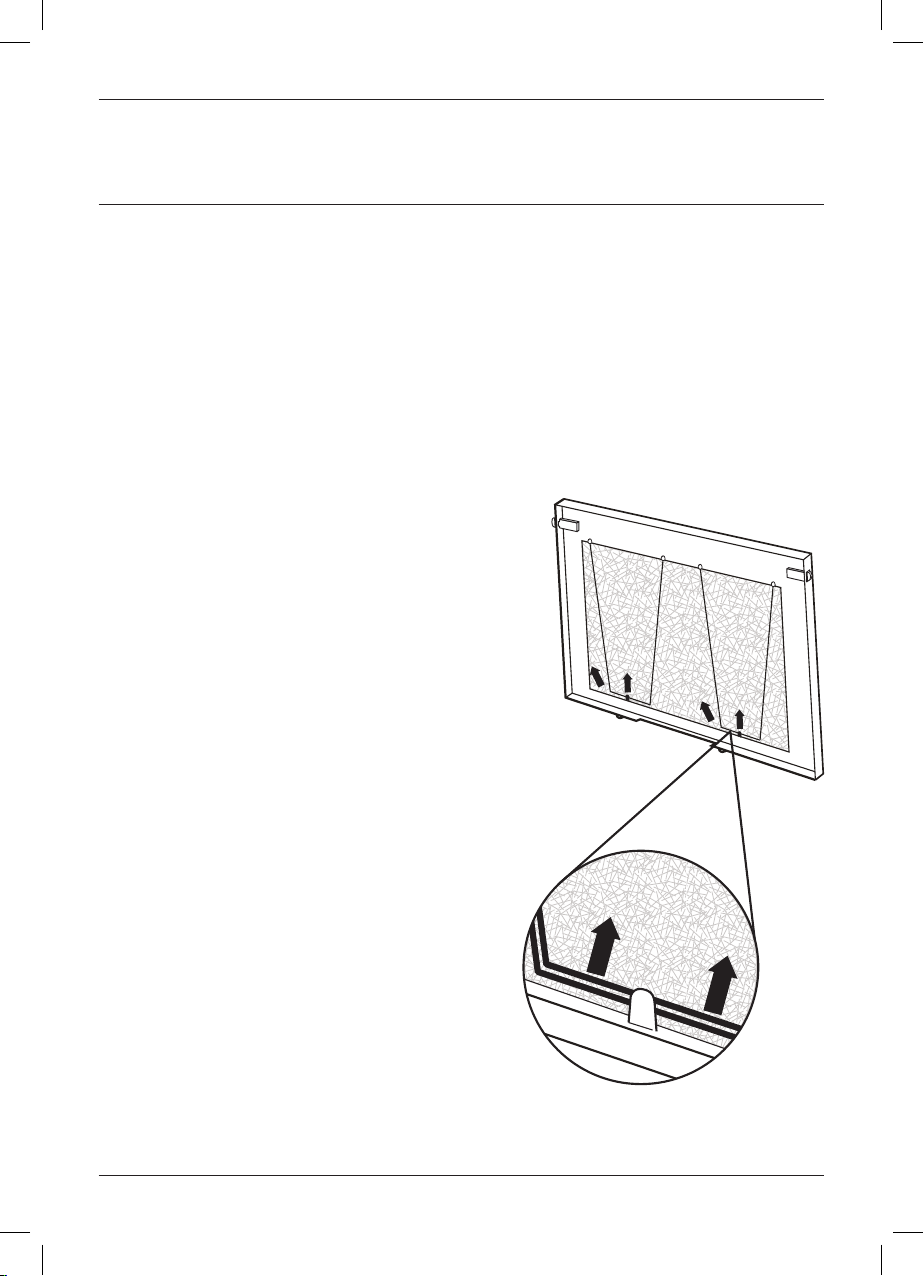

Changing the filters
1. Squeeze the wiring and lift up.
2. Remove the old filter.
3. Lay a new grease filter then carbon filter on
the pan.
4. Re-secure the wires under the tabs.

Page_14
www.howdens.com
LED Lamp
The lamps on this model are service fix only and replacement
should be carried out by an authorised service agent.
The extractor hood is fitted with a 2W LED lamp which will give you many years of reliable service. In the
event of a lamp failing please call the service number (page 22)
Only use replacement lamps of types:
• LED: DBS-2/30-H-120/33
• Rectangle LED lamp 2W, AC 110-240V
The lamps on this appliance should only be used during operation of the cooker hood. They should
not be left on permanently and used as a main lighting source. The hood is for domestic use only.

Page_15
Exclusive to Howdens
Installation
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall (suitable ducting
kits may be purchased from the depot where you bought the hood). You do not need carbon filters when
using the exterior ducting mode.
Never use the hood in areas where devices with
exhaust pipes connected to the outside are
already operating unless perfect ventilation can
be guaranteed.
• Connect the external ducting kit to the outlet
of the hood.
Charcoal filters are not required if the hood is
to be ducted out.
• Do not connect the ducting system of this
appliance to any existing ventilation system
which is being used for any other purpose.
• Do not install above a cooker with a high
level grill.
• The air must not be discharged into a flue that
is used for exhausting fumes from appliances
burning gas or other fuels (not applicable to
appliances that only discharge the air back
into the room).
Tips for ducting optimal air flow:
• Keep duct work short and straight.
• Do not reduce the size or diameter of the duct.
• Keep ductwork taut to minimise pressure loss.
For recirculation mode, attach carbon filters to
the sides of the motor inside the hood.
(Part reference LAM2009).
Before attempting to
change or fit the carbon
filters ensure power to
the hood is switched off.
• Remove the filter panel and release
wire rods.
• Align the carbon filter sheet on top of the
grease filter sheet.
• Replace wire rods.
• Turn lever to recirculating position
(See page 10)
• Replace the filter panel before the power
supply is turned back on.
• Performance will be reduced when used in
recirculation mode, or if using long lengths
of ducting.
Methods of Venting
Exterior Ducted Mode Recirculation Mode

Page_16
www.howdens.com
• Check that the product purchased is of a suitable size for the chosen installation area. In addition
check whether there is an electrical socket available that will be accessible once the hood is mounted.
If the product is going to be used in Exterior Ducted Mode, then there should also be space to connect
a ducting hose to the outside.
• Carry out all necessary masonry work prior to the fitting of the cooker hood and cabinetry.
• Ensure that all electrical connections are carried out by a suitably qualified person.
• Check inside the product and ensure that there is no transit packaging or any other materials, such as
packets of screws, guarantees etc. These should be removed and kept for future use.
• Protect any hob already installed below with a blanket or cardboard etc, to prevent possible damage.
• IMPORTANT: The cooker hood is ducted from the top.
• The maximum distance between the cooker hood and your discharge outlet should be 3 metres,
with one 90 degree bend. For each additional 90 degree bend, the maximum distance is reduced
by a metre.
Before Beginning Installation

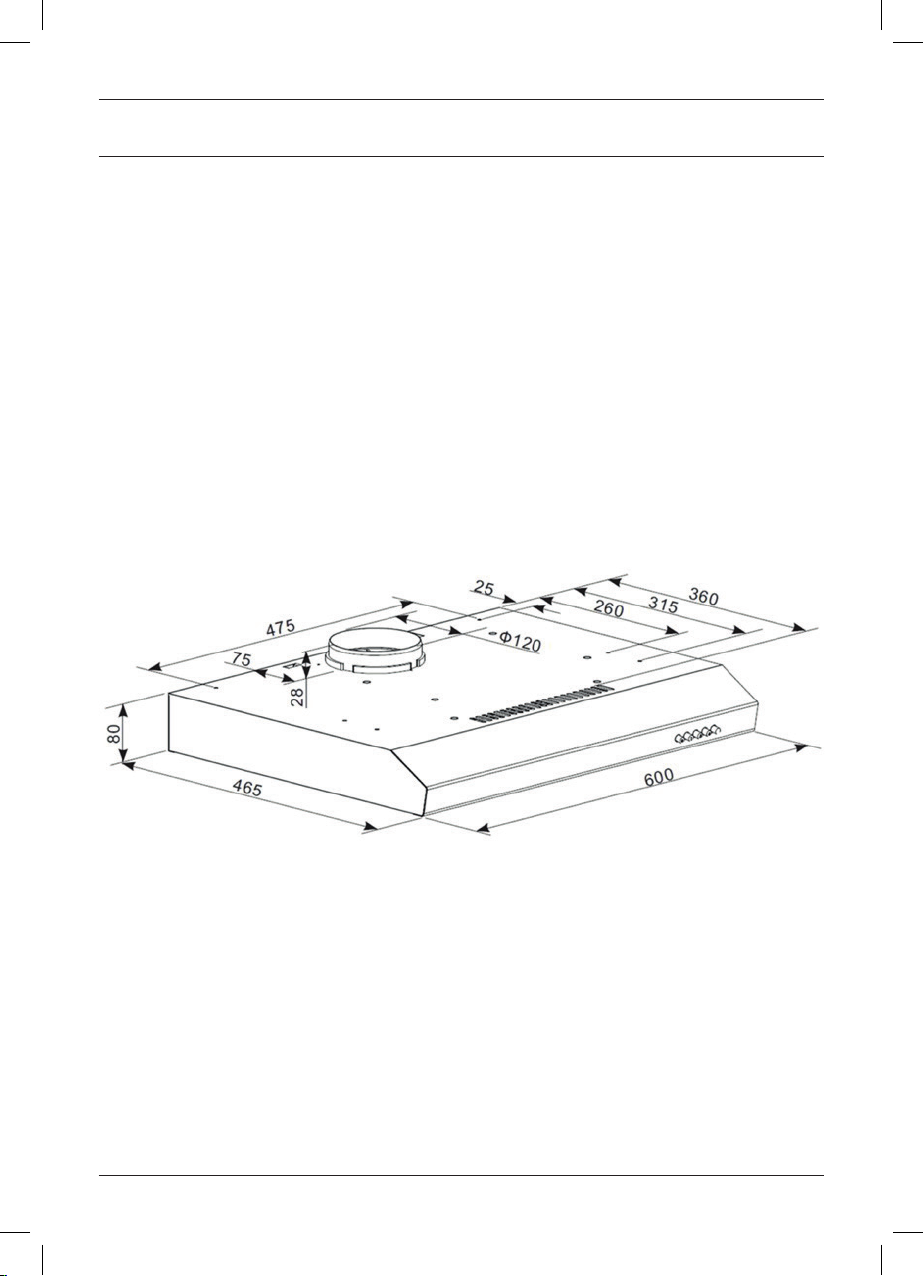

Hood Dimensions

Page_17
Exclusive to Howdens
600mm (min)
Hob Top
Minimum 650mm for electric, 700mm for gas
and 800mm for coal/oil (See Page 7)
Installation Dimensions
Fittings
x1
x8
x4
x4 x4
x4

Page_18
www.howdens.com
Installing Your Cooker Hood Under a Cabinet
You will have to decide before installing your cooker hood
whether to use it in extraction mode or recirculation mode.
We suggest the easiest way of installing the hood is fastening the hood to the underside of the
wall unit before mounting the wall unit to the wall. This allows the easier marking of all fixing holes and
cutting of vent holes etc.
Cupboard Mount
(Using screws and bolts supplied)
Cabinet Base
Cabinet Base
Cut out for top vented installation
130mm
235mm
75mm
25mm
62mm 475mm
415mm
MAX350mm
20mm

Page_19
Exclusive to Howdens
Installing Your Cooker Hood
• Remove the filters (see page 12) and cover.
• Hold the hood against the wall in the intended position and mark position of the screw holes that are
to be drilled.
• Using an 8mm diameter drill, drill holes in the wall in these positions.
• Insert rawl plugs into all the holes that you have drilled.
• Screw in the upper set of screws leaving 10mm protruding out of the wall.
• Hang the hood onto the upper screws and then tighten them.
• Screw the lower screws through the relevant holes in the cooker hood and fully tighten them.
(Ensure the fixings screws are suitable for the wall construction)
60cm
500

Page_20
www.howdens.com
Electrical Connections
IMPORTANT: Ensure that the electricity supply is switched
off before connecting.
Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur
outlet with at least 3mm contact separation, The isolation switch must be accessible after installation.
(See technical data for fuse rating). We recommend the use of an RCD device as additional protection.
The appliance should be connected by a suitably qualified person in accordance with local
legislation/regulations.
The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and
disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal house wiring and the terminations
labelled LOAD are for connection to the appliance.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue.....................Neutral
Brown..................Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which
is marked with the letter ‘L’ or coloured RED.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)
Fig 3. Fig 4.
