BLOOD PRESSURE MONITOR WITH MEMORY
Thank you for purchasing the LANAFORM® wrist blood pressure monitor. This monitor uses
the oscillometric method to measure human systolic/diastolic blood pressure and heart rate.
The monitor detects blood pressure through the wrist artery and converts it into a digital
measurement.This monitor does not require a stethoscope, making it very easy to use. With
its large LCD screen, you can easily read the various figures.This device is designed for use
by adults only.
TITLE AND DESCRIPTION OF DISPLAY SYMBOLS ON THE BROCHURE
DESCRIBING THE PRODUCT’S FEATURES:
Symbol Definition Identification Information provided
by the manufacturer
Manufacturer’s details LANAFORM SA
B-4141 SPRIMONT
Batch number LOT
BF device

EN
Blood Pressure Monitor 5
Please note: see
instructions for use
Please note: consult the
enclosed documents.
Please read these
instructions before using
the device. Please also
follow these instructions
carefully when using the
device.
Notified body
Electrical and electronic
waste (WEEE)
PLEASE READ ALL THE INSTRUCTIONS BEFORE USING
YOUR BLOOD PRESSURE MONITOR, PARTICULARLY THESE FEW
BASIC SAFETY INSTRUCTIONS:
• When using this product, please make sure you follow all the instructions listed below. Any
deviation from these instructions may cause injury or affect the accuracy of the readings.
• Use only accessories recommended by Lanaform® and supplied with the product. If there is
a problem with your device, please contact the supplier or its after-sales department.

EN
6Version 02 of 15/01/2013
• Do not dismantle, repair or convert the monitor.
• Do not expose the monitor to extreme temperatures, high levels of humidity or direct
sunlight.
• Always keep the monitor away from heat sources such as stoves, radiators, etc.
• Do not use this device in a room in which aerosols (sprays) are used or in a room in which
oxygen is administered.
• Do not use the device in the vicinity of large electromagnetic fields, such as those of
cordless or portable telephones.
• Do not treat the device roughly or drop it.
• Do not use the device if it is damaged.
• Do not wash the entire unit in water and do not immerse.
• Pressing the “stop/start” button when the monitor is measuring blood pressure may cause
the device to stop running.
• Refrain from talking when the monitor is recording measurements in order to guarantee
their accuracy.
• Inaccurate readings may be recorded if users move during the measuring process. It is
better to sit down and relax.
• Do not measure blood pressure for 30 minutes after exercising, taking a bath, eating a
meal or returning from outdoors. Do not drink alcohol, smoke or take any medication
before measuring your blood pressure.

EN
Blood Pressure Monitor 7
• Relax your wrist and remove any tight clothing or jewellery that could distort the
measurements.
• Place the monitor on your wrist on the side of your heart and place your arm at heart level.
• Wait at least 15 minutes between two measurements.
• If you are concerned about your health, consult a doctor before using this device.
• In any case, results of measurements are ONLY for reference and are not in any way a
substitute for a medical opinion.
• If you feel any pain at all when using this device, stop using it immediately and consult
your doctor.
• Never use this device on any part of the body that is swollen, inflamed or irritated or if
you have a rash.
• This device is not intended for use by people, including children, with limited physical,
sensory or mental abilities, or by people lacking experience or knowledge, unless they
have been supervised or instructed beforehand on how to use the device by someone
responsible for their safety. Children should be supervised to ensure that they do not play
with the device.

EN
8Version 02 of 15/01/2013

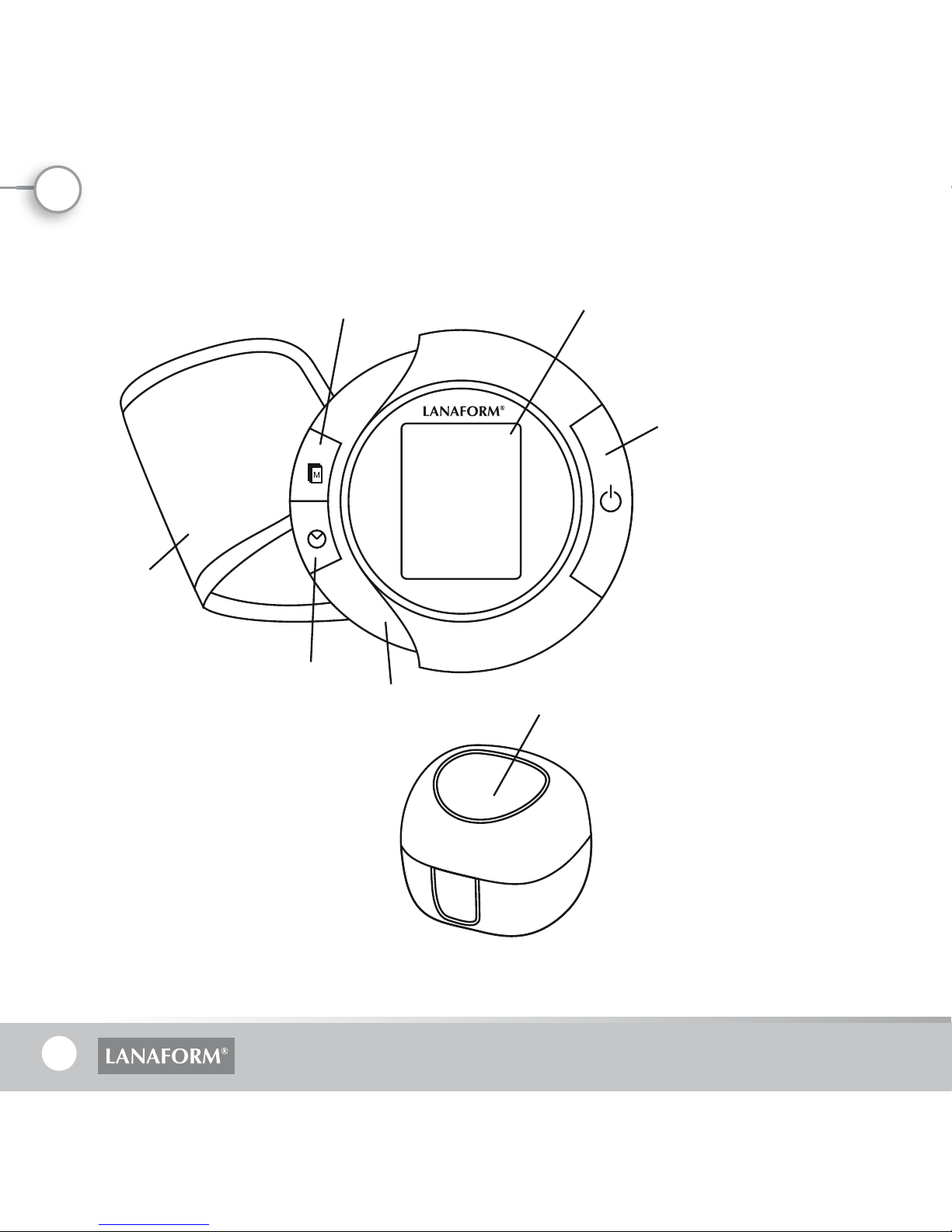

DEVICE DESCRIPTION
120
80
80
9-22 8:38
60
1
2
3
4
5
6
1. LCD screen
2. Stop/start button
3. Memory
4. Time set button
5. Wrist cuff
6. Battery compartment
7. Storage box
7

EN
Blood Pressure Monitor 9

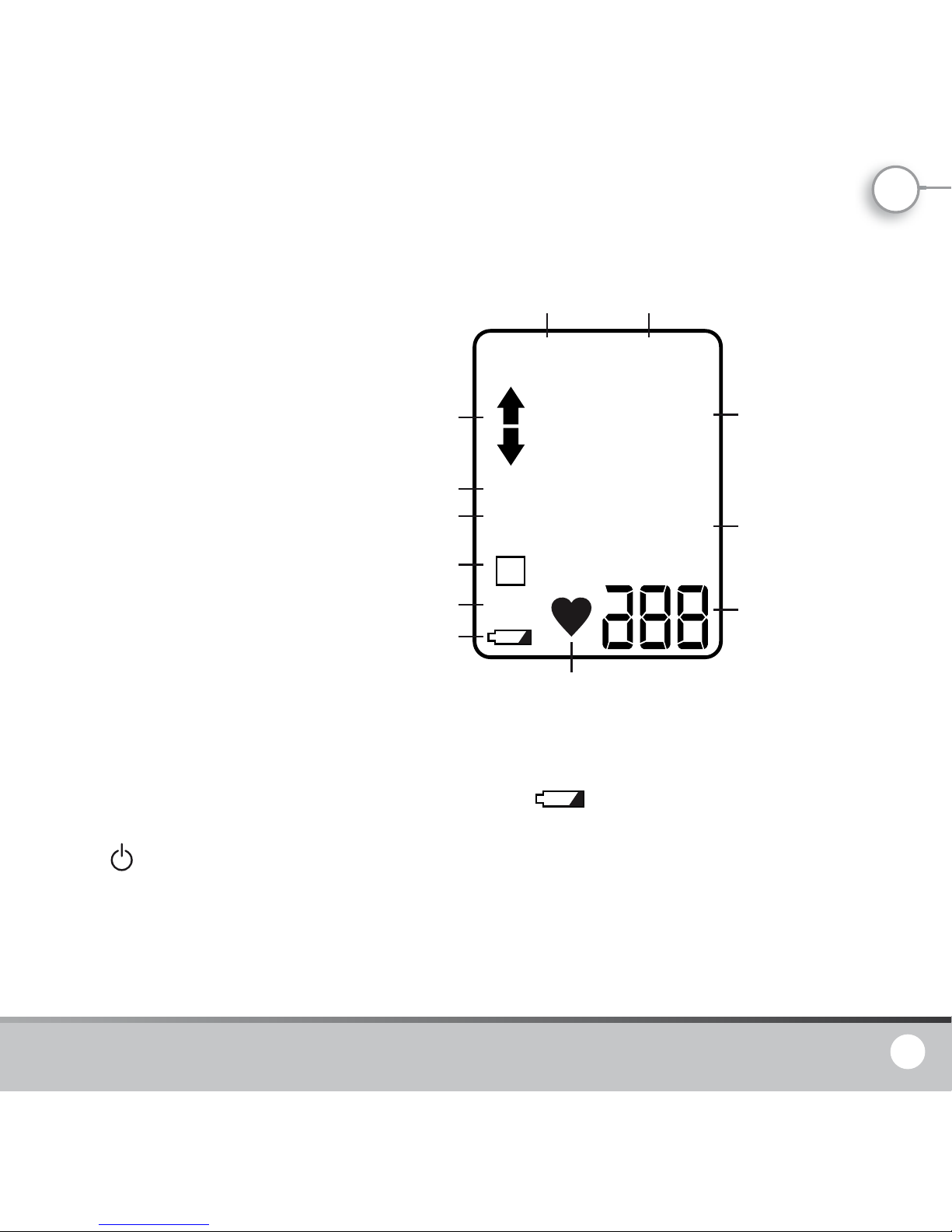

DESCRIPTION OF DISPLAY SYMBOLS
1. Date
2. Time
3. Systolic pressure
4. Diastolic pressure
5. Heart rate
6. Pulse symbol
7. Low battery symbol
8. Memory settings
9. Memory symbol
10. Average measurement symbol
11. Unit of measurement symbol
12. Inflation/deflation symbol
88.8
88.8
88
18-88 18:88
AM
AV G
M
mmHg
PM
1 2
3
4
5
6
7
8
9
10
11
12

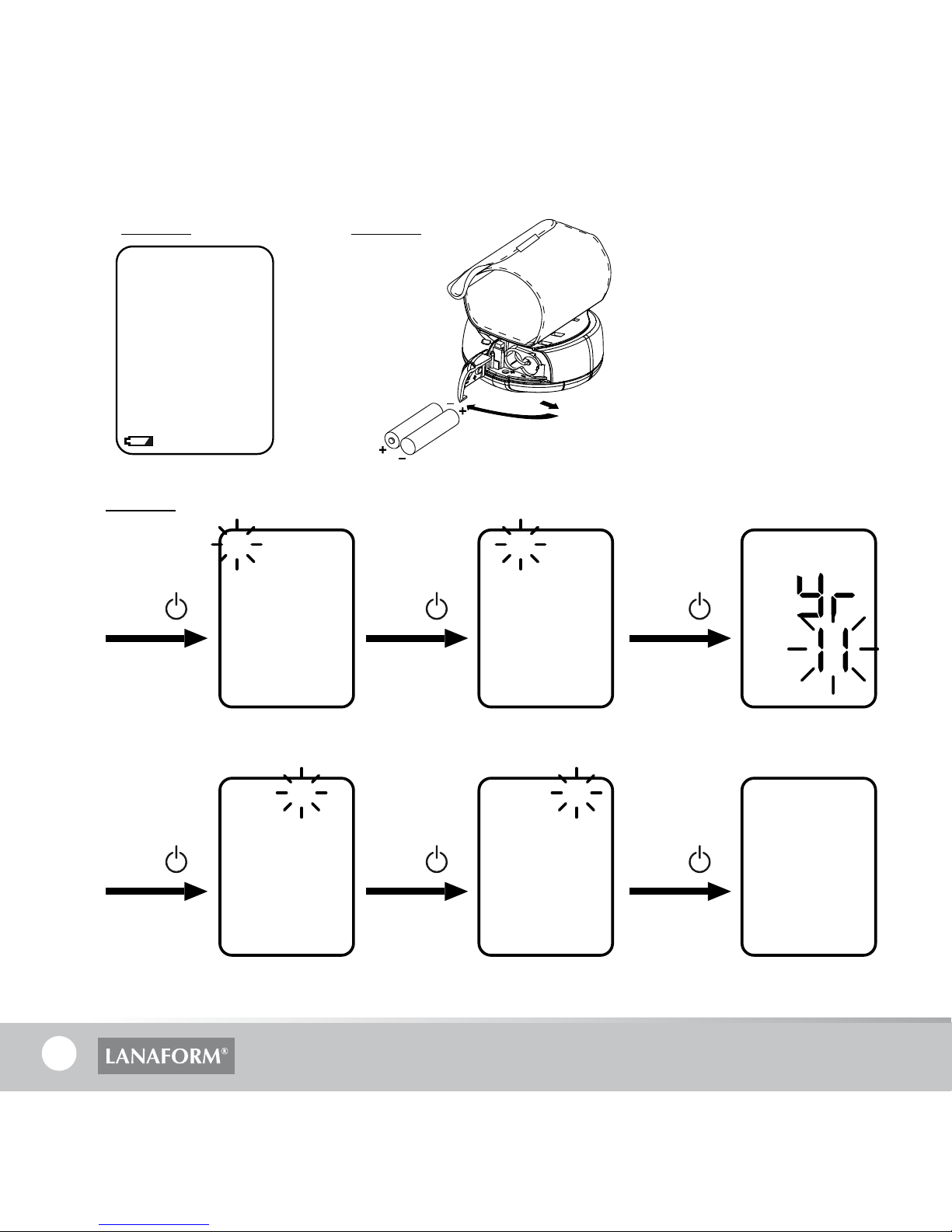

INSERTING/REPLACING THE BATTERIES
Replace the batteries when the low battery symbol « » appears (bottom left-hand
corner of the screen) or when the screen does not light up after pressing the start button
(see Figure 1).

EN
10 Version 02 of 15/01/2013
To replace the batteries:
1. Open the battery cover in the direction indicated (see Figure 2).
2. Insert two AAA 1.5V alkaline batteries (not included), matching the polarities. Use the
symbols “+” and “-” to help you here (see Figure 2).
3. Replace the cover.
4. If the monitor is not to be used for a long time, please remove the two batteries.
PROCEDURE FOR SETTING THE DATE/TIME
1. Press Time Set button « »to start the procedure for setting the date and time; the
“month” value will blink first.
2. To set this value, please keep pressing the “(M)” button (the value will increase from 01 to
12 each time it is pressed).
3. Press the « » button again and follow the steps indicated below (Figure 3) to adjust
the other values one after the other, i.e. the date, year and time.
Please press theTime Set button again « » to confirm and record the values set.

EN
Blood Pressure Monitor 11
FIXING THE PRESSURE CUFF
1. Sit down on a seat with your feet on the ground and your arm (heart side) resting on a
table. Relax your arm as much as possible.
2. Put the cuff around your wrist “HEART SIDE” with the palm of your hand facing up. The
monitor’s screen is now facing towards you (Figure 4).
3. Adjust the upper edge of the monitor: it should be between 0.5cm and 1cm below the
top of your wrist (Figure 5).
4. Pass the tape around your wrist so that it fits comfortably. Your wrist should not be
compressed.
PLEASE NOTE: It is natural for blood pressure to vary from one hand to the other, so always
take your blood pressure on the same arm to ensure the two readings are comparable.
5. Rest your arm on the storage box and make sure that the monitor is at the same level as
your heart (Figure 6).
HOW TO MEASURE BLOOD PRESSURE
1. Press the Stop/start button.
- All the display symbols appear for approximately
1 second. This is the initial LCD test.
88.8
88.8
88
18-88 18:88
AM
A V G
M
mmHg
PM

EN
12 Version 02 of 15/01/2013
- When the monitor has completed the necessary
preparations prior to measurement, the result of the
last reading will be displayed on the screen.
1 18
72
78
12-22 11:36
AM
mmHg

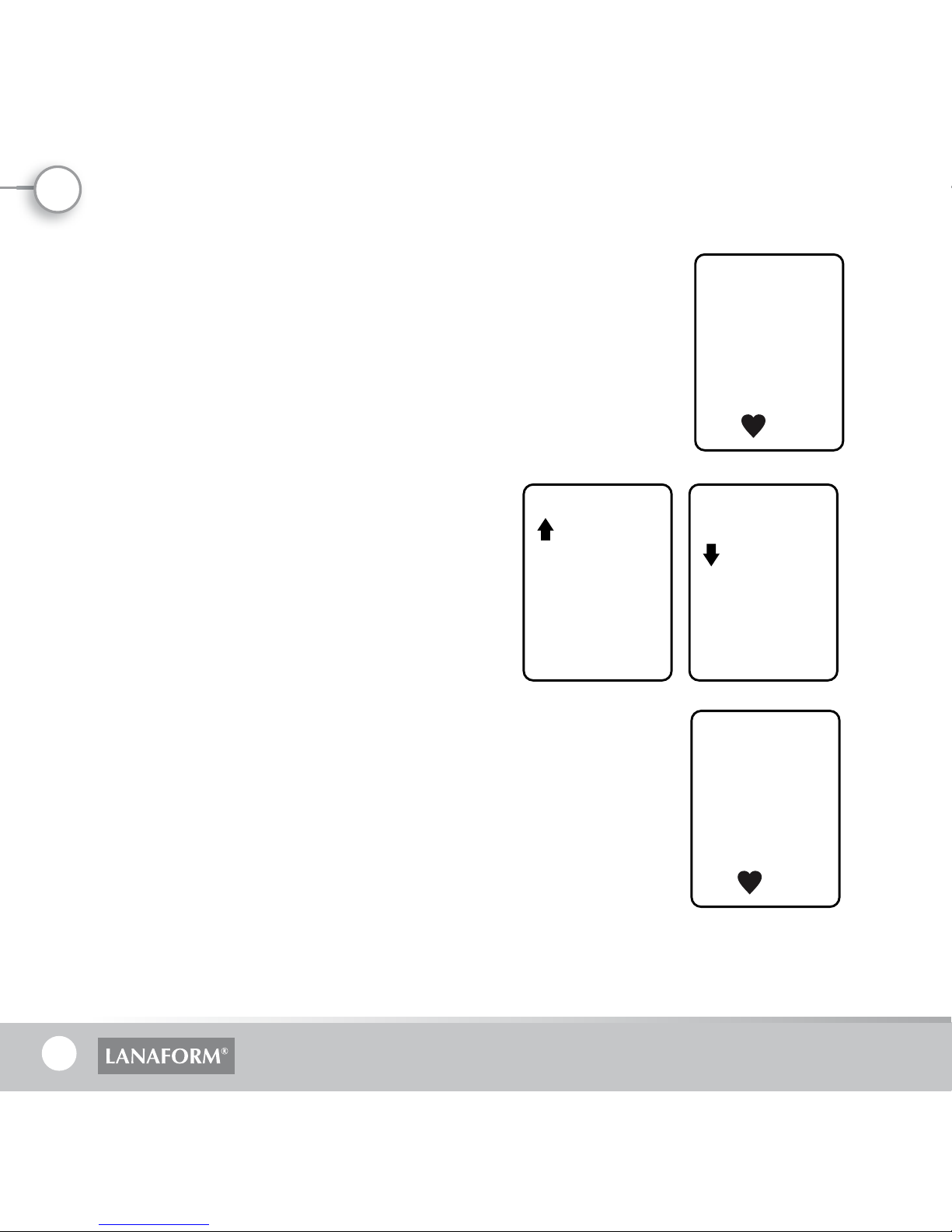

- The monitor will begin measuring your blood
pressure and the inflation symbol will be
displayed during inflation. During deflation,
the inflation symbol will turn off and the
deflation symbol turn on.
0
12-33 9:38
AM
mmHg
182
12-33 9:38
AM
mmHg
2. Measurement results display.
- When measurement is complete, the monitor emits a beep tone.
Your systolic and diastolic blood pressure and your heart rate will
be displayed automatically on the right-hand side of the LCD screen
in compliance with theWHO (World Health Organisation) standards.
1 12
76
80
12-22 9:38
AM
mmHg

EN
Blood Pressure Monitor 13
Note:
Systolic pressure (SYS): When the heart contracts, empties and “pushes” blood into the
arteries, heavy pressure is exerted on the artery wall. This is referred to as systolic pressure.
Diastolic pressure (DIA): After the heart contracts, it relaxes. It draws blood back into its
chambers, no longer pumping blood into the circulation. The blood pressure is lower during
this relaxation phase. This minimum pressure is the diastolic pressure.
3. Once the measurement is displayed, it is automatically stored in the memory. When
measurement is complete, you simply press the stop/start button again in order to turn
your device off. If you forget to turn it off, it will stop automatically after two minutes.
PLEASE NOTE: it may take a few seconds for the measurements to disappear.
Inaccurate readings will be recorded if you move when measurements are being taken.
SETTING THE MEMORY
Memory recall
- This monitor can store up to 60 readings in its memory. You can therefore create a
statement with your doctor of the various measurements taken.
- To turn on the memory, press the “M” button. The first measurement displayed corresponds
to an average of all the measurements recorded. The letters AVG will appear on the screen
(Figure 7).

EN
14 Version 02 of 15/01/2013
- After the average reading is displayed on the screen, you can press the “M” button again to
call up the record history from 1 to 60, starting with the most recent records. (Figure 7).
- Press Time Set button « » to recall historical records backwards, i.e. from record 60 to
record 1.
Clearing the memory
- To clear all records from the memory, please press button “M”, holding it down until the
screen displays “Clr”.
- This function is only operated under power-off mode.
MAINTENANCE AND CLEANING
1. Clean the device carefully using a damp cloth.
2. Do not immerse the device in water. If water enters the device, it could cause damage.
3. Do not use powerful detergents or solvents to clean the device or the cuff.

EN
Blood Pressure Monitor 15
TROUBLESHOOTING
Condition Cause Corrective Action
No display after pressing
the stop/start button.
Stop/start button.
Batteries inserted
incorrectly.
Insert batteries in correct
positions.
Battery voltage is
extremely low.
Replace the two batteries
with new ones.
Replace batteries symbol. Battery voltage is
extremely low.
Replace the two batteries
with new ones.
Battery function could be
reduced in cool conditions.
Warm up the batteries
with your hands or use the
device in a warmer place.
Life span is reduced. This could be due to use
of batteries other than
alkaline batteries.
Try and use alkaline
batteries.
No reading displayed after
measurement process.
Battery voltage is
extremely low.
Replace the two batteries
with new ones.

EN
16 Version 02 of 15/01/2013
Questionable
measurement results.
Measurement above or
below the user’s average
measurement.
This could be due to an
incorrect position adopted
during the measuring
process.
Adjust to correct position
for measurement.
1. Sit down on a seat with
your feet on the ground
and your arm resting on
a table so that the cuff is
at the same level as your
heart.
2. Relax your arm and turn
the palm of your hand
upwards.
3. Rest your arm on the
storage box.
It is natural for blood pressure to vary from time to time.

EN
Blood Pressure Monitor 17
Heart rate is above or
below the user’s average
measurement.
Your arm or body has
moved during the
measuring process.
Do not move your arm
or your body during the
measuring process.
Measurement taken
immediately after exercise,
eating, drinking alcohol or
smoking.
Do not take any
measurement
immediately after exercise.
Do not eat, drink alcohol
or smoke before taking
measurements.
Air is introduced during
the the measuring process.
Operates normally if the user’s blood pressure is higher
than the initial pressure value, the device automatically
pumping to a pressure higher by 40mm Hg each time
it is inflated.
The cuff is not positioned
correctly.
Position the cuff correctly
by referring to this manual
and try again.

EN
18 Version 02 of 15/01/2013
ERROR CODES
Err 0: No pulse detected due to incorrect position adopted during the measuring process or
due to bulky clothing or jewellery.
Err 1: Serious leakage from the cuff or insufficiently inflated.
Err 2: Systolic pressure (SYS) impossible to obtain:
Err 3: Diastolic pressure impossible to obtain
Err 4: Pressure or pressure outside the legal range impossible to obtain.
Err 5: Deflation is too fast.
Err 6: Deflation is too slow.
Err 7: Systolic pressure outside legal range.
Err 8: Average pressure outside legal range.
Err 9: Cuff pressure is insufficient.
➡ In all these cases, check that the cuff is positioned correctly. Relax and breathe calmly.
Try again.

EN
Blood Pressure Monitor 19
PRODUCT SPECIFICATIONS
Measuring range:
Blood pressure: 30 to 280mmHG
Heart rate: 40 to 199 beats/min.
Accuracy of calibration:
Blood pressure: +/- 3mmHG
Heart rate: +/- 4%
Power supply: 2 AAA 1.5V alkaline batteries (not included),
Conditions of use:
Temperature: 10 to 40°C
Humidity: 15% to 85% RH (non-condensing)
Storage conditions:
Temperature: -20 to 50°C
Humidity: less than 85% RH (non-condensing)
ADVICE REGARDING THE DISPOSAL OF WASTE
• The packaging is made up entirely of environmentally-friendly materials that can be taken
to your local waste sorting centre to be used as secondary materials. Cardboard can be
placed in a paper collection container. Packing film must be taken to your local sorting and
recycling centre.
• When you are no longer using the device, dispose of it in an environmentally responsible
manner and in compliance with the statutory requirements. Remove the battery beforehand

EN
20 Version 02 of 15/01/2013
and dispose of it at a collection point so that it can be recycled.
Please note : used batteries should on no account be placed in household refuse!!!
WARRANTY
LANAFORM® guarantees that this product will be free from any defects in material and
workmanship for a period of two years from the date it was purchased, other than as
specified below.
The LANAFORM® warranty does not cover damage caused by normal wear and tear of this
product.
In addition, the warranty on this LANAFORM® product does not cover damage caused
as a result of any abusive, inappropriate or incorrect use, accident, attachment of any
unauthorised accessory, modification of the product or any other situation of whatever kind,
beyond the control of LANAFORM®.
LANAFORM® shall not be held liable for any type of incidental, consequential or special
damage.
Any implied warranties of the product’s fitness for purpose are limited to a period of two
years from the original purchase date on presentation of a copy of the proof of purchase.
Upon receipt, LANAFORM® will repair or replace your device, as appropriate, and return it to
you. The warranty may only be used at the LANAFORM® Service Centre. Any maintenance
and repair work carried on this product by any person other than the LANAFORM® Service
Centre will invalidate this warranty.
