Read the Operator’s manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
!
Table of Contents
PR2572 & PR2596
Powered Rakes
314-132M
Operator’s Manual
6/06/06
10592

PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
©Copyright 2006 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land
Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves
the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
Important Safety Information . . . . . . . . . . .1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look For The Safety Alert Symbol . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . .7
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 7
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 7
Serial Number Plate . . . . . . . . . . . . . . . . . . . . . 7
Further Assistance . . . . . . . . . . . . . . . . . . . . . . 7
Section 1: Assembly & Set-up . . . . . . . . .8
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . 8
Gauge Wheel and Frame Assembly . . . . . . . . . . . 8
Tines and Tine Frame Assembly . . . . . . . . . . . . . . 9
Shearing Hardware Assembly . . . . . . . . . . . . . . . 11
Tine Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . 11
Angling Assembly . . . . . . . . . . . . . . . . . . . . . . . . 11
Tractor Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 12
Section 2: Operating Procedures . . . . . .13
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions . . . . . . . . . . . . . . . . . . . . . 13
Section 3: Adjustments . . . . . . . . . . . . . .14
Setting Depth and Leveling . . . . . . . . . . . . . . . . . 14
Leveling Left-To-Right . . . . . . . . . . . . . . . . . . . 14
Leveling Front-To-Rear . . . . . . . . . . . . . . . . . . 14
Setting The Depth . . . . . . . . . . . . . . . . . . . . . . 14
Drive Chain Adjustment . . . . . . . . . . . . . . . . . . . . 14
Material Control Blade Adjustment . . . . . . . . . . . . 15
Section 4: Optional Equipment . . . . . . . .16
Section 5: Maintenance & Lubrication . .17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drive Chain Maintenance . . . . . . . . . . . . . . . . . . . 17
Sprocket and Chain Replacement . . . . . . . . . . . .17
Bottom and Top Seal Installation . . . . . . . . . . . . . 18
Friction Clutch PTO . . . . . . . . . . . . . . . . . . . . . . .18
2-Plate Slip Clutch . . . . . . . . . . . . . . . . . . . . . . . .19
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . 20
Double Joint Zerks . . . . . . . . . . . . . . . . . . . . . 20
Driveline U-Joints . . . . . . . . . . . . . . . . . . . . . . 20
Driveline Shaft . . . . . . . . . . . . . . . . . . . . . . . . . 20
Gearbox Gear Lube . . . . . . . . . . . . . . . . . . . . . 20
Pivot Bearings . . . . . . . . . . . . . . . . . . . . . . . . . 21
Gauge Wheel Spindle . . . . . . . . . . . . . . . . . . . 21
Gauge Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 21
Drive Chain . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Tine Lift Arms . . . . . . . . . . . . . . . . . . . . . . . . .22
Gauge Wheel Spindle . . . . . . . . . . . . . . . . . . . 22
Section 6: Specifications & Capacities .23
Section 7: Troubleshooting . . . . . . . . . .24
Section 8: Appendix . . . . . . . . . . . . . . . .25
Torque Values Chart . . . . . . . . . . . . . . . . . . . . . . 25
Tire Inflation Chart . . . . . . . . . . . . . . . . . . . . . . . . 25
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table of Contents

1
Important Safety Information
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Important Safety Information
▲
These are common practices that may or may not be applicable to the products described in
this manual.
Safety at All Times
Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.
Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.
▲Operator should be familiar with
all functions of the unit.
▲Operate implement from the
driver’s seat only.
▲Make sure all guards and shields
are in place and secured before
operating the implement.
▲Do not leave tractor or implement
unattended with engine running.
▲Dismounting from a moving
tractor could cause serious injury
or death.
▲Do not stand between the tractor
and implement during hitching.
▲Keep hands, feet, and clothing
away from power-driven parts.
▲Wear snug fitting clothing to avoid
entanglement with moving parts.
▲Watch out for wires, trees, etc.,
when raising implement. Make
sure all persons are clear of
working area.
▲Turning tractor too tight may
cause implement to ride up on
wheels. This could result in injury
or equipment damage.
!
Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnel involved in
the operation, transport, maintenance and storage of
equipment.
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.
!DANGER
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
!WARNING
!CAUTION
For Your Protection
▲Thoroughly read and understand
the “Safety Label” section, read all
instructions noted on them.
Shutdown and Storage
▲Lower machine to ground, put
tractor in park, turn off engine, and
remove the key.
▲Detach and store implements in a
area where children normally do
not play. Secure implement by
using blocks and supports.
OFF
REMOVE

2
Important Safety Information
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
Transport
Machinery Safely
▲Comply with state and local laws.
▲Maximum transport speed for
implement is 20 mph. DO NOT
EXCEED. Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.
▲Sudden braking can cause a
towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.
▲Use the following maximum
speed - tow load weight ratios as
a guideline:
20 mph when weight is less
than or equal to the weight of
tractor.
10 mph when weight is double
the weight of tractor.
IMPORTANT: Do not tow a load that
is more than double the weight of
tractor.
Use Safety
Lights and Devices
▲Slow moving tractors, self-
propelled equipment, and towed
implements can create a hazard
when driven on public roads. They
are difficult to see, especially at
night.
▲Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Use lights and devices provided
with implement.
Practice Safe Maintenance
▲Understand procedure before
doing work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.
▲Work in a clean dry area.
▲Lower the implement to the
ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.
▲Allow implement to cool
completely.
▲Do not grease or oil implement
while it is in operation.
▲Inspect all parts. Make sure parts
are in good condition & installed
properly.
▲Remove buildup of grease, oil or
debris.
▲Remove all tools and unused
parts from implement before
operation.
These are common practices that may or may not be applicable to the products described in
this manual.
Keep Riders
Off Machinery
▲Riders obstruct the operator’s
view, they could be struck by
foreign objects or thrown from the
machine.
▲Never allow children to operate
equipment.

3
Important Safety Information
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Prepare for Emergencies
▲Be prepared if a fire starts.
▲Keep a first aid kit and fire
extinguisher handy.
▲Keep emergency numbers for
doctor, ambulance, hospital and
fire department near phone.
911
Wear
Protective Equipment
▲Protective clothing and equipment
should be worn.
▲Wear clothing and equipment
appropriate for the job. Avoid
loose fitting clothing.
▲Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
▲Operating equipment safely
requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.
Avoid High
Pressure Fluids Hazard
▲Escaping fluid under pressure can
penetrate the skin causing serious
injury.
▲Avoid the hazard by relieving
pressure before disconnecting
hydraulic lines.
▲Use a piece of paper or
cardboard, NOT BODY PARTS, to
check for suspected leaks.
▲Wear protective gloves and safety
glasses or goggles when working
with hydraulic systems.
▲If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
surgically removed within a few
hours or gangrene may result.
These are common practices that may or may not be applicable to the products described in
this manual.

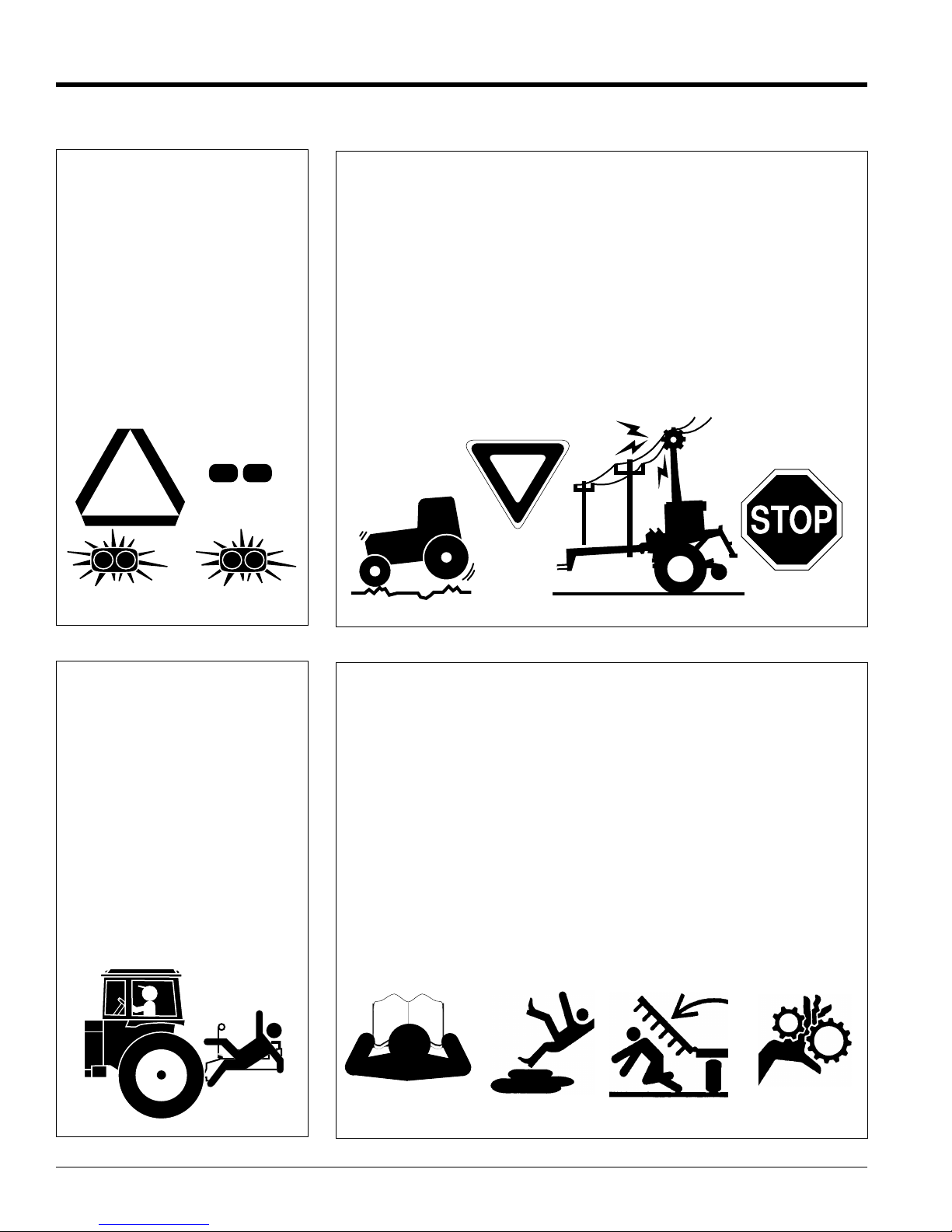

Tire Safety
▲Tire changing can be dangerous
and should be preformed by
trained personnel using the
correct tools and equipment.
▲When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
▲When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.

4
Important Safety Information
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
818-130C

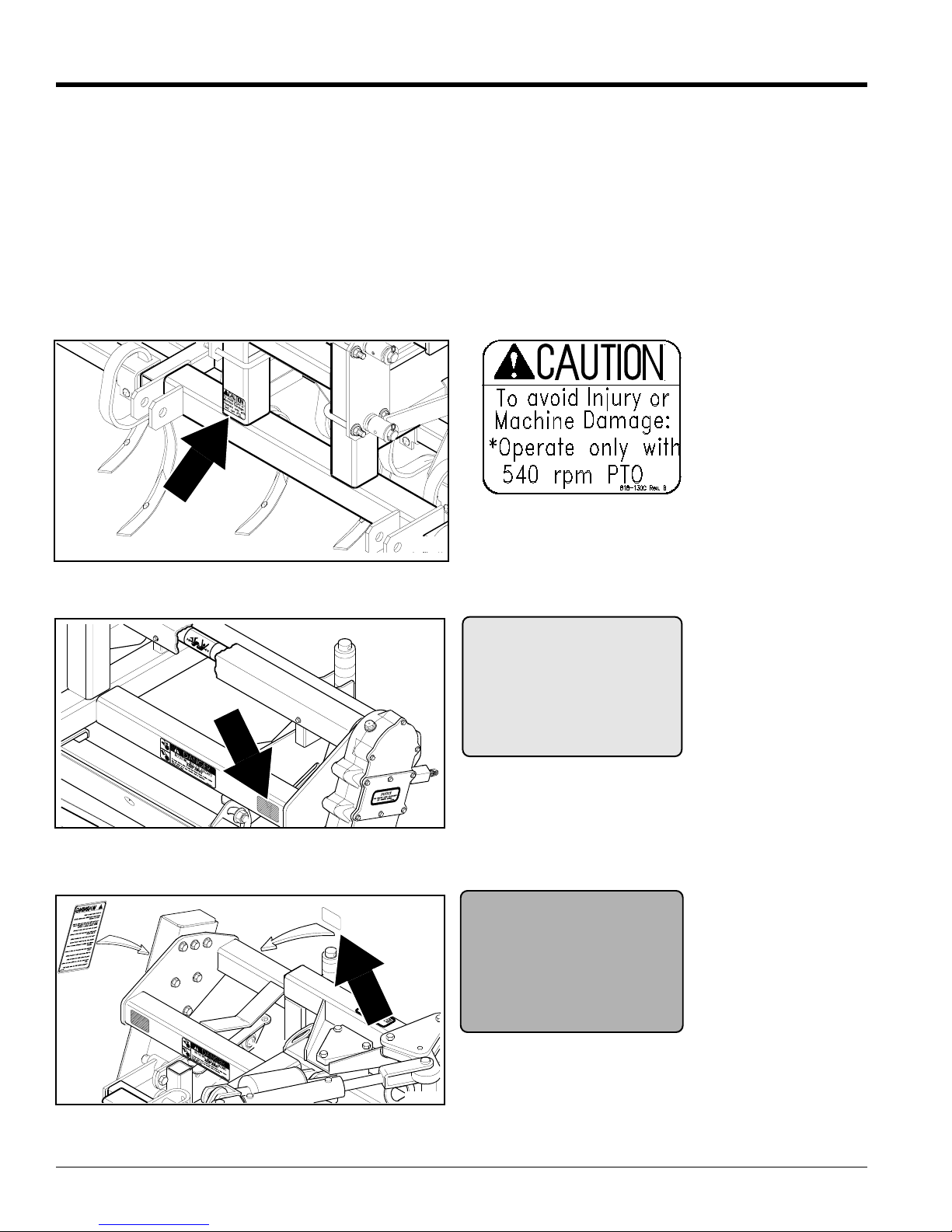

Caution: 540 RPM
15809
818-230C
Red Reflector (Both Sides)
15810
818-229C
Amber Reflector (Both Sides)
Safety Labels
Your Powered Rake comes equipped with all safety
labels in place. They were designed to help you safely
operate your implement. Read and follow their
directions.
1. Keep all safety labels clean and legible.
2. Replace all damaged or missing labels. To order new
labels go to your nearest Land Pride dealer or visit our
dealer locator at landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to
be placed.
c. Peel backing from label. Press firmly onto the surface.
d. Squeeze out air bubbles with the edge of a credit card.
15813

5
Important Safety Information
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents

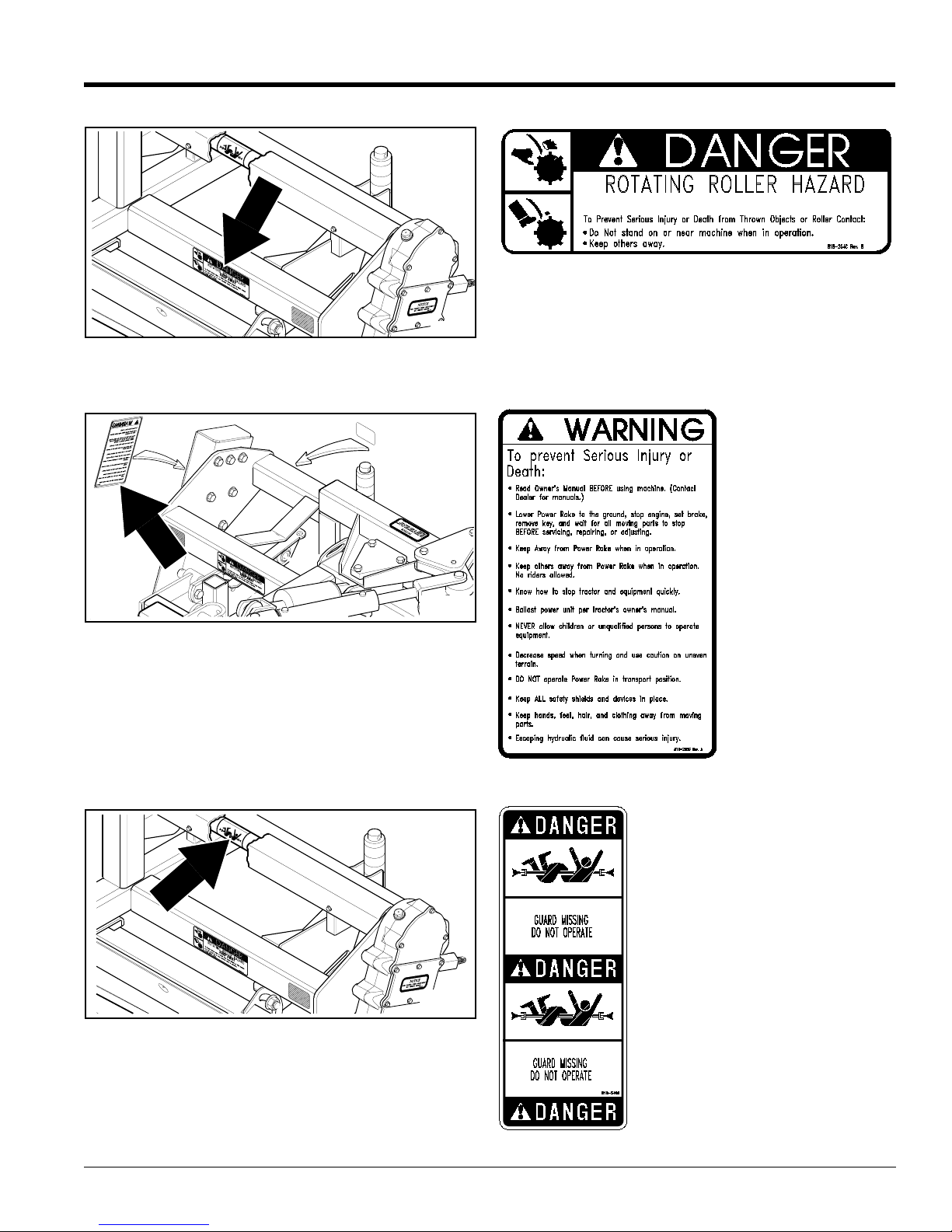

818-540C
Danger: Guard Missing
818-254C
Danger: Rotating Roller Hazard
(Both Sides)
818-255C
Warning: General Safety
15810
15813
15810
KEEP AWAY

6
Important Safety Information
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents

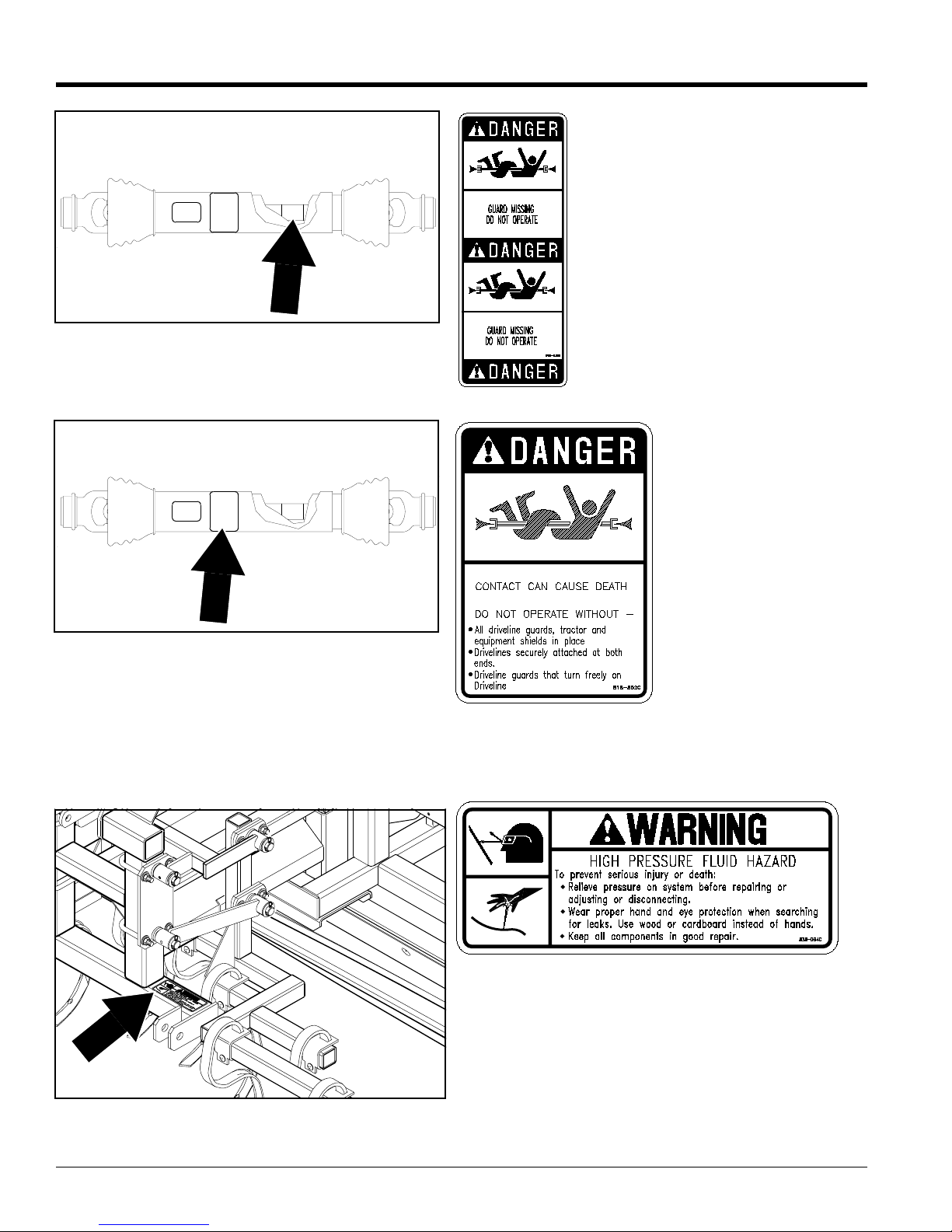

ROTATING DRIVELINE
KEEP AWAY!
818-552C
Danger: Rotating Driveline
818-540C
Danger: Guard Missing
15811
15811
838-094C
Warning: Hydraulic Pressure
10592

7
Introduction
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Serial Number Plate
For prompt service always use the serial number and
model number when ordering parts from your Land Pride
dealer. Be sure to include your serial and model numbers
in correspondence also. Refer to Figure 1 for the location
of your serial number plate.
Serial Number Plate Location
Figure 1
Further Assistance
Your dealer wants you to be satisfied with your new
SR25 Series. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:
1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
you may have and that he has had the opportunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpser[email protected]
15847
Introduction
Land Pride welcomes you to the growing family of new
product owners.
This implement has been designed with care and built by
skilled workers using quality materials. Proper assembly,
maintenance, and safe operating practices will help you
get years of satisfactory use from the machine.
The parts on your SR25 Series Powered Rake have
been specially designed and should only be replaced
with genuine Land Pride parts. Therefore, should your
Powered Rake require replacement parts go to your
Land Pride Dealer.
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com or printed from the Land Pride
Service & Support Center by your dealer.
Terminology
“Right” or “Left” as used in this manual is determined by
facing the direction the machine will operate while in use
unless otherwise stated.
Definitions
Owner Assistance
The Warranty Registration card should be filled out by
the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.
If customer service or repair parts are required contact a
Land Pride dealer. A dealer has trained personnel, repair
parts and equipment needed to service the SR25 Series.
The parts on your SR25 Series Powered Rake have
been specially designed and should only be replaced
with genuine Land Pride parts. Therefore, should your
Powered Rake require replacement parts go to your
Land Pride Dealer.
NOTE: A special point of information that the
operator must be aware of before continuing.
IMPORTANT: A special point of information related
to its preceding topic. Land Pride’s intention is that
this information should be read and noted before
continuing.

8
Section 1: Assembly & Set-up
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents

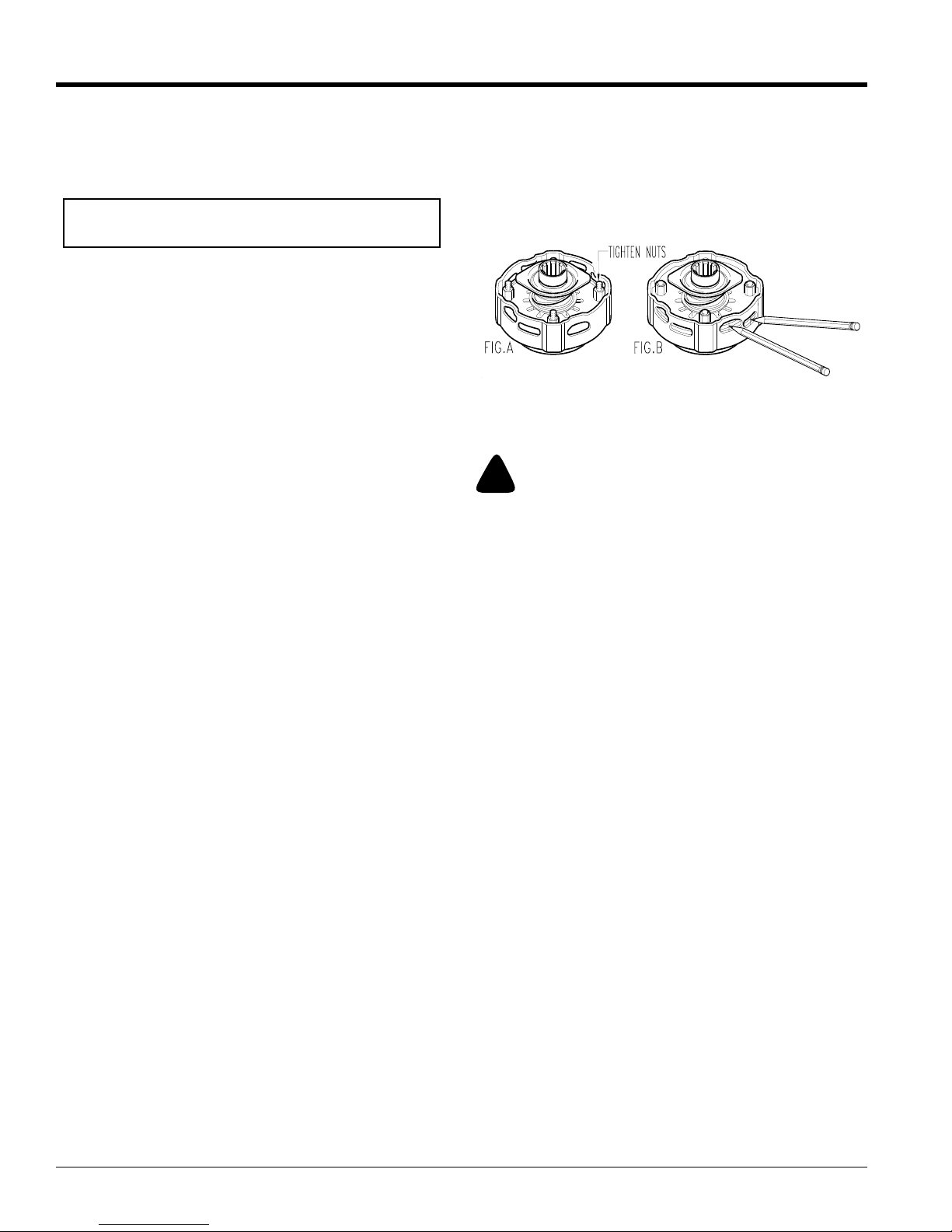

4. Remove the friction clutch (#7) that is assembled to
the front of the front frame drive shaft (#8). (It is
assembled here for shipping only.) Assemble the
friction clutch to the rear of the front frame drive shaft
and gearbox as shown. Refer to Figure 1-2
Friction Clutch Alignment
Figure 1-2
10611
Section 1: Assembly & Set-up
Gauge Wheel and Frame Assembly
Figure 1-1
Tractor Requirements
This powered rake is designed with a 3-Point category I
hitch. Horse power rating of tractor should not exceed 50
PTO horse power on all PR2572 & PR2596 Powered
Rakes.
!CAUTION
DO NOT OVER SPEED PTO OR MACHINE DAMAGE MAY
RESULT. THIS POWERED RAKE IS DESIGNED TO BE
USED WITH A TRACTOR USING A 540 RPM REAR PTO.
Gauge Wheel and Frame Assembly

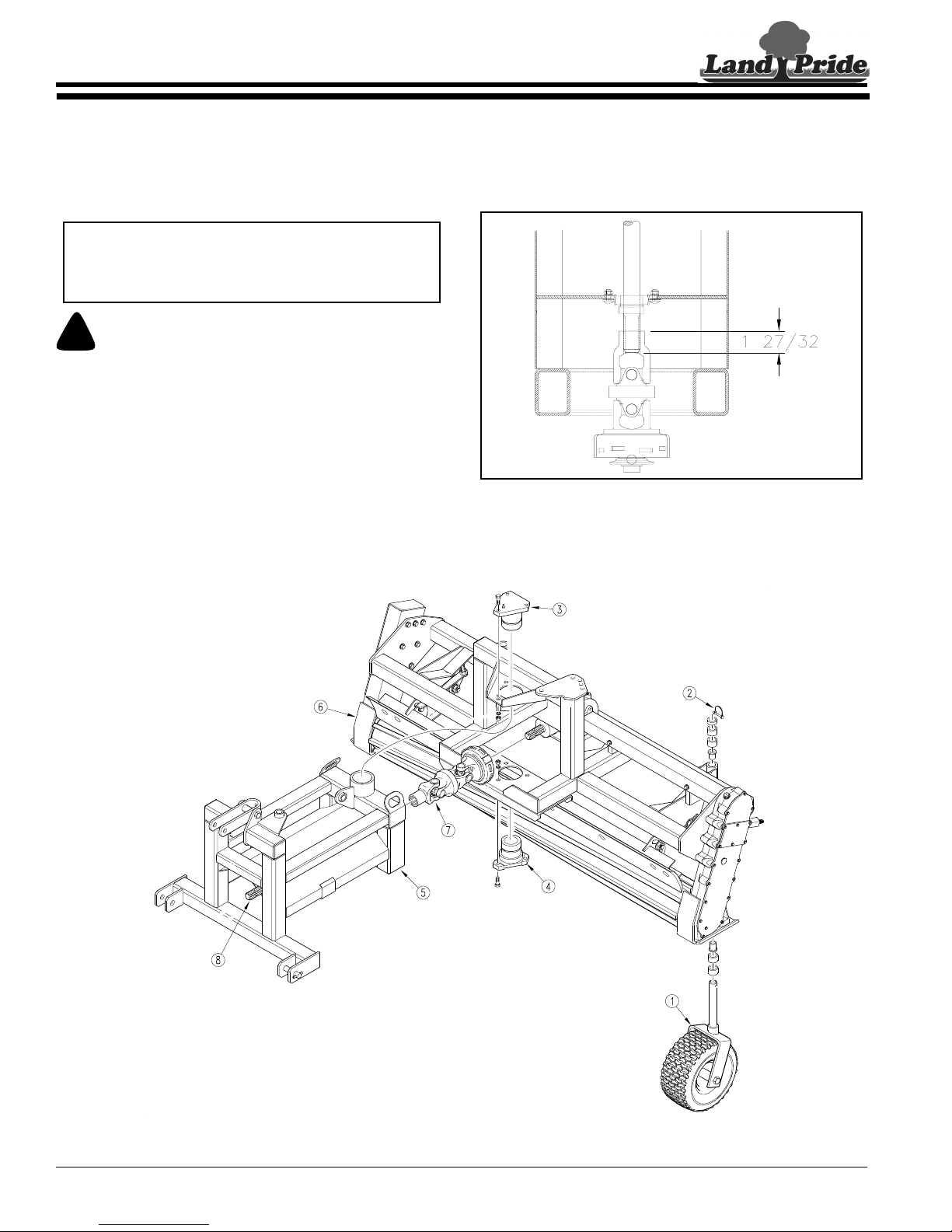

Refer to Figure 1-1:
1. Install the rear gauge wheels (#1) to the rear frame
(#6) as shown. Secure with the wire pins (#2).
2. Remove the main pivot castings (#3) and (#4) from
the rear frame (#6).
3. Install the front frame (#5) to the rear frame (#6)
using the pivot castings that were removed
previously.
IMPORTANT: In order to maintain steering control,
ballast may have to be added to the front end of your
tractor. To determine whether or not to add ballast,
refer to your tractor operator’s manual.

9
Section 1: Assembly & Set-up
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Tines and Tine Frame Assembly

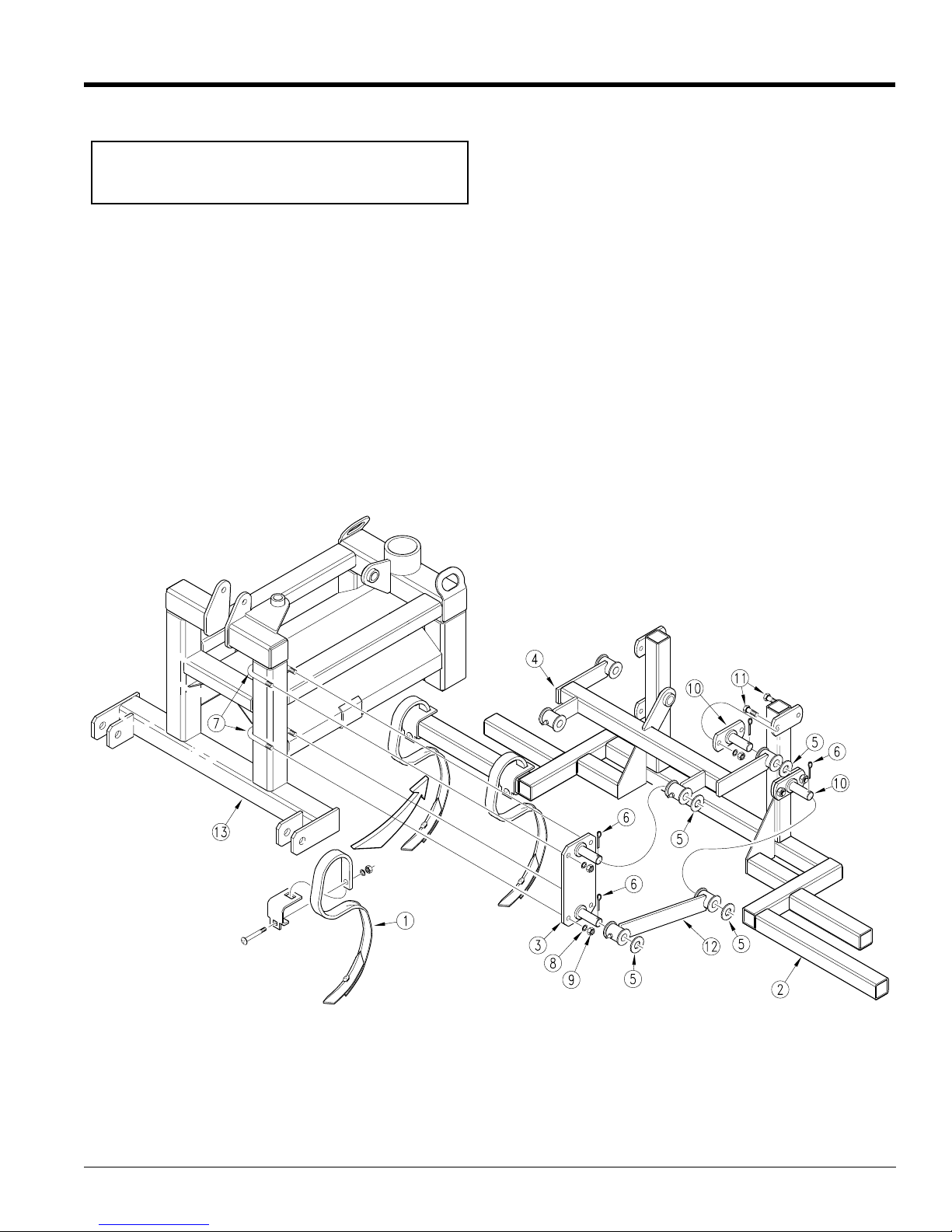

Refer to Figure 1-3:
1. Mount the tines (#1) to the tine frame (#2) as shown.
For proper location and alignment of tines refer to
Figure 1-5.
2. Attach the front tine mounts (#3) to the top tine lift
arm (#4) and secure with 1” flatwashers (#5) and
cotter pins (#6).
3. Mount the front tine mounts (#3) to the front frame
(#13) with the 1/2” u-bolts (#7) 1/2” lockwashers (#8)
and 1/2” nuts (#9). For proper alignment refer to
Figure 1-4.
NOTE: If your powered rake is not equipped with the
optional tine package then skip this assembly
procedure.
4. Attach two of the rear tine mounts (#10) to the top
tine lift arm (#4) and secure with 1” flatwashers (#5)
and cotter pins (#6).
5. Attach the other two rear tine mounts (#10) to the tine
frame (#2) with 1/2” lockwashers (#8) and 1/2” nuts
(#9).
6. Install the tine frame assembly from step #10 to the
top tine lift arm (#4) using the 1/2” bolts (#11), 1/2”
lockwashers (#8) and 1/2” nuts (9).
7. Install the bottom tine lift arms (#12) to the tine frame
(#2) and secure with the 1” flatwashers (#5) and
cotter pins (#6).
Tines and Tine Frame Assembly
Figure 1-3

10
Section 1: Assembly & Set-up
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents

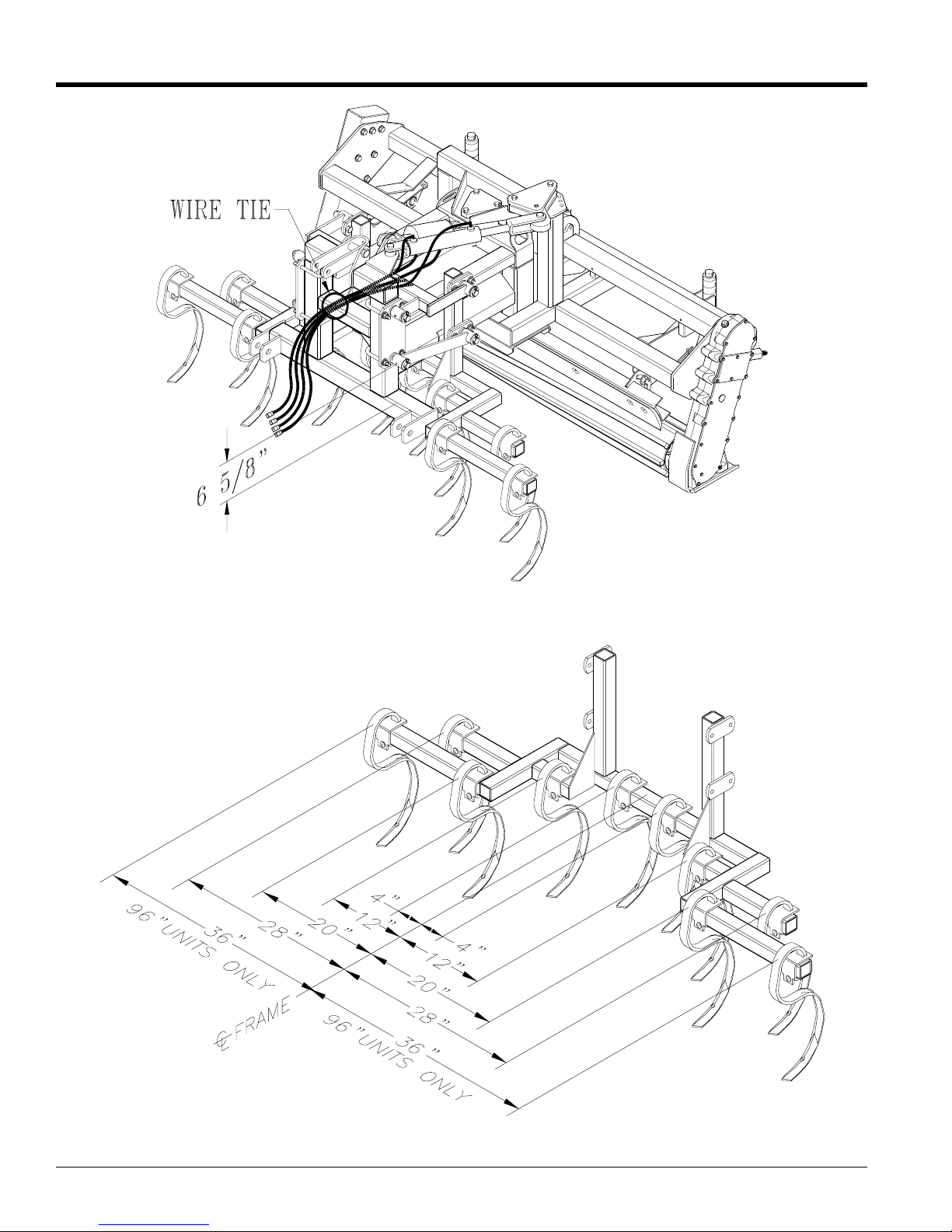

Lift Arm Location and Hose Routing
Figure 1-4
10666
Tine Locations and Alignment
Figure 1-5
10666

11
Section 1: Assembly & Set-up
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Shearing Hardware Assembly
Refer to Figure 1-6:
Install shearing hardware bag (#1) as shown. Install the
three extra pins (#2) into the three pin storage holes on
the frame and secure with the cotter pins (#3).
Shearing Hardware Assembly
Figure 1-6

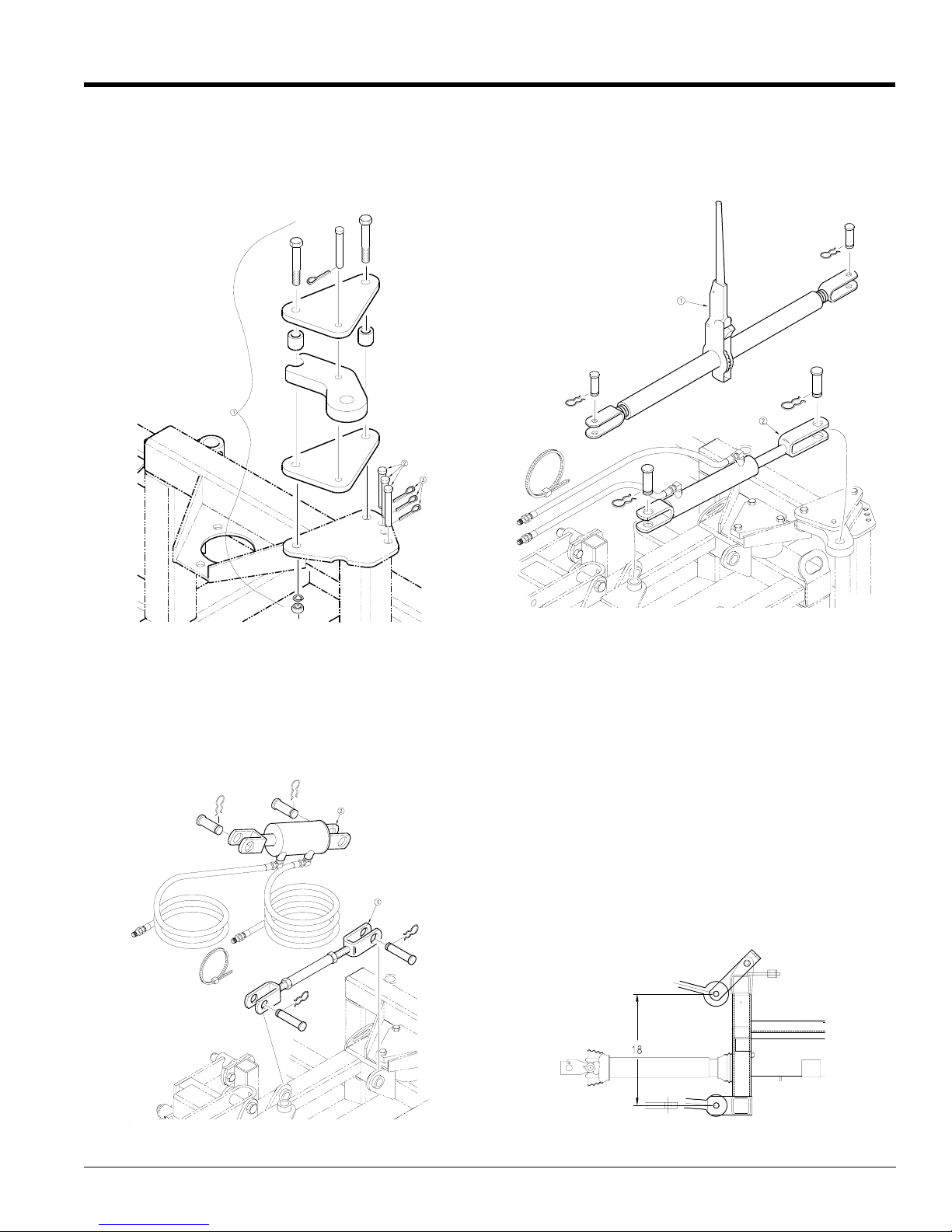

Tine Lift Assembly
Refer to Figure 1-7:
Install the tine lift turnbuckle assembly (#1) or the
optional hydraulic cylinder (#2). as shown.
Tine Lift Assembly
Figure 1-7
15827
15828
Angling Assembly
Refer to Figure 1-8:
Install the manual angling turnbuckle (#1) or the optional
hydraulic cylinder (#2) as shown.
Angling Assembly
Figure 1-8
Tractor Hookup
1. When using tractors with multi-speed PTO, be
certain PTO is set for 540 RPM.
2. Back tractor up to powered rake until 3-Point links are
aligned with lower hitch lugs on powered rake.
3. Secure the tractor’s 3-Point lower links to the lower
hitch lugs using 7/8" diameter hitch pins.
4. Secure the tractor’s top link to the powered rake
upper floating hitch using a 3/4" diameter hitch pin.
5. Level the powered rake by raising or lower the
tractor’s lower arms as necessary, then adjust the
tractor’s top link to place the upper hitch pin 18"
vertically above the lower hitch pins as shown in
Figure 1-9 to allow the powered rake to float.
Tractor Hookup
Figure 1-9
15829
11537

12
Section 1: Assembly & Set-up
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
Driveline Installation
1. Slide the driveline over the splined shaft at the front
of the powered rake and secure with the locking
device of driveline.
2. Slide the driveline over the tractor’s splined PTO
shaft and secure with the locking device of driveline.
3. Hook the safety chain on the driveline powered rake
end around a tube on the front of the powered rake to
prevent the shield from rotating.
4. The driveline should now be moved back and forth to
insure that it is secure on the PTO shaft of the tractor
and powered rake drive shaft.
5. Should the driveline require shortening:
6. Should the powershaft require shortening:
a. Hold the half-shafts next to each other in the
shortest working position and mark them.
b. Shorten inner and outer guard tubes equally.
c. Shorten inner and outer sliding profiles by the
same length as the guard tubes.
d. Proper overlap is a minimum of one-half the
length of each tube, with both tubes being of
equal length.
e. Round off all sharp edges and remove burrs.
Grease sliding profiles.
IMPORTANT: The inner shield half hooks to the
powered rake.

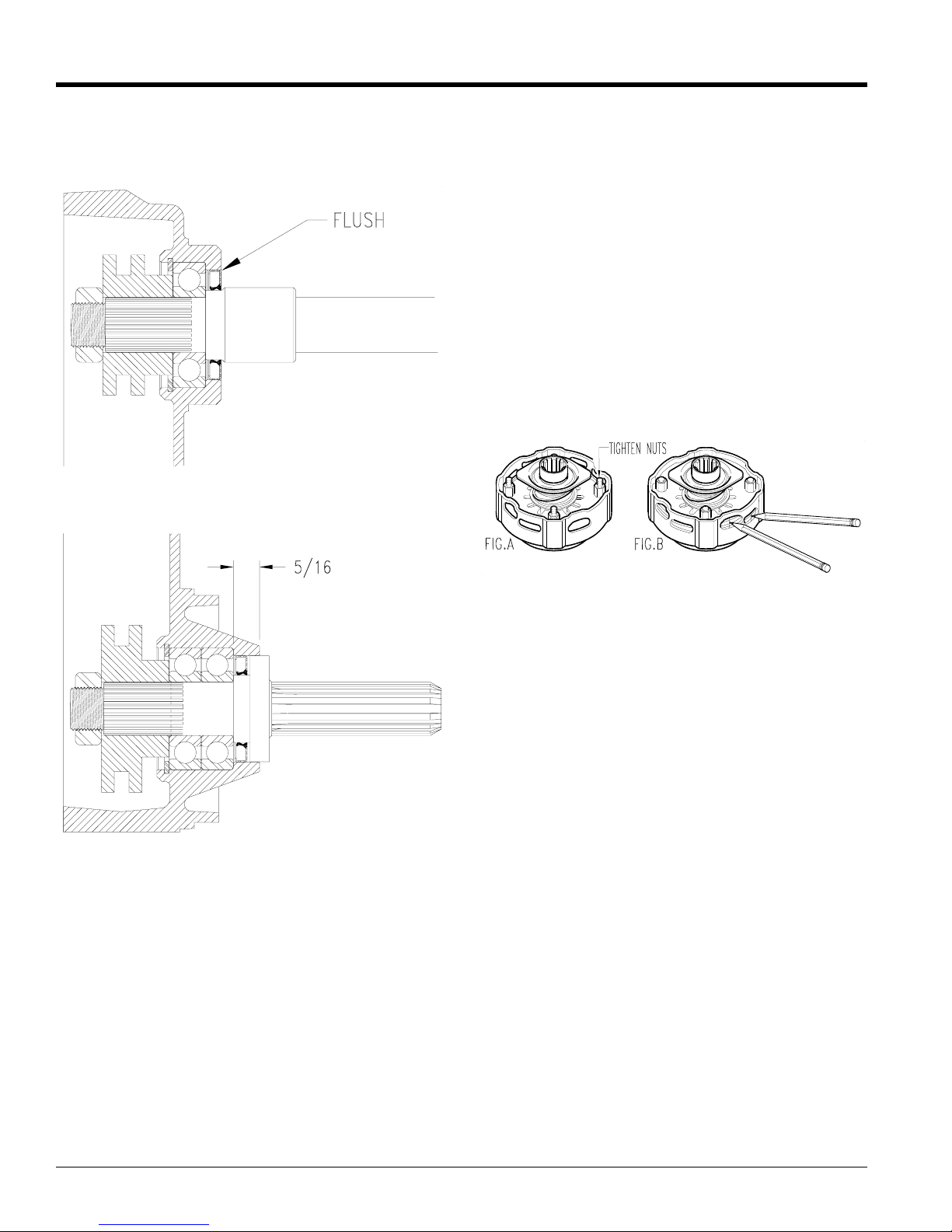

Prior to initial operation and after long periods of
inactivity, the Friction Clutch should be “run-in”. Refer to
1. Tighten all 4 nuts uniformly until the spring load is low
enough that the clutch slips freely with the PTO
engaged.
2. Turn nuts fully back. Clutch is ready for use.
Friction Clutch “Run In”
Figure 1-10
!DANGER
Hydraulic fluid under pressure can penetrate skin. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. Use a piece of cardboard or wood
rather than hands when searching for hydraulic leaks. If
hydraulic fluid is injected into the skin, it must be treated by a
doctor within a few hours or gangrene may result.
10103

13
Section 2: Operating Procedures
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Transporting
3. When raising the powered rake to the transport
position, be sure that powershaft does not contact
tractor or powered rake.
4. Be sure to reduce tractor ground speed when
turning; and, leave enough clearance so the
powered rake does not contact obstacles such as
buildings, trees or fences.
5. Select a safe ground travel speed when transporting
from one area to another. When traveling on
roadways, transport in such a way that faster moving
vehicles may pass you safely.
6. When traveling over rough or hilly terrain, shift tractor
to a lower gear.
!CAUTION
When traveling on public roads whether at night or during the
day, use accessory light and devices for adequate warning to
operators of other vehicles. Comply with all federal, state and
local laws.
Operating Checklist
1. Check chain tension. Refer to “Drive Chain
Adjustment” on page 14.
2. Check oil level in gearbox and chaincase. Refer to
“Lubrication” on page 20 of this manual.
3. Check that all plugs have been replaced properly in
the gearbox and chaincase.
4. Be sure all bolts and nuts are tight.
5. Be certain all guards and shields are in place and
secure.
6. Grease PTO shaft and all other grease fittings. Refer
to “Lubrication” on page 20.
7. Check air pressure in gauge wheel tires. It should be
14 psi.
IMPORTANT: ALWAYS disengage PTO before
raising the powered rake to transport position.
Operating Instructions
1. Operate with 540 rpm PTO tractor.
2. DO NOT engage PTO at full throttle.
3. Raking should not be done in wet conditions as soil
will stick between the bars on the roller and reduce
the digging ability of the powered rake.
4. DO NOT make sharp turns or attempt to back up
while powered rake is in the ground.
5. DO NOT engage PTO with machine in the fully raised
position.
6. DO NOT drop the 3 point hitch. Lower the rock rake
slowly to the ground.
7. After raking the first 50 feet, stop and check to see
that the powered rake is adjusted properly.
8. The powered rake must be level front to rear and
side to side for proper performance. See “Setting
Depth & Leveling” on page 13 to level the powered
rake.
9. Operating depth will depend on conditions but
normally will be just skimming the surface to 1" deep.
See “Setting Depth & Leveling” on page 13 to set
the operating depth. Operating too shallow will allow
rocks and trash to pass under the roller while
operating too deep will cause dirt to flow over the
material control blade or too much dirt will be carried
out the end into the windrow.
10. Ground speed should be between 3 and 5 mph for
normal conditions. Under extremely rocky conditions
or when moving a large windrow ground speed may
have to be reduced for satisfactory performance. In
general the slower the ground speed the better job
the powered rake does of separating the dirt from the
rocks. If the ground speed is too fast then dirt will
pass over the top of the material control blade or too
much dirt will be carried out the end into the windrow.
11. Proper operating depth and ground speed are
interrelated and performance of the powered rake
will improve with operator experience.
12. Normal operating angle of the roller is all the way (20
degrees) left or right but may be varied depending on
what the conditions call for.
13. Periodically check for foreign objects wrapped
around the roller or stuck in between the bars on the
roller and remove them after disengaging PTO,
turning off tractor, and removing ignition key
14. The danish tine package option loosens rocks and
trash below the surface of the ground. Normal
operating depth is 1" to 4" deep when needed.
Section 2: Operating Procedures

14
Section 3: Adjustments
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
Setting Depth and Leveling
Leveling Left-To-Right
The powered rake must be level left to right for best
performance. Left to right leveling should be performed
on a flat surface such as a concrete slab.
1. Adjust the angle of the roller so it is at 0˚ or straight.
2. Check that the air pressure is 14 psi in both gauge
wheel tires.
3. Move the gauge wheels all the way down. See
“Setting Depth” page 13.
4. Block up under the front of the powered rake frame
until the powered rake is level front to rear.
5. Measure from the bottom of the left hand end of the
roller to the ground and from the right hand end of the
roller to the ground. If these measurements are not
equal then go on to step 6. If they are equal then the
powered rake is level left to right.
6. Loosen the mounting bolts bolting the right hand
roller leg to the frame and shim between the ground
and the bottom of the right hand end of the roller until
the right hand end is the same distance from the
ground as the left hand end.
7. Retighten the mounting bolts and the powered rake
is now level left to right.
8. Check the tractors lower 3-point lift arms to see if
they are the same distance above the ground and
adjust if necessary. Note: If these arms are not level
then the powered rake will not operate level.
Leveling Front-To-Rear
The operating depth must be set before leveling the
powered rake front to rear. See “Setting The Depth”
above. Leveling the powered rake front to rear is done in
the field by setting the down stop for the tractors lower 3
point arms at the point where the powered rake is level
front to rear. It is very important for the powered rake to
be level front to rear to eliminate gouging of the roller
when the powered rake is angled. If the powered rake is
too low in the front then the front portion of the roller will
cut deeper than the rear portion when angled. If the
IMPORTANT: It is very important that the powered
rake be level front to rear and left to right for proper
performance.
powered rake is too high in the front then the rear portion
of the roller will cut deeper than the front portion of the
roller when angled.
Setting The Depth
The powered rake must be level left to right before setting
the depth. The operating depth is controlled by the gauge
wheels and not the lower tractor 3 point lift arms. Move the
gauge wheels up for greater depth or move them down for
less depth.
1. Remove the bail pin, from the top of the gauge wheel
castor pivot.
2. Remove the gauge wheel assemblies and swap the
spacers, as necessary. Make sure both gauge
wheels are set to the same depth.
3. Reinstall the gauge wheel assemblies into their
mounts.
4. Reinstall the bail pin removed in step 1.
5. Re-level the powered rake front to rear. See
“Leveling Front To Rear” below.
Drive Chain Adjustment
!CAUTION
BEFORE any maintenance is performed, lower the power
rake to the ground, stop tractor engine and remove the key. DO
NOT attempt to make maintenance adjustments while tractor
is running.

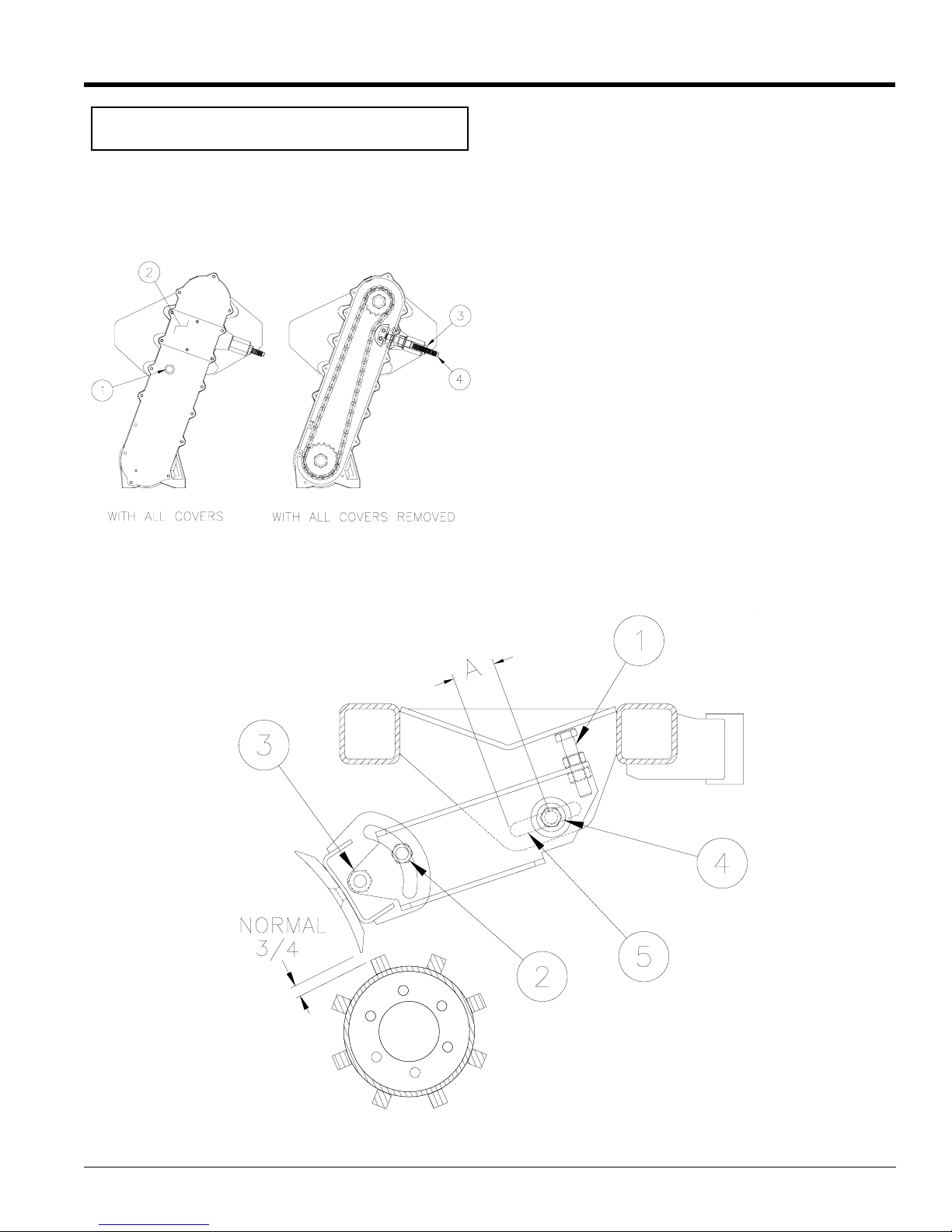

Refer to Figure 3-1:
1. By removing the rubber plug (#1) and sticking your
finger into hole, you can check chain tension.
(Movement should not exceed 5/8" of deflection).
2. If further investigation of chain is warranted, remove
chain idler access plate (#2) and gasket to check the
chain visually.
3. Adjustment of drive chain can be accomplished by
loosening nut (#3) and screwing in stud (#4) to
tighten chain or out to loosen chain. Retighten nut
(#3) after adjustment is complete.
IMPORTANT: Care should be taken in removing
gasket.
Section 3: Adjustments

15
Section 3: Adjustments
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
4. Visually check the amount of adjustment left in the
idler. If the adjustment is almost gone then it is time
to replace the drive chain and or the sprockets. See
“Drive Chain Replacement” and “Sprocket
Replacement” below.
Drive Chain Adjustment
Figure 3-1
IMPORTANT: Overtightening of chain may cause
premature wear of sprockets and chain.
11539
Material Control Blade Adjustment
Refer to Figure 3-2:
The material control blade can be adjusted three ways:
1. The gap between the bottom of the material control
blade and the top of the roller can be adjusted by the
adjuster bolt (#1). In general a wider gap will allow
larger rocks to pass through and will allow the dirt to
pass through faster for higher ground speeds. Make
sure the gap is the same on both ends of the blade.
Normal gap width is around 3/4”.
2. The pitch of the material control blade can be
adjusted by loosening the bolt (#2) and bolt (#3) and
pivoting the material control blade around the bolt
(#3). Normally a line from the top edge of the
material control blade to the bottom edge of the
material control blade should intersect the center of
the roller.
3. The material control blade can be adjusted front to
rear by loosening the bolt (#4) and moving the
material control blade front to rear in the slot (#5).
Normally the dimension “A” should be close to 1 3/4”.
Material Control Blade Adjustment
Figure 3-2

16
Section 4: Optional Equipment
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
TINE FRAME ASSY PR2572 . . . . . . . . 314-044K
TINE FRAME ASSY PR2596 . . . . . . . . 314-045K
HYDRAULIC TINE LIFT BUNDLE . . . . .314-040L
MANUAL TINE LIFT BUNDLE . . . . . . . .314-041L
MANUAL ANGLING BUNDLE . . . . . . . 314-128A
HYDRAULIC ANGLING BUNDLE . . . . 314-129A
HYDRAULIC DIVERTER KIT . . . . . . . . 314-072A
Section 4: Optional Equipment
15844
15845
15846

17
Section 5: Maintenance & Lubrication
6/06/06 PR2572 & PR2596 Powered Rakes 314-132M
Land Pride Table of Contents
Maintenance
Proper servicing and adjustment is the key to the long life
of any implement. With careful and systematic
inspection, you can avoid costly maintenance, time and
repair.
After using your Rotary Cutter for several hours, check
all bolts to be sure they are tight.
Replace any worn, damaged or illegible safety labels by
obtaining new labels from your Land Pride Dealer.
!CAUTION
BEFORE any maintenance is preformed, lower the power rake
to the ground, stop tractor engine and remove key. DO NOT
attempt to make maintenance adjustments while tractor is
running.
Storage
At the end of the working season or when the powered
rake will not be used for a long period, it is good practice
to clean off any dirt or grease that may have accumulated
on any of the moving parts.
Check the roller cutting bars for wear and replace the
roller if necessary.
Inspect the powered rake for loose, damaged or worn
parts and adjust or replace if needed.
Lubricate as noted in “Lubrication” above.
Repaint parts where paint is worn or scratched to prevent
rust.
Drain gearbox and chaincase oil. Drain oil in gearbox by
removing the bottom drain plug on. Drain oil in chaincase
by removing cover (#1) Figure 1-10. Be sure to refill
gearbox and chaincase at this time.
Take the pressure off the hydraulics cylinders and hoses
if the powered rake is equipped with the optional
hydraulic angling or tine lift.
Apply a light coat of grease to all exposed hydraulic
cylinder rods.
Store powered rake in a clean, dry place.
Drive Chain Maintenance
The operator should check periodically to make sure that
the drive chain is tight. If adjustment is needed refer to
“Drive Chain Adjustment” on page 14.
Sprocket and Chain Replacement
Refer to Figure 1-10:
1. Remove cover plate (#1) and gasket (#2). Care
should be taken in removing gasket.
2. Loosen chain tension. Refer to “Drive Chain
Adjustment” page 14.
3. Remove nuts (#3), one on top and one on bottom.
4. Remove both sprockets (#4) and (#5) and chain (#6)
altogether.
5. Install new chain and sprockets.
6. Reinstall nuts (#3).
7. Retighten chain tension. Refer to “Drive Chain
Adjustment” on page 14.
8. Turn the roller several turns and observe the chain to
make sure everything is working properly.
9. Reinstall cover plate (#1) and gasket (#2).
10. Check the oil level in the chain case. See
“Lubrication” on page 21.
Drive Sprocket and Drive Chain Replacement
Figure 5-1
NOTE: Oil in chain case! Be prepared to capture oil
when taking cover off.
15833
Section 5: Maintenance & Lubrication

18
Section 5: Maintenance & Lubrication
PR2572 & PR2596 Powered Rakes 314-132M 6/06/06
Land Pride
Table of Contents
Bottom and Top Seal Installation
If the bottom and top seals (#7) Figure 5-1 on page 17
need replacing refer to Figure 5-2 and Figure 5-3.
Top Bearing Seal Location
Figure 5-2
Bottom Bearing Seal Location
Figure 5-3
15833
15836
Friction Clutch PTO
Refer to Figure 5-4:
Powered Rake drive components are protected from
shock loads by a two plate friction clutch located
between the gearbox and the drive shaft.
The clutch should slip during operation to protect the
powered rake from excessive loads.
Prior to initial operation and after long periods of
inactivity, the Friction Clutch should be “run-in”.
1. Tighten all 4 nuts uniformly until the spring load is low
enough that the clutch slips freely with the PTO
engaged.
2. Engage the PTO until the clutch rotates one
revolution.
3. Turn nuts fully back. Clutch is ready for use.
Friction Clutch “Run In”
Figure 5-4
10103
