Lanix Alpha950 XL User manual

1
Contents
Get Started .............................................................. 2
Install SIM Card ..........................................2
Insert Micro SD card ....................................2
Charge Mobile Phone ...................................3
PC-Phone File Transfer.................................4
Keys and Parts ......................................................... 5
Lock and Unlock the Screen .................................... 7
Notification Panel .................................................... 8
Arranging and Rearranging Widgets and Icons .... 10
Adding Folders on your Screen .............................. 11
Adjusting Brightness ............................................. 13
Changing your Wallpaper ...................................... 14
Make a Call ........................................................... 15
Call Log ................................................................. 17
Reject a Call by Sending a Busy Message .............. 18
Add a Contact ........................................................ 18
Messaging
.............................................................. 20
Receiving a New Message...........................20
Editing SMS and MMS...............................20
Message conversations................................20
Browse the Web ..................................................... 22
Enjoy Music ........................................................... 23
DownloadApplications on Google Play ................ 25
ManageApplications ............................................. 26
Maintenance & Safety ........................................... 27
2
Get Started
InstallSIM Card
You must insert the SIM card before using the phone.
-> Steps:
1. Switch off the mobile phone.
2. Insert the SIM card correctly in the card slot(s) (See
figure below)
Insert Micro SD card
The phone supports Micro SD card, which is a multimedia
memory card used to multiply the memory of the device.
Please follow the instructions as above mentioned.

3
ChargeMobilePhone
Your phone is powered by a rechargeable battery. If your
phone comes up a message which notifies you that the
battery power is too low, at that moment, please recharge
the battery, if the charge is too low, it may shorten the life of
the battery.
Connect the charger to a power outlet and the micro USB
connector to the phone’s USB port. The LED flashlight on
the top of the phone is red. Once the phone has finished
charging, the light turns green and you should unplug the
charger.
4
PC-PhoneFileTransfer
Once the mobile phone is connected to a PC with USB, the
PC will charge the mobile phone automatically. In such case,
USB Computer connection will appear on your screen.
1. Drag the notification panel down and tap Use for file
transfer .
2. Select files transfer .
3. The device is recognized as a Removable Disk by the
computer. Open the folder and transfer or copy files from
your phone to PC and vice-versa.

5
Keys and Parts
The phone gives you marvelous feelings to experience on
Camera, Video recorder, FM radio, Music and Sound
recorder. Let you install various APPs, games, and more
(supports APK format) by downloading from Google
Play
TM
.
9
5
7
4
6
1
2
3
8
6
1.Volume
Up/Down Key To adjust the ringer volume, adjust the
voice volume during a call and adjust
media volume.
2.Headset port To connect an earphone so you can
listen to music or radio, etc.
3.Receiver To hear the voice of the other side
when calling.
4.Front
Camera
Allow you to take pictures while facing
the screen.
5.Power Key Switch the phone on or off.
Press and hold to open phone options
menu.
6.Back Camera
lens
For taking photos.
7.Flashlight To take photos in low-light conditions.
8.Fingerprint
key
After you set fingerprint, you can use it
to unlock the screen.
9. USB jack To connect charger or USB data cable
for data exchange.

7
Lock and Unlock the Screen
Press power button to enter Sleep mode and meanwhile the
screen will be locked; press power button again to wake up
and then drag the lock icon to the right to unlock.
8
Notification Panel
Notification icons on the status bar report the new arrival of
messages, calendar events, alarm set and ongoing settings
such as when call forwarding is on or the current call status.
You can open the Notifications panel to open the message,
reminder, or event notification and see the mobile operator’s
name. Even you can switch on Data connection, WLAN,
Bluetooth, etc.
-> Opening the Notifications panel
Press and hold the status bar, slide your finger downward to
open the Notifications panel.
If you have several notifications, you can scroll down the
status bar to view more notifications.
-> Closing the Notifications panel
Do one operation of the following:
1. Press and hold the bottom bar of the Notifications panel,
then slide your finger up the screen.
2. Press BACK or Home directly.

9 10

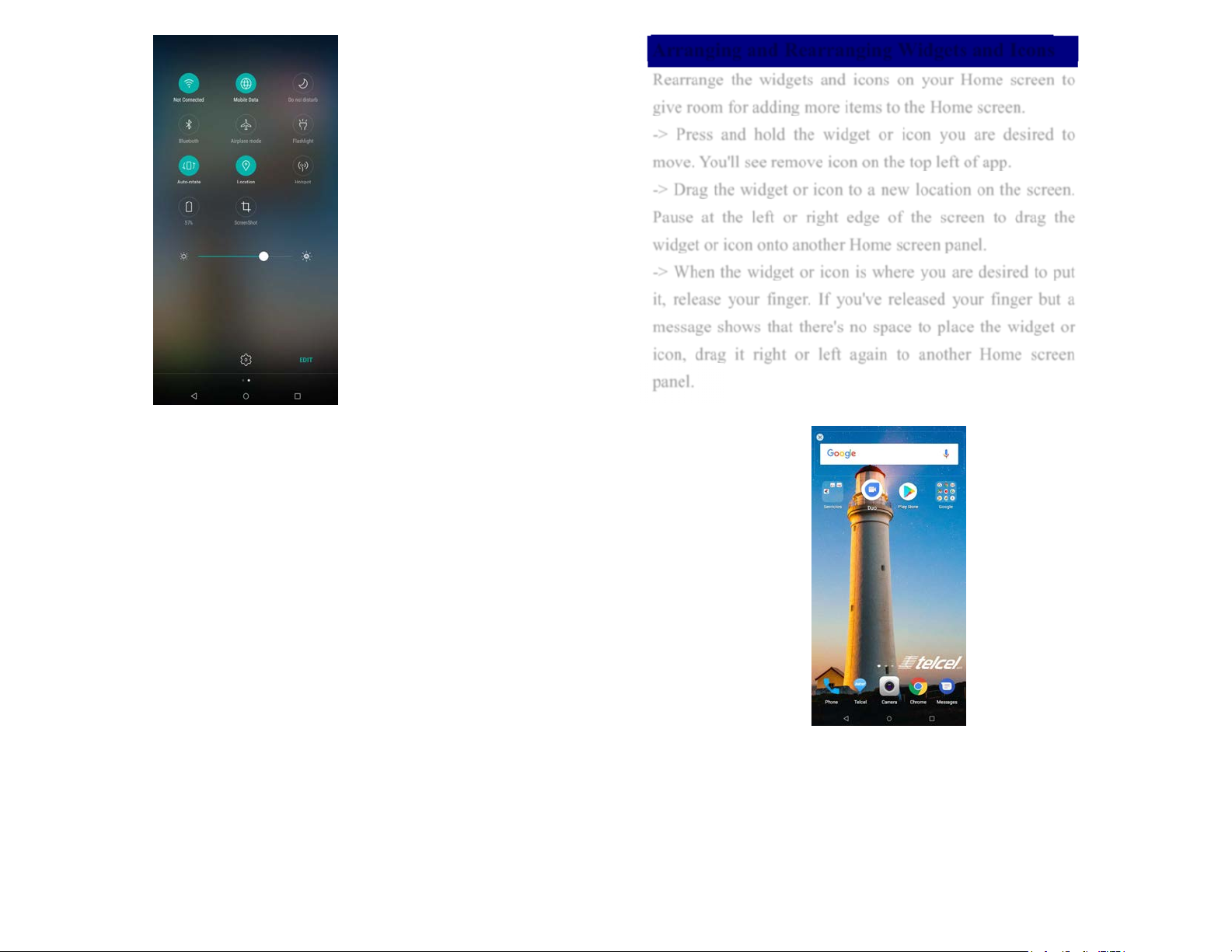

Arranging and Rearranging Widgets and Icons
Rearrange the widgets and icons on your Home screen to
give room for adding more items to the Home screen.
-> Press and hold the widget or icon you are desired to
move. You'll see remove icon on the top left of app.
-> Drag the widget or icon to a new location on the screen.
Pause at the left or right edge of the screen to drag the
widget or icon onto another Home screen panel.
-> When the widget or icon is where you are desired to put
it, release your finger. If you've released your finger but a
message shows that there's no space to place the widget or
icon, drag it right or left again to another Home screen
panel.

11
Adding Folders on your Screen
Use folders to group related applications and other shortcuts
to keep your Home screen tidy and organized.
-> Adding folder on your screen
Press and hold an application icon or a widget that you want
to move. Don't release your finger. Drag the application icon
or widget and drop it on top of another application icon or
widget. Then, simply tap the folder to open it so you can
access the applications and widgets inside the folder.
-> Renaming a folder
Tap the folder to open it, and enter a new folder name and
then tap anywhere on the screen.
-> Deleting folder
Drag out all the applications from the folder, then the folder
will be deleted automatically.
12

13

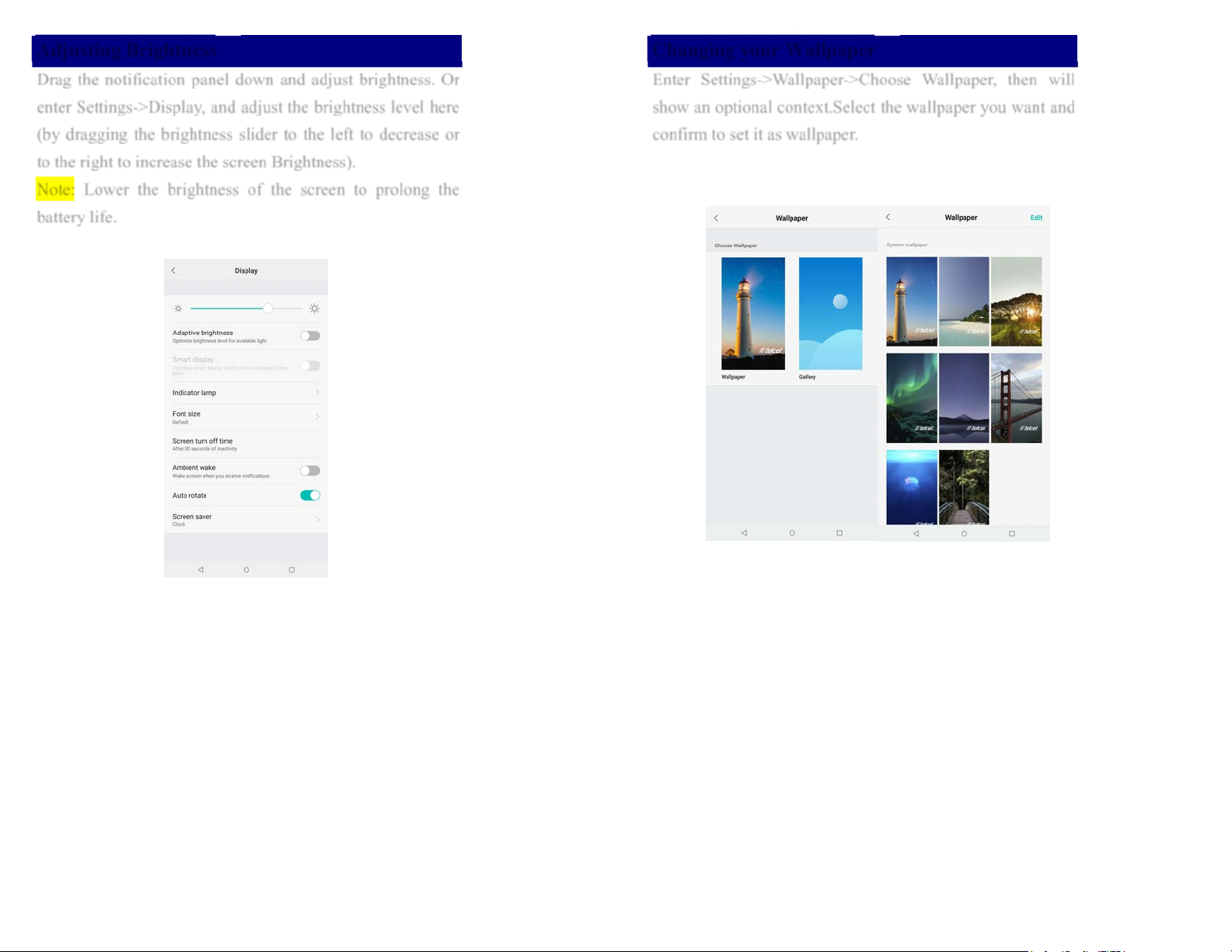

Adjusting Brightness
Drag the notification panel down and adjust brightness. Or
enter Settings->Display, and adjust the brightness level here
(by dragging the brightness slider to the left to decrease or
to the right to increase the screen Brightness).
Note: Lower the brightness of the screen to prolong the
battery life.
14
Changing your Wallpaper
Enter Settings->Wallpaper->Choose Wallpaper, then will
show an optional context.Select the wallpaper you want and
confirm to set it as wallpaper.

15
Make a Call
On the start screen choose and enter a complete phone
number to make a call.
16

17
Call Log
Enter Phone interface, on page of Recents, then tap of
one Call log. In call log page, you can make calls, create
new contact and send message etc.
18
Reject a Call by Sending a Busy Message
While there is an incoming call, you are inconvenient to
accept the call, and then you can send a busy message for
rejecting the call.
Drag up, some busy messages will show on the screen,
short tap any of them to send out.
Add a Contact
Tap and enter Contacts and then add a contact (see
figure below.)

19 20
Messaging
Enter Messaging, and then compose new message. You
touch a text field where you want to enter text, to open the
keyboard.
Receiving a New Message
When there is a new message comes, a new message icon
will appears in the notifications area of the status bar to
notify you of a new text or multimedia message.
To open the message, press and hold the status bar, and then
slide the status bar down to open the Notifications panel. Or
go to Messaging, read the message directly.
EditingSMS and MMS
-> When you are composing a new text message, you can
select text for cutting or copying. Touch the text field or
portion that contains text. You can select all contexts, copy,
cut and paste. The selected text is highlighted in Green.
-> A multimedia message may contain video, pictures, audio,
sideshow, etc. Thus, when you are supposed to edit a MMS,
you can just add videos, pictures and more to SMS and
change to MMS.
Message conversations
Text and multimedia messages that are sent to and received
