R3S User Manual
1
R3S
User Manual
Version: 1.0
Date of Release: 2020-09-03
Vehicle Computing

R3S User Manual
2
Icon Descriptions
The icons are used in the manual to serve as an indication of interest topics or important
messages. Below is a description of these icons:
Note: This mark indicates that there is a note of interest and is something that you
should pay special attention to while using the product.
Warning: This mark indicates that there is a caution or warning and it is something
that could damage your property or product.
Online Resources
The listed websites are links to the on-line product information and technical support.
Resources
URL
Lanner
http://www.lannerinc.com
Product Resource
http://www.lannerinc.com/download-center
RMA
http://eRMA.lannerinc.com
Copyright and Trademarks
This document is copyrighted © 2020. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at any time
without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by
any means without the prior written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any infringements upon the rights
of third parties that may result from such use.

R3S User Manual
3
Acknowledgement
Intel® , Intel® Atom® are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries. Microsoft Windows and MS-DOS are registered
trademarks of Microsoft Corp. All other product names or trademarks are properties of their
respective owners.
FCC Class A Certification
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also
to prevent interference to the nearby radio and television reception. It is essential that only the
supplied power cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. The operation of this equipment in a residential area is
likely to cause harmful interference in which case users will be required to correct the
interference at their own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:

R3S User Manual
4
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie
or scarf and roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to
your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment
unsafe.
Disconnect all power by turning off the power and unplugging the power cord before
installing or removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Consignes de sécurité
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis.
Attachez votre cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre
l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le
cordon d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité
de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit.
Cet appareil génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et
utilisé conformément aux instructions des fournisseurs de composants sans fil, il risque de
provoquer des interférences dans les communications radio.
Lithium Battery Caution
There is risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation only by a skilled person who knows all Installation and Device Specifications
which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium
BATTERY.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a
battery can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment can result in
an explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the
leakage of flammable liquid or gas.

R3S User Manual
5
Avertissement concernant la pile au lithium
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à
l’électricité connaissant toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez
l’appareil.
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool
equipment to acceptable operating temperatures without adequate circulation. Be sure that
the room in which you choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate
effectively. An open chassis permits air leaks, which may interrupt and redirect the flow of
cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD
damage occurs when electronic components are improperly handled and can result in
complete or intermittent failures. Be sure to follow ESD-prevention procedures when
removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist
strap is available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1
and 10 megohms (Mohms).
Sécurité de fonctionnement
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être
adéquate pour refroidir l’équipement à une température de fonctionnement acceptable sans
circulation adaptée. Vérifiez que votre site propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de
refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut
interrompre et rediriger le flux d’air frais destiné aux composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les
circuits électriques. Des dégâts d’ESD surviennent lorsque des composants électroniques
sont mal manipulés et peuvent causer des pannes totales ou intermittentes. Suivez les
procédures de prévention d’ESD lors du retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun
bracelet n’est disponible, reliez votre corps à la terre en touchant la partie métallique du
châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise
entre 1 et 10 mégohms (Mohms).
Mounting Installation Precaution
Environment:
Do not install and/or operate this unit in any place that flammable objects are stored or used

R3S User Manual
6
in.
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of
the rack environment may be greater than room ambient. Therefore, consideration should
be given to installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Installation of the equipment (especially in a rack) should consider the ventilation of the
system’s intake (for taking chilled air) and exhaust (for emitting hot air) openings so that the
amount of air flow required for safe operation of the equipment is not compromised.
To avoid a hazardous load condition, be sure the mechanical loading is even when mounting.
Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on over-current protection and supply
wiring. Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
Reliable earthing should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (e.g. use of power strips).
Installation & Operation:
The installation of this product must be performed by trained specialists; otherwise, a non-
specialist might create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient
strength for supporting the system or use of inappropriate installation components.
Electrical Safety Instructions
Before turning on the device, ground the grounding cable of the equipment. Proper grounding
(grounding) is very important to protect the equipment against the harmful effects of external
noise and to reduce the risk of electrocution in the event of a lightning strike. To uninstall the
equipment, disconnect the ground wire after turning off the power. A ground wire is required
and the part connecting the conductor must be greater than 4 mm2 or 10 AWG.
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger
l’équipement contre les effets néfastes du bruit externe et réduire les risques d’électrocution
en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint
l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire
plus de 4 mm2 ou 10 AWG.

R3S User Manual
7
Grounding Procedure for Power
Source
Loosen the screw of the earthing point.
Connect the grounding cable to the ground.
The protection device for the power source must provide 30 A
current.
This protection device must be connected to the power source
before power.
The cable hould 16 AWG
Procédure de mise à la terre
pour source d’alimentation
Desserrez la vis du terminal de mise àla terre.
Branchez le câble de mise à la terre àla terre.
L’appareil de protection pour la source d’alimentation doit
fournir 30 A de courant.
Cet appareil de protection doit être branché à la source
d’alimentation avant l’alimentation.
Le câble doit 16 AWG
This equipment must be grounded.
Cet équipement doit être mis àla terre.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of
the National Electrical Code and NFPA 75.
Peut être installé dans des salles de matériel de traitement de l'information conformément
àl'article 645 du National Electrical Code et àla NFPA 75.
The machine can only be used in a restricted access location and has installation instructions
by a skilled person.
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT.

R3S User Manual
8
Table of Contents
Package Content.......................................................................................................10
Ordering Information...............................................................................................10
System Specifications...............................................................................................11
Front Panel ...............................................................................................................13
Rear Panel ................................................................................................................14
Motherboard Information........................................................................................16
Open the Chassis......................................................................................................24
Installing the M.2 LTE Module .................................................................................25
Hard Disk Installation ...............................................................................................26
BIOS Setup................................................................................................................28
Advanced Page.........................................................................................................30
IntelRCSetup.............................................................................................................45
Security.....................................................................................................................49
Boot Menu................................................................................................................50
Save and Exit Menu..................................................................................................51
Connecting the Devices............................................................................................54
Power States Cycle Diagram ....................................................................................55

R3S User Manual
9
Using the Ignition System Manager (ISM) ...............................................................56
Warranty Policy........................................................................................................58
RMA Service .............................................................................................................58
RMA Service Request Form......................................................................................59

R3S User Manual
10
Built for rolling stock setting, the R3S series is certified with EN50155, EN50121-3-2,
EN50121-4, EN50125-3 and EN45545 standard as an IP50 rated fanless rolling stock
computer. R3S not only features high-performance Intel Atom x7-E3950 CPU, but also
boasts an abundance of I/O and internal expansion capabilities, including 6 x M12 X-
coded PoE/ PoE+ ports, 1 x Removable 2.5” drive bay, 2 x COM, dual HDMI, 4x USB 2.0
and 4x DI/DO ports, making it perfect for rolling stock control and monitoring,
infotainment, video surveillance and fleet management.
Package Content
Your package contains the following items:
1x R3S Vehicle and Railway Computer
Note: If you should find any components missing or damaged, please contact your
dealer immediately for assistance.
Ordering Information
SKU No.
Description
R3SB
Intel Atom™ x7-E3950 Processor , 6x M12 X-coded IEEE 802.3af PoE port (any 3 ports
support IEEE 802.3at PoE+), 2x M.2 3042 B key socket with dual SIM each, DC 24~36V
power input
R3SC
Intel Atom™ x7-E3950 Processor ,6x M12 X-coded IEEE 802.3af PoE port (any 4 ports
support IEEE 802.3at PoE+) 2x M.2 3042 B key socket with dual SIM each, DC
72~110V power input

R3S User Manual
11
System Specifications
Platform
CPU
Intel Apollo Lake x7-E3950 1.6G 12W
Frequency
1.6 GHz
BIOS
AMI SPI Flash BIOS
Chipset
SoC
Fanless
Yes
Memory
Technology
LPDDR4 2400 MHz
Max. Capacity
Up to 8GB (Factory default: 8GB pre-populated)
Socket
Memory Down
Ethernet
Controller
6x Intel i210IT
Speed
10/100/1000 Mbps
PoE
IEEE 802.3af/IEEE 802.3at
Interface
M12 X-coded
Storage
Type
1x Removable 2.5” drive bay (HDD/SSD not included)
1x SDXC Slot
I/O
Display
2x HDMI, 3840x2160 resolution
LAN
N/A
PoE
6x IEEE 802.3af/IEEE 802.3at standard PoE/PoE+ ports
Audio
Mic-in and Line-out with 2-watt by HD Audio
Serial I/O
COM1: RS-232/422/485; COM2: RS-232/422/485
COM3: RS-232/CAN (default RS-232 TX/RX only)
GPS
u-blox NEO-M8N; 3 GNSS (GPS, Galileo, GLONASS, BeiDou),
default @ GPS + GLONASS dual band
G-sensor
ADXL 345
CAN
Optional 1x CAN Bus J1939 / J1708
Digital I/O
11x DI 5V Level TTL and 4x DO 12V Level TTL
1x DI (from MCU) 3.3V Level TTL, 2x 12V with 1A dry relay
USB
4x USB 2.0 Type A
Antenna
5x SMA antenna hole (includes GPS+GLONASS x1)
Expansion Interface
PCIe/USB
M.2 3042 B Key x2
Cooling
Processor
Passive CPU heatsink
System
Fanless design with corrugated aluminum
Power
Connector
5-pin M12 K-coded (Ground, DC_IN, Ground, IGN, Chassis
Ground)
Input
R3SB: Input Rated: 24~36Vdc, ATX mode support ignition delay
on/ off control;
R3SC: Input Rated: 72~110Vdc, ATX mode support ignition
delay on/ off control;
Output
12V/1A DC out
Environment
Operating Temperature
-40~70°C / -40~158°F (85°C for 10 minutes)
Storage Temperature
-40~85°C / -40~185°F
Relative Humidity
5%~95% @ 40°C / 104°F (Storage Level)
Mechanical
Dimension (W x H x D)
272.4 x 114.3 x 228mm (10.72” x 4.5” x 8.97”)
Weight
7 kg
Mounting
Wall mount kit
Driver Support
Microsoft Windows
Win10 IoT
Linux
Redhat Enterprise 5, Fedora 14. Linux Kernel 2.6.18 or later
Certification
EMC
FCC/CE Class A, RoHS
Safety
E-13 include ISO-7637-2

R3S User Manual
12
Certified
IP rated 50, MIL-STD-810G, EN50155, EN50121-3-2, EN50121-
4, EN50125-3, EN 45545
Miscellaneous
Hardware
Fintek F81866AD-I integrated watchdog timer
Internal RTC with Li
Battery
Yes

R3S User Manual
13
Front Panel
No.
Description
F1
System Status
LED Indicator
F2
USB 2.0 Port
4x USB 2.0 Type A
F3
Console Port
1x RS-232 (RJ45 connector)
Pin
Signals
Pin
Signals
1
COM_RTS1#
2
COM_DTR1#
3
COM_SOUT1
4
GND_COM
5
GND_COM
6
COM_SIN1
7
COM_DSR1#
8
COM_CTS1#
F4
SDXC/SIM
Cover
4x SIM card slot
1x SDXC memory card slot
F5
Storage Lock
Lock for removable 2.5” storage caddy
F6
Antenna Port
F7
Storage Bay
1x SATA interface storage bay to support removable 2.5”
HDD/SSD drive bay
HDD Status
System Status
System Power
Status
F3
F6
F5
F4
F1
F2
F7
WiFi Antenna
tenna
LTE Antenna

R3S User Manual
14

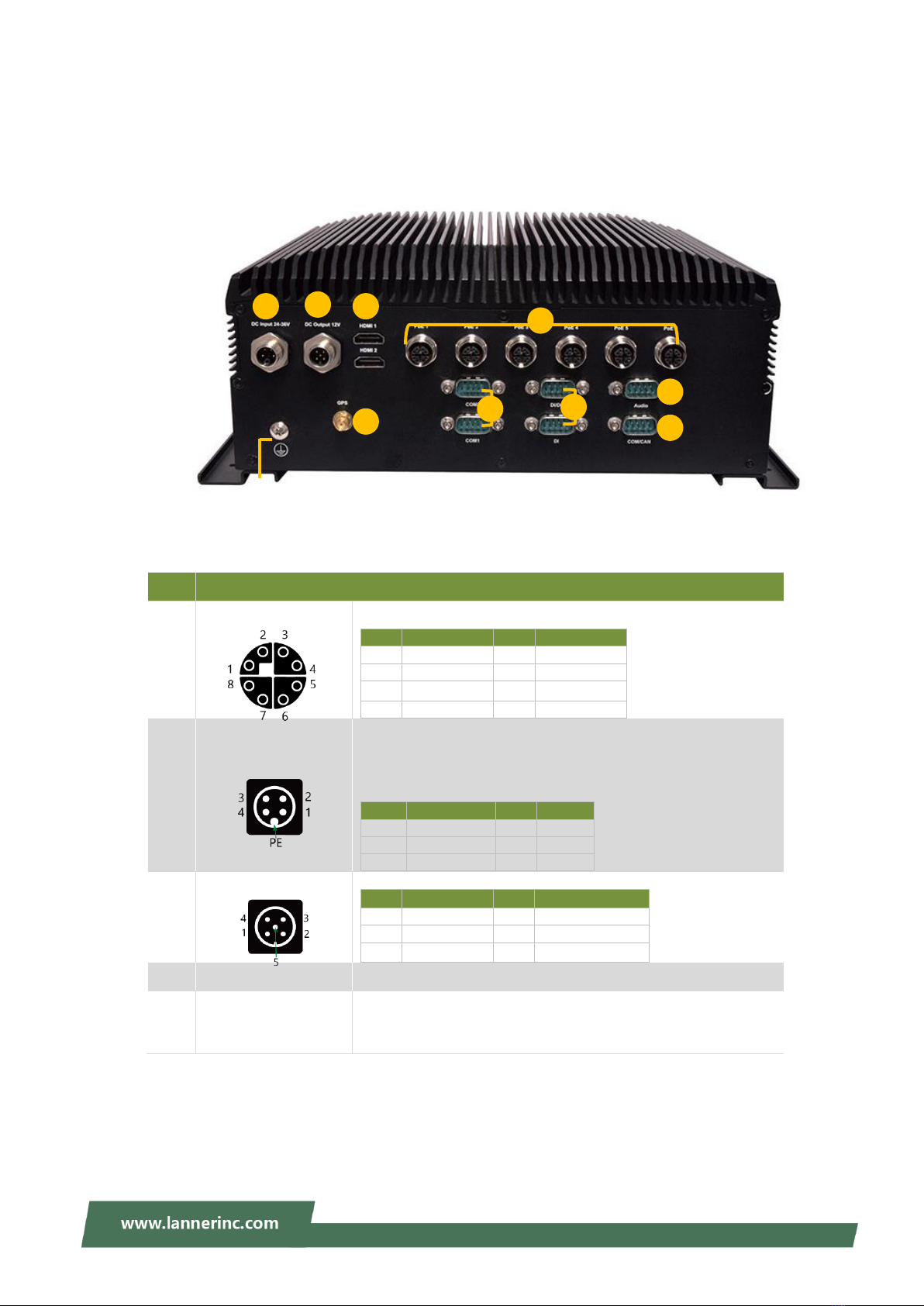

Rear Panel
No.
Description
R1
PoE Port
6x M12 X-coded 8-pin PoE/ PoE+ Port
Pin
Signals
Pin
Signals
1
LANx*_MX0P
2
LANx*_MX0N
3
LANx*_MX1P
4
LANx*_MX1N
5
LANx*_MX3P
6
LANx*_MX3N
7
LANx*_MX2N
8
LANx*_MX2P
R2
DC Input
1x M12 K-coded 5-pin for power source,
(Ground, DC_IN, Ground, IGN, Chassis Ground)
R3SB: Input Rated: 24~36Vdc,
R3SC: Input Rated: 72~110Vdc
Pin
Signals
Pin
Signals
1
GND_DCIN
2
DC-IN
3
GND_DCIN
4
IGN_IN
5(PE)
Chassis_GND
R3
DC Output
1x M12 A-coded 3pin for DC 12V power output
Pin
Signals
Pin
Signals
1
12V
2
FORWARD_C0NN
3
SPEED_C0NN
4
GND
5
GND_GPS
R4
HDMI Port
2x HDMI Connector
R5
Antenna Port
(GPS+GLONASS
default)
1x 3 GNSS (GPS, Galileo, GLONASS, BeiDou) antenna
support(G-sensor has no antenna needed)
R4
ˋ
ˇ
R5
R2
R3
ˇ
R1
R8
Grounding Point:
For safety measures to help prevent people from
accidentally coming in contact with electrical hazards.
R6
R9
R7

R3S User Manual
15

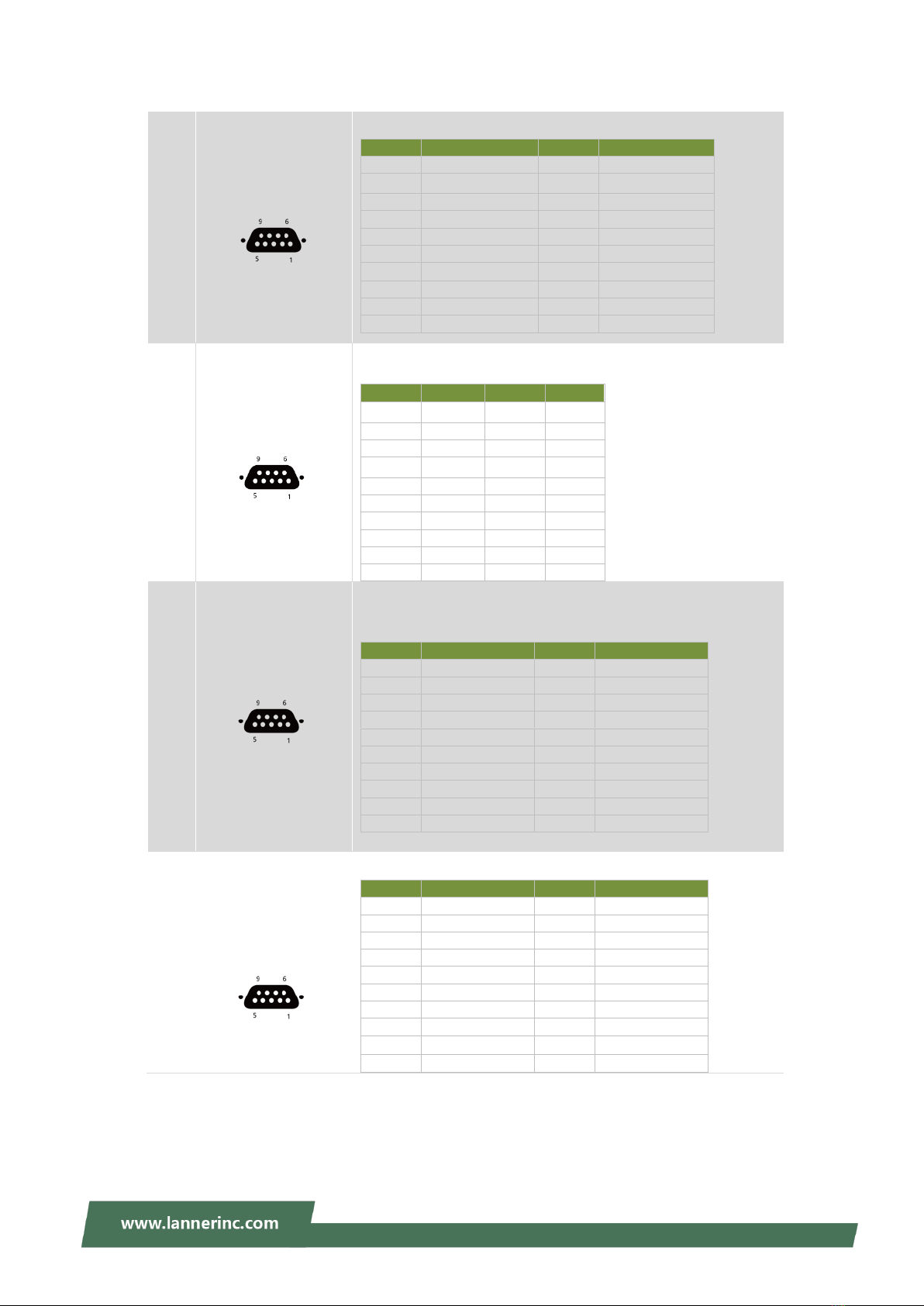

R6
COM Port
2x DB9 Male Connector for RS232/422/485
Pin
Signals
Pin
Signals
1_up
COM2_C_DCD_TN
2_up
COM2_C_RXD_TP
3_up
COM2_C_TXD_RP
4_up
COM2_C_DTR_RN
5_up
GND_COM
6_up
COM2_C_DSR
7_up
COM2_C_RTS
8_up
COM2_C_CTS
9_up
COM2_C_RI
1_down
COM3_C_DCD_TN
2_down
COM3_C_RXD_TP
3_down
COM3_C_TXD_RP
4_down
COM3_C_DTR_RN
5_down
GND_COM
6_down
COM3_C_DSR
7_down
COM3_C_RTS
8_down
COM3_C_CTS
9_down
COM3_C_RI
R7
DI/DO Port
11x DI 12V TTL selectable, 1x DI (from MCU) 3.3V Level TTL,
2x 12V with 1A dry relay
Pin
Signals
Pin
Signals
1_up
DI_1
2_up
DI_3
3_up
DI_5
4_up
DI_7
5_up
DI_9
6_up
DI_2
7_up
DI_4
8_up
DI_6
9_up
DI_8
1_down
DO_0
2_down
DO_2
3_down
DI_COM
4_down
DI_0
5_down
DI_10
6_down
DO_1
7_down
DO_3
8_down
DGIN_0
9_down
DI_11
R8
Audio Port
1x Realtek ALC886-GR, supports external Audio I/O for Line-
in/Line-out with L/R-channels via 9-pin female connector
Pin
Signals
Pin
Signals
1_up
J1850-/J1708-_L
2_up
GND_C/L
3_up
J1939+/L
4_up
K_LINE_L
5_up
CAN_L/J1939-_L
6_up
J1850-/J1708-_L
7_up
J1850+/J1708+_L
8_up
J1850+/J1708+_L
9_up
GND_CAN
1_down
RELAY1_COMM
2_down
RELAY2_COMM
3_down
GND_AUD
4_down
FRONT_OUT_R
5_down
FRONT_OUT_L
6_down
RELAY1_NOPEN
7_down
RELAY2_NOPEN
8_down
MIC_OUT_R
9_down
MIC_OUT_L
R9
COM/CAN Port
COM/Optional CAN
Pin
Signals
Pin
Signals
1_up
J1850-/J1708-_L
2_up
GND_C/L
3_up
J1939+/L
4_up
K_LINE_L
5_up
CAN_L/J1939-_L
6_up
J1850-/J1708-_L
7_up
J1850+/J1708+_L
8_up
J1850+/J1708+_L
9_up
GND_CAN
1_down
RELAY1_COMM
2_down
RELAY2_COMM
3_down
GND_AUD
4_down
FRONT_OUT_R
5_down
FRONT_OUT_L
6_down
RELAY1_NOPEN
7_down
RELAY2_NOPEN
8_down
MIC_OUT_R
9_down
MIC_OUT_L

R3S User Manual
16
Motherboard Information
Block Diagram

R3S User Manual
17
Motherboard Layout
The motherboard layout shows the connectors and jumpers on the board. Refer to the following
picture as a reference for the pin assignments and the internal connectors.
Front

R3S User Manual
18

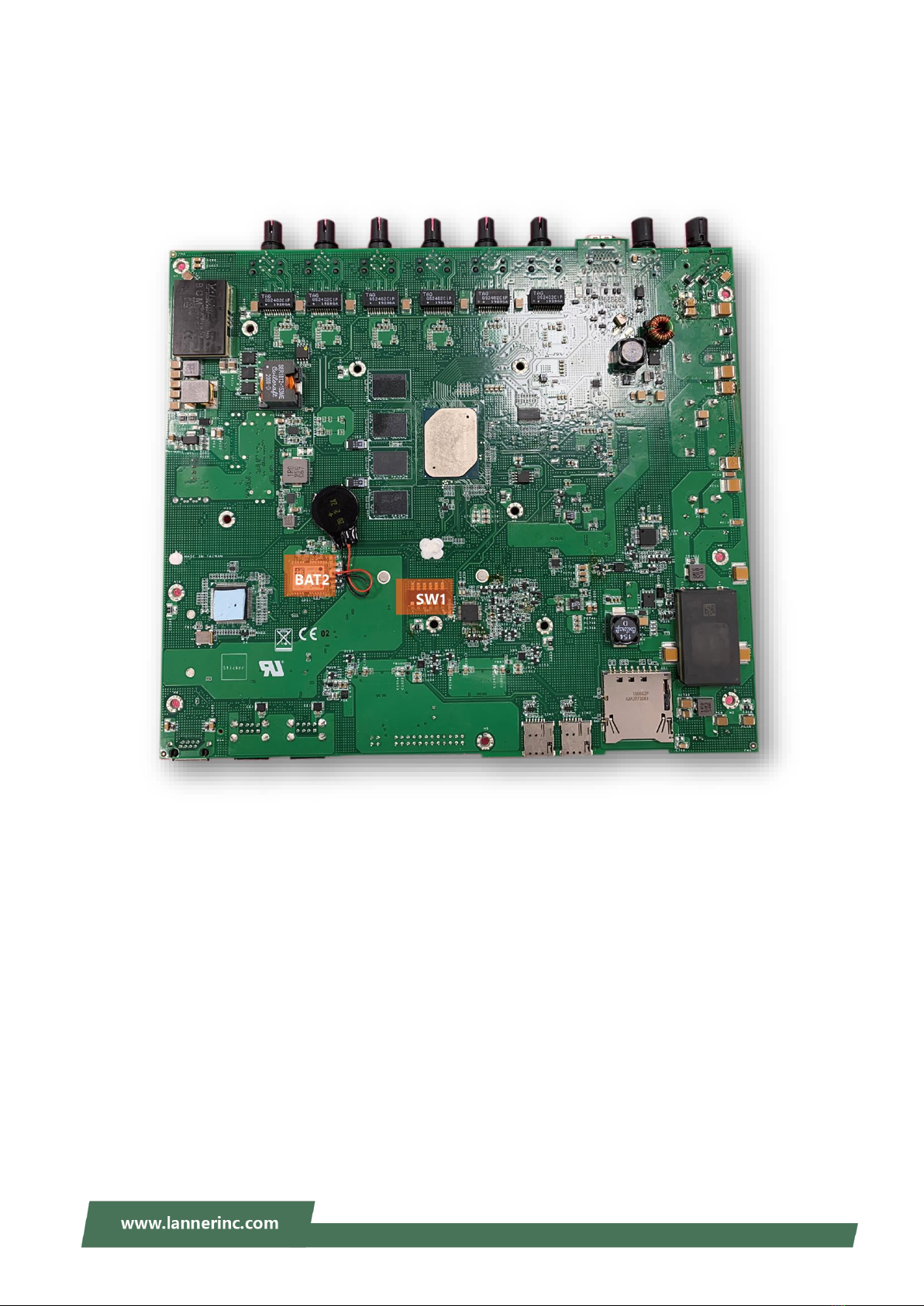

Back

R3S User Manual
19

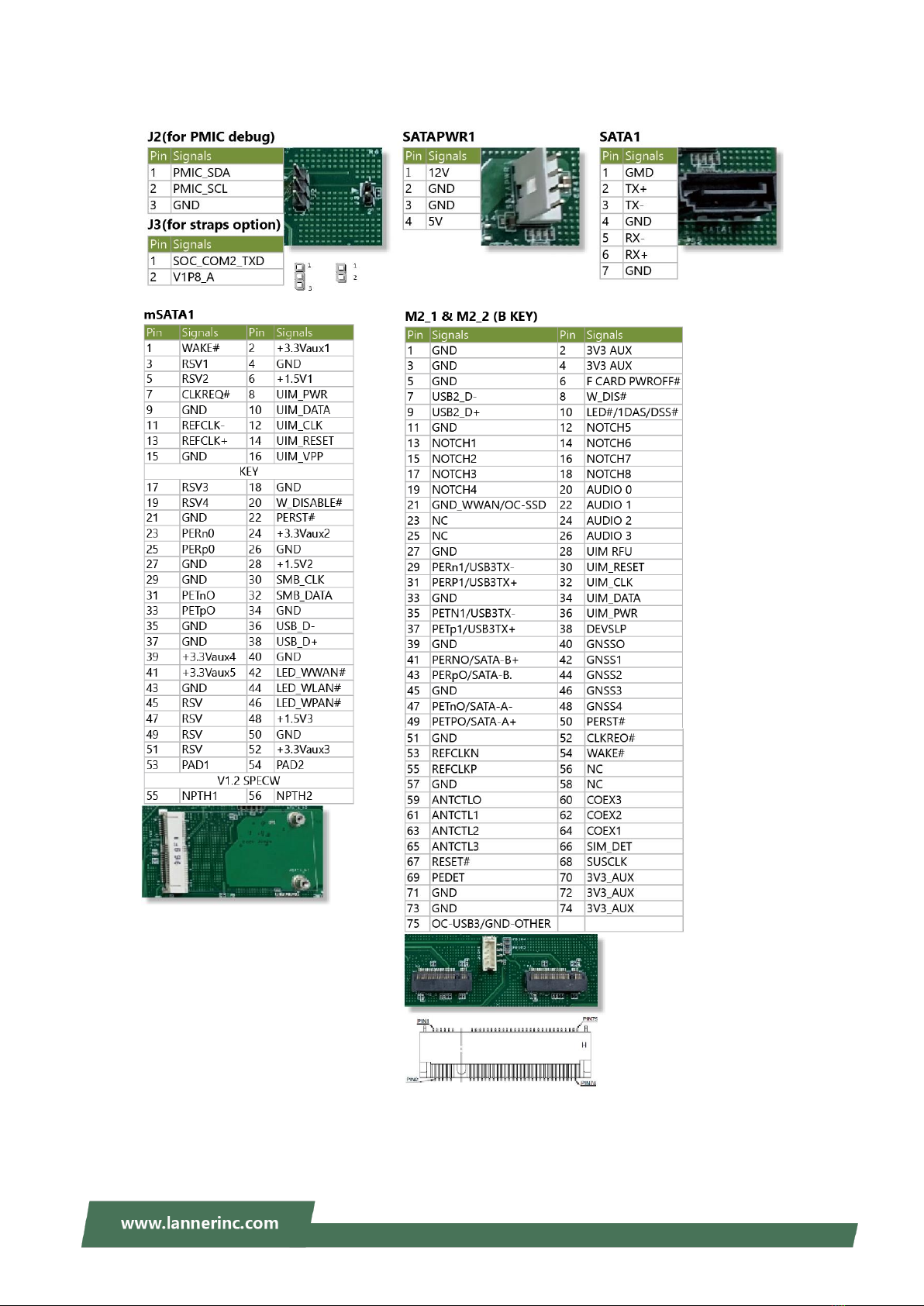

Jumper setting and Internal Connector

R3S User Manual
20
