V3S User Manual
1
V3S
User Manual
Version: 1.6
Date of Release: 2020-11-27
Vehicle Computing

2
Icon Descriptions
The icons are used in the manual to serve as an indication of interesting topics or important messages. Below
is a description of these icons:
Note: This mark indicates a note of interest and something that you should pay special attention
to while using the product.
Warning: This mark indicates that there is a caution or warning, and it is something that could
damage your property or product.
Online Resources
The listed websites are links to online product information and technical support.
Resources
URL
Lanner
http://www.lannerinc.com
Product Resource
http://www.lannerinc.com/download-
center
RMA
http://eRMA.lannerinc.com
Copyright and Trademarks
This document is copyrighted © 2020. All rights are reserved. The original manufacturer reserves the right
to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third parties that may result from such use.
Acknowledgment
Intel® , Intel ®Atom® are trademarks or registered trademarks of Intel Corporation or its subsidiaries in
the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.

V3S User Manual
3
Compliances and Certification
This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. To protect the product from being damaged
by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend using CE-compliant industrial
enclosure products.
This equipment has been tested and found to comply with the limits for a Class A digital device, according
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used following the instruction manual, may
cause harmful interference to radio communications. The operation of this equipment in a residential area
is likely to cause harmful interference, in which case the user will be required to correct the interference at
his own expense.
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, according
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used following the instruction manual, may
cause harmful interference to radio communications. The operation of this equipment in a residential area
is likely to cause harmful interference, in which case users will be required to correct the interference at their
own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and
roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or
removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.

4
Consignes de sécurité
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon
d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité de sources
d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.
Lithium Battery Caution
There is a risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation only by a skilled person who knows all Installation and Device Specifications which are to be
applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding the safe disposal of lithium batteries.
Removal of a battery into fire or a hot oven, or mechanically crushing or cutting a battery can result in
an explosion.
Leaving a battery in a too high temperature surrounding environment can result in an explosion or the
leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable
liquid or gas.
Avertissement concernant la pile au lithium
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité
connaissant toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.

V3S User Manual
5
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment
to acceptable operating temperatures without adequate circulation. Be sure that the room in which you
choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An
open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal
components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available,
ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10
megohms (Mohms).
Sécurité de fonctionnement
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour
refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée.
Vérifiez que votre site propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de
refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques.
Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent
causer des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et
du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps àla terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et
10 mégohms (Mohms).
Mounting Installation Precaution
Environment:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.

6
Installation of the equipment (especially in a rack) should consider the ventilation of the system’s intake
(for taking chilled air) and exhaust (for emitting hot air) openings so that the amount of airflow required
for the safe operation of the equipment is not compromised.
To avoid a hazardous load condition, be sure the mechanical loading is even when mounting.
Consideration should be given to the connection of the equipment to the supply circuit and the effect
that overloading of the circuits might have on over-current protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable earthing should be maintained. Particular attention should be given to provide connections
other than direct connections to the branch circuit (e.g., use of power strips).
Installation & Operation:
The installation of this product must be performed by trained specialists; otherwise, a non-specialist
might create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the system or use of inappropriate installation components.
Electrical Safety Instructions
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding)
is essential to protect the equipment against the harmful effects of external noise and to reduce the risk of
electrocution in the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after
turning off the power. A ground wire is required, and the part connecting the conductor must be greater
than four mm2 or 10 AWG.
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre
les effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.

V3S User Manual
7

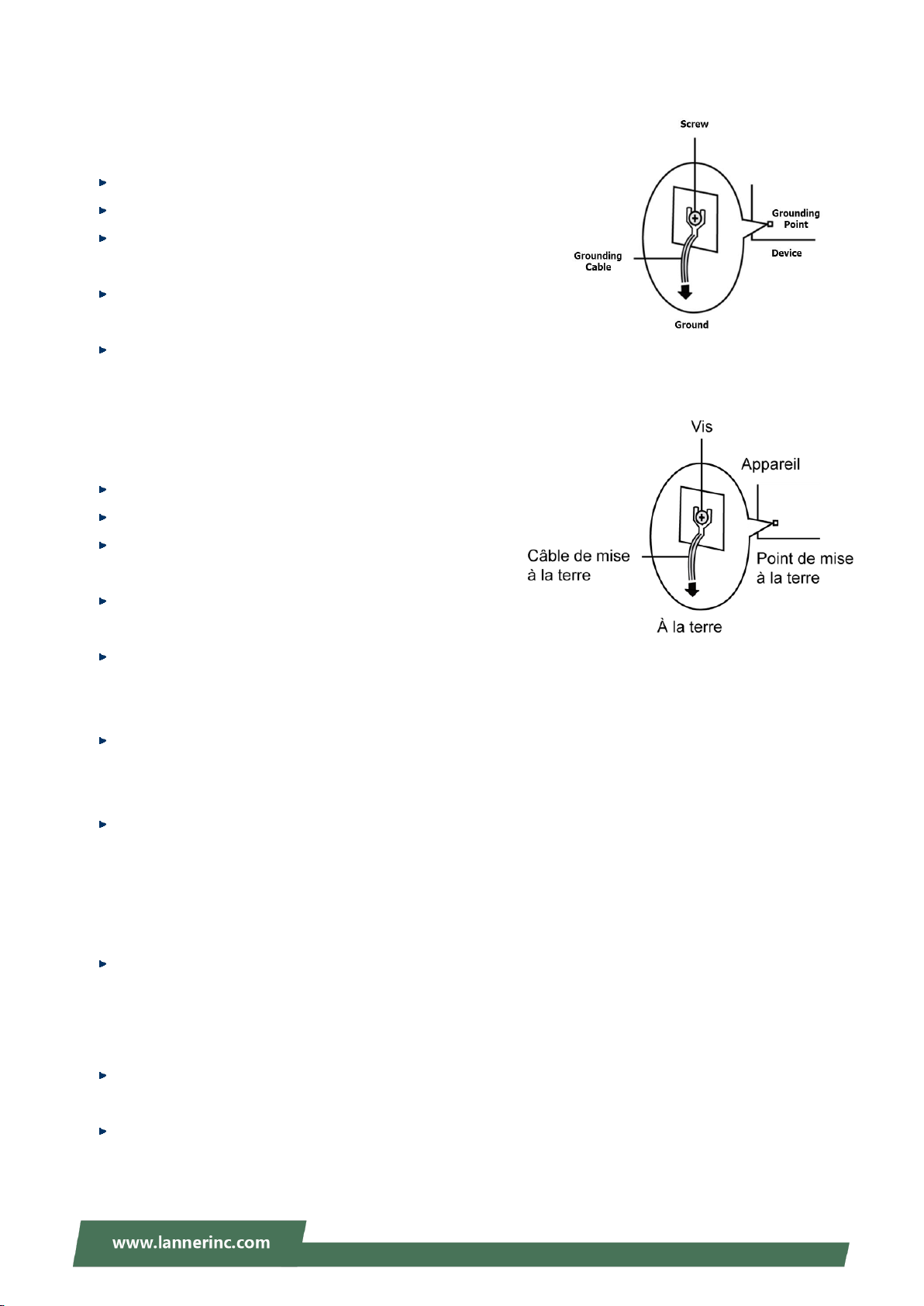

Grounding Procedure for Power
Source
Loosen the screw of the earthing point.
Connect the grounding cable to the ground.
The protection device for the power source must provide 30 A
current.
This protection device must be connected to the power source
before power.
The cable should 16 AWG
Procédure de mise à la terre
pour source d’alimentation
Desserrez la vis du terminal de mise à la terre.
Branchez le câble de mise à la terre àla terre.
L’appareil de protection pour la source d’alimentation doit
fournir 30 A de courant.
Cet appareil de protection doit être branché à la source
d’alimentation avant l’alimentation.
Le câble doit 16 AWG
This equipment must be grounded.
Cet équipement doit être mis à la terre.
Suitable for installation in Information Technology Rooms by Article 645 of the National Electrical Code
and NFPA 75.
Peut être installédans des salles de matériel de traitement de l'information conformément àl'article 645
du National Electrical Code et àla NFPA 75.
The machine can only be used in a restricted access location and has installation instructions by a skilled
person.
Les matériels sont destinés àêtre installés dans des EMPLACEMENTS À ACCÈS RESTREINT.
This equipment is for INDOOR USE ONLY.
This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 9-36Vdc,
14-4A minimum, Tma = 70 degrees C, and the altitude of operation = 5000m.

8
Table of Contents
Package Content.........................................................................................................................10
Ordering Information .................................................................................................................11
System Specifications.................................................................................................................12
Front Panel .................................................................................................................................13

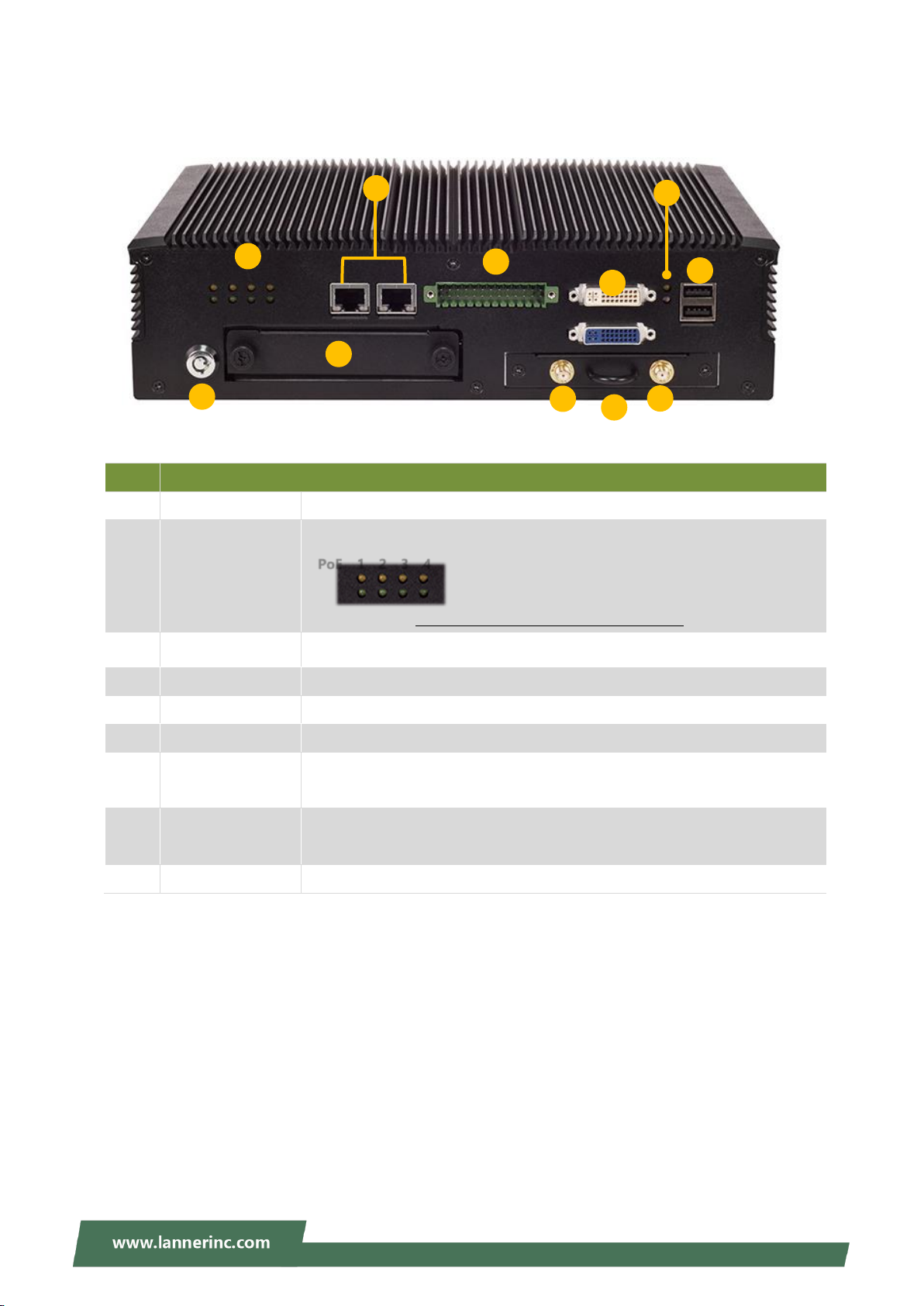

Rear Panel...................................................................................................................................14
Block Diagram.............................................................................................................................15
Motherboard Layout ..................................................................................................................16

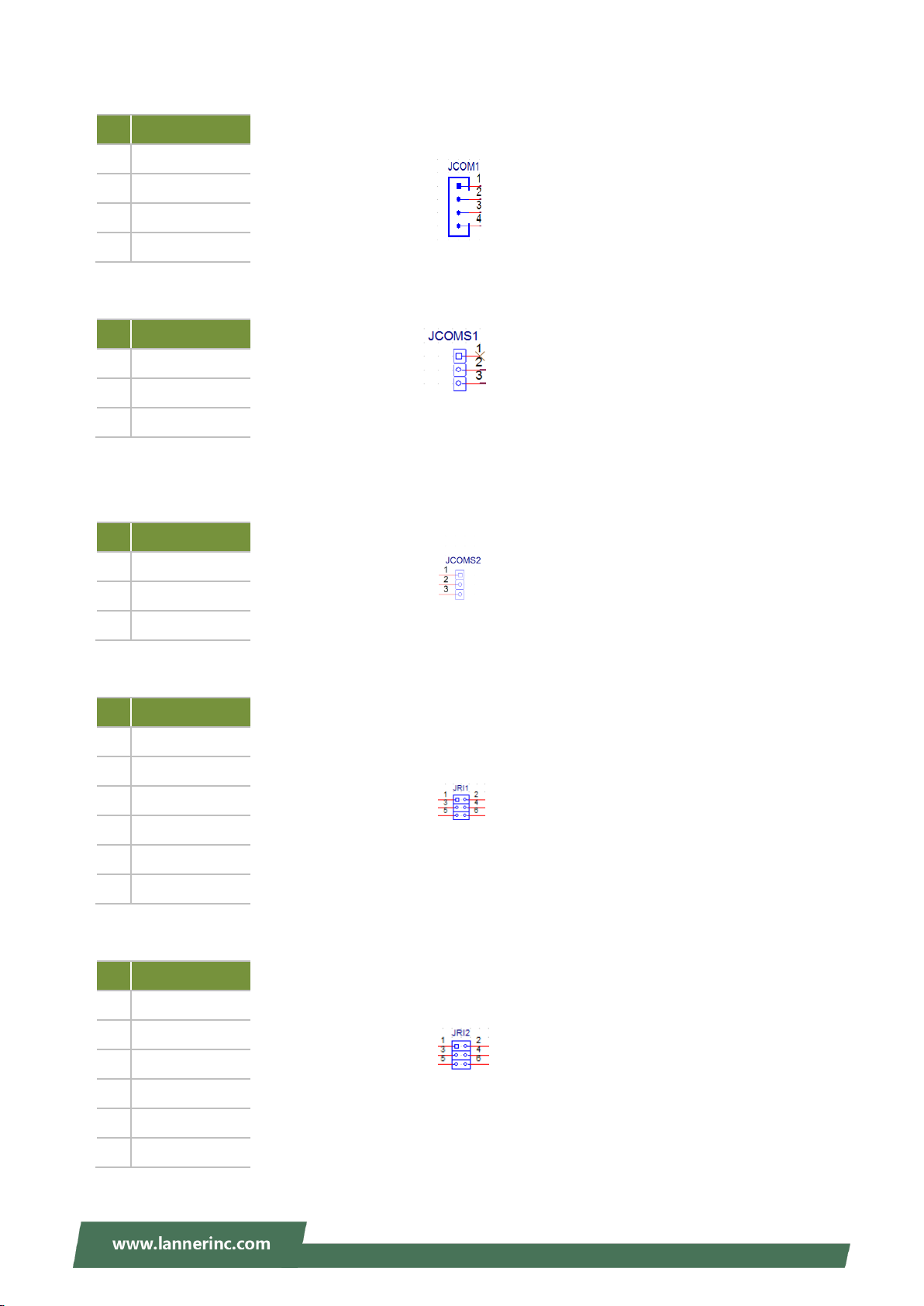

Internal Jumpers & Connectors..................................................................................................17
Enter BIOS Setup ........................................................................................................................23
Advanced....................................................................................................................................25
Chipset........................................................................................................................................41
Security.......................................................................................................................................49
Boot Menu..................................................................................................................................52
Save and Exit Menu ....................................................................................................................53
Wall Mounting............................................................................................................................56
Open the Chassis ........................................................................................................................58
Remove Partition........................................................................................................................59
Install System Memory...............................................................................................................60
Install Mini PCIE Module and MSATA.........................................................................................61

V3S User Manual
9
Warranty Policy ..........................................................................................................................68
RMA Service................................................................................................................................68
RMA Service Request Form........................................................................................................69

10

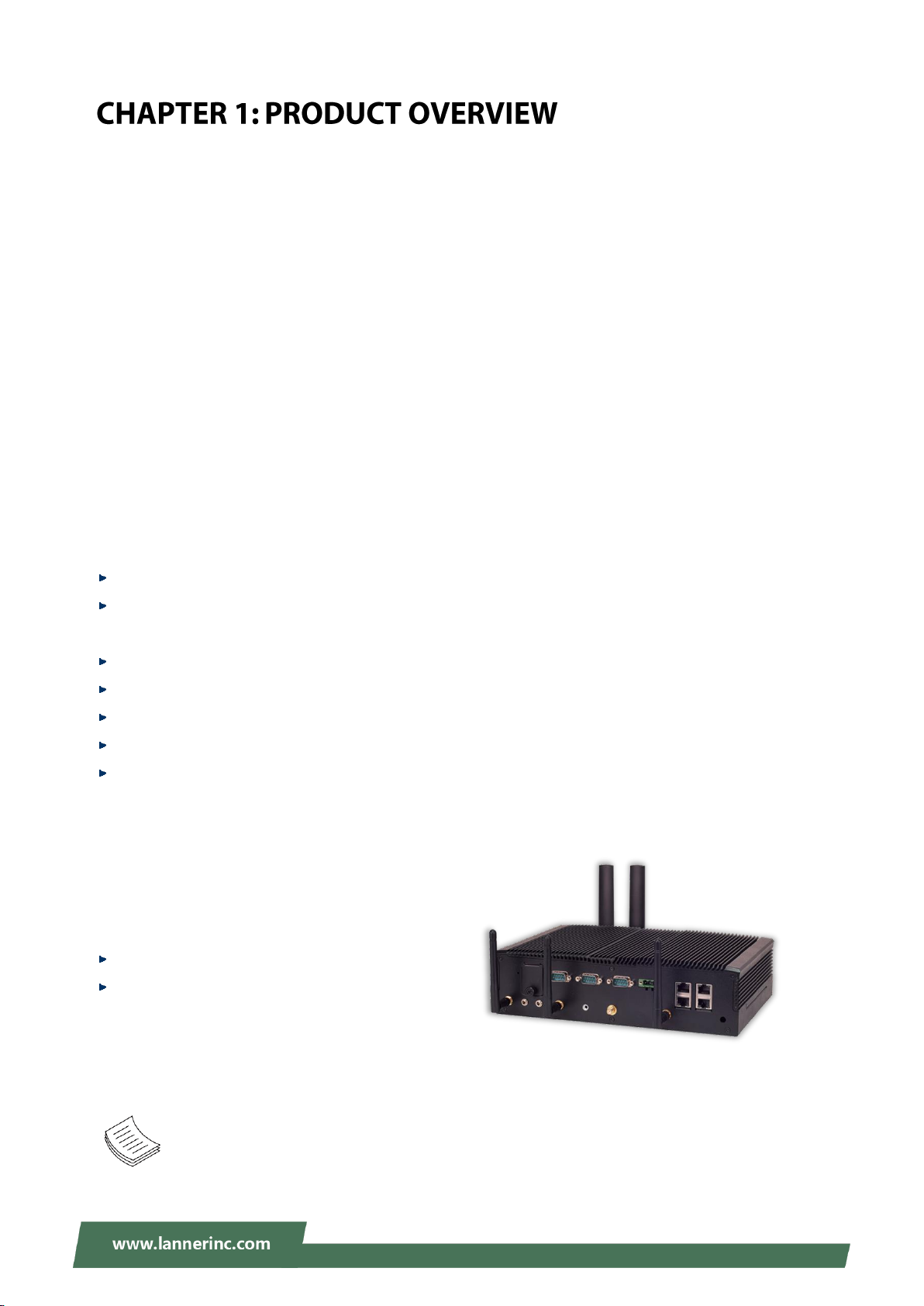

The V3S is targeted for video surveillance, recording, and analytics. As a fanless NVR system, V3S features
next-generation Intel® x86 SoC, rich I/O functionality, and environmental endurance, making it highly
applicable in smart bus surveillance.
V3S features the new generation 14 nm Intel® Atom™ x7-E3950 SoC (formerly Apollo Lake). This processor
consumes a low volume of power and offers a performance upgrade for advanced computing needs from
the previous generation of Atom™ processors.
V3S boasts an abundance of I/O peripheral connectivity, including 2 x serial COM ports, 2x video output by
DVI-D, USB and Digital I/O ports, 6x RJ-45 ports (4 with PoE), and removable SATA storage bay. To enable
wireless network connectivity, V3S offers two mini-PCIe sockets with a swappable dual SIM slot supporting
3G/4G/LTE cellular communications and optional removable PGN Caddy with dual SIM card readers. Also,
the compact system comes with CAN bus for video analysis.
Intel® Atom™ x7-E3950 Processor (Codenamed Apollo Lake)
Video Surveillance NVR with 6x RJ-45 ports (4 with PoE/PoE+), DIO, CAN bus port, Dual COM and DVI-D
ports
1x removable PGN Caddy with dual SIM card readers for 4G LTE module
Wide range operating temperature from -40 to 70°C
Removable 2.5” Drive Bay for HDD/SSD
1x Full-Size Mini-PCIe with dual SIM card reader, 1x Half Size Mini- PCIe
Compliant with E13 standard
Package Content
Your package contains the following items:
1xV3S Computer
1x Pack of Screws
Note: If you should find any components missing or damaged, please contact your dealer
immediately for assistance.

V3S User Manual
11
Ordering Information
SKU No.
Description
V3SA
Fanless In-vehicle Surveillance Computer with Intel® Atom™ x7-E3950 Processor,
IEEE 802.3af PoE ports RJ45 x4
V3SB
Fanless In-vehicle Surveillance Computer with Intel® Atom™ x7-E3950 Processor,
IEEE 802.3af PoE/ at PoE+ ports RJ45 x4
PGN-300
4G LTE Radio Modem with LTE Cat-6 embedded module
PGN-600
4G LTE-Advanced Pro Radio Modem with LTE Cat-12 embedded module, certified
with PTCRB, AT&T

12
System Specifications
Processor System
CPU
Intel® Atom™ x7-E3950
Frequency
1.60 GHz
Core Number
4C
Chipset
N/A
Fanless
Yes
Memory
Technology
1x DDR3L 1866 SO-DIMM Socket
Max. Capacity
Up to 8GB
Socket
1x 204-pin SODIMM
Graphic
Graphic Processor
Intel® Integrated HD Graphics 505
Audio
Codec
Realtek ALC886 HD codec
Interface
Mic-in and Line-out
Ethernet
Controller
2x Intel® i210 IT+ 1x Intel® i210 IS
PoE
4x IEEE 802.3 af PoE / at POE+ ports
Interface
RJ45
Storage
Type
SATA
Installation
1x Removable 2.5” drive bay1 (HDD/SSD not included)
Type
mSATA
Installation
1x mSATA socket
I/O
Display
2x DVI-D, resolution up to 1920x1200
LAN
6x RJ-45 ports (4 with PoE)
CAN
CAN Bus J1939/ J1708
COM
2x RS-232/422/485
USB
2x USB 2.0 Type A
GPS/G-sensor
u-blox NEO-M8N/ADXL 345
Digital I/O
8x DI 5V TTL and 8x DO 12V TTL
2x DI (from MCU) 3.3V TTL
1x 12V with 1A dry relay
Antenna
7x SMA antenna hole (with 1x GPS+GLONASS)
Expansion Interface
Mini-PCIe
1x Full-Size Mini-PCIe with dual SIM card reader
1x Half-Size Mini-PCIe
1x Optional removable PGN Caddy with dual SIM card readers
Cooling
Processor
Passive CPU heatsink
System
Fanless design with corrugated aluminum
Power
Connector
3-pin terminal block ( +,-,ignition)
Input
Supports DC 9~36V level
Environment
Operating Temperature
-40~70°C / -40~158°F optional support POE+ x2
-40~60°C / -40~140°F optional support POE+ x3
-40~50°C / -40~158°F optional support POE+ x4
Storage Temperature
-40~85°C / -40~185°F
Relative Humidity
5%~95% @ 40°C / 104°F (Storage Level)
Mechanical
Dimension (W x H x D)
273.8 x 73 x 185 mm (10.78” x 2.87” x 7.28”)
Weight
4 kg
Mounting
Wallmount
Driver Support
Microsoft Windows
Windows 10
Linux
Linux: Redhat Enterprise 5, Fedora 14. Linux Kernel 2.6.18 or later
Certification
EMC
CE Class A, FCC Class A, RoHS
Safety
E13 include ISO 7637-2
Compliance
Vibration
MIL-STD-810G, Method 514.6
Shock
MIL-STD-810G, Method 516.6

V3S User Manual
13
Front Panel
No.
Description
F1
Key Lock
For extra protection of the data on the hard disk
F2
LED Indicators
(PoE Ports)
Indicating the status of 4x PoE port
(Please refer to Appendix A: LED Indicator Explanations)
F3
GbE Ports
2x RJ45 port with LED indicators
F4
Storage Bay
1x removable 2.5”HDD/ SSD bay
F5
MIO Port
8x DI@5V; 8x DO @12V; 2x DI from MCU @ 3.3V
F6
DVI-D Port
2x DVI-D Port
F7
Module Slot
(Antenna Port)
Removable PGN Module Slot supporting Dual SIM and 2x Antenna Hole
with dust cover
F8
System Status
LED Indicator
1 for System Power, 1 for HDD Status
F9
USB Port
2x USB2.0 Type A
F8
F2
F1
F4
F7
F6
F5
F3
F9
R1
R1
PoE 1 2 3 4

14
Rear Panel
No.
Description
R1
Antenna Port
5x Antenna Port
From left to right: WiFi WiFiGPS WiFi WiFi
R2
Reset Button
Press to reset the system
R3
Dual SIM Socket
For 2x SIM cards
R4
CAN Bus Port
1x DB9 Male connector for CAN Bus
R5
COM Port
2x DB9 Male Connector for RS232/422/485
R6
DC Input
For the external power source, +9V~36VDC, three-pin terminal block
R7
PoE Port
4x PoE/ PoE+ Port
R8
Phone Jacks
1xMic-in & 1x Line out jack
Note: The external antenna (along with a female SMA connector an inner cable) is optional.
R4
R7
R5
R6
R1
R2
R1
R1
R1
R1
R3
GPS
Wifi
Wifi
Wifi
Wifi
4G
4G
(With Antennas installed)
R8
PoE1
+
PoE3
PoE4
Mic-in Line-out
IG
-

V3S User Manual
15
Block Diagram
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.

16

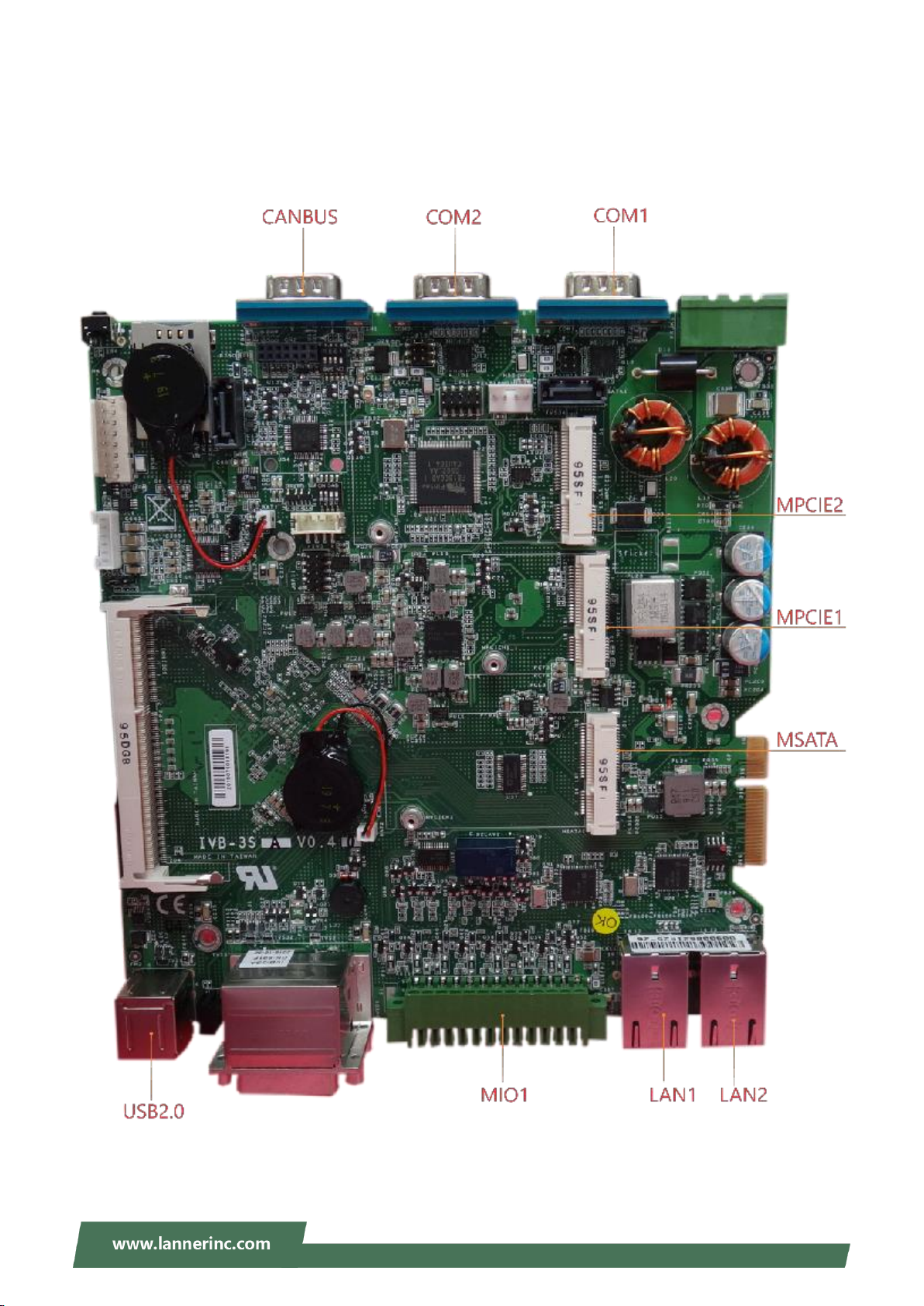

Motherboard Layout
This layout shows the connectors and jumpers on the board regarding the pin assignments and the internal
connectors.

V3S User Manual
17
Internal Jumpers & Connectors
▲CAN1
Pin
Signal
1
J1850-/J1708-
2
GND_COM
3
CAN_H/J1939+
4
K_LINE
5
CAN_L/J1939-
6
J1850-/J1708-
7
J1850+/J1708+
8
J1850+/J1708+
9
BAT_12V_24V
▲PRJK1:(+9V~36V)
Pin
Signal
1
IGNITION
2
GND_IGNI
3
DC_VIN
▲SW2
Pin
Signal
Function
1
ON (Default)
For detection of power status
2
OFF
Enabling low power detection
3
OFF
Enabling Watchdog
4
OFF
For MCU programming
▲SW3
Pin
Signal
1 ON (Default)
SOUT3
2 ON (Default)
SIN3
3 OFF
NXP_RXD
4 OFF
NXP_TXD

18
▲JCOM1
Pin
Signal
1
IGN3V3_SB
2
NXP_RXD
3
GND
4
NXP_TXD
▲JCOMS1
Pin
Signal
1
NC
2
VCCRTC_3P3
3
GND
▲JCOMS2
Pin
Signal
1
NC
2
RTEST_N
3
GND
▲JRI1 1-2 (Default) COM1
Pin
Signal
1
COM_RI1#_P
2
COM_RI1#_SEL
3
V5_S
4
COM_RI1#_SEL
5
V12_S
6
COM_RI1#_SEL
▲JRI2 1-2 (Default) COM2
Pin
Signal
1
COM_RI2#_P
2
COM_RI2#_SEL
3
V5_S
4
COM_RI2#_SEL
5
V12_S
6
COM_RI2#_SEL

V3S User Manual
19

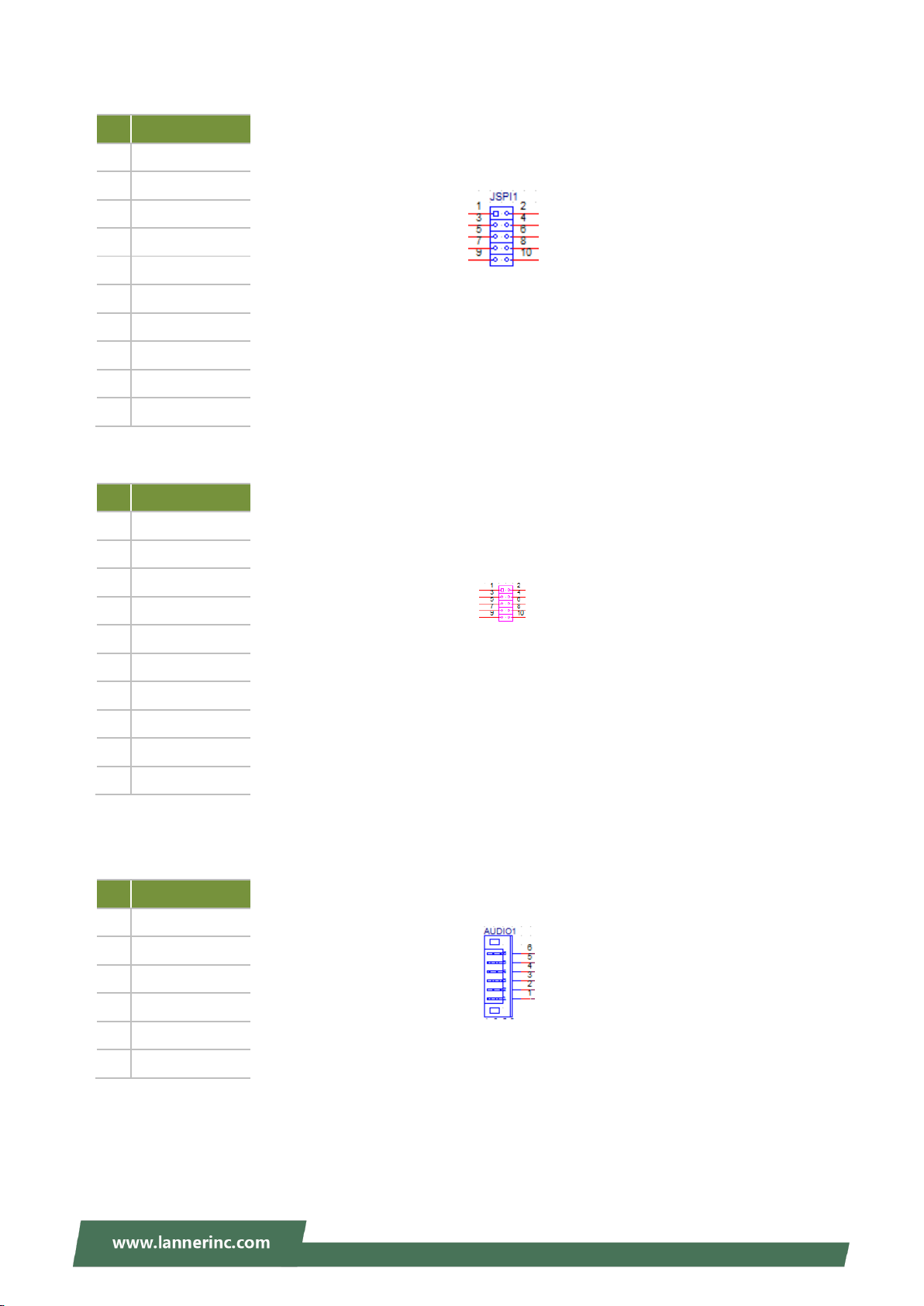

▲JSPI1
Pin
Signal
1
SPI0_HOLD_N
2
N/A
3
SPI0_CS_N
4
V1P8_A_SPI
5
SPI0_MISO_R
6
N/A
7
N/A
8
SPI0_CLK
9
GND
10
SPI0_MOSI
▲LPC1
Pin
Signal
1
L_CLKOUT1
2
LPC_AD1
3
PLTRST_BUF2_N
4
LPC_AD0
5
LPC_FRAME#
6
V3P3_S
7
LPC_AD3
8
GND
9
LPC_AD2
10
GND
▲AUDIO1
Pin
Signal
1
MIC_OUT_R
2
MIC_OUT_L
3
GND_AUD
4
GND_AUD
5
AMPOUT_R
6
AMPOUT_L

20
▲COM1
Pin
Signal
1
COM_DCD1#_P
2
COM_RXD1_P
3
COM_TXD1_P
4
COM_DTR1#_P
5
GND
6
COM_DSR1#_P
7
COM_RTS1#_P
8
COM_CTS1#_P
9
COM_RI1#_SEL
▲COM2
Pin
Signal
1
COM_DCD2#_P
2
COM_RXD2_P
3
COM_TXD2_P
4
COM_DTR2#_P
5
GND
6
COM_DSR2#_P
7
COM_RTS2#_P
8
COM_CTS2#_P
9
COM_RI2#_SEL
▲MIO1
Pin
Signal
Pin
Signal
1
GND
2
V12_S
3
IGN_DI0
4
IGN_DI1
5
NXP_TXD
6
NXP_RXD
7
DI_0
8
DO_0
9
DI_1
10
DO_1
11
DI_2
12
DO_2
13
DI_3
14
DO_3
15
RELAY1_NOPEN
16
RELAY1_COMM
17
GND
18
N/A
19
DI_4
20
DO_4
21
DI_5
22
DO_5
23
DI_6
24
DO_6
25
DI_7
26
DO_7
