Lanner R3S User manual

R3S User Manual
1
R3S
User Manual
Version: 1.5
Date of Release: 2022-05-09
Vehicle Computing

R3S User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you need
to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system integrators, or
service personnel and technicians.
The icons are used in the manual to serve as an indication of interest topics or important messages. Below is a
description of these icons:
Note or Information: This mark indicates that there is a note of interest and is something that you
should pay special attention to while using the product.
Warning or Important: This mark indicates that there is a caution or warning and it is something
that could damage your property or product.
To obtain additional documentation resources and software updates for your system, please visit the Lanner
Download Center. For certain categories of documents, please register for a Lanner Account at Lanner’s official
website, in order to access published documents and downloadable resources.
In addition to contacting your distributor or sales representative, you could visit our Lanner Technical Support,
to fill in a support ticket to our technical support department.
This document is copyrighted © 2022. All rights are reserved. The original manufacturer reserves the right to
make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use,
nor for any infringements upon the rights of third parties that may result from such use.
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email to
[email protected]m. Thank you for your time.

R3S User Manual
3
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

R3S User Manual
4
Intel® and Intel® AtomTM are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other
countries. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note
1. An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference
to the nearby radio and television reception. It is essential that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Important
1. Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
2. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

R3S User Manual
5
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll
up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or removing
a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon d’alimentation
avant d’installer ou de retirer un châssis ou de travailler à proximité de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.
There is risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation only by a skilled person who knows all Installation and Device Specifications which are to be
applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium BATTERY.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an
explosion.
Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or
the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable
liquid or gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité connaissant
toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.

R3S User Manual
6
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to
acceptable operating temperatures without adequate circulation. Be sure that the room in which you choose
to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open
chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when
electronic components are improperly handled and can result in complete or intermittent failures. Be sure to
follow ESD-prevention procedures when removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available,
ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms
(Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour
refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez
que votre site propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement
de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais
destiné aux composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques.
Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer
des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du
remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps àla terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10
mégohms (Mohms).
Mounting Installation Precaution
The following should be put into consideration for rackmount or similar mounting installations:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
The installation of this product must be performed by trained specialists; otherwise, a non-specialist might
create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the system or use of inappropriate installation components.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should
be given to installing the equipment in an environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow
required for safe operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this
concern.

R3S User Manual
7
Reliable Grounding - Reliable grounding of rack mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit (e.g.
use of power strips).
Installation & Operation :
This equipment must be grounded. The power cord for product should be connected to a socket-outlet with
earthing connection.
Cet équipement doit être mis à la terre. La fiche d'alimentation doit être connectée à une prise de terre
correctement câblée
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National
Electrical Code and NFPA 75.
Peut être installé dans des salles de matériel de traitement de l'information conformément àl'article 645 du
National Electrical Code et à la NFPA 75.
The machine can only be used in a restricted access location and must be installed by a skilled person.
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT.
This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 12-24Vdc, 17.5-
8A minimum, Tma = 70°C, and the altitude of operation = 5000m.
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is
very important to protect the equipment against the harmful effects of external noise and to reduce the risk of
electrocution in the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after
turning off the power. A ground wire is required and the part connecting the conductor must be greater than
4 mm2 or 10 AWG.
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre les
effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4 mm2
ou 10 AWG.

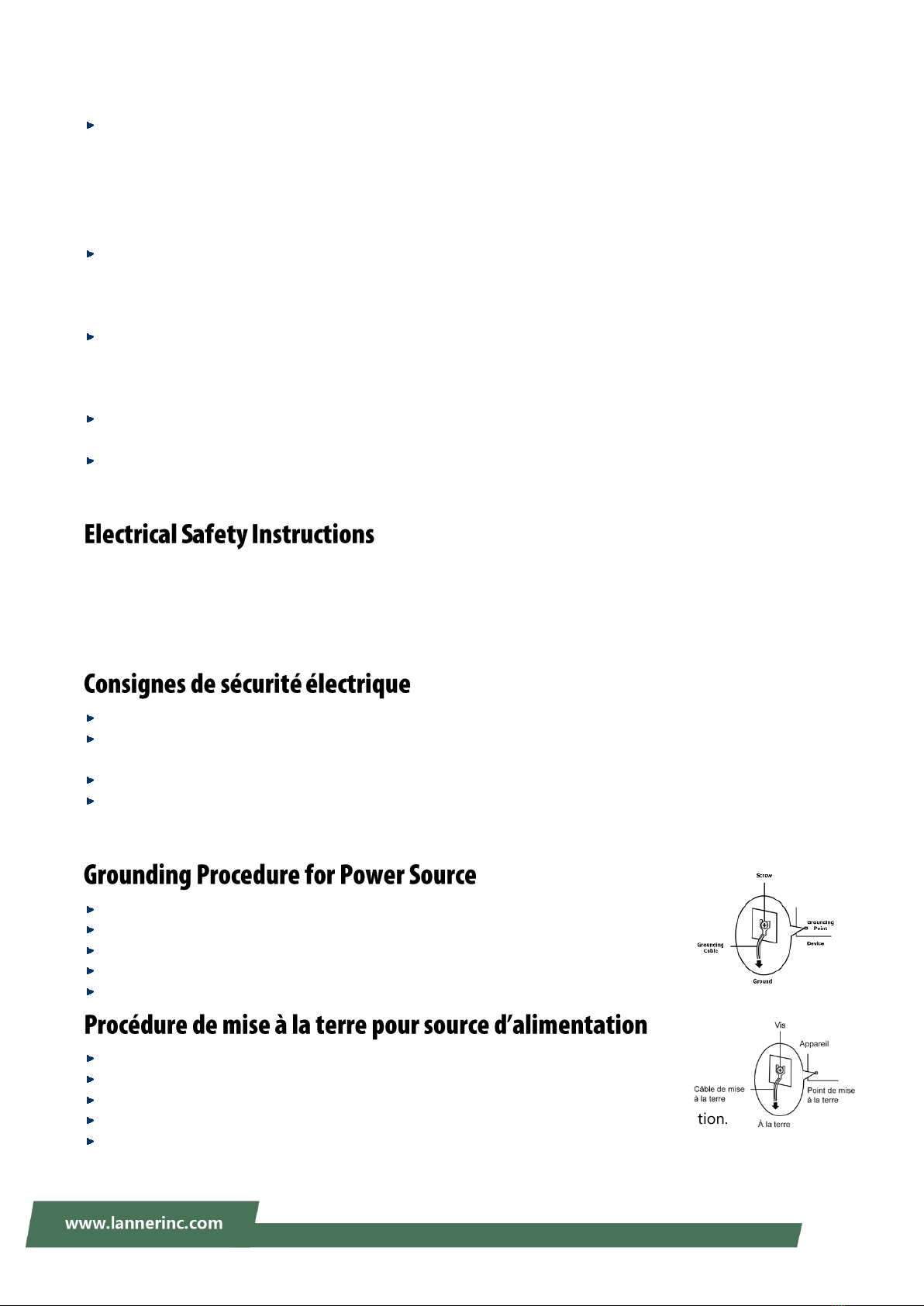

Loosen the screw of the earthing point.
Connect the grounding cable to the ground.
The protection device for the power source must provide 30 A current.
This protection device must be connected to the power source before power.
The cable hould 16 AWG
Desserrez la vis du terminal de mise àla terre.
Branchez le câble de mise à la terre à la terre.
L’appareil de protection pour la source d’alimentation doit fournir 30 A de courant.
Cet appareil de protection doit être branché à la source d’alimentation avant l’alimentation.
Le câble doit 16 AWG

R3S User Manual
8
Package Content............................................................................................................................. 10
Ordering Information ..................................................................................................................... 10
System Specifications..................................................................................................................... 11
Front Panel ..................................................................................................................................... 13
Rear Panel ...................................................................................................................................... 14
Motherboard Information.............................................................................................................. 16
Open the Chassis............................................................................................................................ 24
Installing the M.2 LTE Module ....................................................................................................... 25
Hard Disk Installation ..................................................................................................................... 26
BIOS Setup...................................................................................................................................... 27
Advanced Page............................................................................................................................... 29
IntelRCSetup................................................................................................................................... 44
Security........................................................................................................................................... 48
Boot Menu...................................................................................................................................... 49
Save and Exit Menu........................................................................................................................ 50
Connecting the Devices.................................................................................................................. 53
Power States Cycle Diagram .......................................................................................................... 54

R3S User Manual
9
Using the Ignition System Manager (ISM) ..................................................................................... 55
Warranty Policy.............................................................................................................................. 57

R3S User Manual
10
Built for rolling stock setting, the R3S series is certified with EN50155, EN50121-3-2, EN50121-4, EN50125-3
and EN45545 standard as an IP50 rated fanless rolling stock computer. R3S not only features high-
performance Intel Atom x7-E3950 CPU, but also boasts an abundance of I/O and internal expansion
capabilities, including 6x M12 X-coded PoE/ PoE+ ports, 1x Removable 2.5” drive bay, 2x COM, dual
HDMI, 4x USB 2.0 and 4x DI/DO ports, making it perfect for rolling stock control and monitoring,
infotainment, video surveillance and fleet management.
Your package contains the following items:
1x R3S Vehicle and Railway Computer
Note: If you should find any components missing or damaged, please contact your dealer
immediately for assistance.
SKU No.
Description
R3SB
Intel Atom™ x7-E3950 Processor, 6x M12 X-coded IEEE 802.3af PoE port (any 3 ports
support IEEE 802.3at PoE+), 2x M.2 3042 B key socket with dual SIM each, DC 24~36V
power input
R3SC
Intel Atom™ x7-E3950 Processor ,6x M12 X-coded IEEE 802.3af PoE port (any 3 ports
support IEEE 802.3at PoE+) 2x M.2 3042 B key socket with dual SIM each, DC
72~110V power input

R3S User Manual
11
Platform
CPU
Intel Apollo Lake x7-E3950 1.6G 12W
Frequency
1.6 GHz
BIOS
AMI SPI Flash BIOS
Chipset
SoC
Fanless
Yes
Memory
Technology
LPDDR4 2133MHz
Max. Capacity
Up to 8GB (Factory default: 8GB pre-populated)
Socket
Memory Down
Ethernet
Controller
6x Intel i210IT
Speed
10/100/1000 Mbps
PoE
IEEE 802.3af/IEEE 802.3at; under maximum 90W power budget
Interface
M12 X-coded
Storage
Type
1x Removable 2.5” drive bay (HDD/SSD not included)
1x SDXC Slot
I/O
Display
2x HDMI, 3840x2160 resolution
LAN
N/A
PoE
6x IEEE 802.3af standard PoE (any 3 ports support IEEE
802.3at PoE+); under maximum 90W power budget
Audio
Mic-in and Line-out with 2-watt by HD Audio
Serial I/O
COM1: RS-232/422/485; COM2: RS-232/422/485
COM3: RS-232/CAN (default RS-232 TX/RX only)
GPS
u-blox NEO-M8N; 3 GNSS (GPS, Galileo, GLONASS, BeiDou),
default @ GPS + GLONASS dual band
G-sensor
ADXL 345
CAN
Optional 1x CAN Bus J1939 / J1708
Digital I/O
12x DI 12V TTL Selectable and 4x DO 12V Level TTL,
2x 12V with 1A dry relay
USB
4x USB 2.0 Type A
Antenna
5x SMA antenna hole (includes GPS+GLONASS x1)
Expansion Interface
PCIe/USB
M.2 3042 B Key x2
Cooling
Processor
Passive CPU heatsink
System
Fanless design with corrugated aluminum
Power
Connector
5-pin M12 K-coded (Ground, DC_IN, Ground, IGN, Chassis
Ground)
Input
R3SB: Input Rated: 24~36Vdc, ATX mode support ignition delay
on/ off control;
R3SC: Input Rated: 72~110Vdc, ATX mode support ignition
delay on/ off control;
Output
12V/1A DC out
Environment
Operating Temperature
-40~70°C / -40~158°F (85°C for 10 minutes)
Storage Temperature
-40~85°C / -40~185°F
Relative Humidity
5%~95% @ 40°C / 104°F (Storage Level)
Mechanical
Dimension (W x H x D)
272.4 x 114.3 x 228mm (10.72” x 4.5” x 8.97”)
Weight
7 kg
Mounting
Wall mount kit

R3S User Manual
12
Driver Support
Microsoft Windows
Win10 IoT
Linux
Redhat Enterprise 5, Fedora 14. Linux Kernel 2.6.18 or later
Certification
EMC
FCC/CE Class A, RoHS
Safety
E-13 include ISO-7637-2
Certified
IP rated 50, MIL-STD-810G, EN50155, EN50121-3-2, EN50121-
4, EN50125-3, EN 45545
Miscellaneous
Hardware
Fintek F81866AD-I integrated watchdog timer
Internal RTC with Li
Battery
Yes

R3S User Manual
13
No.
Description
F1
System Status LED
Indicator
F2
USB 2.0 Port
4x USB 2.0 Type A
F3
Console Port
1x RS-232 (RJ45 connector)
Pin
Signals
Pin
Signals
1
COM_RTS1#
2
COM_DTR1#
3
COM_SOUT1
4
GND_COM
5
GND_COM
6
COM_SIN1
7
COM_DSR1#
8
COM_CTS1#
F4
SDXC/SIM
Cover
4x SIM card slot
1x SDXC memory card slot
F5
Storage Lock
Lock for removable 2.5” storage caddy
F6
Antenna Port
F7
Storage Bay
1x SATA interface storage bay to support removable 2.5” HDD/SSD drive
bay
HDD Status
System Status
System Power
Status
F3
F6
F5
F4
F1
F2
F7
WiFi Antenna
tenna
LTE Antenna

R3S User Manual
14
No.
Description
R1
PoE Port
6x M12 X-coded 8-pin PoE/ PoE+ Port
Pin
Signals
Pin
Signals
1
LANx*_MX0P
2
LANx*_MX0N
3
LANx*_MX1P
4
LANx*_MX1N
5
LANx*_MX3P
6
LANx*_MX3N
7
LANx*_MX2N
8
LANx*_MX2P
R2
DC Input
1x M12 K-coded 5-pin for power source,
(Ground, DC_IN, Ground, IGN, Chassis Ground)
R3SB: Input Rated: 24~36Vdc,
R3SC: Input Rated: 72~110Vdc
Pin
Signals
Pin
Signals
1
GND
2
DC-VIN
3
MCU_PG
4
IGN_IN
5(PE)
Chassis_GND
R3
DC Output
1x M12 A-coded 5-pin for DC 12V power output
Pin
Signals
Pin
Signals
1
12V_Output
2
FORWARD
3
SPEED
4
12V_GND
5
GPS_GND
R4
HDMI Port
2x HDMI Connector
R5
Antenna Port
(GPS+GLONASS default)
1x 3 GNSS (GPS, Galileo, GLONASS, BeiDou) antenna support (G-
sensor has no antenna needed)
R4
ˋ
ˇ
R5
R2
R3
ˇ
R1
R8
Grounding Point:
For safety measures to help prevent people from
accidentally coming in contact with electrical hazards.
R6
R9
R7

R3S User Manual
15

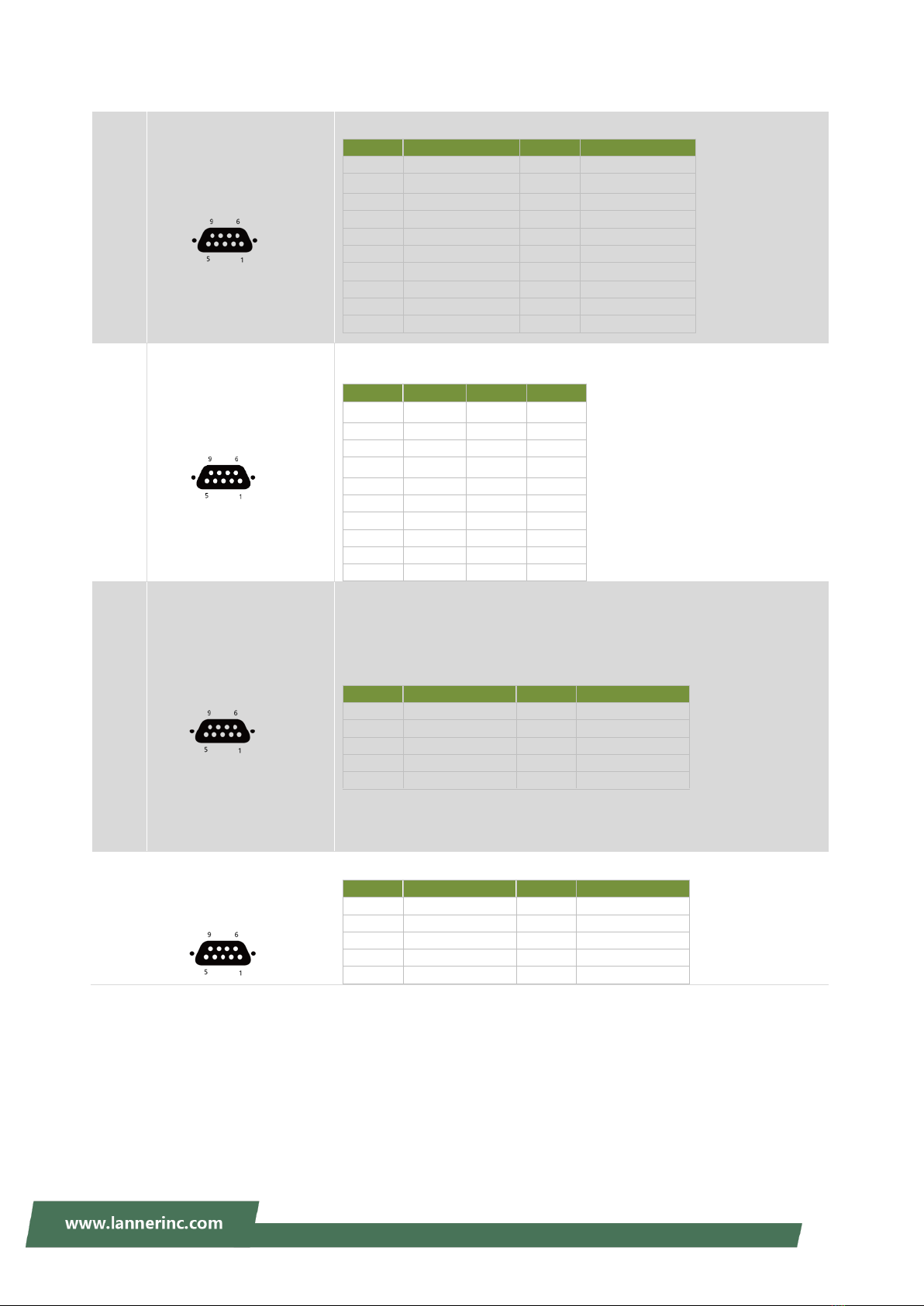

R6
COM Port
2x DB9 Male Connector for RS232/422/485
Pin
Signals
Pin
Signals
1_up
COM2_C_DCD_TN
2_up
COM2_C_RXD_TP
3_up
COM2_C_TXD_RP
4_up
COM2_C_DTR_RN
5_up
GND_COM
6_up
COM2_C_DSR
7_up
COM2_C_RTS
8_up
COM2_C_CTS
9_up
COM2_C_RI
1_down
COM3_C_DCD_TN
2_down
COM3_C_RXD_TP
3_down
COM3_C_TXD_RP
4_down
COM3_C_DTR_RN
5_down
GND_COM
6_down
COM3_C_DSR
7_down
COM3_C_RTS
8_down
COM3_C_CTS
9_down
COM3_C_RI
R7
DI/DO Port
12x DI 12V TTL selectable, 4x DO 12V Level TTL,
2x 12V with 1A dry relay
Pin
Signals
Pin
Signals
1_up
DI_1
2_up
DI_3
3_up
DI_5
4_up
DI_7
5_up
DI_9
6_up
DI_2
7_up
DI_4
8_up
DI_6
9_up
DI_8
1_down
DO_0
2_down
DO_2
3_down
DI_COM
4_down
DI_0
5_down
DI_10
6_down
DO_1
7_down
DO_3
8_down
DGIN_0
9_down
DI_11
R8
Audio
Port
1x TSI HD Codec 92HD73C1T5PRGIC1X, supports external Audio I/O
for Line-in/Line-out with L/R-channels via 9-pin female connector
Pin
Signals
Pin
Signals
1_down
RELAY1_COMM
2_down
RELAY2_COMM
3_down
GND_AUD
4_down
FRONT_OUT_R
5_down
FRONT_OUT_L
6_down
RELAY1_NOPEN
7_down
RELAY2_NOPEN
8_down
MIC_IN_R
9_down
MIC_IN_L
R9
COM/CAN Port
COM/Optional CAN
Pin
Signals
Pin
Signals
1_up
J1850-/J1708-_L
2_up
GND_C/L
3_up
J1939+/L
4_up
K_LINE_L
5_up
CAN_L/J1939-_L
6_up
J1850-/J1708-_L
7_up
J1850+/J1708+_L
8_up
J1850+/J1708+_L
9_up
GND_CAN

R3S User Manual

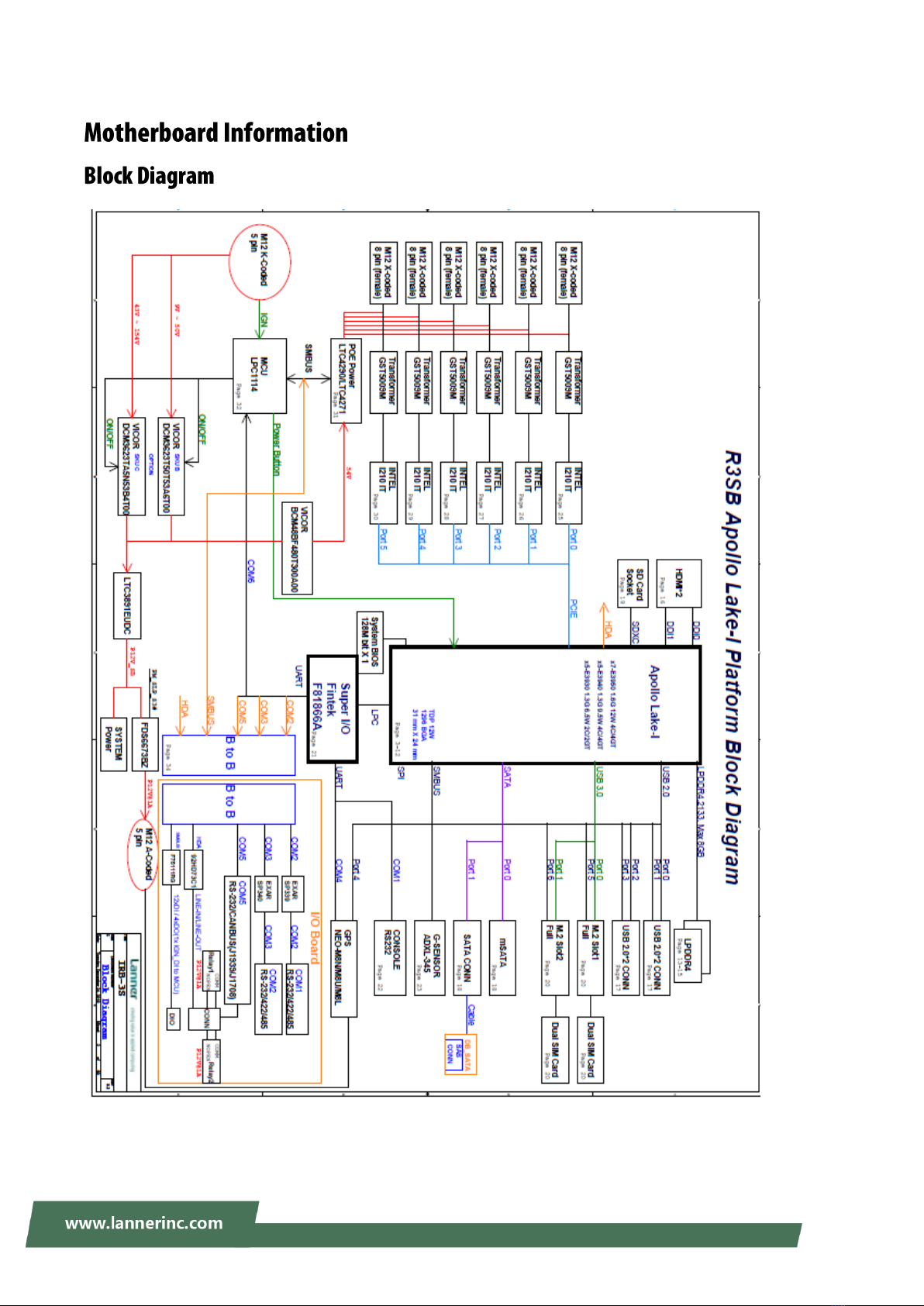

16

R3S User Manual
17

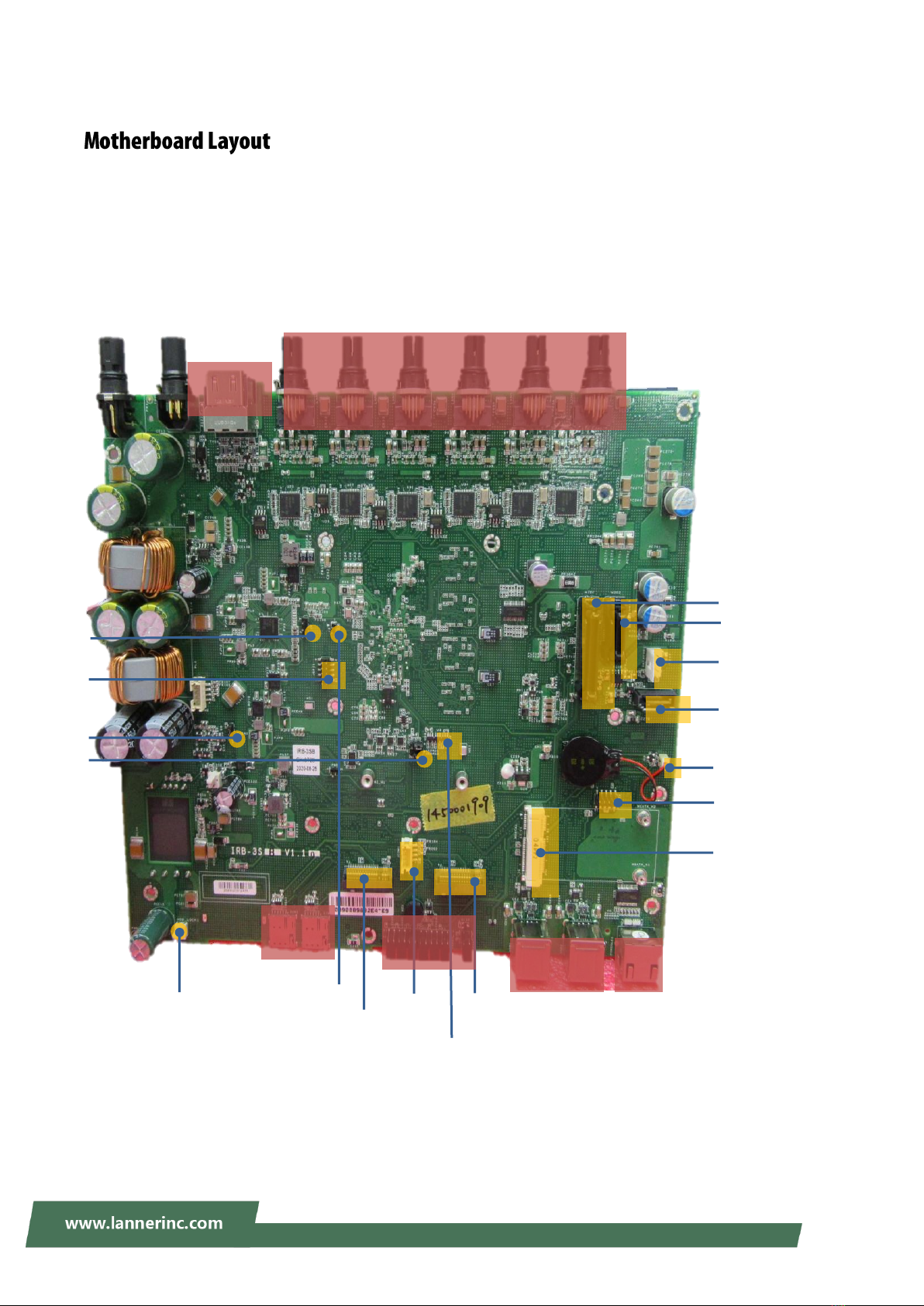

The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as a
reference for the pin assignments and the internal connectors.
Front
POE Port
HDMI
JSPI1
J2
J4
JCOMS2
MIO1
MIO2
SATA PWR1
SATA1
BAT1
LPC1
MSATA
(Storage)
J3
M2_2
JCOM1
M2_1
JCOMS1
LED
SIM Card
Slots
USB
Console
HDD_LOCK1

R3S User Manual
18

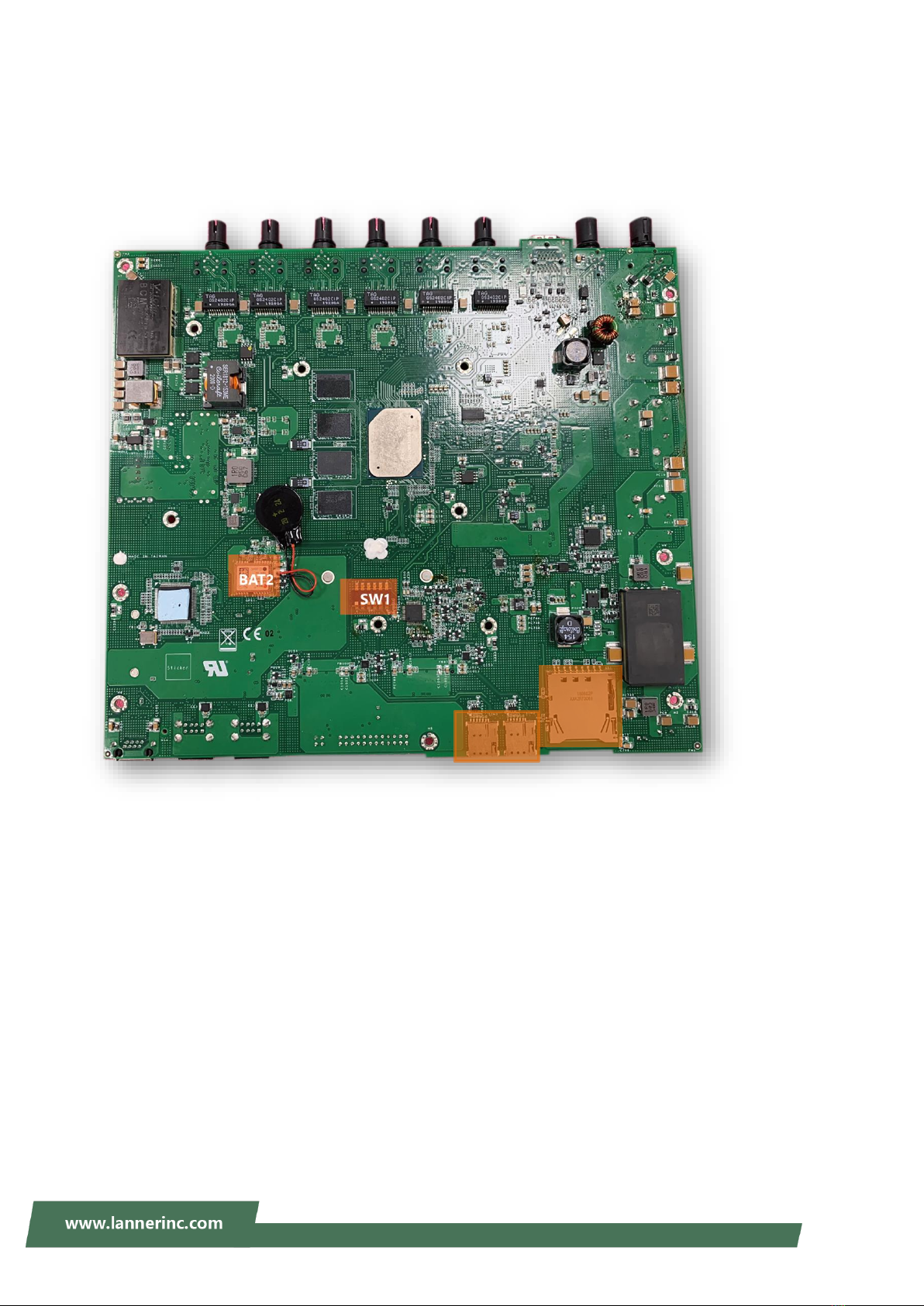

Rear
SD Card
Slot
SIM Card
Slots

R3S User Manual
19

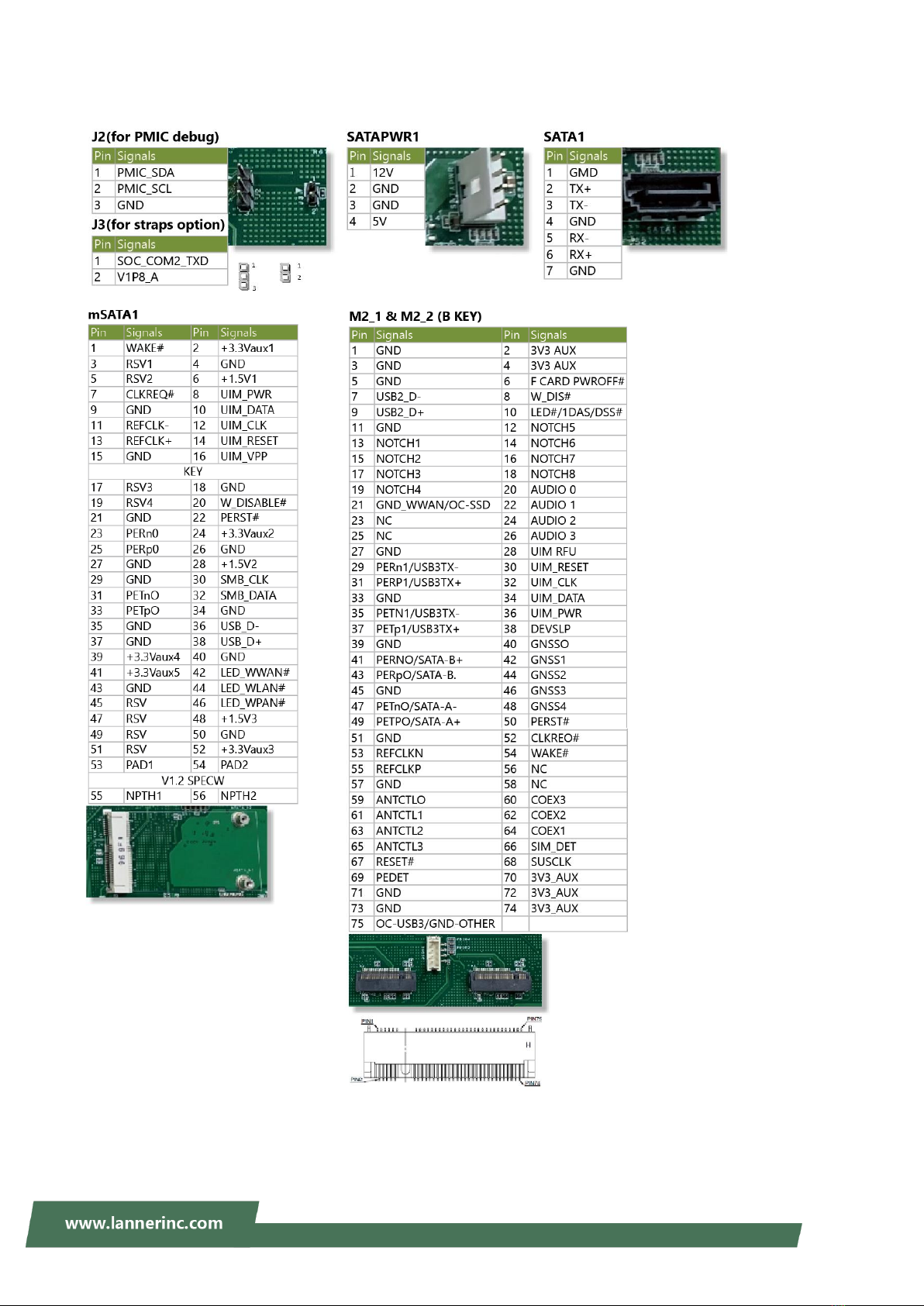

R3S User Manual
20
