Lanner HMB-6110 User manual

1
HMB-6110
User Manual
Version: 0.3
Date of Release:2022-03-10
Telecom Datacenter Appliances

HMB-6110 User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you
need to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system
integrators, or service personnel and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product page or through the Lanner Download Center page with a login account and password.
This document utilizes different icons in order to make selected text more transparent and explicable to
users. Please note that this document contains the following conventions:
Icon
Usage
This mark indicates that there is something you should pay special
attention to while using the product.
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.
Note or Information
Warning or Important

HMB-6110 User Manual
3
To obtain additional documentation resources and software updates for your system, please visit the
Lanner Download Center. As certain categories of documents are only available to users who are logged
in, please be registered for a Lanner Account at http://www.lannerinc.com/ to access published
documents and downloadable resources.
For troubleshooting the issues with your system, please check the Lanner Q&A page for a diagnostic
procedure and troubleshooting steps.
In addition to contacting your distributor or sales representative, you could submit a request to our Lanner
Technical Support, where you can fill in a support ticket to our technical support department.
This document is copyrighted © 2022 by Lanner Electronics Inc. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third
parties that may result from such use.
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email to
[email protected]m, Thank you for your time.

HMB-6110 User Manual
4
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

HMB-6110 User Manual
5
Intel® and Intel® Celeron® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note
1. An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference
to the nearby radio and television reception. It is essential that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Important
1. Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
2. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

HMB-6110 User Manual
6
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your
sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or removing a chassis
or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre cravate ou
écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon d’alimentation avant
d’installer ou de retirer un châssis ou de travailler à proximité de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil génère, utilise
et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions des fournisseurs
de composants sans fil, il risque de provoquer des interférences dans les communications radio.
There is risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation should be conducted only by a trained electrician or only by an electrically trained person who knows all
installation procedures and device specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium battery.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.
Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of
flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or
gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité connaissant toutes
les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.

HMB-6110 User Manual
7
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to acceptable
operating temperatures without adequate circulation. Be sure that the room in which you choose to operate your
system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open chassis
permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when
electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow
ESD-prevention procedures when removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available, ground
yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms (Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour refroidir
l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez que votre site
propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement de bien
circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais destiné aux
composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques. Des dégâts
d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer des pannes totales
ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible,
reliez votre corps à la terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10 mégohms
(Mohms).
Mounting Installation Precautions
The following should be put into consideration for rack-mount or similar mounting installations:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create
the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the
system or use of inappropriate installation components.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature
of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the
manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required for
safe operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable Grounding - Reliable grounding of rack mounted equipment should be maintained. Particular attention
should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

HMB-6110 User Manual
8
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is very
important to protect the equipment against the harmful effects of external noise and to reduce the risk of electrocution
in the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after turning off the power. A
ground wire is required and the part connecting the conductor must be greater than 4 mm2 or 12 AWG.
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre les effets
néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4 mm2 ou 12
AWG.
Loosen the screw of the earthing point.
Connect the grounding cable to the ground.
The protection device for the DC power source must provide 30 A current.
This protection device must be connected to the power source before DC power.
Desserrez la vis du terminal de mise àla terre.
Branchez le câble de mise à la terre à la terre.
L’appareil de protection pour la source d’alimentation CC doit fournir 30 A
de courant.
Cet appareil de protection doit être branché à la source d’alimentation avant
l’alimentation CC.

HMB-6110 User Manual
9
Main Features................................................................................................................... 10
Package Content ............................................................................................................... 10
Ordering Information........................................................................................................ 10
Optional Accessories......................................................................................................... 10
System Specification ......................................................................................................... 11
I/O Overview .................................................................................................................... 12
Motherboard Information................................................................................................. 13
Accessing the Compute Blade(s)........................................................................................ 19
Installing the CPU(s).......................................................................................................... 20
Installing System Memory................................................................................................. 25
Installing IPMI Card (Optional) .......................................................................................... 27
Installing M.2 SATA Storage Card (Optional)...................................................................... 28
Replacing Cooling Fans...................................................................................................... 29
Remote Server Management............................................................................................. 30
Installing Operating System............................................................................................... 39
Warranty Policy ................................................................................................................ 42

HMB-6110 User Manual
10
HMB-6110 is a high-performance CPU blade designed for Lanner HTCA (HybridTCA) product line and
powered by Intel 2nd Generation Intel® Xeon® Scalable Processors (codenamed Skylake-SP/Cascade Lake)
and C621/C627 PCH. HMB-6110 compute blade is built to be hot swappable, and thus the smart fans are
hot swappable as well. This compute blade is built to optimize functionality, scalability and performance for
our HTCA-6000 modular network appliance series.
Hot swappable x86 compute blade
Support dual 2nd Generation Intel® Xeon® Scalable Processors (codenamed Skylake-SP/Cascade Lake-
SP) C621/C627 PCH
16x 288-pin DDR4 DIMMs, max. up to 512GB memory capacity
4x KR4 supporting 4x 100G on front Switch blades
5x Hot swappable smart fans
Your package contains the following items:
1x HMB-6110 System
2x CPU Heat Sink
2x Black Plastic Frame CPU Carriers
1x VGA Cable
SKU No.
Main Features
HMB-6110A
Skylake-SP/Cascade Lake-SP x2 sockets, DDR4 sockets x16 with tray, C627 (with QAT)
HMB-6110B
Skylake-SP/Cascade Lake-SP x2 sockets, DDR4 sockets x16 with tray, C621 (without
QAT)
Type
Lanner P/N
Brand
Description
CPU
011W000404000
Intel
CPU X86 XEON 6240 2.60GHz FCLGA 3647P SRF8X INTEL
L3/24.75MB 150W
RAM
020W000022000
Transcend
R-DIMM 2133 MHz DDR4 TS8AARESD 4GB 288P
020W000185000
ADATA
R-DIMM 2400 MHz DDR4 AD4R240038G17-BHY(X) 8GB 288P
020W000088000
Transcend
R-DIMM 2133 MHz DDR4 TS2GHR72V4B 16GB 288P

HMB-6110 User Manual
11
System
CPU
Dual Intel® 2nd Generation Xeon® Scalable Processors
(codenamed Skylake-SP/Cascade Lake-SP) with C621/C627
PCH
Memory
16x 288-pin DDR4 R-DIMMs, max. up to 512GB memory
capacity
BIOS
AMI SPI Flash BIOS
Interface
⚫LAN:
- Intel Ethernet 800 Series
- 100G (KR4) x1 to top 1st layer switch blade
- 100G (KR4) x2 to top 2nd layer switch blade
- Intel I10 1GbE x2
⚫5x PCI-Express Gen3 by 8 (from CPU)
⚫2x PCI-Express Gen 2 (from PCH)
⚫1x OPMA connector
⚫1x M.2 2280 M Key Socket
⚫1x pin header for TPM 2.0 module (Optional)
Rear IO
⚫Fan: 5x Cooling Smart Fans, Hot-swappable
⚫USB: 1x USB2.0 Type A
⚫VGA: 1x VGA port
⚫LAN: 1x RJ45 Mgt Port
System Capability
HTCA-6200, HTCA-6400 and HTCA-6600
Temperature
Operating
0~40ºC
Storage
-40~70ºC
Humidity
5%~90%, non-condensing
System Dimensions
(WxDxH)
327.4 x 41 x 466 mm
Weight
8 kg
Certifications
CE
Class A
FCC
Class A

HMB-6110 User Manual
12
No.
Description
A
High Speed Connectors
2x Molex 288 PIN, 2x Molex 120 PIN, 2x Molex Power Connector
B
OPMA Slot
For 1x IAC-AST2500 IPMI 2.0 Module
C
Cooling Fans
5x Smart Fan
D
Rear I/O
1x USB 2.0, 1x RJ45 management port, 1x VGA Port
B
C
D
A

HMB-6110 User Manual
13
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.

HMB-6110 User Manual
14

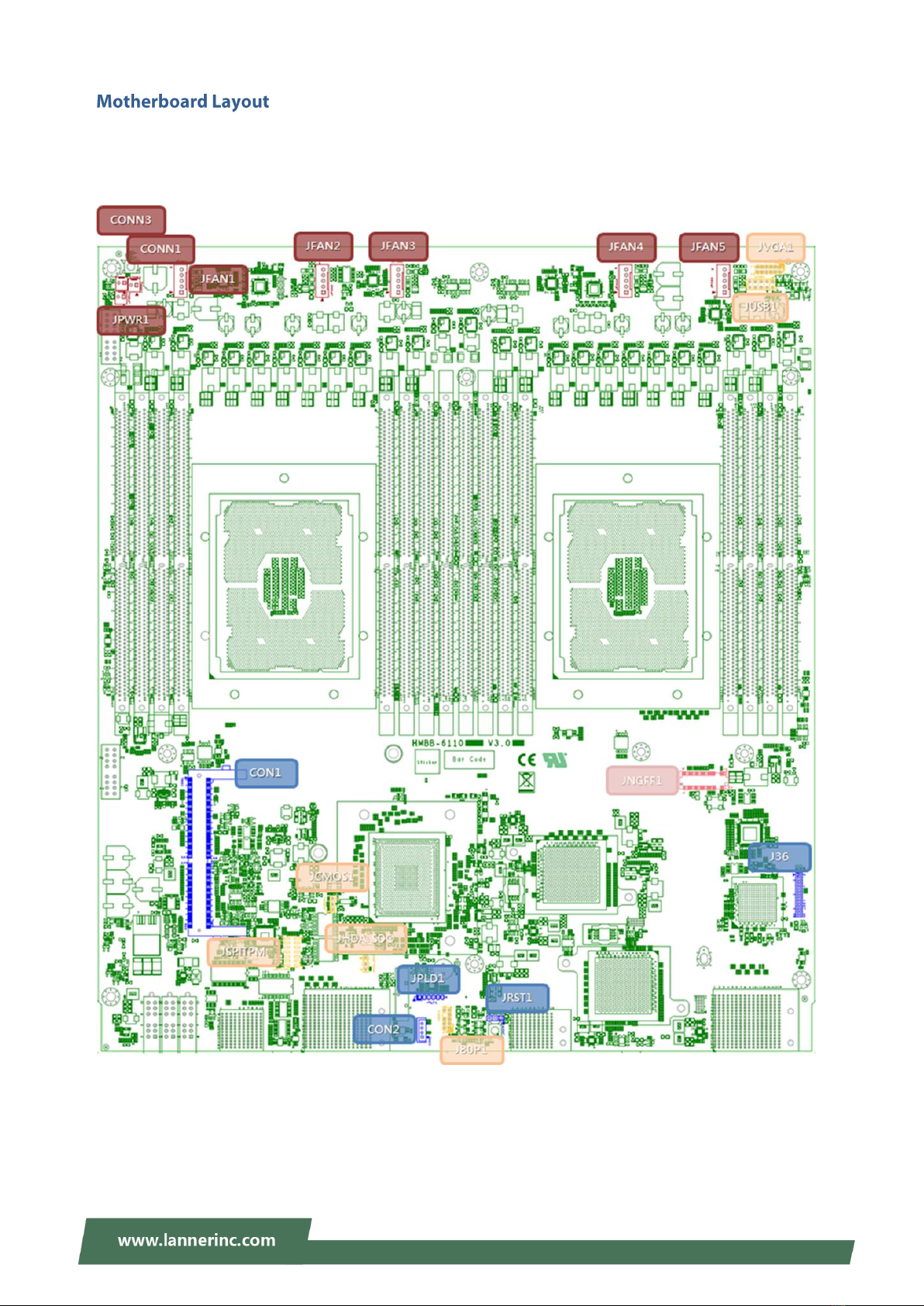

The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as
a reference of the pin assignments and the internal connectors.

HMB-6110 User Manual
15
CONN3: For Power LED indication
Pin
Description
1
Anode
2
Cathode
CONN1: For Thumb Screw detection
Pin
Description
1
Detect
2
GND
JPWR1: For Power Button detection
Pin
Description
1
GND
2
Power on
JFAN1～JFAN5：For Fan Module Connection
Pin
Description
1
GND
2
+12V
3
RPM sense
4
RPM sense
5
PWM control
JVGA1: For VGA Monitor Connection
Pin
Description
Pin
Description
1
RED
2
GND
3
GREEN
4
GND
5
BLUE
6
GND
7
HSYNC
8
NC
9
VSYNC
10
GND
11
DDC_DATA
12
DDC_CLK
JUSB1: For USB Device Connection
Pin
Description
Pin
Description
1
+5V_SB
2
+5V_SB
3
D1_N
4
D2_N
5
D1_P
6
D2_P
7
GND
8
GND
9
GND
10
GND

HMB-6110 User Manual
16
JNGFF1: For M.2－2280 socket 3 module
Pin
Description
Pin
Description
1, 3, 9, 15,
21, 27, 33,
39, 45, 51,
57, 71, 73,
75
GND
2, 4, 12, 14,
16, 18, 70,
72, 74
+3.3V
5
PERN3
6, 8, 20, 22,
24, 26, 28,
30, 32, 34,
36, 38, 40,
42, 44, 46,
48, 56, 58,
68,
NC
7
PERP3
11
PETN3
13
PETP3
17
PERN2
19
PERP2
23
PETN2
25
PETP2
29
PERN1
31
PERP1
35
PETN1
37
PETP1
41
PERN0 / SATA_RP
43
PERP0 / SATA_RN
47
PETN0 / SATA_TN
49
PETP0 / SATA_TP
53
REFCLKN
10
DAS#
55
REFCLKP
50
PERST#
67
NC
52
CLKREQ#
69
DETECT
54
PEWAKE#
CON1: For Lanner IPMI Card（IAC-AST2500）
J36: For Lanner LAN Extension Card（HRC-61001）
JPLD1: For Lanner CPLD Debug Purpose
JRST1: For Reset Debug Purpose
CON2: For Function Reserved

HMB-6110 User Manual
17
JCMOS1：For Clear CMOS
Pin
Description
1－2
Normal
2－3
Clear CMOS
JHDA_SDO：For Flash Descriptor Security Override
Pin
Description
1－2
Normal
2－3
Override
JSPITPM：For Lanner TPM Module（IAC-TPM04）or SPI Fixture Debug Purpose
J80P1：For Lanner LPC Fixture Debug Purpose

HMB-6110 User Manual
18
To reduce the risk of personal injury, electric shock, or damage to the system, please remove all power
connections to shut down the device completely. Also, please wear ESD protection gloves when conducting
the steps in this chapter.
Based on your application and modules used, install modules in the corresponding slots.
Memory
Memory
Memory
M.2
SATA
Storage

HMB-6110 User Manual
19
You have to access the compute blade(s) in order to install or replace CPUs, heatsinks, and DDR
memory DIMMs. Please follow the steps below to access the compute blades.
1. Select a compute blade you wish to access the internal components.
2. Rotate and loosen the captive screws circled in the image below. You may apply a screwdriver to conduct
this task.
3. Hold onto both captive screws and handles and lift them upwards at the same time.
4. Then, pull the compute blade out.

HMB-6110 User Manual
20
Please note that the system delivered to you is already installed with the processor and that this processor
comes with a rather sophisticated design; therefore, the assembly of which must be handled with exclusive
tools and extreme care by professionals. It is strongly recommended that you not make any adjustments to,
remove or even re-install the processor on your own. If handling the processor on your own is inevitable,
please read through the instructions in this section and refer to the official tutorial released by Intel® to
make sure you have acquired the necessary knowledge and comply with the requirements.
Installing the processor onto the motherboard involves two stages:
1. Mount the processor onto the heat sink to make a PHM (Processor + Heat Sink Module)
2. Install the PHM onto the motherboard.
Tool
Description
Torque Screwdriver
(Star T30)
Set to 1.36N.m. or 12 in-lbf for
tightening the nuts, which fasten the
PHM on the bolster plate.
ESD Protection
(ESD gloves, ESD-safe work
surface, etc.)
During the entire assembly process,
wear a pair of ESD gloves to avoid
damaging or contaminating the
electronic parts while enhancing your
own safety.
NOTE: The images of tools shown in this document are merely for reference; the actual tools you use may
differ.
Item
Description
Processor
Please avoid touching the gold fingers or
package lands of the processor even if you are
wearing ESD gloves.
Heat Sink
If a TIM (Thermal Interface Material) protective
film is already attached to the base of the heat
sink, remove it before you mount the processor
on it.
When holding the heat sink, please grip it
along the axis of its fins with your thumb and
your index finger
Axis
