Lanta LED Gyro Ball User guide

Owner Handbook
LED Gyro Ball™
Colour Mixing Effects Light
GYRO

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
April 16 - Version 1
LED Gyro Ball Owner Handbook ™
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• All Lanta products designed for indoor use. Under no circumstances must these
products be used outdoors unless the product specification specifically defines the
product as being water resistant.
• Do not expose this product to moisture, rain or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit must
be repaired by an authorised service centre only. Manufacturer Warranty is void if the unit is
opened or adapted in any way. Operator safety may be compromised if this product is not
operated and maintained in accordance with the details contained in this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or any
other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product with a clean and dry, non-abrasive cloth. Do not use solvents or
liquids to clean the product.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters or other heat producing
items such as amplifiers, power units etc.
• Never lift, move or carry the product by any other means other than the case as a
whole or handle if provided.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the mains.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
April 16 - Version 1
LED Gyro Ball Owner Handbook ™
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transportation in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a 12 month period from original date of
sale, providing all of the terms indicated in the warranty section have been fully
complied with. Please refer to your suppliers T&C’s for warranty details.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product however
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit
of customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
April 16 - Version 1
LED Gyro Ball Owner Handbook ™
IMPORTANT!
Battery Operated Products
Some Lanta products include an internal battery for portable use. These batteries are
high energy rechargeable devices and for safety and product performance purposes
these batteries have a permanent connection between the appliance and the battery.
The batteries are constructed from Lithium Ion materials, a much safer product than
older generation primary Lithium batteries. Great care must be exercised when handling
and disposing of these batteries and they must only be accessed and/or serviced by an
authorised Lanta service centre.
DO NOT ATTEMPT TO ACCESS, MODIFY OR DISPOSE OF THE BATTERY!
End of life disposal of the product and/or the battery must not be disposed
in domestic rubbish or other non-specific recycling centre.
Only disposal sites that fully conform to the requirements of the EU Battery
Directive are permitted to recycle these products and batteries.
Please visit www.gov.uk for further information.
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others. All Lanta products are specifically designed
for UK operation and are optimized for 240VAC 50Hz UK mains power.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Atmospheric Effects
When you need special atmospheric effects, Lanta have everything from bubble
machines to fake snow, hazers and foggers. There’s also a range of fluids and consumables
specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
April 16 - Version 1
LED Gyro Ball Owner Handbook ™

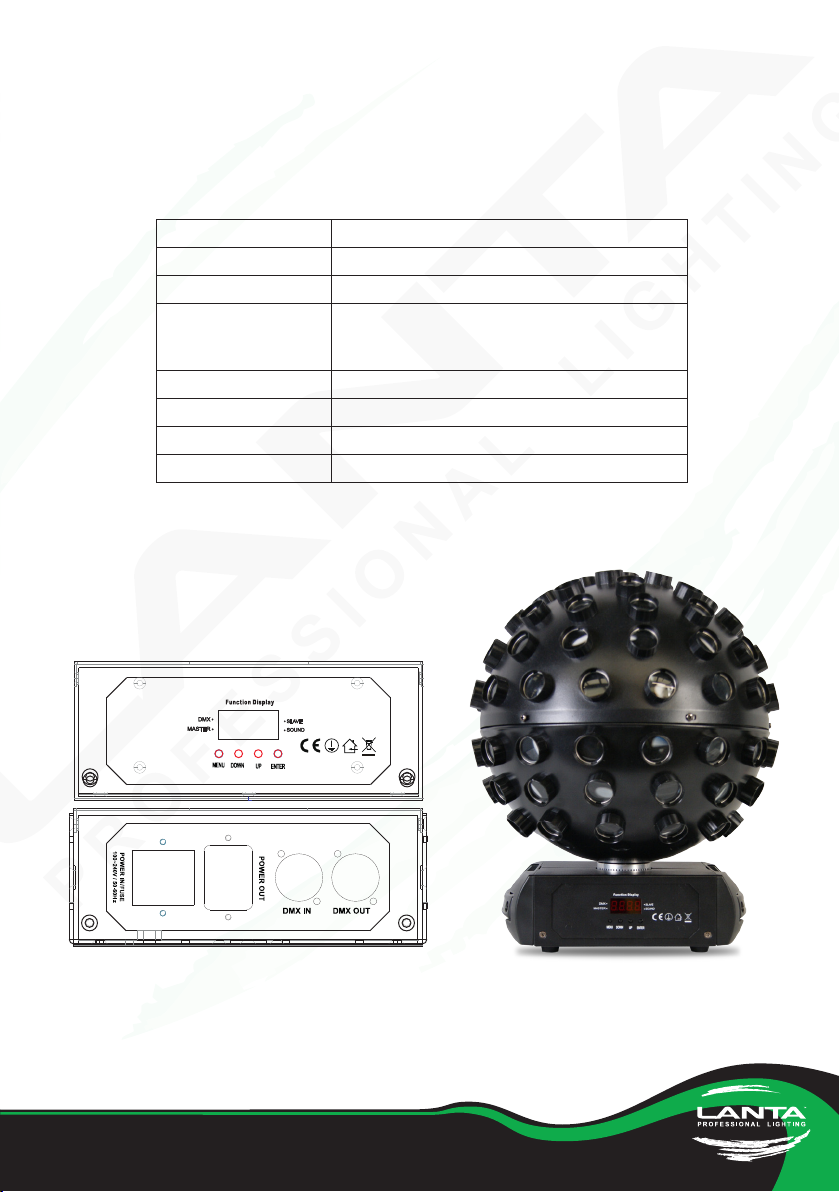

Getting to know your Lanta product
The Lanta LED Gyro Ball™ effects light features 6 colour LEDs for seamless colour mixing. It
has built in colour switching, fading and pattern sequencing. A range of features can be
DMX controlled from any of the Lanta DMX controllers or equivalent products.
LEDs 5 x 18W 6 colour LED (RGBWA+UV)
DMX Control 3 & 11 Channel Modes
Control Modes Sound / Auto / Static Colour / DMX
Control Connections
3 Pin Female XLR socket,
3 Pin Male XLR socket
In / Out IEC Chassis
Power Requirement 240 Volt AC 50 / 60Hz
Power Consumption 65 Watts
Dimensions W x D x H 300 x 300 x 380 mm
Weight 4.1Kg
FRONT
BACK

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
April 16 - Version 1
LED Gyro Ball Owner Handbook ™
Operating Modes
To select the mode of operation there is a 4 button keypad and 4 digit LED display on
the front of the unit. To begin press the MENU button, each subsequent press will progress
through the various settings. UP/DOWN buttons will allow you to scroll in each direction.
Press ENTER to select an option, the UP/DOWN for the required setting then press ENTER
button to confirm. Waiting for 10 seconds or holding down the MENU will return to the main
menu with the DMX address being displayed. If no button is pressed for 30 seconds the
display will turn off.
Auto Run Mode
If there is no DMX signal, in ‘Master mode’ the light will run an auto show and sound mode
will also be active if set.
Press MENU until the display shows “Slnd”, press enter followed by UP/ DOWN to select
“nast” to set as Master. Other lights can be connected and set to slave ‘Sl1’ to run the
same as the ‘Master’ unit or ‘Sl2’ to run a contrasting display.
Press MENU until the display shows “Shnd”, press ENTER followed by UP / DOWN to select
either “Shou” for sound mode or “Auto” followed by ENTER and UP / DOWN to set a speed
value between “SP1” & “SP9”
Press MENU until the display shows “SenS”, press ENTER followed by UP / DOWN to set the
sound sensitivity between 1-100.
DMX Mode
You can control the devices individually via your DMX-controller. Press the “MENU”
button until it shows “Addr”, press the ‘ENTER’ the display will flash and you can then use
“UP/DOWN” to select the required DMX address, then select “ENTER” to set.
Press “Menu” until the display shows “Chnd” then “ENTER” followed by “UP/DOWN” to “3Ch”
or “11Ch” mode. Press “ENTER” to save the setting. Wait 10 seconds, or hold down the
“Menu“ button to return to the main menu.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
April 16 - Version 1
LED Gyro Ball Owner Handbook ™
DMX Control Channel Settings
3 CH
Channel Value Function
Ch1
000- 007 Off
008 – 247 Alternating rotation, slow to fast
248 – 255
Ch2 000 – 255 LED dimming, 0 – 100%
Ch3 000 – 007 No Function
008 - 255 Strobe, slow to fast
11 CH
Channel Value Function
Ch1
000- 009 Off
010 - 120 Clockwise rotation, slow to fast
121 - 134 Off
135 - 245 Anticlockwise rotation, slow to fast
246 - 255 Off
Ch2 000 - 255 LED dimming, 0 – 100%
Ch3 000 - 007 No Function
008 - 255 Strobe, slow to fast
Ch4 000 - 255 Red, 0 – 100%
Ch5 000 - 255 Green, 0 – 100%
Ch6 000 - 255 Blue, 0 – 100%
Ch7 000 - 255 White, 0 – 100%
Ch8 000 - 255 Amber, 0 – 100%
Ch9 000 - 255 UV, 0 – 100%
Ch10 000 - 000 Ch4-9 Active
001 - 255 LED colour select (CH4 – 9 no function)
Ch11 000 - 239 No function
240 - 255 Sound mode
Other Functions
Press “MENU” until the display shows “Led” then “ENTER” followed by “UP/DOWN” to turn the
display “on” or “off”. In off mode, the display will blank if no button is pressed with 10 seconds.
Press “MENU” until the display shows “diSp” then “ENTER” to invert the display.
Press “MENU” until the display shows “test” then “ENTER” to run a test sequence.
Press “MENU” until the display shows “hour” then “ENTER” to display total working time.
Press “MENU” until the display shows “ uer” then “ENTER” to show program version.

www.lantalighting.com
