Lanta Quasar RGY180 User guide

Owner Handbook
Quasar RGY180™
180mW Red/Green Step Laser

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Quasar RGY180™
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Performance Lasers
Recent advances have reduced the costs of Lasers, made them more portable and
brought improved performance and reliability. With step and animation lasers in multi
and single colour formats for mobile DJs and static installs, Lanta promise Lasers that
won’t burn a hole in your pocket.
Atmospheric Effects
When you need special atmospherics effects, Lanta have everything from bubble
machines to fake flame, hazers and foggers. There’s also a range of fluids and
consumables specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Quasar RGY180™
Getting to know your Lanta Product
The Lanta Quasar RGY180™ is a 180mW fan cooled step laser with a two emiitters - one
Red, one Green. This allows the unit to create a mix of red, Green and Yellow colours
for a wide range of effects. It features 10 Channel DMX control that can be run from a
strandard DMX512 control desk. A safety lock out key deters tampering once the unit has
been fitted.
Laser Diodes Red Class 3b 150mW, Green Class 3b 30mW
Scanner Angle ±18°
Control Modes 10 Channel DMX, Sound Activated, Auto Run
Control Connections 3 Pin Female XLR socket, 3 Pin Male XLR socket
Power Requirement 85-265 Volt AC 50/60Hz
Dimensions W x D x H 235mm x 170mm x 135mm
Weight 2.0Kg
Rear Panel
OUT IN
ON DIP
12 3 4 5 6 7 8 9 10
OFF ON

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Quasar RGY180™

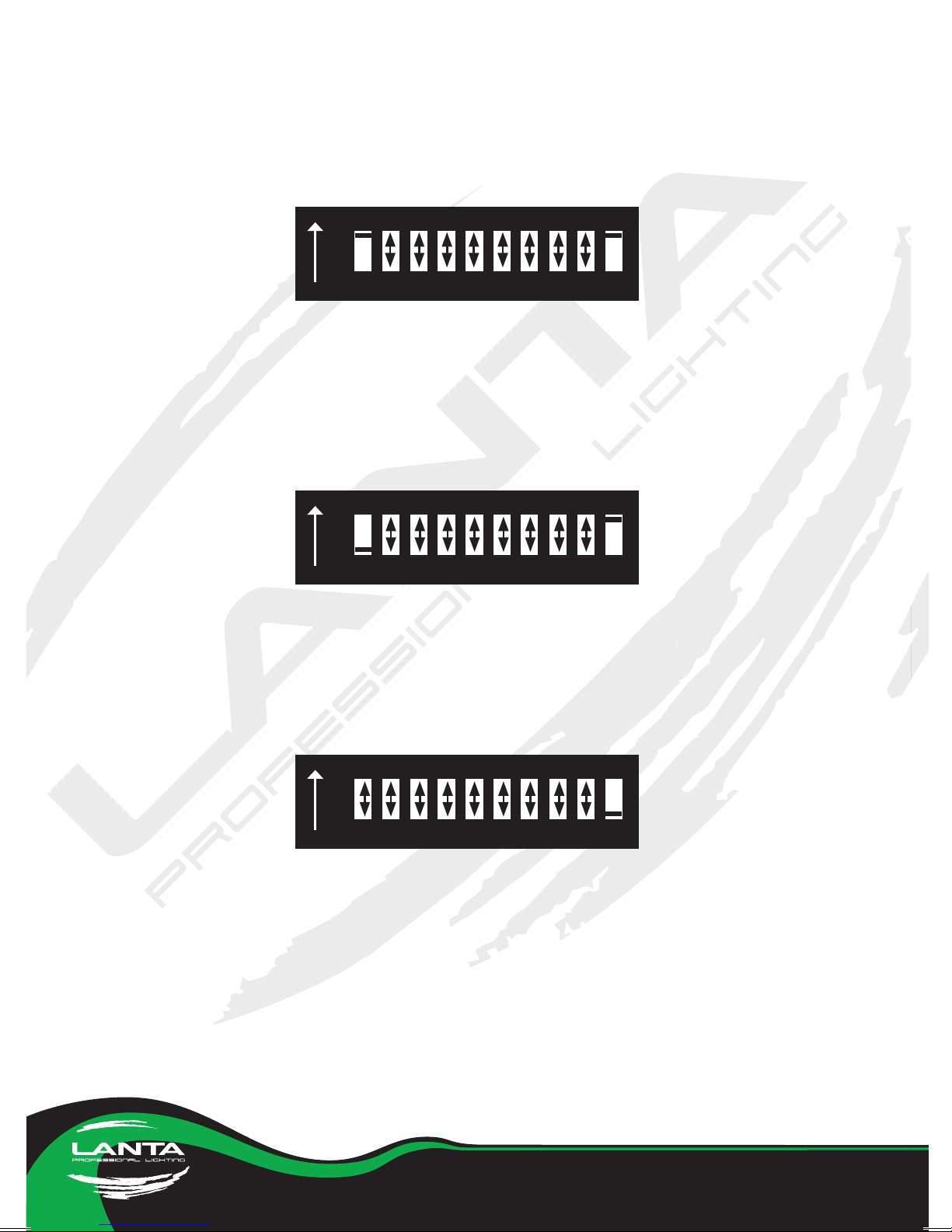

Operating Modes
1- Auto Run Mode
All 50 in-built programs are run one after another in a continuous loop. Effects include
Fan, Tunnel and Flowers. To select Auto Run Mode rear panel Dip Switch settings are;
1 2 3 4 5 86 7 9 10
ON DIP
2- Sound Activated Mode
The unit responds to sounds picked up by the in-built mic. Sensitivity can be adjusted with
a potentiometer located on the rear of the unit. Each sound steps the Effect to the next
in the sequence. To select Sound Activated Mode Dip Switch settings are;
1 2 3 4 5 86 7 9 10
ON DIP
3- DMX Control Mode
The unit responds to control signals sent from a standard 10 Channel DMX Control desk.
To select DMX Control Mode rear panel Dip Switch settings are;
1 2 3 4 5 86 7 9 10
ON DIP
Choosing DMX Control Mode
Ensure that Dip Switch 10 is set to “On” to activate DMX Control Mode.
Setting the DMX Addresses
Dip Switches 1-9 on the Rear Panel set the DMX Address of the unit. This unit uses binary
format, allowing values from 1 to 511 to be set. The DMX Address can be set when Dip
Switch 1 represents “1”; Dip Switch 2 represents “2”; Dip Switch 3 represents “4”; Dip Switch
4 represents “8”; Dip Switch 5 represents “16”; Dip Switch 6 represents “32”; Dip Switch 7
represents “64”; Dip Switch 8 represents “128” and Dip Switch 9 represents “256”.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Quasar RGY180™
Ch1 Ch2 Ch3? Ch4 Ch5
Operating Mode Pattern Strobe Dots & Lines Horizontal Motion
0-30 Off Static Speed 1 Normal Manual
31-33 Off Static Speed 2 Normal Manual
32-39 Off Dynamic Speed 2 Normal Manual
40-54 Off Dynamic Speed 2 Normal Manual
55-60 Off Dynamic Speed 2 Normal Manual
61-63 Off Dynamic Speed 3 Normal Manual
64-69 Off Dynamic Speed 3 Normal Manual
70-90 Sound Active Dynamic Speed 3 Dot & Line Manual
91-120 Sound Active Dynamic Speed 4 Dot & Line Manual
121-127 Sound Active Dynamic Speed 5 Dot & Line Manual
128-139 Sound Active Dynamic Speed 5 Dot & Line Manual
140-150 Auto Run Dynamic Speed 5 Subsection Manual
151-160 Auto Run Dynamic Speed 6 Subsection Manual
161-180 Auto Run Dynamic Speed 6 Subsection Auto Left
181-190 Auto Run Dynamic Speed 7 Subsection Auto Left
191 Auto Run Dynamic Speed 7 Subsection Auto Right
191-200 Auto Run Dynamic Speed 7 Subsection Auto Right
201-209 Auto Run Dynamic Speed 7 Subsection Auto Right
210-210 Manual Dynamic Speed 7 Dot Auto Right
211-220 Manual Dynamic Speed 8 Dot Auto Right
221-255 Manual Dynamic Speed 8 Dot Auto Loop
Ch6 Ch7 C8 Ch9 Ch10
Vertical Motion Zoom RGY Colour Mix Reset Colour Control
0 Manual Off Not Used Fixed
1-2 Manual Off Not Used Manual Fade
3-92 Manual Manual Not Used Manual Fade
93-100 Manual Auto Small/Big Not Used Manual Fade
101-146 Manual Auto Small/Big Not Used Timing Fade
147-160 Manual Auto Big/Small Not Used Timing Fade
161-190 Auto Down/Up Auto Big/Small Not Used Timing Fade
191-199 Auto Up/Down Auto Big/Small Not Used Timing Fade
200 Auto Up/Down Auto Big/Small Reset Timing Fade
201-220 Auto Up/Down Auto Loop Reset Timing Fade
221-251 Auto Loop Auto Loop Reset Timing Fade
252-255 Auto Loop Auto Loop Reset Sound Fade

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Quasar RGY180™
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• Do not look directly into the laser unit when in operation.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• Do not expose this product to moisture, rain or other fluids.
• Do not use this product near water or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit
must be repaired by an authorised service centre only. Manufacturer Warranty is void
if unit is opened or adapted in any way. Operator safety may be compromised if this
product is not operated and maintained in accordance with the details contained in
this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or
any other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product housing with a clean and dry, non-abrasive cloth. Do not use solvents
or liquids to clean the product. Pay particular attention to the lens since this will require
cleaning on a weekly basis to remove any oil residue that may have built up.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters, other heat producing
items such as amplifiers, power units etc. Provide at least 1.5m of clear space around
the unit and ensure no flammable items are nearby.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical
devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the
mains.
• To prevent damage, allow the unit to cool for around 30 minutes after use.

© Lanta Lighting™ 2010. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
Revision 1
Owner Handbook Quasar RGY180™
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transport in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a period of 12 months from first use or from
original date of sale (whichever is the earliest) providing all of the terms indicated in the
warranty section have been fully complied with.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product howsoever
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit of
customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

www.lantalighting.com
