Larzep CY1501 User manual

WEDGESPREADER

“CY1501”
LARZEP,S.A.
AvenidaUrtiaga,6
48269Mallabia,Spain
Tel.+34943171200
Fax.+34943174166
e‐mail:[email protected]
www.larzep.com

2
InstructionManual
WedgeSpreader“CY1501”

INDEX
1.ESSENTIALSAFETYINSTRUCTIONS‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2
2.TECHNICALFEATURES‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2
3.WARRANTY‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2
4.STARTUP‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
5.MAINTENANCE‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
6.DECLARATIONOFCONFORMITY‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4

1.ESSENTIALSAFETYINSTRUCTIONS

Theoperatormustbefamiliarizedwiththeuseofthistool,mustbeconsequentwiththeinherentriskoftheuseofthehydraulictools.
Usetheappropriateprotectiondevicessuchasboots,glovesandgoggles:


Ifanymalfunctionintheequipmentisdetected,neveruseituntilberepairedbyspecialistpersonnel.
Storeitfaroftheoperators,inasafeplace.Neverusehydraulicequipmentthatisdamagedorsuspectedtobeinpoorcondition.

Watchtheextremeenvironmentalconditionsandkeepgreasedtheequipment.
This wedge spreader has been designed for pipe and flange and maintenance. Can be used also for seal replacement, removing elbows or heavy equipment
maintenance.
Theomissionofthisinstructionmanualcouldproducepersonalinjuriesandmaterialdamages,thatLARZEP,S.A.willnotberesponsible.
Theoperatorshouldbefullyawareoftherisksinherentintheuseofhigh‐pressurehydraulictools,andshouldactresponsibilityinaccordancewiththatdescribedin
thismanual,ensuringbothhis/herownsafetyaswellasthesafetyofotherslocatedinthevicinityoftheworkingzone.
Theworkinginstructionsshouldbeavailableforconsultationbytheoperatoratalltimes.
Inadditiontoreadingandunderstandingtheinstructions manual,theoperatorshouldbetrainedintheuseofthemachineandinthestandardsand regulations
governing operations of this kind, such as those pertaining to accident prevention and environmental protection, for example. All exposed personnel should use
appropriatepersonalprotectionequipment:boots,helmet,goggles,glovesandprotectiveclothing.

2.TECHNICALFEATURES
CY1501

3.WARRANTY

LARZEP,S.A.guaranteesitsproductsagainstalldesignandmanufacturingdefectsforthedurationsoftwoyearsfromthedateofpurchase.Thisguaranteedoesnot
includetheordinarywearofbothmetalandnon‐metalparts,abuse,usingtheequipmentbeyonditsratedcapacityandanywearordamageincurredasaresultof
usingahydraulicfluidwhichisnotrecommendedbyLARZEP,S.A.
PleasenotethatiftheequipmentisdisassembledorservicedbyanyoneotherthananauthorizedservicedealerorbyLARZEP,S.A.,thisguaranteeisrenderednull
andvoid.
Intheeventofawarrantyclaim,returntheequipment,toLARZEP,S.A.ortheauthorizeddealerwhichsoldyouthehydraulicequipment,LARZEP,S.A.willrepairor
replacethefaultyequipment,whicheverisdeemedmostappropriate.LARZEP,S.A.shallnotbeheldliableforanyconsequentialdamagesorlosses,whichmayoccur
asaresultoffaultyequipment.
Capacity
Tn
Pressure
bar LARZEP Volume
cm
3

Accessgap
mm
Max.openwidth
mm
Weight
kg
15 700 CY1501 16 5 47 3,2

CY15B‐SafetyBlock


3
InstructionManual
WedgeSpreader“CY1501”

4.STARTUP

1. Connectthehoseendtothepumpandscrewthemalecouplertotheotherhoseendandconnectittothewedge.Ensuretheconnectionsareperfectlyengaged
toensurethecorrectfunctionofthesystem.
2. Ensurethetoolisfullyretractedbeforeinsertingitbetweentheflangefaces.
3. Removetheboltsfromtheflanges.Insertthewedgespreaderandcheckthecorrectfullengagementofthewedgespreadershoesandthegripbetweenthetool
andtheflangefaces.Minimumaccessgatis5mm.
4. Pumpuntiltheendofstokeofthetool.Maximumworkingpressure:700bar.
5. InsertthesafetyblockCY15Bandgraduallyreducethepressureonthewedgespreader.
6. Insertthetoolagainandrepeatpreviousstepsuntilmaximumflangeopeningpossibleusingthesafetyblock.
7. Toclosetheflange,insertthespreaderatapprox.80%strokeofthetoolinordertotakeovertheloadfromthesafetyblockontothewedgespreader.Removethe
safetyblockonestepbackandreducethepressuretolettheloadbetakenbythenextsmallerstepofthesafetyblock.
8. Repeatpreviousstepuntilflangeclosingandreplaceandtightenflangebolts.

Itisrecommendedtousetwowedgespreadersintandem.Thiswillgiveanevenspreadtothejoint.Thespreadersshouldbesetat180°.

Neverinsertthefingersintothegapwhentheflangesareheldbythespreaderunlessasafetyblockwillbeusing.

Neverhitorforcethetooltocreateanaccessgap.


5.MAINTENANCE

Cleanandgreasethetoolafteritsuse.Forthat:

1. Unscrewthescrews(7,14)andopenthewedge.
2. Cleananddegreaseinsidesurfaceofthesteppedshoes(11),externalsurfaceofthewedge(3)anditsslots.
3. Re‐greasethesamepartswithquality,highpressuregrease.
4. Closethesteppedshoesandtorquethescrewsto34Nm.

PARTSLIST
PieceNo Description Quantity
1 Body 1
2 Piston 1
3 Wedge 1
4* O‐Ring 1
5* Guidering 1
6 Cylinder 1
7 ScrewM8x16 6
8 Linkplate 4
9 Jointspacer 8
10* Backupring 1
11 Steppedshoe 2
12 Coupler 1
13 Dustcup 1
14 ScrewM8x12 2
15 Spring 1
17** Handle 1
18** Safetyblock 1
 Repairkit
**Option
4
InstructionManual
WedgeSpreader“CY1501”

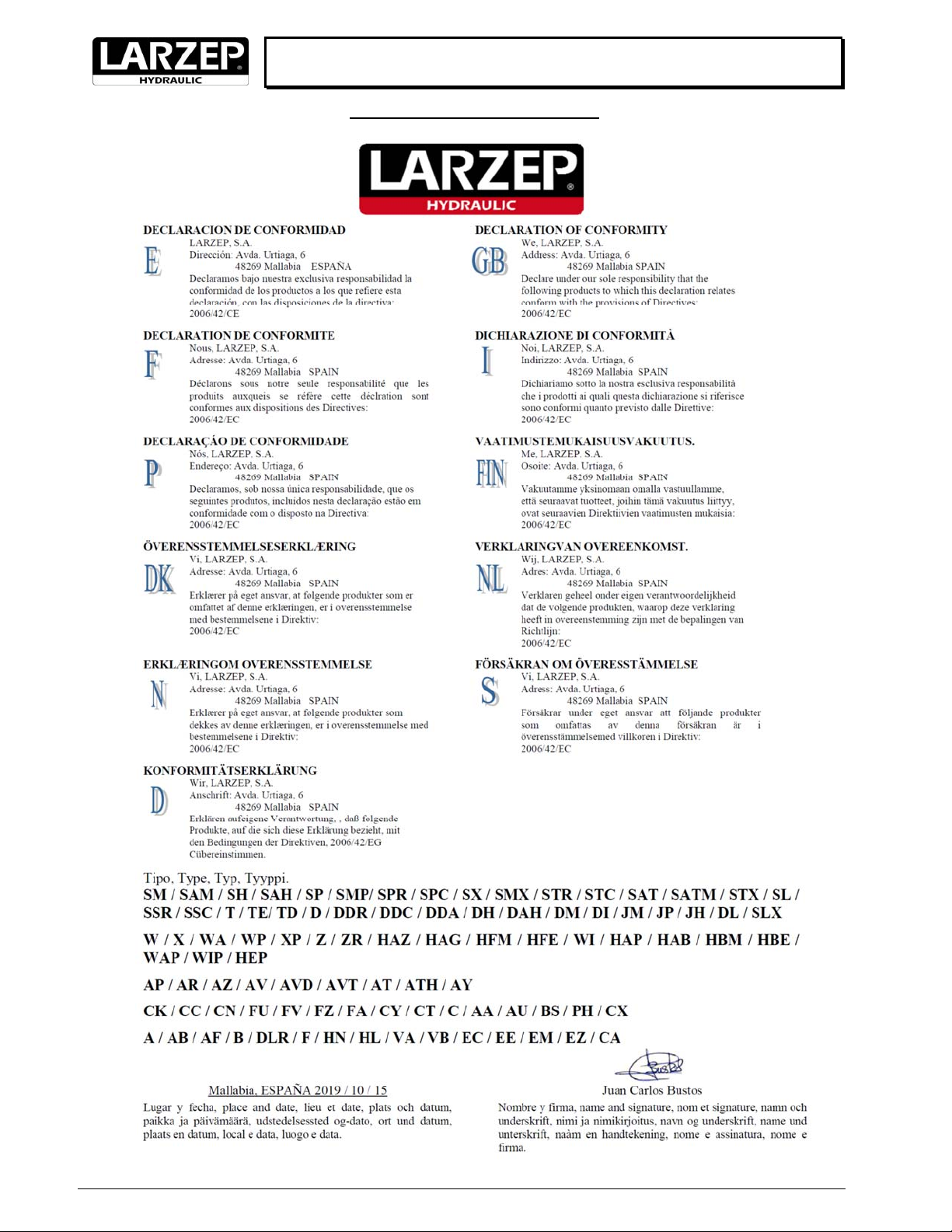

6.DECLARATIONOFCONFORMITY

