Lasermate LM-5.5 User manual

1
LM-5.5 Operator Manual
Issue 5 January 2012 LM-5.5 Operator Manual
Table of Contents
1 Introduction ..................................................................... 2
1.1 Pictograms................................................................2
1.2 Notes on Use of this Handbook ....................................3
2 Safety Notes ..................................................................... 3
2.1 General Safety Notes..................................................4
2.2 End of Life ................................................................5
3 TechnicalSpecications.................................................... 7
3.1 Machine Rating Sheet.................................................7
  3.2MachineSpecication .................................................8
4 Machine Layout Guide....................................................... 10
4.1 Description of Machine ...............................................10
5 PartsIdentication........................................................... 11
6 Control Panel .................................................................... 12
7 Operating Overview .......................................................... 13
8 Set Up............................................................................... 14
8.1 Loading the Paper Hopper ........................................14
8.2 Setting the Fold Plates.............................................14
8.2.1 Fold Plate 1 ......................................................14
8.2.2 Fold Plate 2 ......................................................15
8.2.3 Using V-folds ....................................................15
8.2.4 Fold Options .....................................................16
9 Double Document Calibration ........................................... 18
10 Handfeed .......................................................................... 18
11 Operator Maintenance ...................................................... 19
11.1 Cleaning the Fold and Seal Rollers ...........................19
11.2 Cleaning the Sensors .............................................21
11.3 Clearing Paper Jams ..............................................22
12 Supervisor Mode ............................................................... 24
13 Operator’s Troubleshooting Guide .................................... 25
14 Error/Status Messages ..................................................... 26

2LM-5.5 Operator Manual Issue 5 January 2012
LM-5.5 Operator Manual
1. INTRODUCTION
With this pressure sealer you have an advanced, medium-volume pressure sealing machine.
Two sets of fold rollers provide secure sealing on all edges and its ease of operation makes
ittheidealcomplementtothesmall-ofceenvironment.
In order to ensure the long usage of this machine and its components, and
above all the safe use of the machine, you must read and adhere to the
operating instructions and safety notes. Always be aware of all warnings and
notes that are mounted or noted on the machine itself.
All persons entrusted with the handling of this machine must also be familiar with
the operating manual.
Save this handbook carefully, so that the information it contains may be available
at all times.
1.1 Pictograms
General Warnings
Warning of danger from electricity or electrical shock
Information / Note indicating important information regarding the
handling of the machine.



3
LM-5.5 Operator Manual
Issue 5 January 2012 LM-5.5 Operator Manual
1.2 Notes on the Use of this Handbook
This document contains all general information and explanatory text necessary in order to
be able to carry out the operation of the machine.
When some action is expected from the operator, this will always be explicitly stated, and
where relevant, accompanied by an illustration or graphic.
Always read through each step, so that you will obtain all of the necessary information. Do
not anticipate what you believe will follow in the handbook: It will prevent you from making
mistakes!
Chronology and Reference
This handbook is structured chronologically, and therefore ordered sequentially
for the operationally ready machine. It assumes that the machine has been installed in the
correct environment by an Authorized Service Engineer and that the operator or his or her
supervisor has had a degree of operator training.
When you are unfamiliar with the machine, it is best to read through the handbook
from beginning to end. You will be guided step by step, and in this way you can
easily and quickly have the machine in operation.
If you are already familiar with the machine, it will make thing easy if you
use this handbook as a reference work.
2. SAFETY NOTES
For your own safety and the operating safety of the machine, read the following
notes carefully before starting your machine. Always be aware of all warnings and
notes that are mounted or noted on the machine itself. Save this handbook carefully, so that
the information it contains may be available at all times.
The machine is of advanced construction and reliable in operation.
Nevertheless, the device does present hazards when operated by untrained
personnel. The same applies to use that is inappropriate and not in keeping with its
intended purpose.
In not adhering to this handbook, there is the danger of
 • an electrical shock,
 • injuries from the intake at the rotating rollers,
 • damage to the machine.

4
LM-5.5 Operator Manual
2.1 General safety notes
Caution!
Please, read these notes with care.
Save these instructions for later use.
All notes and warnings found on the machine are to be followed.
Important! The machine must be installed on a suitably strong
surface. The machine is very heavy and must not be installed on a
lightweight desk or surface.
The machine may only be connected to a voltage of 115V/60 Hz.
The mains plug may only be connected with a socket having an installed
protective contact. The protective effect will be compromised by the use of
an extension line without a protective grounding conductor. All interruptions
of the protective grounding conductor, within or outside of the machine,
are prohibited. The device is double pole fused! When fuse failure occurs,
electrical machine parts can still carry voltage. When making the connection
to the mains power, be aware of the connection values on the nameplate.
Inspect the voltage setting on the device’s power input. Run the power cable
so that no-one may trip over them. Do not place any objects upon the power
cable. When the machine is not in use over a long period of time, it should be
disconnected from the power supply. In this way, damage would be prevented
in the event of excess voltage. Protect the device from moisture. When
moisture enters the machine, there is the danger of electrical shock. Never
open the machine except the operator covers. For reasons of electrical safety,
the machine may only be opened by authorized Service Agents.
Never reach into the machine when it is running! This could only occur if a
safety interlock were to fail.
The danger of injuries exists, through pulling in and crushing on the rotating
rollers. In addition, keep long hair and parts of loose clothing far from the
machine in operation. If a safety interlock fails, your Service Agent must
be contacted immediately!
In order to prevent damage to the machine, only factory authorized accessory
parts should be used.
Prior to cleaning the exterior of the machine, it should be disconnected from
the power supply. When cleaning the machine, do not use liquid or spray
cleaners, but only a cloth dampened with water.
When cleaning sensors use onlynon-ammableairdusters,eg.partnumber
E0070A.Othertypesmayuseammablepropellants,whichcouldresultinre
or explosion.
When excess toner can be seen building up on the sealer rollers, hand feeding
cleaner sheets, Part No. 810779, will remove the buildup.
In the following cases, the mains plug must be unplugged and the device left
for the authorized Service Agents:
  • Whenthemainscableorplugiswornordamaged.
  • Whenwaterorotherliquidhasenteredthedevice.
  • Whenthedevicedoesnotfunctionproperly,inspiteof
following the instructions provided.
  • Whenthedevicehasfallendownorthehousingis
damaged.
 • Whentherearenoticeabledifferencesinthenormal
operation of the machine.
Installing
the
machine
Electrical
danger
Operating
Safety
Cleaning
the
machine
Cleaning
sensors
Cleaning
rollers
Allow
machine to
be checked
by Service
Agents

LM-5.5 Operator Manual
5
Issue 5 January 2012 LM-5.5 Operator Manual
Spare Parts When repair work is carried out, only original spare parts or spare parts
corresponding to the original parts may be used.
Repairs Do not disassemble the machine any further than is described in this
handbook. Other than the top cover, the opening of the machine by
unauthorized personnel is not permitted. Repairs may only be carried out
by an authorized Service Agent.
 Modicationisnotpermitted:
 Forsafetyreasons,yourownreworkingandmodicationsarenot
permitted.
Please contact your Service Agent, for all questions relating to service and
repair. In this way, you ensure the operational safety of your machine.
Important!
To stop the machine in an emergency,
strike the red knob next to the control panel.

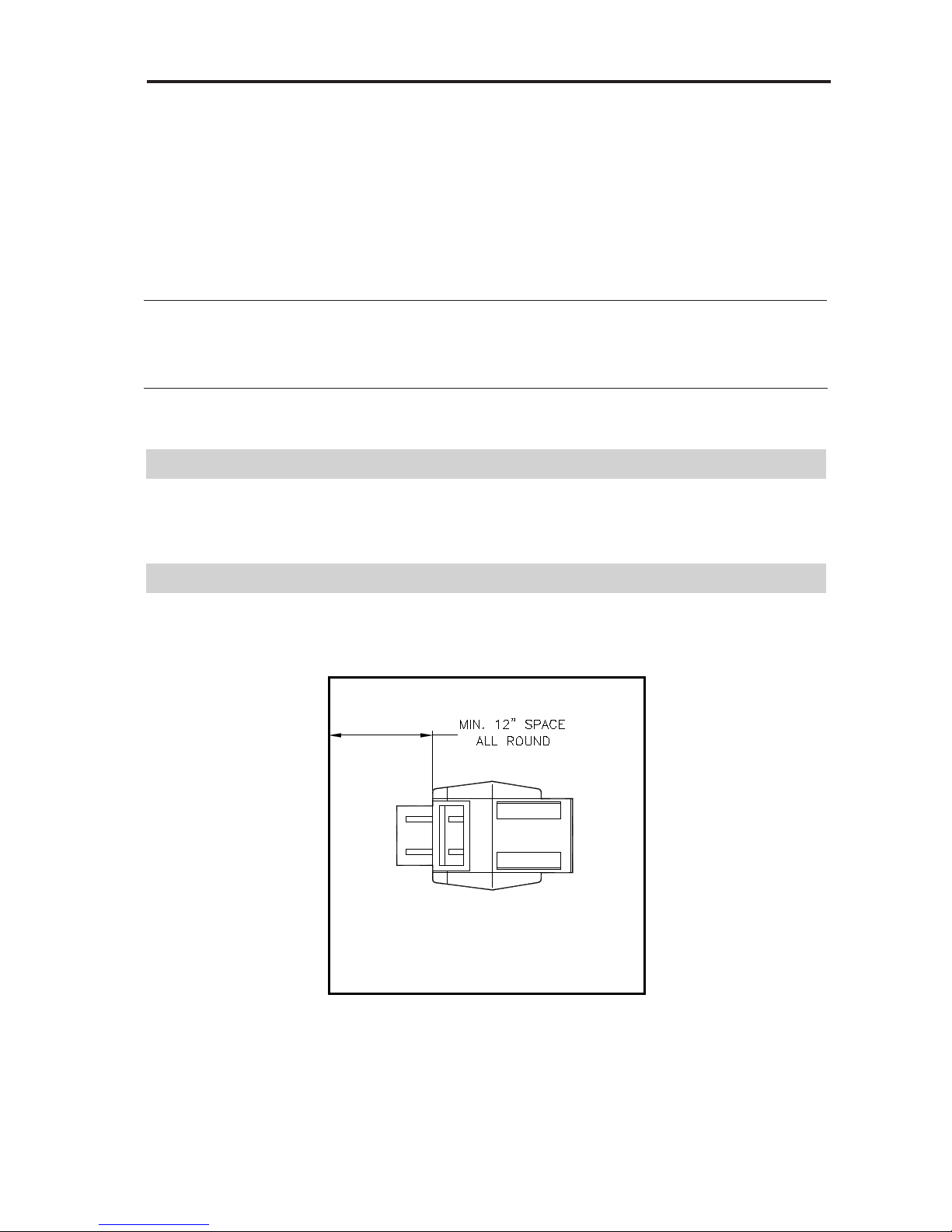

Important!
The machine must be located on the mounting
table with at least 12” space all round.

