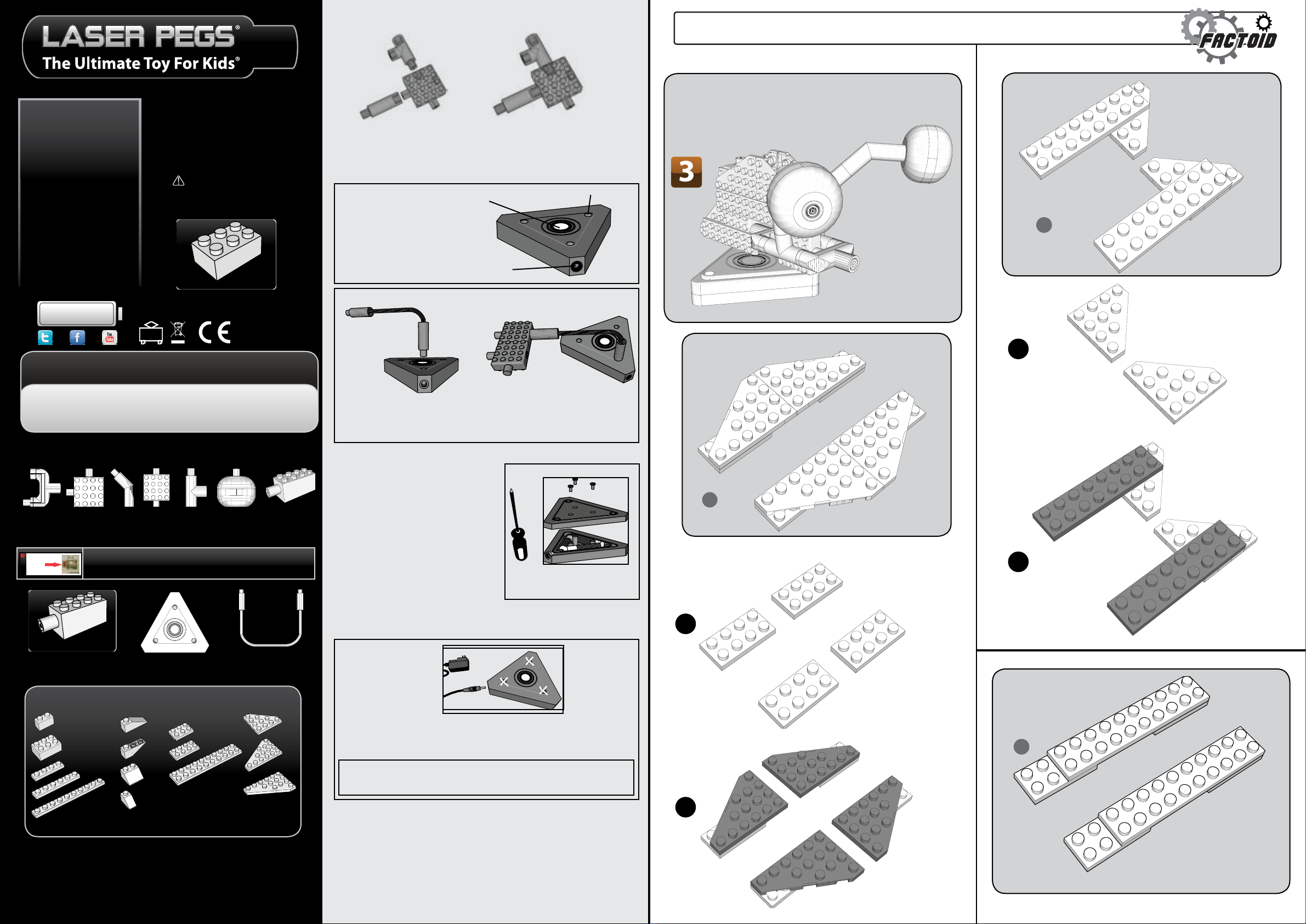

LaserPegs 1670 User manual

Please read manual before you begin! Failure to
follow this manual’s instructions may result in
damage to the Triangle Power base, AC adapter
and/or Laser Pegs®. Not adhering to these
directions will void the manufacturer’s warranty.
Packing has to be kept since it contains
important information.
This manual is copyright and cannot be reproduced or used online without Laser
Pegs®Ventures LLC permission. Copyright 2012 © All Rights Reserved US Patent
#7,731,558 Additional Global & Multiple Patents Pending. Laser Pegs®Ventures
LLC. 8304 Consumer Ct Sarasota FL. 34240. Contact: [email protected]om
Compatible with other construction kits
Each Laser Peg® is color coded on the circuit board inside
each shape. There is No LED In The 90 Degree Peg.
Laser Pegs®link that
allows you to connect to
other construction kits.
Triangle Power
Base
www.LaserPegs.com
Laser Pegs®
Peg Cord
Color
Code
WARNING:
CHOKING HAZARD-Small parts.
Not for children under 3 yrs.
Do not submerge in water.
All additional model instructions can
be downloaded at www.LaserPegs.com
MODEL INSTRUCTIONS
Construction Compatible
Laser Pegs
®
Stackable
EN71, RoHS COMPLIANT
This product complies to
all safety requirements
of ASTM F 963
1670
For Boys And Girls
Ages 5 And Up
12 Models+
LIGHTED
CONSTRUCTION SET INCLUDES:
• 20 Laser Pegs®
• 68 Construction parts
• Triangle Power Base
• Instruction Manual
Requires 3 AA Batteries
Batteries NOT
Included
Laser Peg® Parts List
Construction Parts List
SQUARE
PEG
45° PEG WHEEL PEG StackableSTRAIGHT
T-PEG
Y PEG
Any creation you can build
There is No LED In The 90 Degree Peg
SQUARE
M-M PEGG
x9 x8
x8
x4
x4
x4 x4
x4
x4
x4
x2
x2
x2
x2
x2 x2
x2
x3
x1
x1
x5
x11
To construct with Laser Pegs®, slide two pieces together to form a
connection. Slide each piece on and o smoothly. To build away from the
Triangle Power Base, use the peg cord in one of the top three peg holes to
illuminate your model! The 90° pegs are essential to construction but they
DO NOT ILLUMINATE.
Connecting Pegs
Press button
to turn on/o
Push button to cycle
through 3 dierent
light settings.
Power button Peg Holes
AC Adapter
Connection
Connect Laser Pegs® TRIANGLE POWER BASE
To build away from the Laser Pegs®
Triangle power base use the peg
cord in one of the top three holes to
illuminate your model!
Remove the three Philips head
screws with a 4mm screw driver.
Requires (3AA) Batteries
Using an
AC Adapter
Remove all batteries
from Laser Pegs® power
base before using the
5 volt AC adapter.
When using an AC
Adapter, NEVER
place the adapter
plug into the Tri-
angle power base
top peg holes.
Connect cord to model.
When you remove a peg from another
peg or model DO NOT PULL ON CORD!
When Using Batteries
WARNING! Each Laser Peg® draws current from the batteries. Therefore, the more
pegs you use, the quicker you will deplete your battery power! As the power
weakens, the current will slowly fail and some Laser Pegs® will illuminate (typically
the reds and yellows) and some won’t. When the Laser Pegs® dim the Laser Pegs®
are not broken, they just need stronger batteries or an AC Adapter.
You have 3 simple options...
1. Use a 5 volt AC Adapter –available from www.LaserPegs.com
2. Change the batteries.
3. Use high quality batteries. They will last a little longer, but they will still deplete
rapidly the more laser pegs you connect!
*To avoid short-circuits, keep metal objects and
other un-authorized materials from obstructing
the peg holes.
The AC adapter used with the power base are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, they must not be used until the damage has been repaired.
1. Remove screws.
2. Place three AA batteries in the correct
position - as displayed inside the Triangle
Power Base.
3. Push RED button to turn on!
4. Do not mix old and new batteries.
5. Do not mix alkaline, standard (carbon-
zinc), or rechargeable (nickel-cadmium)
batteries!
6. Exhausted batteries are to be removed
from the power base.
7. Never connect more than 200 Laser Pegs®
8. Non-rechargeable batteries are not to be
recharged.
9. Rechargeable batteries are only to be
charged under adult supervision.
10. Rechargeable batteries are to be removed
from the toy before being charged.
11. Batteries are to be inserted with the
correct polarity.
12. The supply terminals are not to be short-
circuited.
Never connect more than 200
Laser Pegs® when using a 5 volt
(2000mA) AC Adapter.
