Lathem 700E User manual

Copyright © 2017 Lathem Time Corporation. All rights reserved.
Document Number: USG0115 - Revised: 04/15/2017
Lathem Time
200 Selig Drive SW
Atlanta, GA 30336
www.lathem.com
Tel. [phone]
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Lithium battery contains perchlorate material – special handling may apply.
Visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate for information about proper methods of disposal.
The information within this document has been carefully checked and is believed
to be entirely reliable. However, no responsibility is assumed for inaccuracies.
Lathem reserves the right to make changes to any products herein to improve
reliability, function, or design.

TABLE OF CONTENTS
33
4
4
4
- Display & Buttons
5
7
7
8
10
11
13
13
13
14
15
15
16
17
18
19
20
21
- Setting the Rounding
23
25
25
25
26
27
- Reset to All Clear
28
- Card Reassign
29
30
30
31
31
32
9. PRECAUTIONS
1. GETTING STARTED
- Packing Contents
- Features
- SETUP: AC Adapter
- SETUP: Remove/Attach the Cover
- Installing the Ribbon Cassette
- Mounting Unit on Wall
3. DAILY OPERATION
12
4. DEFAULT SETTINGS
7
2. SETUP
5. SETTING: Date and Time
- Setting the Display Hours
- Setting the Time
- Setting the Date
6. SETTING: Function
- Setting the Mode-Pay Period
- Setting the Pay Period Starting Date/Days
- Setting the Print Format/Language
- Setting the Max In (Calculating Mode)
- Setting the Max In (Non-Calculating Mode)
- Setting the Auto Break Deduction
- Setting the Daylight Saving Time
7. OTHERS
- Setting/Changing the Passcode
- Inputting the Passcode
- Reset for Initialization
- Card Reset
8. INFORMATION
- Error No. Causes and Actions
- Other Failures
- Environmental Conditions
- Specifications

Register Your Product
Overview
1. GETTING STARTED
Packing Contents
User's manual Wall mount
hardware
Ribbon cassette
Cover
Display
Control buttons
Card slot
Wall-mounting
holes
AC adapter
It is important that you register your product with Lathem shortly after purchase
to activate your product’s warranty.
To register online visit: www.lathem.com/register
4

12345 6
SETTING
Button
RESET
Switch
DATE/TIME
Button
FUNCTION
Button Button Button
SET
Button
700E
S
M
T W T F S
UOUEHR A
PASSWORD
DAYLIGHT
SAVINGS
SET
TIME MODE MAXIN
DATE/TIME
SETTINGSTART/END
Press
AUTO
BREAK
DEDUCTION
FUNCTION
ROUNDING
Short:
Long(3sec.):
SettingMode
RibbonChange
ErrorCancellation
PRINT
FORMAT
CARD
DELETE
CARD
REASSIGN
DATE
DISPLAY
HOURS
Daylight saving time indication Day of the week indication
Current date
AM/PM
indication
Current column indication Current time
AM PM

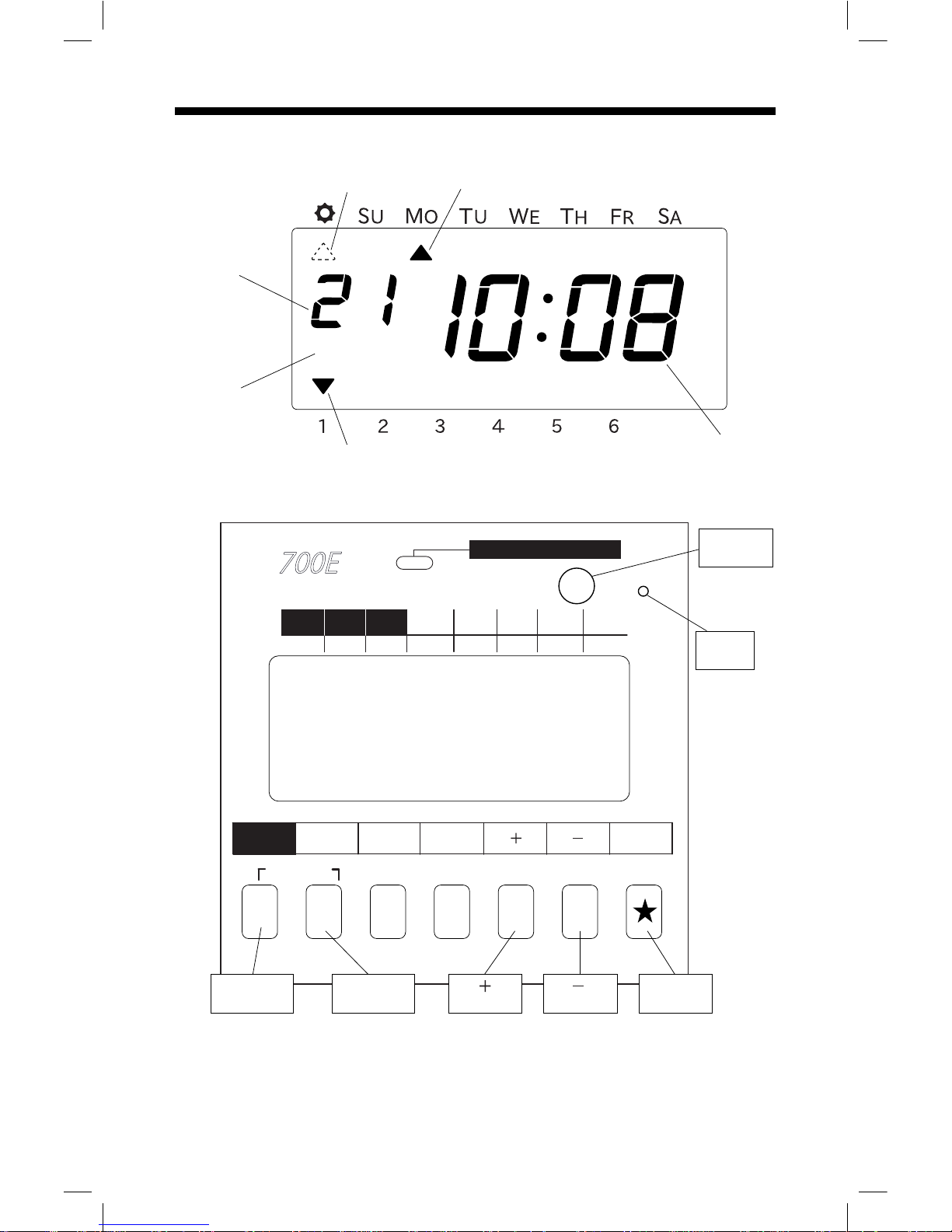

Display and Buttons
5

Features
Calculating Mode (SumTime™)
• Fully automatic time clock for up to 100 employees
• DualMode™ feature provides Calculating or Non-Calculating operation
• SumTime™ Calculating mode option calculates elapsed hours between
punches and total accumulated hours for pay period in exact minute or
rounded time format
• Supports weekly, bi-weekly, semi-monthly and monthly pay periods
• Employee identification using E17 bar coded time cards, provides automatic
top card feed, punch alignment and print activation for simple one-hand
operation
• SmartClock™ technology keeps time, date and settings during power
outages, and auto-adjusts for Daylight Saving Time and Leap Years
• Display and print 1-12 AM/PM or 24 Hour format
• Print time in regular minutes (00-59) or hundredths of an hour (.00-.98)
• Print the Month, Year, Day of Week and Date, Hours between Punches,
and Total Accumulated Hours for the pay period
• Unlimited punches per day, 64 total punches in the pay period

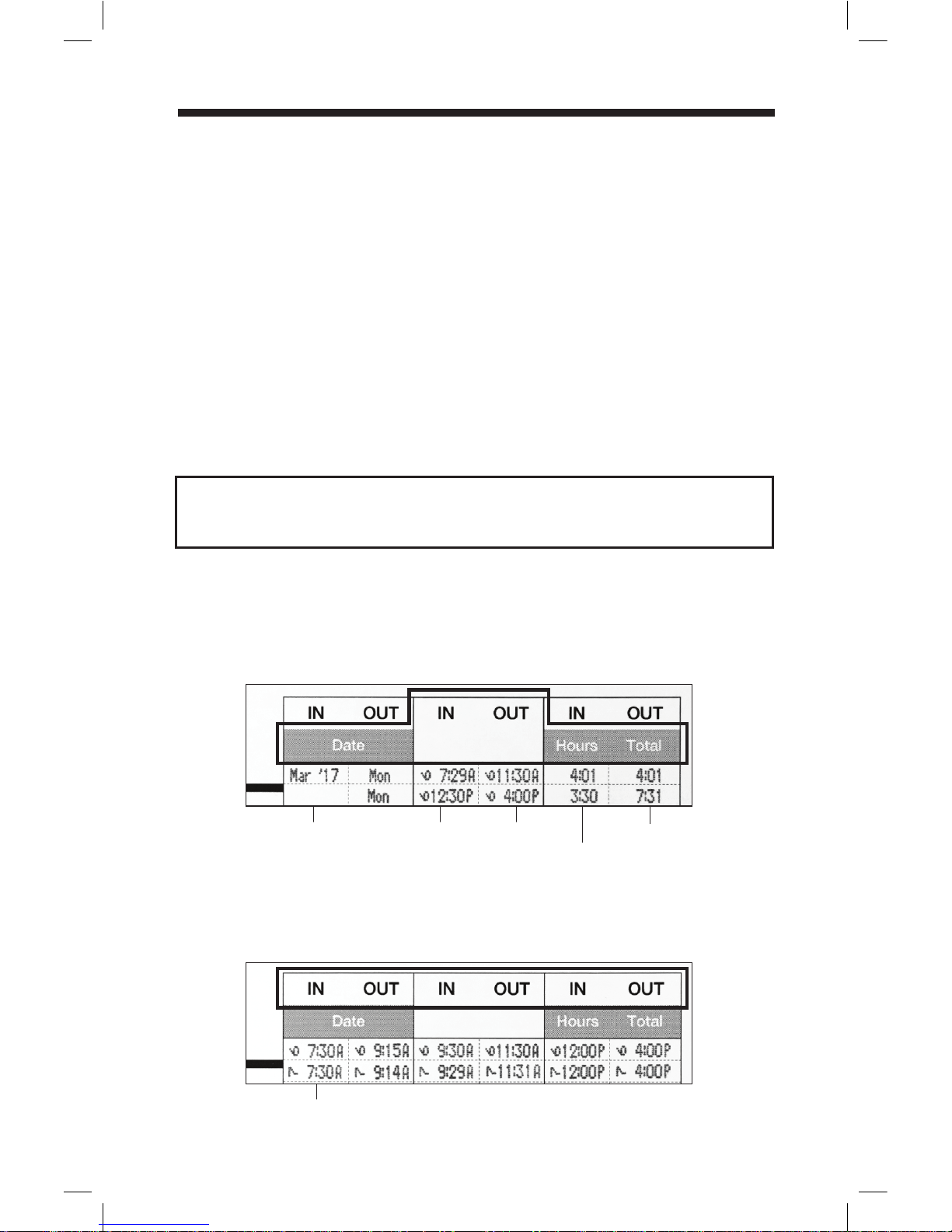

Non-Calculating Mode
• Print Date or Day of Week and Time
• Up to six (6) punches per day. Each row of the time card is one day
Date
Date
Hours between punches
Up to 6 punches per day
Accumulated hours
for pay period
IN OUT
This clock requires the use of E17 Time Cards only.
E17 time cards are bar coded and support all pay periods.
6

Features
Calculating Mode (SumTime™)
• Fully automatic time clock for up to 100 employees
• DualMode™ feature provides Calculating or Non-Calculating operation
• SumTime™ Calculating mode option calculates elapsed hours between
punches and total accumulated hours for pay period in exact minute or
rounded time format
• Supports weekly, bi-weekly, semi-monthly and monthly pay periods
• Employee identification using E17 bar coded time cards, provides automatic
top card feed, punch alignment and print activation for simple one-hand
operation
• SmartClock™ technology keeps time, date and settings during power
outages, and auto-adjusts for Daylight Saving Time and Leap Years
• Display and print 1-12 AM/PM or 24 Hour format
• Print time in regular minutes (00-59) or hundredths of an hour (.00-.98)
• Print the Month, Year, Day of Week and Date, Hours between Punches,
and Total Accumulated Hours for the pay period
• Unlimited punches per day, 64 total punches in the pay period
Non-Calculating Mode
• Print Date or Day of Week and Time
• Up to six (6) punches per day. Each row of the time card is one day
Date
Date
Hours between punches
Up to 6 punches per day
Accumulated hours
for pay period
IN OUT
This clock requires the use of E17 Time Cards only.
E17 time cards are bar coded and support all pay periods.
Cover
Projections
<1>
<2>
SETUP: AC adapter
1Put the bottom face of a time recorder
toward you. Connect a plug of AC
adapter into the time recorder, and run
the cord into the groove on the bottom.
Then, plug the AC adapter into AC
outlet.
SETUP: Remove/Attach the Cover
1
2
Remove the cover.
<1> Pull the top of the cover toward
you supporting the bottom side of the
cover.
<2>Pull it to front and upper
direction. Then, remove the cover.
Attach the cover.
Fit the right and left sides on the
bottom of the cover in projections of
the unit. Then, attach the cover in the
reverse order of <1> and <2> in step 2.
2. SETUP
7

Place the ribbon cassette inside the
time recorder as shown in the figure.
Push the ribbon cassette until it snaps
into the clasps on both sides. If it is
difficult to insert the ribbon cassette,
try it while turning the knob.
Knob
Tab
Clasps
(located on both sides)
Knob

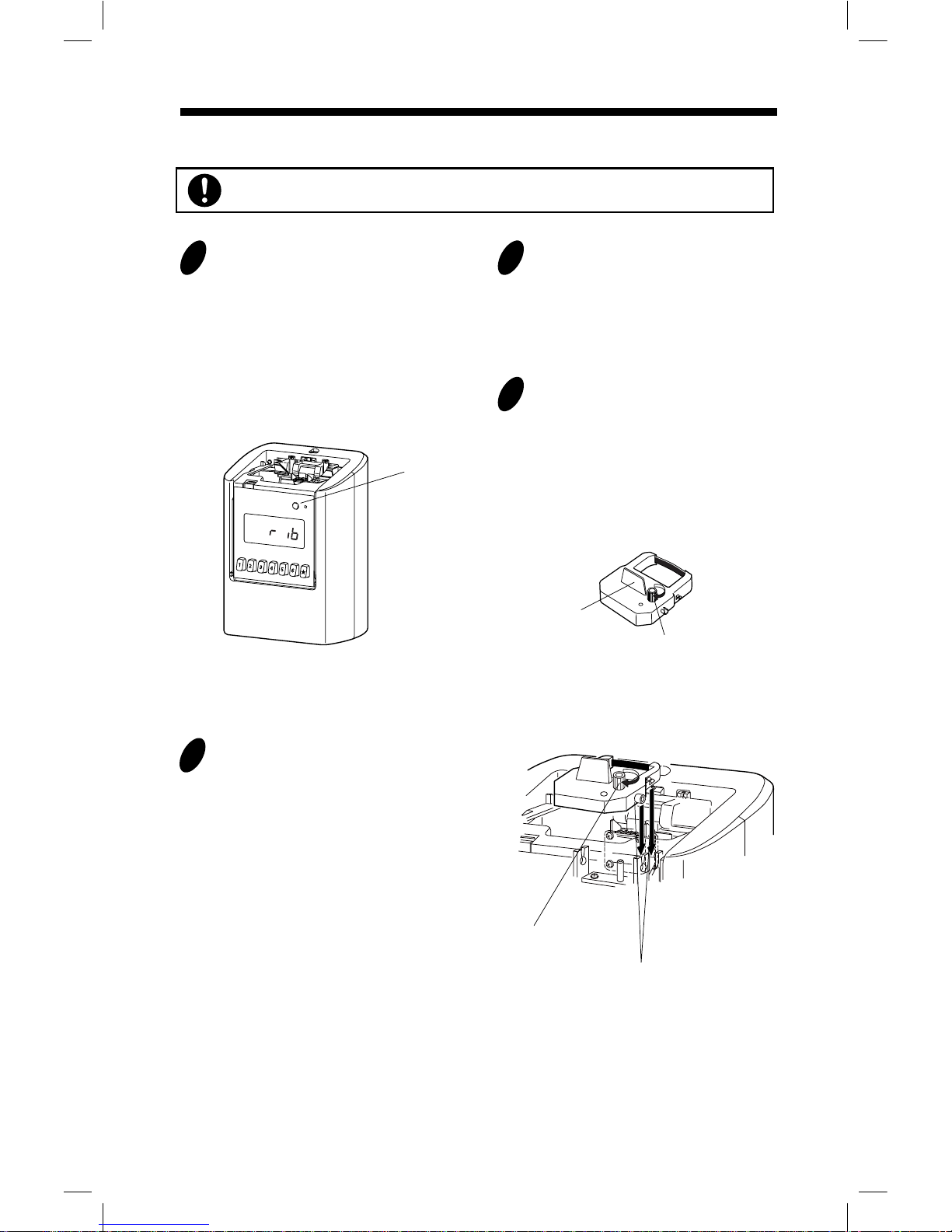

Installing the Ribbon Cassette
Remove the cover, and press
[SETTING] button for three seconds.
Then, display will change as follows
and a ribbon cassette moves to the
replacement position.
Note: Ribbon cassette is not factory
installed.
When you replace an installed ribbon
cassette to a new one, pull up the ribbon
cassette just above with the tab.
Make sure the power is on before installing.
[SETTING]
button
21
Turn the knob of the new ribbon cassette
in the same direction as the arrow to
tighten the ribbon.
Note: Must not turn the knob in the
opposite direction. Improper handling
causes malfunction of a ribbon cassette.
3
4
8

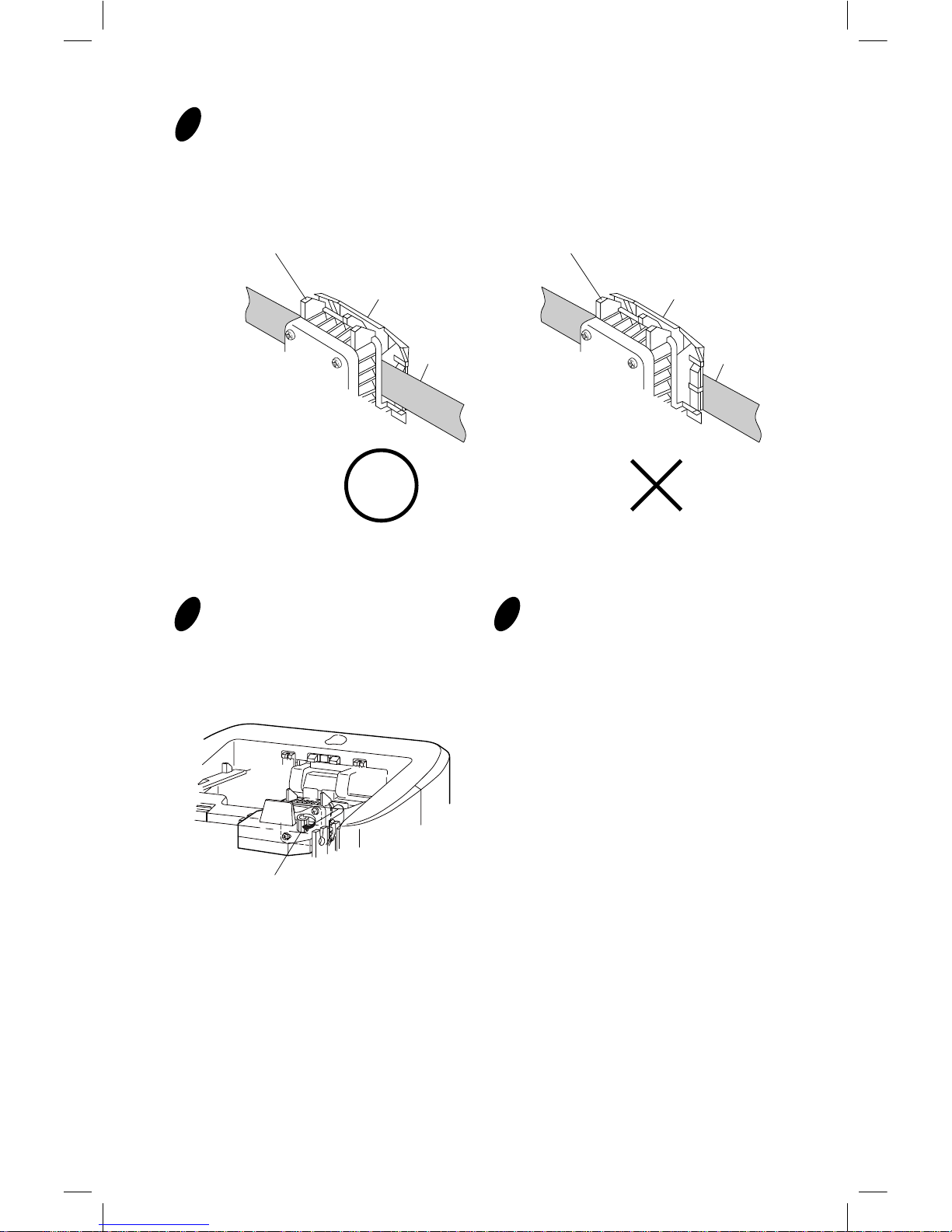

Install the ribbon cassette so that the ribbon is between the print head and the ribbon
mask (see the figure on the left). Printing will not come out properly if the ribbon is
placed behind the ribbon mask (see the figure on the right).
When you finish changing the ribbon
cassette, press [SETTING] button for
three seconds to be back to normal
punching mode.
Turn the knob of the ribbon cassette in
the direction of the arrow to tighten
the ribbon.
Knob
Print head
Ribbon mask
Ribbon
Print head
Ribbon mask
Ribbon
GNORWTCERROC
5
6 7
9

Mounting Unit on Wall
The supplied screws are intended
* Wall mounting template is located on
the back cover of this guide.
for use on a thick wooden wall
or wooden column. Do not use
them on any other materials.
There is a danger that the unit
may come off if used on the
other materials.
Install wall mount screws (supplied)
into a wall 10 cm (3-15/16") apart. Be
sure to keep about 3 mm (1/8") of the
screw head out of the wall. Use
template on the bottom of the back
side of this manual if you prefer.
10cm (3-15/16")
3mm
(1/8")
Mount the wall mount fittings
as shown on the right.
Plug the unit into power, and
the unit is ready to use.
The unit can be mounted on a wall using the supplied mounting fittings.
1
2
3
Wall
Wall Mount Template*
Screws
Make sure the power is off before mounting.
10

3. DAILY OPERATION
• Do not bend, fold, and cut time
cards, and do not put any label
and sticky note on time cards.
•Do not let any object except
time cards get into the slot.
• Do not forcefully push in a card
and pull out a card.
By default, the 700E is set to operate in Calculating mode for a Monthly Pay
Period that begins the 1st of every month. It is very important that you set your
company’s pay period before employees punch the time clock to ensure total
hours worked are correct. See Default Settings on page 12 to modify settings.
• Requires use of E17 time cards (#1-100)
• Each employee should use a unique card number during period
• Employee may use new card number every pay period
• Employee inserts card into top of time clock for each punch
• 700E will automatically pull in the card, print punch in proper positon,
print total hours if applicable, and eject card back to employee
• If an employee forgets to punch out, the 700E will print the next day’s in
punch on a new row without miscalculating time based on the Max Hours In
setting (pg.18). Optionally, employees can work up to 48 continuous hours
using the out-punch Button override option (pg.18)
• Time cards are reset each pay period automatically based on pay period
settings. You can manually reset cards (pg.29)
• If a time card becomes damaged, or you have filled all available rows on
time card, you can reassign card totals to new card number (pg.28) and
continue using new available time card until end of pay period
11

Below are a list of Default Settings of the time clock. If you choose to change
any of these settings, go to the page noted next to that setting.
4. DEFAULT SETTINGS
Display Hours
Time
Date
13
13
14
AM/PM
Current time (Eastern USA)
Current time (Eastern USA)
Default ValueSetting Page
DATE/TIME Settings
Modes (Pay Period)
Print Format
Max In
15
17
18
Calculating mode with weekly pay period
starting on Monday
AM/PM hours, minutes, date, English
Auto Break Deduction 20
Do not automatically deduct time
Rounding 21
No rounding, calculate to the exact minute
13 hours between punches (calculating)
Midnight day change time (non-calculating)
Daylight Savings Time 23
2nd Sunday of March and 1st Sunday of
November
Default ValueSetting Page
FUNCTION Settings
12

Below are a list of Default Settings of the time clock. If you choose to change
any of these settings, go to the page noted next to that setting.
4. DEFAULT SETTINGS
Display Hours
Time
Date
13
13
14
AM/PM
Current time (Eastern USA)
Current time (Eastern USA)
Default ValueSetting Page
DATE/TIME Settings
Modes (Pay Period)
Print Format
Max In
15
17
18
Calculating mode with weekly pay period
starting on Monday
AM/PM hours, minutes, date, English
Auto Break Deduction 20
Do not automatically deduct time
Rounding 21
No rounding, calculate to the exact minute
13 hours between punches (calculating)
Midnight day change time (non-calculating)
Daylight Savings Time 23
2nd Sunday of March and 1st Sunday of
November
Default ValueSetting Page
FUNCTION Settings
5. SETTING: Date and Time

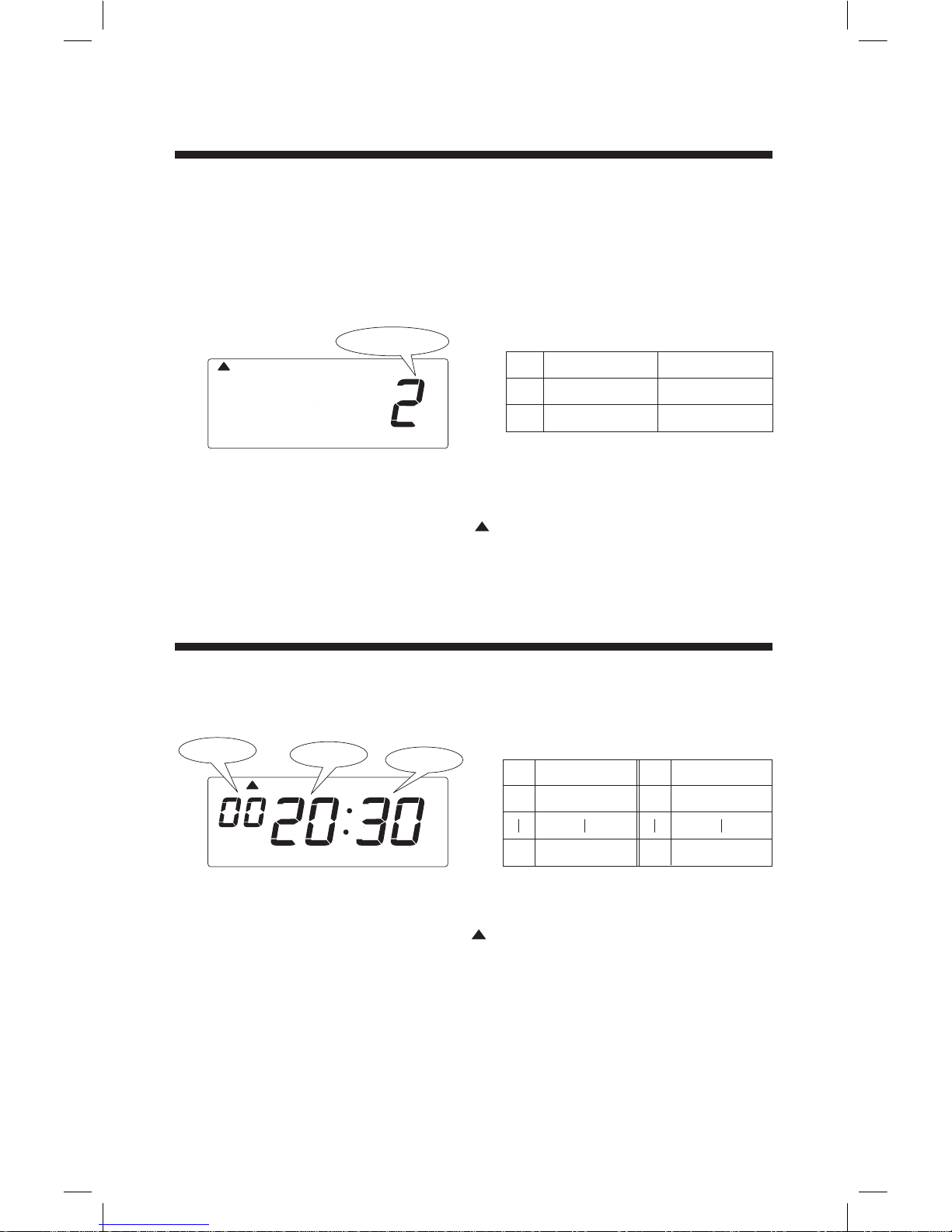

Setting the Display Hours
Below image shows an example that "24hours" is chosen.
Remove the cover, and press [SETTING] button to enter setting mode.
Note: When "9999" appears on display, input the password first.
Press [DATE/TIME] button, and position " " under "DISPLAY HOURS" mark.
Press [+] or [-] button to select number 1 or 2, and press [SET] button to accept.
Press [SETTING] button to exit setting mode, and attach the cover.
Note: If you press [DATE/TIME] button before pressing [SETTING] button, you can
continue setting for date and time.
Selectable numbers and Options
No.
1
2
DISPLAY
HOURS
Type of Hours
AM/PM
24 hour
Example
PM 3:30
15:30
Type of Hours
"Display hours" is the format that the hours appear on the clock face.
Once you select "AM/PM" for display hours, time in setting mode is also
indicated in "AM/PM" format.
Setting the Time
Below image shows an example set at 8:30 PM.
Remove the cover, and press [SETTING] button to enter setting mode.
Note: When "9999" appears on display, input the password first.
Press [DATE/TIME] button and position " " under "TIME" mark.
Press [+] or [-] button to adjust number to current hour, and press [SET] button to accept.
Note: When you change time, second will be back to 0 second automatically.
Set current minute in the same manner.
Press [SETTING] button to exit setting mode, and attach the cover.
Note: If you press [DATE/TIME] button before pressing [SETTING] button, you can
continue setting for date and time.
Hour
12AM
11PM
No.
0
23
No.
00
59
Minute
00
59
TIME
Selectable numbers and Options
Minute
Second Hour
13

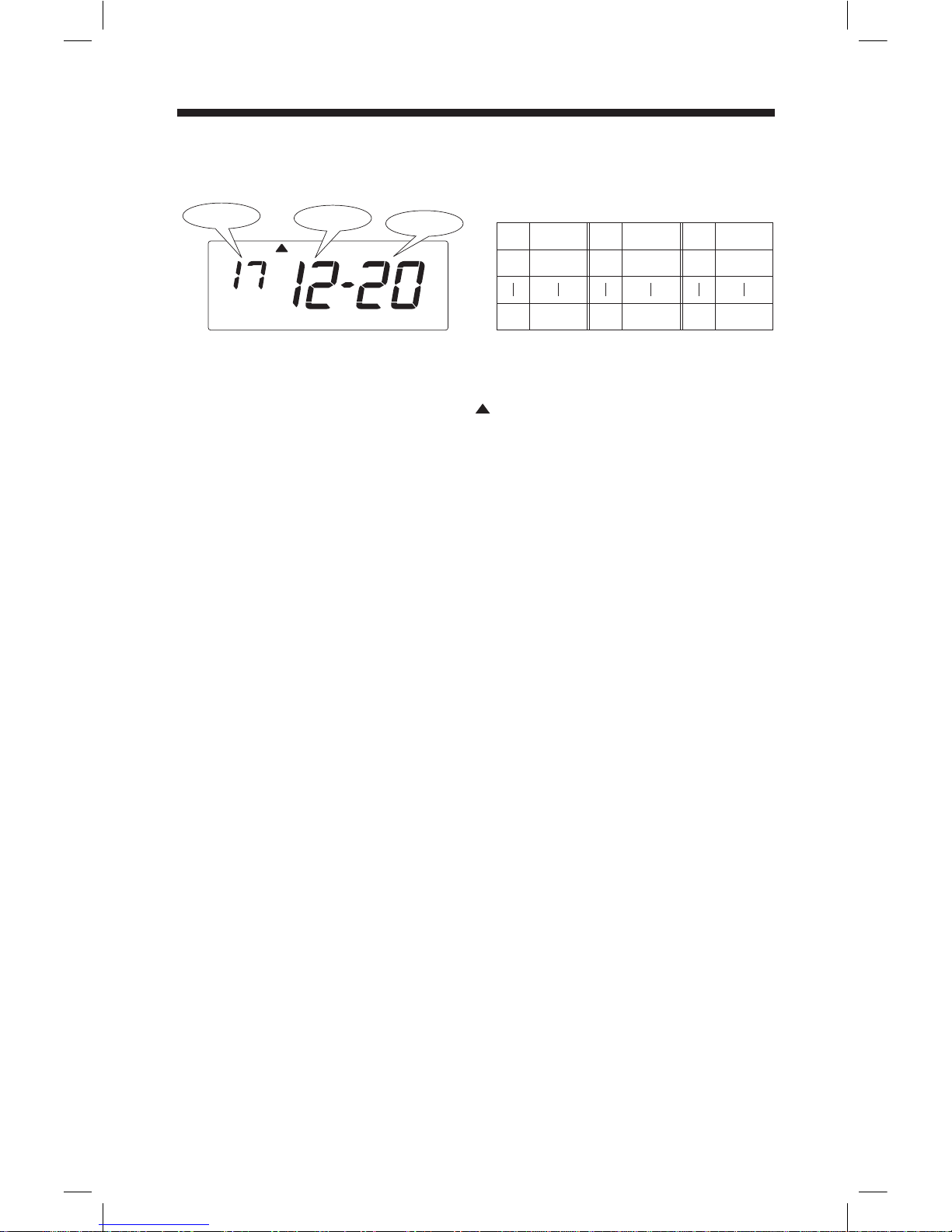

Setting the Date
Below image shows an example of December 20, 2017.
Remove the cover, and press [SETTING] button to enter setting mode.
Note: When "9999" appears on display, input the password first.
Press [DATE/TIME] button, and position " " under "DATE" mark.
Press [+] or [-] button to adjust number to the last two digits of current year, and press
[SET] button to accept.
Set the current month and date in the same manner.
Press [SETTING] button to exit setting mode, and attach the cover.
Note: If you press [DATE/TIME] button before pressing [SETTING] button, you can
continue setting for date and time.
No.
1
31
Date
1
31
Selectable numbers and Options
No.
1
12
Month
January
Decembe r
No.
00
99
Year
2000
2099
Date
Year Month
DATE
14

6. SETTING: Functions
Setting the Mode-Pay Period
Select the desire mode option and pay period settings. Choose between
Calculating and Non-Calculating operation modes.
Example below shows Calculating Semi-Monthly Pay Period.
Option MODE
1
2
3
4
Monthly (once per month)
Weekly (ever 7 days)
Bi-Weekly (every 14 days)
Semi-Monthly (twice per month)
Calculating
Calculating
Calculating
Calculating
6
7
8
9
Monthly (once per month)
Weekly (ever 7 days)
Bi-Weekly (every 14 days)
Semi-Monthly (twice per month)
Non-Calculating
Non-Calculating
Non-Calculating
Non-Calculating
ModeNo. Pay Period
Option
15

Setting the Pay Period Starting Dates / Days
1st Starting Date
Example below shows Calculating Semi-Monthly Pay Period that begins in the
1st and 16th of every month.
Set the Pay Period start date / day based on the pay period you selected in the
Option setting. Note that 1st Starting Date setting is only available if you
selected a Semi-Monthly period. (Options 4 or 9)
Option
1st Starting Date
(Semi-monthly only)
MODE
Starting Date/Day
1 .. 31 Date of month
Starting DateNo.
Monthly Pay Period
1
2
3
4
Sunday
Monday
Tuesday
Wednesday
5
6
7
Thursday
Friday
Saturday
Starting DayNo.
Weekly Pay Period
1 .. 31 Start date of current pay period
(will determine day of week and maintain)
Starting DayNo.
Bi-Weekly Pay Period
1 .. 31 Start date of 2nd pay period in month
Starting DateNo.
Semi-Monthly Pay Period
1 .. 31 Start date of 1st pay period in month
Starting DateNo.
Semi-Monthly Pay Period (only)
16

Setting the Print Format
Below image shows an example that "Date, 24hour", "Regular Minutes" and
“English Language” are chosen.
Remove the cover, and press [SETTING] button to enter setting mode.
Note: When "9999" appears on display, input the password first.
Press [FUNCTION] button, and position " " under "PRINT FORMAT" mark.
Press [+] or [-] button to select number of Print Format, and press [SET] button to accept.
Press [+] or [-] button to select number of Minute Type, and press [SET] button to
Press [+] or [-] button to select number of Language, and press [SET] button to accept.
accept.
Press [SETTING] button to exit setting mode, and attach the cover.
Note: If you press [FUNCTION] button before pressing [SETTING] button, you can
continue setting for function.
1
2
3
4
15 : 30
Mo 15 : 30
3 : 30 P
Mo 3 : 30 P
Date, 24hour
Day of the week, 24hour
Date, 12hour
Day of the week, 12hour
Print FormatNo. Example:
Print Format: Selectable numbers and Options
1
2
8 : 43
8.71
Regular Minutes (1/60)
Hundredths (1/100)
Minute Type Print Example:No.
Minute Type: Selectable numbers and Options
Print Format Minute Type Language Type
PRINT
FORMAT
12 12
Language
English
Spanish
French
No.
1
2
3
Example:Thursday
TH 15:30
JU 15:30
JE 15:30
Language Type: Selectable numbers and Options
17

22
24
Setting the Max In
(Calculating Mode)
Only available in Calculating Mode. This setting operates differently
depending on your operating Mode, Calculating or Non-Calculating.
Max In Value
Set this to the maximum number of an hours an employee may work before
punching out.
Max In Override Option
You can allow employees to override the Max in option using the Out buttons
on the front of clock if they occasionally work shifts longer than the Max In
setting. For example, if Max In is set at 13 hours, and an employee works 15
hours, they can press Button 2 on the front of the clock for Out, insert their time
card, and the clock will calculate the time correctly.
MAX IN
Max In Override
Option
Max in Value
(hour)
1 .. 24 Hours
Max In ValueNo.
1Disabled
2Enabled
Max In OverrideNo.
18

Below image shows an example that Day Advance Time is set to 5:00AM.
Remove the cover, and press [SETTING] button to enter setting mode.
Note: When "9999" appears on display, input the password first.
Press [FUNCTION] button and position " " under "MAX IN" mark.
Press [+] or [-] button to select hour of the line shift time, and press [SET] button to
accept.
Set the minute of the line shift time in the same manner.
Press [SETTING] button to exit setting mode, and attach the cover.
Note: If you press [FUNCTION] button before pressing [SETTING] button, you can
continue setting for function.
Hour
12AM
11PM
No.
0
23
No.
00
59
Minute
00
59
Selectable numbers and Options
Hour of
the line
shift time
Minute of
the line
shift time





If Non-Calculating Mode is selected, Max-In changes to the Day Advance
Time. The day advance time refers to the time when printing shifts to the next
line on a time card for the next day. With this function, you can adjust from
what time to what time of the day will be regarded as the same day on a time
card.
Setting the Max In
(Non-Calculating Mode)
MAX IN
19

22
22
Setting the Auto Break Deduction
Example: Auto Break Deduction setting
Elapsed time ··· 8 hours Break duration ··· 60 min.
IN OUT
10 hours
Elapsed time = 8 hours
.m.p00:5.m.a00:7 3:00 p.m.
Auto Break Duration setting IN
7:00 A
7:00 A
Yes
No
OUT
5:00 P
5:00 P
TOTAL
9:00 B
10:00
Print example
"B" is to indicate that Auto Break Deduction is valid.
Break times can be automatically deducted from totals using the "Auto Break Deduction"
feature. You must set a base working elapsed time and break duration. Once total working
hours reaches to Elapsed Time, Break Duration will be deducted from the total working hours.
For example, if you have a 30 minute lunch break that you want to deduct and the lunch break
starts 4 hours into work day, set elapsed time to 4:30 and set Break duration to 30. Thus, 30
minutes would be deducted from any punch made 4 hours, 30 minutes in the work period.
Only available in Calculating Mode. The 700E will deduct the break
amount after totaling the hours and if the total hours are equal to or greater
than the "Elapsed Time" setting.
20
