Lathem DWA-4000 User manual

DWA-4000
4 *
Operations Manual
Keeping Americans On Time Since 1919

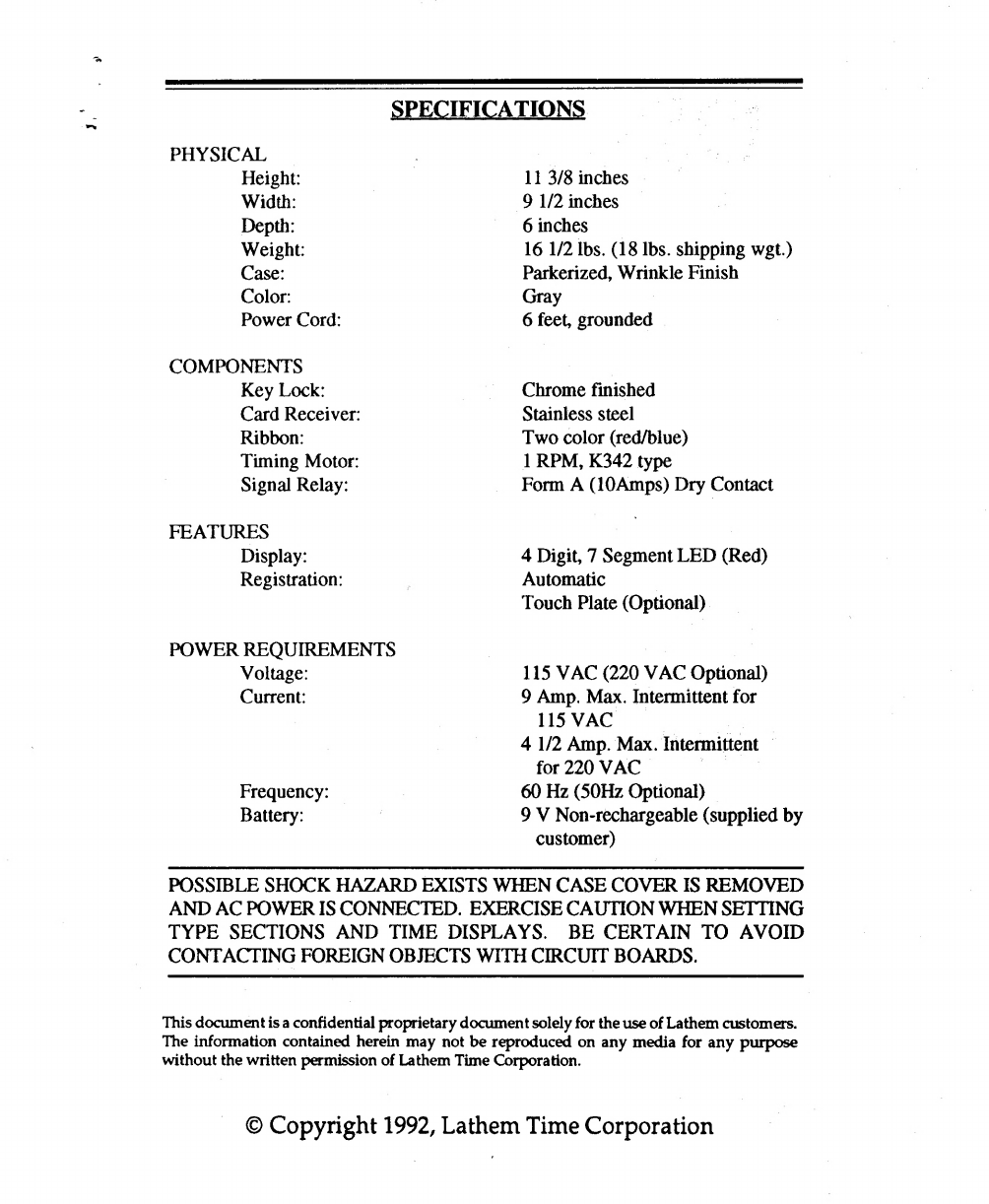

PHYSICAL
Height:
11 3/8 inches
Width:
9 1/2 inches
Depth: 6 inches
Weight:
16 1/2 lbs. (18 lbs. shipping wgt.)
Case:
Parkerized, Wrinkle Finish
Color: Gray
Power Cord: 6 feet, grounded
COMPONENTS
Key Lock:
Chrome finished
Card Receiver: Stainless steel
Ribbon: Two color (red/blue)
Timing Motor:
1 RPM, K342 type
Signal Relay:
Form A (lOAmps) Dry Contact
FEATURES
Display:
4 Digit, 7 Segment LED (Red)
Registration:
Automatic
Touch Plate (Optional)
POWER REQUIREMENTS
Voltage:
115 VAC (220 VAC Optional)
Current:
9 Amp. Max. Intermittent for
115 VAC
4 1/2 Amp. Max. Intermittent
for 220 VAC
Frequency: 60 Hz (50Hz Optional)
Battery: 9 V Non-rechargeable (supplied by
customer)
POSSIBLE SHOCK HAZARD EXISTS WHEN CASE COVER IS REMOVED
AND AC POWER IS CONNECTED. EXERCISE CAUTION WHEN SETTING
TYPE SECTIONS AND TIME DISPLAYS. BE CERTAIN TO AVOID
CONTACTING FOREIGN OBJECTS WITH CIRCUIT BOARDS.
This document is a confidential proprietary document solely for the use of Lathem customers.
The information contained herein may not be reproduced on any media for any purpose
without the written permission of Lathem Time Corporation.
© Copyright 1992, Lathem Time Corporation

DWA-4000 Series Operations Manual
Page 1
Table of Contents
INTRODUCTION............... 2
REGISTRATION STYLES........... 2
REFERENCE FIGURES............. 3
INSTALLATION INSTRUCTIONS...... . 4
KEYPAD LAYOUT AND DESCRIPTION OF LED DISPLAY . . 5
FUNCTIONS OF THE KEYPAD...... ■ .6
GETTING STARTED--—.....______7
To Choose The Time Format.........7
SETTING THE TYPE SECTION............7
Raise And Set The Type Section.......... 7
Dial of Decimal Equivalents........ 8
SETTING THE DIGITAL FACE.... 9
To Set the Current Time.......9
To Set the Current Day...... 9

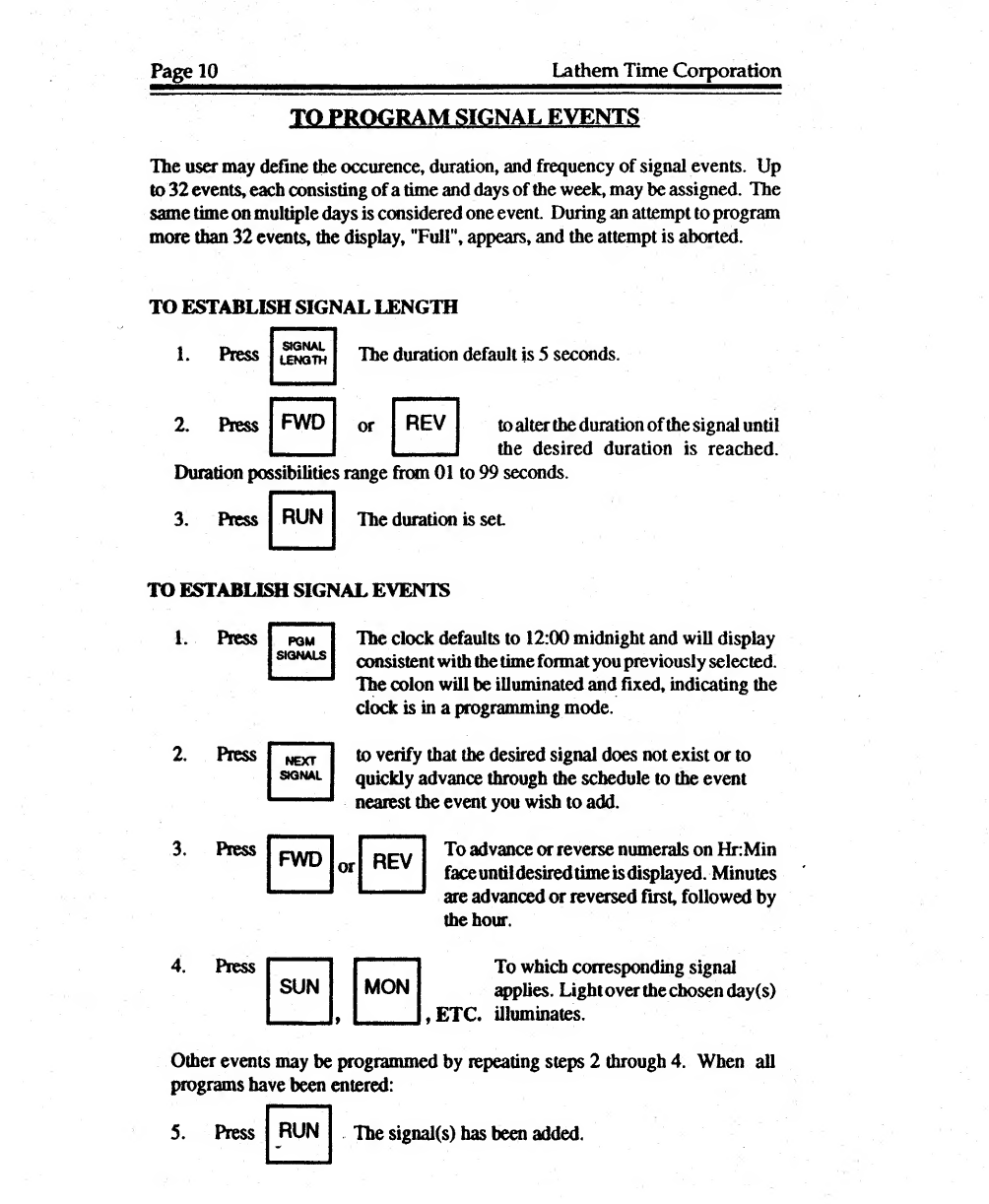

TO PROGRAM SIGNAL EVENTS . . . . . . . . . . . 1 0
To Establish Signal Length.........10
To Establish Signal Events........10
To Delete Signals ............. 11
To Sound a Signal That Has Not Been Programmed... 11
To Enable or Disable Signals Globally...... 11
To Review Signals . . . . . . . 1 1

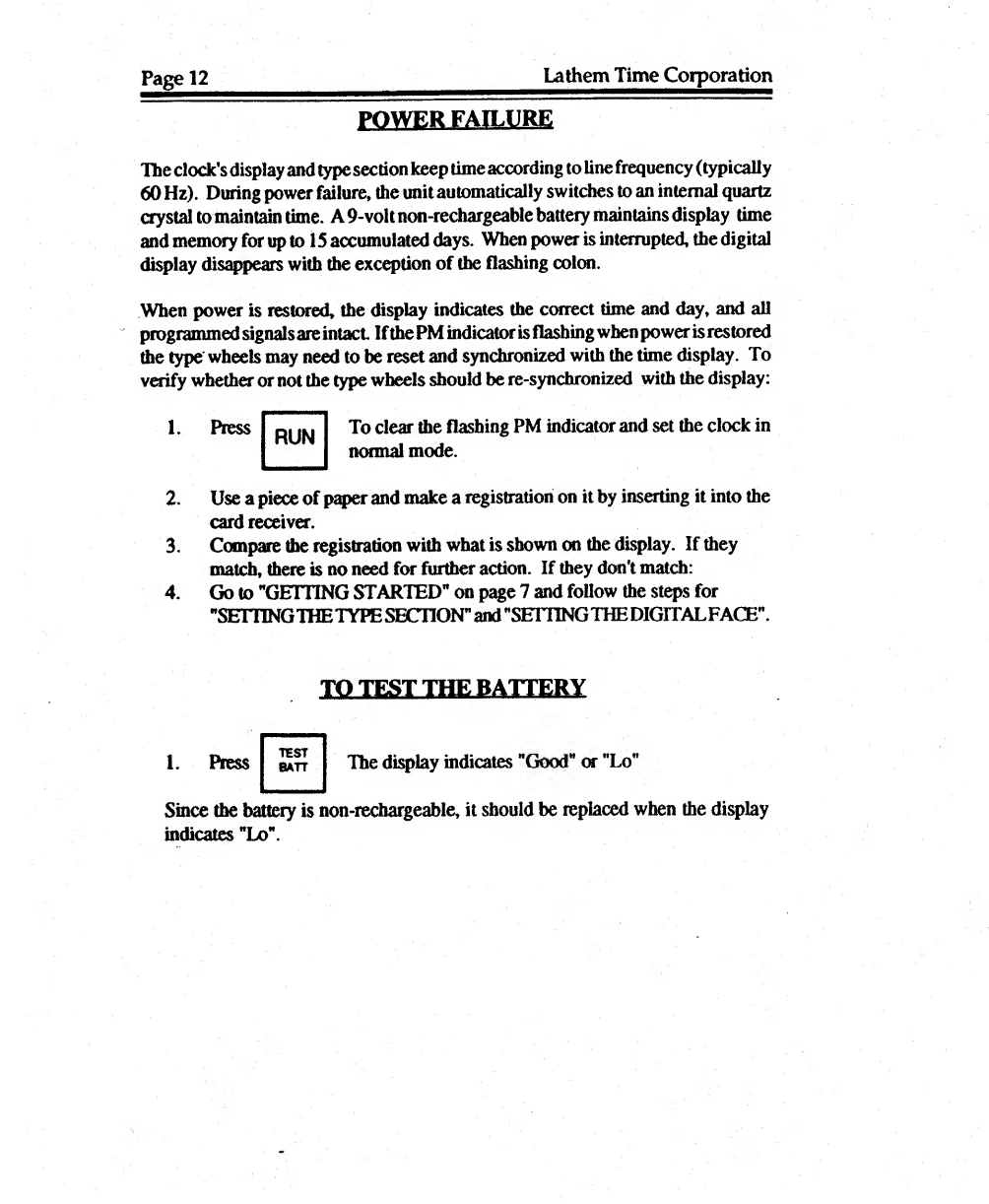

POWER FAILURE..........12
TO TEST THE BATTERY . . . . . . 12
MAINTENANCE............ 13
How To Change A Ribbon.....13
How To Change A Type Section......13
How To Change A Motor.......... 14
INTERNAL WIRING DIAGRAM... ....15

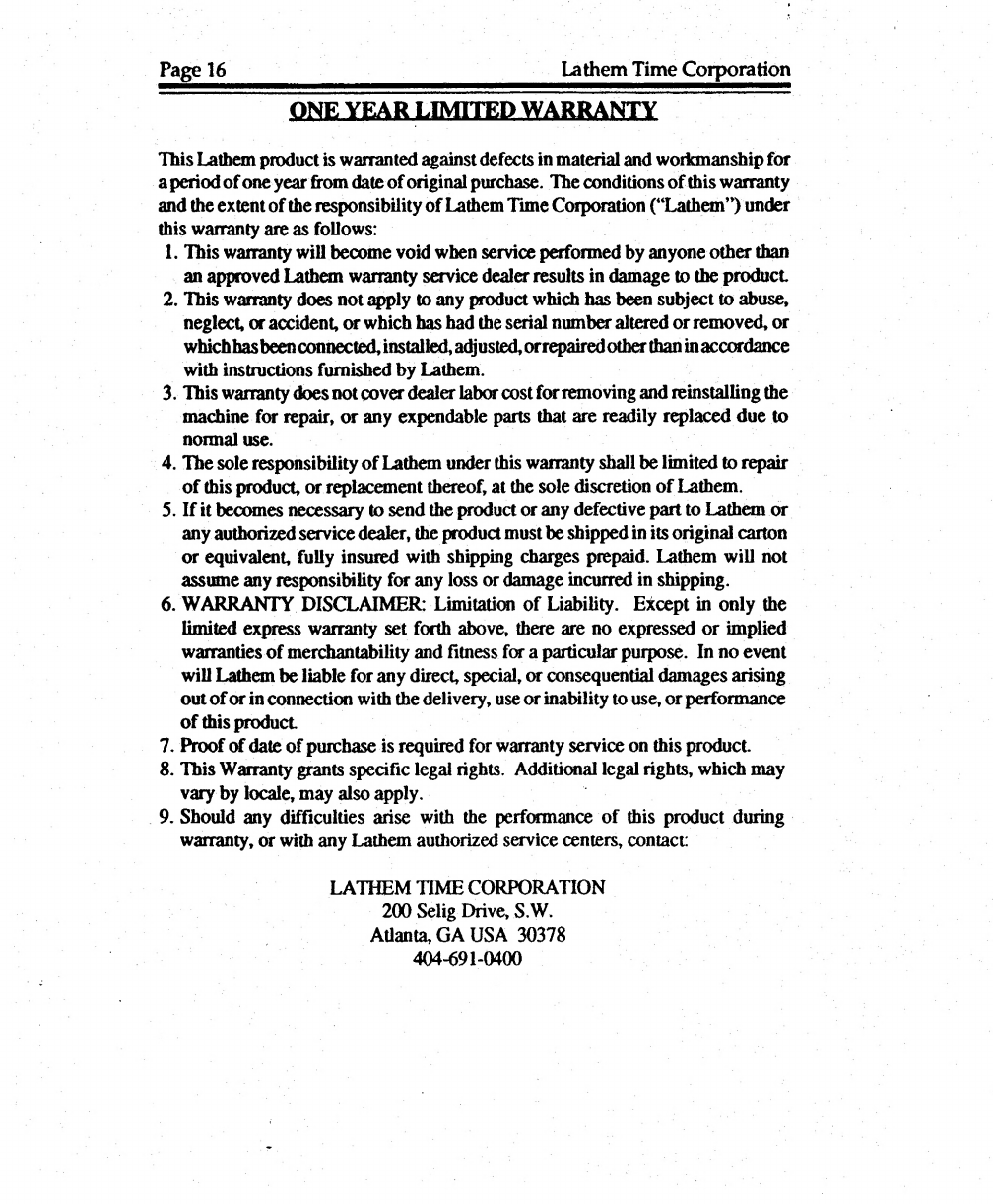

ONE YEAR LIMITED WARRANTY..... 16
USER WORK SHEET TO ASSIST IN PROGRAMMING.. Back Cover
WARRANTY CARD......... Back Cover
WARNING: This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class A computing device
pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection
against such interference when operated in a commercial environment Operations of the equipment in
a residential area is likely to cause interference, in which case, the user, at his own expense, will be
required to take whatever measures may be required to correct the interference.

Page 2
La them Time Coiporation
INTRODUCTION
The Lathem 4000 Series time recorders are considered "standard” by thousands of
businesses and institutions because of their low initial cost and years of proven,
trouble-free operation. Many options are available with models to fit most business
needs for payroll and job timekeeping. The DWA-4000 series features touch plate
or automatic registration, right or left margin imprint, self reversing ribbon, digital
time display, coined steel type wheels, and easy installation. A particularly useful
feature of the DWA-4000 series is a keypad-programmable signal relay, capable of
ringing bells (or other signal devices) at selected times as well as inhibiting their
operation when not desired.
Read all directions carefully before operating or maintaining the DWA-4000.
Should it be necessary to return the unit, retain the original packing materials for
shipping. This operations manual is designed to provide basic operating instructions.
Minor maintenance and adjustments can also be performed easily and effectively
by referring to these instructions. For service beyond the scope of this manual,
con tact the dealer fixxn whom the equipment was purdiased or Lathem Time Company.
REGISTRATION STYLES
day-of-week or month-and-dale; standard hours (1-12,1-12) or continental hours (0-23);
and minutes (00-59), tenths (.0-.9), or hundredths (00-98).
Auto-
matic
4001
4002
4003
4004
4005
4006
Touch
Elate Will Register
4051 Mouth and Date, Standard Hours (1-12,1-12). Minutes (0-59)
4052. Month and Date, Standard Hours (1-12, )-12). Tenths (.0-.9)
4053 Month and Date, Standard Hours (1-12,1 - 1 2 ) . Hundredths (00-98)
4054 Month and Date, Continental Hours (0-23), Minutes (0-59)
4055 Month and Date, Continental Hours (0-23), Tenths (.0-.9)
4056 Month and Date, Continental Hours (0-23), Hundredths (00-98)
Add 20 to model number for day of week registration (4001 + 20 = 4021).
4021 4071
4022 4072
4023 4073
4024 4074
4025 4075
4026 4076
Day of Week, Standard Hours (1-12,1-12), Minutes (0-59)
Day of Week, Standard Hours (1-12,1-12), Tenths (.0-.9)
Day of Week, Standard Hours (1-12,1-12), Hundredths (00-98)
Day of Week, Continental Hours (0-23), Minutes (0-59)
Day of Week, Continental Hours (0-23), Tenths (.0-.9)
Day of Week, Continental Hours (0-23), Hundredths (00-98)
For left hand print, add ten to the model number(4001 +10=4011). For year wheel add
-5 as a suffix (4051-5). Year wheels are available on models with month and date only.
Check year wheels periodically for expiration date. Consult dealer in advance to prevent
interruption of service.

DWA-4000 Series Operations Manual Page 3

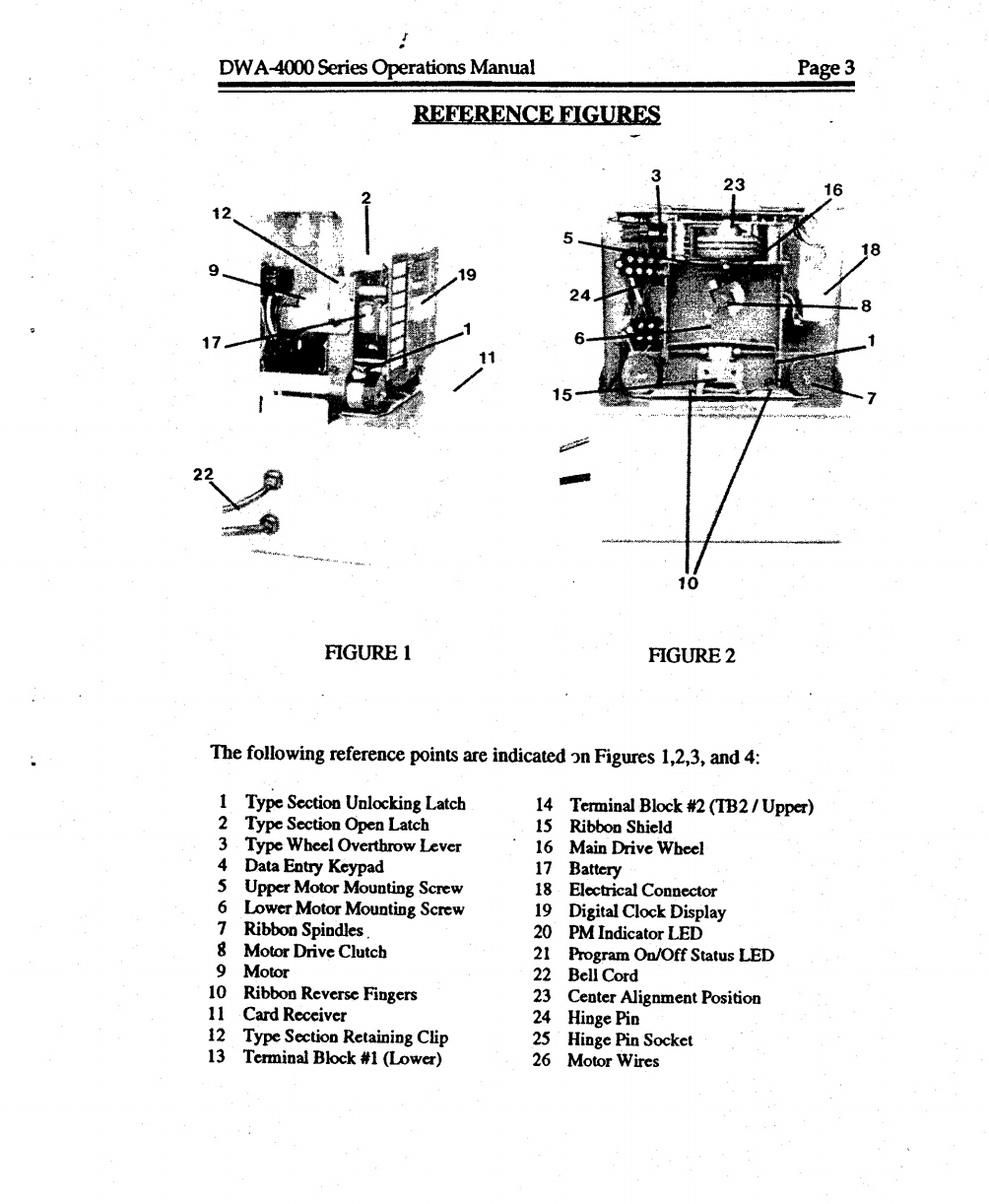

REFERENCE FIGURES
FIGURE 1 FIGURE 2
The following reference points are indicated on Figures 1,2,3, and 4:
1 Type Section Unlocking Latch
2 Type Section Open Latch
3 Type Wheel Overthrow Lever
4 Data Entry Keypad
5 Upper Motor Mounting Screw
6 Lower Motor Mounting Screw
7 Ribbon Spindles
& Motor Drive Clutch
9 Motor
10 Ribbon Reverse Fingers
11 Card Receiver
12 Type Section Retaining Clip
13 Tenninal Block #1 (Lower)
14 Tenninal Block #2 (IB 2 / Upper)
15 Ribbon Shield
16 Main Drive Wheel
17 Battery
18 Electrical Connector
19 Digital Clock Display
20 PM Indicator LED
21 Program On/Off Status LED
22 Bell Cord
23 Center Alignment Position
24 Hinge Pin
25 Hinge Pin Socket
26 Motor Wires

Page 4
La them Time Corporation
FIGURE 3 FIGURE 4
INSTALLATION INSTRUCTIONS
The DWA-4000 Series can be set on a desk or shelf, or mounted on a wall. Wall
p anting is recommended for payroll use because the clock can be installed at eye
level (about fourfeetfrom the floor to the card receiver). This provides the employee
with good aim for aligning his time card to the red pointer. Once the clock has been
installed, mount the bell(s) and or born(s) at the desired location(s). With the power
cord unplugged, wire the signal devices, through a single gang outlet box, to die
connector plate (two wiring schemes are shown in the diagrams below); mount the
connector plate to the outlet box, and insert the plug of the bell cord (Fig 1,22).
Typical Wiring Configurations
TYPICAL WIRING FOR SIGNAL DEVICES USING SIGNAtl RELAY AS A DRY
CONTACT TO SWITCH AUDIO

DWA-4000 Saies Operations Manual
Page 5
SI
afiViC
G INSTRUCTIONS FOR DWA-4000 SERIES
KEYPAD
SET
i
SET
i
PGM
TIME
1
DAY
1
SIGNALS
TwiriW mmrnrnm
12/24 HR
i
SIGNAL
i
SIGNAL
DISPLAY
1
ON/OFF
1
LENGTH
■ hhmh
■ MUM
RESTART i
CLEAR
1
SIGNAL
1
■ ■ ■ ■ ■
■ MB
SUN
MON
mmamm
WED
THU
SAT REV
■ ■■ ■■ ■
MANUAL
SIGNAL
TEST
BATT
The type wheels and the digital clock function
independently of one another. Setting the
digital clock does not set the type wheels.
Similarly, setting the type wheels does not
set the digital clock. Each assembly must be
set individually and synchronized.
No security code is required to access program
functions since the keypad is behind the
locked cover. Unlock and remove the case
cover.
S
•
- When illuminated, ^_I
indicates afternoon
hours in 12 hr. format
- When winking,
indicates power failure
has occurred and that
type wheels must be
resynchronized.
LED DISPLAY
M T W T
• • •
F
S Indicates day selection
• with illuminated light
□□ p e t
When winking, indicates normal time
When flashing, indicates power failure.
When illuminated, indicates program
function has been entered
over corresponding day
Indicates time
selections for
programmed events or
current time (either in
12/24 hour format)
When illuminated
indicates signals are
.disabled. (When off,
indicates signals are
enabled.) Winks when
signal is operating.

Page 6
La them Time Corporation
SET
TIME
SET
DAY
PGM
SIGNALS
12/24 HR
DISPLAY
SIGNAL
ONfOFF
SIGNAL
LENGTH
RESTART
CLEAR
SIGNAL
NEXT
SIGNAL
SUN
REV
FWD
MANUAL
SIGNAL
TEST
BATT
RUN

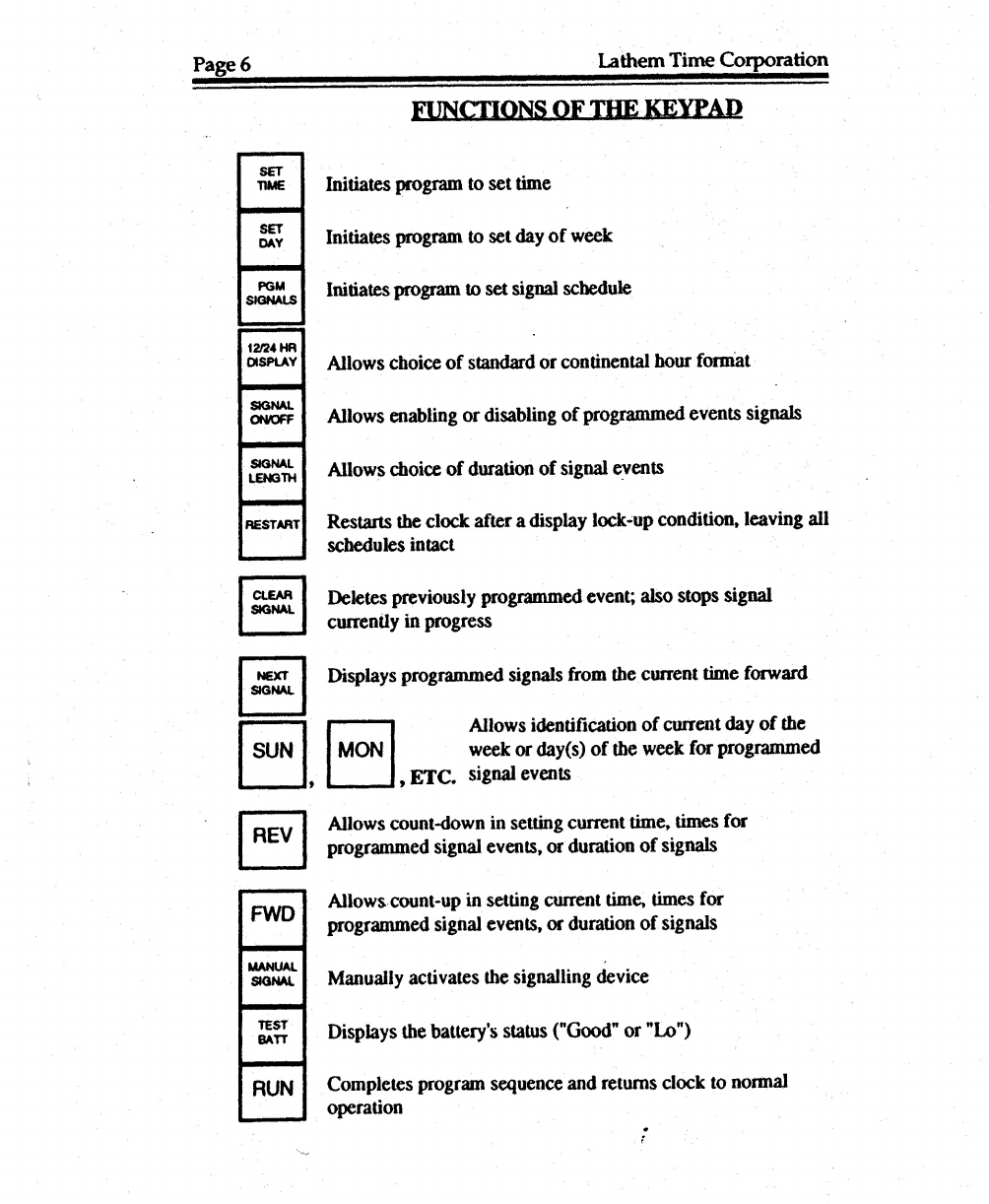

FUNCTIONS OF THE KEYPAD
Initiates program to set time
Initiates program to set day of week
Initiates program to set signal schedule
Allows choice of standard or continental hour format
Allows enabling or disabling of programmed events signals
Allows choice of duration of signal events
Restarts the clock after a display lock-up condition, leaving all
schedules intact
Deletes previously programmed event; also stops signal
currently in progress
Displays programmed signals from the current time forward
Allows identification of current day of the
week or day(s) of the week for programmed
,ETC. signal events
Allows count-down in setting current time, times for
programmed signal events, or duration of signals
Allows count-up in setting current time, times for
programmed signal events, or duration of signals
Manually activates the signalling device
Displays the battery’s status ("Good" or "Lo")
Completes program sequence and returns clock to normal
operation
MON

DWA-400Q Series Operations Manual
Page 7
£E]
ivic
GSTARTED

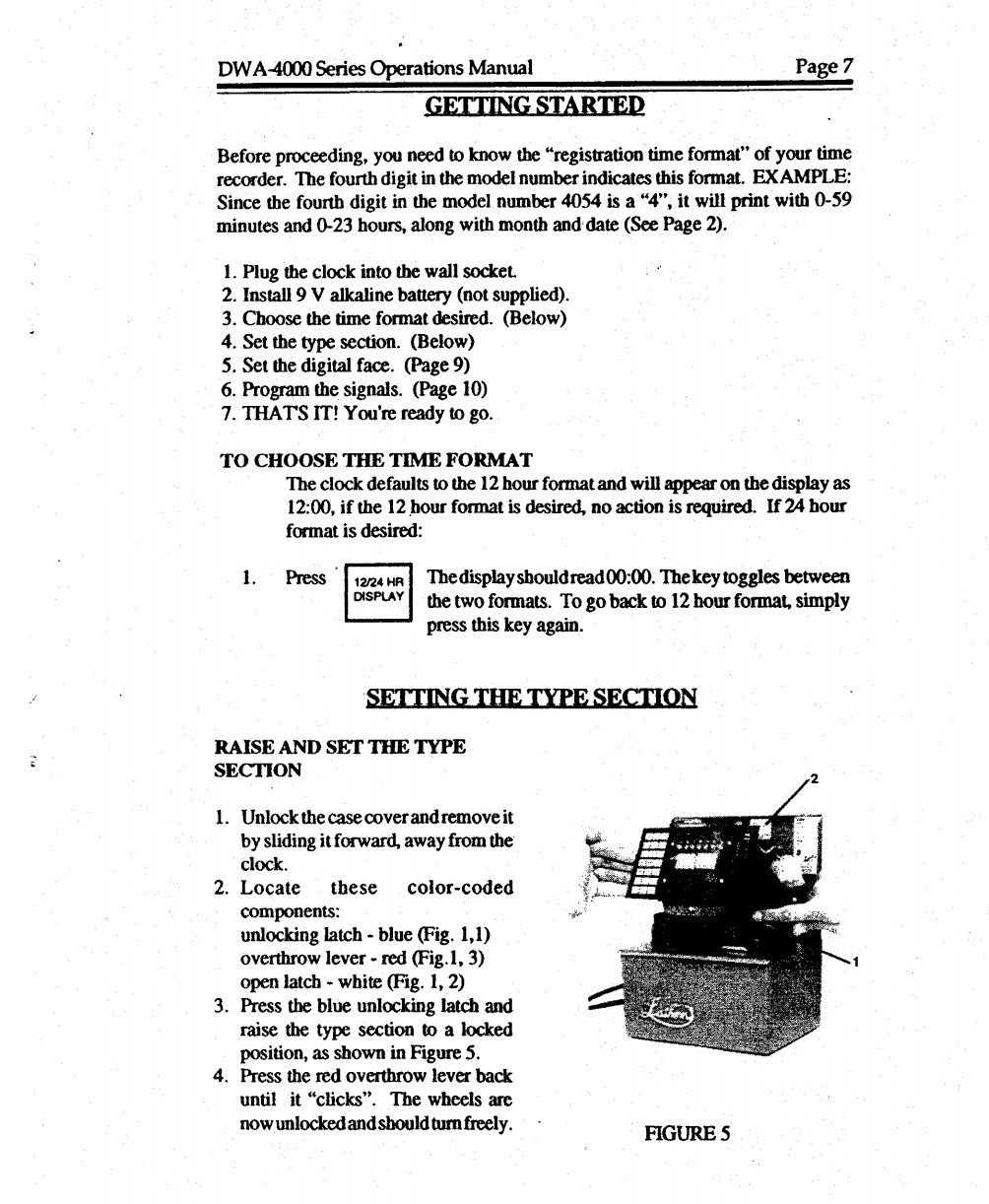

Before proceeding, you need to know the “registration time format” of your time
recorder. The fourth digit in the model number indicates this format. EXAMPLE:
Since the fourth digit in the model number 4054 is a “4”, it will print with 0-59
minutes and 0-23 hours, along with month mid'date (See Page 2).
1. Plug the clock into the wall socket.
2. Install 9 V alkaline battery (not supplied).
3. Choose the time format desired. (Below)
4. Set the type section. (Below)
5. Set the digital face. (Page 9)
6. Program the signals. (Page 10)
7. THAT'S IT! You're ready to go.
TO CHOOSE THE TIME FORMAT
The clock defaults to the 12 hour format and will appear on the display as
12:00, if the 12 hour format is desired, no action is required. If 24 hour
format is desired:
1 .
Press
12/24 HR
(DISPLAY
The display should read00:00. The key toggles between
the two formats. To go back to 12 hour format, simply
press this key again.
G THE TYPE SECTION
RAISE AND SET THE TYPE
SECTION
1. Unlock the case cover and remove it
by sliding it forward, away from the
clock.
2. Locate these color-coded
components:
unlocking latch - blue (Fig. 1,1)
overthrow lever - red (Fig. 1,3)
open latch - white (Fig. 1,2)
3. Press the blue unlocking latch and
raise the type section to a locked
position, as shown in Figure 5.
4. Press the ted overthrow leva: back
until it “clicks”. The wheels are
now unlocked and should turn freely.
FIGURES

Page 8
La them Time Corporation
NOTE: If your machine records in 1-12 hours, the PM hours are underlined. AM
hours are not underlined. Set time to the proper hour of die day to avoid errors
such as setting the day wheel to the next day at noon rather than midnight
5. Use a pointed object to rotate each
wheel until the correct time and day
are vertically aligned at the center
position, as shown (Fig. 6,23). If
you are using tenths (models with
4th digit of2 or 5), go to the section
“Setting Decimal Wheel with
Tenths” If you are using hundredths
or 0-23 hours, refer to the Dial of
Decimal Equivalents in Figure 7 to
determine the correct setting.
6. Rotate the main drive wheel to
advance the wheels for any time lost
during this setting procedure.
7. Release the white open latch by
pressing left. Gently lower the type
section.
8. Press firmly against face of the type section to lock into the closed position.
FIGURE 6
DIAL OF DECIMAL EQUIVALENTS
The dial in Figure 7 shows the tenths
andhundredtbs setting for each minute.
The small inner circle represents
minutes, the middle circle represents
tenths, and the outer circle represents
hundredths. For example:
45 minutes=.7 tenths = .75 hundredths.
Setting Decimal Wheel with Tenths
NOTE: Use only for recorders
printing in tenths (models witha4th
digit of “2” or “5”)
1. Rotate Tenths Wheel and set it at
“9”. A wheel is set when the desired
number is in line with 6:00 on the
clock face. FIGURE 7
2. Rotate Main Drive Wheel (Fig. 2,
16) until the Tenths Wheel clicks over from “9” to “0”.
3. Rotate Hour Wheel to set current hour.
4. Set correct minutes by rotating Main Drive Wheel one time each minute.
For example, at 10:05, rotate 5 times = 5 clicks * 5 minutes past ten o’clock.

DWA-4000 Series Operations Manual
Page 9
TO SET THE CURRENT TIME
The clock defaults to 12 midnight
2. Use a piece of paper and make a registration. Remember to set the digital
face to minutes regardless of the print format of die Type Section (minutes,
tenths, hundredths).
To advance or reverse numerals on HrrMin
face until time shown is one minute ahead of
the time shown on the registration. Minutes
are advanced or reversed first followed by
die hour.
4. Listen for the wheels in die type section to click forward. When this
happens, immediately
5. Press This will synchronize the type section with die digital
display. The time is now set Make another registration
- 1 to verify that the process was completed successfully.
TO SET THE CURRENT DA Y
The clock defaults to Sunday
Corresponding light over chosen day
, ETC. will illuminate.
3. Press
The day is set

Page 10
La them Time Corporation
The user may define the occurence, duration, and frequency of signal events. Up
to 32 events, each consisting of a time and days of the week, may be assigned. The
same time on multiple days is considered one event. During an attempt to program
more than 32 events, the display, Tull", appears, and the attempt is aborted.
TO ESTABLISH SIGNAL LENGTH
1. Press I SwIIth I The duration default is 5 seconds.
2. Press I FWD I or I REV I to alter the duration of the signal until
I 1 I » the desired duration is reached.
Duration possibilities range from 01 to 99 seconds.
3. Press
RUN
The duration is set
TO ESTABLISH SIGNAL EVENTS
1. Press pom The clock defaults to 12:00 midnight and will display
signals consistent with the time format you previously selected.
The colon will be illuminated and fixed, indicating the
clock is in a programming mode.
2. Press next to verify that the desired signal does not exist or to
quickly advance through the schedule to the event
' nearest the event you wish to add.
3. Press
FWD L, REV
To advance or reverse numerals on Hr:Min
face until desired time is displayed . Minutes
are advanced or reversed first, followed by
the hour.
4. Press | | To which corresponding signal
SUN MON applies. Light over the chosen day(s)
I . _I,ETC. illuminates.
Other events may be programmed by repeating steps 2 through 4. When all
programs have been entered:
5. Press | RUN I The signal(s) has been added.

DWA-4000 Series Operations Manual
TO DELETE SIGNALS
1 . Press
PGM
SIGNALS
Page 11
2 .
Press
NEXT
SIGNAL
As many times as necessary to reach the identified signal
to be deleted. The signals scroll from current time
forward.
3.
4.
Press
Press
CLEAR
SIGNAL
RUN
to delete signal. All day LED's extinguish.
The signal has been deleted.
TO SOUND A SIGNAL THAT HAS NOT BEEN PROGRAMMED
to sound die signal. The signal will sound as long as the
key is depressed.
This signal is independent of the program signals function and works in either
the enabled or disabled mode. When the manual signal is operated, the disable
light at the lower right of the minute display will flash.
1. Press
TO ENABLE OR DISABLE SIGNALS GLOBALLY
To toggle between all programmed signals on or all programmed signals off:
1 . Press
SIGNAL
ONCFF
To determine whether the programmed signals are on or off, look to the right of
the minute display. Ifa light is illuminated, all signals are off and no signal will
sound. If the light is not visible, all signals are on and will occur as programmed.
TO REVIEW SIGNALS
1 . Press
NEXT
SIGNAL
to review all signals which have been installed. If no
signal has been programmed, the display remains the
same current time. Review starts from current time.

Page 12 La them Time Corporation
The clock’s display and type section keep time according to line frequency (typically
60 Hz). During power failure, the unit automatically switches to an internal quartz
crystal to maintain time. A 9-volt non-rechargeable battery maintains display time
and memory for up to 15 accumulated days. When power is interrupted, the digital
display disappears with the exception of the flashing colon.
When power is restored, the display indicates the correct time and day, and all
programmed signals are intact If the PM indicator is flashing when power is restored
the type wheels may need to be reset and synchronized with the time display. To
verify whether or not the type wheels should be re-synchronized with the display:
L Press py^ To clear the flashing PM indicator and set the clock in
normal mode.
2. Use a piece of paper and make a registration on it by inserting it into the
card receiver.
3. Compare the registration with what is shown on the display. If they
match, there is no need for further action. If they don't match:
4. Go to "GETTING STARTED" on page 7 and follow the steps for
"SETTING THE TYPE SECTION” and "SETTING THE DIGITAL FACE".
Since the battery is non-rechargeable, it should be replaced when the display
indicates "Lo".

DWA-4000 Series Operations Manual _
MAINTENANCE
Page 13
HOW TO CHANGE A RIBBON
La them time recorders have self-
reversing ribbons. With normal use, a
ribbon should last for many months or
even years...and when the time comes,
it is easy to change.
1. Remove the top cover and raise
type section (see “Raise the type
section on page 7.)
2. Remove the cotter pins (Fig. 8,7)
that retain the ribbon spools and
slide off old spools.
3. Liftribbon shield (Fig. 8,15)—use
pencil to support in up position.
4. Remove ribbon and replace with
FIGURE 8
new Lathem ribbon. Make sure the
ribbon feeds from bottom of spools
and runs BETWEEN reversing
fingers (Fig. 8,10), the red side aligned with date wheel(s).
5. I nstall cotter pins, remove pencil, and lower type section into place.
HOW TO CHANGE A TYPE SECTION
If your type section needs servicing,
you can easily remove and replace it
with a spare, without sending the entire
machine for service. Here’s how:
1. Remove the top cover.
2. Remove type section retaining ring
(Fig. 1, 12).
3. Unplug connectors (Fig. 9, 18).
4. Lift type section slightly and move
it to the right to release hinge pins
(Fig. 9,24) from their socket (Fig.
9,25). Unit will lift out (Fig. 9).
FIGURE 9

Page 14
La them Time Corporation
HOW TO CHANGE A MOTOR
1. Remove top cover.
2. Unplug cord from wall outlet
3. Remove type section from main
frame (see “How to Change AType
Section”, Page 13).
4. Disconnect motor wire leads by
turning each screw 1/4 of a turn
counterclockwise (Fig. 10, 26).
5. Remove the motordrive clutch from
its shaft (Fig. 2, 8). The shaft has
LEFT HAND threads — remove
clutch by turning clockwise.
6. Hold motorbracket and loosen
motor mounting screws. Remove
and retain screws and bracket from
old motor.
7. Install new motor.
8. Install motor clutch on new motor.
26
FIGURE 10
Turn counterclockwise to tighten. DO NOT OVERTIGHTEN OR BEND —
YOU MAY DAMAGE INTERNAL MOTOR GEARS.

DWA-4000 Series Operations Manual
Page 15
INTERNAL WIRING DIAGRAM

Operation Manual Addendum
DWA-4000
To improve the performance and reliability of this product, we have
replaced the previous 10 AMP Dry Contact Relay, with a 10 AMP
Solid State Relay. The new Solid State. Relay only operates with 24 -
240 VAC external devices (bells, horns, etc.). External DC powered
devices should not be connected to this unit.
Due to this change, please note the following corrections to this
manual:
Inside Cover Signal Relay is no longer a Form A (10 AMP) Dry
Contact, instead it should read 10 AMP Solid State
24 - 240 VAC Only.
Page 4 Under the Typical Wiring Configurations section,
the wiring diagram labeled USING SIGNAL
RELAY AS A DRY CONTACT TO SWITCH
AUDIO is no longer valid. Please disregard.
Page 15 The INTERNAL WIRING DIAGRAM is no longer
valid. Please use the new diagram printed on the
back of this Addendum instead.
Form: A-OM409803

Page 16
La them Time Corporation
ONE YEAR L] I3UV
SO WARRANTY
This Lathem product is warranted against defects in material and workmanship for
a period of one year from date of original purchase. The conditions of this warranty
and the extent of the responsibility of Lathem Time Corporation (“Lathem’') under
this warranty are as follows:
1. This warranty will become void when service performed by anyone other than
an approved Lathem warranty service dealer results in damage to the product
2. This warranty does not apply to any product which has been subject to abuse,
neglect, or accident, or which has had the serial number altered or removed, or
which has been connected, installed, adj usted, or repaired other than in accordance
with instructions furnished by Lathem.
3. This warranty does not cover dealer labor cost for removing and reinstalling the
machine for repair, or any expendable parts that are readily replaced due to
normal use.
4. The sole responsibility of Lathem under this warranty shall be limited to repair
of this product, or replacement thereof, at the sole discretion of Lathem.
5. If it becomes necessary to send the product or any defective part to Lathem or
any authorized service dealer, the product must be shipped in its original carton
or equivalent, fully insured with shipping charges prepaid. Lathem will not
assume any responsibility for any loss or damage incurred in shipping.
6. WARRANTY DISCLAIMER: Limitation of Liability. Except in only the
limited express warranty set forth above, there are no expressed or implied
warranties of merchantability and fitness for a particular purpose. In no event
will Lathem be liable for any direct, special, or consequential damages arising
out of or in connection with the delivery, use or inability to use, or performance
of this product
7. Proof of date of purchase is required for warranty service on this product.
8. This Warranty grants specific legal rights. Additional legal rights, which may
vary by locale, may also apply.
9. Should any difficulties arise with the performance of this product during
warranty, or with any Lathem authorized service centers, contact:
LATHEM TIME CORPORATION
200 Selig Drive, S.W.
Atlanta, GA USA 30378
404-691-0400
