Lauda LRZ 927 User manual

Interface moduleLRZ927/928
LRZ 927 – Advanced contact module with single input and output (NAMUR)
Operation manual
LRZ 928 – Advanced contact module with 3 inputs and outputs
V2R5Read this manual prior to performing any task!

Translation of the original operation manual
Manufacturer:
LAUDA DR. R. WOBSER GMBH & CO. KG
Laudaplatz 1
97922 Lauda-Königshofen
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: https://www.lauda.de
Q4DA-E_13-022, 2, en_US 10/24/2022©LAUDA 2022
V2Interface module LRZ 927 / 9282 / 30
replaces issue V2R4, V1R5

Table of contents
1 General................................................................................................................................................................................... 5
1.1 Intended use................................................................................................................................................................... 5
1.2 Compatibility.................................................................................................................................................................. 6
1.3 Technical changes.......................................................................................................................................................... 6
1.4 Warranty conditions...................................................................................................................................................... 6
1.5 Copyright....................................................................................................................................................................... 6
1.6 Contact LAUDA........................................................................................................................................................... 7
2 Safety..................................................................................................................................................................................... 8
2.1 General safety information and warnings................................................................................................................... 8
2.2 Information about the interface module.................................................................................................................... 9
2.3 Personnel qualification.................................................................................................................................................. 9
3 Unpacking............................................................................................................................................................................ 10
4 Device description................................................................................................................................................................ 11
4.1 Purpose.......................................................................................................................................................................... 11
4.2 Versions.......................................................................................................................................................................... 11
4.3 Structure........................................................................................................................................................................ 11
5 Before starting up................................................................................................................................................................ 13
5.1 Installing the interface module................................................................................................................................... 13
5.2 Using the module box.................................................................................................................................................. 15
6 Commissioning..................................................................................................................................................................... 16
6.1 Contact assignment..................................................................................................................................................... 16
6.1.1 Contact module with single input and output (NAMUR)................................................................... 16
6.1.2 Contact module with 3 inputs and outputs........................................................................................... 16
6.2 Software update........................................................................................................................................................... 17
6.3 Module generation....................................................................................................................................................... 17
7 Operation............................................................................................................................................................................. 18
7.1 Menu structure............................................................................................................................................................ 18
7.2 Interface functions....................................................................................................................................................... 19
7.2.1 Read commands...................................................................................................................................... 20
7.2.2 Write commands....................................................................................................................................... 21
7.2.3 Availability of the interface functions.................................................................................................... 22
8 Maintenance........................................................................................................................................................................ 23
9 Faults.................................................................................................................................................................................... 24
10 Decommissioning................................................................................................................................................................ 25
11 Disposal................................................................................................................................................................................ 26
12 Accessories........................................................................................................................................................................... 27
13 Technical data...................................................................................................................................................................... 28
V2 Interface module LRZ 927 / 928 3 / 30

14 Declaration of Conformity................................................................................................................................................. 29
15 Index..................................................................................................................................................................................... 30
V2Interface module LRZ 927 / 9284 / 30

1 General
Many types of LAUDA constant temperature equipment have vacant
module slots for installing additional interfaces. The number, size and
arrangement of the module slots vary depending on the device and are
described in the operating manual accompanying the constant temperature
equipment. Two additional module slots available as accessories can be fitted
to a LiBus module box, which is then connected as an external casing to the
LiBus interface on the constant temperature equipment.
This operating manual describes how to install and configure the following
interface modules:
Contact module with single input and output (NAMUR), catalog no.
LRZ 927
Contact module with 3 inputs and outputs, catalog no. LRZ 928
The contact interface is used to set or query binary states of the constant
temperature equipment by opening and closing circuits. The module acti-
vates when states are output (read). When the states change (write), the
user opens or closes the circuit outside the module. The interface func-
tions provided for this purpose are described in chapters ÄChapter 7.2.1
“Read commands” on page20 and ÄChapter 7.2.2 “Write commands”
on page21.
1.1 Intended use
The interface module can only be operated as intended and under the
conditions specified in this operating manual.
The interface module may only be used in the following areas:
Production, quality assurance, research and development in an industrial
environment
The interface module is an accessory item that is used to control and monitor
the LAUDA constant temperature equipment. The interface module is built
into the device and connected to the 24 volt supply. It may only be installed
in constant temperature equipment that supports the interface provided.
Refer to the chapter "Compatibility” in this operating manual for a list of
compatible product lines.
Operation of the interface module is also permitted in combination with the
LiBus module box (LAUDA catalog no. LCZ 9727). This operating manual
also contains a description of how to install and connect up the module box.
Operation on a non-compatible device
Outdoor operation
Operation in a potentially explosive area
Operation after incomplete assembly
Operation using defective cables or connections or those that do not
confirm to standards
Operation under medical conditions in accordance with
DIN EN 60601-1 or IEC 601-1
Reasonably foreseeable improper use
V2 Interface module LRZ 927 / 928 5 / 30

1.2 Compatibility
The interface modules are available as accessories for the following LAUDA
product lines:
Integral IN
PRO
Variocool
Variocool NRTL
No operation of interfaces of the same type
Depending on the constant temperature equipment, only one Kon-
takt interface can be used. This applies irrespective of the interface
type.
1.3 Technical changes
All technical modifications are prohibited without the written consent of the
manufacturer. Damage resulting from a failure to observe this condition will
void all warranty claims.
However, LAUDA reserves the right to make general technical modifica-
tions.
1.4 Warranty conditions
LAUDA grants a standard warranty of one year.
1.5 Copyright
This operating manual was written in German, checked and approved. If
the content of other language editions deviates from the German edition,
the information in the German edition shall take precedence. If you notice
any discrepancies in the content, please contact LAUDA Service, see
ÄChapter 1.6 “Contact LAUDA” on page7.
Company and product names mentioned in the operating manual are usually
registered trademarks of the respective companies and are therefore subject
to brand and patent protection. Some of the images used may also show
accessories that are not included in the delivery.
All rights reserved, including those relating to technical modifications and
translations. This operating manual or parts thereof may not be modified,
translated or used in any other capacity without the written consent of
LAUDA. Violation of this may obligate the violator to the payment of dam-
ages. Other claims reserved.
V2
Interface module LRZ 927 / 9286 / 30

1.6 Contact LAUDA
Contact the LAUDA Service department in the following cases:
Troubleshooting
Technical questions
Ordering accessories and spare parts
Please contact our sales department for questions relating to your specific
application.
Contact information
LAUDA Service
Phone: [phone]
Email: [email protected]
V2 Interface module LRZ 927 / 928 7 / 30

2 Safety
2.1 General safety information and warnings
Read this operating manual carefully before use.
Keep the operating manual in a place within easy reach of the interface
module.
This operating manual is part of the interface module. If the interface
module is passed on, the operating manual must be kept with it.
This operating manual is applicable in combination with the operating
manual of the constant temperature equipment in which the interface
module is installed.
Manuals for LAUDA products are available for download on the
LAUDA website: https://www.lauda.de
The warnings and safety instructions in this operating manual must be
observed without fail.
There are also certain requirements for personnel, see ÄChapter 2.3
“Personnel qualification” on page9.
Warning signs Type of danger
Warning – danger zone.
Signal word Meaning
WARNING! This combination of symbol and
signal word indicates a potentially
dangerous situation that can result
in death or serious injury if it is not
avoided.
NOTICE! This combination of symbol and
signal word indicates a poten-
tially dangerous situation that can
result in material and environmental
damage if it is not avoided.
Structure of warnings
V2Interface module LRZ 927 / 9288 / 30

2.2 Information about the interface module
Always disconnect the constant temperature equipment from the power
supply before installing the interface module or connecting interfaces.
Always take the recommended safety measures against electrostatic
discharge before handling interface modules.
Avoid touching the circuit board with metallic tools.
Do not start up the constant temperature equipment before installation
of the interface module is complete.
Store any unused interface modules in their packaging in accordance
with the specified ambient conditions.
Use only suitable cables of sucient length for cable connections.
Make sure that the protective screen on the cables and connec-
tors complies with EMC regulations. LAUDA recommends using pre-
assembled cables.
Always lay cables correctly so that they do not pose a tripping hazard.
Secure the laid cables and make sure that they cannot be damaged
during operation.
Check the condition of the cables and interfaces prior to each opera-
tion.
Immediately clean any soiled parts, in particular unused interfaces.
Make sure that the signals transmitted via the interface correspond to
the permitted operating parameters of the interface module.
2.3 Personnel qualification
Only specialized personnel are permitted to install interfaces modules. Spe-
cialized personnel are personnel whose education, knowledge, and experi-
ence qualify them to assess the function and risks associated with the device
and its use.
Specialized personnel
V2 Interface module LRZ 927 / 928 9 / 30

3 Unpacking
NOTICE!
Transport damage
Device damage
Closely inspect the device for transport damage prior to
starting up.
Never operate a device that has sustained transport
damage!
NOTICE!
Electrostatic discharge
Material damage
Always observe safety measures against electrostatic dis-
charge.
Please observe the following installation sequence:
1. Remove the interface module from its packaging.
2. If you want to store the interface module at the installation location,
use the outer packaging. This packaging is protected against static
charging.
3. After installing the equipment, dispose of the packaging materials in
line with environmental regulations, see Ä“Packaging” on page26.
If you discover any damage on the interface module, contact
LAUDA Service immediately, see ÄChapter 1.6 “Contact
LAUDA” on page7.
V2Interface module LRZ 927 / 92810 / 30

4 Device description
4.1 Purpose
The contact module is used to set or query binary states of the constant
temperature equipment by opening and closing circuits:
Output state (read): The module activates the circuit of the defined
interface function, see ÄChapter 7.2.1 “Read commands” on page20.
Set state (write): The user activates the circuit of the defined interface
function from outside the module, see ÄChapter 7.2.2 “Write com-
mands” on page21.
4.2 Versions
Choosing the most suitable version depends entirely on the scope of control
required:
Contact module with single input and output (NAMUR): One switching
function and one query can be configured for one input and one output,
which is enough to switch the constant temperature equipment between
operating and standby mode as well as monitor the temperature, for
example.
Contact module with 3 inputs and outputs: There are three inputs and
three outputs to which you can assign various switching functions and
queries.
Only one of the two versions can be operated for each item of
constant temperature equipment. This is particularly important to
note when integrating additional modules via the module box.
4.3 Structure
Contact output ( OUT ) and contact input ( IN ) on interface module
LRZ 927 are implemented using two 3‑pin connections.

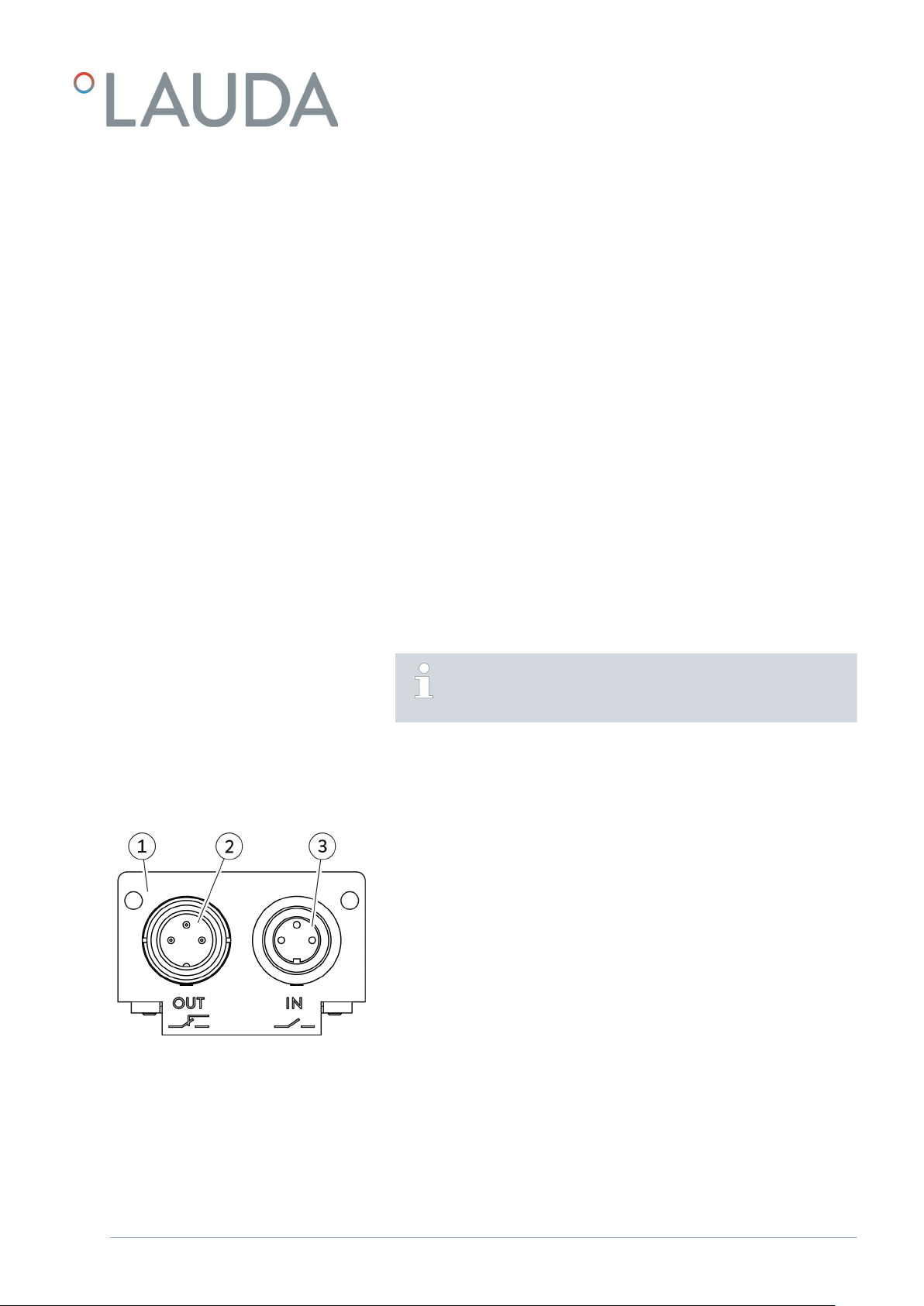

1 Cover with holes for M3x10 fastening screws
2 Contact output, connector, 3-pin
3 Contact input, socket, 3-pin
Refer to ÄChapter 6.1.1 “Contact module with single input and output
(NAMUR)” on page16 for more information on contact assignment.

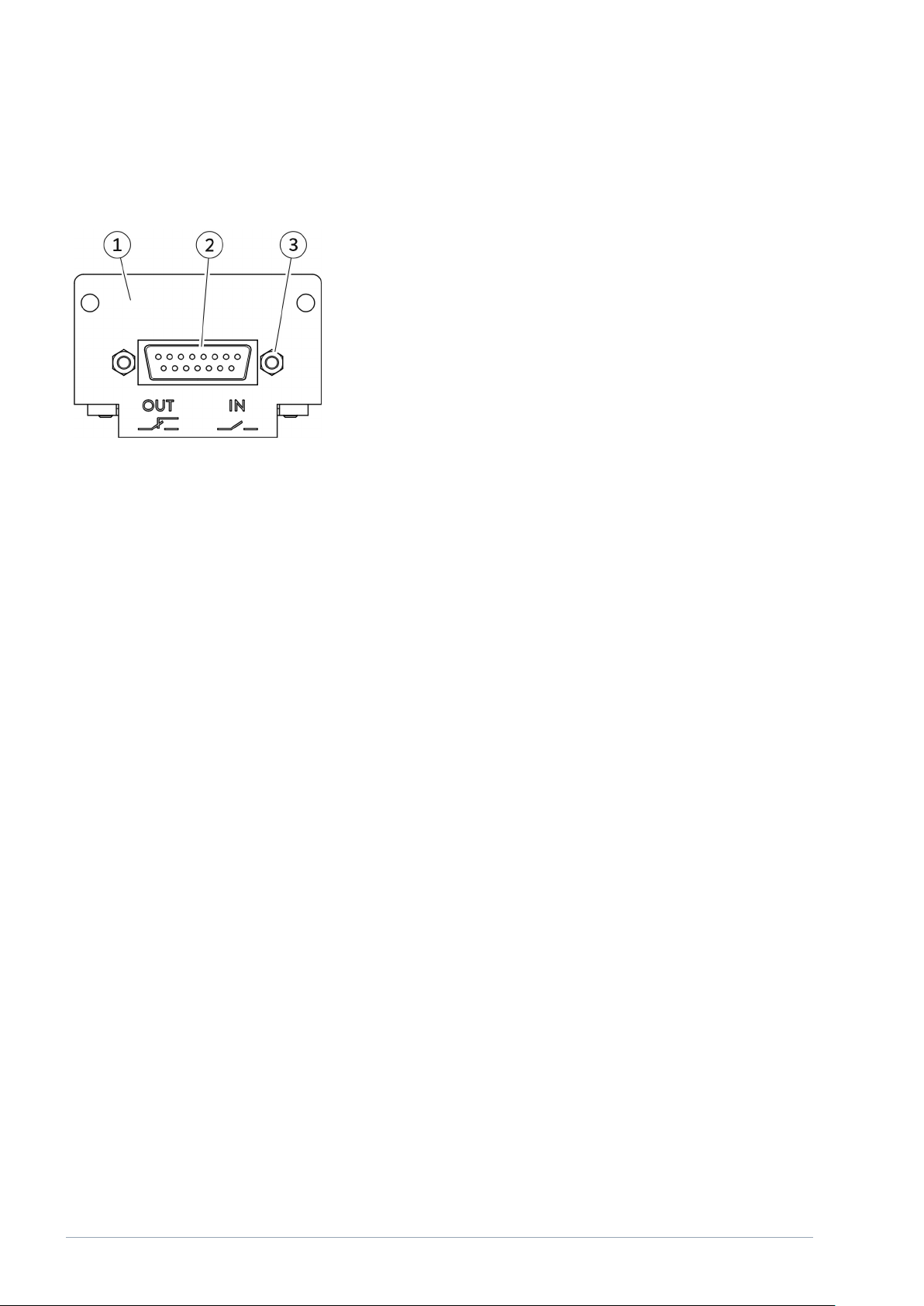

Fig.1:Contact module LRZ 927
V2 Interface module LRZ 927 / 928 11 / 30

Contact outputs ( OUT ) and contact inputs ( IN ) on interface module
LRZ 928 have a 15-pin D-Sub socket design.
1 Cover with holes for M3x10 fastening screws
2 D-Sub socket, 15-pin (3 outputs, 3 inputs)
3 2x D-Sub threaded bolts for securing the con-
nector
Refer to ÄChapter 6.1.2 “Contact module with 3 inputs and outputs”
on page16 for more information on contact assignment.
Fig.2:Contact module LRZ 928
V2Interface module LRZ 927 / 92812 / 30

5 Before starting up
5.1 Installing the interface module
The interface module is connected to an internal LiBus ribbon cable and
inserted into a vacant module slot. The number and arrangement of the
module slots vary depending on the device. The module slots are protected
by a cover that is screwed onto the casing or attached to the slot opening.
WARNING!
Touching live parts
Electric shock
Disconnect the device from the power supply before
starting any installation work.
Always observe safety measures against electrostatic dis-
charge.
The module installation description essentially applies to all LAUDA
constant temperature equipment; the example diagrams here show
the installation of an analog module in constant temperature equip-
ment from the Variocool product line.
Please note that an interface module with a small cover can only
be installed in a low module slot. The fitted cover must cover the
opening on the module slot completely.
You will require twoM3 x 10 screws and a suitable screwdriver to
secure the interface module.
Please observe the following installation sequence:
1. Turn o the constant temperature equipment and pull out the mains
plug.
2. If necessary, remove the screws from the cover on the relevant
module slot. If necessary, use a slotted screwdriver to prise o the
cover.
Fig.3:Removing the cover (schematic dia-
gram)
V2 Interface module LRZ 927 / 928 13 / 30

3. Remove the cover from the module slot.
The module slot is open. The LiBus ribbon cable is attached to the
inside of the cover and is easily accessible.
4. Disconnect the LiBus ribbon cable from the cover.
5. Connect the red plug on the LiBus ribbon cable to the red socket on
the circuit board of the interface module. Plug and socket are reverse
polarity protected: Make sure that the lug on the plug is aligned with
the recess in the socket.
The interface module is correctly connected to the constant tem-
perature equipment.
6. Slide the LiBus ribbon cable and the interface module into the module
slot.
7. Secure the cover to the casing using twoM3 x 10 screws.
The new interface on the constant temperature equipment is
ready for operation.
Fig.4:Detaching the LiBus ribbon cable
(schematic diagram)
Fig.5:Connecting the interface module
(schematic diagram)
Fig.6:Securing the cover (schematic dia-
gram)
V2Interface module LRZ 927 / 92814 / 30

5.2 Using the module box
You can extend LAUDA constant temperature equipment by two additional
module slots using the LiBus module box. The module box is designed for
interface modules with a large cover and is connected to constant tem-
perature equipment via a vacant LiBus socket.
The socket on the constant temperature equipment bears the label LiBus.
Please observe the following installation sequence:
1. Switch o the constant temperature equipment.
2. Disconnect the cable on the module box from the constant tem-
perature equipment.
The module box is disconnected from the power supply.
3. Check which interfaces are already present on the constant tem-
perature equipment and module box.
Observe the information on interface module compatibility.
Only install an interface module with the same type of inter-
face if operation with several of these interfaces is permitted.
4. Install the required interface module in the module box. Please read
the information on installing the module box in the constant tem-
perature equipment, see chapter "Installing the interface module".
5. Position the module box close to the constant temperature equip-
ment.
6. Connect the cable on the module box to the LiBus socket on the
constant temperature equipment.
The interfaces on the module box are ready for operation.
Fig.7:LiBus module box, catalog no.
LCZ 9727
V2 Interface module LRZ 927 / 928 15 / 30

6 Commissioning
6.1 Contact assignment
If you have assembled the cables yourself, please note the following:
Statutory EMC requirements also apply to the cable connec-
tions. Use only shielded connection lines with shielded plugs/
sockets.
Reliably isolate all equipment connected to the extra-low
voltage inputs and outputs according to DIN EN 61140
to safeguard against dangerous contact voltages. For
example, use double or reinforced insulation according to
DIN EN 60730-1 or DIN 60950-1.
The two variants of contact module dier in the number of inputs and
outputs. Two 3‑pin circular connectors and a 15‑pin D‑Sub socket are used
as connections. The connector can be configured for an external system
according to the contact assignments listed below.
Refer to ÄChapter 12 “Accessories” on page27 for accessory information
on assembling connection cables.
6.1.1 Contact module with single input and output (NAMUR)
Contact output (connector) and contact input (socket) on the interface
module have a 3‑pin connection design.

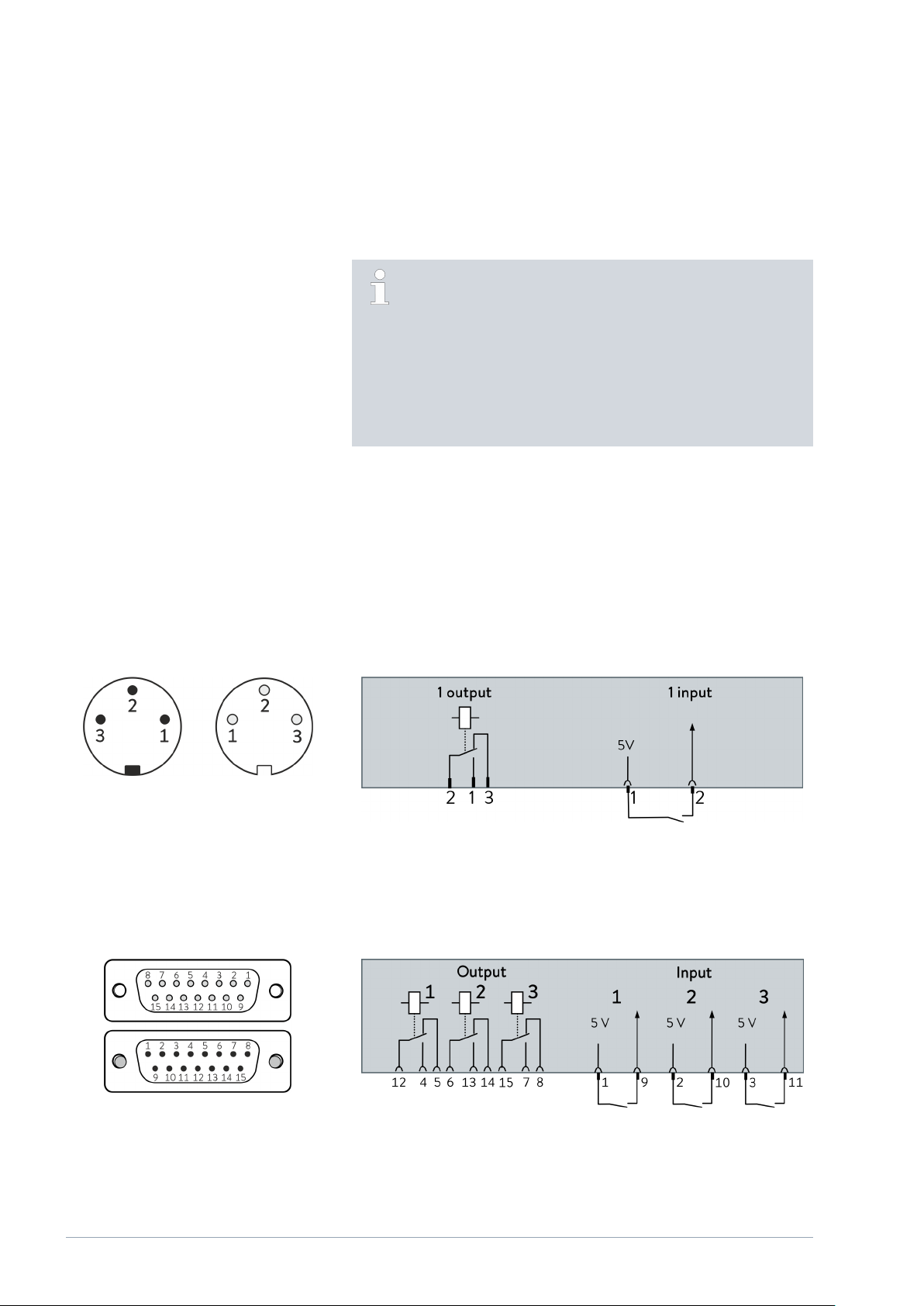

Fig.9:Circuit diagram
6.1.2 Contact module with 3 inputs and outputs
The connection on this interface module is designed as a 15‑pin D-Sub
socket.
Fig.11:Circuit diagram
Fig.8:Output/input contacts
Fig. 10:Socket/plug contacts
V2Interface module LRZ 927 / 92816 / 30

6.2 Software update
Older software installed on constant temperature equipment may have to be
updated for the new interface to work.
1. Switch on the constant temperature equipment after installing the
new interface.
2. Check whether a software warning appears on the display.
Warning 510 - 532 SW update required or SW too old : Please
contact LAUDA Service, see ÄChapter 1.6 “Contact LAUDA”
on page7.
No software warning: Operate the constant temperature equip-
ment as normal.
6.3 Module generation
To see which generation of an interface module is involved, proceed as
follows:
1. Switch on the constant temperature equipment after installing the
interface module.
2. Press the [Enter key] on the constant temperature equipment to
open the menu.
3. On the Integral IN constant temperature equipment, for example,
select the Device status Hardware version menu items.
On the Variocool constant temperature equipment, for example,
A list of hardware versions opens.
If the revision number (1) appears in brackets in front of the
printed circuit board index, a second generation interface module
(with the sux "Advanced") is installed in the constant tem-
perature equipment.
V2 Interface module LRZ 927 / 928 17 / 30
select the Setup Device status Hardware version menu items.

7 Operation
After the equipment is switched on, the new interface can be addressed
and configured from the constant temperature equipment menu. Dierent
functions can be selected for the inputs and outputs: Depending on the
interpretation of the input signal, dierent information is transmitted to the
signal output.
7.1 Menu structure
The menu only ever shows functions that are available for the
current constant temperature equipment.
The menu for configuring the interface is integrated in the main menu of the
relevant constant temperature equipment:
Menu Modules Switching contacts
Fig.12:Contact module menu
All operating units except for the master
V2Interface module LRZ 927 / 92818 / 30

The alternating operation (= specifying two temperature set points alter-
nately), control type, error diagnosis and temperature range functions
require additional settings and the menu is therefore extended accordingly:
Fig.13:Contact input, alternating operation and control type menus
Fig.14:Contact output, error diagnosis and temperature range menus
7.2 Interface functions
Interface functions such as read and write commands make it possible to
read out the current operating parameters of constant temperature equip-
ment and predefine specific settings and process values.
The interface functions supported by this interface are presented briefly
below. They are sorted by topic according to the component aected and
assigned a unique ID. Depending on the technical configuration of your
constant temperature equipment, the number and scope of the interface
functions actually available may vary from the list shown here, see chapter
"Availability of the interface functions".
V2 Interface module LRZ 927 / 928 19 / 30

7.2.1 Read commands
The contact module recognizes the following read commands, which you can
use to query the operating data of the constant temperature equipment:
Table1: Fill level
ID Function Unit
10 Signal refilling [–]
Table2: Status
ID Function Unit
75 Status of standby: 0 = Device is switched on / 1 = Device is switched o [–]
130 Device status [–]
137 Error status [–]
140 Low-level alarm [–]
141 Overtemperature alarm [–]
153 Report compliance with the defined temperature range (inside / outside) [–]
Table3: Programmer
ID Function Unit
82 Programmer status [–]
V2Interface module LRZ 927 / 92820 / 30
