Launch VALUE-500 User manual

NOTE:
Carefully read the user manual before using, and keep it well for future reference.
Carefully check the device parts list before using.For any doubt, contact Launch distributor
immediately.
Due to the product upgrade, tiny difference between the user manual and the device will not be
further noticed. Take the device as standard.
Copyright reserved! Without written agreement from Launch Tech Co., Ltd (Hereinafter refer to "Launch"),
any company or person is not allowed to copy and duplicate this user manual in any format (electronic,
mechanical, video, record or other formats).The user manual is designed only for Launch products. Any
consequence caused by using the user manual to guide other device operation is not under the
responsibility of Launch.
Launch and its branches are not responsible for the fees and expense of the device damage and loss due
to private accident or from third party, misuse and abuse of the device, unauthorized change and repair,
or any operation and maintenance not following Launch standard.
Launch is not responsible for device damage or problem due to the usage of any optional parts or
consumables instead of Launch original products or Launch recognized products.
Declaration: Other product names mentioned in the user manual are aimed to describe the device usage.
The registered trademarks still belong to the original company.
The device is for professional technicians or maintenance and repair personnel.
Registered Trademark
Launch has registered its trademark in China and several other countries, logo is .Other Launch
trademarks, service marks, dot names, Icons, company names mentioned in the user manual all belong
to Launch and its subsidiaries.In those countries where Launch trademark, service mark, dot name, icon,
company name not registered yet, Launch declaim the right for its unregistered trademark, service mark,
dot name, icon, and company name.Trademarks of the other products and company names mentioned in
the user manual still belong to original registered company.Without written agreement from the owner, no
person is allowed to use the trademark, service mark, dot name, icon and company name of Launch or of
other mentioned companies.You can visit http://www.cnlaunch.com or write to Customer Service Center
of LAUNCH TECH CO., LTD at Launch Industrial Park, North of Wuhe Avenue, Banxuegang, Longgang
District, Shenzhen, P.R.China, to get contact with Launch for the written agreement on the usage of the
User Manual.

VALUE-500
Mobile Refrigerant Recovery
Recycling and Charging Unit
（Touchscreen Version）

Contents
Safety Precaution………………………………………………………………………………………………………………………...1
Equipment Introduction……………………………………………………………………………………………………………...2
Appearance Introduction……………………………………………………………………………………………………….………3
I. Outside view……………………………………………………………………………………………………………………..3
II. Rear view……………………………………………………………………………………………………….………….....3
III. Side view………………………………………………………………………………………………………………......…4
IV. Operation panel…………………………………………………………………………………………………………………….......4
V. Internal structure…………………………………………………………………………………………………………………...…....5
Device Connection to Car (as shown below）……………………………………………………………..….....6
H i g h a n d L o w P r e s s u r e V a l v e s O p e r a t i n g
G u i d e l i n e s ………………………………………………………. . . . 7
Preparation Before Use …………………………………………………………………………………………………………………...9
Operation Procedures……………………………………………………………………………………………………………….…..9
I. Refrigerant Cylinder Refill………………………………………………………………………………………………………..…..9
II. Recycle……………………………………………………………………………………………………………………………..10
III. Vacuum………………………………………………………………………………………………………………………….11
IV. Charge………………………………………………………………………………………………………………………….….12
V. Purge……………………………………………………………………………………………………………………....13
VI. Quick Maintenance…………………………………………………………………………………………………………………...….15
Equipment Maintenance……………………………………………………………………………………………………….….....19
I. Calibration of Electronic Scale………………………………………………………………………………….…………..19
II. Reset of Electronic Scale…………………………………………………………………………………………………...20
III. Equipment Information………………………………………………………………………………………………..…………..21
IV. Filter Parameters………………………………………………………………………………………………..…………..21

- 1 -
Safety Precaution
1. Read this manual before using the unit to become familiar with its specifications and operation.
2. The operator must be familiar with repair and maintenance of air conditioning to avoid damaging
equipment and mobile refrigeration systems.
3. Always wear protective gloves and safety goggles when working. Contact with refrigerant may
cause injury. Never operate the unit near any flame or high source! Do not expose this equipment
directly under sunshine or rainfall. Avoid any contact with corrosive liquid or gas.
4. The equipment is approved only for the R134a air conditioning system, refrigerant of other types
is not allowed.
5. Each time before starting the machine, check the type of the refrigerant used by the car air
conditioning and switch off the engine.
6. The actual capacity of refrigerant cylinder should not be more than 80% of its maximum (8 kg)
to prevent any serious accident caused by extra pressure of external factors.
7. To ensure the refill function, refrigerant cylinder must contain no less than 3kg refrigerant,
otherwise the refill may fail.
8. Bubbles are always produced while discharging refrigerant oil of automotive compressor. After
bubbles disappear, refill refrigerant oil in accordance with the discharge quantity. Do not overfill!
9. Check the oil level and quality of the vacuum pump regularly. Operation without refrigerant oil is
strictly prohibited.
10. Recycling procedure should be run less than 10 times per hour, otherwise compressor may be
damaged.
11. In routine maintenance, attention should be paid to maintain the regular oil level of vacuum
pump(observe by opening the unit’s main entrance).
12. Equipment contains electronic precision control components. Please do not disassemble or repair
without permission.
13. If needed, please perform the maintenance under the guidance of a professional.
14. Precision measurement components are contained. Please do not crash, beat or knock down the
equipment.
15. The product uses a 220V power supply. Please ensure electrical safety during product operation
or service.

- 2 -
Equipment Introduction
This Mobile Refrigerant Recovery Recycling and Charging Unit serves for automotive
repair shop, used in the recovery and charging of refrigerant in the R134a air
conditioning system, providing services like automatic refrigerant recycling, charging,
vacuuming and refrigerant oil refilling, etc.
Functions:
Refrigerant cylinder refill: It can refill refrigerant into the refrigerant cylinder.
Recycle: The refrigerant in the R134a air conditioning system is recovered and stored
into the refrigerant cylinder of the equipment, and during the recovery, the refrigerant
is purified and regenerated.
Vacuum: It can evacuate any remaining gas or water from the equipment and the
system
Recharge: It can accurately charge the refrigerant stored in the refrigerant cylinder of
the equipment into vehicle cooling system.
Quick Maintenance: It can automatically complete the forward and reverse cleaning,
vacuum and refill.
Technical Parameters:
Electric Power: AC 220V/50HZ
Power: 800W
Operating Temperature: -10-50℃
Accuracy of Electronic Scale: ±1g
Recovery Rate: 400g/s
Vacuum Rate: 2Pa
Volume of Steel Tank: 10Kg
Charging Rate: 800g/min
Net Weight: 80Kg
Overall Dimension: 138(H)*60(W)*80(L) CM
Package Size: 150*68*85CM

- 3 -

- 4 -

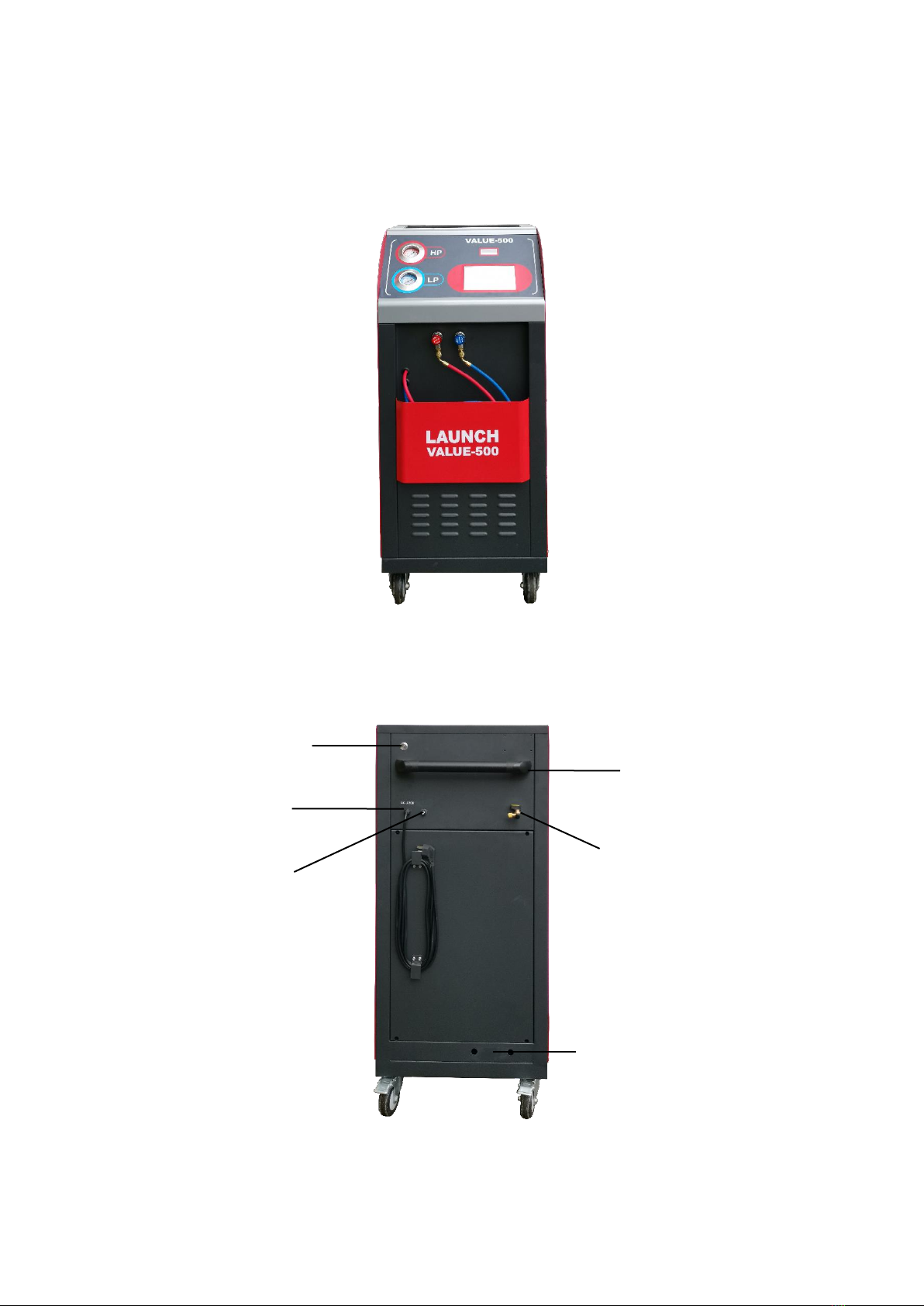

Appearance Introduction
1 Outside View
2 Rear View
Handle
AC-220V
Fuse
Vial filling valve
Remove the retaining
screw before using
Power
switch

- 5 -
3 Side View
4 Operation Panel
Refrigerant oil inlet
Used oil bottle
Low Pressure Valve
High Pressure Valve
Window
Touchscreen

- 6 -

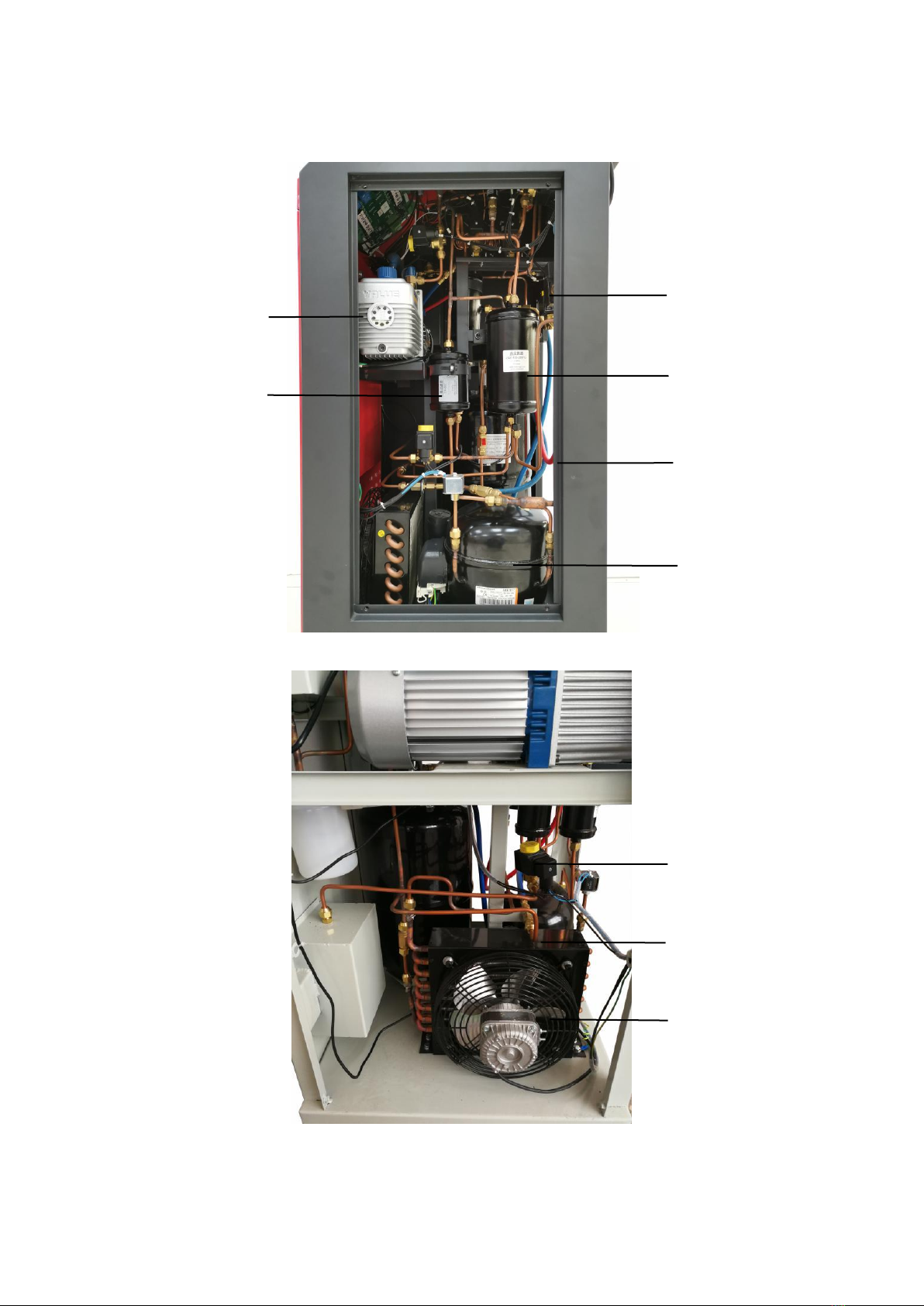

5 Internal Structure
(Picture1)
(Picture2)
Heat exchanger
Condenser
Cooling fan
Filling valve for internal
refrigerant cylinder
Dry filter
Vacuum pump
Compressor
Oil discharge solenoid valve
Oil separator

- 7 -
(Picture 3)

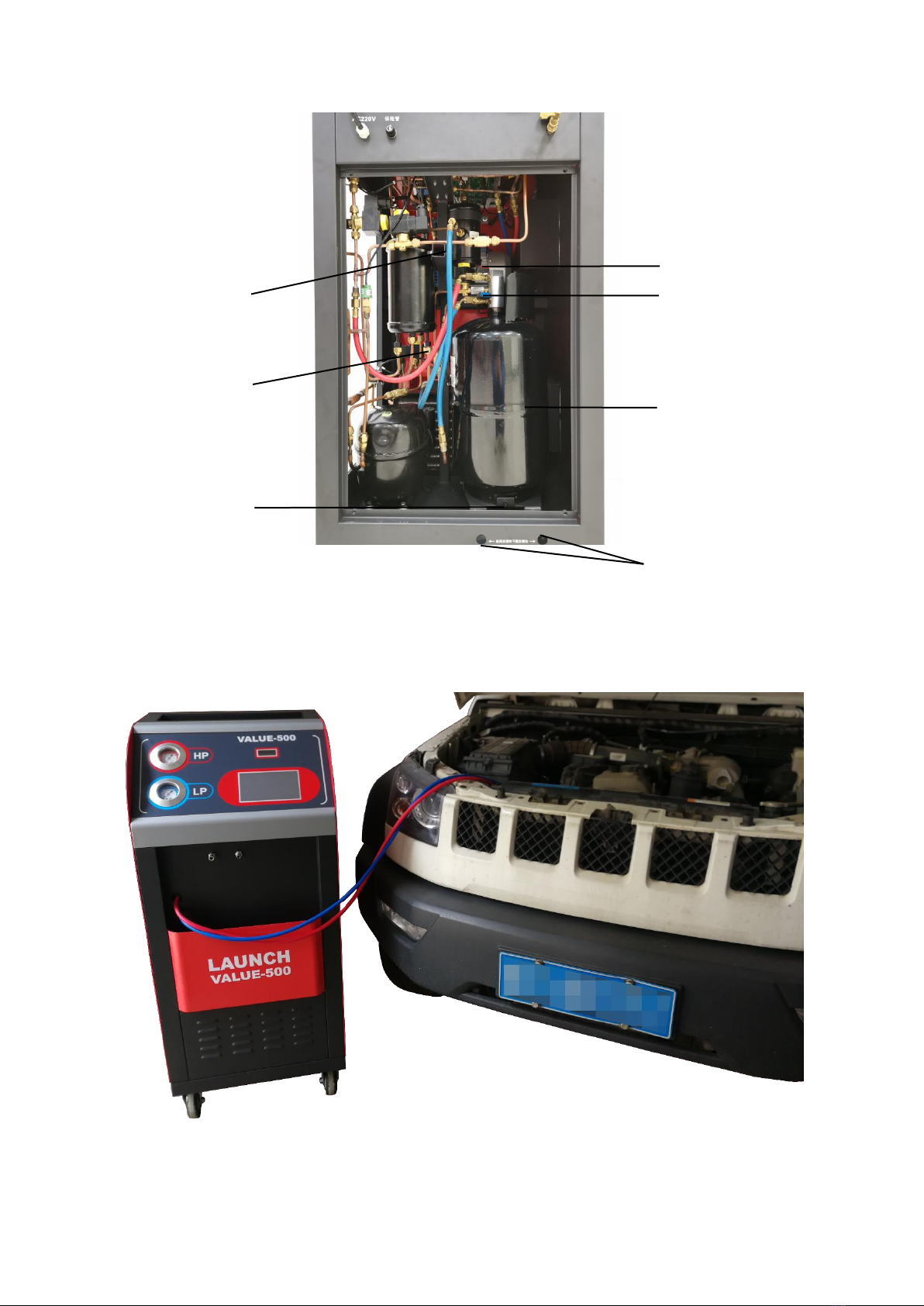

Device Connection to Car (as shown below)
Filling pipe ball valve
Electronic scale protection screw
Filling pipe
（red）
Recycling pipe
（blue）
Recycling pipe ball valve
Electronic scale for internal
liquid reservoir
Internal refrigerant cylinder

- 8 -

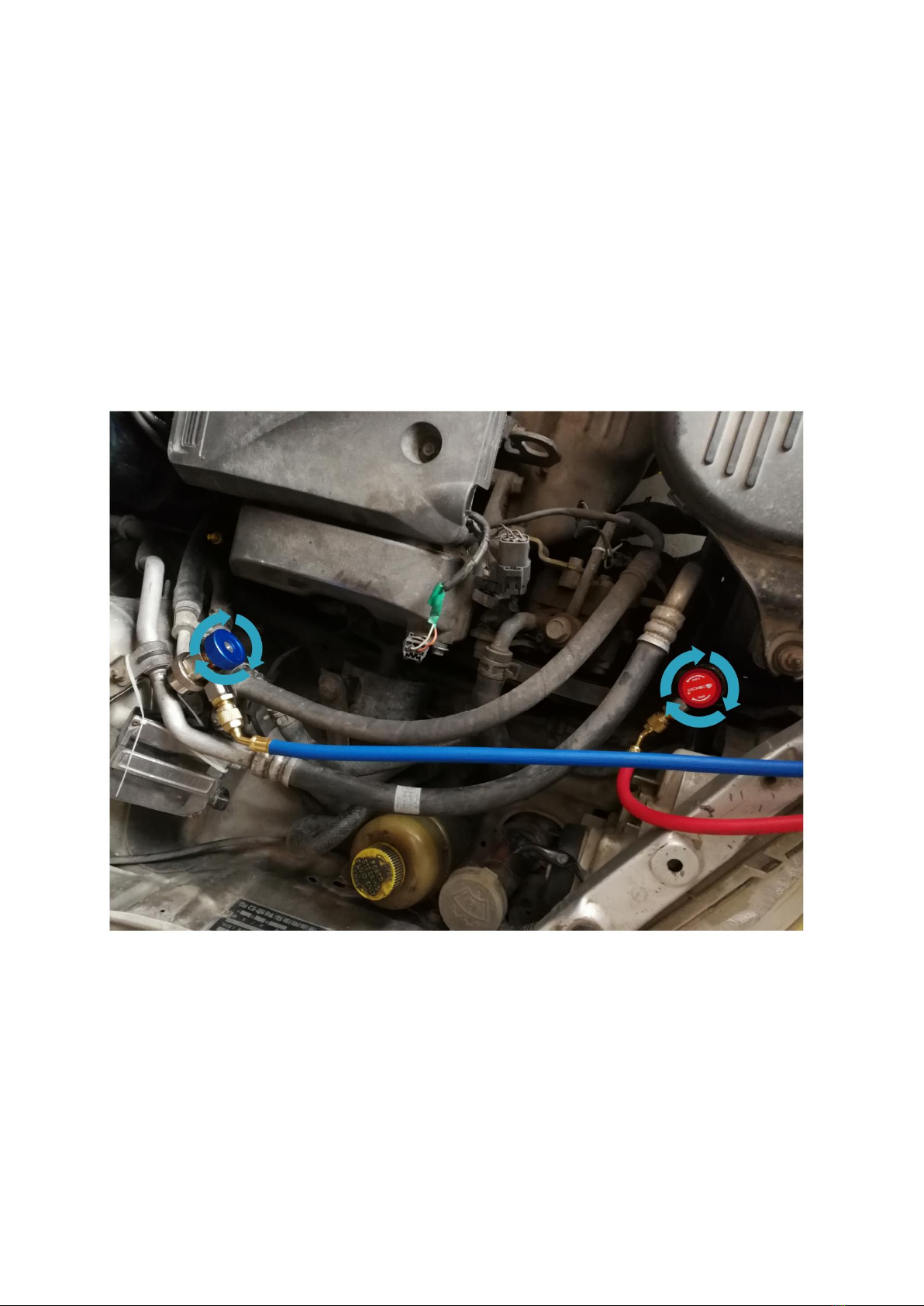

High and Low Pressure Valves Operating Guideline
During operation, the system will prompt several times to turn on/off the high and low
pressure valves.
Operation Definition:
1.Turn off the high and low pressure valves
As shown below, turn off the high/low pressure valve is to tighten the valves
counterclockwise based on the reverse direction of the arrow (the arrow marked “open”
on the valves) on the high and low pressure valves.
Rotate the air conditioning quick couplings
counterclockwise
Sketch map of turning off the air conditioning quick couplings

- 9 -
2.Turn on the high and low pressure valves
As shown below, turn on the high and low pressure valves is to tighten the valves
clockwise based on the direction of the arrow (the arrow marked “open” on the valve)
on the high and low pressure valves.
Rotate the air conditioning quick couplings clockwise
Sketch map of turning on the air conditioning quick couplings
Preparation Before Use
1. Ensure the two electronic scale protection screws are removed (as shown below).

- 10 -
2.Using Refrigerant Refill function to add about 3kg refrigerant into the equipment
(refer to the procedures of Refrigerant Cylinder Refill)
Operating procedures
1.Refrigerant Cylinder Refill
The tank contains no refrigerant as leaving the factory. Refrigerant must be refilled
before operation. The recommended refill weight is 3-6kg. Operation is as follows.
1. Attach the blue hose to the main equipment’s low pressure valve.
2. Attach the quick couplings of the blue hose to the refrigerant cylinder.
3. Turn off the quick couplings of the red hose.
4. Turn on the equipment, enter themain interface and select “equipment
maintenance”, then click the option of Refrigerant Refill

- 11 -
Input the quantity of refrigerant and click “Run”, then wait until it prompts the
operation is complete.
After the required vacuum has been obtained, the system shows the following
interface: operator should follow the instruction and click “Confirm” to continue.
After the procedure completed normally, the system shows the following interface:
click “Exit” to return to main interface.
2. Recycle
Recycle is recycling the purged refrigerant to the cylinder.
Double-click the “Recycling” in the main interface to enter cycling procedure, then
click “Run”.
Wait until operation is complete and go on to oil bleeding procedure. After the
procedure is complete, exit the system.

- 12 -

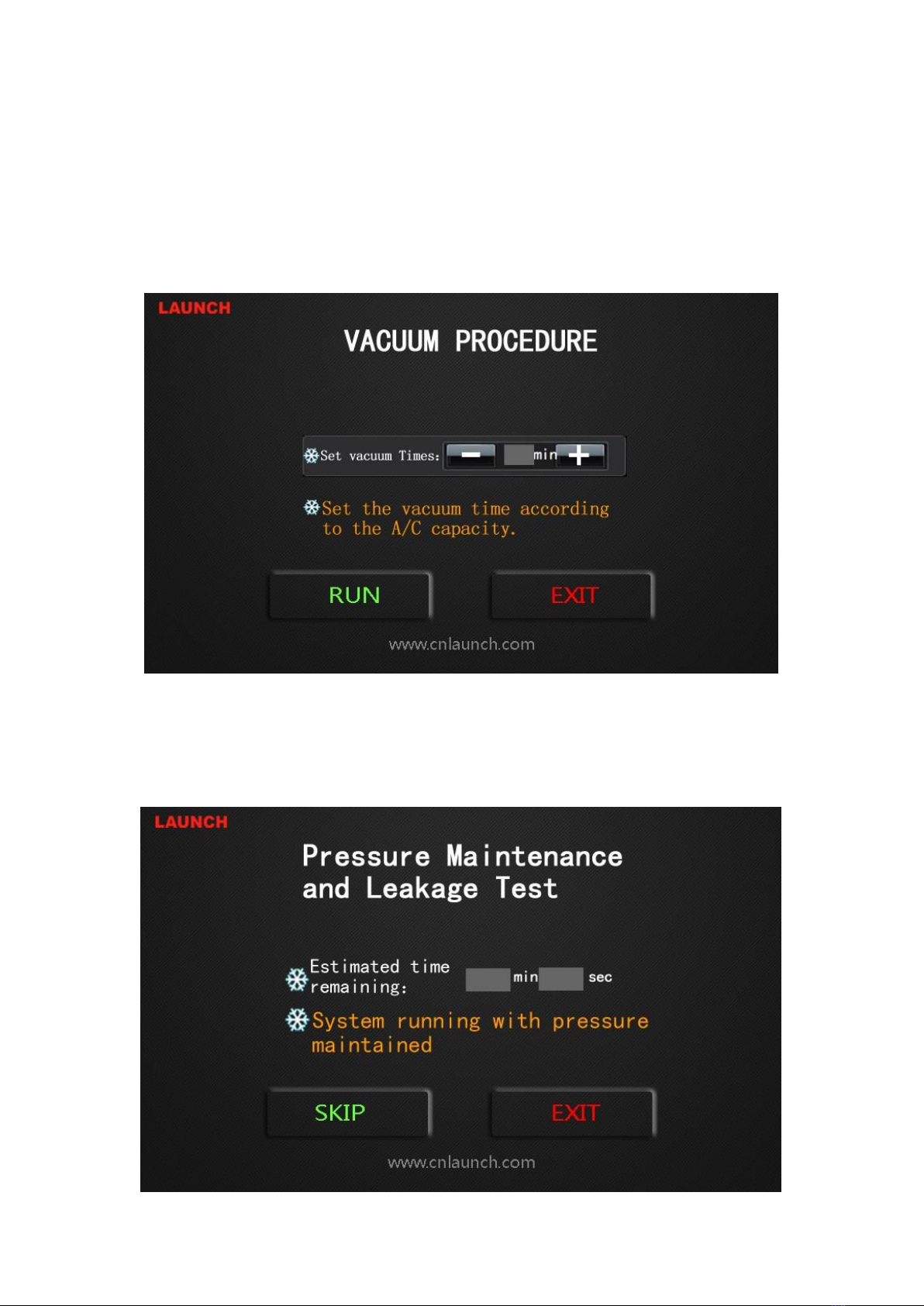

3.Vacuum
Click “Vacuum” in the main interface to enter vacuum procedure.
After the system shows the following interface, click plus or minus to set time, then
select “run”. Any refrigerant in the pipeline would be recycled automatically, then the
vacuum procedure would start.
Dwell time comes after vacuum procedure. As the time ends, it enters the oil charging
procedure automatically. If confirmed no leakage in the pipelines, click skip to enter
the oil charging procedure directly.

- 13 -
After entering the oil charging procedure, ensure oil inside the refrigerant oil vessel is
not less than 50g, then long press “OK” to start and release to stop. Exit the system
upon completion.
4.Charge
On the homepage, double-click "charging" to enter the filling procedure
You can select the large or the small bottle filling. After selecting the fill mode, ensure
that there is sufficient refrigerant .Then long press OK to start filling, and release to
stop.

- 14 -
After the filling is complete, follow the prompts to turn off your vehicle high and low
pressure valves, press "OK" to run the recovery of refrigerant in the equipment
pipelines. Press exit upon completion.

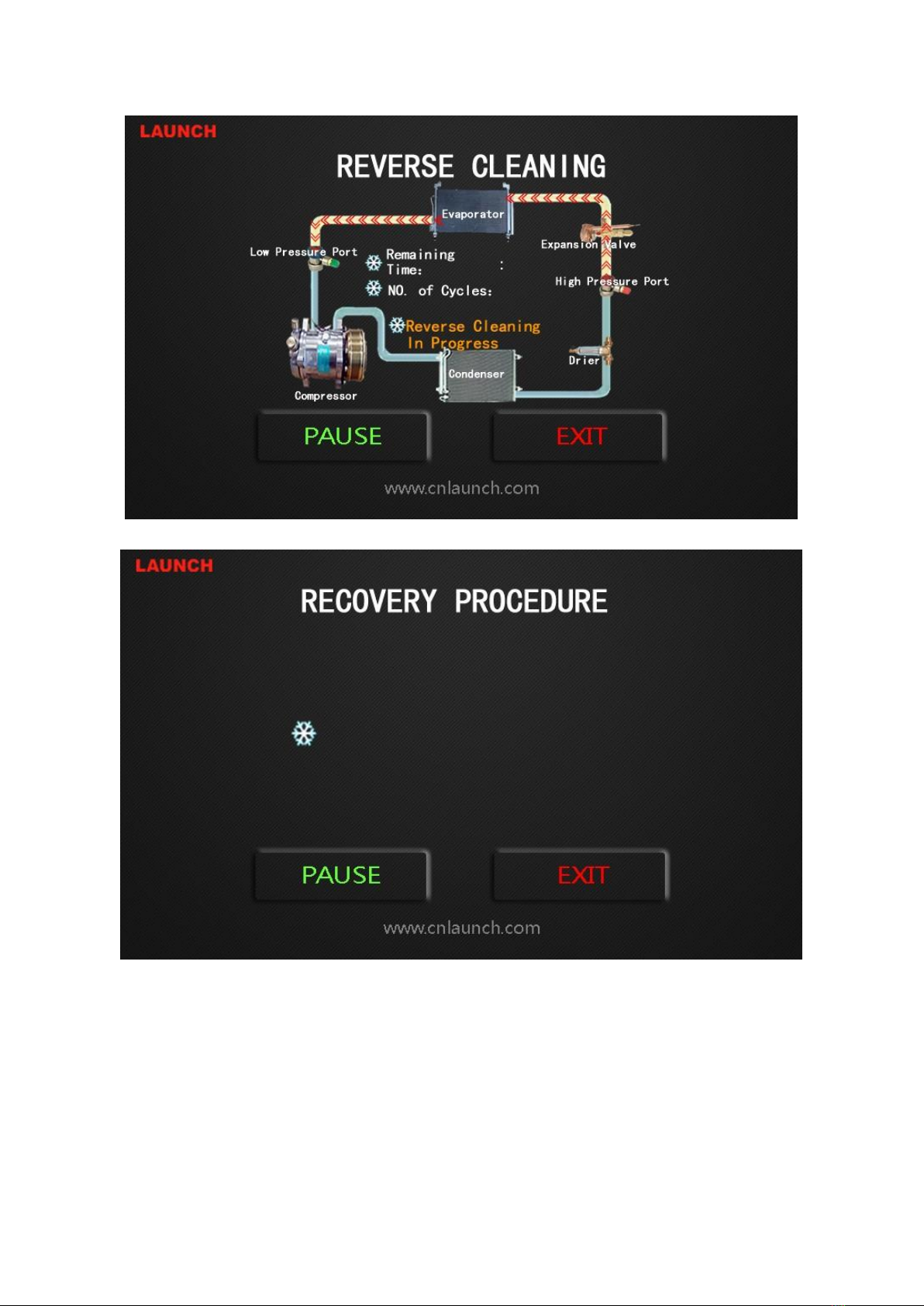

5.Purge
Purge function is to clean the car piping system. Enter the cleaning procedure, press
plus or minus to add or reduce the forward and reverse cleaning time, and to set the
number of cycles. Before cleaning, ensure that there is more than 2KG refrigerant in
the tank, then press "OK" to enter the cleaning procedure.

- 15 -

- 16 -
After cleaning is complete, it will automatically enter the recycling procedure.
Press “exit” upon completion.

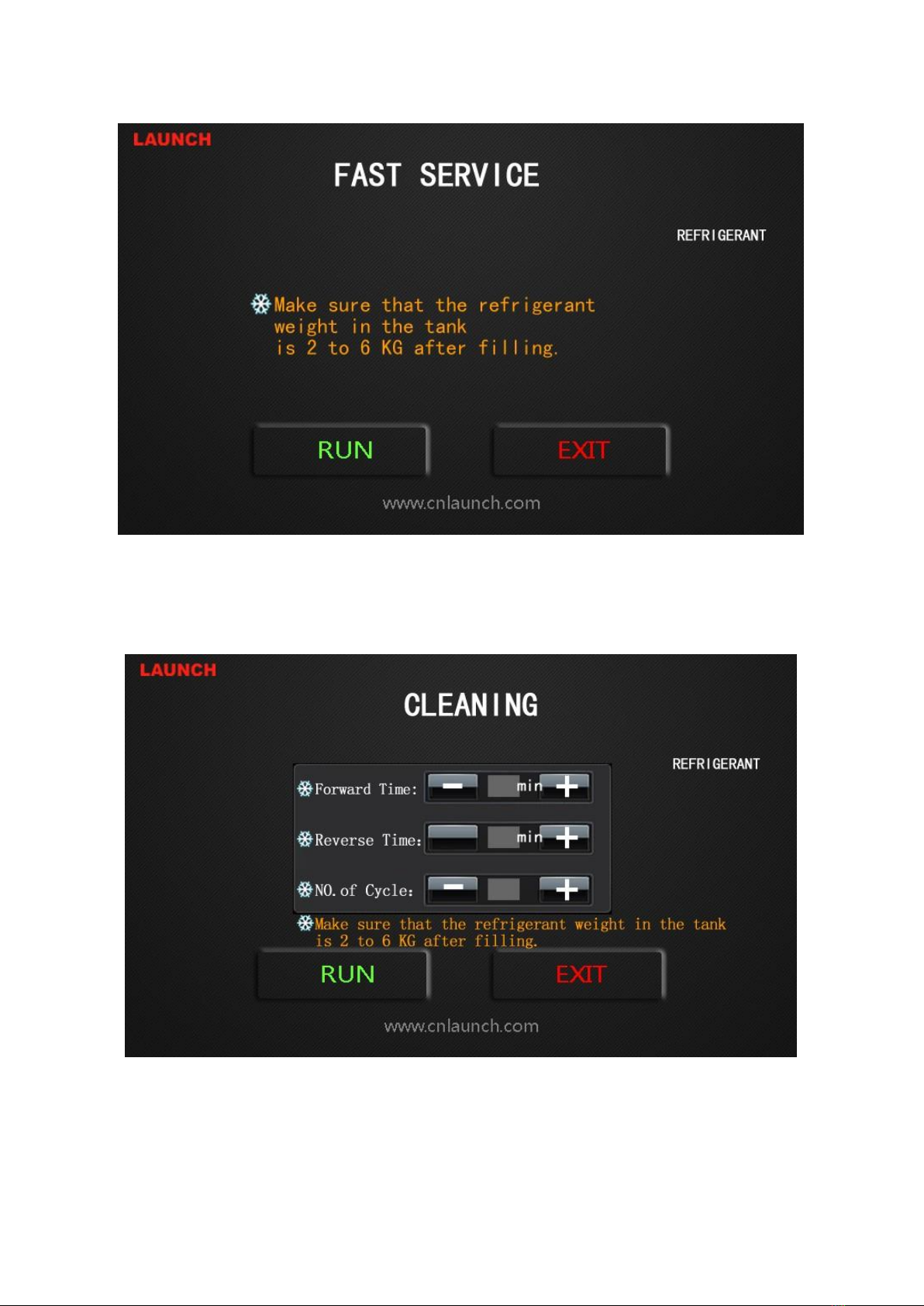

6.Quick Maintenance
On the homepage, click “Fast Service” to enter the procedure.

- 17 -
Press plus or minus to add or reduce the forward and reverse cleaning time, and to set
the number of cycles. Before cleaning, ensure that there is more than 2KG refrigerant
in the tank, then press "OK" to start.
After the cleaning is complete, it will automatically recycle the refrigerant.
