LAVAL UNDERGROUND SURVEYS R-CAM 1000 XLT User manual

L A V A L U N D E R G R O U N D S U R V E Y S
R-CAM 1000/1300 XLT
OPERATION MANUAL
LAVAL UNDERGROUND SURVEYS
2476 North Bundy Drive, Fresno Ca. 93727
Phone [phone] · Fax [phone]
www.lavalunderground.com

Table of Content
Operating Checklist......................................................................................................................... 1
Before Starting Setup.................................................................................................................. 1
Connecting the Camera............................................................................................................... 2
System Start Up........................................................................................................................... 3
CAUTION/ATTENTION..................................................................................................................... 4
Maintenance Instructions............................................................................................................... 5
Description of Equipment............................................................................................................... 6
Overall ......................................................................................................................................... 6
Camera ........................................................................................................................................ 6
Reel Assembly ............................................................................................................................. 8
Power Supply............................................................................................................................... 8
Control Unit................................................................................................................................. 9
DVR Guide..................................................................................................................................... 12
Keyboard Functions................................................................................................................... 13
Getting Started.......................................................................................................................... 13
Play Video.................................................................................................................................. 14
View Snapshots ......................................................................................................................... 14
Overlays..................................................................................................................................... 14
File Management ...................................................................................................................... 15
Setup ......................................................................................................................................... 16
Helpful DVR Tips........................................................................................................................ 18
Counter Instructions ..................................................................................................................... 19
Preset Mode.............................................................................................................................. 19
Position Mode ........................................................................................................................... 19
Standard Mode.......................................................................................................................... 20
CAL by Reel Mode ..................................................................................................................... 20
CAL by CNT/REV Mode.............................................................................................................. 20
Status Mode .............................................................................................................................. 21
Water Well Clarification................................................................................................................ 22
Troubleshooting Guide ................................................................................................................. 24
WARRANTY.................................................................................................................................... 26

System Unpack and Check
Carefully unpack the shipment and check the unit for the following:
Centering Bands
(with Collars)
Camera
Camera Case
Winch
Auxiliary Power Cable
Control Cable
Power Cable
12 Volt Battery
Control Unit
Battery Charger
TriLight
Lens Shield
Optional Accessories
(Sold Separately)
See www.lavalparts.com
for more details
Cable Head Repair Kit

1
Operating Checklist
Before Starting Setup
1. Remove the 12V Battery Pack (Figure 1 Item 5) and insert the Battery Fuse and Cap
into the Fuse Holder (Figure 1 Item 7) on the battery pack.
2. Connect the 12V Battery Pack to the Battery Charger and charge for a minimum of
24 hours prior to usage. ENSURE THE FUSE IS IN THE BATTERY WHEN CHARGING.
3. Unpack the Reel Assembly (Figure 1 Item 1). To reposition the Boom Arm: remove
the locking pin at the base of the Boom Arm (Figure 2 Item 1), rotate the Boom Arm
180 degrees, place the Boom Arm back on the base, and replace the locking pin.
4. Install the shelf on to the Reel Handle using the included Hardware.
5. Ensure the REEL CONTROL Power (Figure 4 Item 1) and CAM CONTROL Power (Figure
4 Item 2) Switches are in the OFF Position.
6. Position the Reel Control FORWARD-STOP-REVERSE Switch (Figure 4 Item 3) to STOP
and the SPEED Control Dial (Figure 4 Item 4) to MIN.
7. Connect the Reel Control and Power Cable (Figure 1 Item 2) from the Reel Assembly
(Figure 1 Item 7) to the REEL CONTROL (Figure 4 Item 5) and REEL POWER (Figure 4
Items 6) Connectors on the
Control Unit (Figure 1 Item 3).
Connect the Power Cable (Figure
1 Item 4) from the Control Unit 12
VDC input (Figure 4 Item 7) to the
12 VDC Battery (Figure 1 Item 5).
1
0
Figure 2
1
0
Figure 1
2
0
3
0
4
0
5
0
6
0
7
0

2
Connecting the Camera
1. Turn the SPEED Dial (Figure 4 Item 4) all the way to MIN.
2. Place the REEL CONTROL Power Switch on the Control Unit in the ON position (Figure 4
Item 1).
3. Flip the Reel Control FORWARD-STOP-REVERSE Switch (Figure 4 Item 3) to the
FORWARD position and turn the SPEED Dial (Figure 4 Item 4) slowly towards the MAX.
4. Run out enough cable so that the Camera (Figure 1 Item 6) when connected is centered
above the hole.
5. Position the REEL CONTROL Power Switch to OFF (Figure 4 Item 1).
6. Before connecting the Camera to the Cable head (Figure 3 Item 1) inspect the O-rings in
both connectors to be sure they are clear of debris or any contamination. Also check for
any wear or damage. The O-rings should also be re-lubricated on a regular basis. Use a
NEMA-rated O-rings lubricant.
7. Slide the Centering Band Assy (Figure 3 Item 2) and Upper Support Tube (Figure 3 Item
3) beveled end first, over and past the Cable head (Figure 3 Item 1). Connect the Twist
Locking Cable head Connector to the Camera by carefully aligning the keyway on the
connectors together and twisting the lock until seated. The cable head connector
should only be hand tightened.
Never over tighten the connectors
or upper support tube.
8. Thread the Upper Support Tube to
the top of the Camera. Position the
Lower Centering Band Collar on the
Camera Housing (Figure 3 Item 4) at
least ½” above the Side View Port
(Figure 3 Item 5). DO NOT ATTACH
THE CENTERING BAND COLLAR TO
WITHIN ½” OF THE GLASS PORT.
Position the Upper Collar on the
Upper Support Tube so that the
Centering Bands are extended to
approximately ½ inch less than the
diameter of the well or borehole
being inspected.
1
0
3
4
0
5
0
Figure 3
2
0

3
System Start Up
1. Position the CAM CONTROL Switch (Figure 4 Item 2) and REEL CONTROL Power Switch
(Figure 4 Item 1), on the Control Unit, to ON.
2. Turn on the LCD Monitor. While watching the Monitor to verify operation Switch
between side and down view and adjust light intensity, with the VIEW-LIGHT Switch
(Figure 4 Item 9). The LED lighting should light up with the view selected. The light
intensity of the view selected can be changed by pressing LIGHT; this will cycle through
5 light intensity levels. Check the rotation by using the Cam Control FORWARD-REVERSE
Switch (Figure 4 Item 10); both the Down View and Side Views will rotate.
3. Rewind any excess cable by using the Reel Control functions (Figure 4 Items 1, 3 and 4)
to position the Camera in the well, near the top. Press the Menu Function CLEAR Switch
(Figure 4 Item 8) to reset depth counter to zero (0000.00ft).

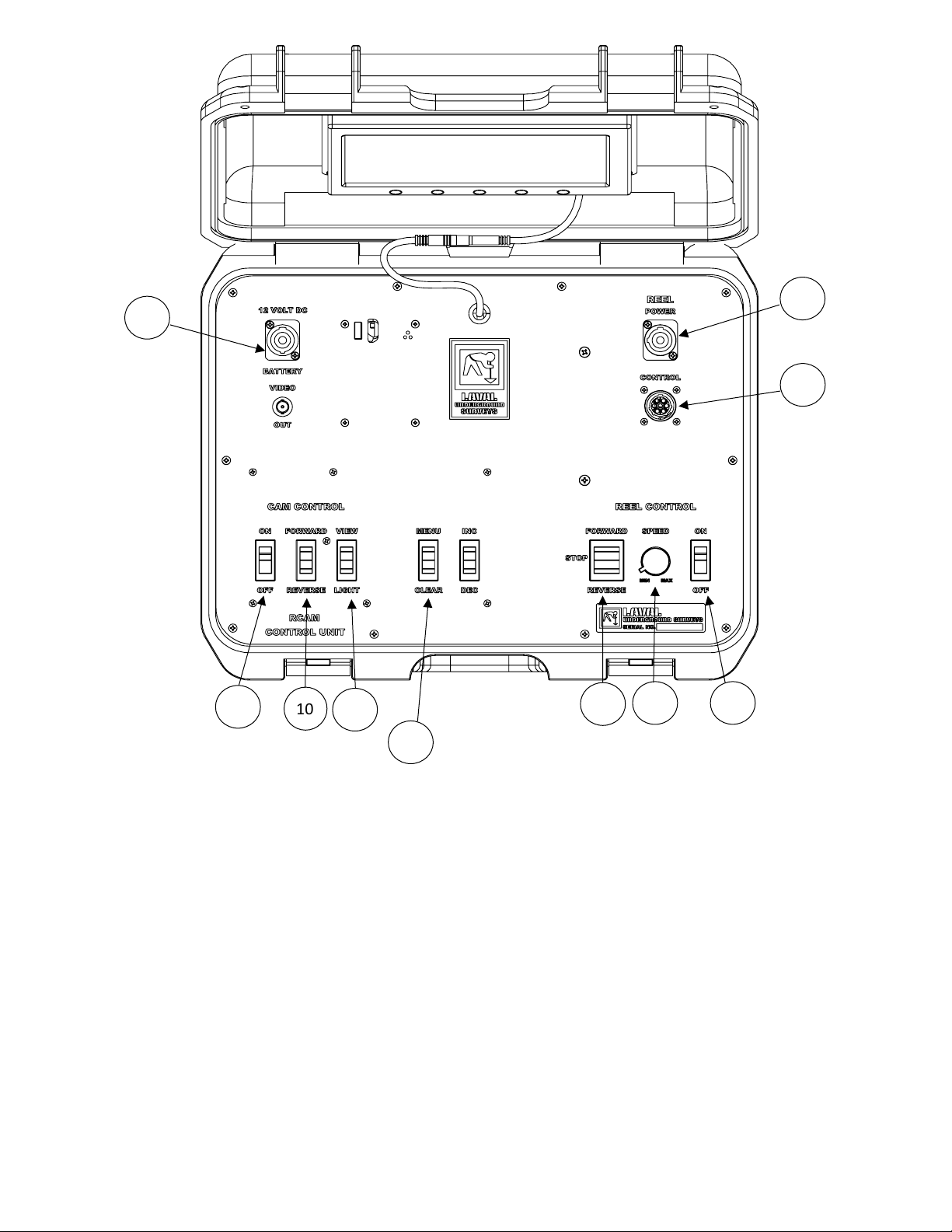

Figure 4
2
0
7
0
4
0
5
0
3
0
8
0
1
6
0
9
0
10

4
4. Press Ron the wireless keyboard to begin recording. Press Sat any time to capture a
snapshot. Press ESC to stop and finalize the recording. (See Keyboard Functions Section
on page 13)
CAUTION/ATTENTION
1. NEVER POINT THE DOWN HOLE OR SIDE VIEW CAMERAS DIRECTLY AT THE SUN EITHER
WHILE ON OR OFF
2. DO NOT connect or disconnect the Camera with the Control Unit CAM CONTROL ON-
OFF Switch ON (Figure 4 Item 2).
3. DO NOT operate the camera system in salt water, acidic or contaminated wells.
Whenever the camera and cable have been exposed to acidic or brine water, be sure to
wash immediately after use with fresh water.
4. DO NOT FORCE CONNECTIONS. OBSERVE ALL KEYWAYS ON CONNECTORS AND CABLE
HEAD TO PREVENT DAMAGE.
5. CAUTION Before connecting Power to the Control Unit be sure the REEL CONTROL
Power ON-OFF Switch is OFF (Figure 4 Item 1), CAM CONTROL ON-OFF Switch is OFF
(Figure 4 Item 2), SPEED Control is set to MIN (Figure 4 Item 4), and FORWARD-STOP-
REVERSE Switch is at the STOP or center position (Figure 4 Item 3).
6. You CANNOT switch between DOWN VIEW and SIDE VIEW while the Camera is rotating.
7. Loss of power will reset the On-Screen Counter.
8. The 12 VDC Battery Pack provided with the system should be charged for at least 24
hours prior to the first survey.
9. To ensure longer battery life charge the battery after each operation.
10. Monitor the Voltmeter while in use. The system will not operate below 10.5V.
11. In the event of a Battery Pack failure or a survey running longer than battery power
available, the R-Cam System can be operated by use of the Emergency Auxiliary Power
Cable, which will connect to your vehicle battery terminals.
12. DO NOT store the battery in a discharged state or at elevated temperatures. If a battery
has been discharged for some time, or the load was left on indefinitely, it may not
readily take a charge.
13. Store the camera system in an indoor, dry, temperature-controlled environment.
Preferably in the provided carry case. DO NOT expose the camera system to extreme
temperatures during use or storage.
14. CAUTION: The Control Unit is NOT water proof when open. Take measures to prevent
water intrusion during use.
15. DO NOT exceed the minimum bend radius of 4” on the cable or cable head. Excessive
bending and kinking will damage the cable and cable head.

5
16. At least ten wraps of the Cable should always be left on the Reel Assembly Cable Drum
at maximum depths
17. DO NOT overtighten the cable head. Finger tighten when threading the cable head into
the camera, a wrench is not necessary.
Maintenance Instructions
•Ensure the cable head is properly secured during transport and storage.
•Regularly inspect the cable head o-ring condition and o-ring seal area for cleanliness.
This area should be free of debris and lubricated as needed.
•The cable head will experience normal wear during use and will need to be replaced at
various intervals depending on care and usage. A Cable Head Repair Kit, Part# 126883,
is available to replace the cable head in the field as needed. It can be purchased at
www.lavalparts.com or by calling [phone].
•Wash the Camera with fresh water and wipe clean after use. Ensure the camera is free
of unwanted oil and contaminates. If necessary, use mild dish soap to clean the camera.
•Prior to and after conducting each survey, inspect the glass ports on the side-view and
down-view for any cracks or debris in crevices. If necessary, use household glass cleaner
to clean the viewing ports.
•Inspect the cable head connection point at the top of the camera before connecting the
cable head to the camera. This area should be clean, free of debris, and the pins should
be in the upright position. If the pins are bent or deformed, do not attempt to connect
the cable head.
•When not in use store the system in an indoor, temperature-controlled environment in
the carry case and foam pads provided.
•Guide the cable evenly across the drum and wipe clean when spooling to prevent
contamination, build-up, and damage.
•Keep the Control Unit clean and free of debris. Wipe clean after each use.
•Charge the battery after each operation.

6
Description of Equipment
Overall
The R-Cam XLT Color Video Water Well Inspection System is equipped with two cameras in a
single housing, each with a wide-angle lens, for viewing down hole and side view images in
water wells or boreholes. Low light level CMOS sensors allow the cameras to detect images
with minimal lighting power, as low as 1 LUX.
Light Emitting Diodes (LED’s) are housed in the Camera and provide lighting for the Down Hole
Image and the Side View Image. LED’s are shock proof and will provide approximately 5000
hours of use.
The Video Output from the Camera duplexes with the control signals and power, going down to
the Camera, on a single conductor armored, Kevlar reinforced, coaxial cable. The Camera is
therefore operable only with the R-Cam Control Unit supplied with the System and is not
compatible with other types of closed circuit survey systems.
A single coaxial Cable head Connector on the rear of the Camera is connected to the Cable by a
watertight pressure rated connector.
The R-Cam Control Unit provides all the controls to operate the Camera and Reel Assembly,
equipped with a 9” LCD Color Video Monitor, and embedded DVR with internal memory.
A 12 VDC rechargeable Absorbed Glass Mat Battery Pack is used to power the System and
Video Recorder making the entire System completely portable. The Battery Pack will provide
approximately 4-5 hours of operation depending on the amount of Video Recording and/or
Reel usage.
Camera
The Camera, shown in Figure 5, electronics and LED lighting are housed in a stainless steel outer
housing (Figure 5 Item 8), which when assembled is water tight at external pressures of 500 PSI.
The Down View Port (Figure 5 Item 5) protects the downhole view lens and LED lighting. The
Side View Glass Port (Figure 5 Item 7) protects the side view lens and LED lighting.

7
1. Lower Centering Band Collar
2. Centering Bands
3. Thread Protector and Support Tube
4. Upper Centering Band Collar
5. Down View Lens Port
6. Down View LED Lighting Port
7. Glass Side View Lens and LED Lighting Port
8. Camera Housing
9. Set Screw for Centering Band Collar
10. Screw for Centering Band
8
2
4
9
5
6
3
1
7
10
Figure 5

8
Reel Assembly
A portable 12 VDC electric powered reel (Figure 6) equipped with a variable speed motor and
1,000 feet (or 1,300 feet for R-Cam 1300) of coaxial cable is used to lower or raise the Camera
in the well. The coaxial cable is lightweight and Kevlar reinforced for strength. A shelf (Figure 6
Item 1) is located on the Reel Assembly to support the R-Cam Control Unit during operation.
An extendable Boom Arm
(Figure 6 Item 2) on the
Reel Assembly supports the
Camera over the well when
lowering or raising the
Camera during the survey.
An Electronic Encoder
(Figure 6 Item 3) is
mounted at the Boom head
and is used to display
accurate footage
information of the
Camera’s depth on the
Control Unit Video
Monitor. When the system
is not in use the Boom Arm
can be repositioned for
easier storage, by simply
removing the locking pin
(Figure 6 Item 4) at the
base of the Boom Arm,
removing and rotating the
Arm 180 degrees, placing
the Arm back on the base
and replacing the pin.
Power Supply
A 12V DC battery (Figure 1 Item 5) housed in a black box with a lifting handle and an external
battery charger are provided with the system. An LCD voltmeter with protective cover is
located on top of the housing.
3
2
1
Figure 6
4

9
When fully charged, the voltmeter will read about 13.0. The voltage will decrease during use.
Camera functions will start to diminish when the voltmeter reads 10.0. Expected run time for
the battery is 4 to 5 hours, depending on the amount of motor activity.
The battery supplied with the system is AGM (Absorbed Glass Mat) Battery which uses a special
absorbed electrolyte technology that is superior to conventional lead-acid batteries.
This completely sealed valve-regulated battery eliminates gas emissions and acid leakage for
longer and safer battery operation. This Industrial 12V Battery is maintenance-free, completely
sealed, vibration and freeze resistant, and non-spillable. Battery substitution is the leading
cause of system failures and voids all warranties.
If the system is used frequently, it is recommended to always keeping the battery recharging on
an AC plug indoors when not in use. If the battery is left at low or no charge for an extended
period it will not hold a charge. When charging, ENSURE SURE THE FUSE IS IN THE BATTERY.
When storing the system for an extended period of time, fully charge the battery for 24 hours
using the supplied charging cable. Then remove the fuse and store in a fully-charged state.
Repeat this procedure every 30 days to maintain a healthy battery life.
Control Unit
The R-CAM Control Unit is a lightweight portable, hard case that houses the 9” LCD Monitor
Video display with DVR and all the necessary electronics, to control and operate the Camera in
a lightweight, portable, hard cover, carrying / storage case.
The front panel controls on the Control Unit are shown in Figure 7.
12 VDC power is supplied to the Control Unit by the Battery (or Emergency Auxiliary Power
cord).
The Reel Control and Power Cables are connected to the Reel Assembly to provide Camera
control, Depth Encoder information, and Drive Motor power and control functions.
NOTE: IN THE EVENT OF A BATTERY PACK FAILURE OR A SURVEY RUNNING LONGER THAN
BATTERY POWER AVAILABLE THE R-CAM SYSTEM CAN BE OPERATED BY USING THE
VEHICLE BATTERY IN CONJUNCTION WITH THE EMERGENCY AUXILIARY POWER CORD
INCLUDED WITH THE R-CAM SYSTEM

10
The VIDEO OUT (Figure 7 Item 2) is available to connect to a DVR (or Auxiliary Equipment) Video
input with a BNC-RCA Cable. BNC-RCA Cables are available for purchase at www.lavalparts.com
and most online retailers.
The CAM CONTROL ON-OFF Switch (Figure 7 Item 5) routes power to the Camera and the
Camera LED lighting when switched to the ON position.
The FORWARD-REVERSE Switch (Figure 7 Item 6) rotates the Camera’s Side-View and Down-
View images, and is spring loaded to the STOP (center) position when released.
The VIEW-LIGHT Switch (Figure 7 Item 7) controls the image and light to be viewed on the LCD
Monitor, and is spring loaded to the center position when released. Pressing VIEW toggles
between “DOWN VIEW” and “SIDE VIEW” on the Monitor. Pressing LIGHT cycles through 5
preset light intensities or levels. The “DOWN VIEW” light intensity is independent of the “SIDE
VIEW” light intensity and do not have to match.
The CLEAR Switch (Figure 7 Item 8) is used to set the depth counter to zero (0000.00ft) after
positioning the Camera near the top of the well prior to the start of the survey. Loss of power
to the system will reset the depth counter to zero.
The REEL CONTROL ON-OFF Switch (Figure 7 Item 12) routes power to the Motor Drive controls
when switched to the ON position.
The FORWARD-STOP-REVERSE Switch (Figure 7 Item 10) controls the Cable Drum to either
lower or raise the Camera in the well, and is used in conjunction with the SPEED Control. The
toggle switch in the “STOP” position will prevent the Reel Assembly from moving in the forward
or reverse direction.
The SPEED Control Dial (Figure 7 Item 11) is used to control the rate at which the Motor Drive
plays out or rewinds the Cable. The speed should always be at MIN to start and then returned
back to MIN to stop the Motor Drive.
For DVR set-up and connections, see DVR GUIDE on page 12
NOTE: After individual use, the cable windings will NOT look or lay the same as when the
unit was delivered from the factory. This is normal and expected. It will NOT affect the
proper working of the Cable or Reel Assembly.

11
1. 12 VDC power input connector
2. Video Signal output connection
to external Video input
3. Monitor Power cable
4. Reel Power connector
5. Camera and Control Unit Power
ON-OFF Switch
6. Camera Rotation FORWARD-STOP-REVERSE
Switch
7. Camera VIEW-LIGHT Selector Switch
8. MENU and Depth counter reset CLEAR Switch
9. Monitor function INC/DEC Switch
10. Reel Motor FORWARD-STOP-REVERSE Switch
11. Reel Motor SPEED Dial
12. Reel Control Power ON-OFF Switch
13. Camera Function, Video, and Depth Encoder
connector
14. Keyboard USB Input
15. Memory USB (Flash Drive) Input
16. Embedded Microphone
Figure 7
1
2
3
4
5
7
6
8
9
10
11
12
1
13
14
15
16

12
DVR Guide
The Digital Video Recorder (DVR) records video and audio to USB storage media and can capture
snapshot images on-the-fly without interrupting recording. It has an internal real-time clock with
battery backup that provides date and time information. Videos and snapshots are saved to a folder
called DCIM on the USB devices. The DCIM folder is created if not present. The videos are recorded as
.ts files and the snapshots are .jpeg files. File names are automatically generated by the real-time clock.
The video bit rate can be tailored to match the user requirements and storage capacity.
The recorded audio comes from an internal microphone behind the front panel. The microphone can be
muted from recording if desired. Text overlays reflecting current date and time can be applied to
appear in the recorded video. A single line of user defined text comments can be overlaid in the video.
There are 5 user entered custom text lines.
The DVR has an internal 16GB USB storage device. This internal memory will store at least 8 hours of
video. There is a USB jack on the panel for an external storage device. There is no limit on capacity of
the USB storage devices; however, the devices need to be FAT 32 format. The DVR will simultaneously
record to both the internal and external USB storage devices. When either internal or external memory
becomes full, an on-screen message will prompt the user to address the capacity of the internal or
external memory before the recording option will resume.
There is also a USB jack on the panel for plugging in a standard PC-type USB keyboard. A wireless mini
keyboard is supplied with the DVR. There is a black ‘receiver’ for the provided mini keyboard inserted in
a USB space on the control unit. It will have two letters on it that correlate with the mini keyboard.
Without the receiver plugged into the control unit, the keyboard will not be able to function. NOTE: the
keyboard and its USB receiver are paired and cannot be mixed with another set.
Keyboard Use and Charging
The internal battery is a non-replaceable Polymer Lithium-ion type. If no keys are pressed for more than
3 minutes, the keyboard goes into Sleep Mode. Because of Sleep Mode, the keyboard’s battery will last
many hours and even many days on one charge. The battery will retain a charge in Sleep Mode from
500 to 700 hours. To re-charge the battery, plug the charging cable into the keyboard and into any
standard USB jack. The charging cable can be plugged into the RCAM panel to charge the battery and
simultaneously operate the keyboard; however, the keyboard receiver must be plugged in to either the
RCAM panel or the female-USB jack on the charging cable. The Green Power LED will flash when the
battery power is low. The Red Battery LED will light up when the keyboard is being properly charged.

13
Keyboard Functions
Key Function
Enter or Space Bar Menu or OK
Up Arrow Rewind Playback or Move Text Up
Down Arrow Fast Forward Playback or Move Text Down
ESC (Escape) Stop/Finalize Recording, Menu Back, or Playback Stop
RRecord Start or Pause Recording
SSnapshot
MMute or Unmute Microphone
PPause Record or Playback
Keyboard LED Indicators Meaning
YELLOW RF Signal ON=Transmitting
RED Battery Cable plugged in: ON=charging
OFF=Fully charged
GREEN Power ON=Power on, OFF=Sleep Mode, FLASHING=Low Power
WHITE CAPS LOCK ON=Caps Lock Active, OFF=Caps Lock Inactive
The DVR is controlled using the keyboard and an on-screen menu system. After initial power-up, press
the Space Bar or the Enter key to bring up the Top Menu. Then again press the Space Bar or Enter key to
go into one of the Sub Menus.
Getting Started
To start a recording press R. Press Ra second time to pause a recording, before pressing Ra third time
to resume recording again to create one continuous video. To stop and finalize recordings press ESC.
Finalization can take up to 2 minutes for long recordings. It is important to note that powering down
before stopping/finalizing the recording can result in losing the recording. A maximum video length of
1.5 hours is recommended to manage file size. Press Sat any time to take a snapshot image of the
video. To add a text overlay before recording see the Overlays Section on page 14.
Top Menu:
Play Video
View Snapshots
Overlays
File Management
Setup
Help With Keys

14
Play Video
Play from internal
Play from external
If only the internal device is present, the files list from the internal device is displayed.
File selection is made using the up and down arrow keys. Pressing Enter or Space starts playback.
View Snapshots
Behavior is similar to “Play video”
Overlays
Primary Overlay
Allows selection of the size of the text from either 8x14 or 16 x 16. You can also select
OFF which turns off the text display. The default setting is 16 x 16.
Setup Primary Overlay
Text
Allows selection of which text is displayed from date only, time only, time and date,
custom text 1, custom text 2, custom text 3, custom text 4, or custom text 5. The default
setting is time and date.
Custom Text
Allows the user to enter up to 5 custom text comment lines. Each line has a maximum
of 40 characters.
Date Format
Allows selection of the format of the date display. The default setting is MM –DD –
YYYY.
Time Format
Allows selection of the format of the time display. The default setting is 24 hour format
in HH: MM : SS.
Background
Allows selection of the background of the text from Black, Transparent, 50% black, or
75% black.

15
Move Up, Move Down, Move Left, Move Right
Allows the text to be moved on the screen.
Secondary Overlay
Allows selection of Title overlay, Coded overlay, Extra overlay, or off.
Setup Title/Coded/Extra Overlay
Edit Text
Allows the user to edit the preloaded text
Load
Allows the user to edit text that has been saved.
Save
Allows the user to keep any changes to the text.
Text Size
Allows selection of the size of the text from either 8x14 or 16 x 16. You can also select
OFF which turns off the text display. The default setting is 16 x 16.
Background
Allows selection of the background of the text from Black, Transparent, 50% black, or
75% black.
Move Up, Move Down, Move Left, Move Right
Allows the text to be moved on the screen.
File Management
Copy video from internal
Copy video from external
Copy snapshots from internal
Copy snapshots from external
Delete files from internal
Delete files from external
Rename files on internal
Rename files on external
If only the internal device is present, the external choices will not be shown.

16
Setup
Set Date/Time
This setting allows for setting up the battery backed-up real-time clock. The real-time clock is
used to automatically generate file names for saved video files and snapshots. There is also an
option of having the date/time overlay present in recorded video and snapshots.
Video
Video Standard
Allows selecting between NTSC and PAL video formats.
Interpolate
Turning interpolation on gets rid of motion artifacts at an expense of some vertical resolution
loss. The default setting is ON.
Video Bit Rate
Determines the compression level of recorded video. The higher the bit rate, the higher is
the quality, the more space is required on the storage device. The selection is from 1000kbps
to 5000kbps. The default setting is 3500kbps. At the default setting of 3500kbps, a minimum
of 8 hours can be recorded onto a 16GB storage device.
Playback Seek
Adjust the amount of the time skipped when using Rewind and Fast Forward functions.
Default is 10.
Snapshot Quality
Determines the compression level of snapshot. The higher the quality, the more space is
required on the storage device. The available settings are 97 (best) down to 50. Default is 90.
Snapshot Overlay
Turning on this setting allows the text overlay to be shown in Snapshots. Default is On.
Recording Format
Determines the video format .ts or .mp4. Default is .ts, because there is no loss of data in the
event of recording interruption, such as a loss of system power.

17
Audio
Audio Volume
Adjusts the microphone sensitivity. The higher the value, the louder the recorded audio. The
available settings are from 0 (min) to 10 (max). Default setting is 8.
Mute Recording at Start
Automatically mutes the mic at the start of each recording. The user can then unmute the
mic during recording when needed. As each new recording is started the mic is muted again.
The default setting is ON.
Audio Input
Selection is either MIC or LINE. Setting to LINE will decrease the volume level of the recorded
mic sound to barely audible. The default setting is MIC.
Playback Volume
The available settings are from 0 (min) to 10 (max). Default setting is 10.
Record Storage Device
Allows the selecting the recording destination devices: internal, external, or both. The default
setting is BOTH.
Set Language
Language can be set to English, French, German, Portuguese, or Spanish for the DVR menus
only. Default is English.
System Information
Displays various system information, including firmware version, detected storage devices with
free space available and allows system parameters to be reset, saved and loaded as follows.
Reset System Parameters
Resets all the parameter settings to Basic default settings. This option restores the DVR back
to the Laval Underground Surveys factory settings.
Save System Parameters
Saves all the parameter settings to USB memory storage. Only use this option if you wish to
change the factory settings from Laval Underground Surveys.
Load System Parameters
Loads all the parameter settings from USB memory storage. This option restores the DVR
back to the saved settings.
