LaView LV-D1104CW SERIES User manual

Digital Video Recorder
User Manual

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
1
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply
therefore with the applicable harmonized European standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local
supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted
municipal waste in the European Union. See the product documentation for specific battery
information. The battery is marked with this symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier
or to a designated collection point. For more information see: www.recyclethis.info.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
2
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact
dealer.
This manual is applicable to the following models:
LV-D1104CW,LV-D1108CW, LV-D1116CW
.
This manual may contain several technically incorrect places or printing errors, and the content is subject to
change without notice. The updates will be added into the new version of this manual. We will readily
improve or update the products or procedures described in the manual.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
3
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
•Ensure unit is installed in a well-ventilated, dust-free environment.
•Unit is designed for indoor use only.
•Keep all liquids away from the device.
•Ensure environmental conditions meet factory specifications.
•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
•Use the device in conjunction with an UPS if possible.
•Power down the unit before connecting and disconnecting accessories and peripherals.
•A factory recommended HDD should be used for this device.
•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
4
Product Key Features
General
PAL/NTSC adaptive video inputs.
H.264 video compression with high reliability and superior definition.
Encoding at up to WD1 (PAL: 960×576, NTSC: 960×480) resolution
Each channel supports dual-stream.
Independent configuration for each channel, including resolution, frame rate, bit rate, image
quality, etc.
Input and output video quality is configurable.
Normal and event recording parameters configurable per individual camera.
Encoding for audio/video composite stream or video stream; audio and video synchronization
during composite stream encoding.
Watermark technology.
Local Monitoring
Simultaneous HDMI/VGAand CVBS outputs.
HDMI/VGA output at up to 1920×1080P resolution.
1/4/6/8/9/16-division live view is supported, and the display sequence of screens is adjustable.
Live view screen can be switched in group, and manual switch and automatic cycle view is also
provided, the interval of automatic cycle can be adjusted.
Quick setting menu is provided for live view.
The selected live view channel can be shielded.
Motion detection, tamper-proof, video exception and video loss alarm functions.
Privacy mask.
Multiple PTZ protocols supported; setting and calling of PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
1 SATA hard disk can be connected to LV-D2104CS, LV-D2108CS and LV-D2116CS models,
with a maximum of 4TB storage capacity for each disk.
HDD group management.
Support HDD standby function.
HDD property: redundancy, read-only, read/write (R/W).
HDD quota management; different capacity can be assigned to different channel.
Recording and Playback
Holiday recording schedule configuration.
Normal and event video encoding parameters.
Multiple recording types: manual, normal, motion.
8 recording time periods with separated recording types.
Pre-record and post-record for motion detection for recording, and pre-record time for schedule
and manual recording.
Searching record files by event.
Customization of tags, searching and playing back by tags.
Locking and unlocking record files.
Local redundant recording.
Searching and playing back record files by channel number, recording type, start time, end time,
etc.
Smart search for the selected area in the video.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
5
Zooming in when playback.
Playing reversely.
Support pause, speed up, speed down, skip forward, and skip backward when playback, locating
by dragging the mouse.
4/8/16-ch synchronous playback.
Backup
Export video clips when playback.
Management and maintenance of backup devices.
Other Local Functions
Three-level user management; admin user is allowed to create many operating accounts and
define their operating permission, which includes the limit to access any channel.
Operation, exceptions and log recording and searching.
Import and export of device configuration information.
Network Functions
1 self-adaptive 10M/100M network interface
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, RTSP, NTP, SADP, SMTP, SNMP, UPnP™, NFS,
and iSCSI are supported.
TCP, UDP and RTP for unicast.
Remote search, playback, download, locking and unlocking of the record files, and downloading
files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of control panel and mouse.
Remote HDD formatting and program upgrading.
Remote system restart.
RS-485 transparent channel transmission.
Remotely start/stop recording.
Upgrade by remote FTP server.
Remote PTZ control.
Two-way audio and voice broadcasting.
Embedded WEB server.
Development Scalability:
SDK for Windows and Linux system.
Source code of application software for demo.
Development support and training for application system.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
6
TABLE OF CONTENTS
Chapter 1 Introduction...............................................................................................................9

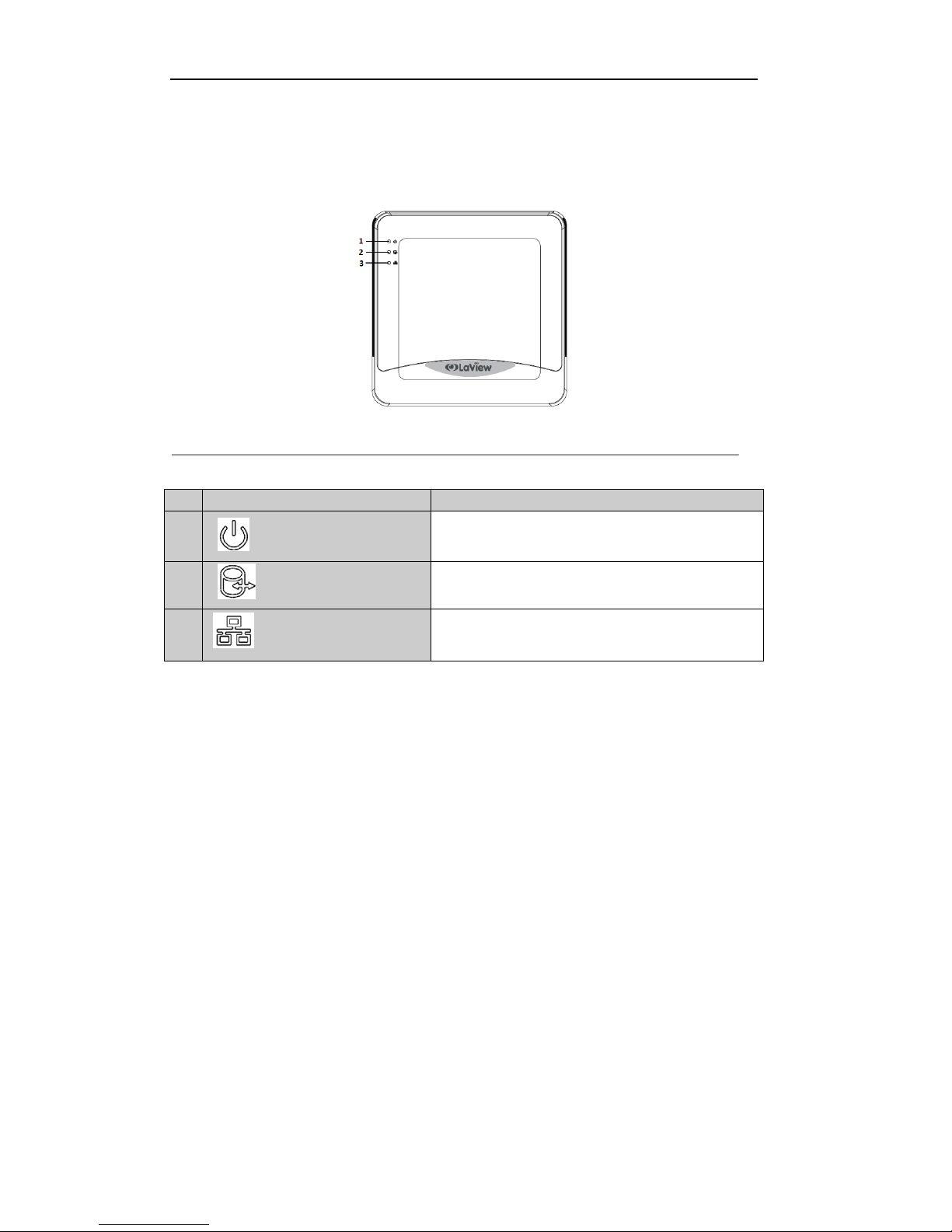

1.1 Front Panel.......................................................................................................10

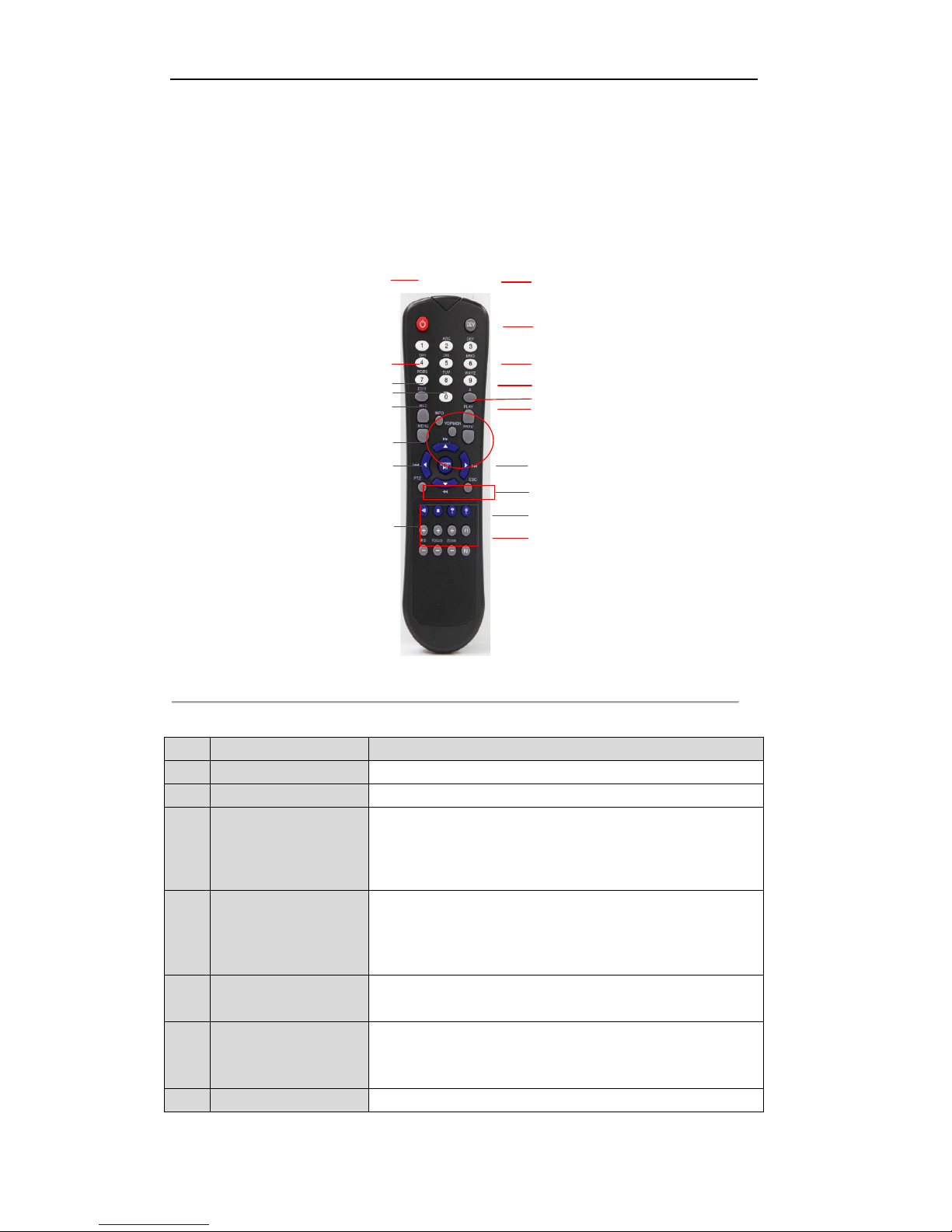

1.2 IR Remote Control Operations.........................................................................11
1.3 USB Mouse Operation.....................................................................................13
1.4 Input Method Description................................................................................14
1.5 Rear Panel........................................................................................................15

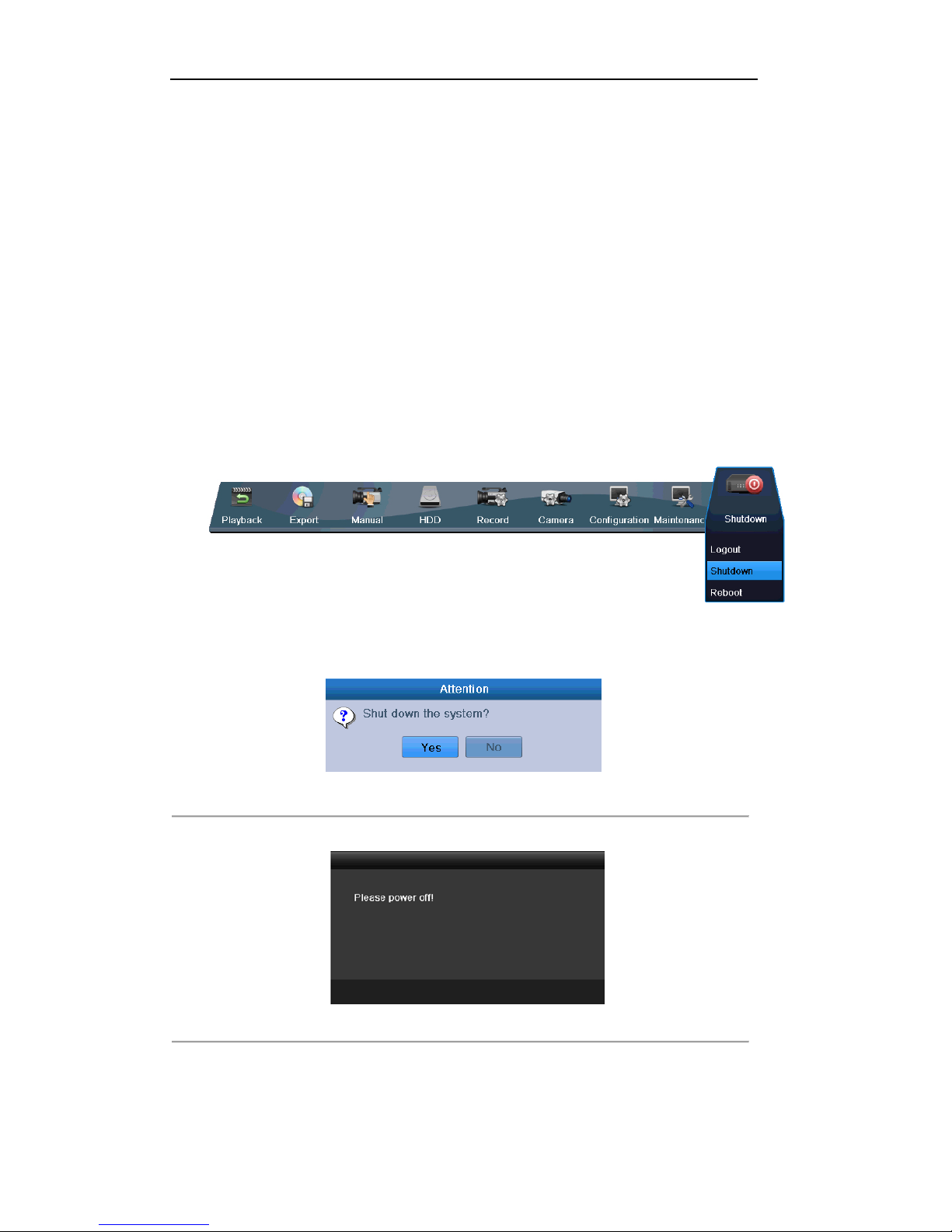

1.6 Starting Up and Shutting Down the Device.....................................................16
Chapter 1 Getting Started........................................................................................................17
Chapter 2 Live View..................................................................................................................21
3.1 Introduction of Live View................................................................................22
3.2 Operations in Live View Mode........................................................................23
3.2.1 Using the Mouse in Live View.........................................................................23
3.2.2 Quick Setting Toolbar in Live View Mode ......................................................24
3.3 Adjusting Live View Settings ..........................................................................27
3.4 Channel-zero Encoding....................................................................................29
3.5 User Logout......................................................................................................30
Chapter 3 PTZ Controls...........................................................................................................31
4.1 Configuring PTZ Settings..........................................................................................32
4.2 Setting PTZ Presets, Patrols & Patterns.....................................................................32
4.2.1 Customizing Presets.........................................................................................32
4.2.2 Calling Presets..................................................................................................33
4.2.3 Customizing Patrols.........................................................................................35
4.2.4 Calling Patrols..................................................................................................36
4.2.5 Customizing Patterns .......................................................................................37
4.2.6 Calling Patterns................................................................................................38
4.3 PTZ Control Toolbar..................................................................................................39
Chapter 5 Record Settings........................................................................................................41
5.1 Configuring Encoding Parameters ...................................................................42
5.2 Configuring Record Schedule..........................................................................45
5.3 Configuring Motion Detection Record ............................................................48
5.4 Configuring Manual Record ............................................................................51
5.5 Configuring Holiday Record............................................................................52
5.6 Configuring Redundant Record .......................................................................54
5.7 Configuring HDD Group for Record...............................................................56
5.8 Files Protection ................................................................................................57
Chapter 6 Playback...................................................................................................................59
6.1 Playing Back Record Files...............................................................................60
6.1.1 Playing Back by Channel..........................................................................60
6.1.2 Playing Back by Time...............................................................................62
6.1.3 Playing Back by Event Search..................................................................63
6.1.4 Playing Back by Tag .................................................................................66

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
7
6.1.5 Playing Back by Searching System Log ...................................................69
6.1.6 Playing Back External Files......................................................................70
6.2 Auxiliary Functions of Playback......................................................................71
6.2.1 Playing Back Frame by Frame..................................................................71
6.2.2 Digital Zoom.............................................................................................72
6.2.3 Reverse Playback of Multi-channel ..........................................................72
Chapter 7 Backup .....................................................................................................................74
7.1 Backing up Record Files..................................................................................75
7.1.1 Quick Export.............................................................................................75
7.1.2 Backing up by Normal Video Search........................................................76
7.1.3 Backing up by Event Search .....................................................................80
7.1.4 Backing up Video Clips.............................................................................83
7.2 Managing Backup Devices ..............................................................................85
Chapter 8 Alarm Settings.........................................................................................................88
8.1 Setting Motion Detection.................................................................................89
8.2 Detecting Video Loss.......................................................................................91
8.3 Detecting Video Tampering..............................................................................92
8.4 Handling Exceptions........................................................................................94
Chapter 9 Network Settings.....................................................................................................95
9.1 Configuring General Settings...........................................................................96
9.2 ConfiguringAdvancedSettings .......................................................................97
9.2.1 Configuring PPPoE Settings............................................................................97
9.2.2 Configuring DDNS ..........................................................................................97
9.2.3 Configuring NTP Server ................................................................................100
9.2.4 Configuring SNMP ........................................................................................100
9.2.5 Configuring UPnP™......................................................................................101
9.2.6 Configuring Remote Alarm Host ...................................................................102
9.2.7 Configuring Multicast....................................................................................103
9.2.8 Configuring RTSP..........................................................................................103
9.2.9 Configuring Server and HTTP Ports..............................................................104
9.2.10 Configuring Email........................................................................................104
9.3 Checking Network Traffic..............................................................................107
9.4 Network Detection.........................................................................................108
9.4.1 Testing Network Delay and Packet Loss........................................................108
9.4.2 Exporting Network Packet.............................................................................108
9.4.3 Checking Network Status...............................................................................110
9.4.4 Checking Network Statistics..........................................................................111
Chapter 10 HDD Management ..............................................................................................112
10.1 Initializing HDDs...........................................................................................113
10.2 Managing Network HDD...............................................................................114
10.3 10.3 Managing HDD Group...........................................................................117
10.3.1 Setting HDD Groups....................................................................................117
10.3.2 Setting HDD Property..................................................................................118
10.4 Configuring Quota Mode...............................................................................120

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
8
10.5 Checking HDD Status....................................................................................121
10.6 Checking S.M.A.R.T. Information.................................................................122
10.7 10.7 Detecting Bad Sector..............................................................................123
10.8 Configuring HDD Error Alarms.....................................................................124
Chapter 11 Camera Settings...................................................................................................125
11.1 Configuring OSD Settings .............................................................................126
11.2 Configuring Privacy Mask.............................................................................127
11.3 Configuring Video Parameters.......................................................................128
Chapter 12 Device Management and Maintenance .............................................................129
12.1 Viewing System Information .........................................................................130
12.1.1 Viewing Device Information........................................................................130
12.1.2 Viewing Camera Information.......................................................................130
12.1.3 Viewing Record Information........................................................................130
12.1.4 Viewing Network Information .....................................................................131
12.1.5 Viewing HDD Information...........................................................................131
12.2 Searching & Exporting Log Files...................................................................133
12.3 Importing/Exporting Configuration Files.......................................................135
12.4 Upgrading System..........................................................................................136
12.4.1 Upgrading by Local Backup Device............................................................136
12.4.2 Upgrading by FTP........................................................................................136
12.5 Restoring Default Settings .............................................................................138
Chapter 13 Others...................................................................................................................139
13.1 Configuring General Settings.........................................................................140
13.2 Configuring DST Settings..............................................................................141
13.3 Configuring More Settings.............................................................................142
13.4 Managing UserAccounts...............................................................................143
13.4.1Addinga User...............................................................................................143
13.4.2 Deleting a User.............................................................................................145
13.4.3 Editing a User...............................................................................................145
13.4.4 Changing Password of Admin......................................................................146
13.5 Logging out/Shutting down/Rebooting Device..............................................148
Chapter 14 Appendix..............................................................................................................149
14.1 Glossary .........................................................................................................150
14.2 FAQ ................................................................................................................151

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
9
Chapter 1 Introduction

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
10
1.1 Front Panel
The front panel is shown below:
Figure 1. 1 Front Panel
Ta ble 1. 1 Description of Panel
No. Name Function Description
1 Indicator turns red when DVR is powered up.
2 Indicator lights in red when data is being read from
or written to HDD.
3 Indicator blinks blue when network connection is
functioning properly.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
11
1.2 IR Remote Control Operations
The device may also be controlled with the included IR remote control, shown in Figure 1.4.
Note: Batteries (2×AAA) must be installed before operation.
12
3
45
67
8
10 9
11
12
13 14
15
16
17 18
Figure 1.2 Remote Control
Ta ble 1. 2 Description of the IR Remote Control Buttons
No. Name Description
1 POWER Power on/off the device.
2 DEV Enables/Disables Remote Control.
3 Alphanumeric Buttons Switching to the corresponding channel in Live view or PTZ Control
mode.
Inputting numbers and characters in Edit mode.
Switching between different channels in All-day Playback mode.
4 EDIT Button Editing text fields. When editing text fields, it will also function as a
Backspace button to delete the character in front of the cursor.
On checkbox fields, pressing the EDIT button will tick the checkbox.
In Playback mode, it can be used to generate video clips for backup.
5 A Button Switching between input methods (upper and lowercase alphabet,
symbols and numeric input).
6 REC Button Entering the Manual Record settings menu.
In PTZ control settings, press the REC button and then you can call a
PTZ preset by pressing Numeric button.
7 PLAY Button Entering the All-day Playback menu.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
12
No. Name Description
8 INFO Button Reserved.
9 VOIP/MON Button Selecting all items on the list;
In live view or playback mode, it can be used to switch between main
and auxiliary video output.
10 MENU Button Back to the Main menu (after successful login).
11 PREV Button Switching between single screen and multi-screen mode.
12 DIRECTION/ENTER
Buttons
Navigating between different fields and items in menus.
In Playback mode, the Up and Down button are used to speed up and
slow down the playing of recorded video.
The Left and Right button will select the recorded video of 30 reverse
and 30s forward.
In live view mode, these buttons can be used to cycle through channels.
13 PTZ Button Enter the PTZ Control mode.
14 ESC Button Back to the previous menu
Pressing for arming/disarming the DVR in Live View mode.
15 RESERVED Reserved.
16 F1 Button Selecting all items on the list when used in a list field.
In PTZ Control mode, it will turn on/off PTZ light.
17 PTZ Control Buttons Adjusting the iris, focus and zoom of a PTZ camera.
18 F2 Button Cycle through tab pages.
Troubleshooting Remote Control:
Note: Make sure you have installed batteries properly in the remote control. And you have to aim the remote
control at the IR receiver on the front panel.
If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.
Steps:
1. Go to Menu > Configuration > General > More Settings by operating the mouse.
2. Check and remember the device No. The default No. is 255. This device No. is valid for all the IR
remote controls.
3. Press the DEV button on the remote control.
4. Enter the device No. from step 2.
5. Press the ENTER button on the remote.
If the remote control is operating properly, but there is still no response from the remote, please check the
following:
1. Batteries are installed correctly and the polarities of the batteries are not reversed.
2. Batteries are fresh and not out of charge.
3. IR receiver is not obstructed.
If the remote still can’t function properly, please change a remote and try again, or contact the device provider.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
13
1.3 USB Mouse Operation
A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB
mouse:
1. Plug USB mouse into one of the USB interfaces on the front panel of the device.
2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible
reason may be that the two devices are not compatible, please refer to the recommended device list from
your provider.
The operation of the mouse:
Ta ble 1. 3 Description of the Mouse Control
Name Action Description
Left-Click
Single-Click Live view: Select channel and show the quick set menu.
Menu: Select and enter.
Double-Click Live view: Switch single-screen and multi-screen.
Click and Drag PTZ control: pan, tilt and zoom.
Tamper-proof, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar.
Right-Click Single-Click Live view: Show menu.
Menu: Exit current menu to upper level menu.
Scroll-Wheel
Scrolling up Live view: Previous screen.
Right-click Menu: Previous item.
Scrolling down Live view: Next screen.
Right-click Menu: Next item.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
14
1.4 Input Method Description
Figure 1.3 Soft Keyboard
Description of the buttons on the soft keyboard:
Ta ble 1. 4 Description of the Soft Keyboard Icons
Icons Description Icons Description
English Capital English
Numbers Symbols
Lowercase/Uppercase Backspace
Space Enter
Exit

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
15
1.5 Rear Panel
LV-D1108CW:
Figure 1.4 Rear Panel of LV-D2104CS
Note: The LV-D1104CW provides 4 video input interfaces and the LV-D1116CW provides 16
video input interfaces on the rear panel.
Ta ble 1. 5 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC connector for analog video input.
2 VIDEO OUT BNC connector for video output.
3 HDMI Interface Connects HDMI cable.
4 AUDIO IN RCAconnector for audio input.
5 LAN Interface RJ45 10M / 100M Ethernet interface.
6 GND Ground(needs to be connected when DVR starts up)
7 VGA DB15 connector for VGAoutput. Display local video output and menu.
8 AUDIO OUT RCAconnector for audio output.
9 USB Interface Connects USB mouse or USB flash memory devices.
10 12V 12VDC power supply.
1 VIDEO IN BNC connector for analog video input.
2 VIDEO OUT BNC connector for video output.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
16
1.6 Starting Up and Shutting Down the Device
Purpose:
Proper startup and shutdown procedures are crucial to expanding the life of the device.
Before you start:
Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground
connection is working properly.
Starting up the device:
Steps:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device.
2. Press the POWER button on the rear panel. The Power indicator LED should turn green indicating that
the unit begins to start up.
Shutting down the device:
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown
Figure 1.6 Shutdown Menu
2. Click the Shutdown button to enter the following dialog box:
Figure 1.7 Dialog Box for S h u t do w n
3. Click the Yes button. The following message box pops up:
Figure 1.8 Message Box for Power Off
4. Turn off the power switch on the rear panel of DVR.
Rebooting the device
In the Shutdown menu (Figure 1.6), you can also click Reboot to reboot the device.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
17
Chapter 1 Getting Started

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
18
By default, the Setup Wizard starts once the device has loaded, as shown in Figure 2.1.
Figure 2. 1 Start Wizard Interface
Operating the Setup Wizard:
1. The Start Wizard can walk you through some important settings of the device. If you don’t want to use
the Start Wizard at that moment, click . You can also choose to use the Start Wizard next
time by leaving the “Start wizard when device starts?” checkbox checked.
2. Click on the Wizard window to enter the Login window, as shown in Figure 2.2.
Figure 2. 2 Login Window
3. Enter the admin password. By default, the password is 12345.
4. To change the admin password, check the New Admin Password checkbox. Enter the new password
and confirm the password in the given fields.
5. Click to enter the date and time settings window, as shown in Figure 2.3.
Figure 2. 3 Date and Time Settings
6. After the time settings, click which takes you to the Network Start Wizard window, as shown
in Figure 2.4.

User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR
19

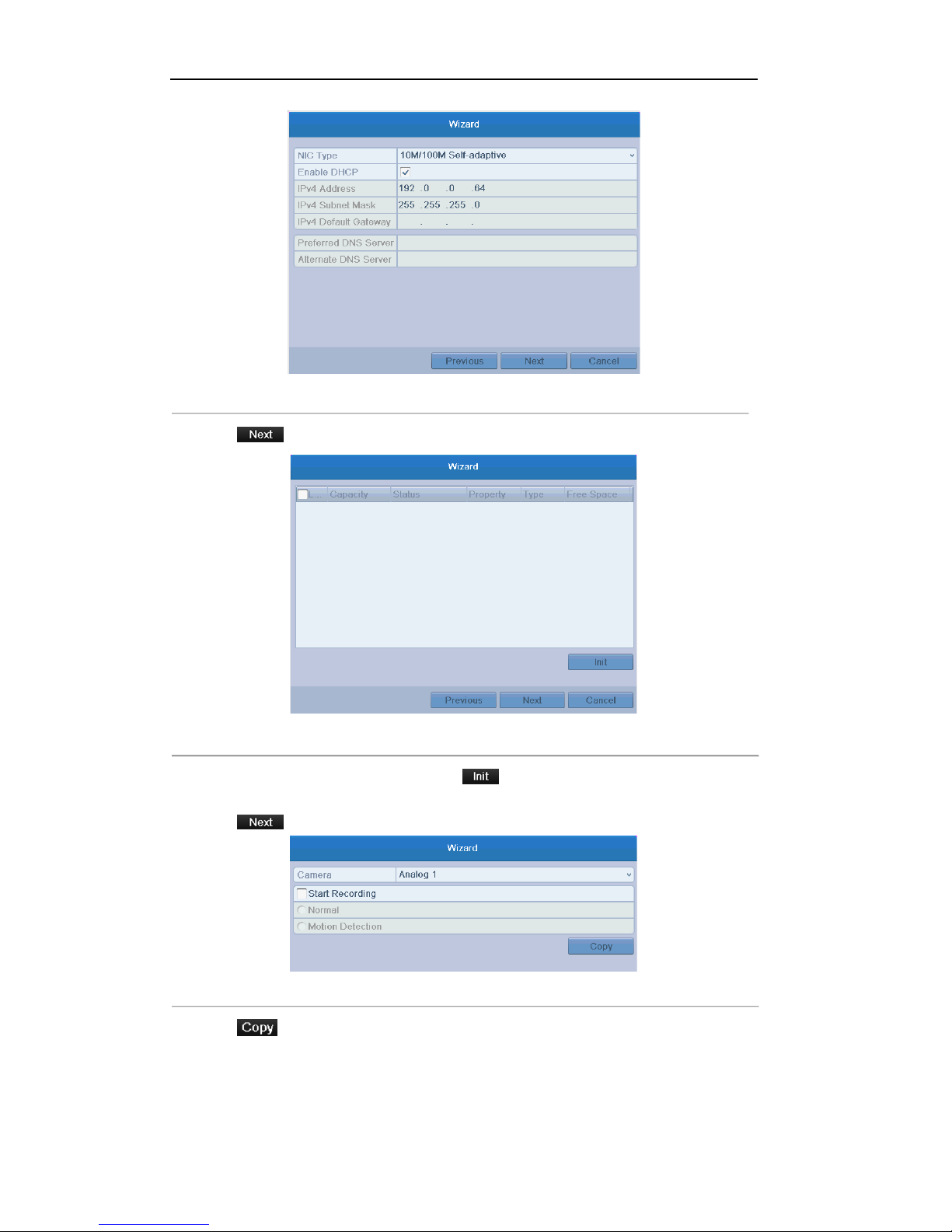

Figure 2. 4 Network Configuration
7. Click to enter the HDD Management window.
Figure 2. 5 HDD Management
8. To initialize the HDD, select the HDD and click . Initialization removes all the data saved in the
HDD.
9. Click to enter the Record Settings window.
Figure 2. 6 Record Settings
10.Click to copy the settings to other channels, as shown in Figure 2.7.
